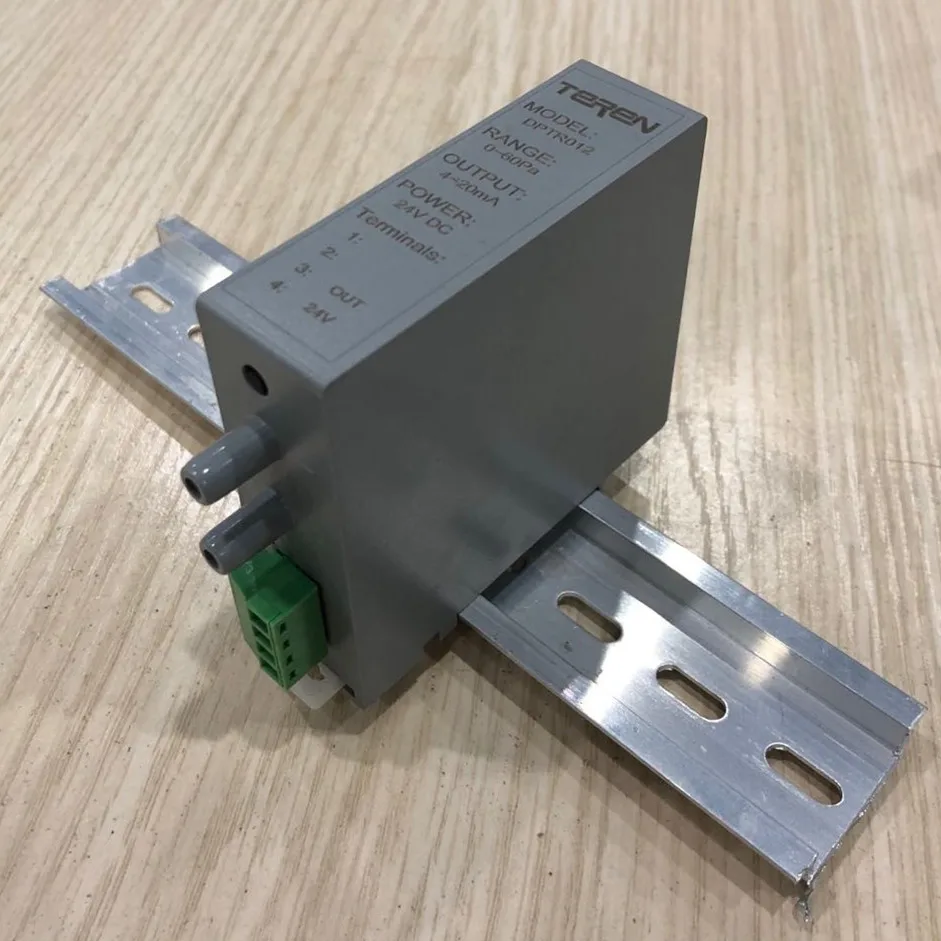

DPTR rail mount l differential pressure DP transmitter for standard 35mm DIN rail mount

DPTR rail mount l differential pressure DP transmitter for standard 35mm DIN rail mount.

Applications & Features

lDesigned specifically for standard 35mm DIN rail mount, for compact installation in control panels and instruments

lApply high accuracy MEMS sensor and digital technologies, can measure differential pressure on equipment such as isolator, clean bench and cabinet for pharmaceutical, biological safety and medicine research, microelectronics, hazardous chemicals operation and various laboratories

lMultiple ranges, engineering units and outputs selectable

lGood performance, accuracy 1.0% or 0.5%FS selectable

lOther functions: zero reset, response time set, etc.

Specifications

Medium: non-combustible, non-corrosive air, insensitive to moisture, dust, condensation and oil

Temp.: Working -20~70°C; Medium 0~60°C;

Compensation 0~50°C; Storage -30~70°C

Working Pressure: overload 10xFS, burst 15xFS

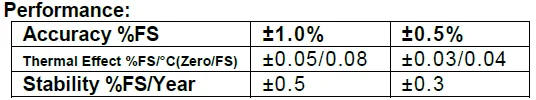

Performance:

Response Time: 0.5/1/2/5s, can be set by keys

Process Connection: 5mm ID tubing

Output: 0~10V, 4~20mA (2 wires) or RS485, selectable

 Output Load: ≤500Ω (current), ≥2kΩ (voltage)

Power: Current:18.5~35VDC (R_L=500Ω), 8.5~35VDC (R_L=0Ω)

Voltage: 16~28VAC/ 16~35VDC

Zero reset: outside key to operate easily

Housing: fire retardant ABS+PC(UL94V-0); IP30

Approval: CE, meet EN61326-1 for industrial equipment

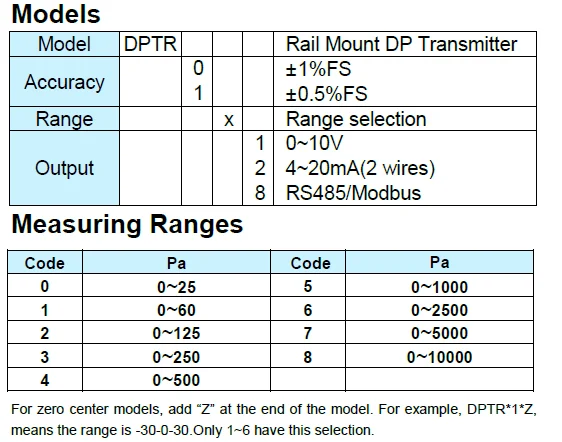

Models

Measuring Ranges

For zero center models, add “Z” at the end of the model. For example, DPTRx1xZ, means the range is -30-0-30. Only 1~6 have this selection.

FAQ:

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
