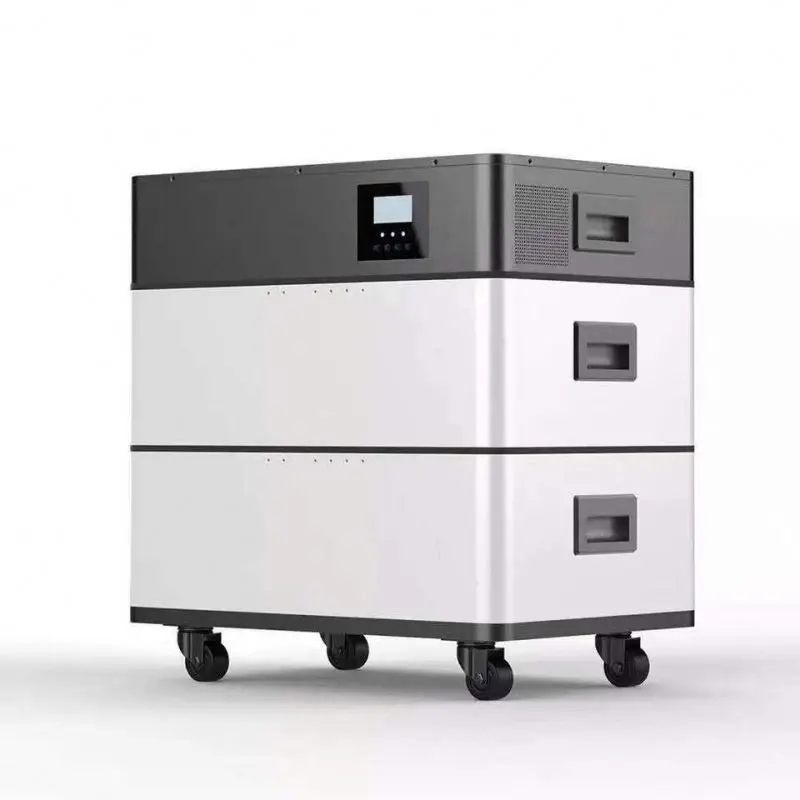

High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage
High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage

High Capacity Deep Cycle 48v 100ah lifepo4 stack battery hv battery for solar system energy storage

Share on (1600820692173):


Price:$810.00 - $1,150.00

Quantity:


Product Overview

Description





Product Description





















































































































Product number


Stack T10



Norminal Battery Energy


5120WH


Norminal Capacity


100Ah


Norminal Voltage


51.2V


Dimensions


635*400*192MM


Internal Resistance


≤35mΩ


Cycle Life


>6000


Months Self Discharge


<3%


Charge Data


DC Normal Charge Voltage


58.4±1Vdc


Charge Mode


0.2C to 58.4V, then 58.4V,
charge current to 0.02C (CC/CV)


Recommended Charger Current


≤25A


Allowed Max. Charge Current


100A


Cut-off Voltage


58.4±1Vdc


Discharge Data



Continuous Discharge Current


100A



Allowed Max. discharge current


300A(30S)


Discharge cut-off voltage


40V


Working Condition


Charge Temperature


0℃ to 45℃ (32℉ to 113℉)


Discharge Temperature


-20℃ to 60℃ (-4℉ to 140℉)


Storage Temperature


0℃ to 40℃ (32℉ to 104℉)


Enclosure Protection Level


IP65


Mechanical Data


Cell&Capacity


Lifepo4 cell 3.2V100AH


Shell material


Iron shell
