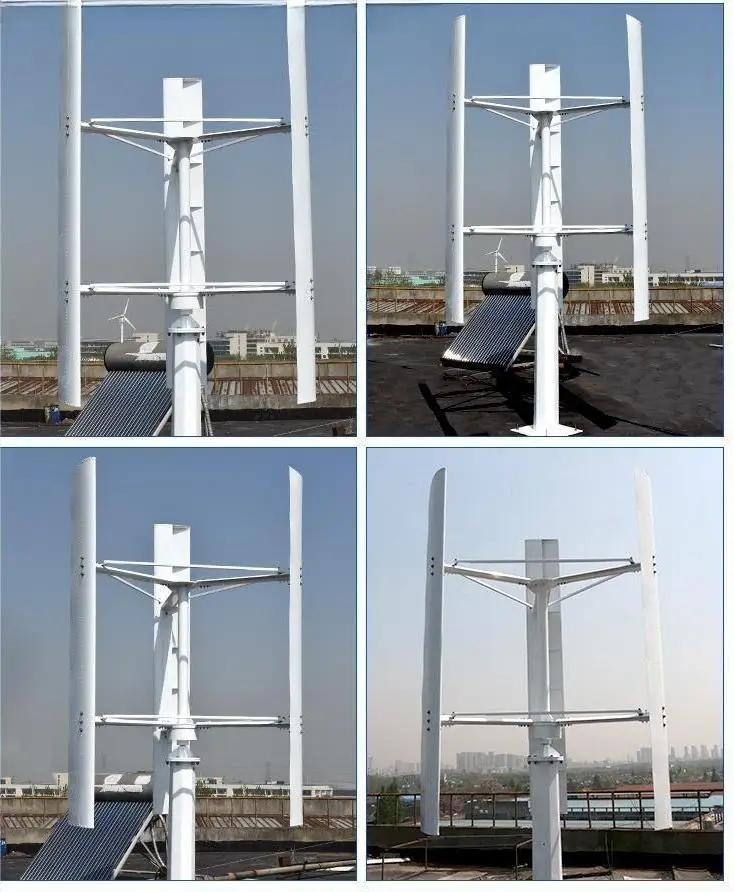

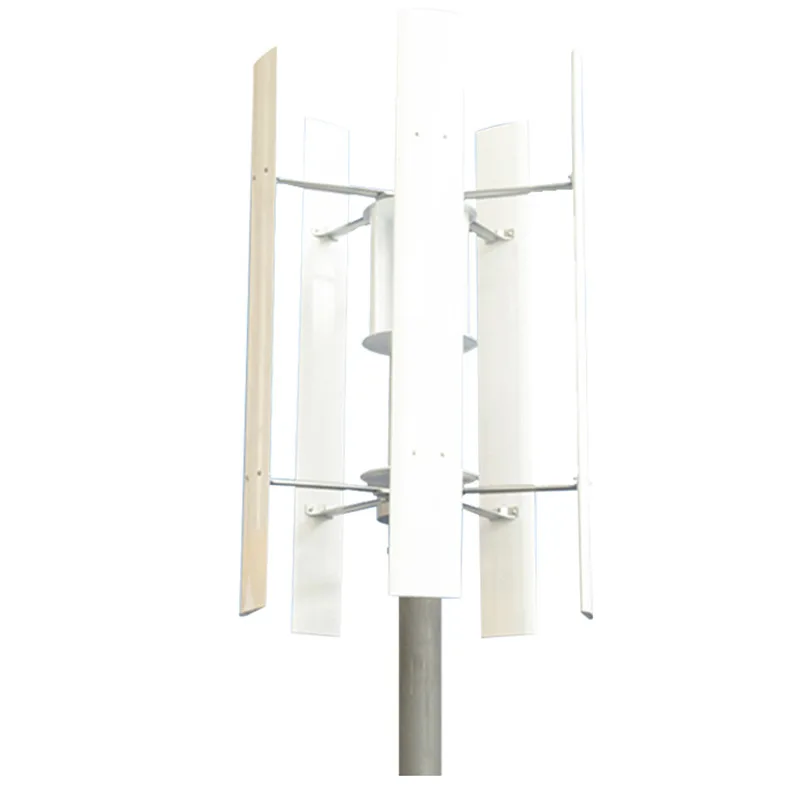

2KW 3KW 5KW 10KW 20KW 30KW 50KW 220V 380V Renewable Energy System PMG Generators Vertical Axis Wind Turbine Generator
- Category: >>>
- Supplier: Wuxi Yujia Import And Export Trading Co. Ltd.
Share on (1600820701454):
Product Overview
Description
Product Paramenters
Model | YJ-H1-1000 | YJ-H1-2000 | YJ-H1-3000 | YJ-H1-5000 | |||
Rated power | 1KW | 2KW | 3KW | 5KW | |||
Blade quantity | 3/4/5pcs | 3/4/5pcs | 3/4/5pcs | 3/4/5pcs | |||
Impeller height | 1.8m | 2.8m | 3.2m | 3.6m | |||
Wind wheel diameter | 1.2m | 1.6m | 2m | 2.4m | |||
Nominal voltage | 48V/96V/120V/customized | ||||||
Form | Vertical axis wind turbine | ||||||
Start-up wind speed | 2.3m/s | ||||||
Rated wind speed | 11m/s | ||||||
Extreme wind | 53m/s | ||||||
Braking system | Electromagnetic Brake/Mechanical Brake (custom) | ||||||
Hydraulic brake | Active brake/Electric brake | ||||||
Controller unit | PLC | ||||||
Interface | HMI | ||||||
Alternator type | Three phase coreless permanent magnet synchronous generator | ||||||
Insulation class | H | ||||||
Blade material | Aluminium alloy | ||||||
Tower type | Independent pole | ||||||
Authentication | CE,IOS | ||||||
Noise level | <65dBA | ||||||
Temperature | -20℃-50℃ | ||||||
Altitude | <2000m | ||||||
Degree of protection | IP54 | ||||||
Design life | 20years | ||||||
Product Description
Product characteristics
1. Low starting wind speed, small size, beautiful name, low running vibration.
2. Use humanized flange installation design, convenient installation and maintenance.
3. Aluminum alloy body, wind turbine blade made of nylon fiber material, with optimized aerodynamic shape design and structure design, low starting wind speed, high utilization coefficient of wind energy, increase the annual power generation.
4. The AC generator with permanent magnet rotor is used for power generation, with a special rotor design, which can effectively reduce the group torque of the generator, only 1/3 of that of the ordinary motor. At the same time, the wind turbine and the generator have better matching characteristics and the reliability of the unit operation.
5. Adopt high power tracking intelligent microprocessor control, effectively adjust the current and voltage.
2. Use humanized flange installation design, convenient installation and maintenance.
3. Aluminum alloy body, wind turbine blade made of nylon fiber material, with optimized aerodynamic shape design and structure design, low starting wind speed, high utilization coefficient of wind energy, increase the annual power generation.
4. The AC generator with permanent magnet rotor is used for power generation, with a special rotor design, which can effectively reduce the group torque of the generator, only 1/3 of that of the ordinary motor. At the same time, the wind turbine and the generator have better matching characteristics and the reliability of the unit operation.
5. Adopt high power tracking intelligent microprocessor control, effectively adjust the current and voltage.

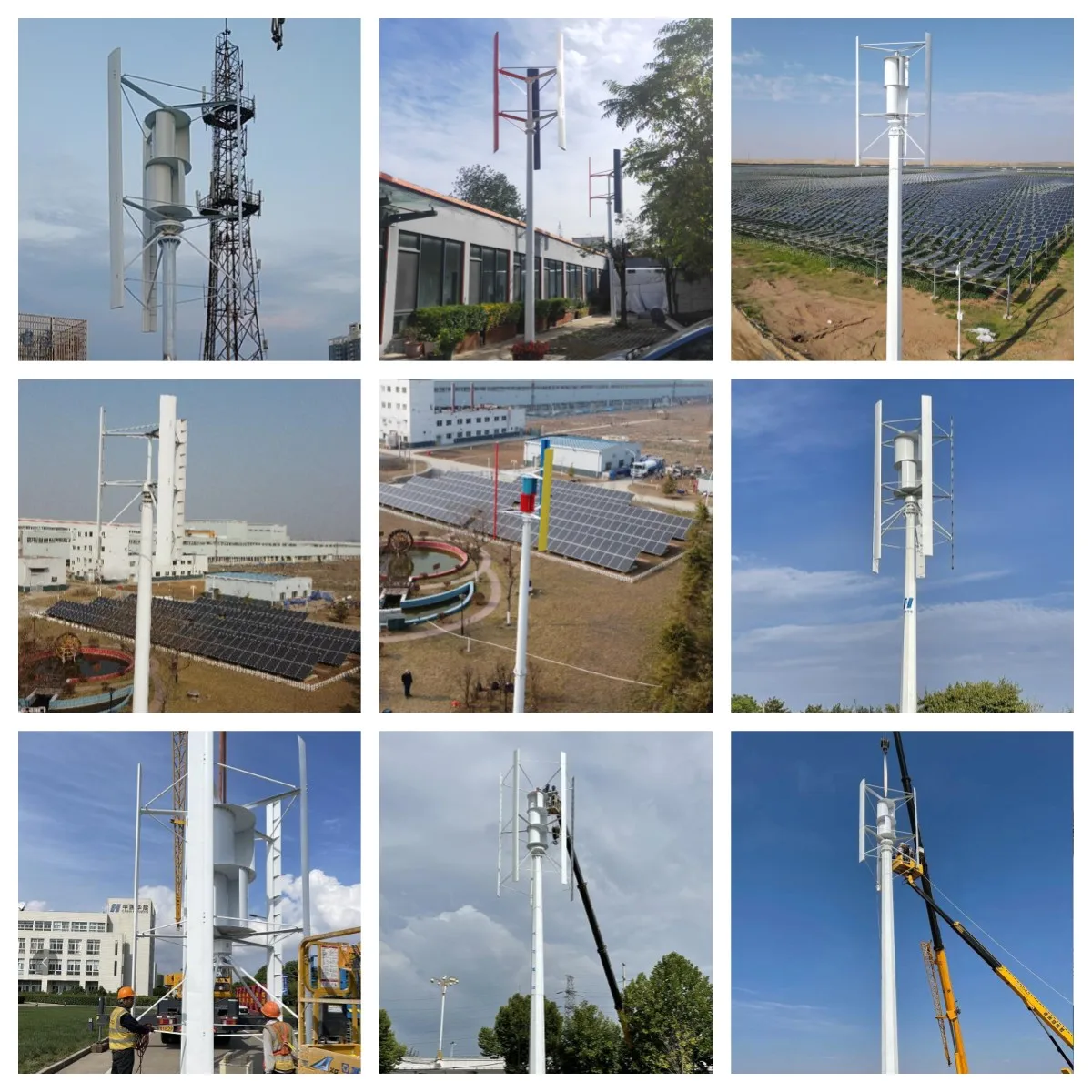

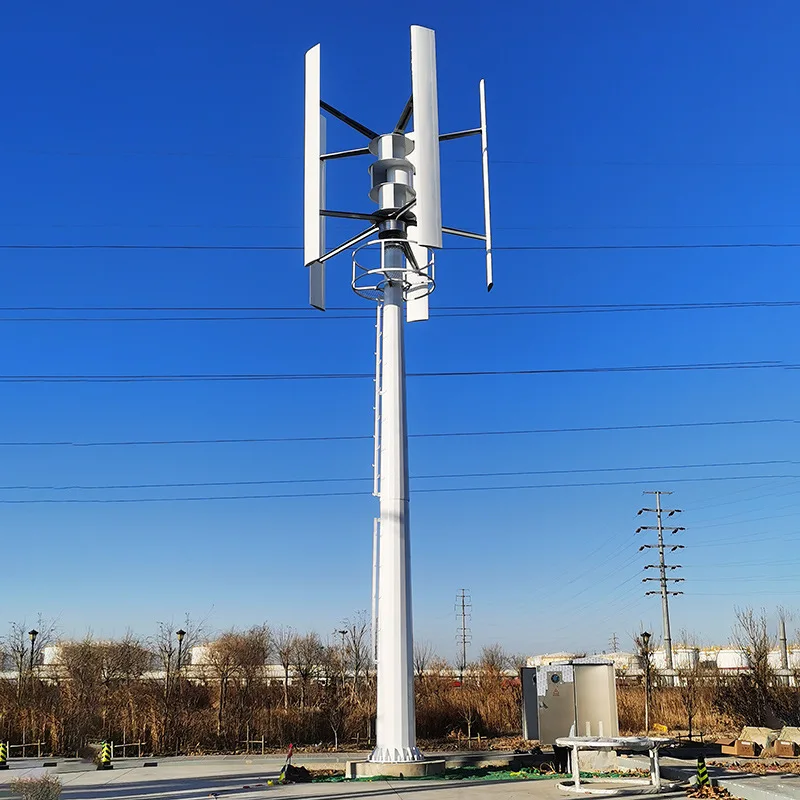

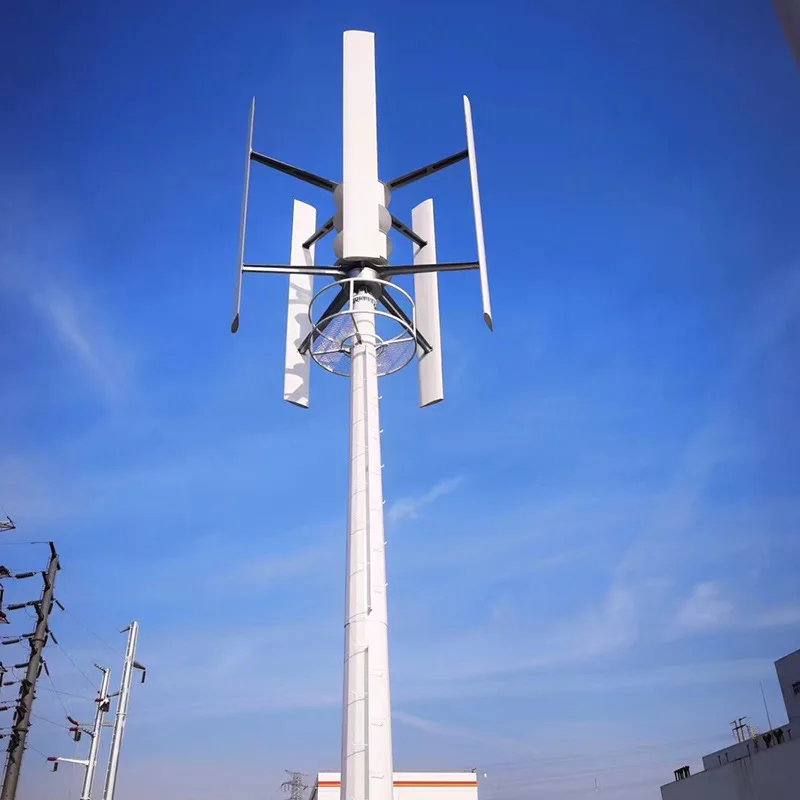

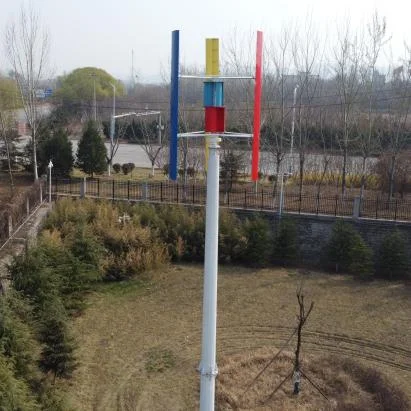

Scene Display
Our Advantages

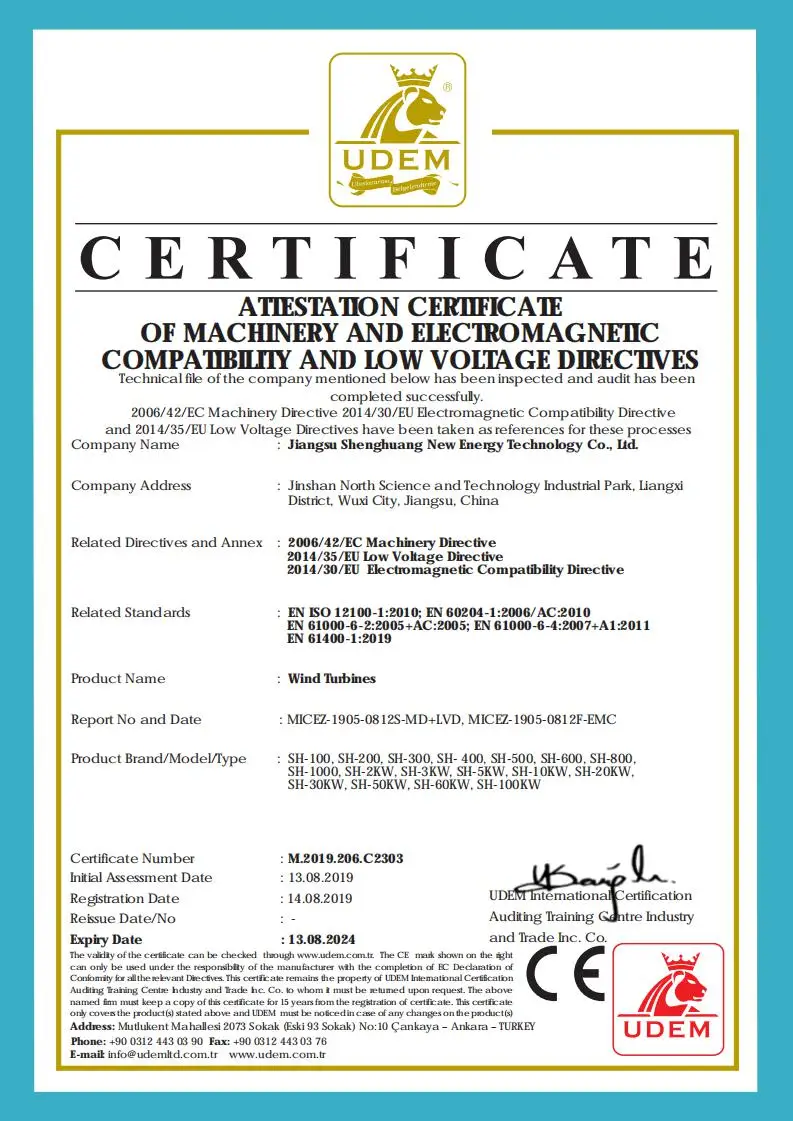

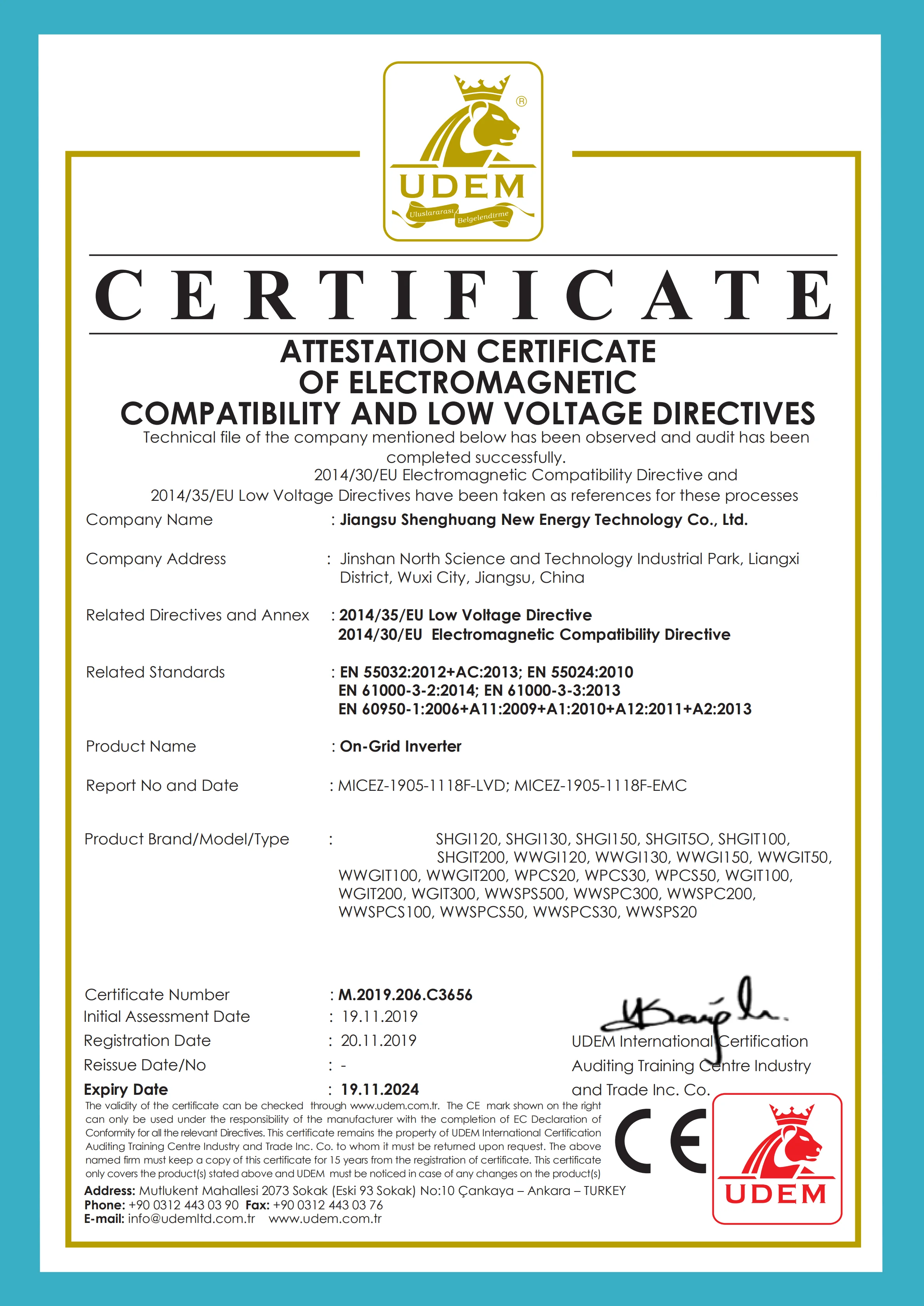

Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.Q: What can you buy from us?
A:Wind turbine, solar panel, energy storage battery, controller inverter.
2.Q:how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
3.Q:Why do you purchase from us instead of other suppliers?
A:We have over 6 years of experience in manufacturing and marketing wind turbines and generators. We export to 24 countries. Whether it is sales or installation, we will provide you with the best support.
4.Q: Is the system easy to install?
A:Very simple, each customer can do it themselves, we will provide you with all the installation components and very detailed manuals and videos. If you are still confused, our technicians are always available to support you via video to ensure there are no connection errors.
5.Order instructions：
A:Our products need to be customized in advance, please consult customer service before purchase, the need to customize the goods to determine the order period, and the specific situation of the product to do a comprehensive understanding, we will serve you wholeheartedly.
A:Wind turbine, solar panel, energy storage battery, controller inverter.
2.Q:how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
3.Q:Why do you purchase from us instead of other suppliers?
A:We have over 6 years of experience in manufacturing and marketing wind turbines and generators. We export to 24 countries. Whether it is sales or installation, we will provide you with the best support.
4.Q: Is the system easy to install?
A:Very simple, each customer can do it themselves, we will provide you with all the installation components and very detailed manuals and videos. If you are still confused, our technicians are always available to support you via video to ensure there are no connection errors.
5.Order instructions：
A:Our products need to be customized in advance, please consult customer service before purchase, the need to customize the goods to determine the order period, and the specific situation of the product to do a comprehensive understanding, we will serve you wholeheartedly.
