TX 120 2023 New Type One Pair Per Second High Speed Disposable Non Slip Slippers Machine/The Most Preferential Slipper Machine
- Category: >>>
- Supplier: Wenzhou Hongao Trade Co. Ltd.
Share on (1600820713445):
Product Overview
Description
TX-120 2023 New Type One Pair Per Second High Speed Disposable Non-Slip Slippers Machine/The Most Preferential Slipper Machine
Machine Description

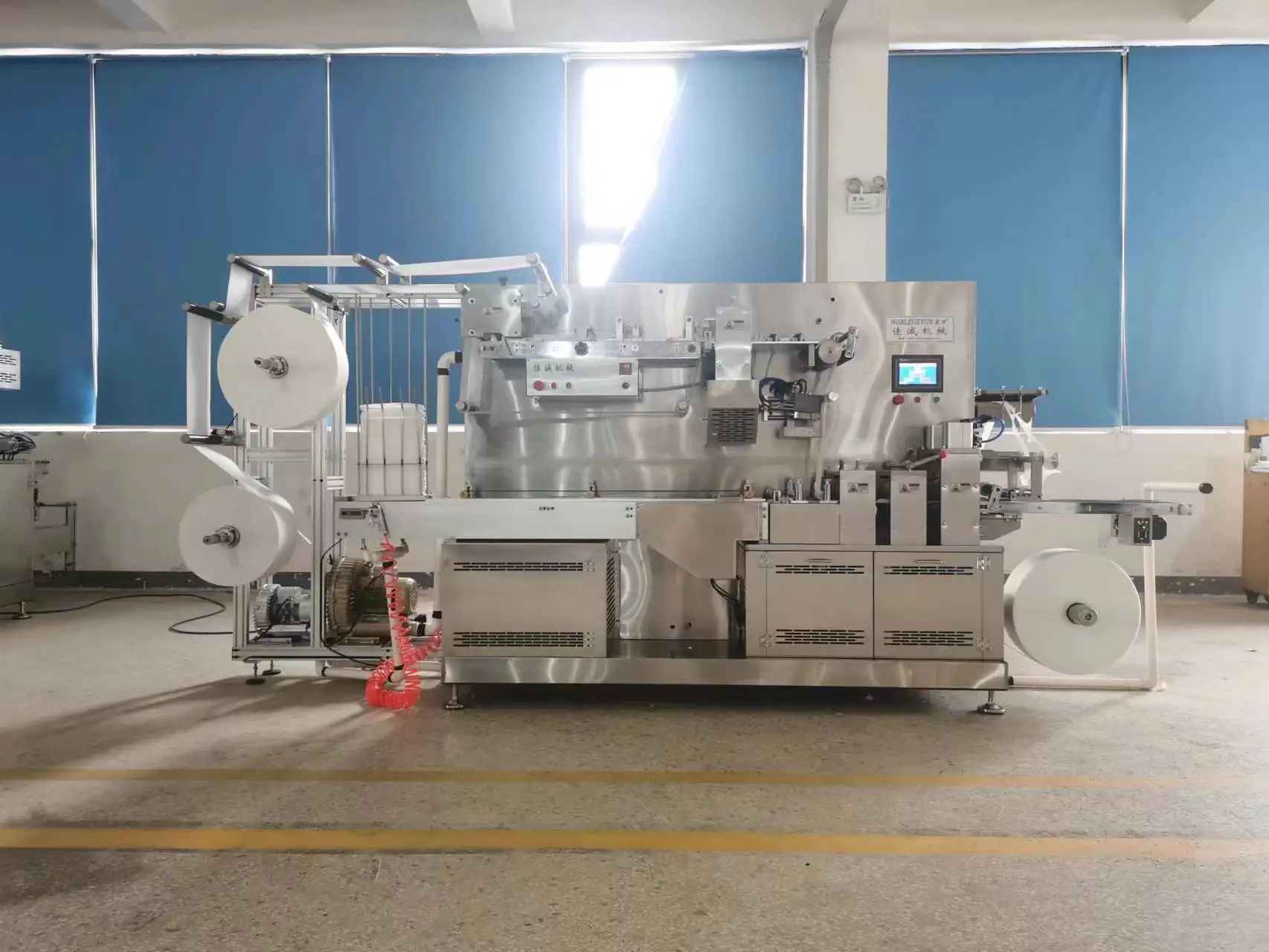

In view of the structure and process flow of disposable slippers, our company carried out innovative design and layout of slipper machine equipment. The whole line is automatically completed from the coil to the ultrasonic welding, traction, rolling and cutting to the finished product output. Compared with other slipper equipment, this machine greatly saves the floor area, improves the operation speed and stability, and the feeding system of the silo sheet reduces the downtime without changing the coil, and increases the product capacity.
Main Features
1) Welded With Thick Steel Plate
The frame of the whole machine is welded and formed with thick steel plate, and the surface of the frame is finished to ensure the
accurate installation shape and position. The rack is stable and heavy, eliminating the impact of mechanical and ultrasonic
vibration on the stability of equipment operation.
2) Servo Driven
The servo system is used to control the drive so that each station is always in synchronous operation. The position adjustment of each station is parameterized by the man-machine interface, which is convenient, fast and intuitive to operate, avoiding the inconvenience or damage caused by mechanical adjustment.
3) Automatic Glue Spraying
The automatic glue spraying system is a host with two spray heads, which has the functions of aligning glue spraying, controllable glue amount, convenient cleaning, and adjustable glue spraying position.
4) Automatic blanking

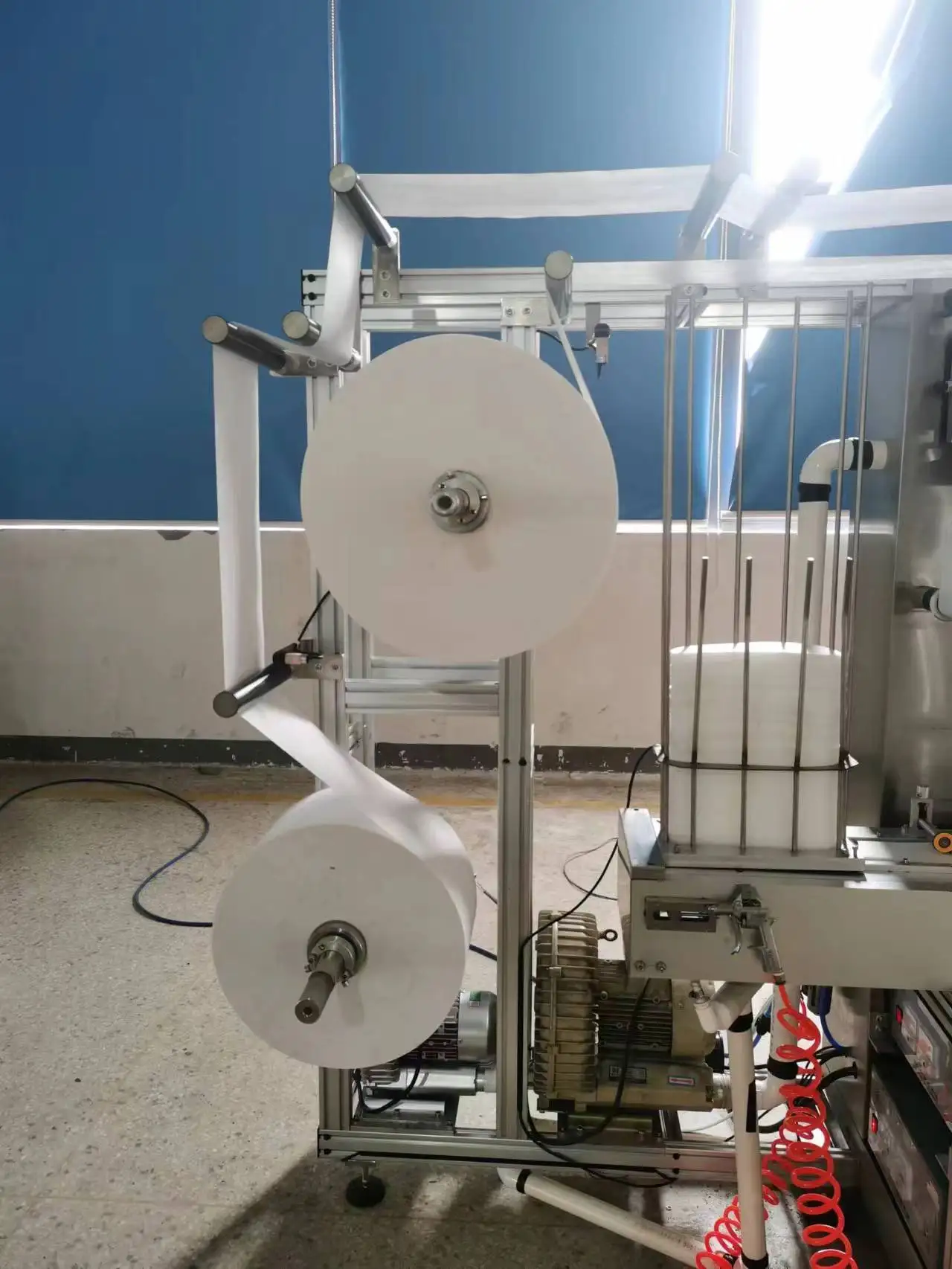

The flake pearl foam automatic blanking system is adopted. The flake pearl foam is placed in the silo for automatic slicing feeding. The shape and position of the pearl foam can be adjusted during the feeding process. The feeding position is accurate and the package is full. It can greatly reduce the shutdown rate and improve the output.
5) Flywheel folding
The flywheel folding mechanism is independently controlled by servo. After the coiled material is segmented, enter the folding mechanism for positioning and folding in half. It has the functions of adjustable folding angle, accurate synchronization and controllable folding position.
The frame of the whole machine is welded and formed with thick steel plate, and the surface of the frame is finished to ensure the
accurate installation shape and position. The rack is stable and heavy, eliminating the impact of mechanical and ultrasonic
vibration on the stability of equipment operation.
2) Servo Driven
The servo system is used to control the drive so that each station is always in synchronous operation. The position adjustment of each station is parameterized by the man-machine interface, which is convenient, fast and intuitive to operate, avoiding the inconvenience or damage caused by mechanical adjustment.
3) Automatic Glue Spraying
The automatic glue spraying system is a host with two spray heads, which has the functions of aligning glue spraying, controllable glue amount, convenient cleaning, and adjustable glue spraying position.
4) Automatic blanking
The flake pearl foam automatic blanking system is adopted. The flake pearl foam is placed in the silo for automatic slicing feeding. The shape and position of the pearl foam can be adjusted during the feeding process. The feeding position is accurate and the package is full. It can greatly reduce the shutdown rate and improve the output.
5) Flywheel folding
The flywheel folding mechanism is independently controlled by servo. After the coiled material is segmented, enter the folding mechanism for positioning and folding in half. It has the functions of adjustable folding angle, accurate synchronization and controllable folding position.

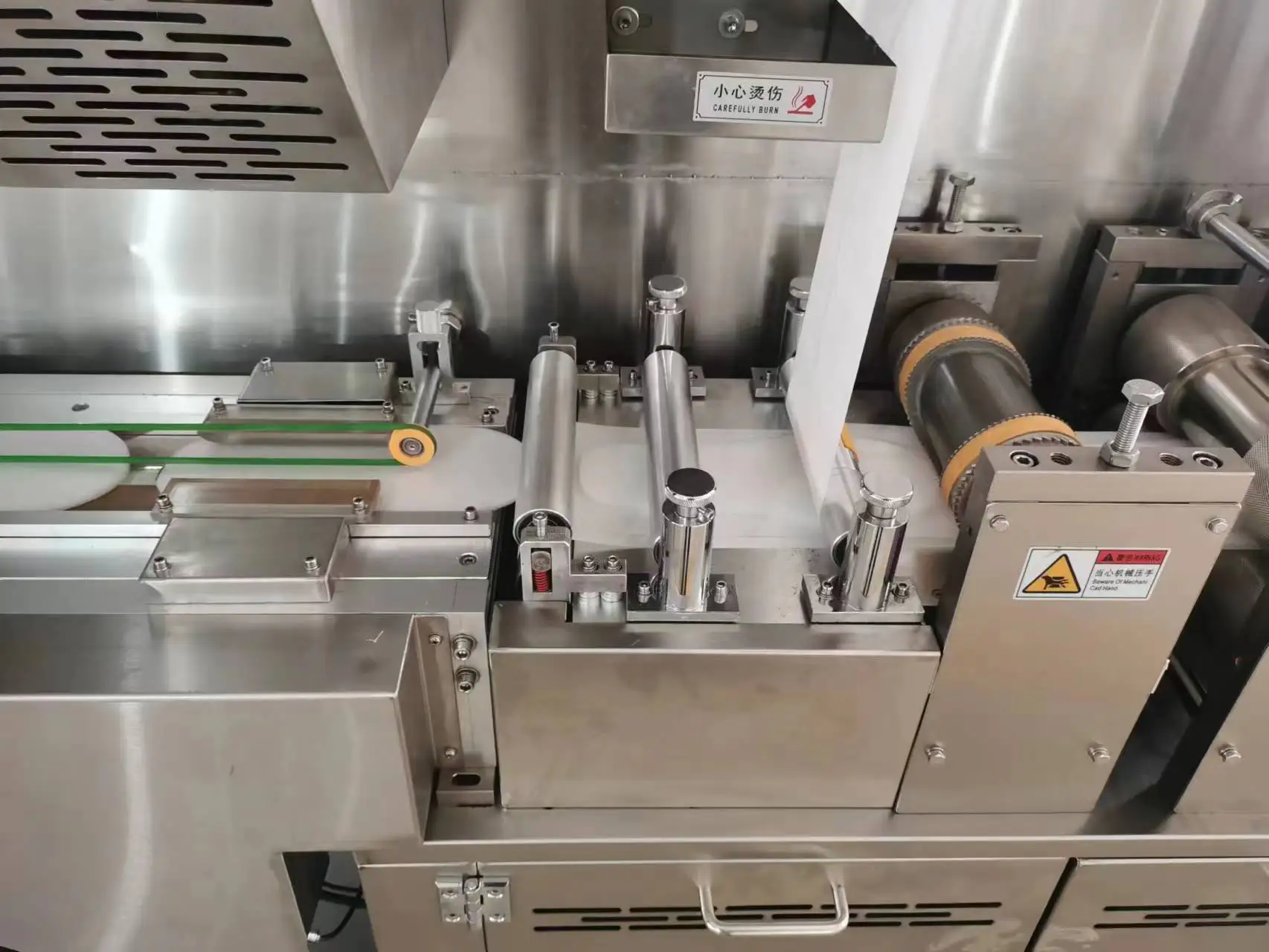

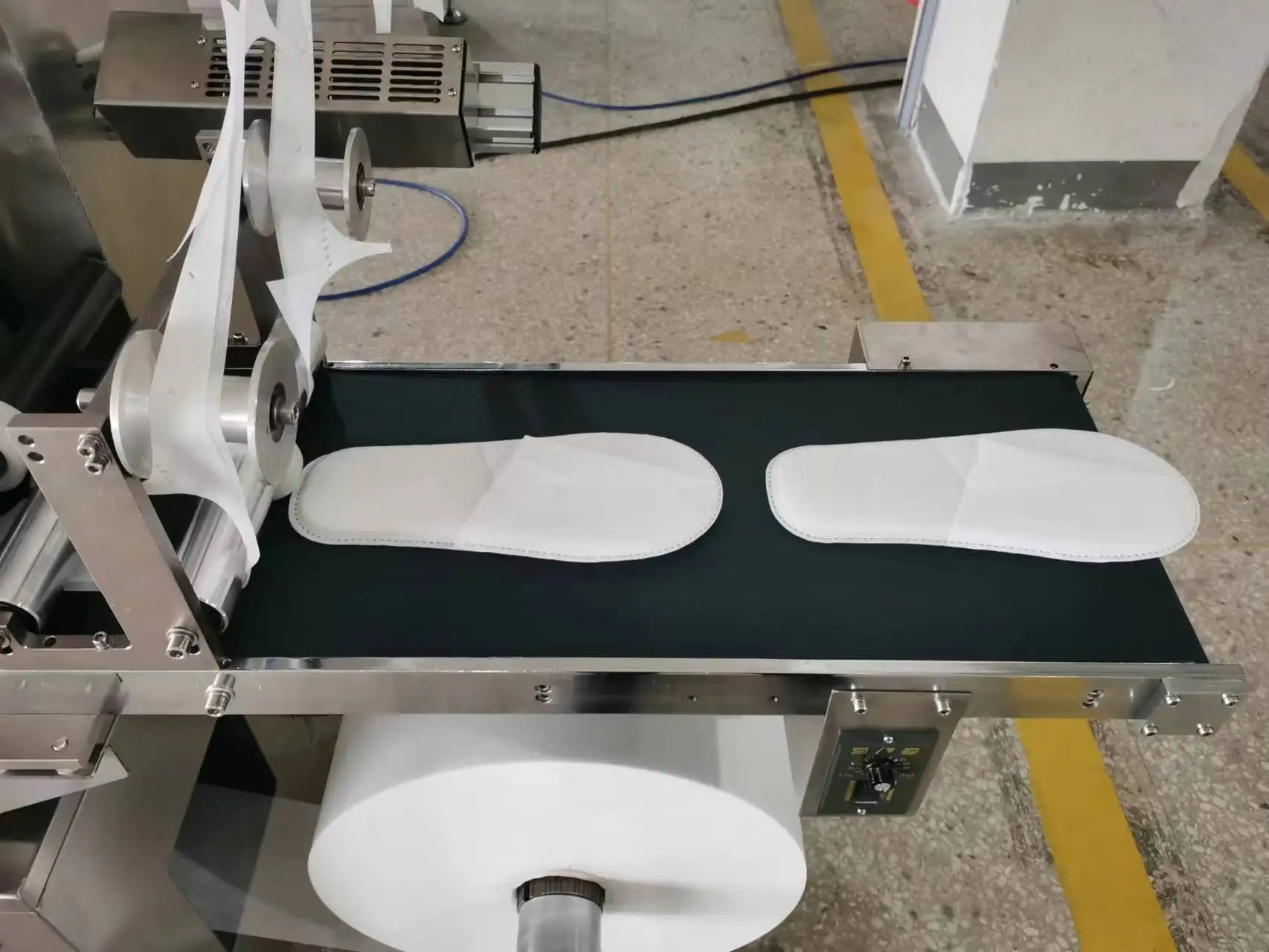

DETAILS DISPLAY

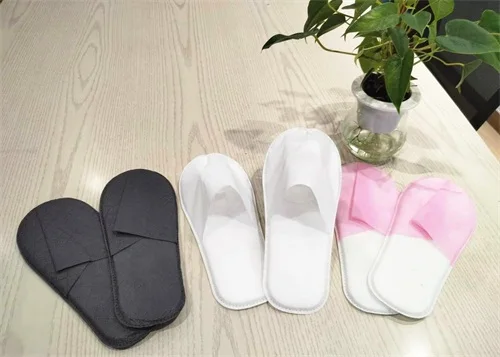

Samples
Technical Parameters
Items | |
Production Capacity | 60-120 pieces/minute |
Max Material width | 540mm |
Packing Material | Non woven fabric, EVA, pearl foam cotton |
Roll Diameter | 75mm |
Ultrasonic Frequency | 18K |
Total Power | 13Kw(380V/220V50HZ) |
Compressed Air | 0.4-0.6MPa |
Dimension | 4120*780*1780mm |
Weight | 1800Kg |
Certifictions
Company Information
THE HERITAGE OF 20 YEARS PACKAGING PROFESSIONAL KNOWLEDGE
Wenzhou Jiacheng Machinery Co., Ltd. is located in Wenzhou city. This is a professional company engaged in various packaging machinery, pharmaceuticals, mechanical design, development, production and marketing of integrates joint-stock enterprises. We have certain technical force and advanced production technique; with a modern system of scientific and technological management
and perfect service system, also a crack team with youthful vigor.
and perfect service system, also a crack team with youthful vigor.
Since its establishment, the company all along adhere "good faith-based, development study, innovation" spirit of enterprise.Based on " human technology, and customer-oriented service, develop the market with integrity and high-quality and establish the corporate culture system with the unique features. Company has passed the 9001 quality system certification and CE certificationin
2010.
2010.
TRUSTWORTHY PROFESSIONAL ABILITY
1）Responsibility
We believe that we have responsibility for our enterprise and have responsibility for spirit of innovation; we have responsibility
for our environment; Whatever we do, we confirm we have strong enduring foundation.
2）Vision
Have the vision to have innovation. We encourage any vision based on Jiacheng , there let everyone have firmly faith to contribute
and think. We try our best to supply the best solution. We always think and practice.
3）Innovation
We believe that we have responsibility for our enterprise and have responsibility for spirit of innovation; we have responsibility
for our environment; Whatever we do, we confirm we have strong enduring foundation.
2）Vision
Have the vision to have innovation. We encourage any vision based on Jiacheng , there let everyone have firmly faith to contribute
and think. We try our best to supply the best solution. We always think and practice.
3）Innovation
Innovation is the soul. Jiacheng company become unique by innovation . We provide customized solutions for clients
so we can do the best. We never afraid of difficulties and overcome every challenge — we are looking forward by intelligence .
Innovation is Jiacheng’ s soul.
so we can do the best. We never afraid of difficulties and overcome every challenge — we are looking forward by intelligence .
Innovation is Jiacheng’ s soul.
Our Service
What We Can Do For Customers
1. Supplies standard products to customers.
2. Supplies standard products under customers’ brands and packaging, etc.
3. R&D department develops any new products together with the customers.
Service
1. One year guarantee for whole machine.
2. 24 hours technical support by e-mail.
3. Engineer available machinery oversea service, door to door.
4. Use-friendly English software, user manual and detailed videos.
Installation & Commissioning
1. Offer English manual for install and commissioning.
2. Send engineers to customers’ factory to teach customers how to install and commissioning the machine.
2. Supplies standard products under customers’ brands and packaging, etc.
3. R&D department develops any new products together with the customers.
Service
1. One year guarantee for whole machine.
2. 24 hours technical support by e-mail.
3. Engineer available machinery oversea service, door to door.
4. Use-friendly English software, user manual and detailed videos.
Installation & Commissioning
1. Offer English manual for install and commissioning.
2. Send engineers to customers’ factory to teach customers how to install and commissioning the machine.
We attend the China exhibition every year.
Customers From All Over The World
