Product Description
Brief Introduction :

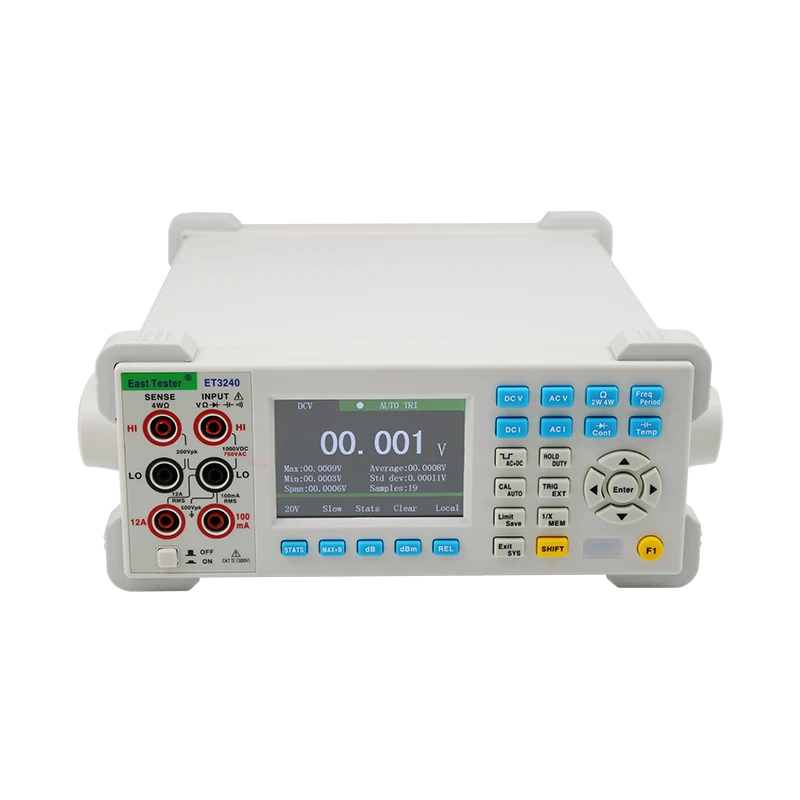

ET3240 is a 4½ digits, 22000 counts, dual digital benchtop true-RMS multimeter.The STM32 chip and external double integral AD used by this benchtop multimeter providing accurate measurement and stable performance. 3.5 inch 320 * 480 high resolution TFT LCD screen makes a clear reading, rich display, and a good visual effects. The benchtop multimeter is powered by electricity and provide full-function, full-range overload protection. Fresh and simple design with excellent performance makes them an ideal choice for electricians, electronics enthusiasts, engineers and colleges and universities.
Key Features:
* 4½ digits, 22000 count;
* Dual parameter display:display two parameters of the same input signal;
* Measurement rate: FAST (7times / sec), MID (5 times / sec), SLOW (2 times / sec);
* Trigger mode: Automatic trigger, single trigger, external trigger(optional);
* Range switching mode: Auto / Manual;
* 12 basic measurement functions: AC and DC voltage, AC and DC current, two-wire / four-wire resistance, period/ frequency, diode, on-off test, capacitance, duty cycle;
* DCV basic accuracy: 0.05%;
* Mathematical functions: MX+B/MAX/MIN/dB/dBm/Rel/Comp Hi/Comp Low/ Statistics;
* Additional functions: Data hold, data record, data readback;
* keyscan be locked;
* Open calibration function;
* Square wave output.(Optional.);
* Provide system settings, can configure the language(Chinese / English), buzzer, screen brightness,interface display style;
* Temperature: Thermocouple: K/N/R/S/T/B/E/J/WRe325/WRe526; RTD: PT100 / PT50 / Cu100 / Cu50;
* Communication Interface: Standard: USB Device;
* Support SCPI protocol;
* Dual parameter display:display two parameters of the same input signal;
* Measurement rate: FAST (7times / sec), MID (5 times / sec), SLOW (2 times / sec);
* Trigger mode: Automatic trigger, single trigger, external trigger(optional);
* Range switching mode: Auto / Manual;
* 12 basic measurement functions: AC and DC voltage, AC and DC current, two-wire / four-wire resistance, period/ frequency, diode, on-off test, capacitance, duty cycle;
* DCV basic accuracy: 0.05%;
* Mathematical functions: MX+B/MAX/MIN/dB/dBm/Rel/Comp Hi/Comp Low/ Statistics;
* Additional functions: Data hold, data record, data readback;
* keyscan be locked;
* Open calibration function;
* Square wave output.(Optional.);
* Provide system settings, can configure the language(Chinese / English), buzzer, screen brightness,interface display style;
* Temperature: Thermocouple: K/N/R/S/T/B/E/J/WRe325/WRe526; RTD: PT100 / PT50 / Cu100 / Cu50;
* Communication Interface: Standard: USB Device;
* Support SCPI protocol;
Technical Indicators:
Mode | ET3240 | ||||||
Display digits | 22000(4½) | ||||||
Maximum measurement speed | 7 times / sec | ||||||
Function | DCV | DCI | ACV | ACI | |||
Accuracy | ±(0.03%+3) | ±(0.08%+10) | ±(0.3%+20) | ±(0.3%+20) | |||
Range | 10uV~1000V | 10nA~10A | 10uV~750V | 10nA~10A | |||
Highest resolution | 10uV | 10nA | 10uV | 10nA | |||
-- | 40Hz~100kHz | 40Hz~10kHz | |||||
Function | Resistance | Capacitance | Frequence | |||
Accuracy | ±(0.05%+5) | ±(1%+5) | ±(0.05%+10) | |||
Range | 10mΩ~200MΩ | 1pF~10mF | 1Hz~20MHz | |||
Highest resolution | 10mΩ | 1pF | 0.001Hz | |||
Others | ||||||
Mathematical functions | MX+B/MAX/MIN/dB/dBm/Rel/Comp Hi/Comp Low/Hold/Statistics | |||||
Resistance measurement | Support 2-wire, 4-wire in two ways. | |||||
Continuity test | When the resistance is less than 30 ohms, the buzzer sounds. | |||||
Diode test | Measurable range: 0～2V | |||||
AC+DCmeasurement | Support. | |||||
Trigger mode | Standard: automatic trigger, single trigger; Optional: external trigger. | |||||
Duty cycle measurement | 5.0%～95.0%. (the error is within 10 words.) | |||||
Limit test | Support. | |||||
Calibration | Support. | |||||
Temperature | Thermocouple: K/N/R/S/T/B/E/J/WRe325/WRe526; RTD: PT100/PT50/Cu100/ Cu50. | |||||
Communication Interface | Standard: USB Device; | |||||
Additional functions | Data hold, data record, data readback. | |||||
General Technical Specifications:

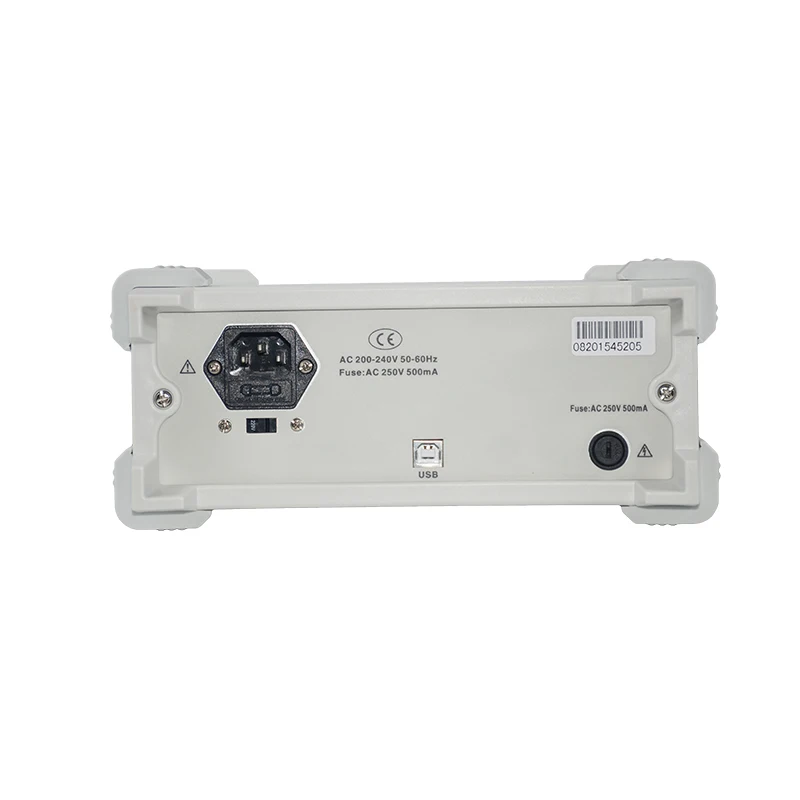

* Power supply voltage: 220V AC±10%, 110V AC ±10%, 45-65Hz.
* Working environment: 0~40℃, relative humidity < 80%.
* Storage environment: -10~50℃, relative humidity < 80%.
* Dsiplay: 3.5-inch, 320 * 480 resolution, 16 M colour TFT LCD.
* Dimensions: 265 mm * 105 mm * 305 mm.(width * height * depth).
* Weight: 2.3kg.
* Working environment: 0~40℃, relative humidity < 80%.
* Storage environment: -10~50℃, relative humidity < 80%.
* Dsiplay: 3.5-inch, 320 * 480 resolution, 16 M colour TFT LCD.
* Dimensions: 265 mm * 105 mm * 305 mm.(width * height * depth).
* Weight: 2.3kg.

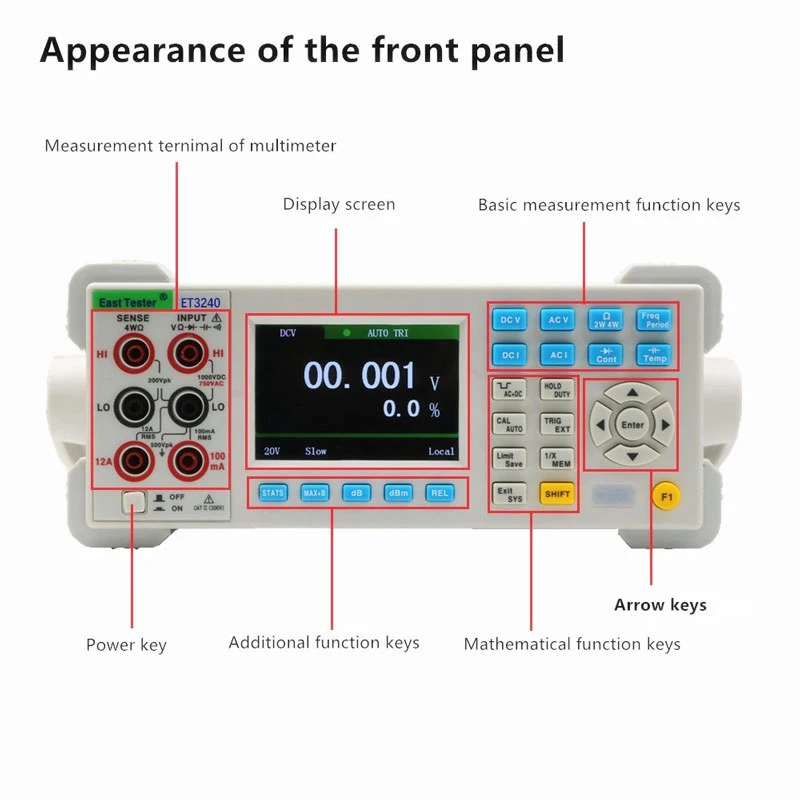

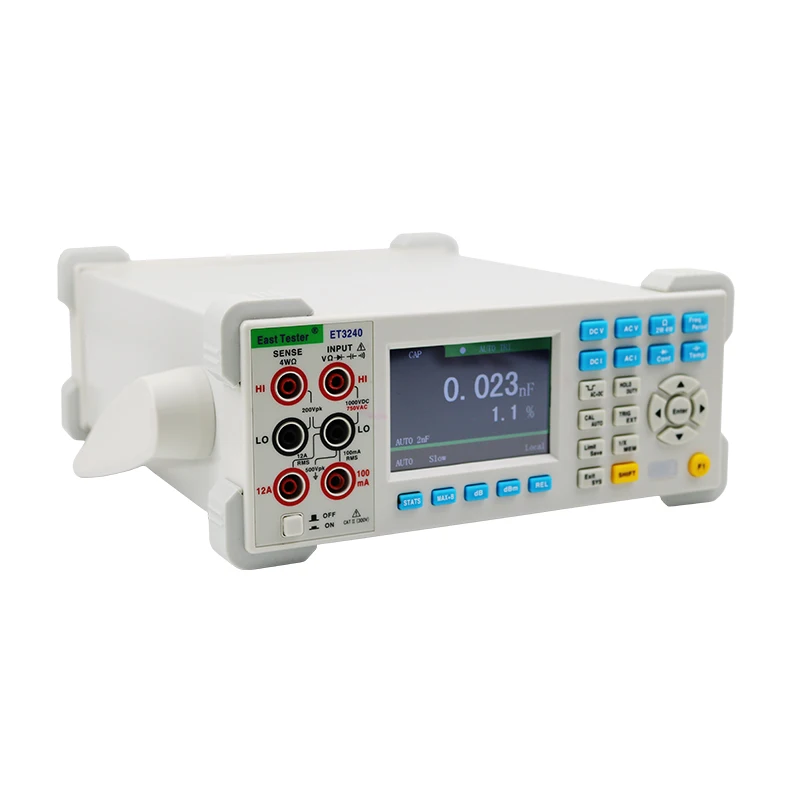

Product Display
Our Services
Company Profile
Packing & Shipment & Payment

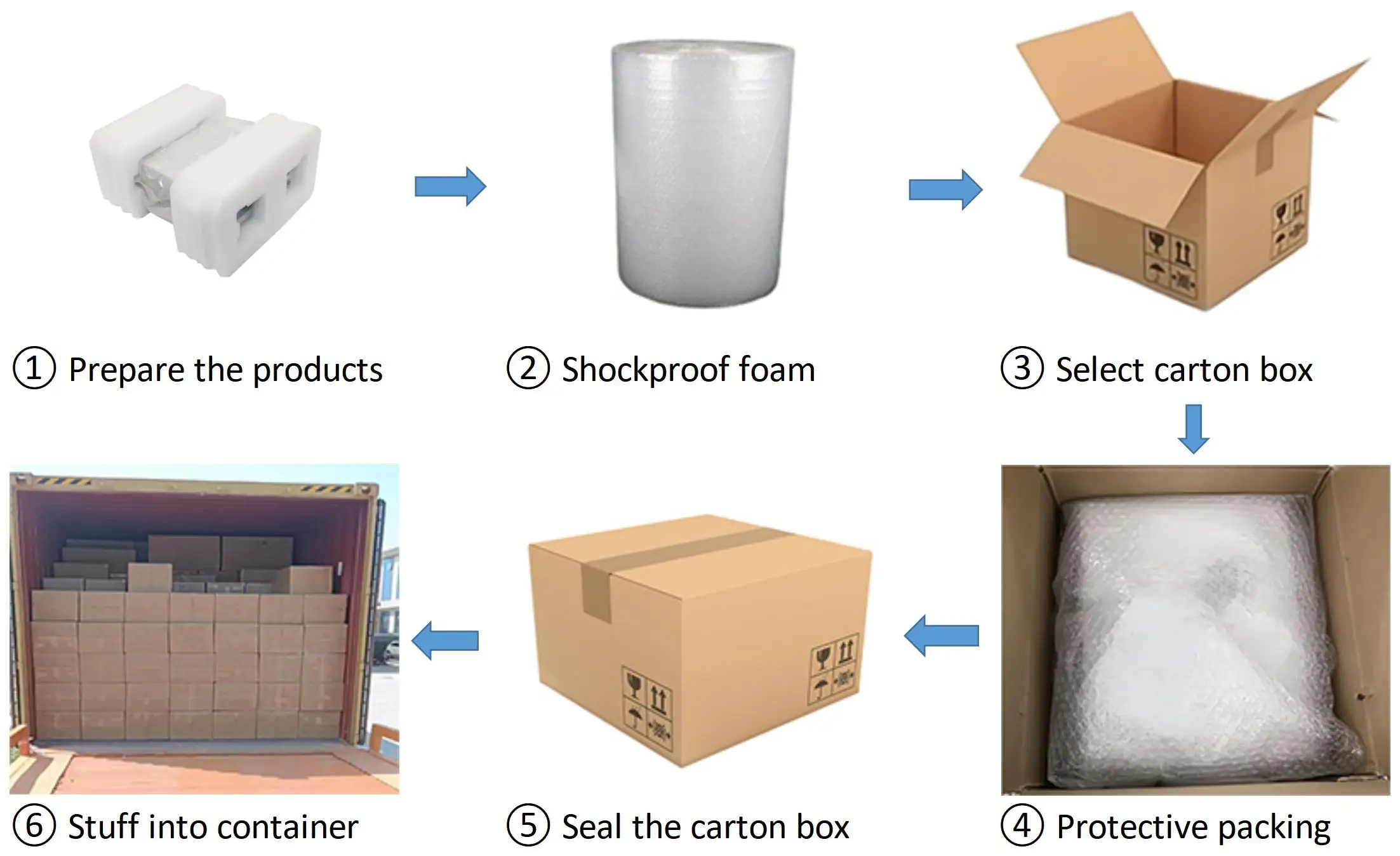

Packing
