Electrical manufacturer ASTMD6371 fully automatic cold filter point tester/measuring distillate fuel cold filter point
- Category: >>>
- Supplier: Dalian Yeda Technology Development Co. Ltd.
Share on (1600820733718):
Product Overview
Description

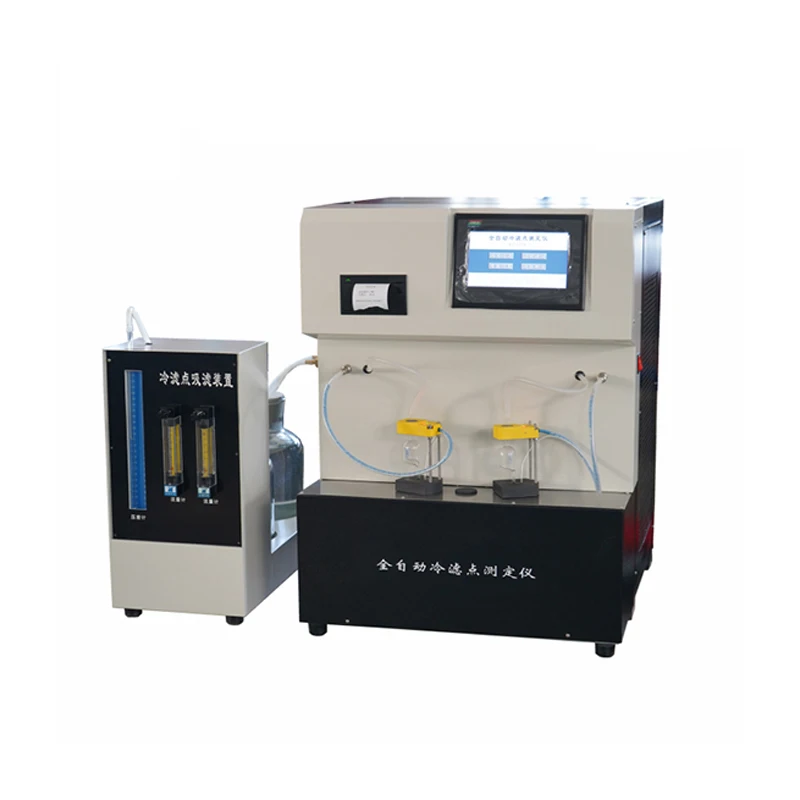

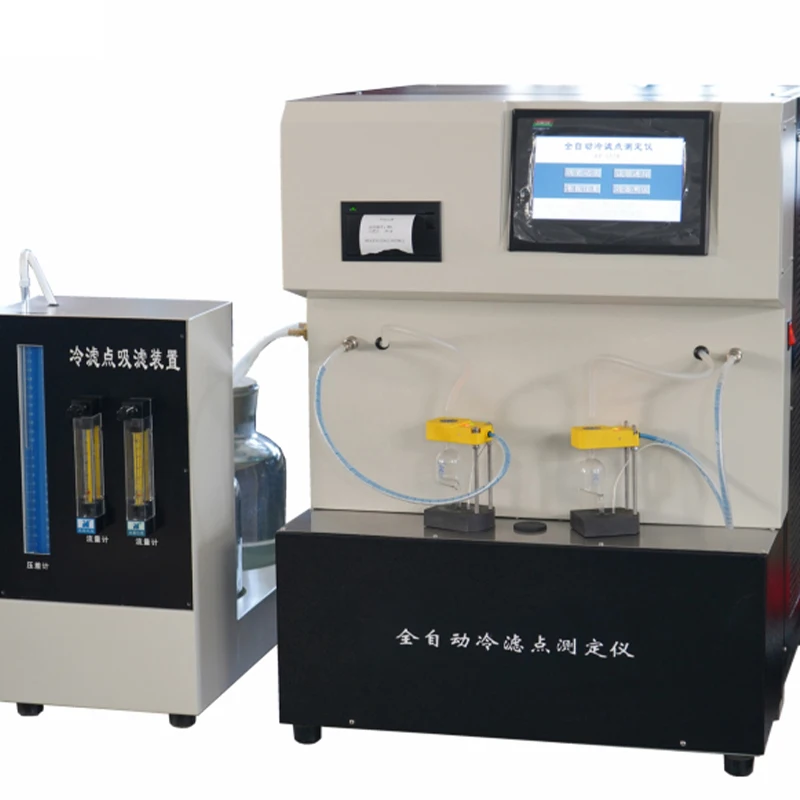

Automatic cold filter point tester
YD-0248QZD
Applicable standards: ASTMD6371 SH/T0248 IP309,
YD-0248QZD
Applicable standards: ASTMD6371 SH/T0248 IP309,
Applicable standards | SH/T0248 IP309, ASTMD6371 |
Temperature control range | room temperature~- 70 ℃ |
Temperature control accuracy | ± 0.1 ℃ |

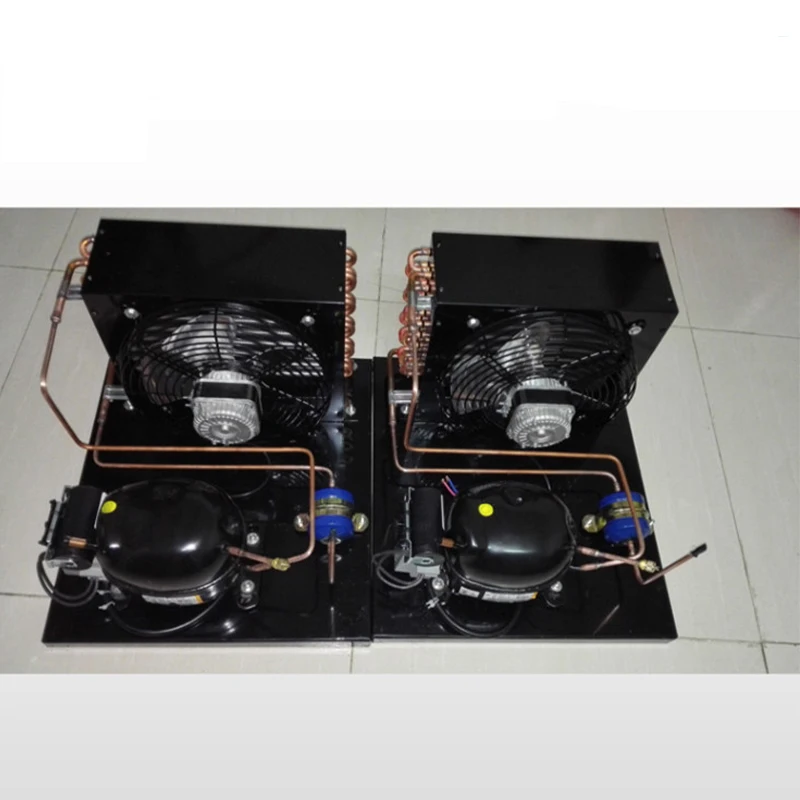

Refrigeration method | imported cascade compressor |
Pressure range | 0-200kPa |
Test unit | 2 groups |
Detection method | photoelectric sensor |
Storage records | 200 |
Printing method | micro printer |
Host power | 1.5KW |
Working power supply | AC 220V ± 10% 50HZ |
Scope of application:
This instrument is designed and manufactured in accordance with the Chinese petroleum industry standard SH/T 0248 and is suitable for determining the cold filtration point of distillate fuels, including fuels containing flow improvers or other additives for use in diesel engines and civil heating devices.
This instrument is designed and manufactured in accordance with the Chinese petroleum industry standard SH/T 0248 and is suitable for determining the cold filtration point of distillate fuels, including fuels containing flow improvers or other additives for use in diesel engines and civil heating devices.
Performance characteristics:
1.7 inch color LCD touch screen, fashionable and beautiful. Chinese man-machine dialogue interface, clear and intuitive.
2. The compressor imported from abroad is adopted, with fast cooling speed and stable performance.

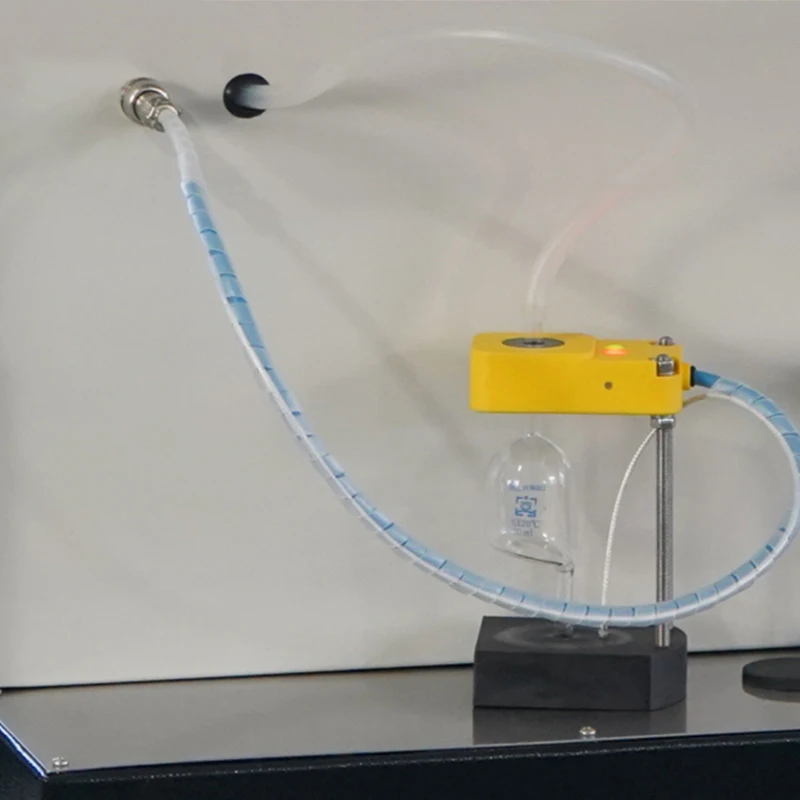

Equipped with an upper mounted photoelectric liquid level sensor, it can accurately detect the position of the horizontal liquid level and accurately judge the cold filtration point.
4. Equipped with a built-in vacuum pump and an electronic precision pressure balancing system to ensure stable suction pressure during the test.
5. The host computer is controlled by a microprocessor program, with automatic cooling and temperature reduction during the test process, automatic tube sampling, automatic liquid level detection, automatic judgment of results, automatic storage, automatic printing, and automatic shutdown after the test.
1.7 inch color LCD touch screen, fashionable and beautiful. Chinese man-machine dialogue interface, clear and intuitive.
2. The compressor imported from abroad is adopted, with fast cooling speed and stable performance.
Equipped with an upper mounted photoelectric liquid level sensor, it can accurately detect the position of the horizontal liquid level and accurately judge the cold filtration point.
4. Equipped with a built-in vacuum pump and an electronic precision pressure balancing system to ensure stable suction pressure during the test.
5. The host computer is controlled by a microprocessor program, with automatic cooling and temperature reduction during the test process, automatic tube sampling, automatic liquid level detection, automatic judgment of results, automatic storage, automatic printing, and automatic shutdown after the test.
Accessory configuration:
1. Two test tubes |
2. Two suction filters |

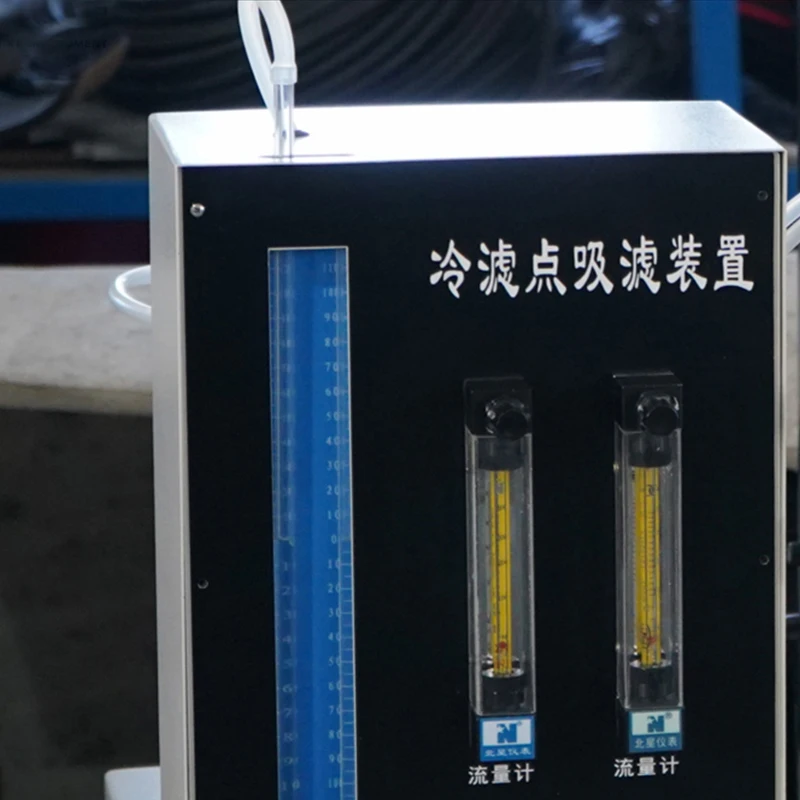

3. Two sets of suction and filtration devices |

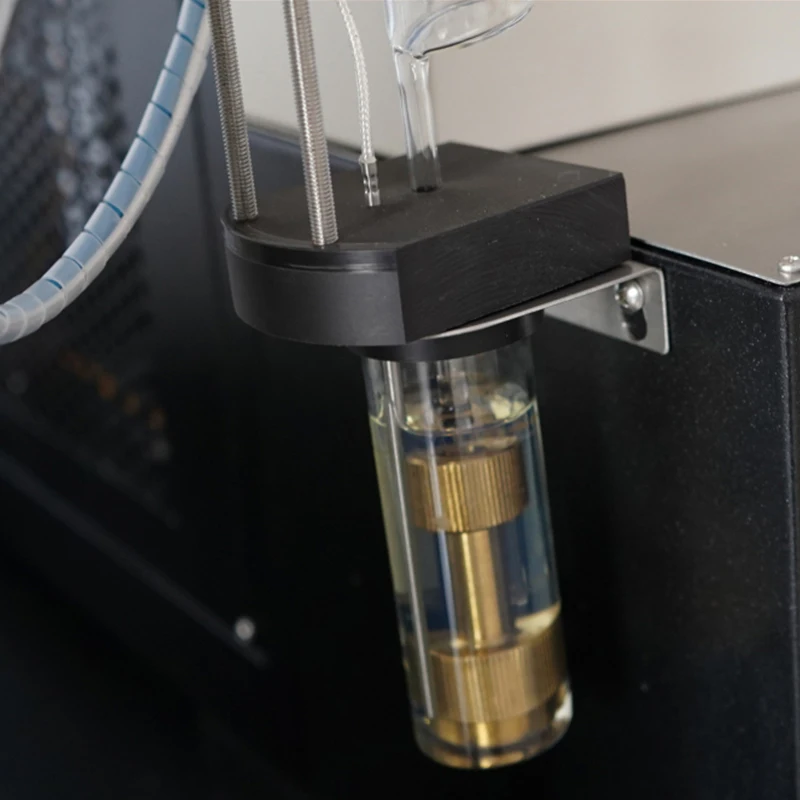

4. Two sets of cold filter tubes |
5. Two sets of cold filter inner pipes |
6. Printing paper 2 rolls |
