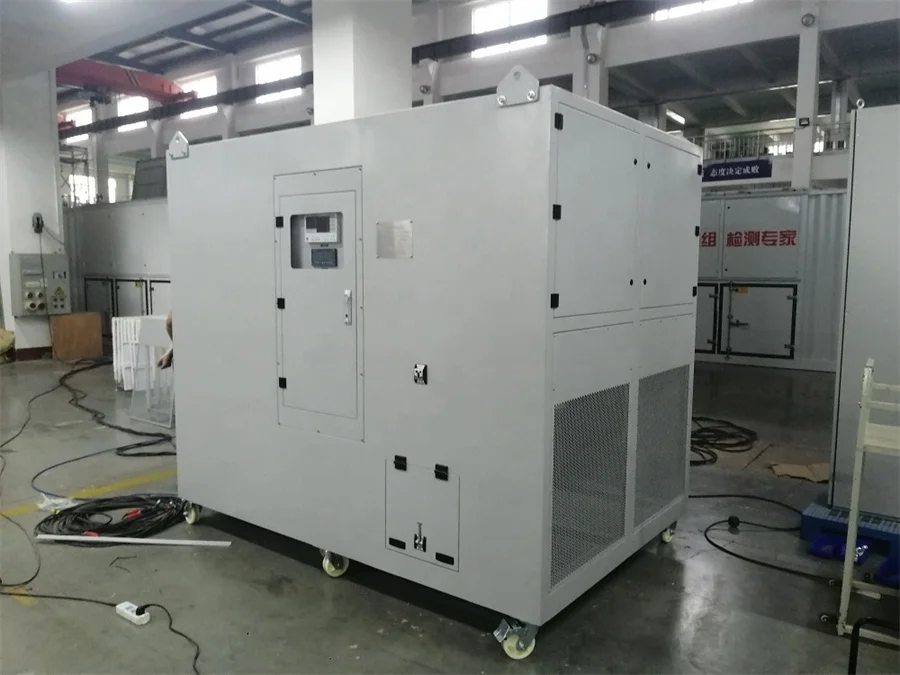

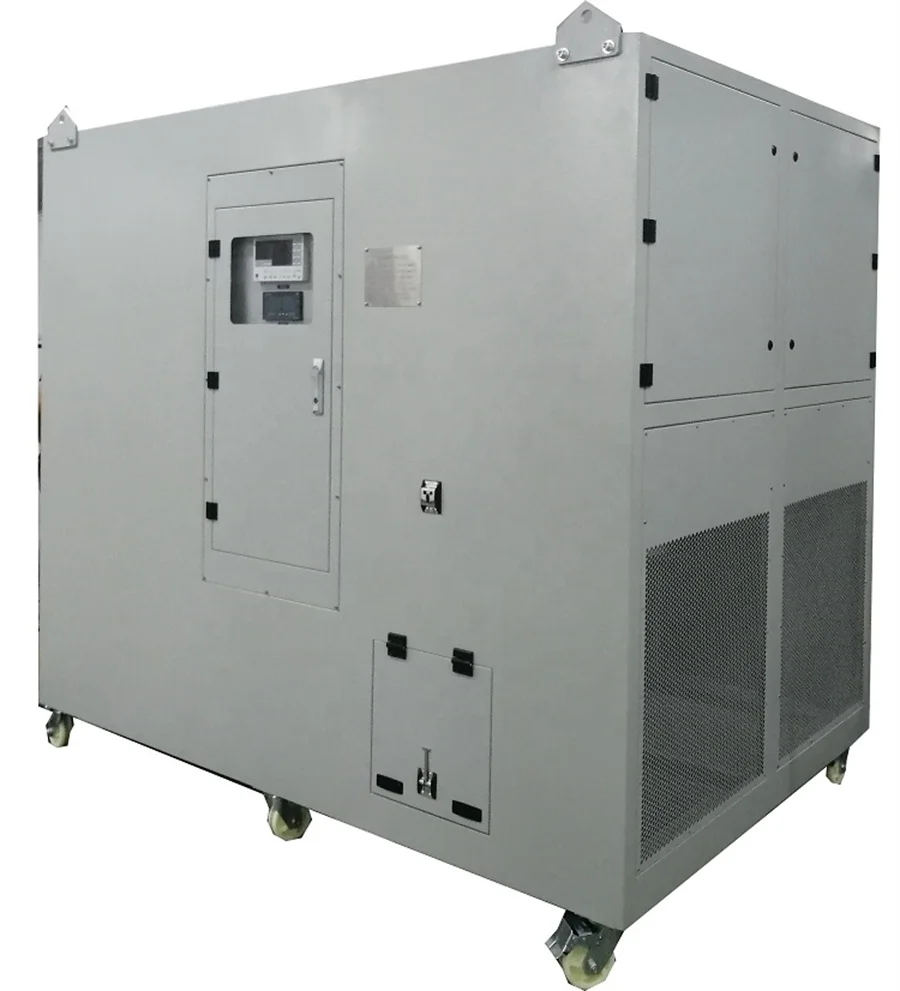

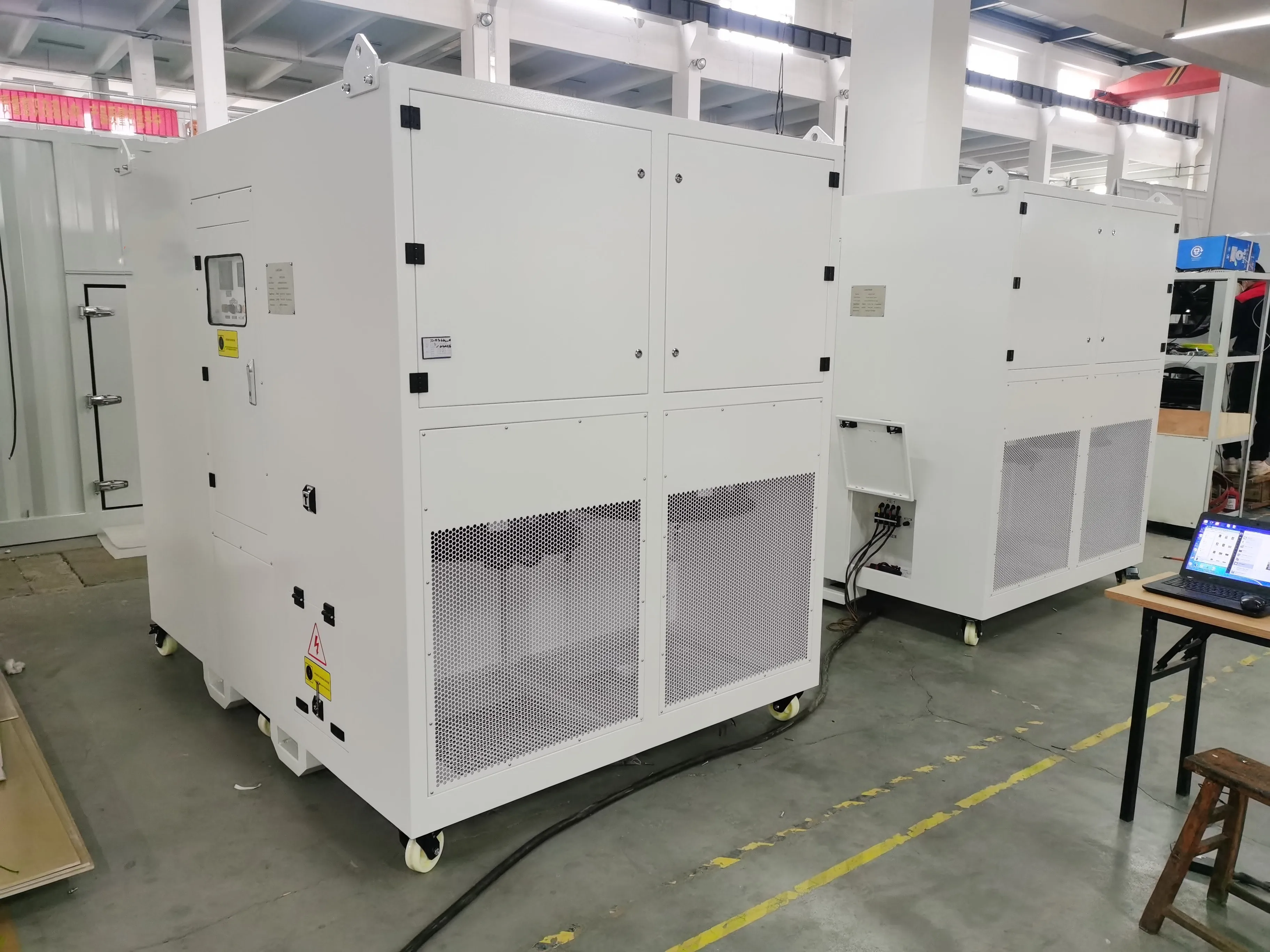

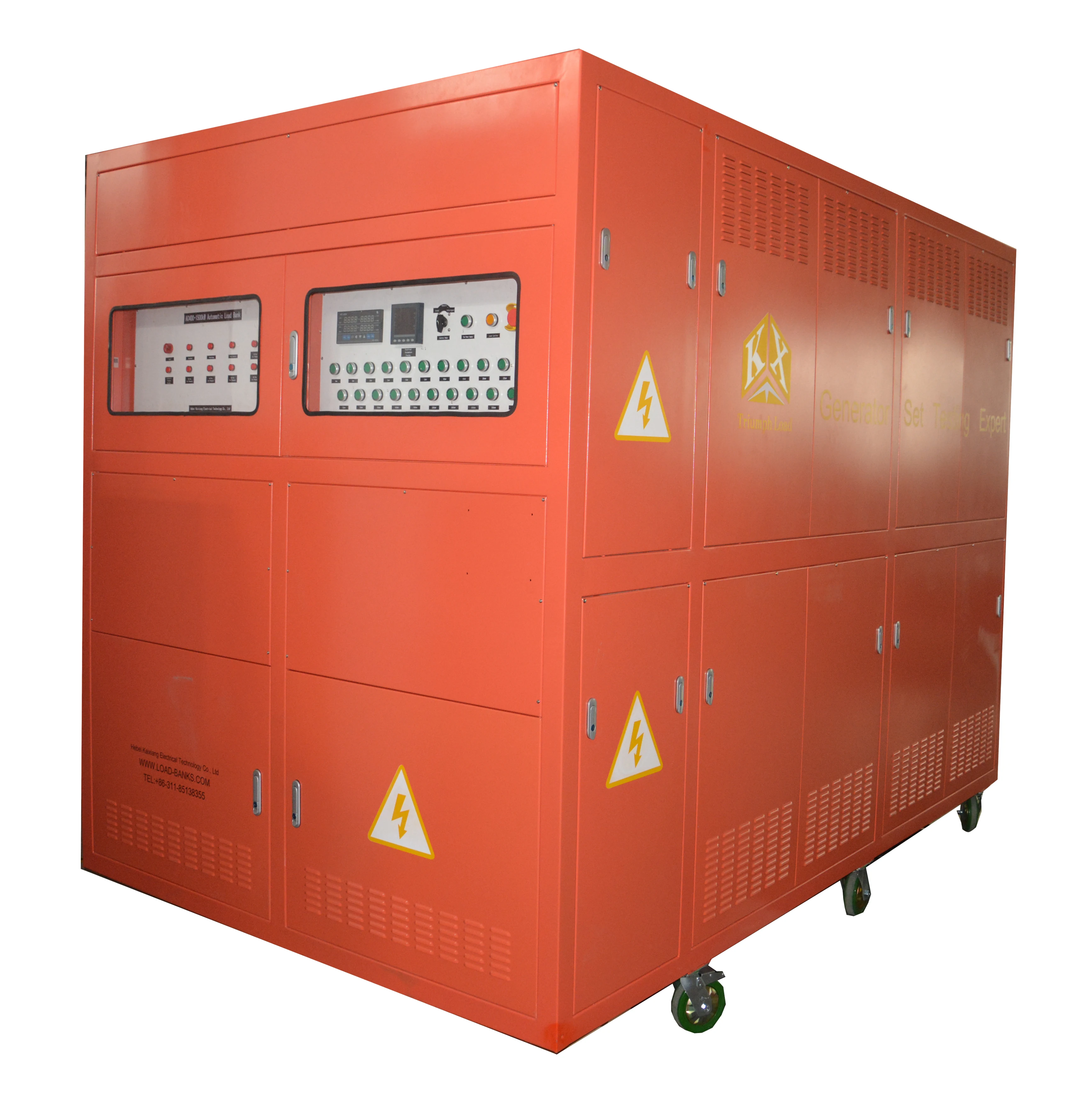

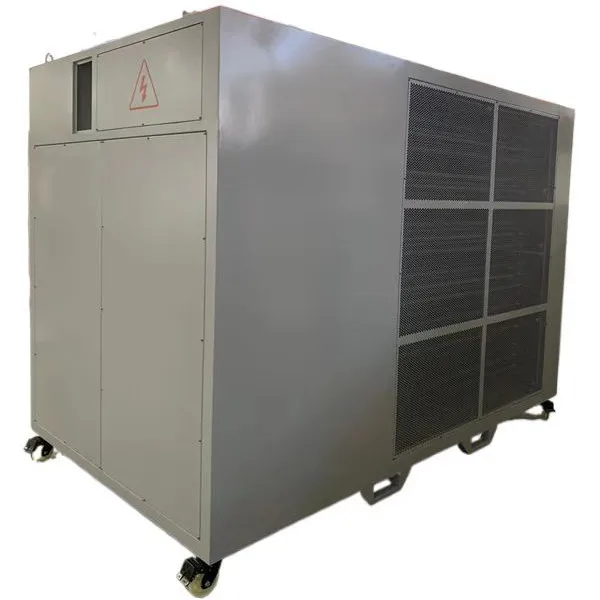

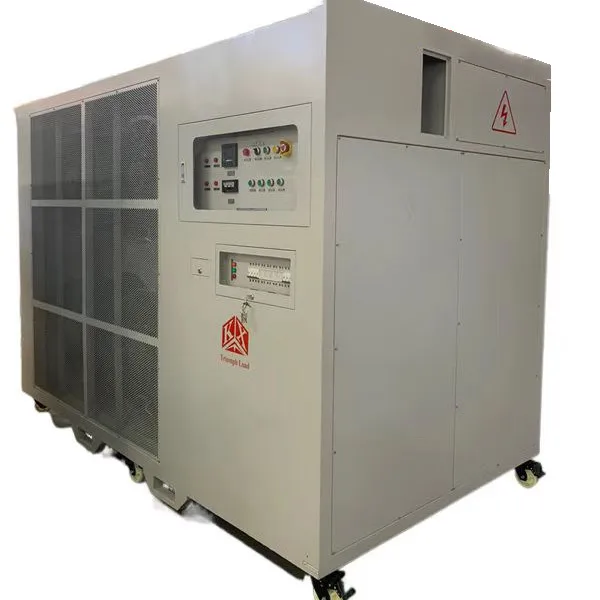

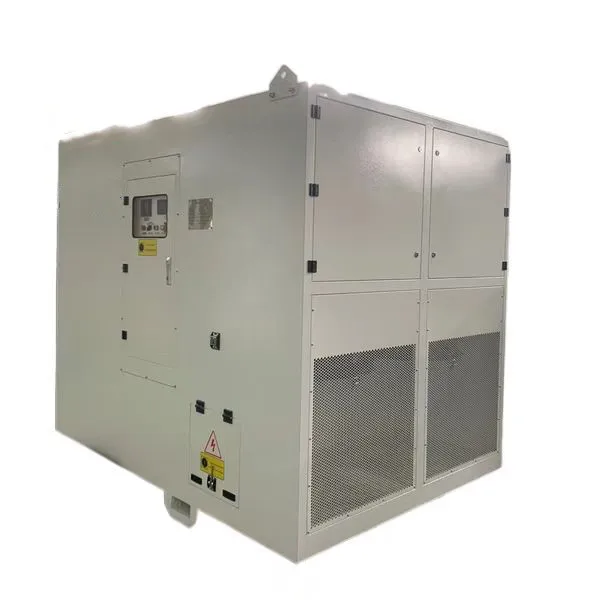

1300kW Air Cooled Dummy Dry Type Resistance Load Bank
- Category: >>>
- Supplier: Hebei Kaixiang Electrical Technology Co. Ltd.
Share on (1600820735564):
Product Overview
Description
1300kW Air Cooled Dummy Dry Type Resistance Load Bank
Products Description
Benefits of Load Bank Testing
Verifies the gensets capabilities opposed to just routinely starting it up.
Problems discovered early can be significantly less expensive and prevents future major issues.
Helps to avoid wet-stacking and cleans out carbon deposits.
Verifies the engine cooling systems will perform while under load.
Provides assurance that the genset should work properly when you need it most.
Tests that a gen set is capable of operating at peak specified kW output for a specified amount of time.
Eases the effects of light loading by burning off the residue that leads to wet stacking.
Problems discovered early can be significantly less expensive and prevents future major issues.
Helps to avoid wet-stacking and cleans out carbon deposits.
Verifies the engine cooling systems will perform while under load.
Provides assurance that the genset should work properly when you need it most.
Tests that a gen set is capable of operating at peak specified kW output for a specified amount of time.
Eases the effects of light loading by burning off the residue that leads to wet stacking.
Main features
2. Protection function: over voltage, over current, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
3. Cooling: industrial heavy duty blower, horizon air intake, upwards outlet, low noise.
4. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
5. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.
6. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
7. Integrated & modularization design: easy to installation, maintenance and transportation.
Specification
Technical Parameters | ||
Rating Voltage/Frequency | AC400V 3 Phase 4 Wire /50/60Hz | |
Max Load Power | Resistive Load:1260kW | |
Load Step (AC400V/50Hz) | Resistive Load:1, 2, 2, 5, 10, 20, 20, 50, 50, 100, 200, 200, 200, 200, 200kW, total 1260kW Noted: When input voltage is lower than rated voltage, gears power changes according to Ohm's law. | |
Power Factor | 1 | |
Load Tolerance (each step) | ±5% | |
Load Tolerance (overall) | ±3% | |
Display Precision | 0.5 class | |
Control Power Supply | External:AC400V 3 Phase 4 Wire /50Hz | |
Wire Connection | Load bank input——Terminal block Control power input——Terminal block | |
Communication Interface | RS485,RS232 | |
Insulation Class | F Class | |
IP | IP54 | |
Working Mode | Continuous Working | |
Cooling | Forced air cooling ,horizontal inlet ,upwards outlet | |
Transportation | With lifting eyes and forklift holes with casters at bottom | |
Casing Color | Grey（RAL7035） | |
Dimension | About 2660*1600*2100mm(L*W*H) | |
Weight | About 1800kg | |
Operating Environment Parameter | ||
Workplace | Outdoor | |
Work Temperature | -20℃～+50℃ | |
Working noise | 1m from the equipment | |
Relative Humidity | ≤95% | |
Altitude | ≤2500m | |
Atmospheric Pressure | 86～106kPa | |
Main Components Brands | ||
Contactor | Schneider | |
Fuse | Miro | |
PLC control module | Siemens | |
Alloy resistance | Kaixiang (self-developed) | |
Data management software | Kaixiang (self-developed) | |
Meter | ZW3432B | |

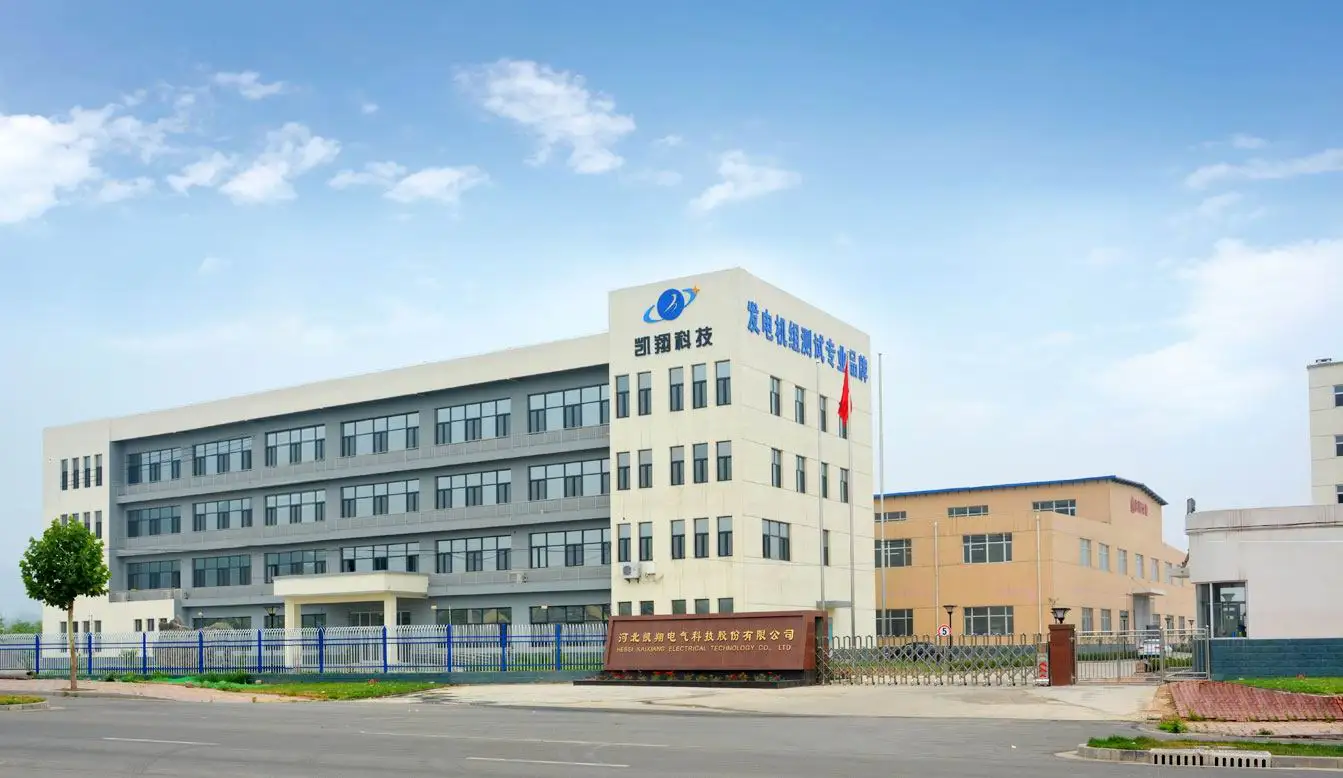

Company Profile
Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry.Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the professional intelligent power supply testing equipment R&D centre in China. Kaixiang offer one-stop solutions to generator set & battery & UPS power manufacturers.
Its products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway etc filed. Kaixiang is strategy partner of many famous company, such as Cummins, Caterpillar, Kohler,Jiangnan Shipyard, CSSC,CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of its products have been exported to America, Singapore, Israel, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Sri Lanka, Angola etc. Through years of development, “Triumph Load” already famous brand in power supply detection industry in China.

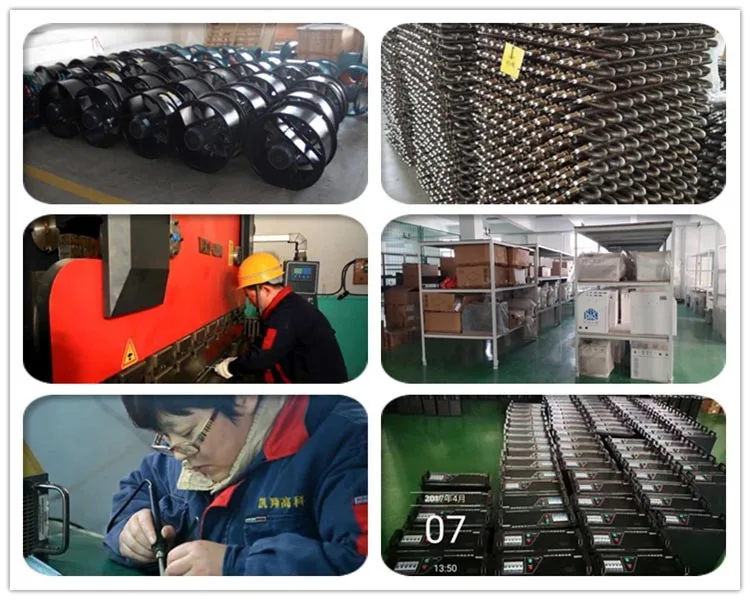

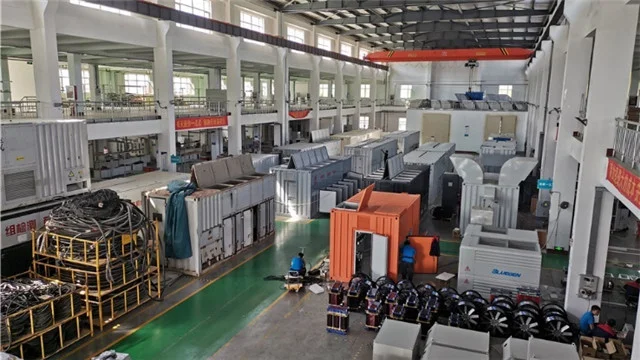

Workshop

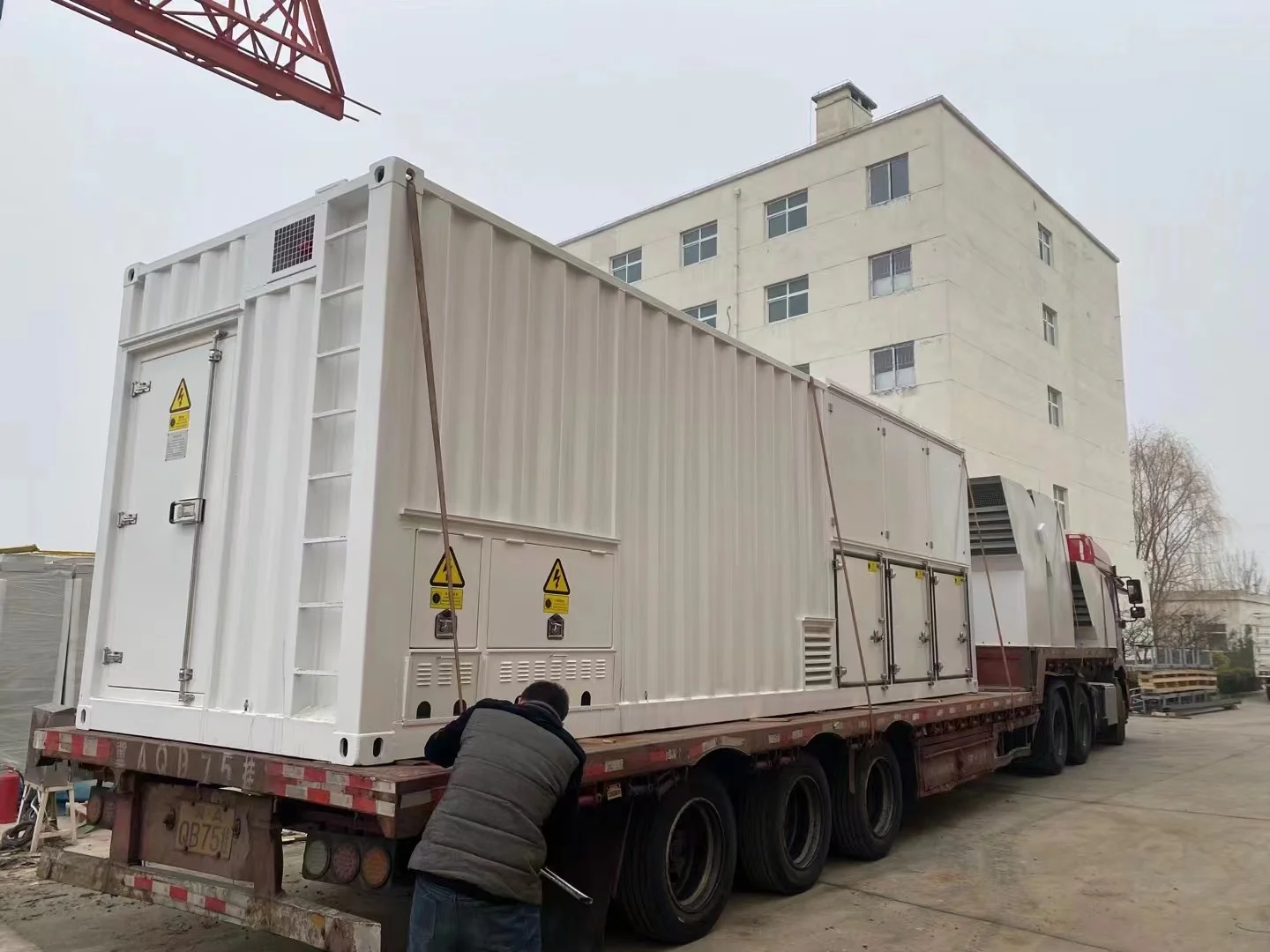

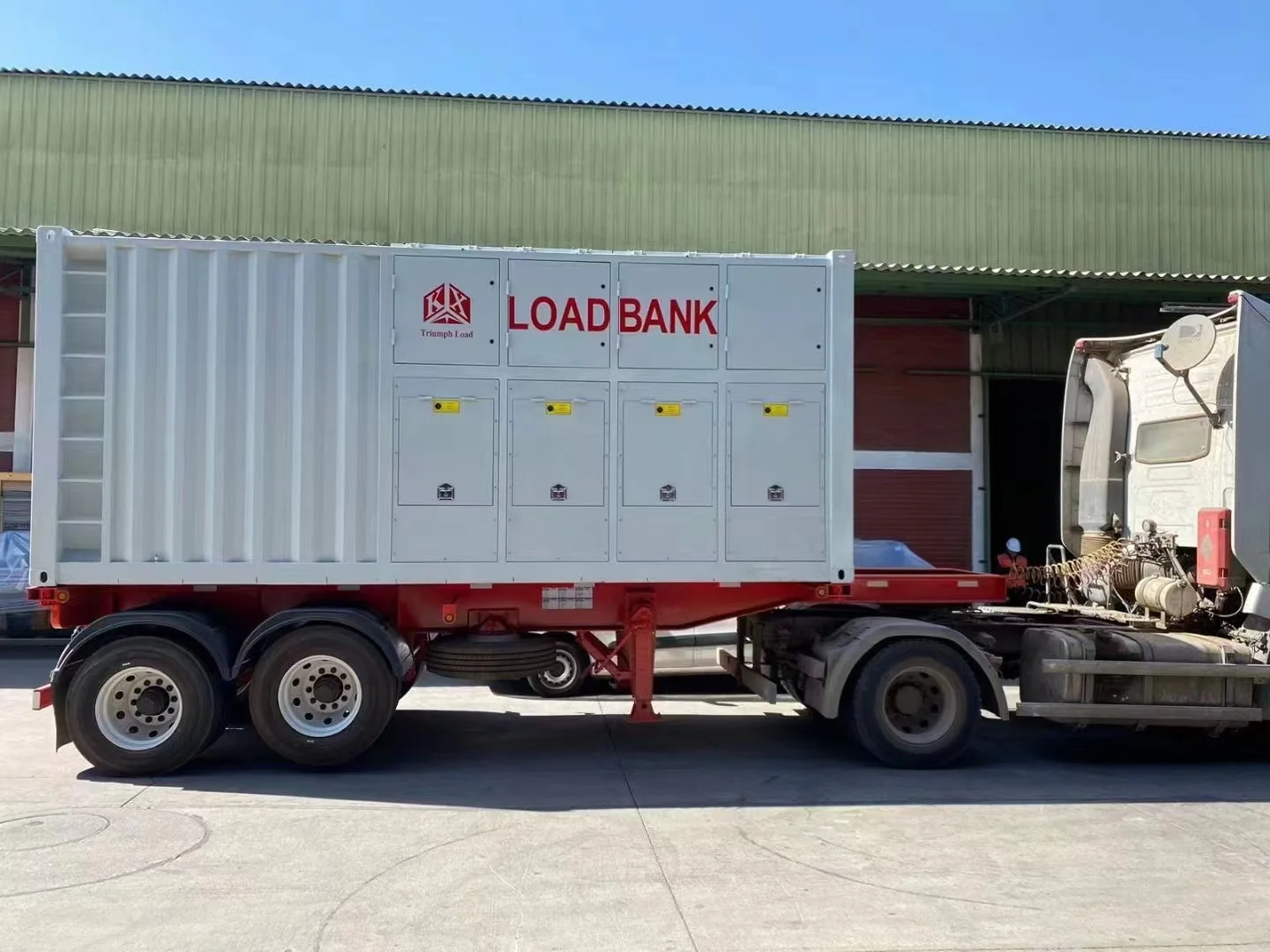

Package and Transportation
Exhibition

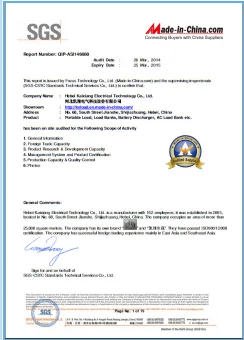

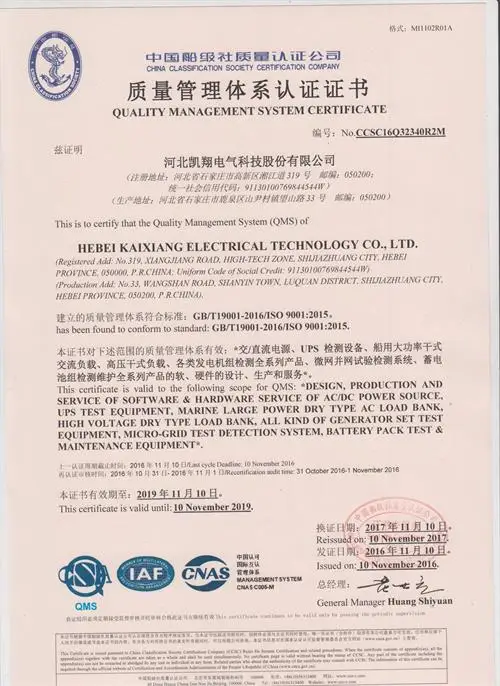

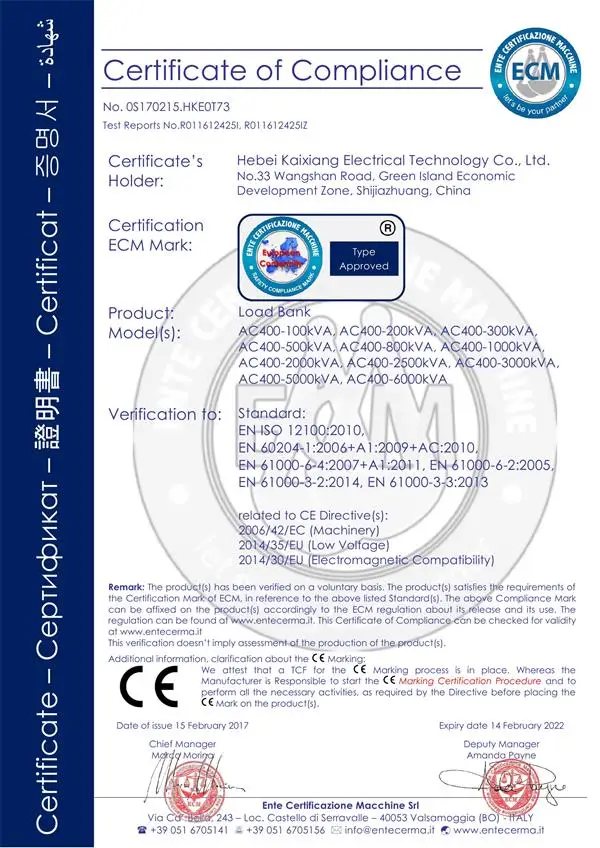

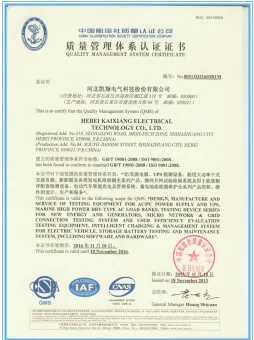

Certifications
FAQ
Why choosing us
1. Professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
