Цифровой расходомер LANDTEK от производителя, расходомер и расходомер воды, FM 100V5 воды

Product Overview

Description

Applications

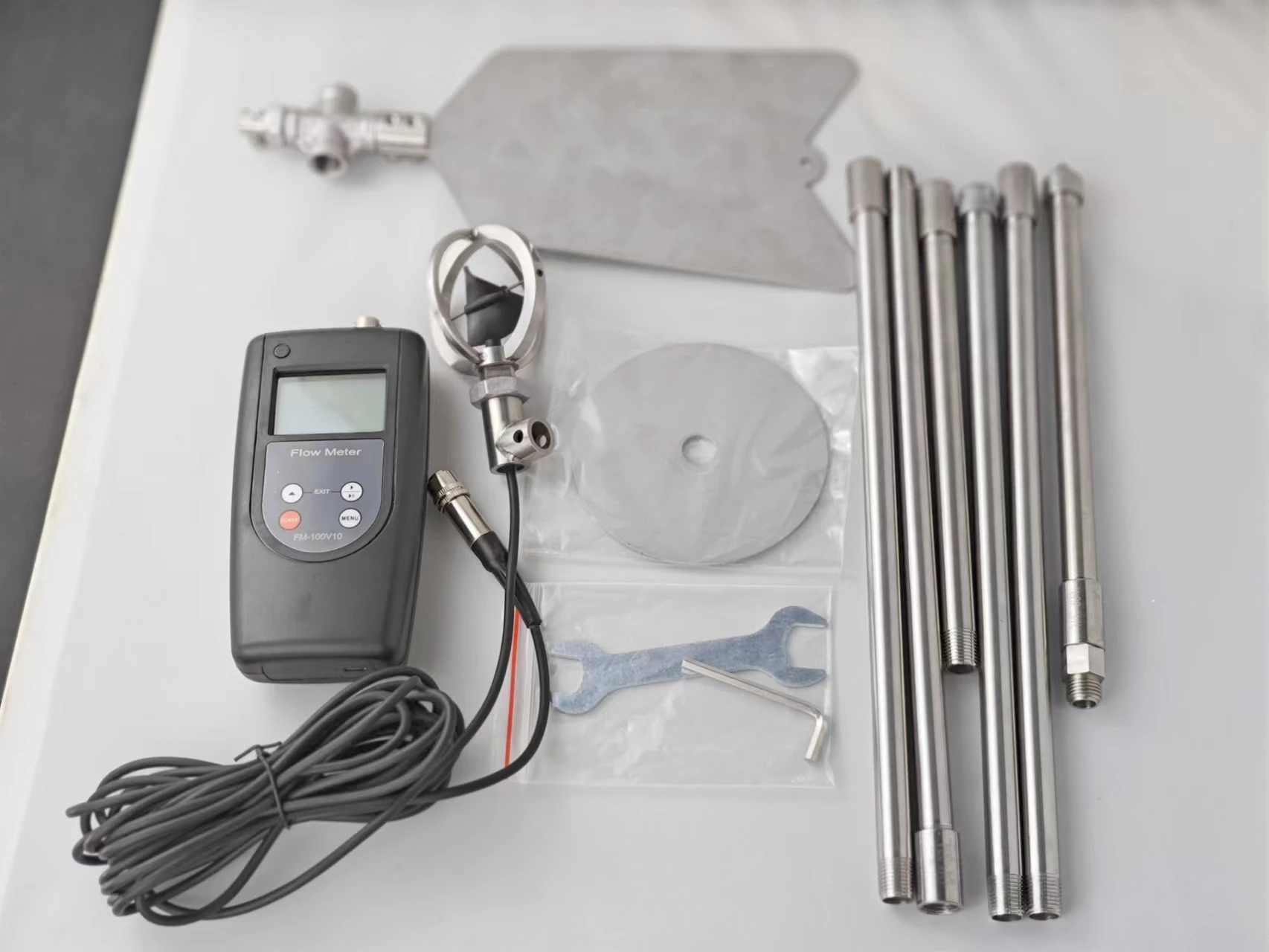

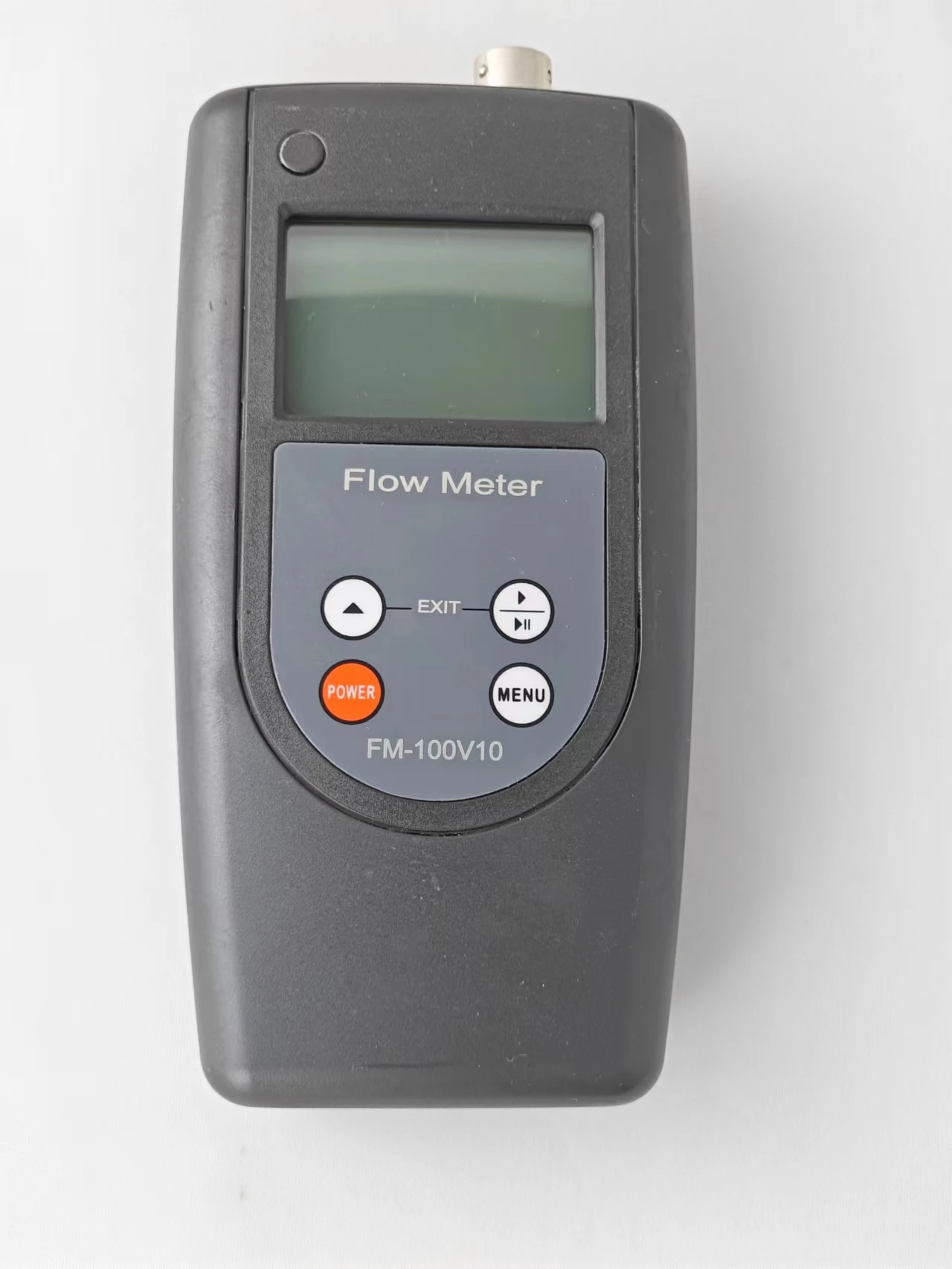

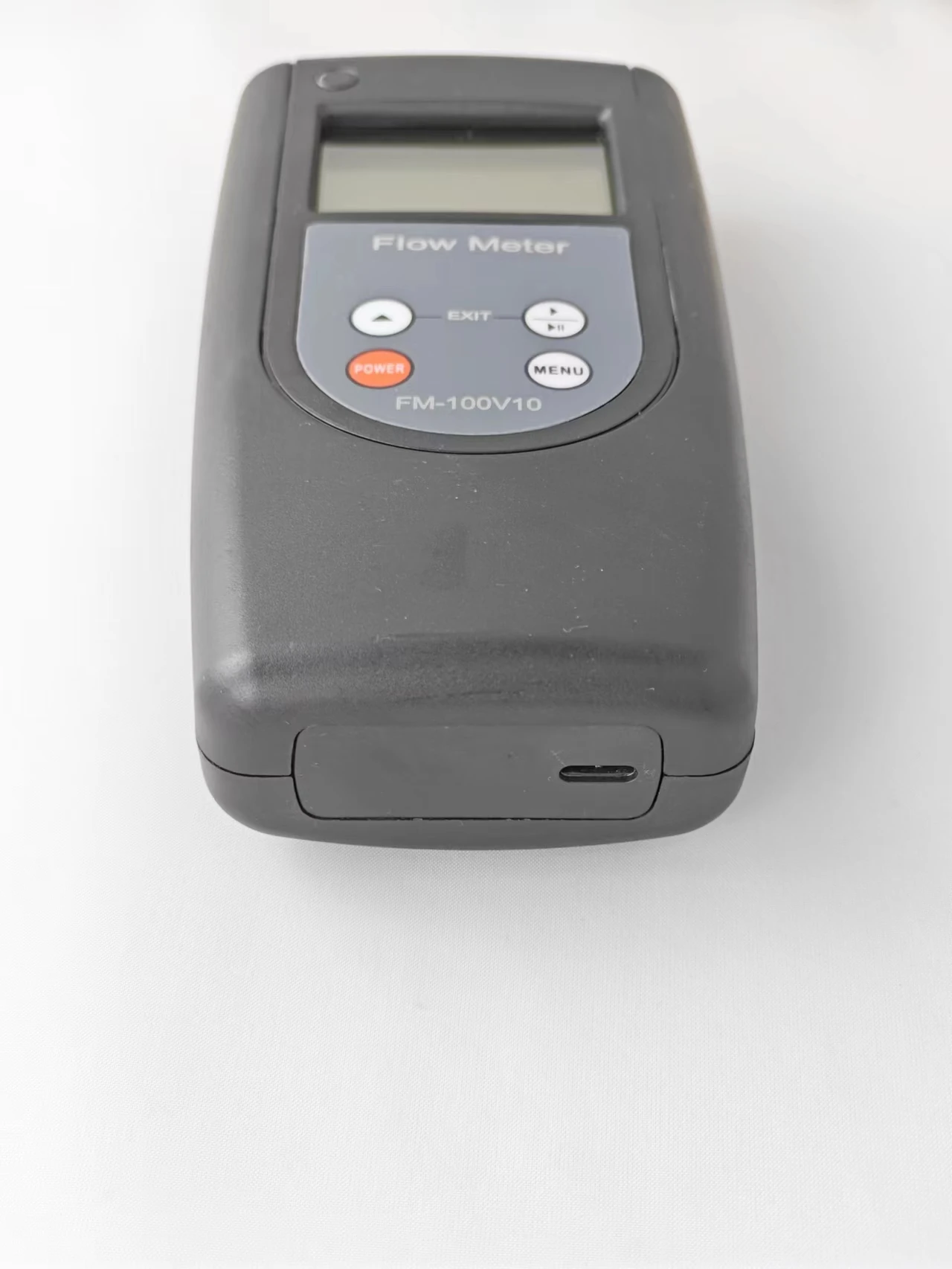

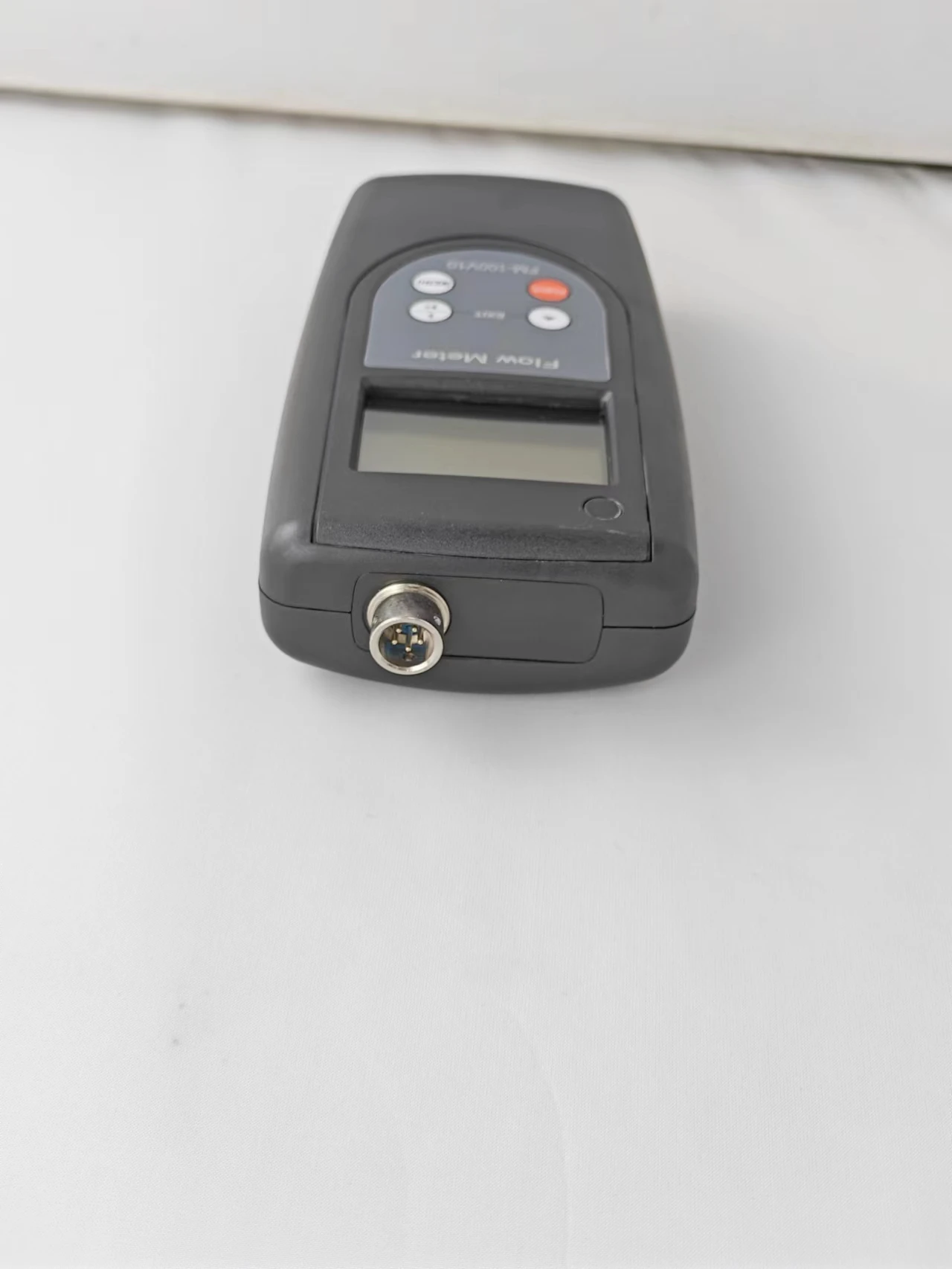

FM - 100V5 portable flow rate meter (hereinafterreferred to as portable flow meter) is designed for hydrological stations, factories and mines,

environmental protection monitoring station,farmland irrigation and drainage, hydrogeology survey and other departments in the field of velocity of flow in open channel flow



Features

*Simple structure, light and convenient,

* Power consumption, complete functions,

* High degree of automation, stable and reliable,

* In line with the national high temperature rotary slurry is a new type of portable velocity measurement   instrument



Specifications

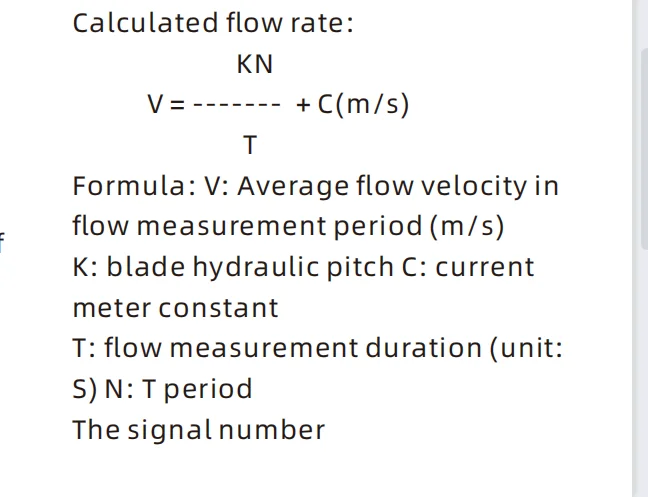

formula	KN V = ------- + C(m/s)(automatic computer)               T
Instrument Number	k:0.0500 c:0.0100
Speed range	FM-100V10 (0.01-10.00 m/s)
Current measurement error	≤1. 5%
LCD	LIQUID crystal display

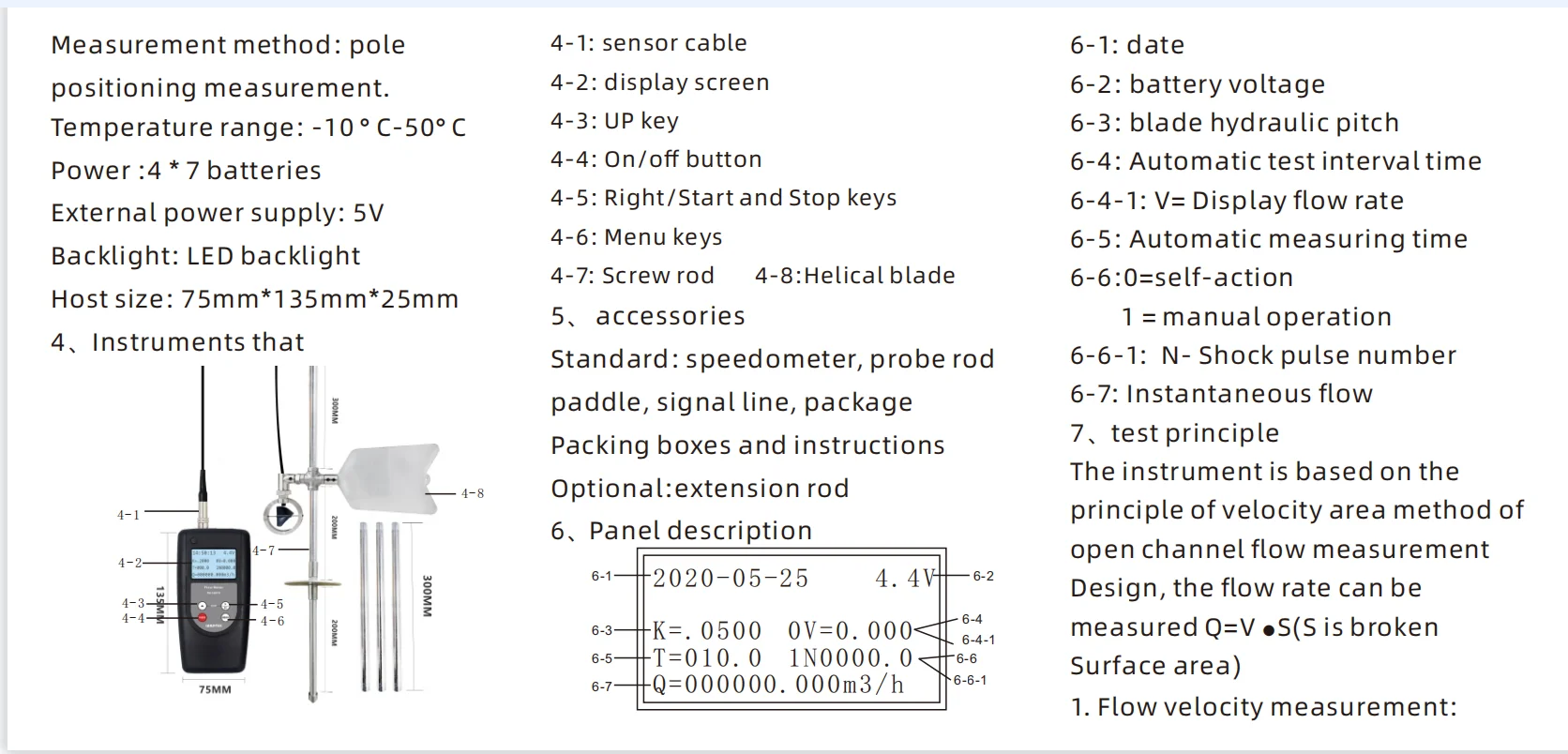

Measurement method	pole positioning measurement.
Temperature range	-10 ° C-50° C

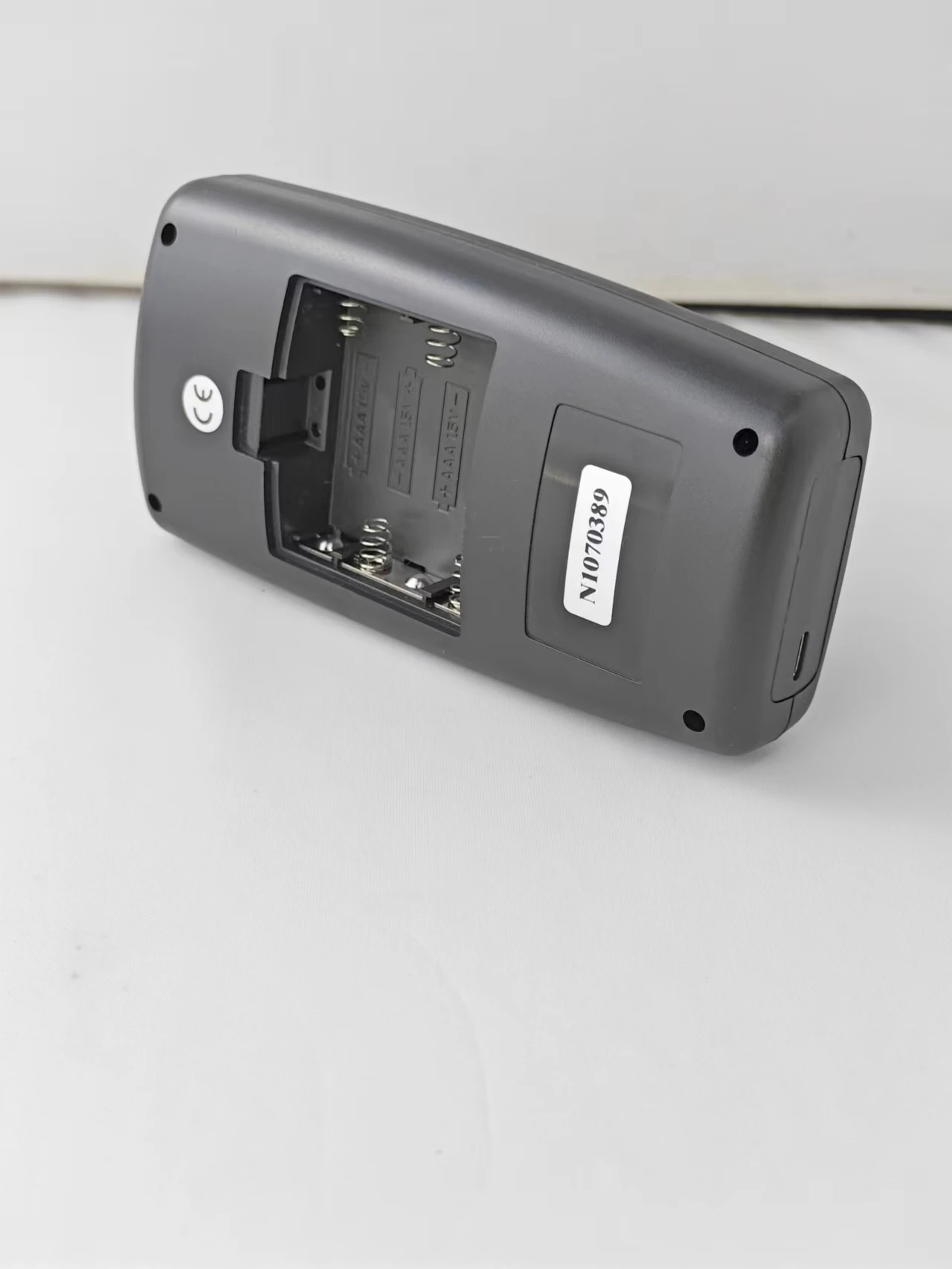

Power	4 * 7 batteries
Backlight	LED backlight

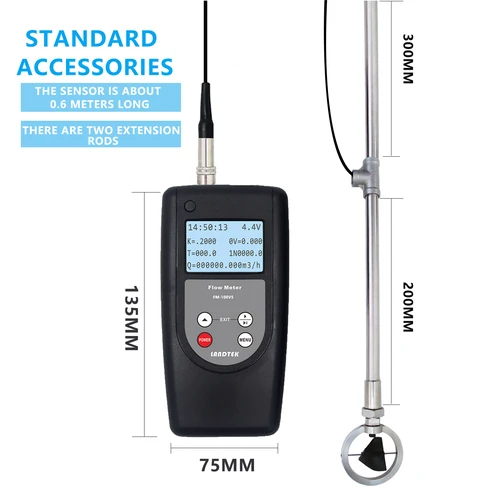

Host size	75mm*135mm*25mm
