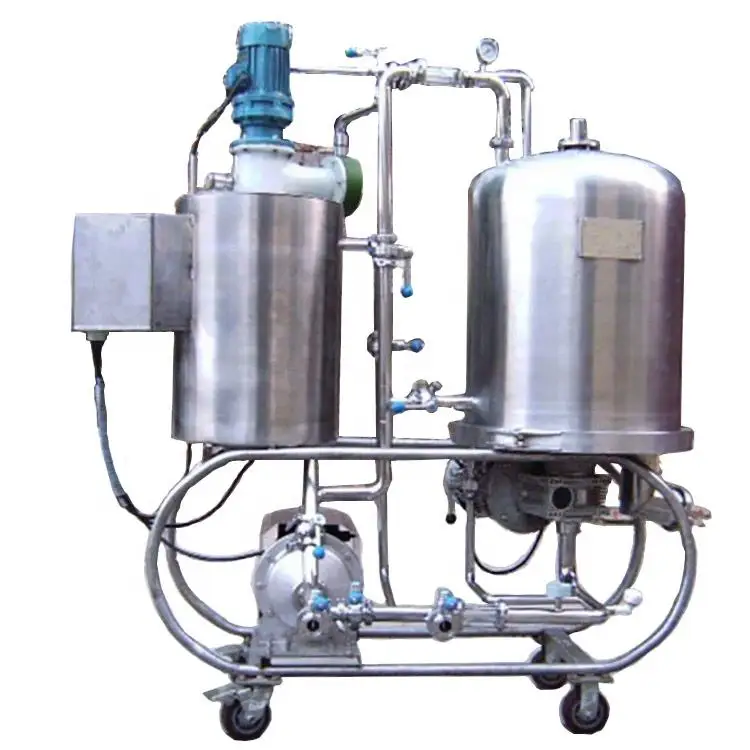

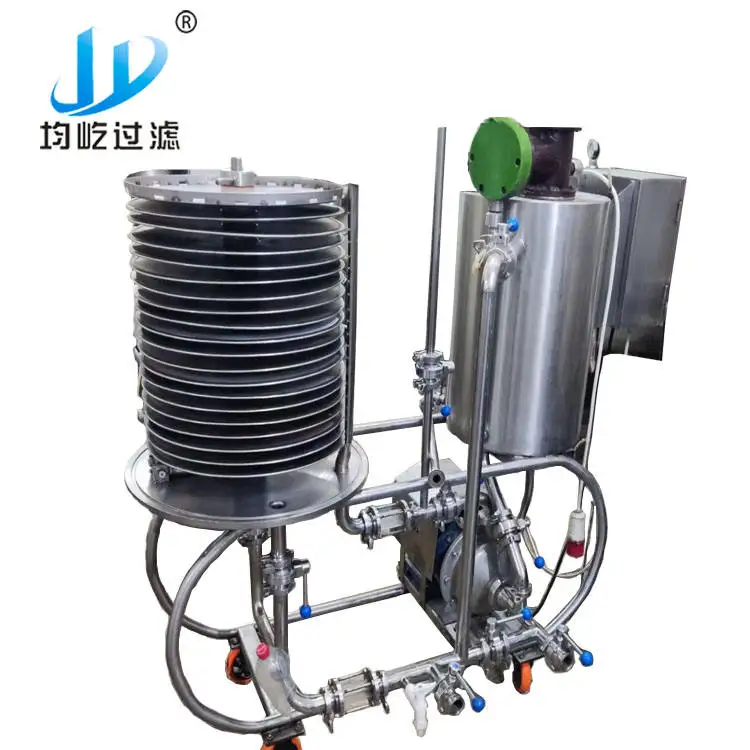

Large Diatomaceous Earth Filter System For Beer
- Category: >>>
- Supplier: Shanghai Junyi Filter Equipment Co. Ltd.Shanghai Ltd.
Share on (1600820868944):
Product Overview
Description
Product Description
☛ Diatomaceous Earth (DE) Filtration is a process that uses diatoms or diatomaceous earth (single-celled organisms) as the filter media. DE filtration relies upon a layer of diatomaceous earth placed on a filter element or septum and is frequently referred to as pre-coat filtration.
☛ It mainly consist of Casing, intermediate shaft, filter plates, filter screens, guide rods,
valve, sight glass, rubber .
valve, sight glass, rubber .

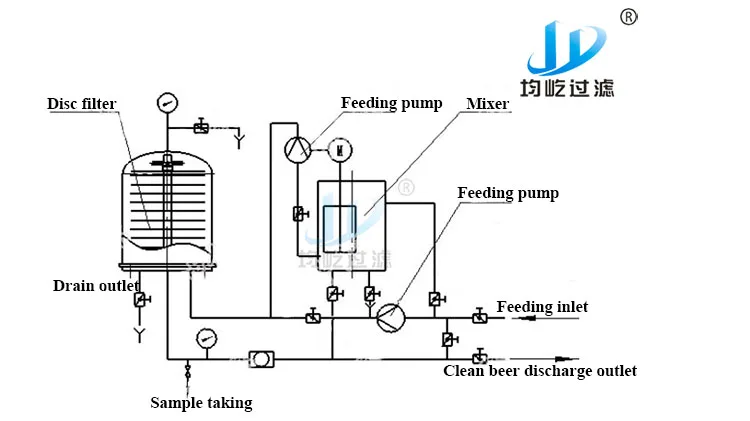

Working Principle

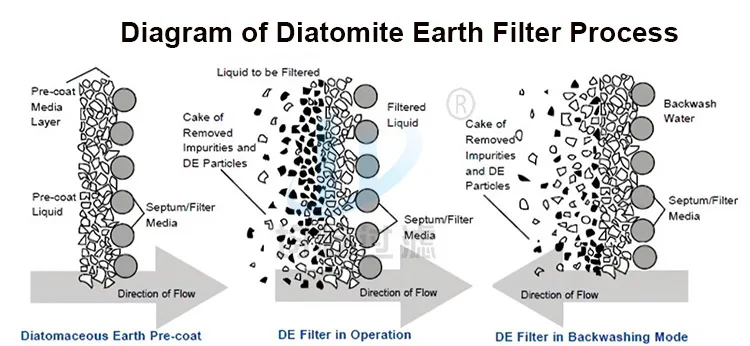

When the Diatomaceous Earth Filter makes the filtration, it will form into the precoating on the filter discs first. When the liquid to be filtered go through the precoating, the impurities will be blocked and the clean pured filtered liquid will pass from the gaps among the DE to realize the purification function.
After one filtration cycle, the backwashing pump will clean the filter discs to start the next filtration better.

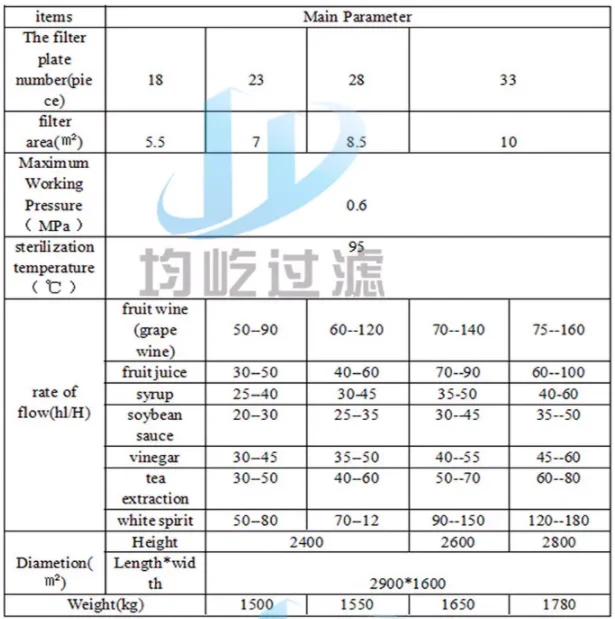

Specification
Applicable industries
Diatomaceous earth filter is suitable for clarification filtration of liquor, fruit wine, wine, health wine, beverage, syrup, soy sauce, vinegar, and pharmaceutical, biological, chemical and other liquid products
Beverage industry | Fruit and vegetable juice, tea drinks, beer, rice wine, fruit wine, white wine, wine, etc |
Sugar industry | Sucrose, fructose syrup, high fructose syrup, glucose syrup, beet sugar, honey, etc |
Pharmaceutical industry | Antibiotics, vitamins, synthetic plasma, traditional Chinese medicine extracts, etc |
condiments | Vinegar, soy sauce, monosodium glutamate, cooking wine, etc |
Chemicals | Resin, inorganic acid, organic acid, alcohol, benzene, aldehyde, ether, etc |
Packing & Delivery
Company Profile
☛ We produce more than 200 different modes of the filter. The main products are the Press Filter/ Filter/ Oil Filter/ Filter Bag. These equipment are widely used for the solid-liquid separation process in the industrial of material processing, petroleum, chemical industry, dyestuff, matallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, texiles, enviromental protection, energy and so on.

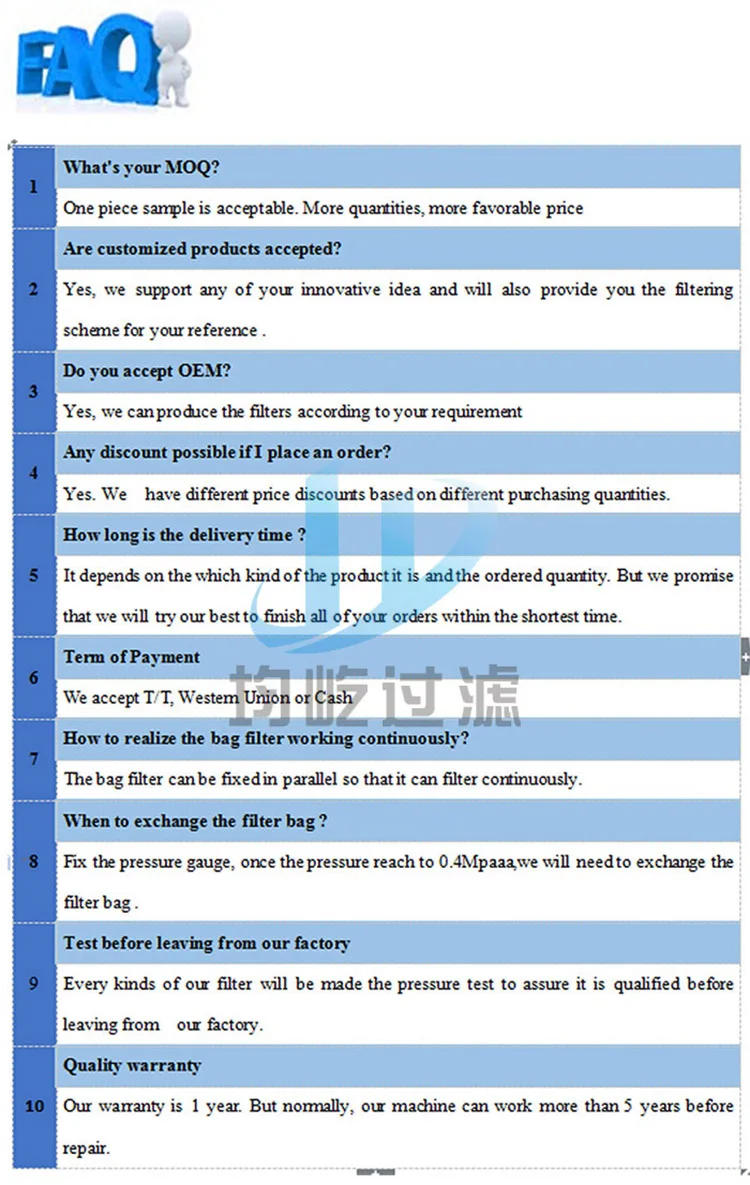

FAQ
