Deye Batterie Lager Deutschland Price Lithium Batteries Es G5 1 Pro Battery 20Kwh Monophase 5Kva Gb Sl Ess Rack
- Category: >>>
- Supplier: Wuxi Yifeng Technology Co. Ltd.
Share on (1600820876099):
Product Overview
Description
Products Description

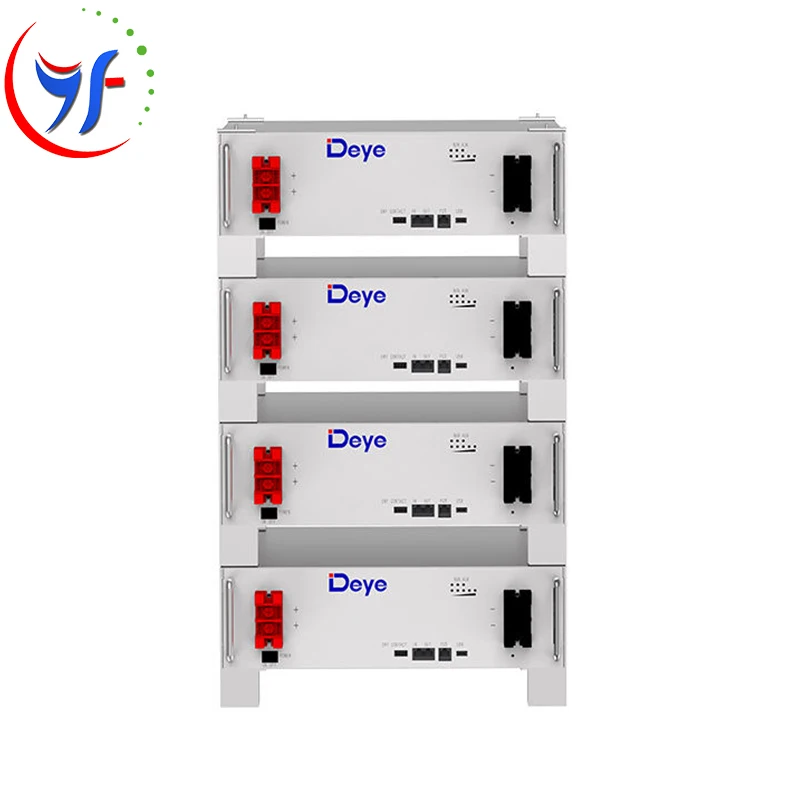

Model | SE-G5.1 Pro | |||
Main Parameter | ||||
Battery Chemistry | LiFePO4 | |||
Capacity (Ah) | 100 | |||
Scalability | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) | |||
Nominal Voltage (V) | 51.2 | |||
Operating Voltage(V) | 43.2~57.6 | |||
Energy (kWh) | 5.12 | |||
Usable Energy (kWh) [1] | 4.61 | |||
Charge/Discharge Current (A) | Recommend [2] | 50 | ||
Max. [2] | 100 | |||
Peak(2mins,25℃) | 150 | |||
Other Parameter | ||||
Recommend Depth of Discharge | 90% | |||
Dimension (W/H/D, mm) | 445*133*430 | |||
Weight Approximate(kg) | 44 | |||
Master LED Indicator | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) | |||
IP Rating of Enclosure | IP20 | |||
Operating Temperature | Charge:0～55℃ / Discharge:-20℃～55℃ | |||
Storage Temperature | 0℃～35℃ | |||
Humidity | 5%~95% | |||
Altitude | ≤2000m | |||
Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,70%EOL) | |||
Installation | 19-inch standard cabinet, cabinet depth ≥600mm / with rack | |||
Communication Port | CAN2.0, RS485 | |||
Warranty Period [3] | 10 years | |||
Energy Throughput [3] | 16MWh@70%EOL | |||
Certification | UN38.3, UL1973, IEC62619, CE, CEI 0-21 | |||
