250 т резиновая пластина вулканизирующая пресс машина

Product Overview

Description

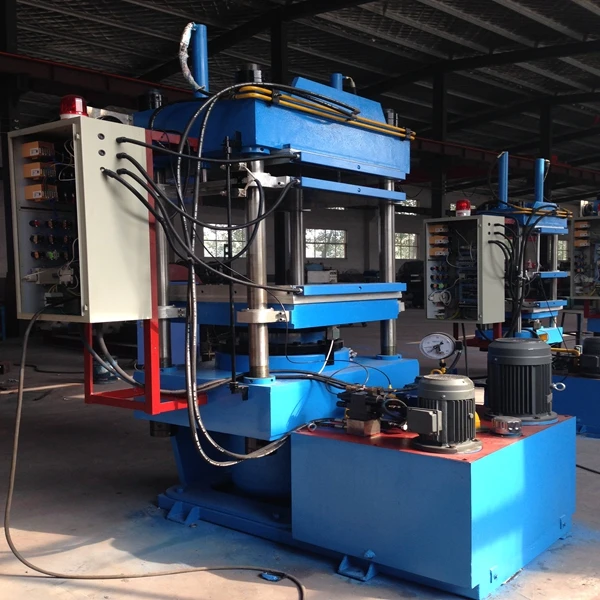

250T Rubber Plate Vulcanizing Press Machine

                        Wechat / Whats App: 0086-13963951313







1.Type	XLB-250T
2.Total pressure(tons)	250
3.Plate size(mm)	630x630
4.Daylight clearance(mm)	500
5.Daylight number	2
6.Piston stroke(mm)	min 700
7.Main motor power(kw)	5.5
8.Overall size(mm)	1400x550x1500
9. Weight(kg)	2300

2.Features:



This machine is used to produce all kinds of rubber and plastic mould products, and non-mould products.

As a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.

The base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.

By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.

Electricity heating will make workshop clean with easy and reliable

(We can design different plate size, different pressure , and other any requests from customers.)

Finally, we welcome you to visit us in future.



3.Application:

Our press are suitable to rubber seal ring /  rubber tiles / conveyor belt or other industrial rubber products production, we promise good quality and competitive price, meanwhile, we welcome to visit our factory in future.





4.Delivery time:

within 30 days after receiving order



5.Package:

suitable for long-time transporation to keep machine safe and sound.

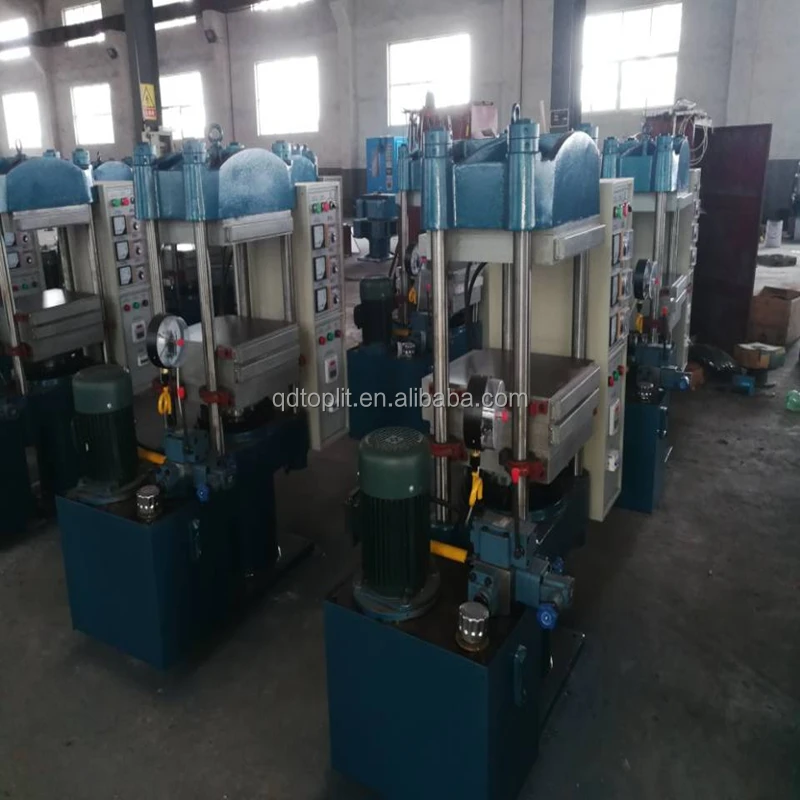

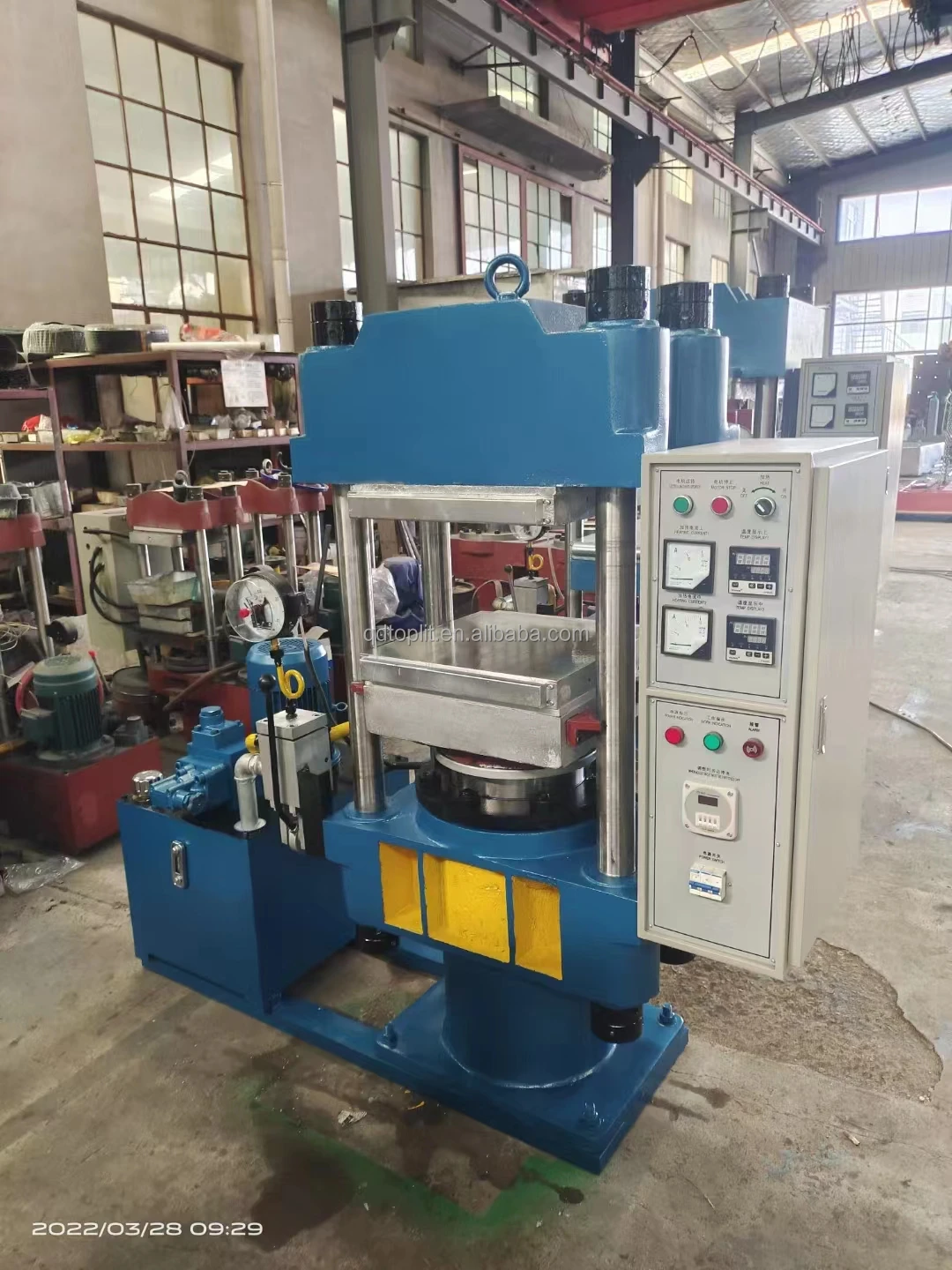

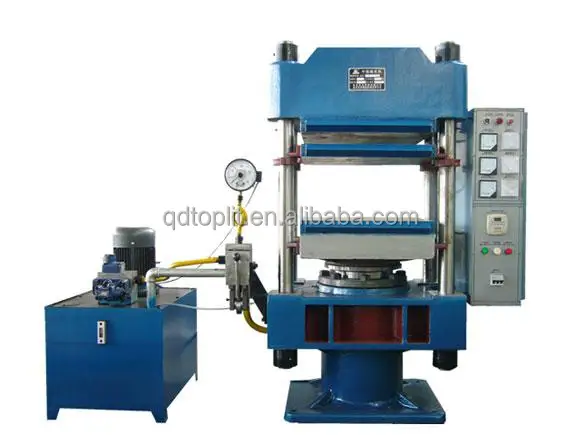

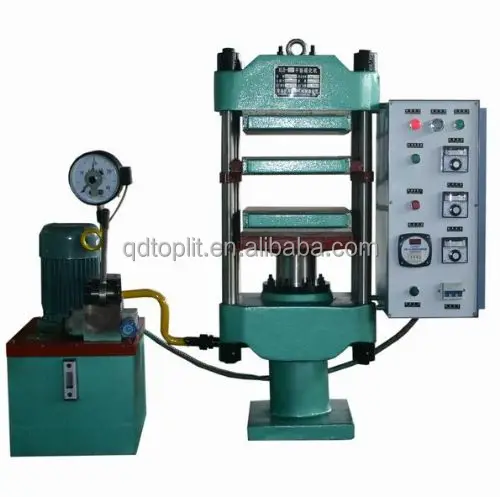

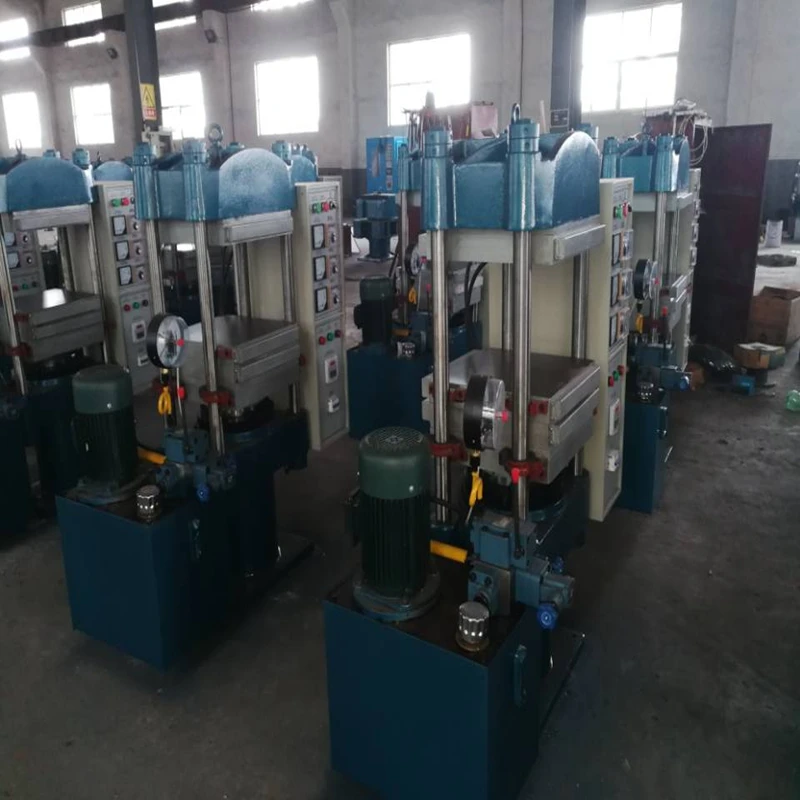

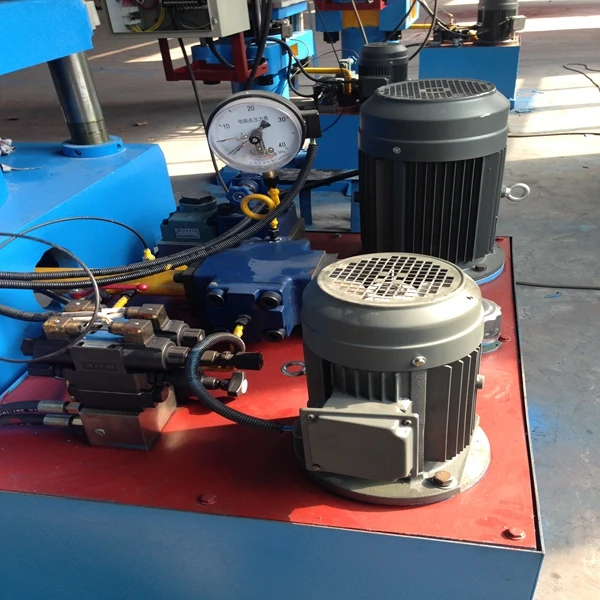

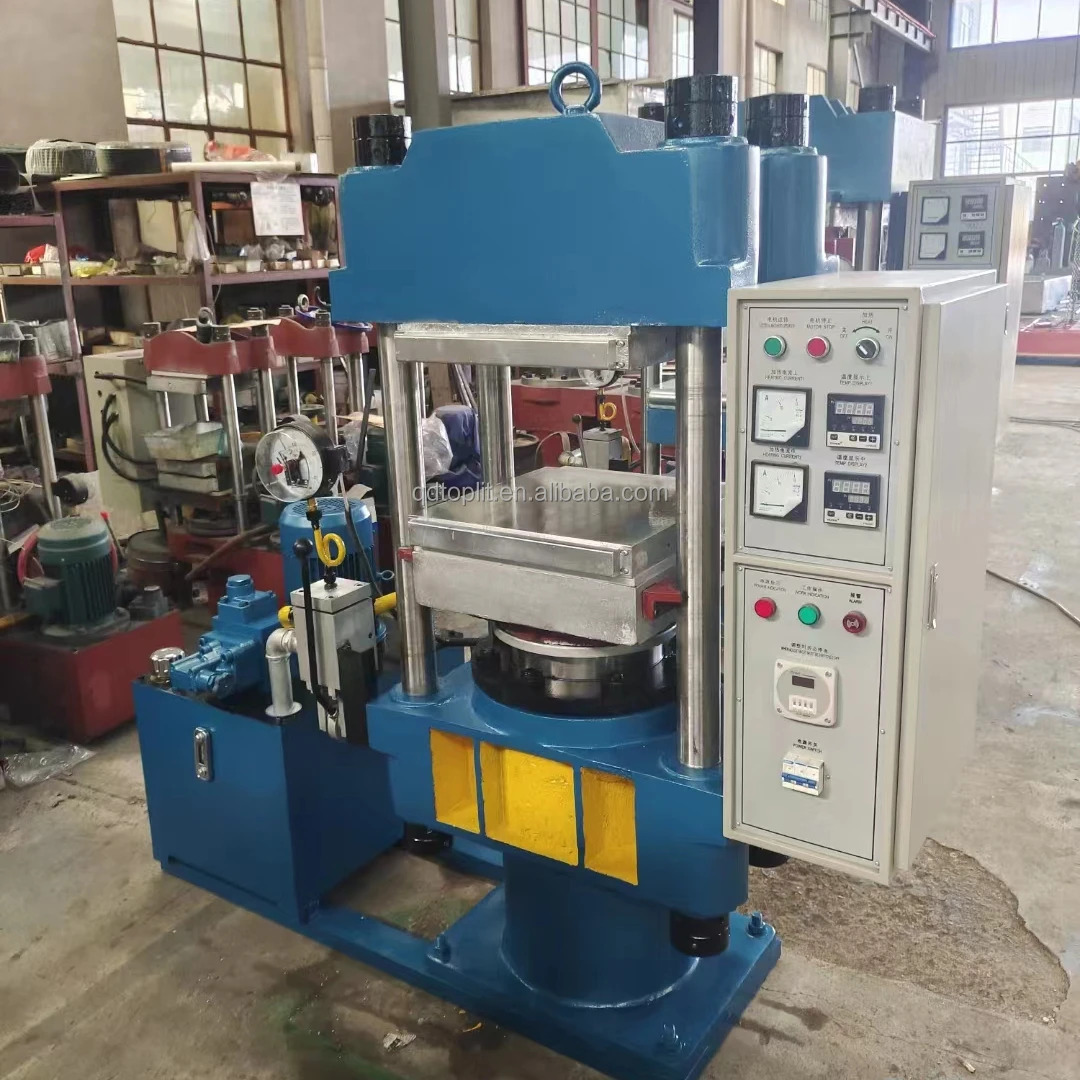

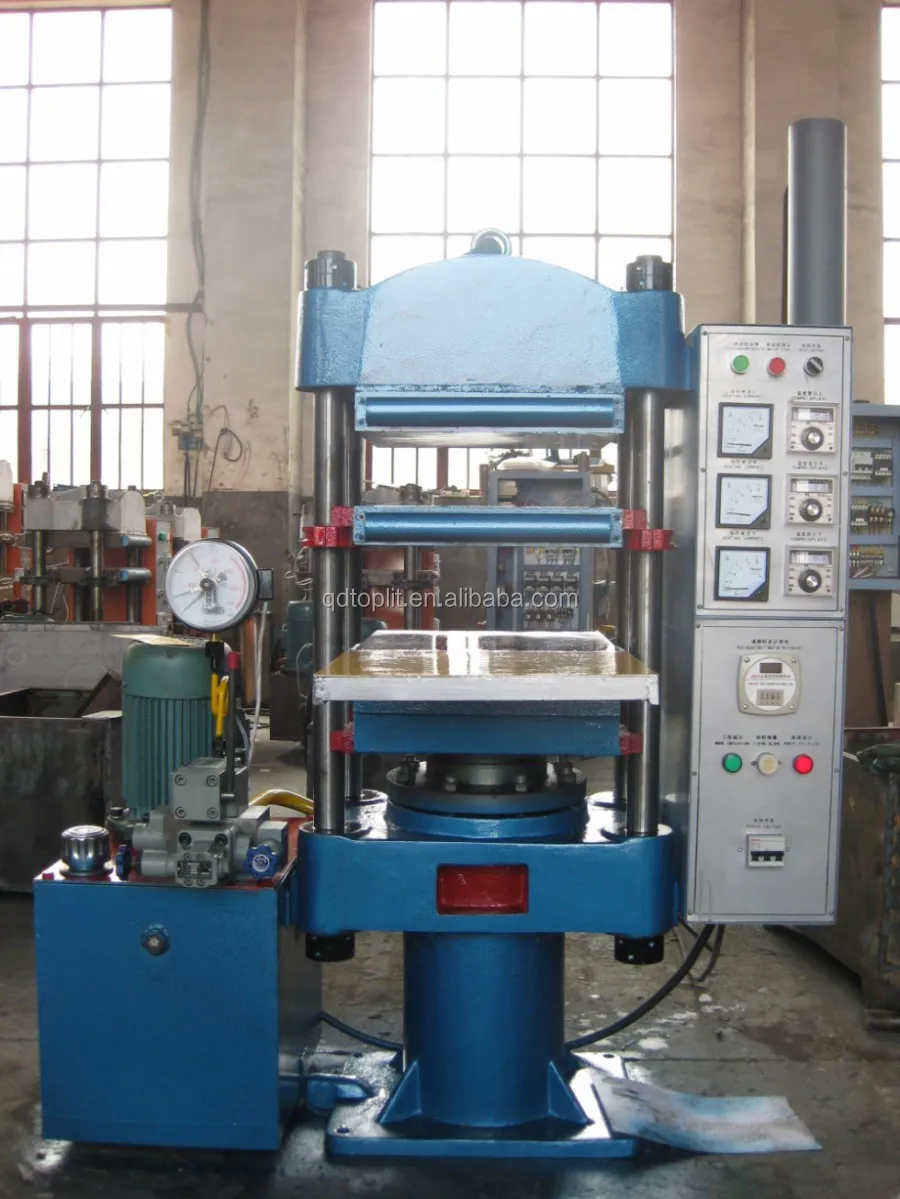

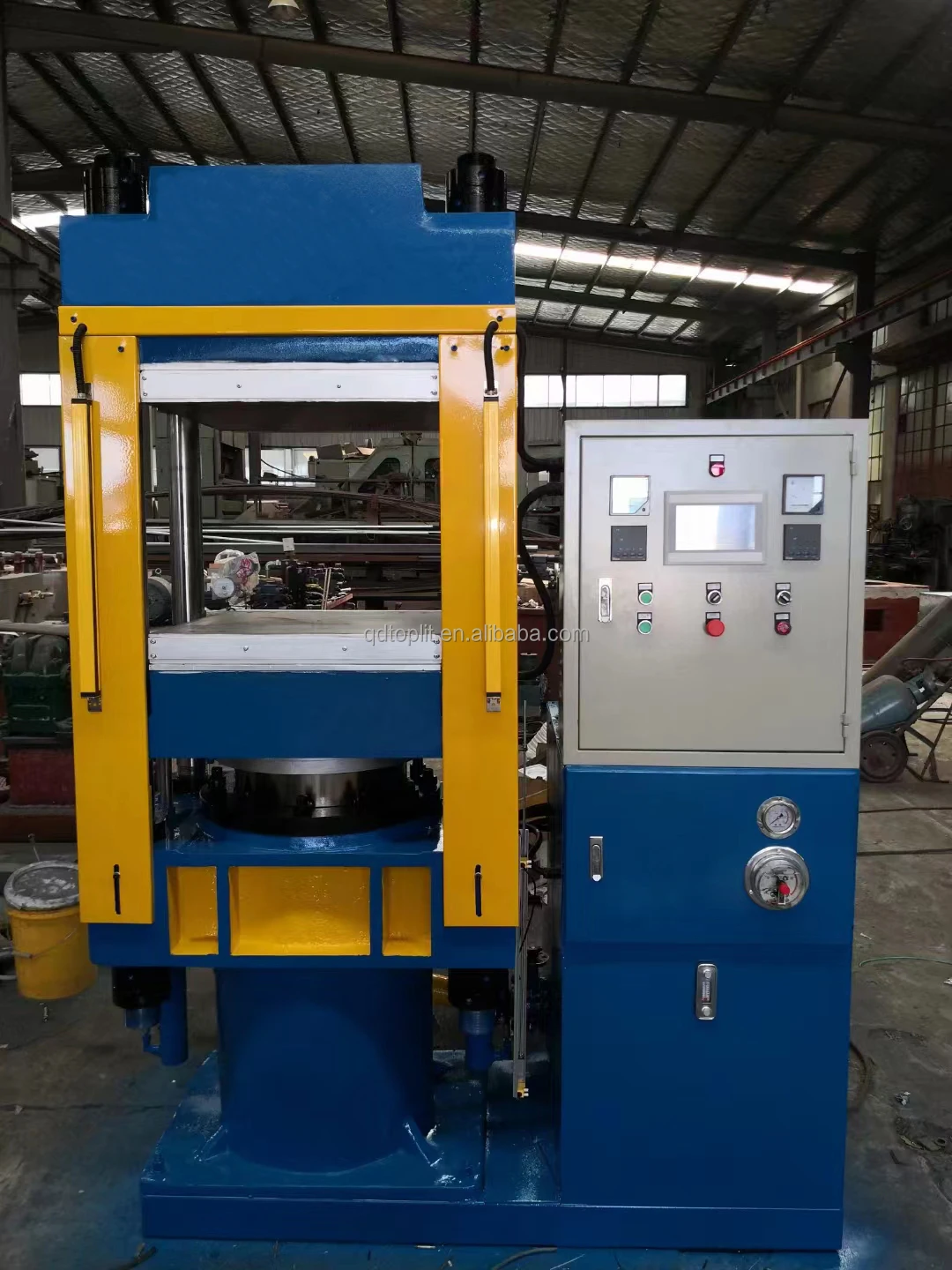

Reference pictures:
