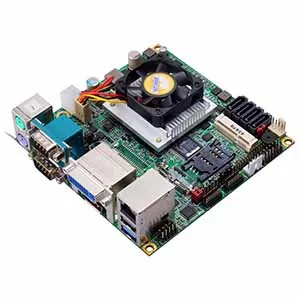

LN-D7O
Bay Trail Mobile Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Nano-ITX Motherboard

Support Bay Trail Intel® Celeron™ J1900 / N2930 and Atom™ E3845 mobile CPU
, DDR3L up to 8GB, Onboard DisplayPort & DVI, CRT, 2 x LVDS, 1 x Giga LAN,
3 x USB 2.0, 1 x USB 3.0, 6 x COM, HD Audio, 2 x SATAIl, 2 x SATAIII, GPIO,
1 x PCIE Mini card or mSATA, 1 x SIM slot.

Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Mini-ITX form factor LN-D70 embedded system board with the Intel® Express chipset, which adopts the Bay Trail Intel® Celeron™ J1900 / N2930 and Atom™ E3845 processor family. The COMMELL LN-D70 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.



The LN-D70 Mini-ITX is designed for the Bay Trail Intel® Celeron™ J1900/N2930 and Atom™ E3845 processors in the FCBGA1170 socket supporting one DDR3L SO-DIMM up to 8GB and running 1066/1333 Mhz No ECC function. The platform is based on Intel® Intel® Clear Video that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LN-D70 supports CRT, LVDS, DVI and one DP port to provide its advanced solutions for imaging, machine vision and digital signage applications.



LN-D70 offers lots of features including high-speed data transfer interfaces such as 1 x USB3.0 and 2 x SATAII, 2 x SATAIII, equipped with 1 x Gigabit Ethernet, and comes with PS/2 Keyboard and Mouse port, 5 x RS232 and 1 x RS232/422/485, 3 x USB2.0, Intel® High Definition Audio, and 1 x PCIE Mini card or mSATA, 1 x SIM slot.

Key Feature

CPU: Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Mobile in the FCBGA1170 socket

Memory: 1 x DDR3L (Support 1.35V) 1066/1333 MHz SO-DIMM up to 8 GB

Integrated Graphics: Intel® Clear Video integrated HD Graphics Technology

DVI interface: Onboard DVI connector (DVI and LVDS1 can't enable simultanesouly)

LVDS interface: 2 x Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

DisplayPort interface: Onboard DisplayPort connector (DisplayPort and LVDS2 can't enable simultanesouly)

LAN Interface: 1 x Intel® I210-AT Gigabit LAN

Serial ATA: Support 2 x SATAII (3Gb/s) and 2 x SATAIII (6Gb/s)

Internal I/O ports: 4 x RS232, 1 x GPIO, 2 x USB3.0, 1 x CRT, 1 x Audio, 1 x SMBUS, 1 x LPC, 2 x LVDS (optional), 2 x LCD inverter (optional), 2 x SATAII, 2 x SATAIII.

External I/O ports: 1 x RS232, 1 x RS232/422/485, 1 x USB2.0, 1 x USB3.0, 1 x LAN, 1 x PS/2, 1 x DVI (optional), 1 x DisplayPort (optional).

Extended interface: 1 x PCIE Mini card or mSATA, 1 x SIM slot.

GPIO interfacet: Onboard programmable 8-bit Digital I/O interface.

Power requirement: 6~27V 4-pin full range DC Input.



Specification

Form Factor

Nano-ITX Motherboard

Processor

Bay Trail Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Mobile Processor.

Package Type: FCBGA1170

Memory

1 x 240-pin DDR3L (Support 1.35V) 1066/1333 MHz SO-DIMM up to 8GB

Integrated Graphics

Intel® Clear Video integrated HD Graphics Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

Support ACPI 5.0 compliant

Serial ATA Interface

2 x Serial ATAII (3Gb/s) & 2 x Serial ATAIII (6Gb/s) interface

CRT Interface

Onboard 2x8 pin-header

DVI Interface
Onboard DVI connector.(DVI and LVDS1 can't enable simultanesouly)

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

DisplayPort Interface
Onboard DisplayPort connector (DisplayPort and LVDS2 can't enable simultanesouly)

Audio Interface

Realtek ALC262 High Definition Audio Codec
LAN Interface

1 x Intel I210-AT Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE Mini card or mSATA , 1 x SIM slot

Internal I/O Port

4 x RS232, 1 x GPIO, 1 x Audio, 2 x USB2.0, 1 x LPC, 2 x SATAII, 2 x SATAIII, 2 x LVDS (optional), 2 x LCD inverter (optional),

1 x CRT, 1 x SMBUS.

External I/O Port

1 x PS/2, 1 x RS232, 1 x RS232/422/485, 1 x LAN, 1 x USB2.0,

1 x USB 3.0, 1 x DVI (optional), 1 x DisplayPort (optional).

Power Requirement

6~27V 4-pin full range DC Input.

Board Dimension

120 mm x 120 mm (L x W)

Temperature

Operating within 0 ~ 60°C (For LN-D70J and LN-D70N serial)

Storage within -20 ~ 85°C (For LN-D70E serial)

Operating within -40 ~ 85°C (For LN-D70J and LN-D70N serial)

Storage within -40 ~ 85°C (For LN-D70E serial)
