Chinese Factory PIR Insulation Foam Air Duct with ISO Pre Insulated PU Foam Duct Panel
- Category: >>>
- Supplier: Xiamen Green Foam Insulation Material Co. Ltd.
Share on (1600820909370):
Product Overview
Description
Product Description
·GFI PU PIR Foam Insulation Duct Panel is an excellent choice for insulation that can reduce the risk of fire.
·It has many advantages over conventional galvanized iron (steel metal) ductwork, such as lighter weight, higher strength, and longer lifespan.
·It is designed for easy and fast installation, saving you both time and money.

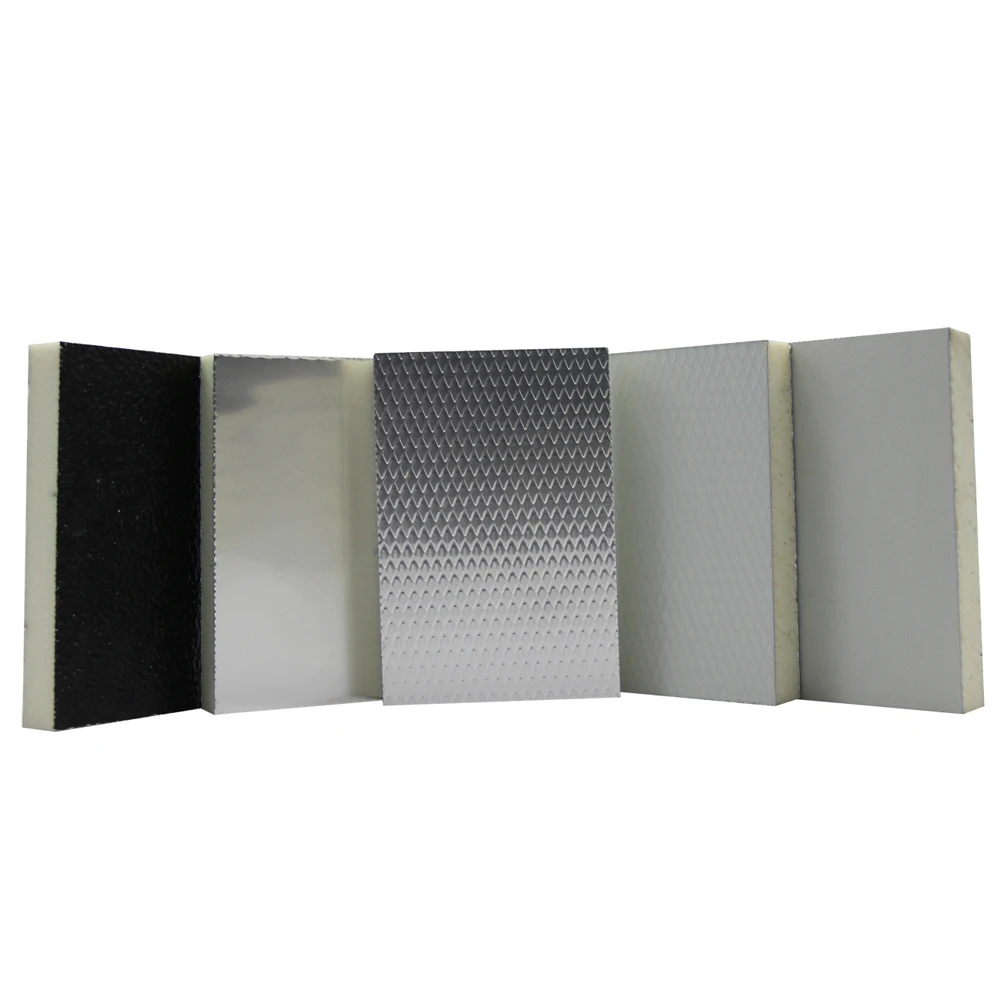

·It offers various options of facings, such as 80micron aluminum foil, 200micron aluminum sheet, pre-painted GI sheet, or fiberglass tissue, to meet your different needs.
·It is also an eco-friendly solution that helps to conserve energy and protect the environment.
Technical Data:
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 50 kg/m3 |
| Aluminum foil thickness | 0.08mm/0.2mm |
| Thermal Conductivity | 0.02W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.1% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 70 ℃ |

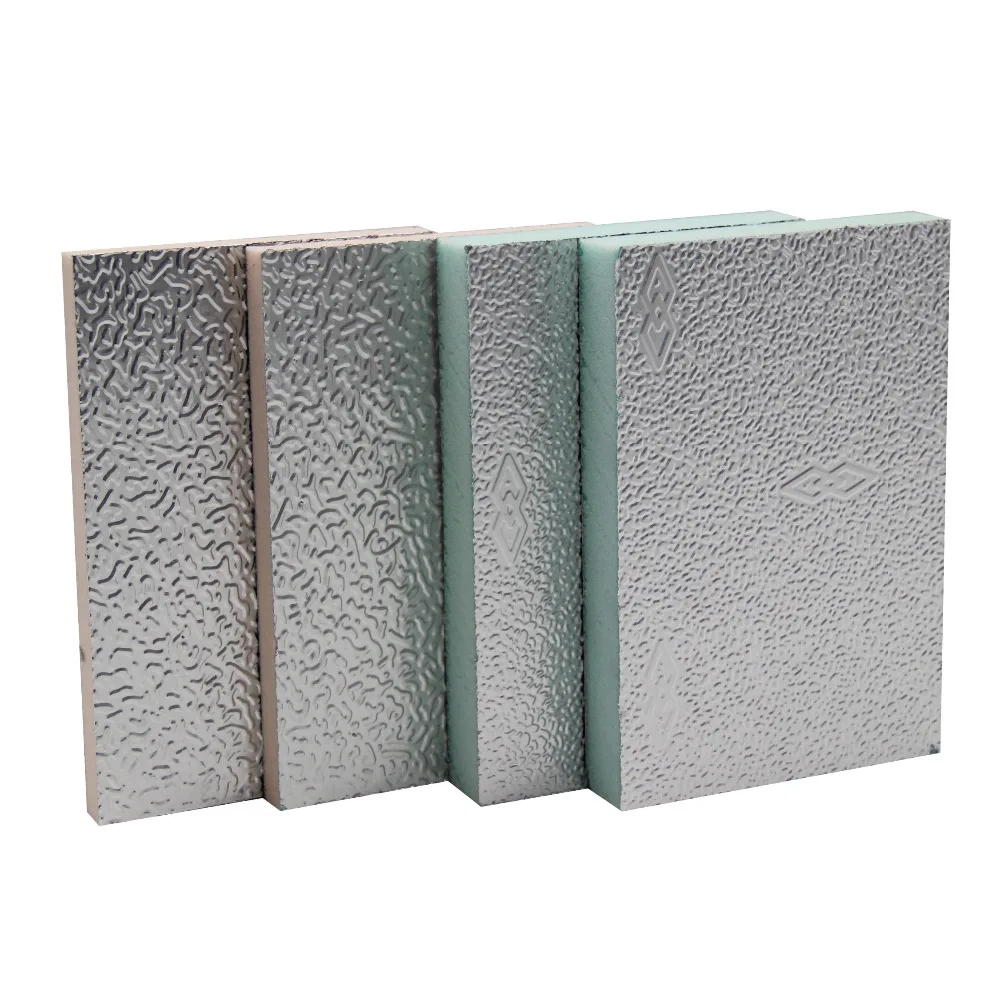

PU PIR panel with both sides embossed 80micron aluminum foil is suitable for internal use. For external environment, it is better to choose that with 200 micron thickness aluminum sheet or pre-painted GI sheet, as the bending / compressive strength is better. The smooth aluminum foil facing is used for clean room project, such as hospital and pharmaceutical engineering.

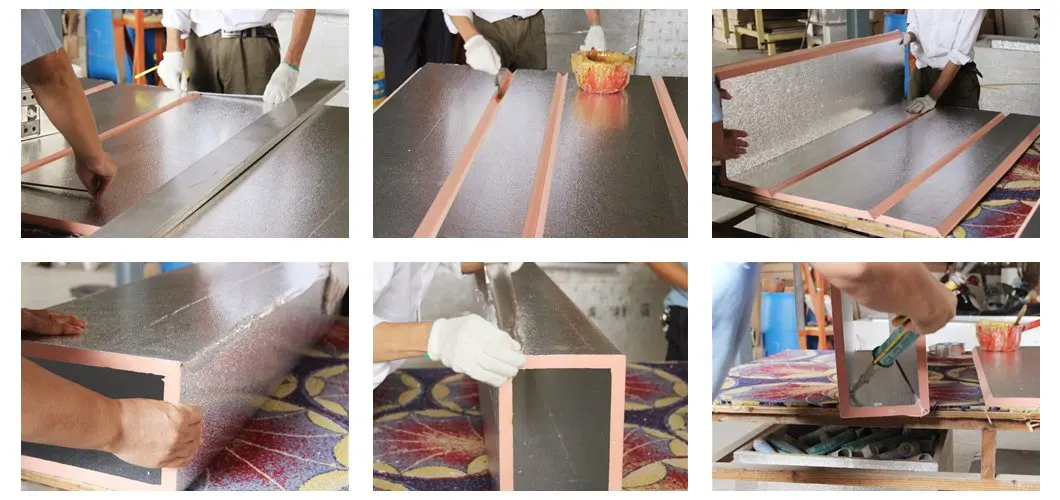

Fabrication:
Fabrication of Pre-insulated Air Duct including: tracing, cutting, gluing, folding, taping, profile&reinforcement, sealing.

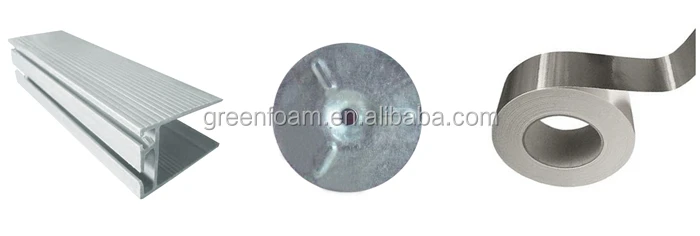

During this proceduce, some accessories are needed: cutter, profile (flange), tape, aluminium reinforcement section bar, silicone sealant, and manual bending machine. We also supply these related accessories.

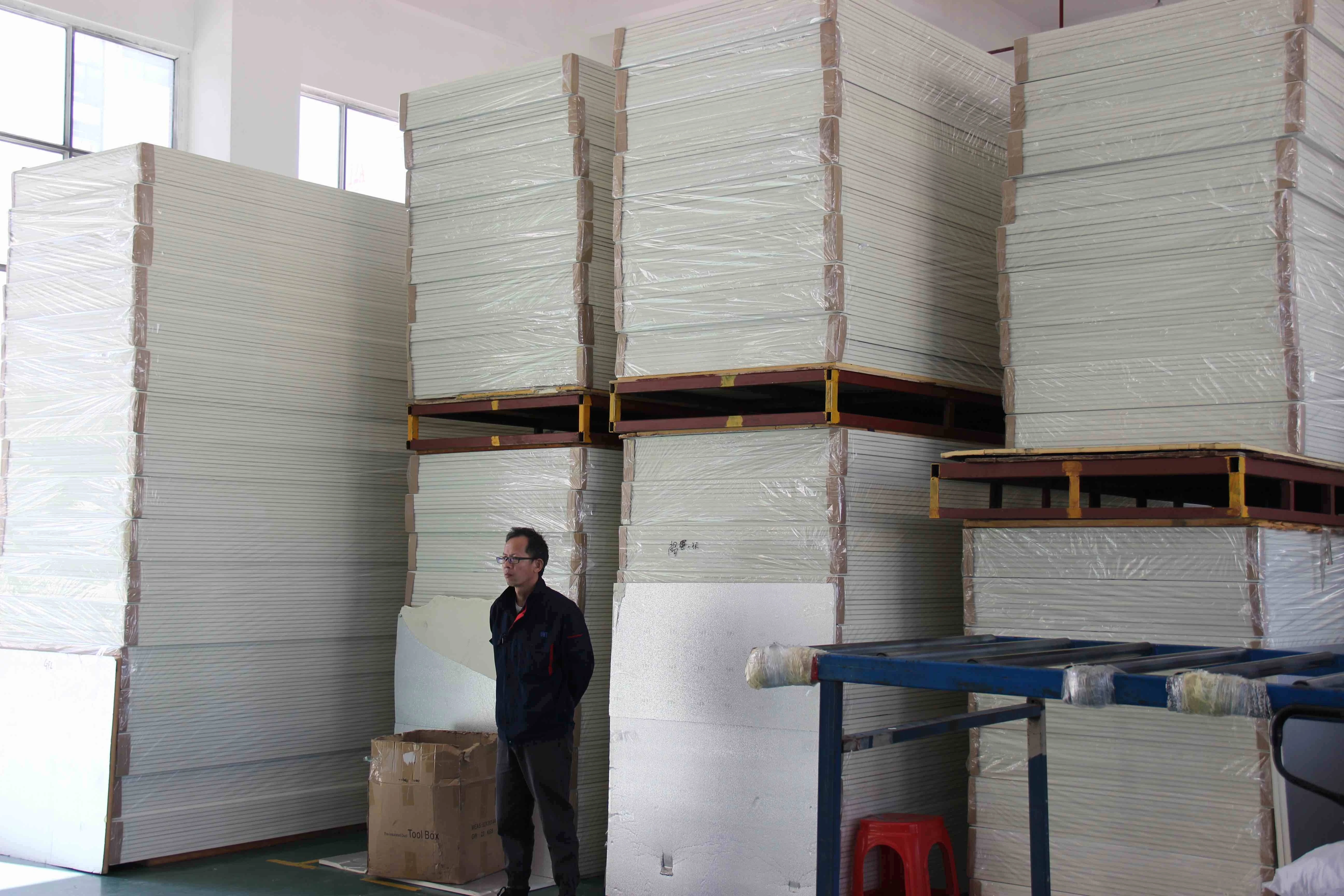

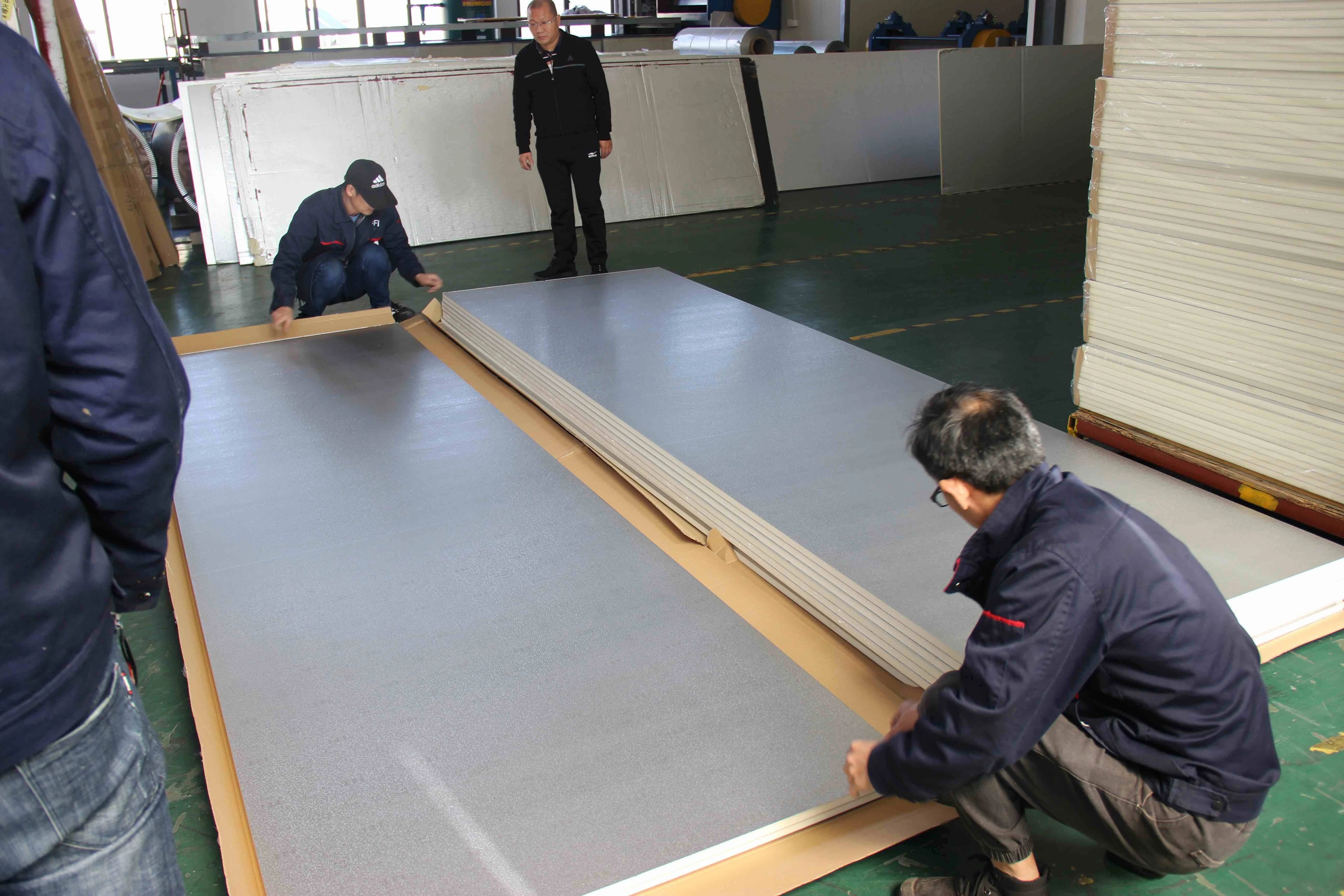

Packaging & Shipping
PIR PU Pre-Insulated Duct Panel will be packed as below details:
1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).
2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
Company Information
Certifications
Business Negotiation
We have attended many RHVAC Exhibitions in different countries, such as Thailand, Australia, Pakistan and so on. Many customers also come to visit our factory. We warmly welcome all customers and friends to visit our factory for cooperation.

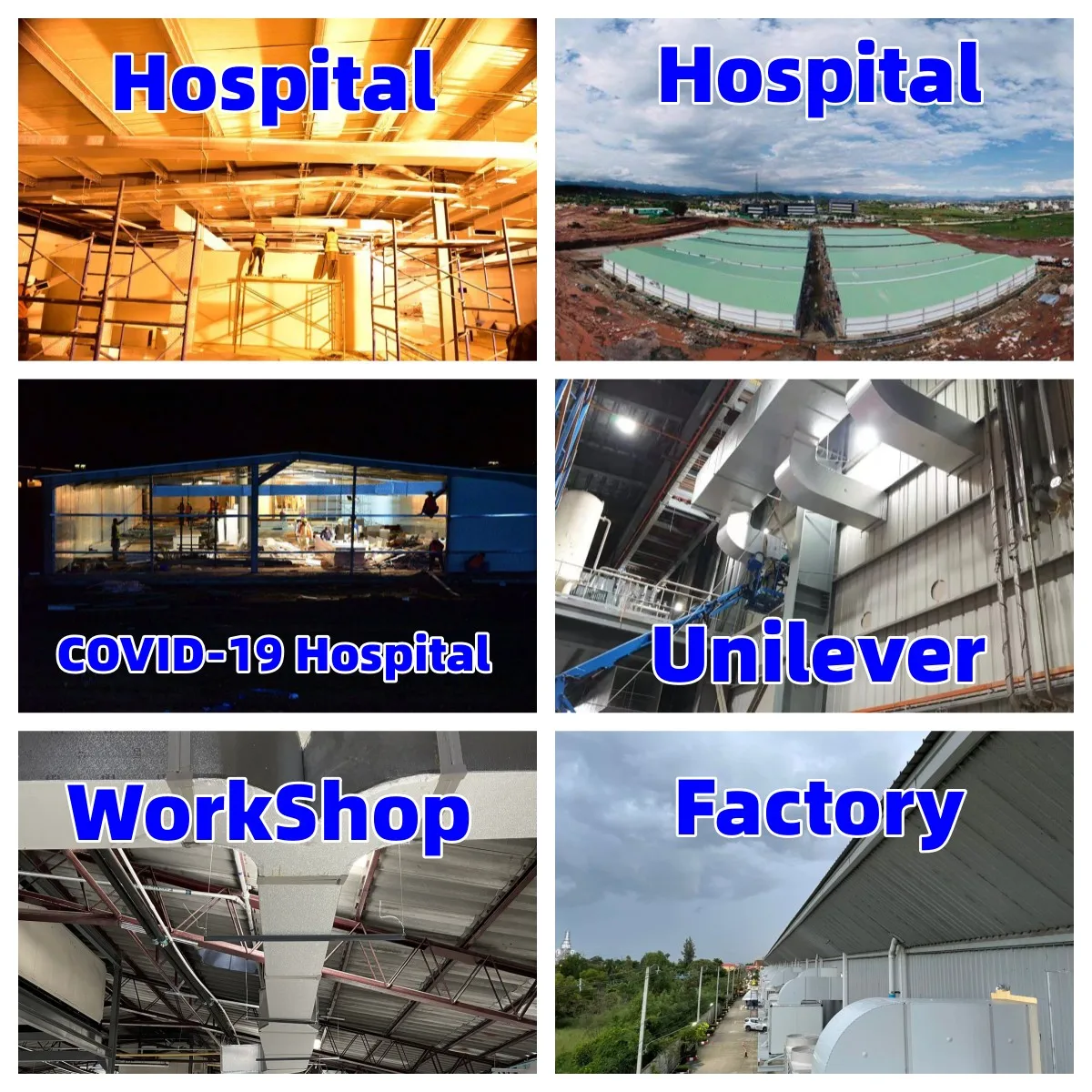

Project Case
We export our products to more than 40 countries. They help customers in these countries complete many engineering projects such as hospitals, factories and workshops......
Hot selling product
If you need more info, please feel free to contact us:
FAQ
(1) Can you send samples of Pre-insulated duct panels?
Yes, free small sample pieces can be sent out. You just need to pay the express fee.
A.You can provide your courier account, like DHL or FEDEX or TNT.
B.You can call your courier to pick up at our office.
C. You can pay us the express charge by T/T or by PAYPAL etc..
(2) How many sheets can put in one 40ft container?
40ft container usually can load 660 sheets of size 3950*1200*20mm, or 880 sheets of size 2950*1200*20mm.
(3) What is your delivery date, and from which sea port?
For one 40ft container, we can usually delivery it within one week after receiving the deposit.
We usually ship it from Xiamen Port, China, which is in Fujian Province.
