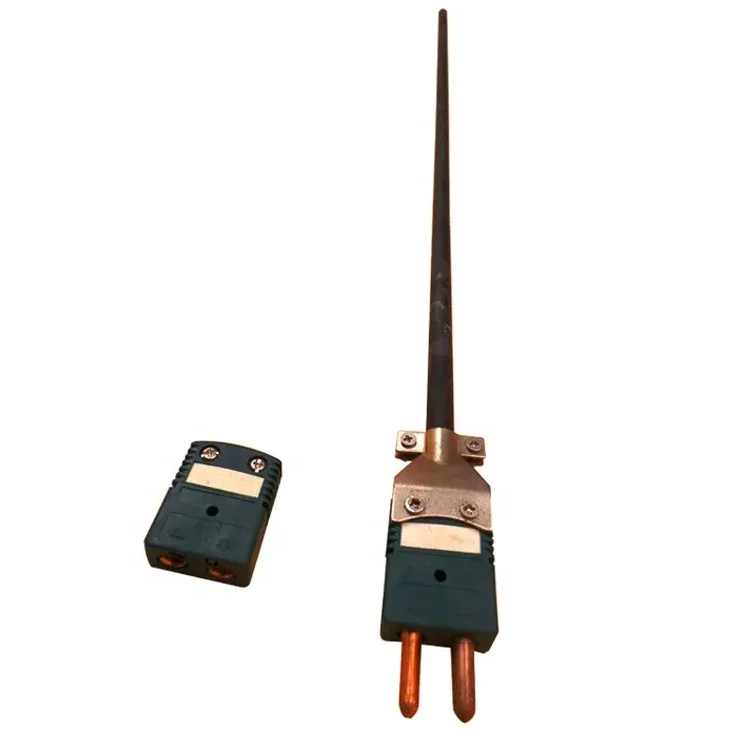

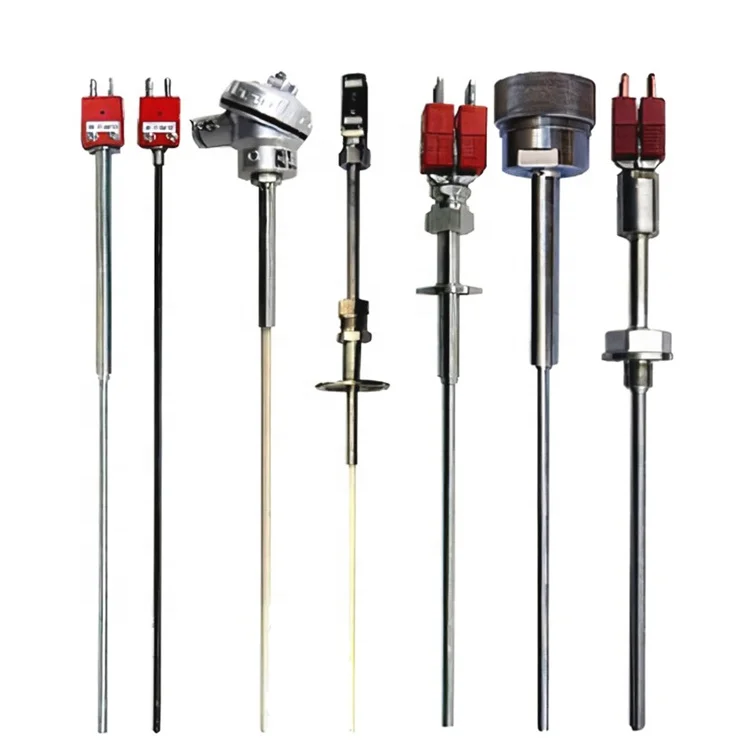

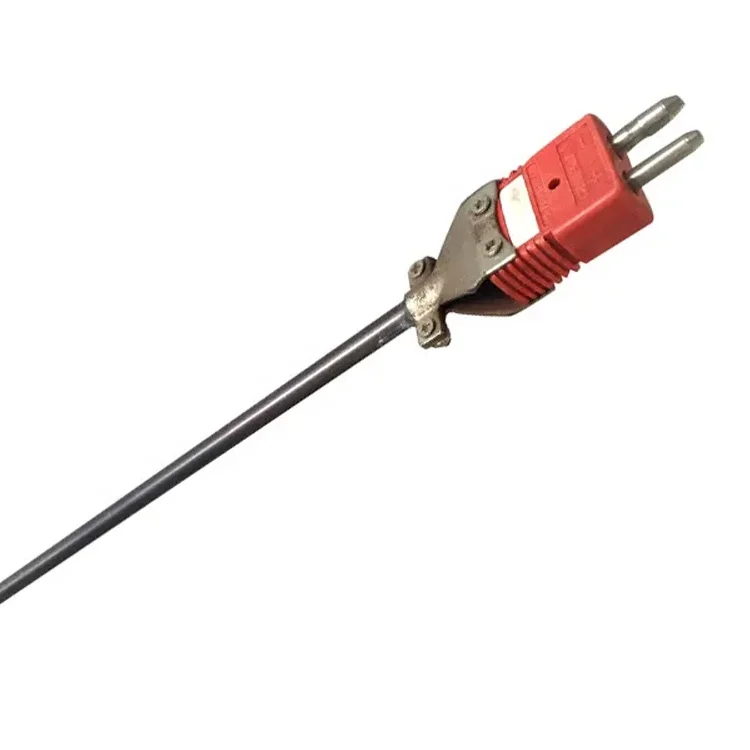

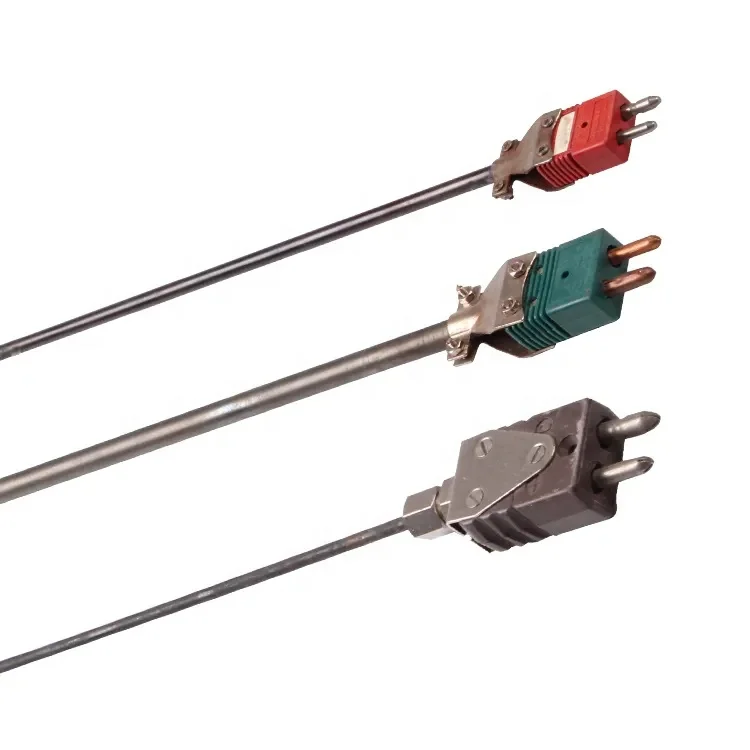

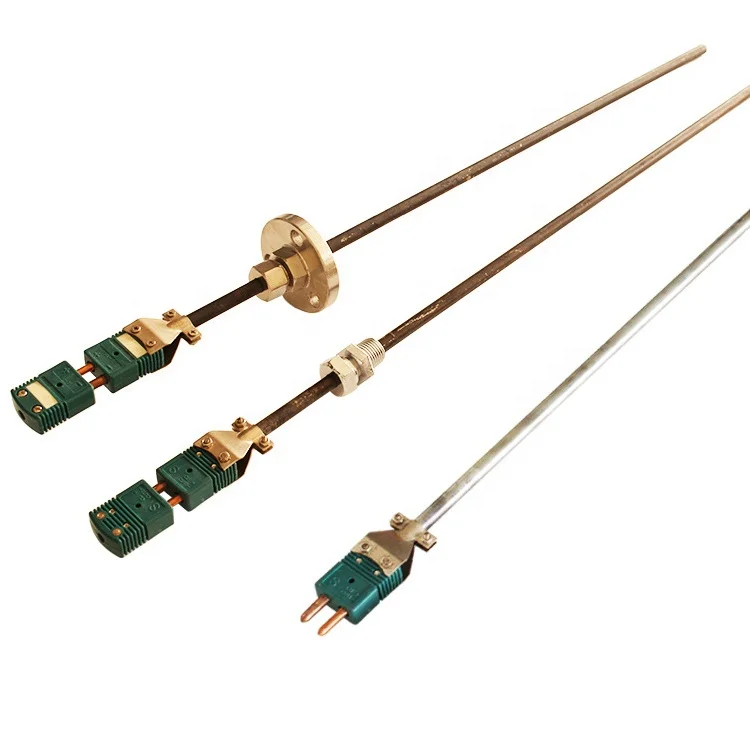

WRE3/25, WRE5/26 tungsten rhenium corundum tube thermocouple, steel liquid temperature thermocouple
- Category: >>>
- Supplier: Shanghai Jie Yu Electronic Technology Co. Ltd.
Share on (1600820928615):
Product Overview
Description
Product Description
Product Information
-Professional manufacturer-
-Hot selling in many countries around world-
-Direct delivery from stock-
-Large volume discount-
-Direct delivery from stock-
-Large volume discount-
Product Name | Product Name | Specification and Size | WRe3/25、WRe5/26 | ||||
Thermocouple | 0-1800℃ | Dividing Sign | ＜±1%t，＜±0.5%t | ||||
Temperature Range | ≥180S | Insulation Resistance | ＞5MΩ | ||||
Time constant | 300，500，750，1000，1100（mm） | ||||||
Tungsten rhenium thermocouple is a high temperature thermocouple. It has a good temperature-potential linear relationship, reliable thermal stability and can be used to directly measure the temperature of liquid, steam and gas medis. It can partially replace the Platinum-Rhenium thermocouple as a temperature measuring tool for high-tech metallurgical industry, high temperature electronic thermoelectric system structural engineering, space vehicle and nuclear reactor.
The relationship between the thermal potential of tungsten rhenium thermocouple and temperature conforms to the ZBN05003-88℃ graduation table, which is equivalent to ASTM696-84 standard. It can be used at 0~2300℃ in vacuum, reduction and inert atmosphere. Tungsten rhenium couple with special protective tube can also be used for a long time in oxidation atmosphere at 1600℃.
Model and paremeters
Product Name | Oxidation resistant tungsten rhenium thermocouple | ||
Product Model | WRW-1500 type | ||
Dividing Number | WRe3/25 | WRe5/26 | |
ASTM Dividing Number | D | C | |
Temperature Range | 0~1650 | 0~1650 | |
Franchise | ±0.5% │t│ | ±0.5% │t│ | |
Service Atmosphere | Oxidation、Vacuum、Reduction、other inert gases | ||
Specification
Product Details

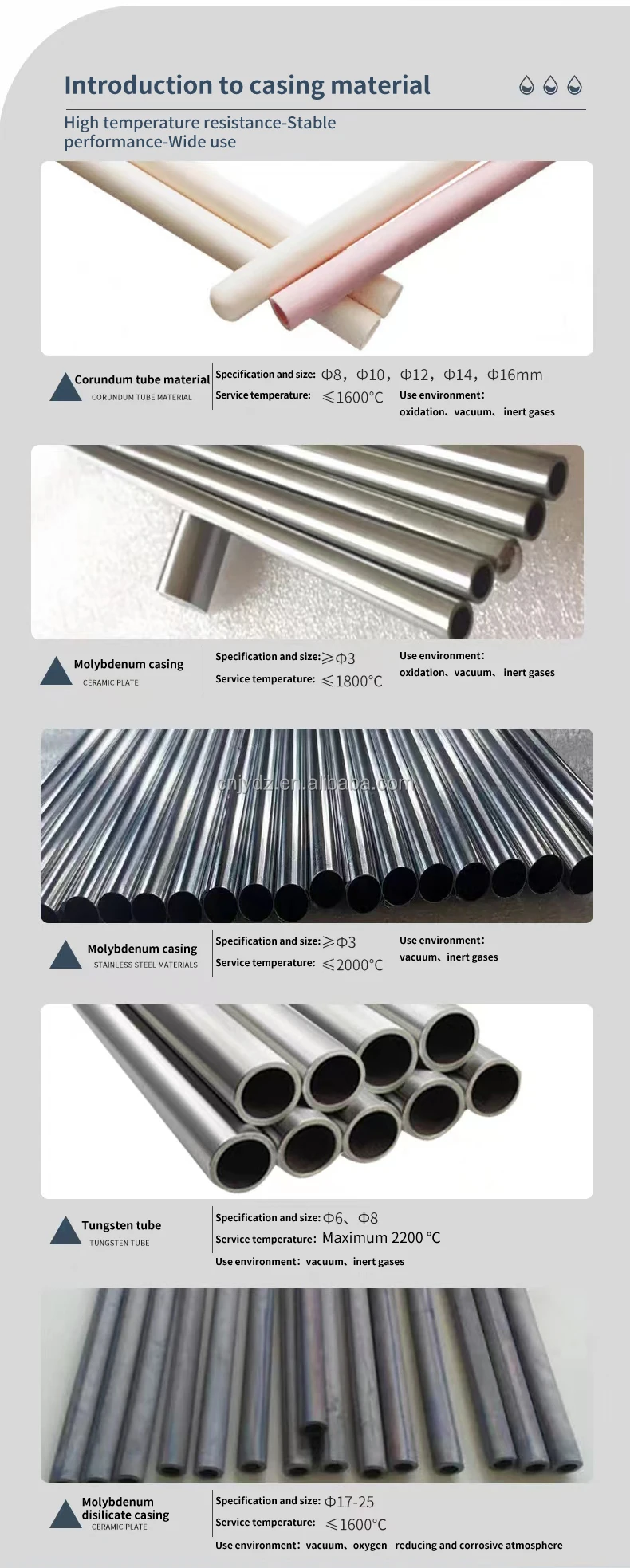

Introduction to casing material
