High Performance Manufacturer Library Imaging High Density CMOS 2D Wireless Barcode Scanner With OLED Display
- Category: Scanners >>>
- Supplier: Shenzhen,Honor,Way,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
High Performance Manufacturer Library Imaging High Density CMOS 2D Wireless Barcode Scanner With OLED Display
1D 2D Imaging Barcode Scanner Blue tooth QR Code Scanner Android IOS

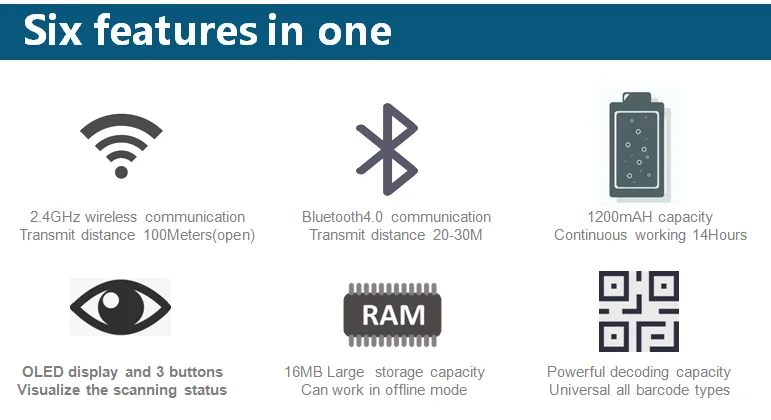

Feature
l 32-bit CPU,752*480pixels CMOS sensor
l Decoding min barcode density:4mil
l Support 1D/2D barcode on paper and screen
l Extremely high sensitivity, quick scanning
l 2.4GHz wireless+Blue tooth4.0+USB wired(Type C)

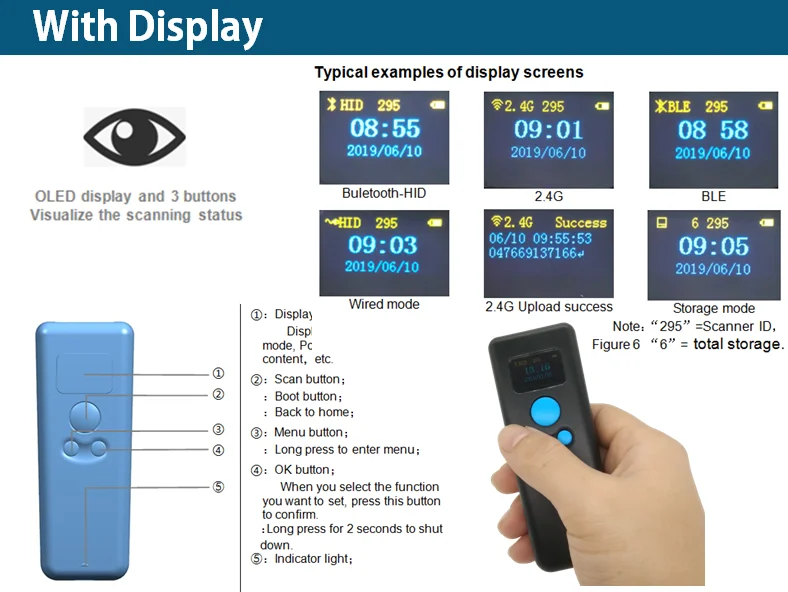

l OLED display, can set the scanner directly
l 1200mAH battery, mini size, potable
l Can record date on prefix or suffix.
Parameter
Full ASCII character editing | |||
Model: | HW-6200:Blue tooth(HID+BLE) +2.4G+USB-wire | ||
TYPE: | Blue tooth | 2.4G | |
Distance: | ≤30m | ≤100m | |
Storage: | 16M | ||
Mode:Blue tooth+2.4G+USB-wire | Interface:USB,USB-COM | ||
Working current:3.5Vx110mA | Standby current :10 mA | ||
Battery:3.7V-1200mAh | Charging power:5V-400mA | ||
Working time:Full load≈14hours,Normal use ≈3 to 7days | |||
Decoder parameters | |
Sensor:640*480 CMOS | CPU: 32bit High-speed CPU |
Light aimer: 617nm LED | Illumination: 6500K LEDs |
Depth of Filed:30-600mm | Decoding speed:500/sec |
Indication:Buzzer & LED & Vibration& Display | |
Decoding accuracy:≥4mil@PCS90% CODE39 | |
Trigger Mode:Button,Continuous,Auto-Induction | |
Scanning angle:Angle of rotation360°,inclination± 55°,declination ± 55° | |
Anti-interference:0-100000Lux Max | |

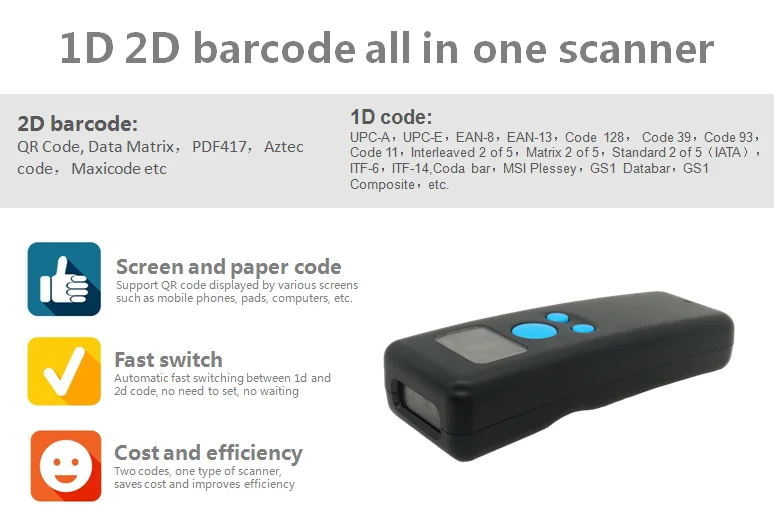

Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93, Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5(IATA),ITF-6, ITF-14,Coda bar,MSI Plessey,GS1 Databar,GS1 Composite,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode etc. | |
Button life :500,000 times | LED life:100000 hours |
Drop test :1.8m | Certificate :CE,FCC,RoHS,Class I |
Working temperature:-20℃ to 50℃ | Relative humidity:5%-95% |
recommended product
business card
Company Information
Packaging & Shipping
Our Services
1. The MOQ can be 1pcs,customer can test it firstly.
2. Product warranty—24 months
3. Welcome customer OEM, like assembly, test, even we can help customer to find good resource in China.
4. ODM--customize hardware and appearance structure according to customer requirements
5. If you encounter any problems during the use of the product, you can directly contact us by email or telephone.
6. About the package, We will pack the smallest package for you, saving your shipping costs.
7. We have cooperated with many logistics companies so that we can choose the cheapest shipping for you.
8. How to deal with after-sales quality problems, if the product is not intentionally damaged, please send pictures
and videos that can be confirmed as product problems, we will analyze and confirm the compensation method
(for products only), we can re-send the product for free.
9. We are a legal and formal Chinese enterprise under the supervision of the China Industrial and Commercial Bureau,
the Taxation Bureau, the Customs and the Foreign Exchange Administration.We have operation rights of import and
export,and we will comply with national and international trade regulations and do legal export trade.
10. We will not arbitrarily offer high prices, deceive customers, and always hold the attitude of long-term cooperation
with customers to bring customers cost-effective products and high quality services.
