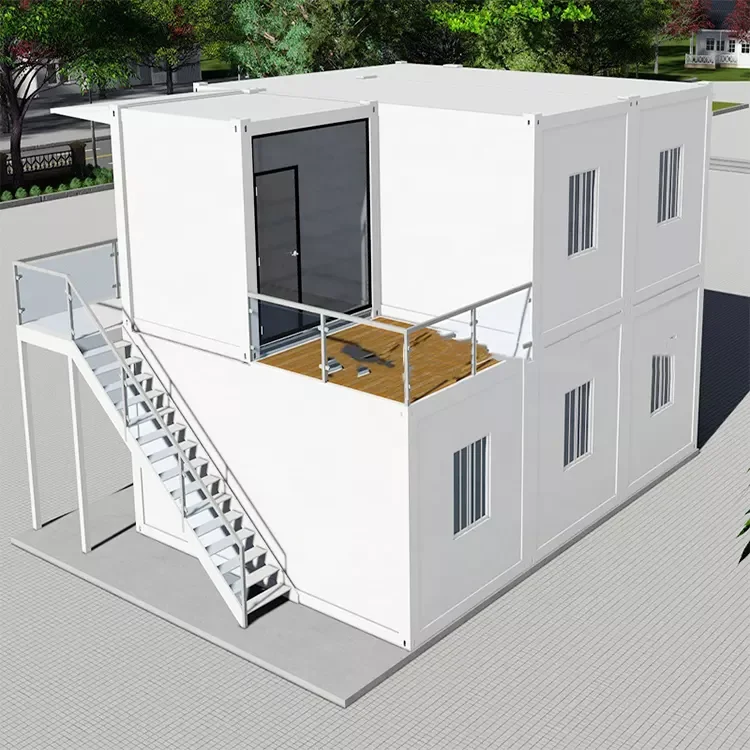

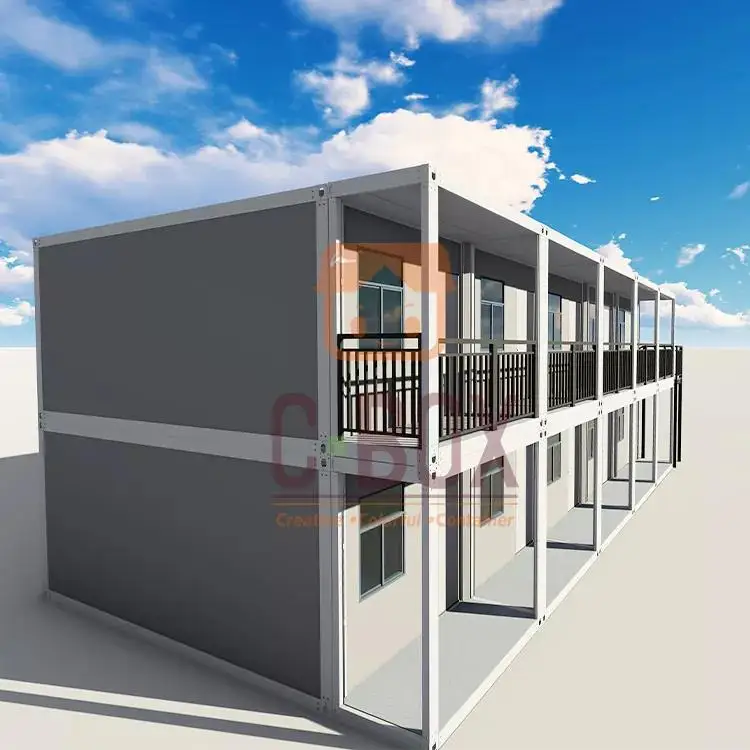

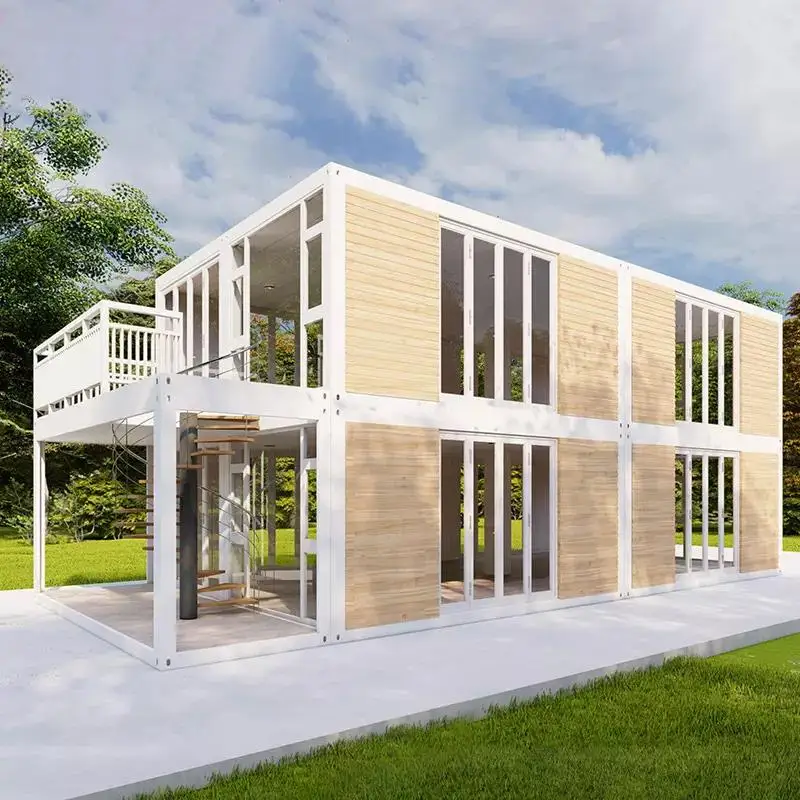

Low Cost Prefab Warehouse Hotel Room Prefab 20ft Mobile House Shopping Container Warehouse
- Category: Office Buildings >>>
- Supplier: Guangdong Cbox Co. Limited
Share on (1600820945685):
Product Overview
Description
Product Details
Detachable Container Advantage
1.Hassle-free installation: easy to assemble / disassemble.
2.Competitive price, compared with traditional construction cost saving more than 40%.
3.High quality:Light and reliable, the steel structure is strong and firm.
4.Prefabricated Wire Routes(Customizable).
5.Customized Content:Material, Size, Color, Doors and Windows, etc.
Product Specifications | L*W*H(mm) | standard size： 5950 (L)× 3000(W) × 2800(H)mm | |||||
Folded Size | 1x40'HQ can load 14 units | ||||||
Item | Name | Qty | Length | Thickness | |||
FRAME | 2 | 5630mm | 2.3mm | ||||
2 | 2680mm | ||||||
Bottom beam | 2 | 5630mm | |||||
2 | 2680mm | ||||||
Column | 4 | 2480mm | |||||
Bottom beam | 8 | 195x165x4 mm | |||||
Slot | Galvanized buckle groove | 2 | 5730mm | ||||
2 | 2800mm | ||||||
Top & Bottom purlin & square tube | Bottom purlin | 4 | 80*80*2990mm | 1.2mm | |||
5 | 40*80*2990mm | 1.1mm | |||||
Top purlin | 2 | 50*50*2800mm | 1.5mm | ||||
3 | 40*80*1880mm | 1.1mm | |||||
6 | 40*60*1880mm | 1.0mm | |||||
Roof | 980 type pressed tile | 6 | 2950mm | 0.45mm | |||
Ceilling | 6 | 2800mm | 0.24mm | ||||
Floor | MGO Board | 5 | 1147*2800mm | 18mm | |||
Wall panel | both sides color steel 50mm rock wool sandwich panel | 16 | 0.326mm | 50mm | |||
Door | steel doors 950 X 2035 mm | 1 | |||||
Window | aluminium alloy window, 925x1200mm | 2 | |||||
Hardware | 3 kinds of screws ：25*12/66 set，10*100/8set，10*60/10set | ||||||
Roof insulation | glass wool 1200*40mm | ||||||
Anti-rust: Spray Paint（110μ/㎡） + Galvanized
The anti-corrosion treatment of many products of the same type is only made of spray paint, and the density is only 80μ/㎡, which may rust in 2-3 years, resulting in a significant reduction in service life.
But we galvanize first, and then spray 110μ/㎡ anti-rust paint, which can usually reach 10 years of anti-rust time. Greatly provides longevity.
But we galvanize first, and then spray 110μ/㎡ anti-rust paint, which can usually reach 10 years of anti-rust time. Greatly provides longevity.

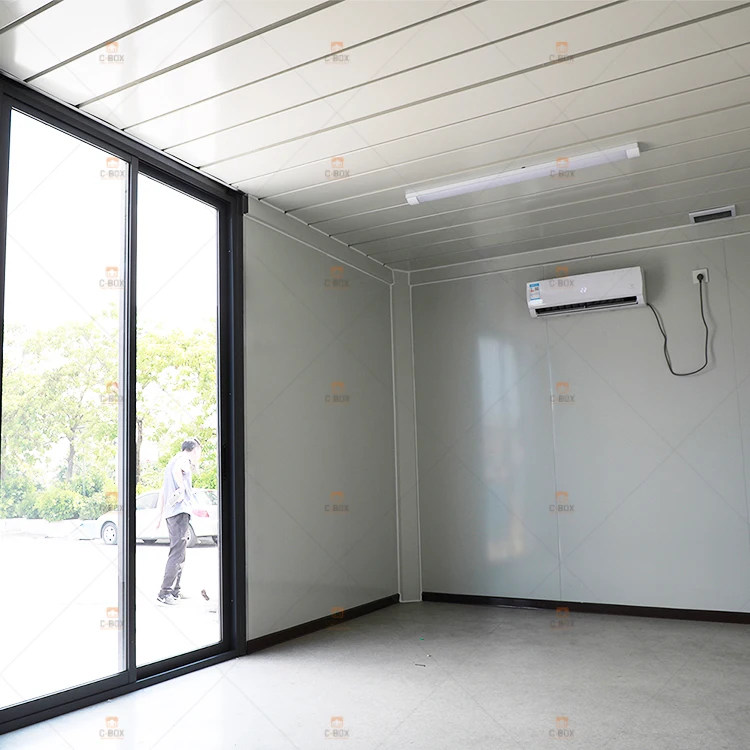

Wall + Floor：Choose high-quality fire and moisture-proof materials

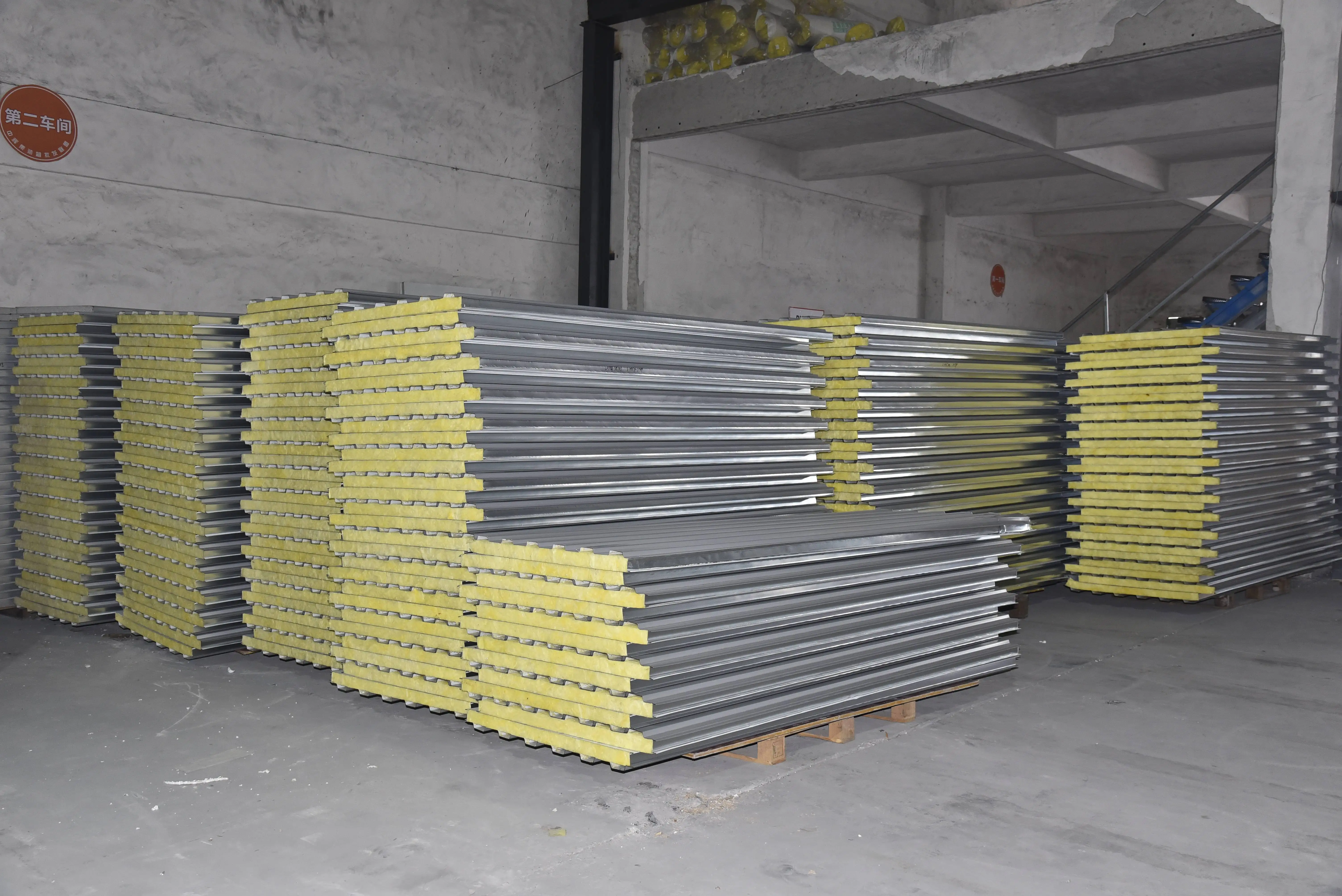

Wall panel: rock wool/glass wool color steel plate.Fire rating: Class A; Moisture-proof rating: Class A
Floor: PVC+glass magnesium board or PVC+cement.It has very good hardness, and it is also a fireproof and moisture-proof material.
Nice capacity of water proof, moisture proof and heat insulation and sound insulation.
Different Options
You can choose doors and windows of different materials.
Prefabricated wiring or Customize
Regarding the position of the circuit and switch, we usually set the position, and we can also do the wiring according to your requirements.
All wires and switches are already certified products and meet all safety requirements.
All wires and switches are already certified products and meet all safety requirements.
Free Accessories For Replacement
We will provide some additional accessories so that the accessories may be damaged or lost due to some special circumstances.
But don't worry, our products are of very good quality, and it's rare to get better because of damaged parts.
Full Installation Video
We have the most complete follow-up video, and you can watch it on social media, including Youtube, Facebook, INS, LinkedIn, TikTok.
Of course we can also send it directly to you.
Why Choose Us
32,000㎡ Production Base & Over 1200 Staffs
We are the first and only prefab house suppiler using fully automatic production line in China
Top-5 Container House Supplier in China
Free Customizable + 3D Design Service
Free CAD + 3D Design Service
Want know more detail? Contact Us

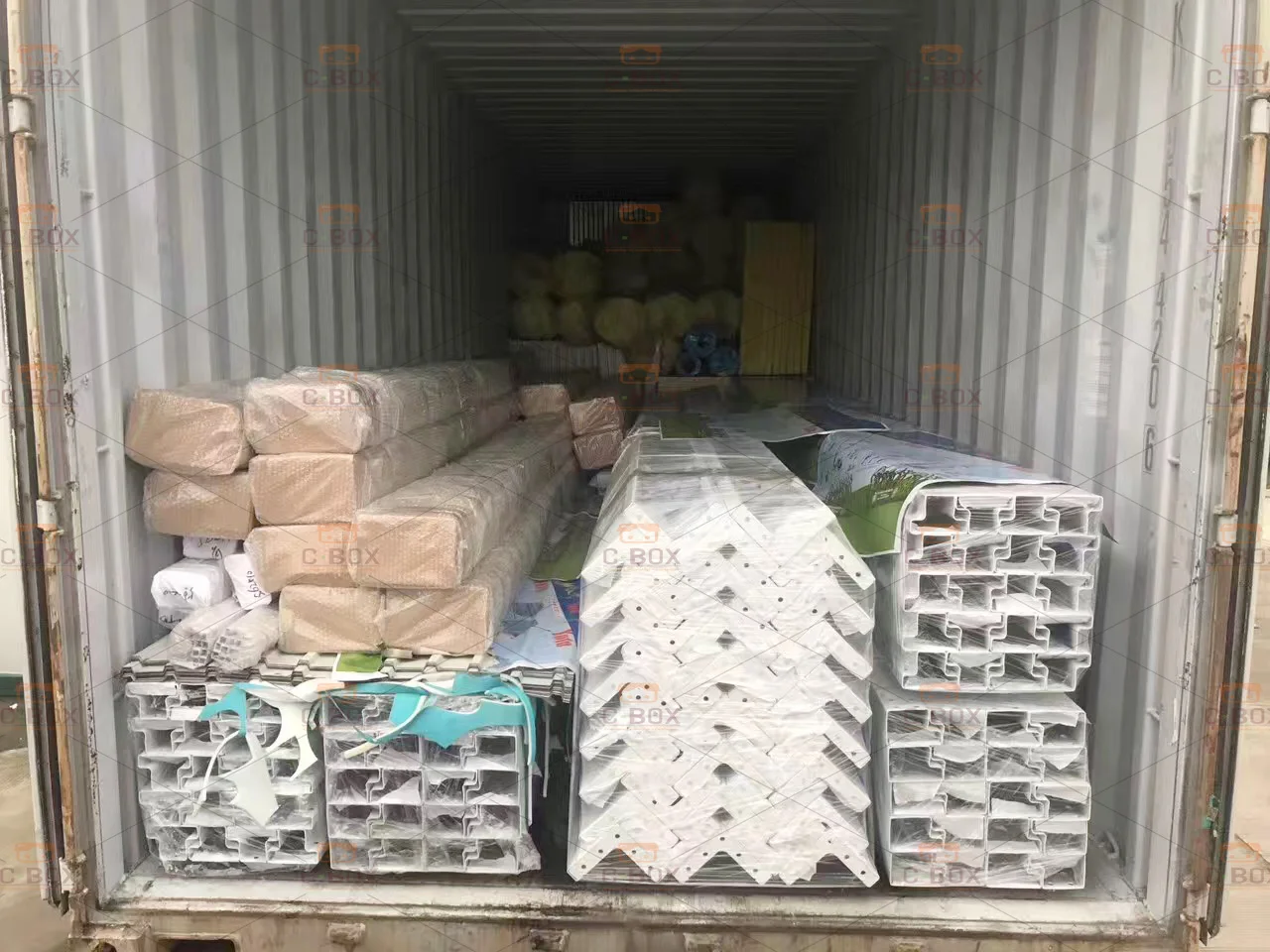

Loading Service
If you have other products to be shipped with our cargo, we can provide container loading service to load your other cargo with mine.
Install Service
If you need to assemble the house urgently, we can provide installation service, we will arrange professional personnel from our factory to work at the address you require.
Of course, this will incur additional costs, please contact our staff for details.
Of course, this will incur additional costs, please contact our staff for details.
What We Have
Project+Design
588 Boxes Completed in 3 Months, From Design to Installation of Overseas Projects
Participated in the construction of Huoshenshan Hospital
In 2020, due to the epidemic, we participated in the construction of Huoshenshan Hospital and completed the 33900㎡ hospital in 10days. All are prefabricated houses.
We also participated in other similar projects over the next few years.
Certification
CE | Cetrification No: HTT190405290L | ||||||
ISO9001:20015 | Cetrification No: HG19Q0058R0M | ||||||
Utility Patent | Utility Patent No: ZL 2015 2 0608859.0 | ||||||
Alibaba Verified | Verified Type: Multispecialty Supplier | ||||||
FAQ
For Product:
1.How much manpower and time does it take to install the container?
2 hours + 4 workers
2.What tools and equipment do I need to prepare for the installation of LCL?
Trailer line, hand saw, hand drill, hexagonal screwdriver, rubber hammer, utility knife, hole saw, non-slip gloves, glass glue gun, tape measure, medical box, marker, foot ladder, spirit level.
3.How many days is your fastest lead time?
This depends on the quantity. If it is a regular size, our lead time is generally 7-15 days after receiving the deposit
4.Can you customize colors?
We are happy to accept color customization. The regular color of our boxes is white, which is popular and well received by customers all over the world. You can also provide the color card number for our reference. What color do you like?
5.What is the largest size that can be made?
The maximum can be 4m*8m, and the 8m surface is equipped with wind-resistant columns to support the top and bottom beams. What kind of functions and requirements are you based on?
6.What is your payment method?
Our payment method is generally TT (wire transfer), 30% deposit, and the remaining 70% paid before shipment.
7.Does your product leak water?
There are quite a number of domestic manufacturers, due to lack of professionalism and irresponsibility for quality, which leads to the problem of water leakage in the box.
So far, our company has never experienced water leakage problems in overseas orders.
8.Do you need a foundation?
If the land will not subside, there is basically no need to lay foundations. According to different geological conditions, our company will provide guidance and suggestions. If you buy LCL from us, we will give you complete foundation drawings and we will have video instructions for installation.
9.Can I add an extra roof please?
Roofs can be added, and we can send you some pictures of roofing cases we have done before for your selection and reference. Do you want to add a roof based on wind resistance requirements, thermal insulation requirements or aesthetic requirements?
2 hours + 4 workers
2.What tools and equipment do I need to prepare for the installation of LCL?
Trailer line, hand saw, hand drill, hexagonal screwdriver, rubber hammer, utility knife, hole saw, non-slip gloves, glass glue gun, tape measure, medical box, marker, foot ladder, spirit level.
3.How many days is your fastest lead time?
This depends on the quantity. If it is a regular size, our lead time is generally 7-15 days after receiving the deposit
4.Can you customize colors?
We are happy to accept color customization. The regular color of our boxes is white, which is popular and well received by customers all over the world. You can also provide the color card number for our reference. What color do you like?
5.What is the largest size that can be made?
The maximum can be 4m*8m, and the 8m surface is equipped with wind-resistant columns to support the top and bottom beams. What kind of functions and requirements are you based on?
6.What is your payment method?
Our payment method is generally TT (wire transfer), 30% deposit, and the remaining 70% paid before shipment.
7.Does your product leak water?
There are quite a number of domestic manufacturers, due to lack of professionalism and irresponsibility for quality, which leads to the problem of water leakage in the box.
So far, our company has never experienced water leakage problems in overseas orders.
8.Do you need a foundation?
If the land will not subside, there is basically no need to lay foundations. According to different geological conditions, our company will provide guidance and suggestions. If you buy LCL from us, we will give you complete foundation drawings and we will have video instructions for installation.
9.Can I add an extra roof please?
Roofs can be added, and we can send you some pictures of roofing cases we have done before for your selection and reference. Do you want to add a roof based on wind resistance requirements, thermal insulation requirements or aesthetic requirements?
10.How are your cabinets insulated?
Wall panels are made of 50mm rock wool sandwich panels, and can be upgraded to 75mm and 100mm thickness, which can better cope with extreme cold weather
11.Can the floor be covered with insulation?
Of Course.
Wall panels are made of 50mm rock wool sandwich panels, and can be upgraded to 75mm and 100mm thickness, which can better cope with extreme cold weather
11.Can the floor be covered with insulation?
Of Course.
For Service:
1.Can you please guide the installation?
Of course, our company has a professional installation team to guide. What is the approximate quantity you purchased this time? If the quantity is more than 80 sets, we can guide the installation for free, you only need to be responsible for the engineer's visa, air tickets and room and board expenses.
2.How do you guarantee quality?
Answer: Every step of our production is checked by quality inspectors. We will use vernier calipers to measure the thickness of materials. We will also check whether the paint surface of the materials is in good condition before packing, and the wearing parts and spare materials will be shipped together. Before delivery, we will also take photos and videos for customers to confirm.
Of course, our company has a professional installation team to guide. What is the approximate quantity you purchased this time? If the quantity is more than 80 sets, we can guide the installation for free, you only need to be responsible for the engineer's visa, air tickets and room and board expenses.
2.How do you guarantee quality?
Answer: Every step of our production is checked by quality inspectors. We will use vernier calipers to measure the thickness of materials. We will also check whether the paint surface of the materials is in good condition before packing, and the wearing parts and spare materials will be shipped together. Before delivery, we will also take photos and videos for customers to confirm.
3.If our losses are caused by your reasons, will we be compensated?
Of course, we will compensate for our mistakes, and the compensation plan is also reached by a double-issue agreement, or compensation according to the requirements of the contract.
Of course, we will compensate for our mistakes, and the compensation plan is also reached by a double-issue agreement, or compensation according to the requirements of the contract.
