Customized 12V 24V 36V 48V 60V 72V 10Ah 15Ah 20Ah 30ah 40ah lithium ion battery pack for e bike Electric tools vehicle
- Category: >>>
- Supplier: Suzhou Ebak Electronics Co. Ltd.
Share on (1600821756945):
Product Overview
Description
Product Introduction
NO | Item | General Parameter | Remark |
1 | Model | SE24F42D0SP01 | Single |
2 | Casing material for single cell | Nickel plated steel | |
3 | Standard capacity(0.2C3A) | 42Ah | |
4 | Mininum Capacity(1C3A) | 42Ah | |
5 | Rated voltage | 25.6V | 3.20V(Work voltage:3.20V) |
6 | Max.Charging voltage | 29.2V | 3.65V(Single Ave. charge Voltage) |
7 | Charge Method | CC-CV | |
8 | Cut-off voltage | 20.0V | 2.50V(Single Ave. Discharge Voltage) |
9 | Standard charge current | 10A | 0.2C |
10 | Charging Time | 5h | 0.2C |
11 | Max Continuous discharge current | 42A | 1C |
12 | Peak discharge current | 126A | 3C 10seconds |

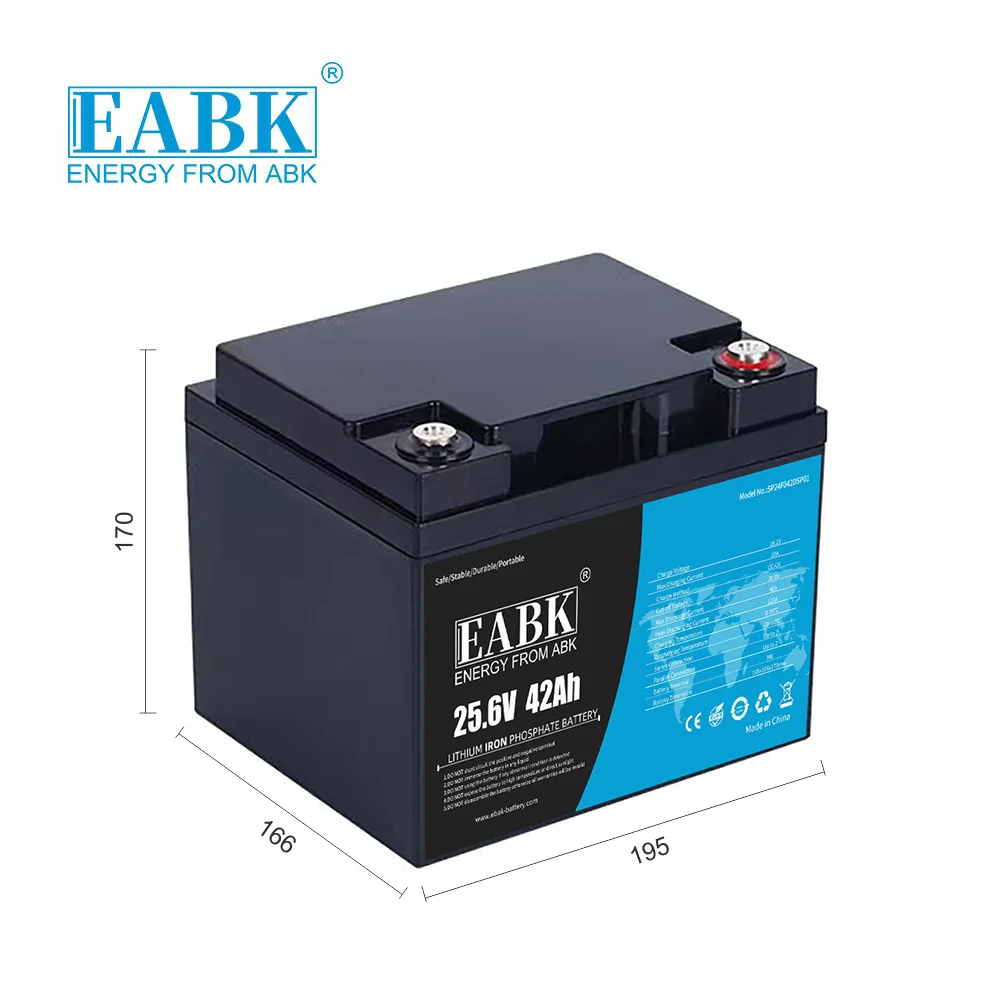

13 | Battery dimension | 195*166*170mm | |
14 | (Approx.)Total weight(Approx.) | About 7.5kg | |
15 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | |
16 | Series Connection | Up to 2 | |
17 | Parallel Connection | Up to 2 | |
18 | Battery Terminal | M6 | |
19 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~55℃ |
discharge | -20℃~60℃ | ||
storage | -20℃~45℃ |
Features
1. Lighter in weight, heavier on power

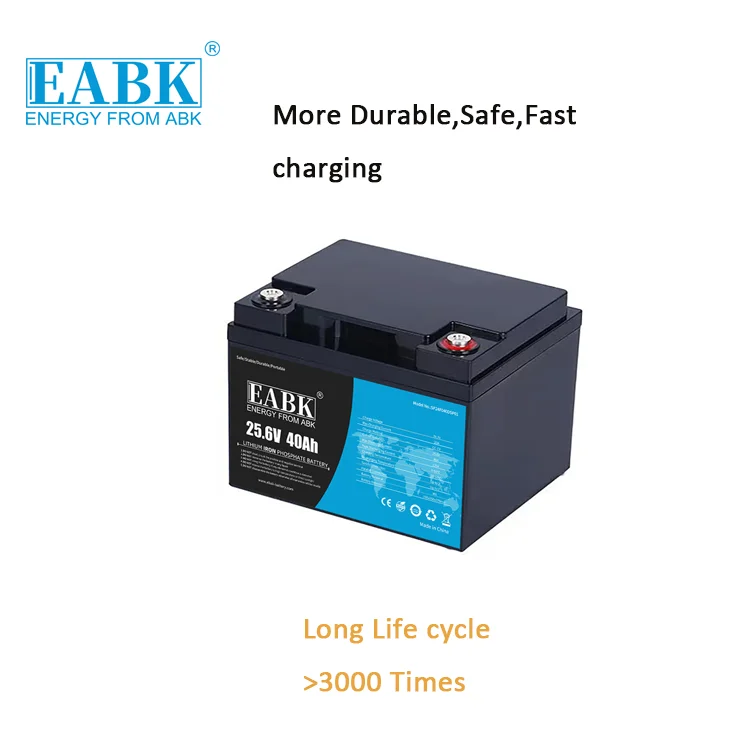

2. Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 100% depth of discharge.
4. Maintenance free
5. Safer performance. Our batteries have passed different safety tests.

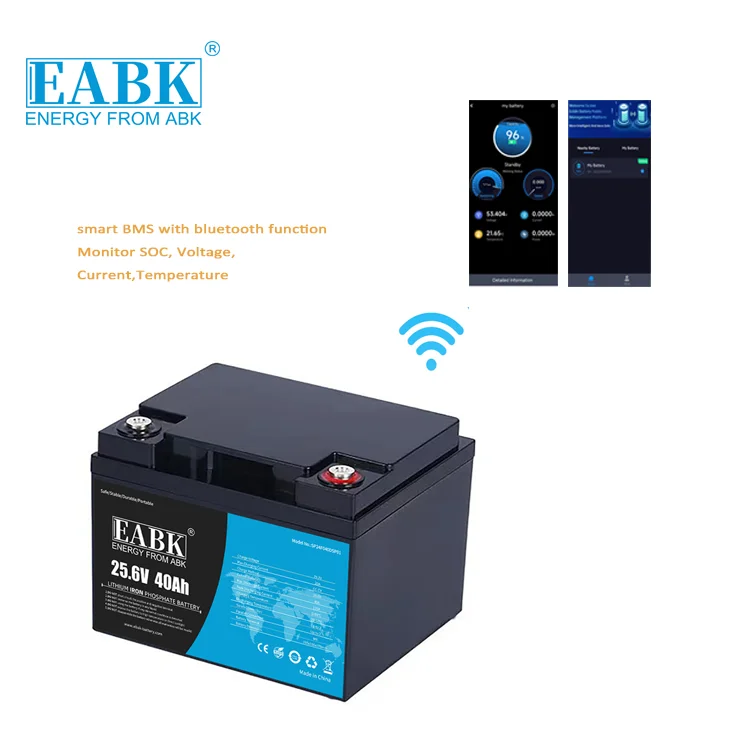

6. Blue-tooth function and heated function can be added.
Built in BMS overall protection
1. Over-charge protection
2. Over-discharge protection
3. Over-current protection
4. Over-load protection
5. Temperature protection
Battery Testing & Quality Control:
EBAK utilizes first article inspection practices as well as on-line inspection, depending on the complexity of the battery. Every battery is 100% tested for functionality before it is submitted to final inspection. This ranges from a voltage and polarity test for batteries to pull testing for any battery with wire leads and connector, and to a charge / discharge system test for rechargeable batteries. Every battery is functionally tested, especially batteries containing communication circuitry, to make sure that the battery is fully operational. A final QC inspection is performed before the battery is packaged for shipment.Whatever the customer needs is for quality verification; we can meet or exceed them.
1. Lighter in weight, heavier on power
2. Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 100% depth of discharge.
4. Maintenance free
5. Safer performance. Our batteries have passed different safety tests.
6. Blue-tooth function and heated function can be added.
Built in BMS overall protection
1. Over-charge protection
2. Over-discharge protection
3. Over-current protection
4. Over-load protection
5. Temperature protection
Battery Testing & Quality Control:
EBAK utilizes first article inspection practices as well as on-line inspection, depending on the complexity of the battery. Every battery is 100% tested for functionality before it is submitted to final inspection. This ranges from a voltage and polarity test for batteries to pull testing for any battery with wire leads and connector, and to a charge / discharge system test for rechargeable batteries. Every battery is functionally tested, especially batteries containing communication circuitry, to make sure that the battery is fully operational. A final QC inspection is performed before the battery is packaged for shipment.Whatever the customer needs is for quality verification; we can meet or exceed them.
Safety
1. All Battery cells will pass rigorous testing
2. All Battery Packs are Certified and are compliant with regulatory and safety requirements
2. All Battery Packs are Certified and are compliant with regulatory and safety requirements
Strong R&D ability
1. Unique ability to develop custom lithium battery packs to fit your needs.
2. Our expert team of electronic engineers, mechanical engineers and Process engineers work together to make best, safety, smaller
battery.
battery.
High Quality
1. We Make Battery packs with updated battery cells.
2. Consistent, reliable, top performance cells from the industry highest quality suppliers.
3. Tested and proven design
2. Consistent, reliable, top performance cells from the industry highest quality suppliers.
3. Tested and proven design
Customer Support
1. Customer assembly design and engineering assistance
2. Quick turn-around on battery assemblies
2. Quick turn-around on battery assemblies
Production
Hot Selling
Why Choose Us
Company Profile
Cooperation
Packaging Transportation
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2012,sell to North America(20.00%),Southern Europe(10.00%),Northern
Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South
America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
lithium Iron Phosphate Battery Pack,LITHIUM Iron Phosphate Battery Protection Board,LiFePO4 Battery,Lithium Ion Battery,Battery
Chargers
4. Why should you buy from us not from other suppliers?
Suzhou EBAK Electronics Co., Ltd. is an experienced and professional battery manufacturer, concentrated on developing and
producing Lithium Iron Phosphate battery(LiFePO4).LITHIUM Iron Phosphate Battery Protection Board.We have dedicated designer team.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Korean,Italian
We are based in Jiangsu, China, start from 2012,sell to North America(20.00%),Southern Europe(10.00%),Northern
Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South
America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
lithium Iron Phosphate Battery Pack,LITHIUM Iron Phosphate Battery Protection Board,LiFePO4 Battery,Lithium Ion Battery,Battery
Chargers
4. Why should you buy from us not from other suppliers?
Suzhou EBAK Electronics Co., Ltd. is an experienced and professional battery manufacturer, concentrated on developing and
producing Lithium Iron Phosphate battery(LiFePO4).LITHIUM Iron Phosphate Battery Protection Board.We have dedicated designer team.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Korean,Italian
