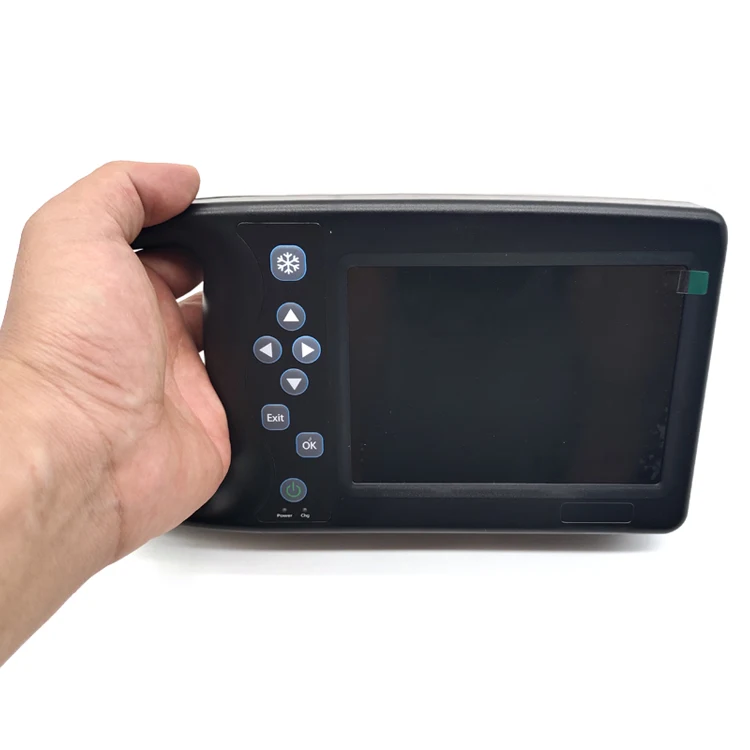

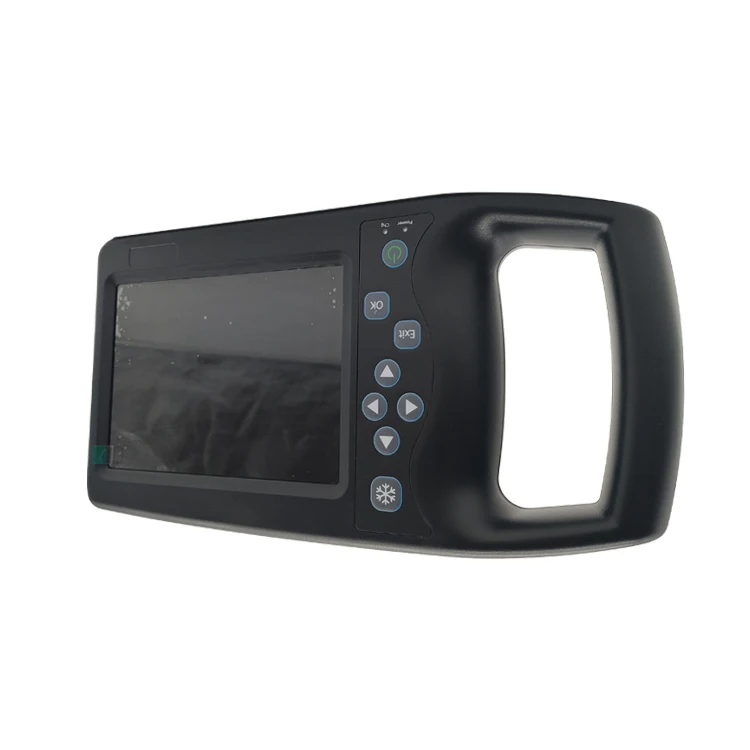

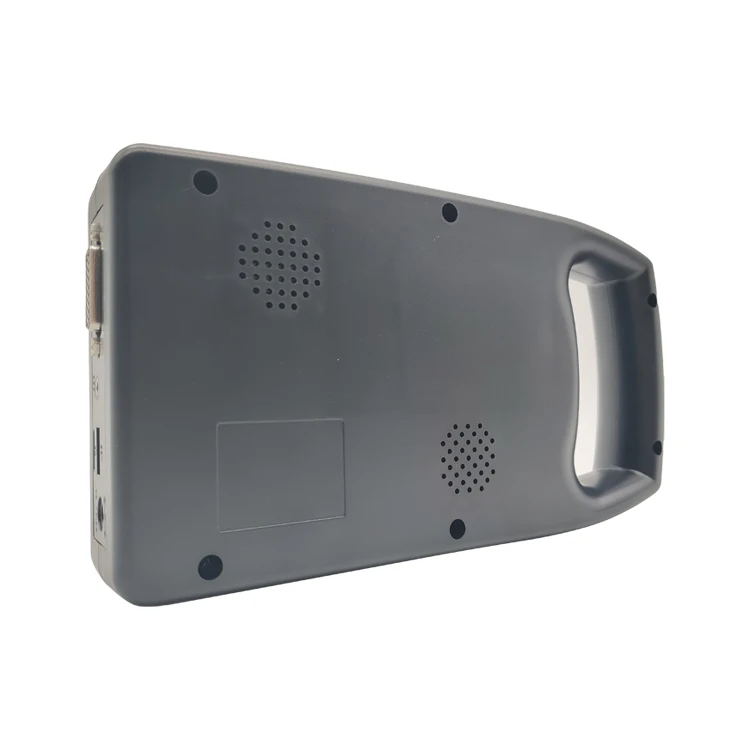

A6 VET High Definition Ultrasonic Portable Cattle Diagnostic Machine For Animals Pet Veterinary Ultrasound Probe
- Category: >>>
- Supplier: All In One Medical Group Co. Ltd.
Share on (1600821908436):
Product Overview
Description
Products Description
Display: | 5.7-inch LED display | Standard configuration: | 3.5MHz abdominal convex array probe | |||
Display mode: | B, B+B, 4B, B+M, M | Fast backfat function (moving caliper): | measuring backfat quickly and easily | |||
Electronic focus: | four-segment electronic focus | Body position markers: | ≥18 kinds | |||
Frequency conversion: | five-segment frequency conversion function | Image mirroring: | rotate the mirror up, down, left and right, and the interface can be flipped in black and white | |||
Host size: Host weight: | Host size: 245x130x44mm (length x width x height); Host weight: 740g; | Body marks: | ≥18 kinds; in addition, there is an annotation function, which is convenient for text and body marks to be marked; | |||
Dynamic range: | 0-135dB; | Blind area: | ≤4 | |||

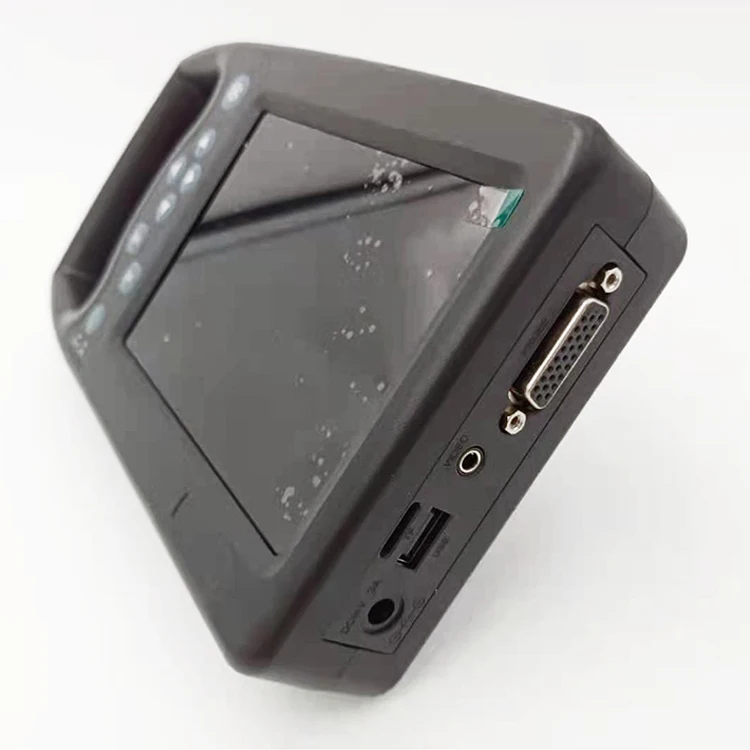

Interface: | USB, TF card, VIDEO; | Maximum display depth: | 3.5MHz: 270mm | |||
Geometric accuracy: | horizontal ≤ 5%, vertical ≤ 5% | Resolution: | lateral ≤2mm, axial ≤1mm | |||
Display magnification: | 16 display modes; | Gain range: | 0～100dB; | |||
Advantage: 1.Storage: optional 8G memory card, and external U disk storage, you can browse pictures locally, and transfer the built-in pictures to U disk;2.With 256-frame movie playback function, frame-by-frame playback and video playback, frame-by-frame playback can select any image measurement annotation and save functions; 3.Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo-color deal with; 4.It has the function of grid ruler and dot ruler, which can quickly read the size of the detection target 5.Dual heat dissipation channels, more smooth heat dissipation 6.Gain range: 0～100dB; | ||||||
