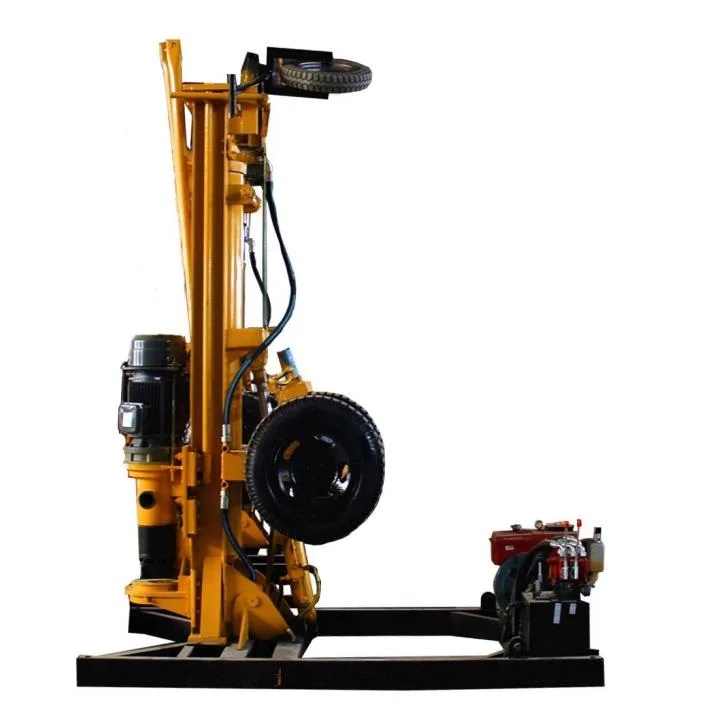

Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine
Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine
Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine
Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine
Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine
Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine
Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine

Diesel Water Well Drilling Rig Electroplated Non Core Water Well Drilling Bits Diesel Engine Water Well Drilling Rig Machine

Share on (1600821928652):


Price:$5,858.00 - $9,898.00

Quantity:


Product Overview

Description



Product Overview

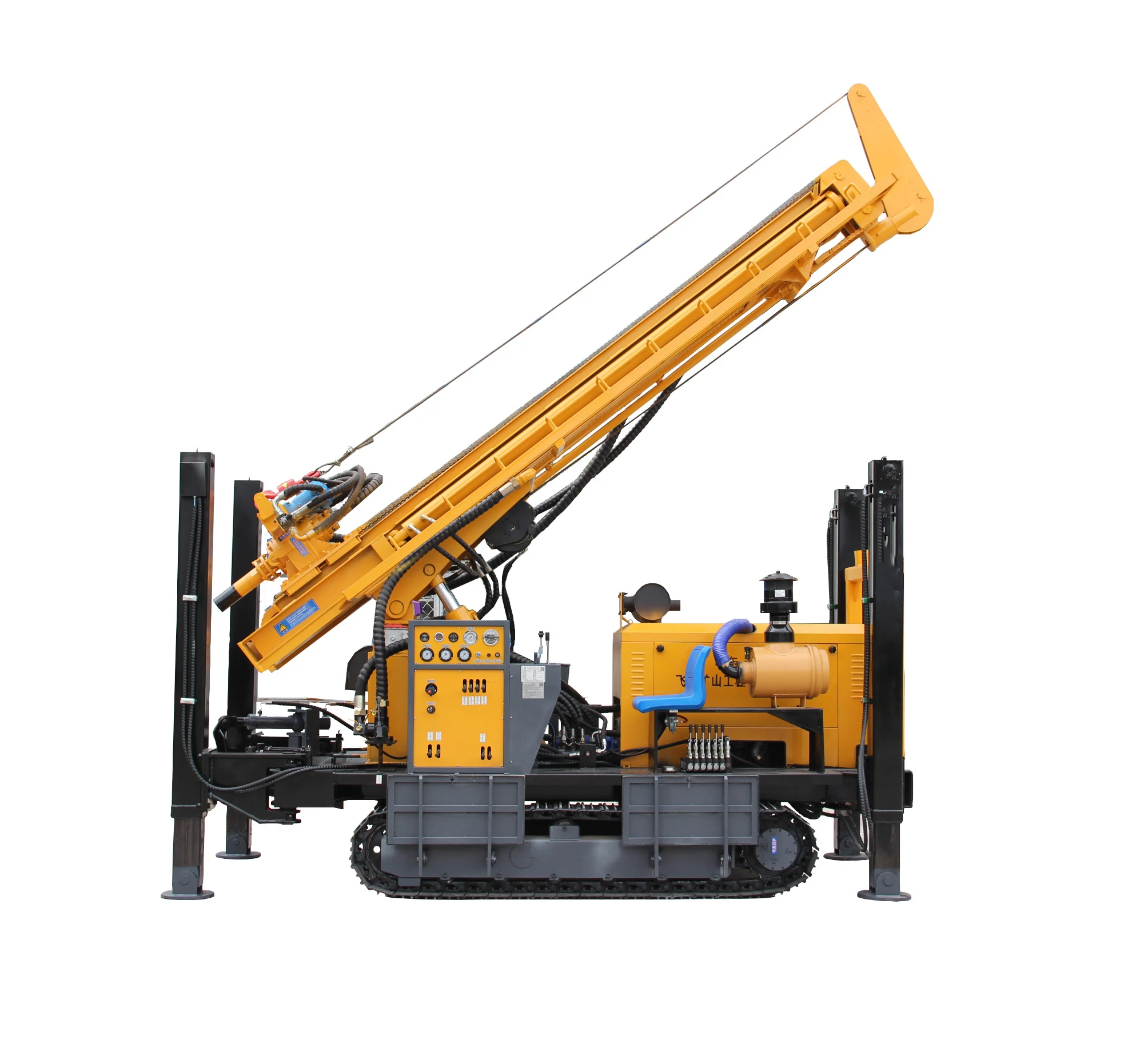

260m/360m/460m/560m Hydraulic crawler type borehole water well drilling machine rig mine drilling rig
1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. Each hydraulic oil pipe is covered with a thick protective sleeve, which makes the oil pipe have a longer service life;
5. Dual systems can be installed:
5.1. Air power system with air compressor
5.2. Mud pump system with mud pum


FEATURES AT A GLANCE


YG machinery made deep water well drilling rig used newest model & advanced hydro technology, with high torque hydraulic motor rotation and large cylinder hydraulic cylinder advancement. our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil usage water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, rigs have received the real market validation as the majority of our customer’s positive feedback.



Left
Right
Front




PRODUCT SPECIFICATIONS


Model
YG180
YG260
YG280
YG350
YG580
The weight(T)
4.5
6.5
7.6
8.6
12
Drill pipe diameter(mm)
76/89
76/89
76/89
89/102
102/108/114
The hole diameter(mm)
140-254
140-305
140-305
140-325
140-350
Drill pipe lenght(m)
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/6.0m
Drilling depth(m)
180
260
280
350
600
Rig lifting force(T)
12
15
17
22
28
One-tine advance length(m)
3.3
3.3
6.6
6.6
6.6
Equipped capacitor(kw)
Cummins 60 kW engine
Xi chai 70KW
YU chai 75KW
Cummins 93 kW engine
Cummins 132 kW engine
Hoisting force of winch(T)
1.5
1.5
2
2
2
Swing torque(N.m)
3200-4600
4000-5300
4500-6000
6200-8500
8500-11000
Dimension(mm)
3950*1630*2250
4000*1850*2300
5900*1850*2360
6000*2000*2550
6200*2200*2650
Swing speed(rpm)
45-70
45-70
40-70
66-135
45-140
The penetration effciency(m/h)
10-35
10-35
15-35
15-35
15-35
Rapid rise speed(m/min)
20
24
25
18
20
Walking speed(km/h)
2.5
2.5
2.5
2.5
2.5
Fast feeding speed(m/min)
40
28
30
33
40


PRODUCT CONFIGURATION


POWER HEAD
Hydraulic power head, the power is
morepowerful, the drilling speed is faster and the diameter islarger .More torque, more durability, lower your maintenance costs.
GENERATOR
Multifunctional generatorcan be used for electricwelding, connectingtemporary water pump and flushing shaft wall.It can be used in the fieldwithout power supply.
OPERATION PANEL
Control joystick and instrument panel are easy and convenient to operate.
