Stainless Steel 304 1 3Bar 75mm Oval Inward Manway For Sale
- Category: >>>
- Supplier: Ningbo Wenhan Fluid Equipments Co. Ltd.
Share on (1600821967795):
Product Overview
Description
Products Description

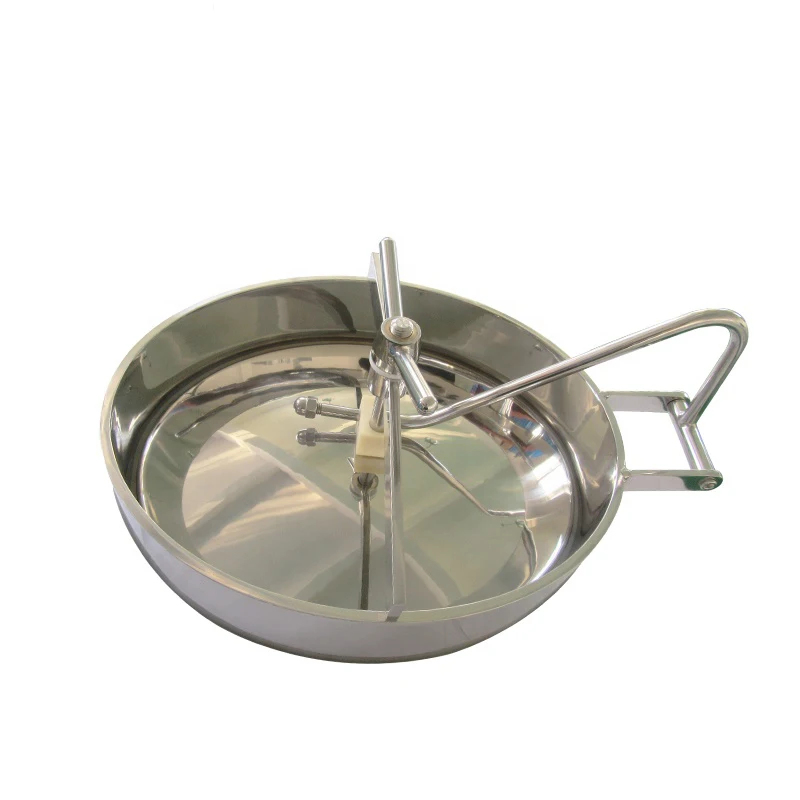

The manhole is a safety emergency vent fitted to the top of a tank Man can walk in and out of the channel through this hole to overhaul the equipment commonly used in fermenter beverage equipment, etc.
Product Name | Oval Inward Manway |
Material | SS304 / SS316L |
Size | 430*330/435*335/450*350/530*430/535*435/635*525 |
Gasket material: | Silicon |
Inner Surf. | 0.8um-0.4um |
Outer Surf. | Matte |
Handwheel-num | 1 Y Stainless Steel |
Height | 75mm |
Pressure | 1-3bar |
Customized Support | OEM, ODM |
Application | Food & Beer &Beverage & Pharmaceutical |
Product Details
The Manway's size and height all can customized.
Pressure demands are different, and the shape is different.

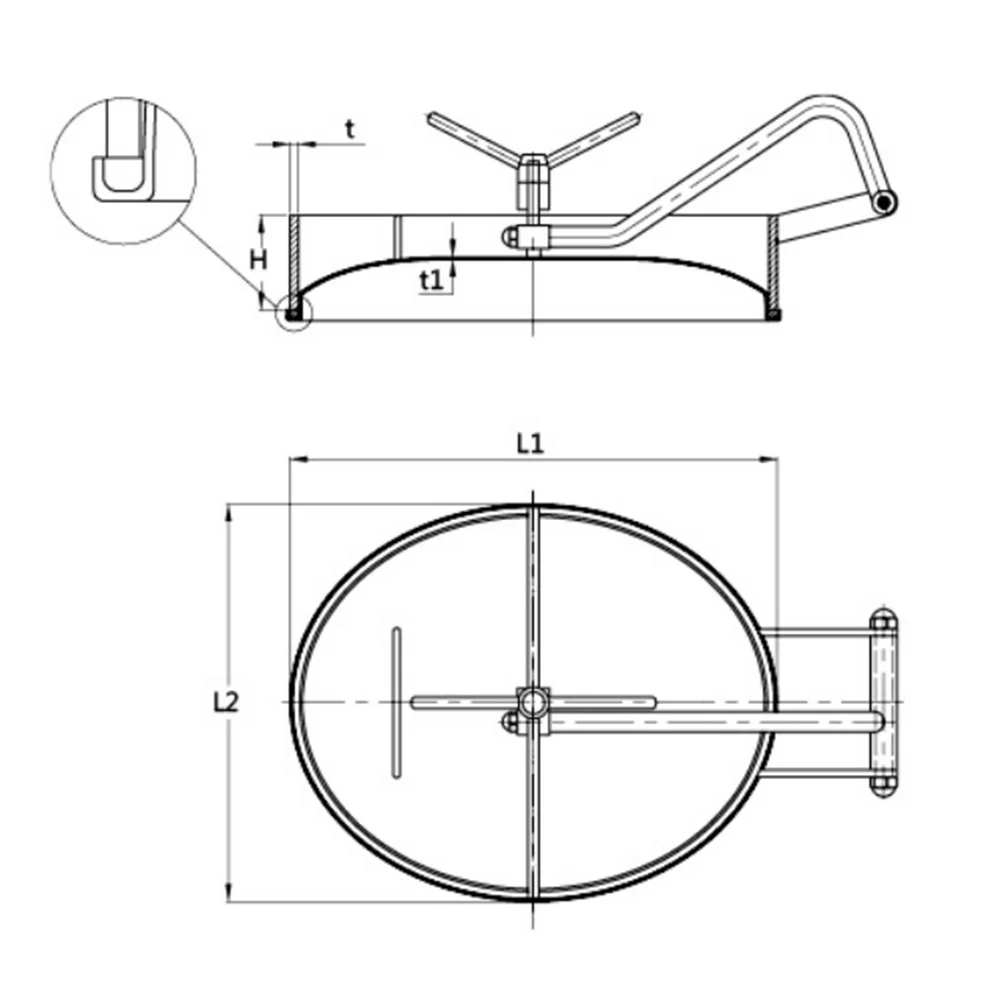

Size | OD MM L1×L2 | t mm | H mm | t1 mm | Pres(Bar) | |||
430×330 | 430×330 | 8 | 75 | 2.5 | 1-3 | |||
435×335 | 435×335 | 10 | 75 | 2.5 | 1-3 | |||
450×350 | 450×350 | 8 | 75 | 3 | 1-3 | |||
530×430 | 530×430 | 10 | 75 | 3 | 1-3 | |||
535×435 | 535×435 | 12 | 75 | 3 | 1-3 | |||
635×525 | 635×525 | 12 | 80 | 3 | 1-3 | |||
Material: 1.4404/1.4301, SS304/SS316L Gasket: EPDM/NBR/SILICION/FPM FDA177.1600 Internal Surface : Ra0.8μm~0.4μm Outside Surface: Mirror polished , matte and sand-blasting finished Pressure: With pressure 1-3Bar Height(H) and Frame(t) and cover (t1) can be changed according to your requirment | ||||||||
Application
Why Choose Us
Packing&Delivery
FAQ
1、How about the delivery time?
Generally it is 15 days.
2、Could provide the warranty service?
Normally is 3 years warranty.
3、Which shipping methods do you use?
Support sea transportation, land transportation, express delivery and air transportation.
4、Can I get a sample?
Yes,of course.
5、Do you support customization products?
Of course,we support design drawing customization, logo and packaging customization.
