Vicam 20M 50M Sewer Drain Pipe Inspection Camera 8inch Screen 23mm Industrial Endoscope Camera Depth Counter Sewer Cameras
- Category: >>>
- Supplier: Shenzhen Vicam Mechatronics Co. Ltd.
Share on (1600821979019):
Product Overview
Description
Related Products
Universal Application
Pipe Cameras are used in a lot of different fields and are specifically designed to make it easier for plumbers, contractors, inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
Product Description

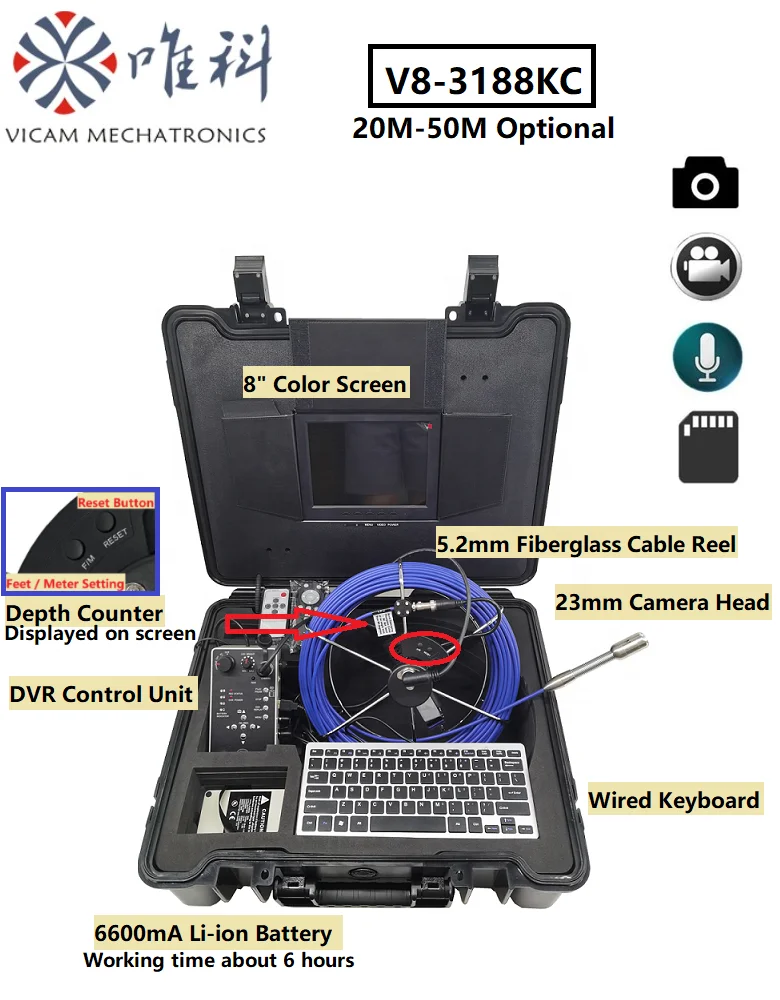

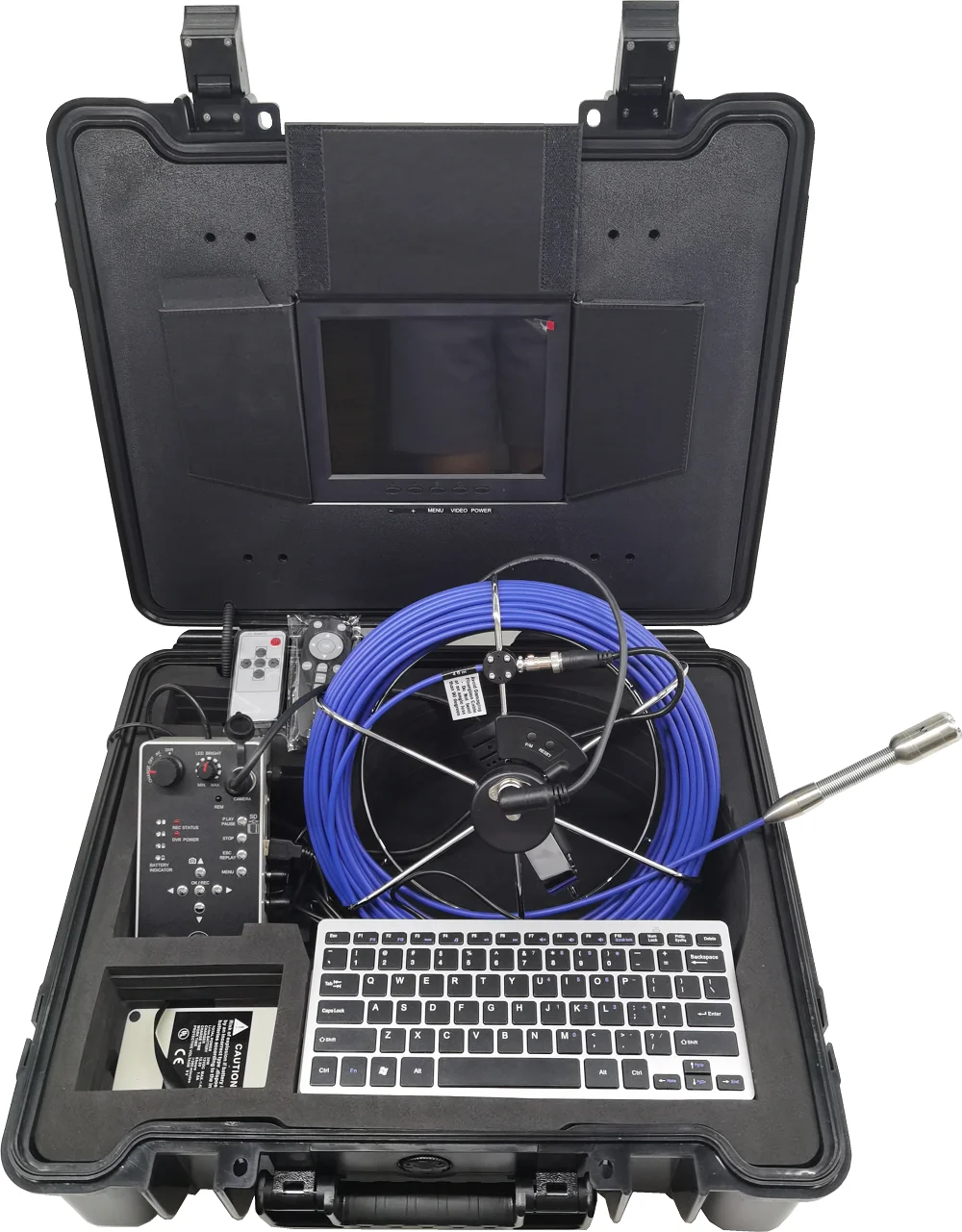

Vicam 23mm Small AHD Portable Pipe Inspection Camera System
1. 23mm waterproof camera head, Dia.23mm X 45 mm（Optional Self Leveling Function）

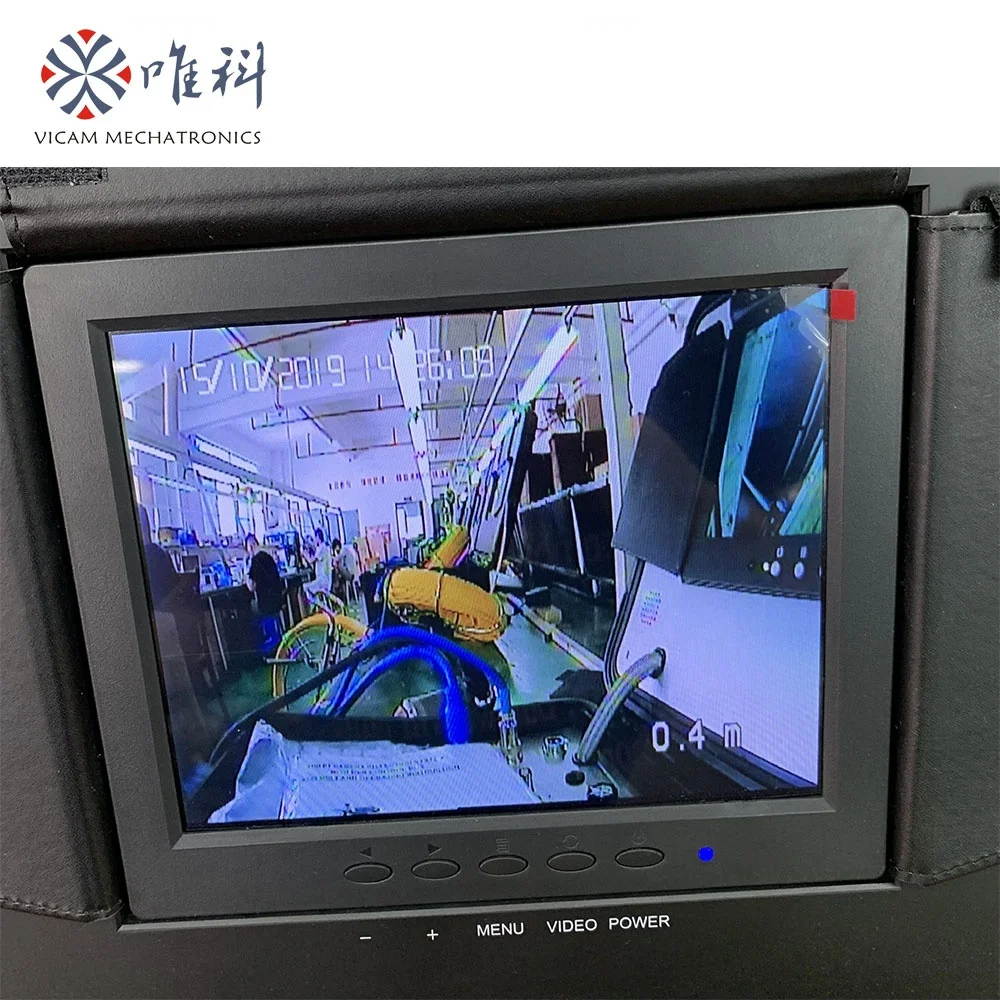

2. 8 inch TFT LCD screen, 420TVL, 1/4’’ CMOS
3. USB wired keyboard for typewriting
4. DVR control panel with audio ,video recording and photography function
5. L20m-L50m X Dia.5.2mm fiberglass push rod cable
6. Digital meter counter function, error is less than 1%
7. Total Pixels PAL 720X576 NTSC 720X 480
8. 16G SD card for storage, easily transfer the video file to computer
9. 1 year warranty,lifetime maintenance

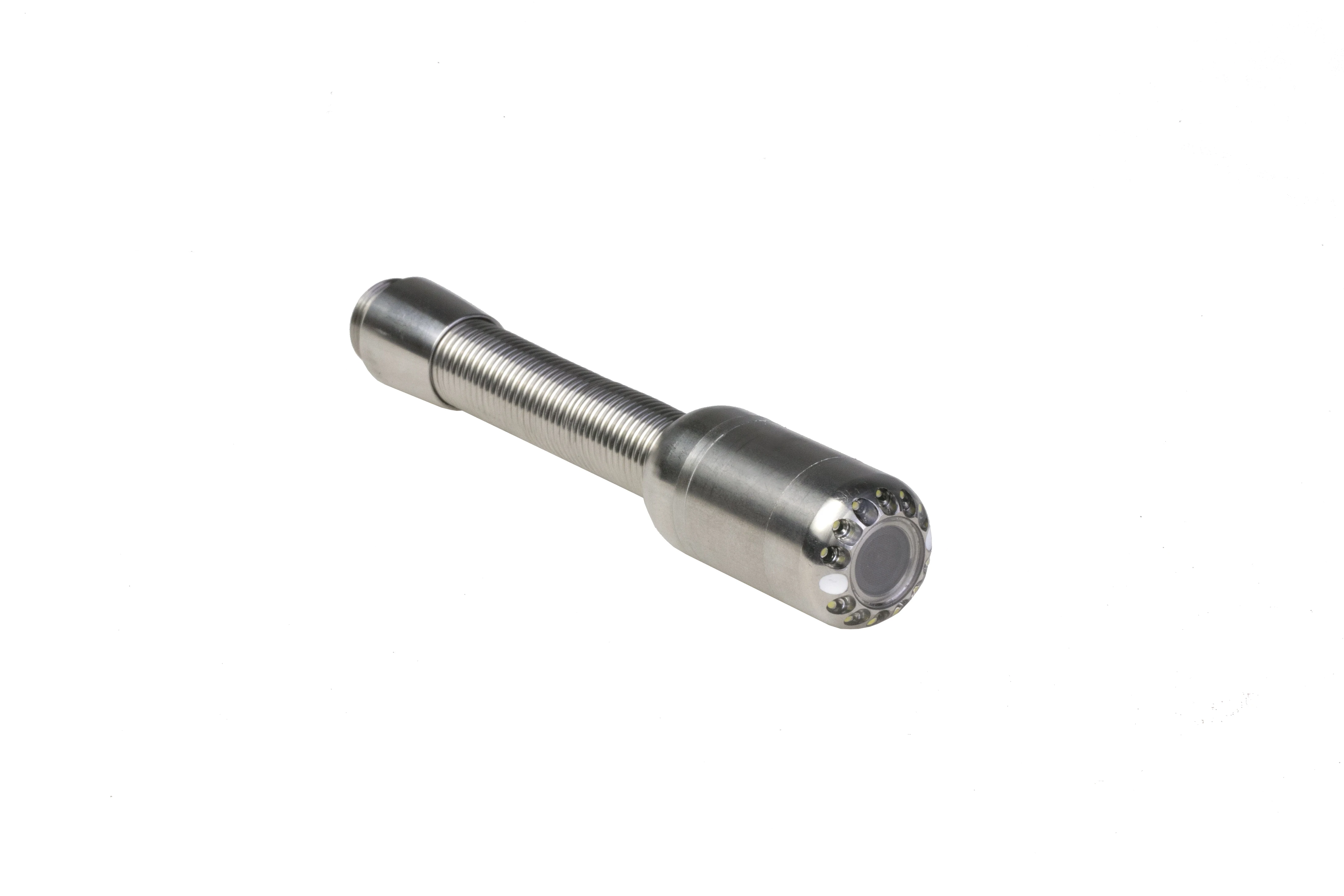

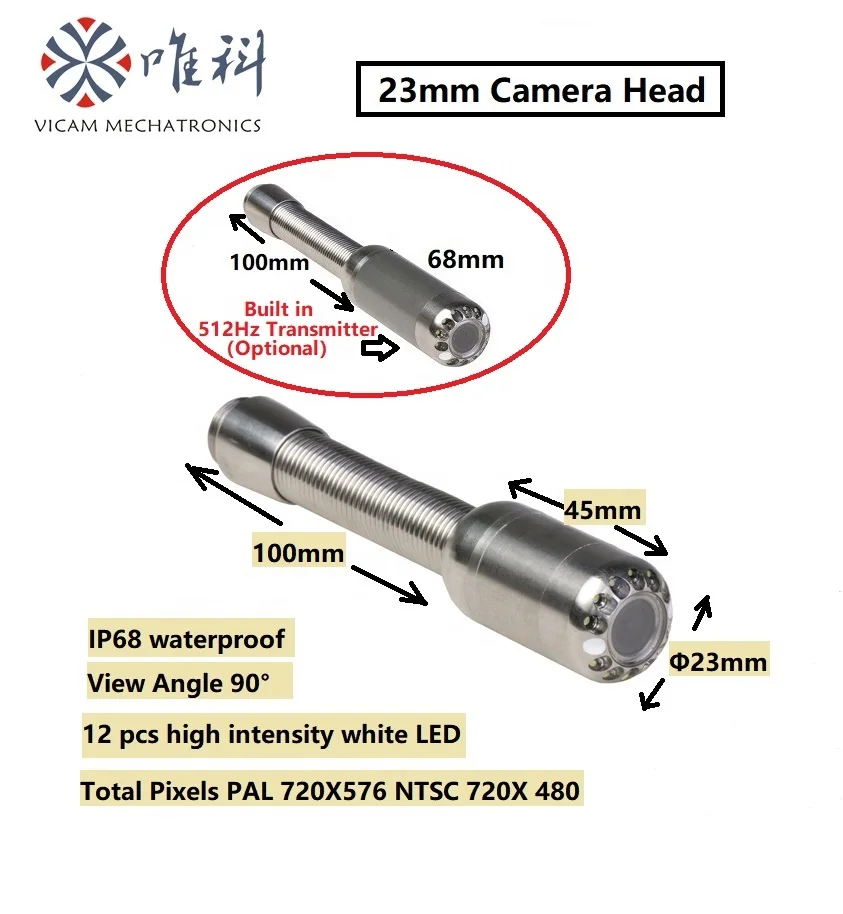

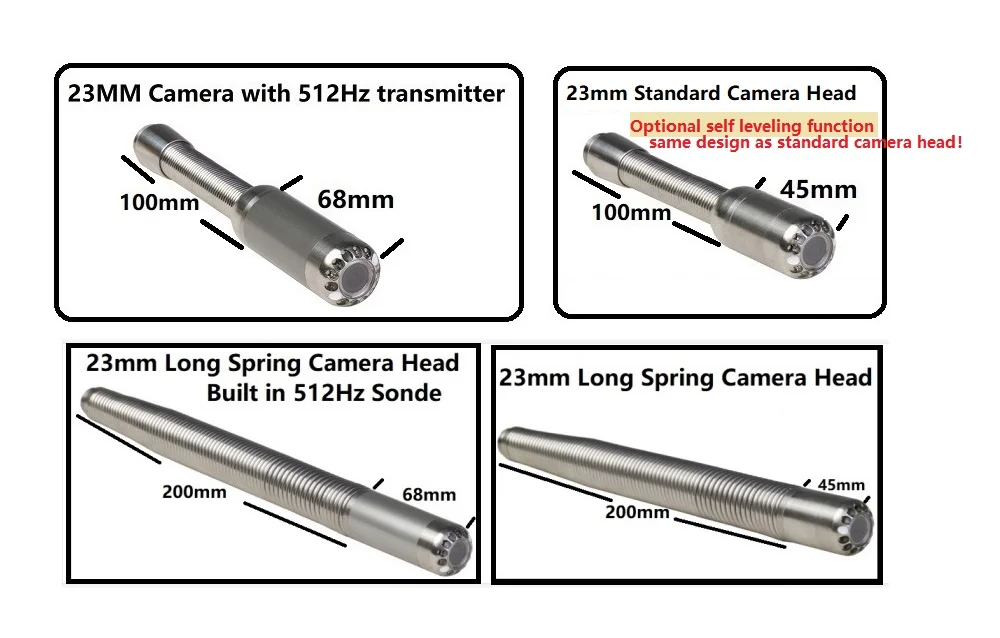

Main Part 1 : Camera head
* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
* 420TVL 1/4’’ CMOS camera
* Camera head casing material stainless steel
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°,IP68 waterproof
* 12 pcs high intensity white LED
* 420TVL 1/4’’ CMOS camera
* Camera head casing material stainless steel
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°,IP68 waterproof
* 12 pcs high intensity white LED
* Optional self leveling camera head
* Optional long spring camera connector
* Optional 512Hz transmitter&receiver

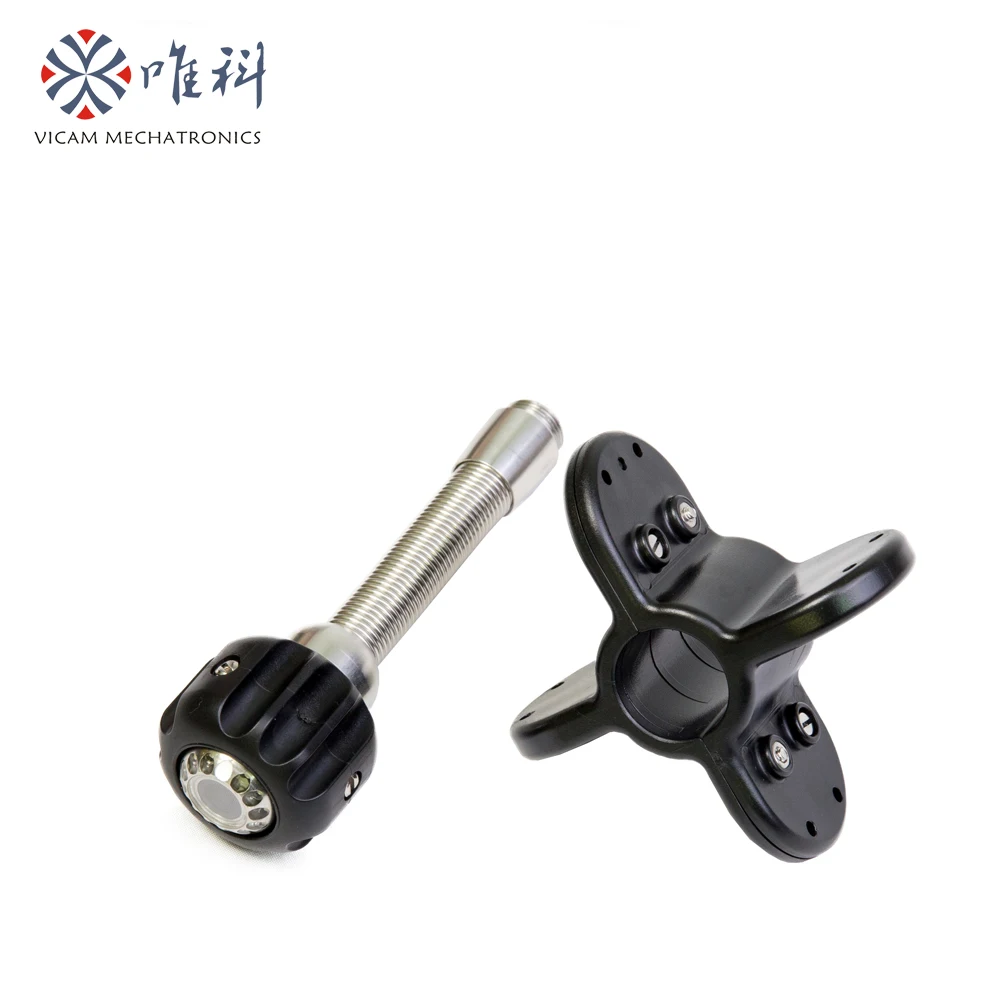

*Material:Plastic
*Min Diameter:40mm
*Max Diameter:85mm
*Min Diameter:40mm
*Max Diameter:85mm

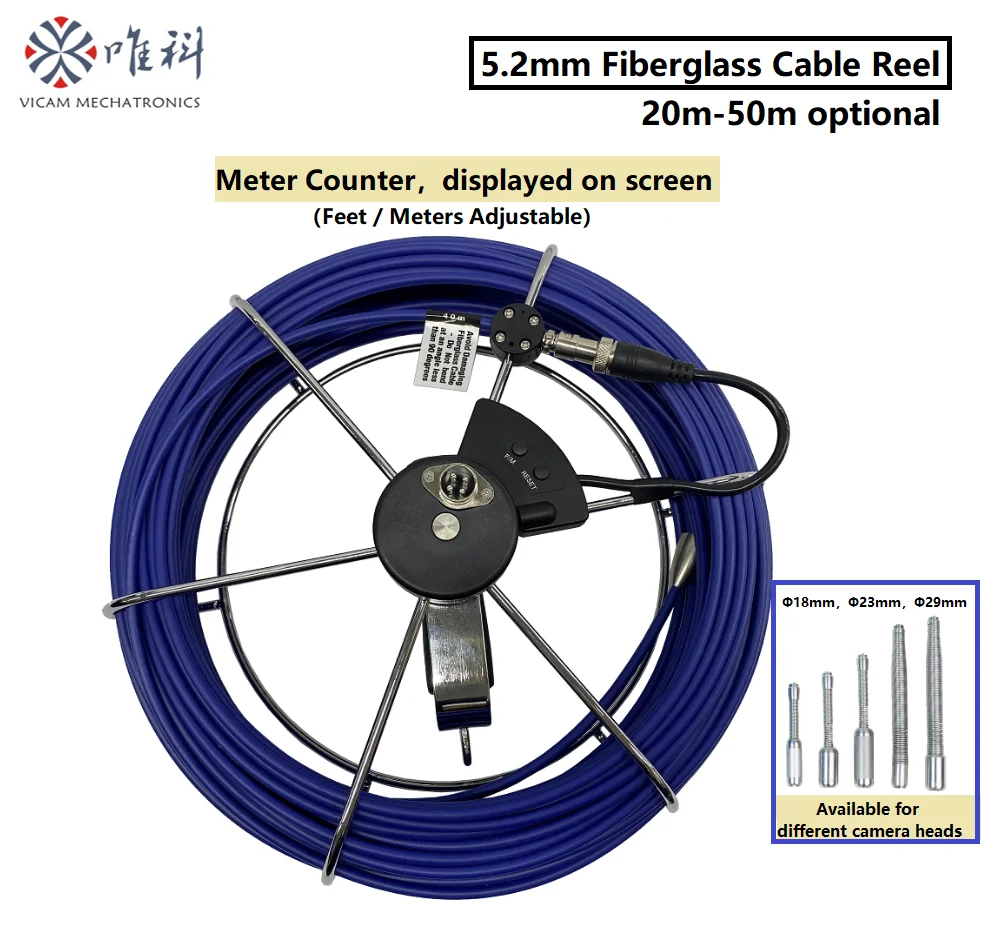

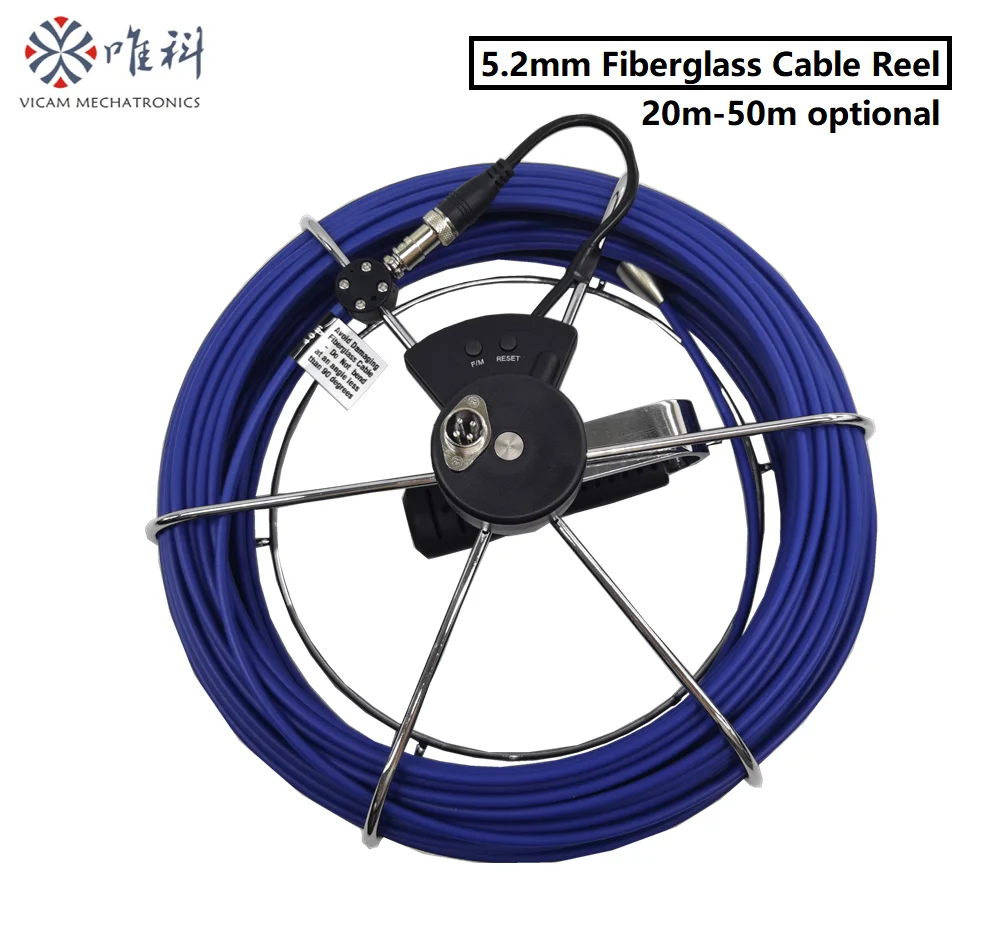

Main Part 2 : Cable Reel
* Fibreglass push rod cable with meter counter * F/M buttom to switch"feet/meter" * Cable diameter Φ5.2mm
* Cable length from 20m to 50m optional * Reel size Φ 320 x 110mm
* Cable length from 20m to 50m optional * Reel size Φ 320 x 110mm

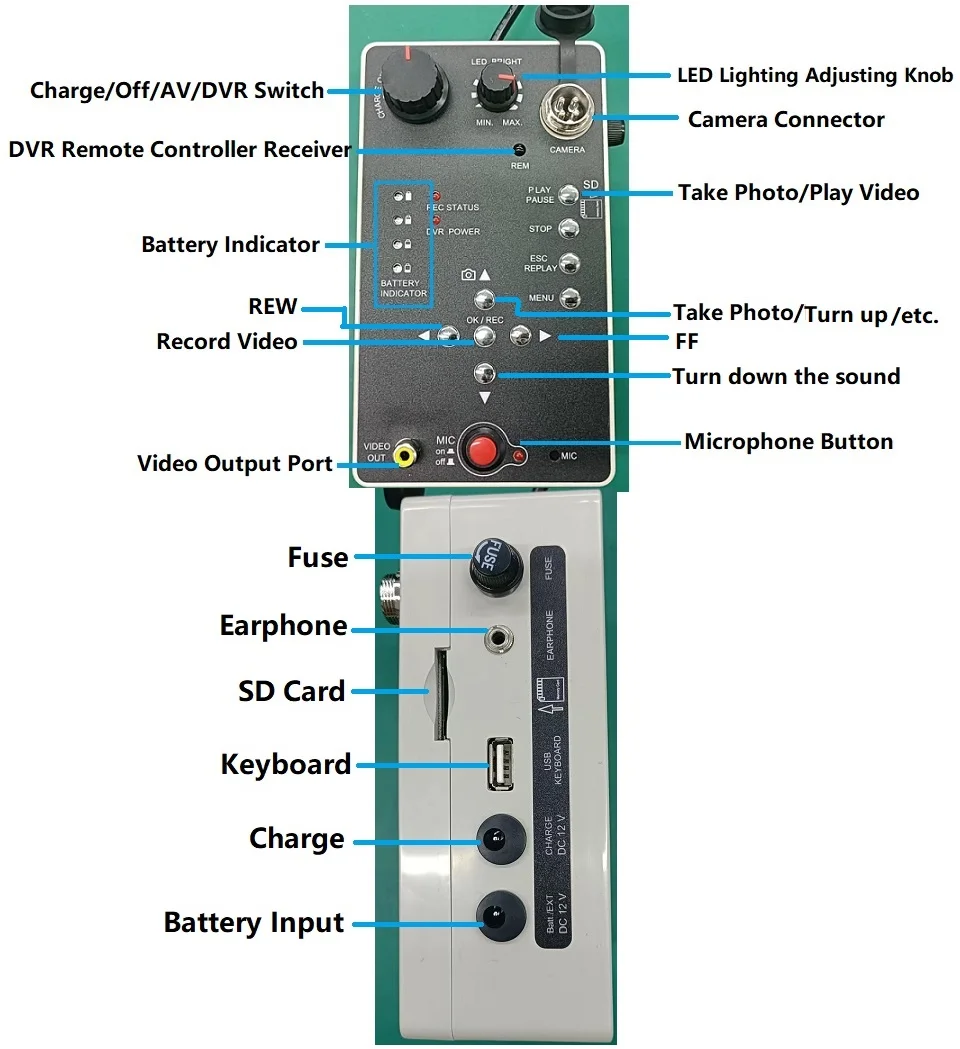

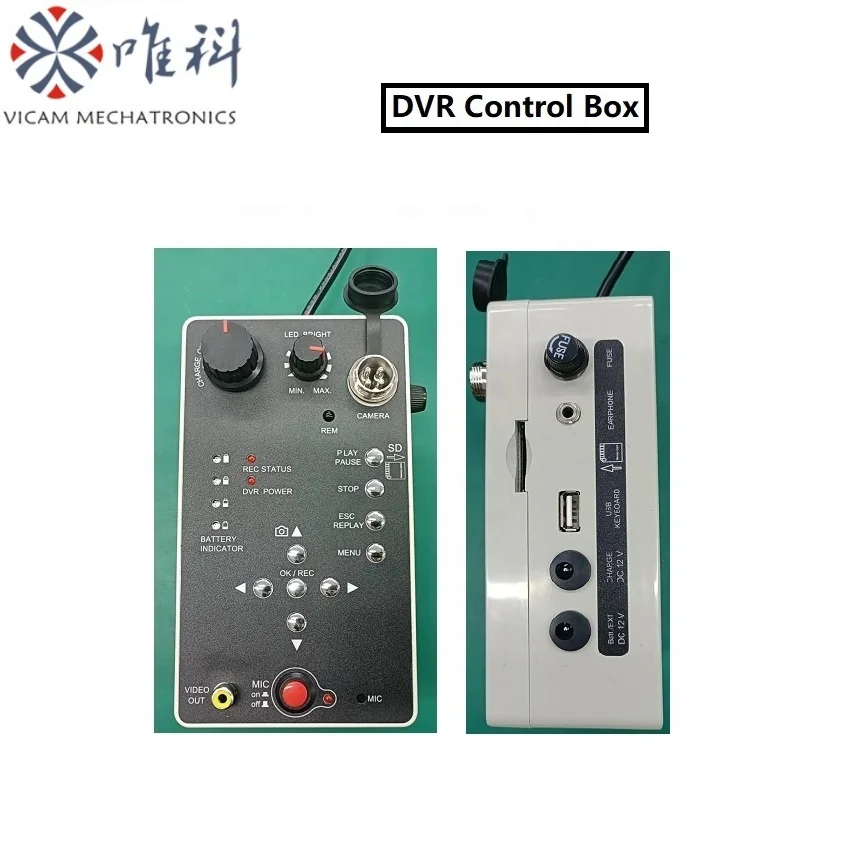

Main Part 3: DVR Control Unit
* DVR control buttons
* SD card (max 64G) jack,keyboard jack * LED brightness adjusting knob * A / V & photo selection available * On/off microphone control button * Battery level indicator lights * Video / audio output to another screen
* SD card (max 64G) jack,keyboard jack * LED brightness adjusting knob * A / V & photo selection available * On/off microphone control button * Battery level indicator lights * Video / audio output to another screen
* 800x600 pixels * 4:3 display model
* Brightness:400cd/m2 * Sun shield and remote control included
* Brightness:400cd/m2 * Sun shield and remote control included

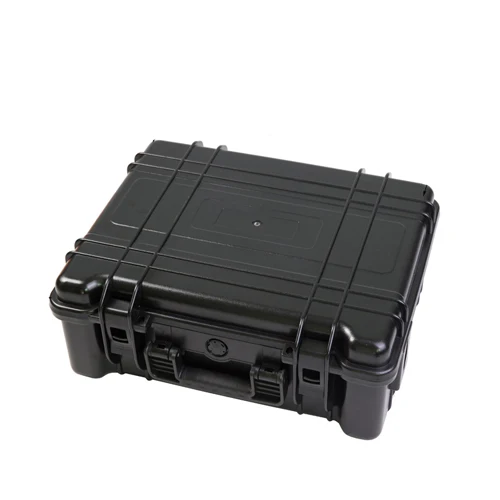

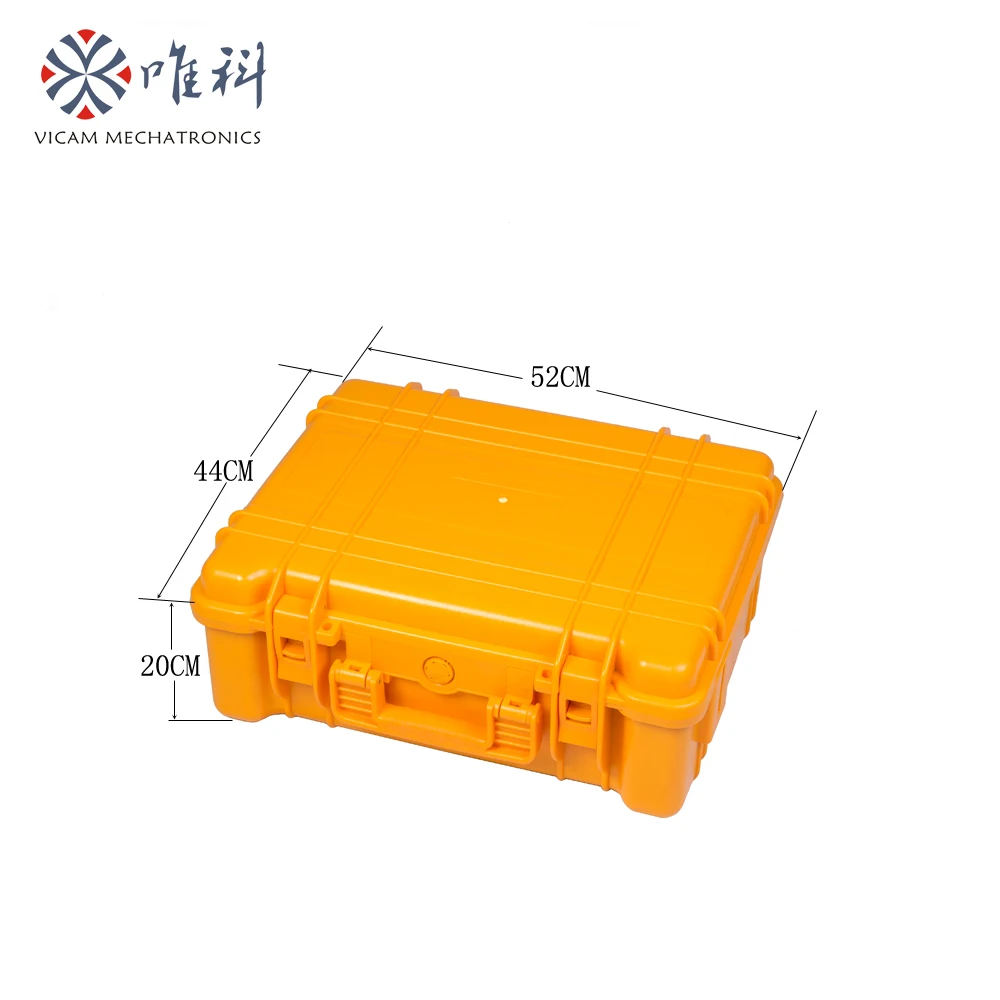

* Case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
2 colour options：Black / Orange

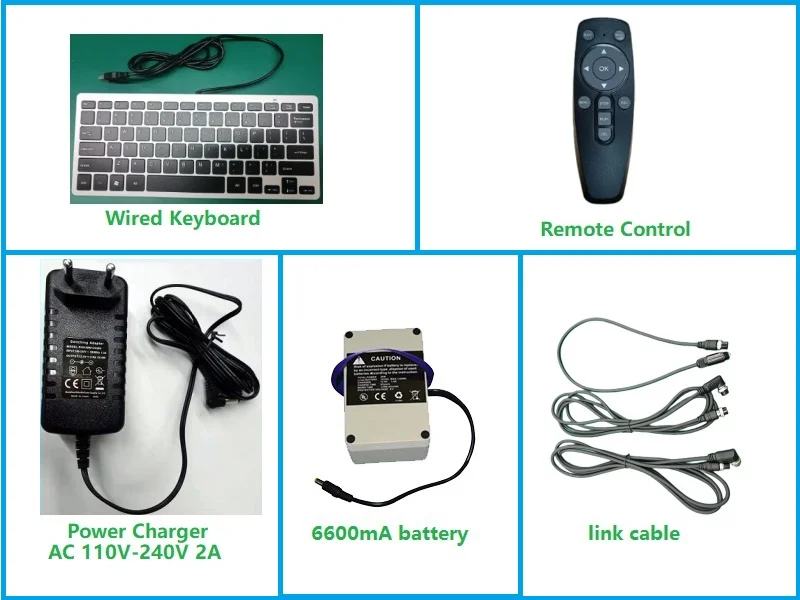

Other Accessories：
