H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR
H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR
H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR
H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR
H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR
H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR
H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR

H.265 Xmeye Pro 11.6' LCD Monitor Screen NVR 4 10 Channel 4K System For 4K IP POE Camera Network Video Recorder NVR

Share on (1600822010830):


Price:$78.00 - $86.00

Quantity:


Product Overview

Description



Product Details




Product Description


System Resources
Video compression
H.265
operating system
Embedded Linux operating system
output mode
IPC/Self adaptation
Video and audio input
video input
10CH 8.0MP
Video and audio output
Video output
1CH HDMI output
Audio output
1 Pcs 3.5 mm port with HDMI audio output
Video audio codec parameters
Video resolution
10 * 8M
Synchronous playback
4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1）
video management
Video/capture mode
Manual video recording, timing video recording, motion detection video recording, alarm video recording
Playback modes
Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face retrieval
Backup mode
Network backup, USB mobile hard drive, USB burning, SATA burning
Hard disk drive
type
1 pcs Sata interface
Maximum capacity
Each port supports a hard drive with a maximum capacity of 14TB
eSATA
None

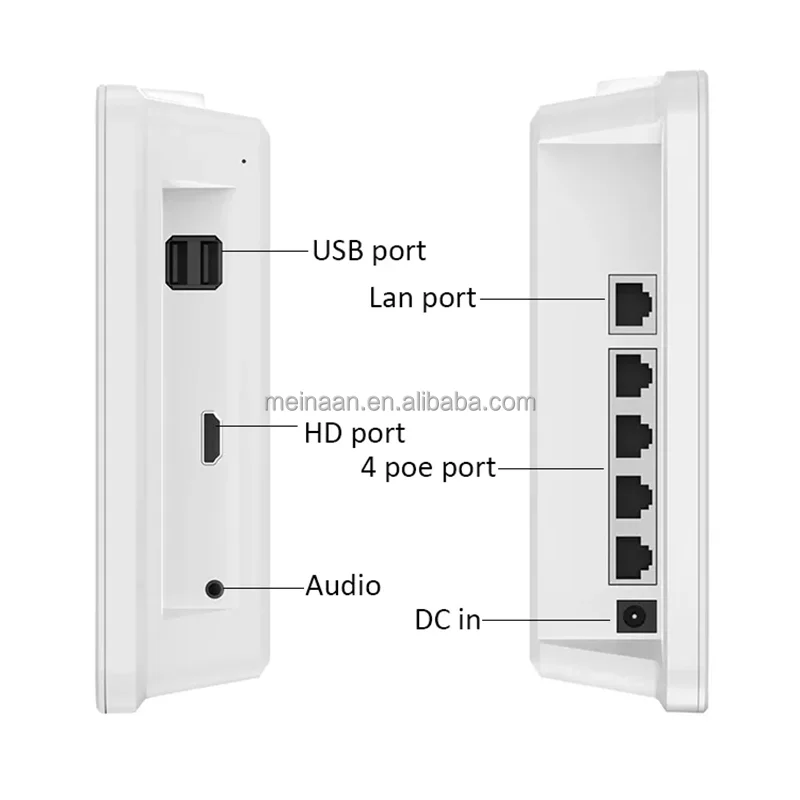

External interface
Alarm interface
None
485 interface
None
Network interface
1 pcs RJ45(10M/100M adaptive Ethernet Port)
POE interface
4 pcs RJ45(10M/100M adaptive Ethernet Port)
USB interface
2 pcs USB2.0
Network management
Network protocol
Onvif, IPV6, UPNP, NTP, SADP, PPPoE , DHCP, etc
Display
The dimensions
11.6inch TFT EDP
Display resolution
1366*768
Other
Power supply
DC 52V2A
Power consumption (excluding hard disks)
≤18W
Working temperature
-10℃--＋55℃
Working humidity
10％--90％
Size
288mm×182mm×50mm
Weight (excluding hard disk)
≤0.75Kg


Features
8MP (4K) HD POE 8CH 11.6 inch display integrated NVR
>Support for H. 265 intelligent coding technology
>Support 8MP HD network video preview, storage and playback
>Support PC client centralized management, mobile phone remote monitoring,
support P2p Internet function, one-click configuration video
>Compatible with Standard Onvif RTSP third party network cameras
>HDMI output, HDMI maximum Resolution 4K
>Support 250 m long distance Poe power supply and transmission
>Support 1 Sata interface, single disk up to 6TB，Support for custom BOOT screen，12 languages
>Support IEEE802.3 AF/AT standard power supply protocol, PD power intelligent detection, system-level overload protection
>Support (1236 or 4578) a variety of stable voltage power supply
>Support for NTP,SADP,Email,UPNP
