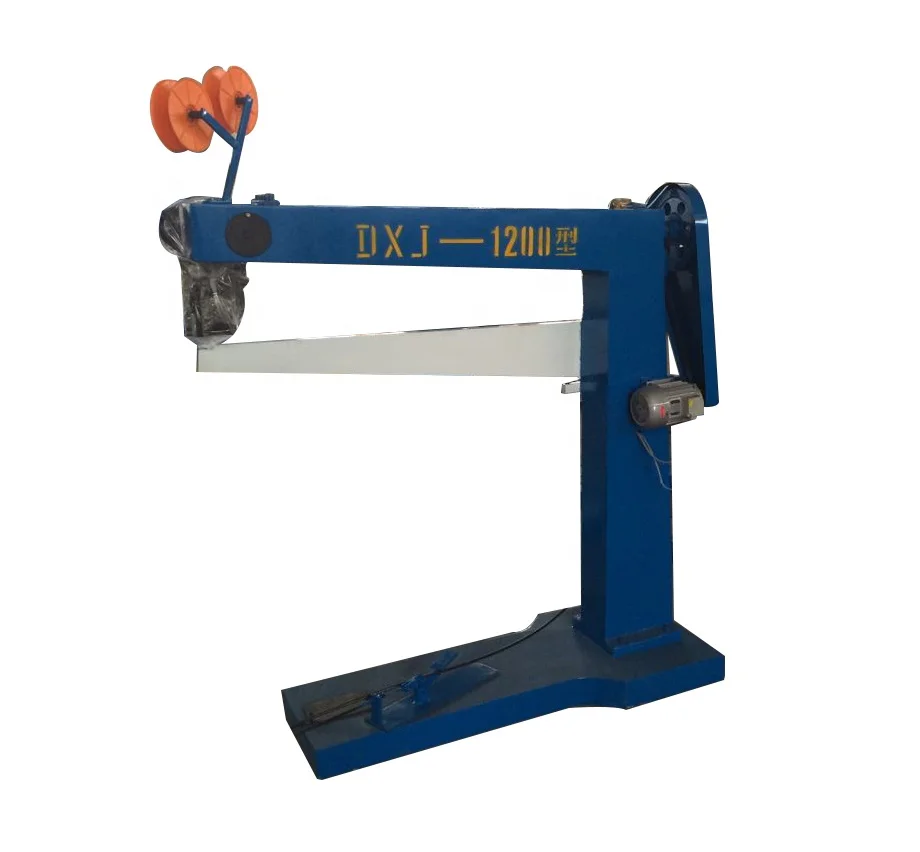

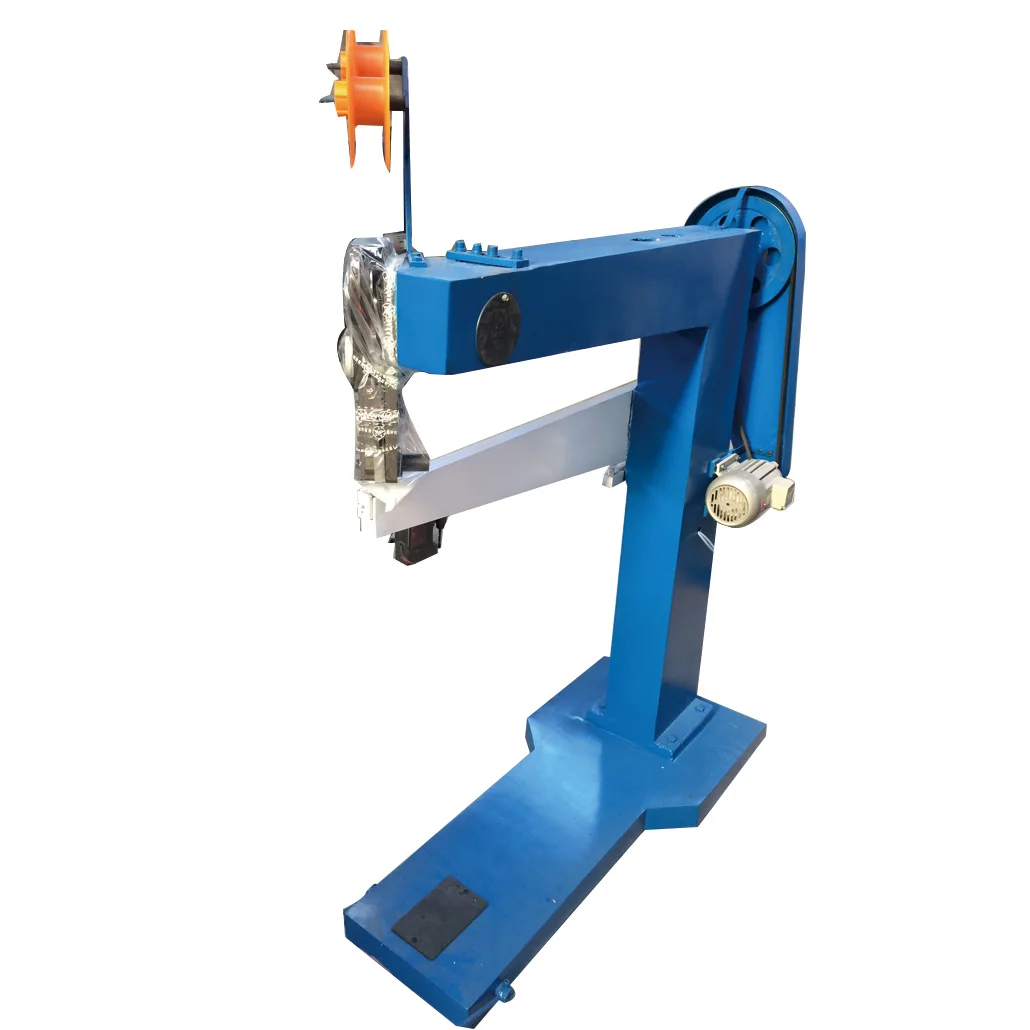

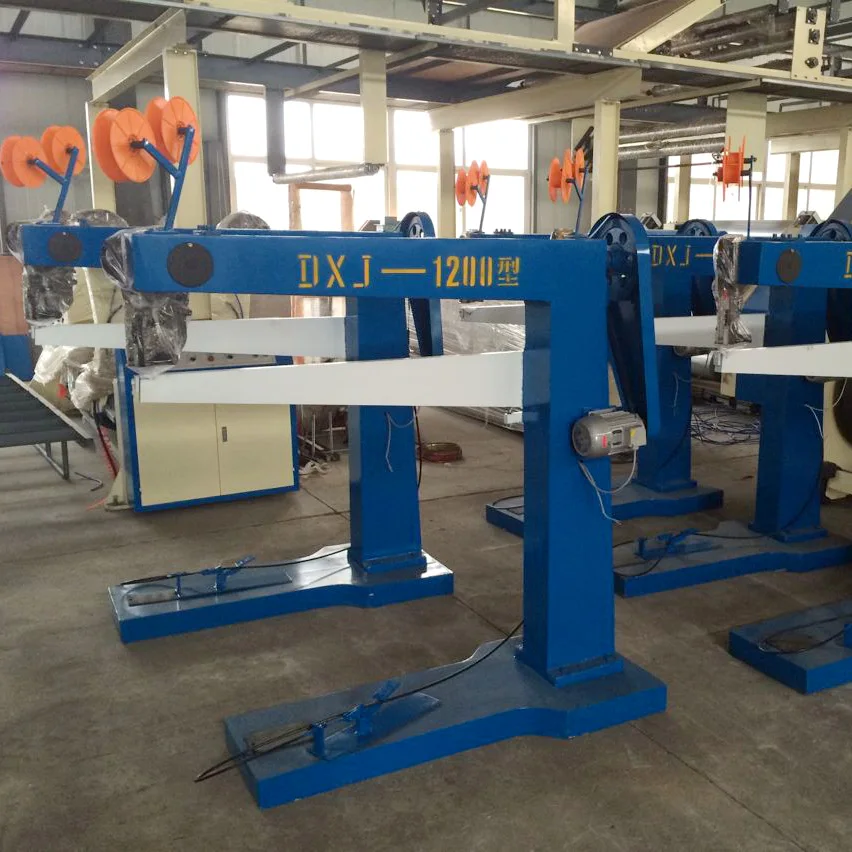

Corrugated Carton Manual Stitching Machine for Cardboard
- Category: >>>
- Supplier: Hebei Lincheng Packaging Machinery Manufacturing Co. Ltd.
Share on (1600822017169):
Product Overview
Description

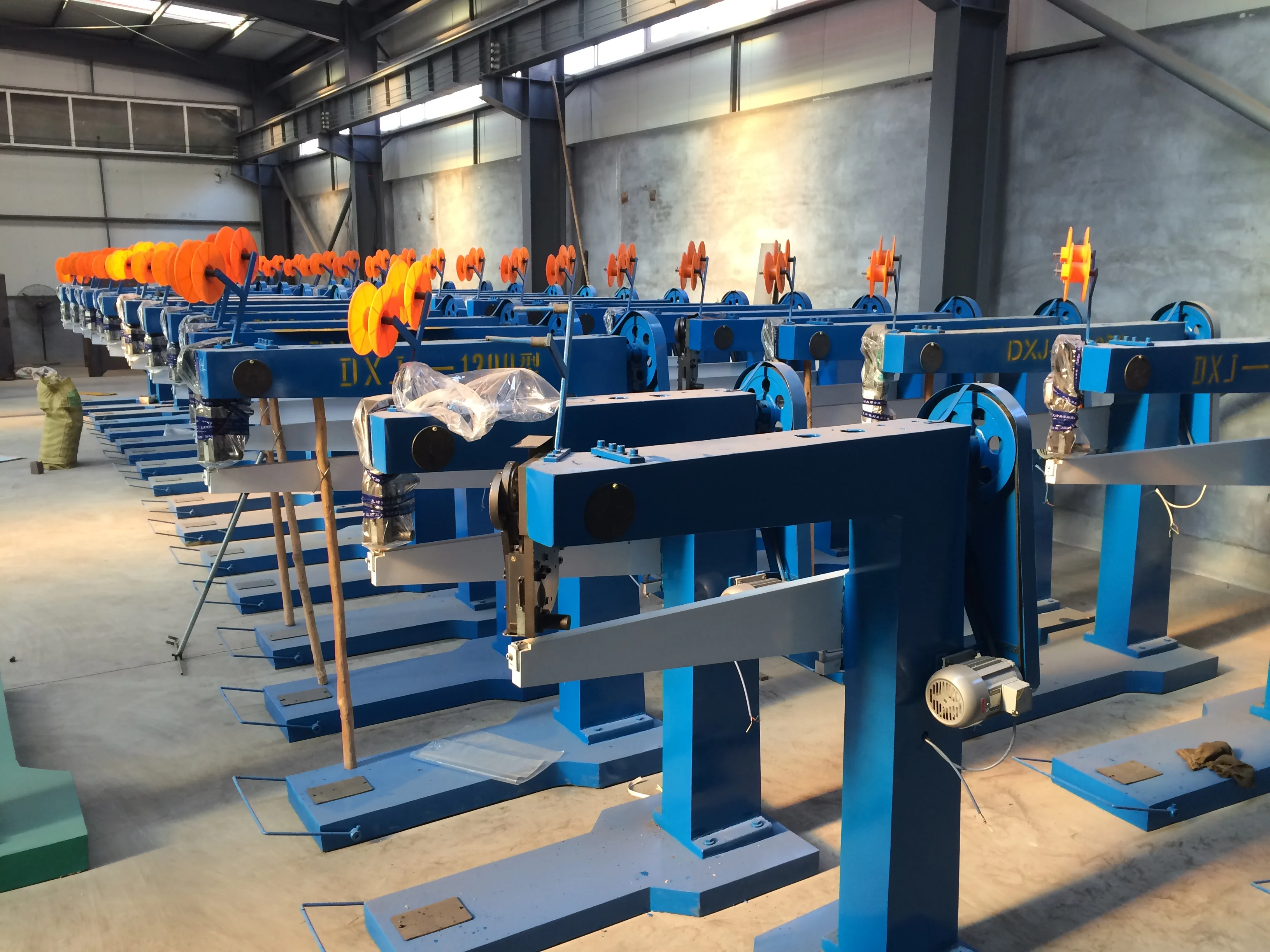

LUM-A manual stitching machine:
Features:
1.It features appearance of new, high speed, smooth operation,,stitching firmly,bottom die carbide, long life and other
characteristics;
2.Adapt to a variety of corrugated boxes stitching,high efficiency, high speed, single,double nails with adjustable.
characteristics;
2.Adapt to a variety of corrugated boxes stitching,high efficiency, high speed, single,double nails with adjustable.
1. Machine body is made of top quality material, overall casting, high strength;
2. Three axis helical gear make running smooth, cut and press powerful, with low noise.
3. Single plate electromagnetic clutch;
4. Operation height is convenient and reasonable.
5. Safety system is reliable;
5. Safety system is reliable;
Model | Staple Speed | Stapling Thickness | Arm Length | Dimension (mm) | Weight (kg) |
DX-600 | 250 nail/min | 3/5 ply | 600 mm | 900x400x1300 | 100 |
DX-900 | 250 nail/min | 3/5/7 ply | 900 mm | 1300x600x1600 | 350 |
DX-1200 | 250 nail/min | 3/5/7 ply | 1200 mm | 1600x600x1700 | 400 |
DX-1400 | 250 nail/min | 3/5/7 ply | 1400 mm | 1800x600x1700 | 450 |
DX-1600 | 250 nail/min | 3/5/7 ply | 1600 mm | 2050x600x1700 | 600 |
DX-1800 | 250 nail/min | 3/5/7 ply | 1800mm | 2250x770x1700 | 700 |
DX-2000 | 250 nail/min | 3/5/7 ply | 2000mm | 2500x770x1700 | 800 |
1.Flat wire Size: 16 #, 17 #, 18 #
2. Arm extended length: 1200mm
3. Operating panel height: 1.075mm
4. Motor power: 0.37kw
5.Stitching speed: 250 times / min
6. Stitching thickness: 2-7 layers
7. Stitching way: 45 ° double helical screw/straight nail
8.Nail foot width: 13mm 9.Weight: 400KG
1. Q: Are you a factory or trading company?
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
A: We are manufacturer.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
