Industrial Mini Textile Household Carding Machine Sheep Wool Cotton Polyester Fiber Non woven Combing Carding Machine

 Lab Small Worsted Cotton Carding Machine Cotton Wool Sliver Knitting Making Machine mini cotton sliver making machine cotton wool sliver knitting machine

Application:

This machine is one of spinning series small prototype, its cover a small area, frequency conversion control, operation and adjustment easily, is suitable for the rapidly spinning test at a small amount of raw materials.

Raw cotton after clearing machine opened into the card, again by carding machine for cotton layer further opening, blending, carding and removing impurity, make a curly block of cotton card into a single fiber state, collection by drawing into strips, regularly and circularly placed within the sliver can, for the use of next working procedure.

Technical parameter:

1. Working width: 300mm

2. Stripping way: roller stripping

3. Diameter of cylinder: Ø 400mm

4. Diameter of Doffer: Ø 200mm

5. Speed of cylinder: 600r/min

6. Speed of Doffer:35r/min

7. Speed of feeding:3r/min

8. Speed of lick-in:606r/min

9. Output: 3-5kg/h

10. Motor power: 6 grade  1.5kw / 4 grade  0.8kw

11. Size:1450*1100*1350(mm)

12. Weight:500kg

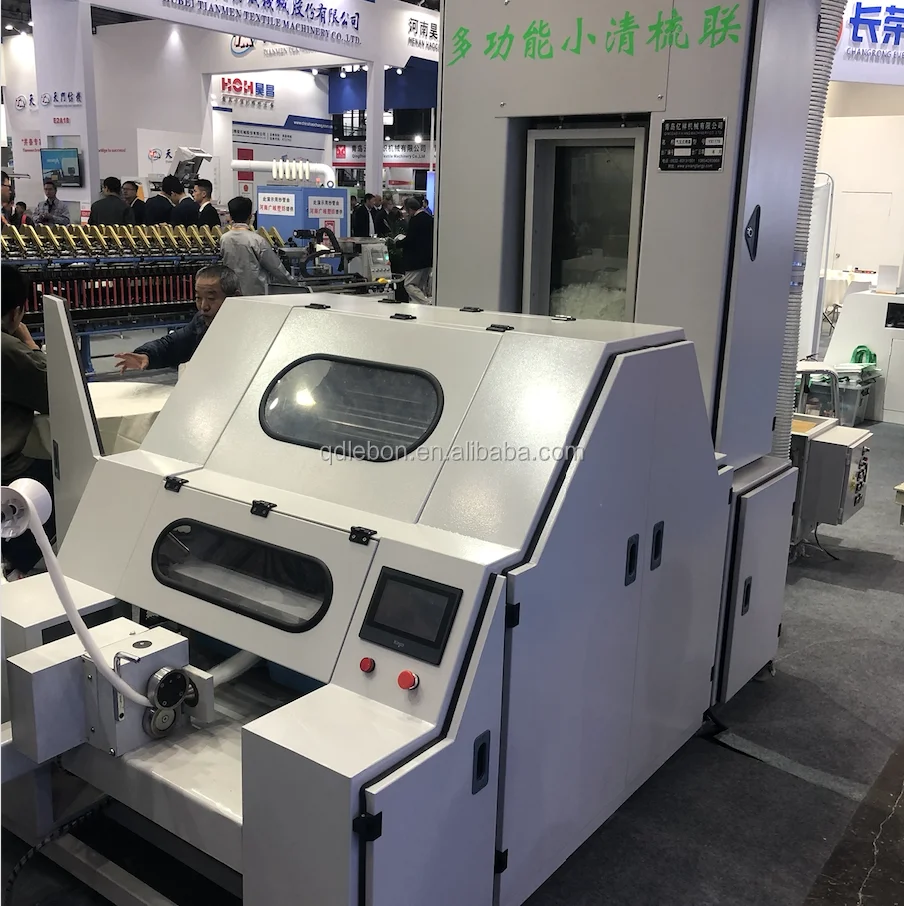

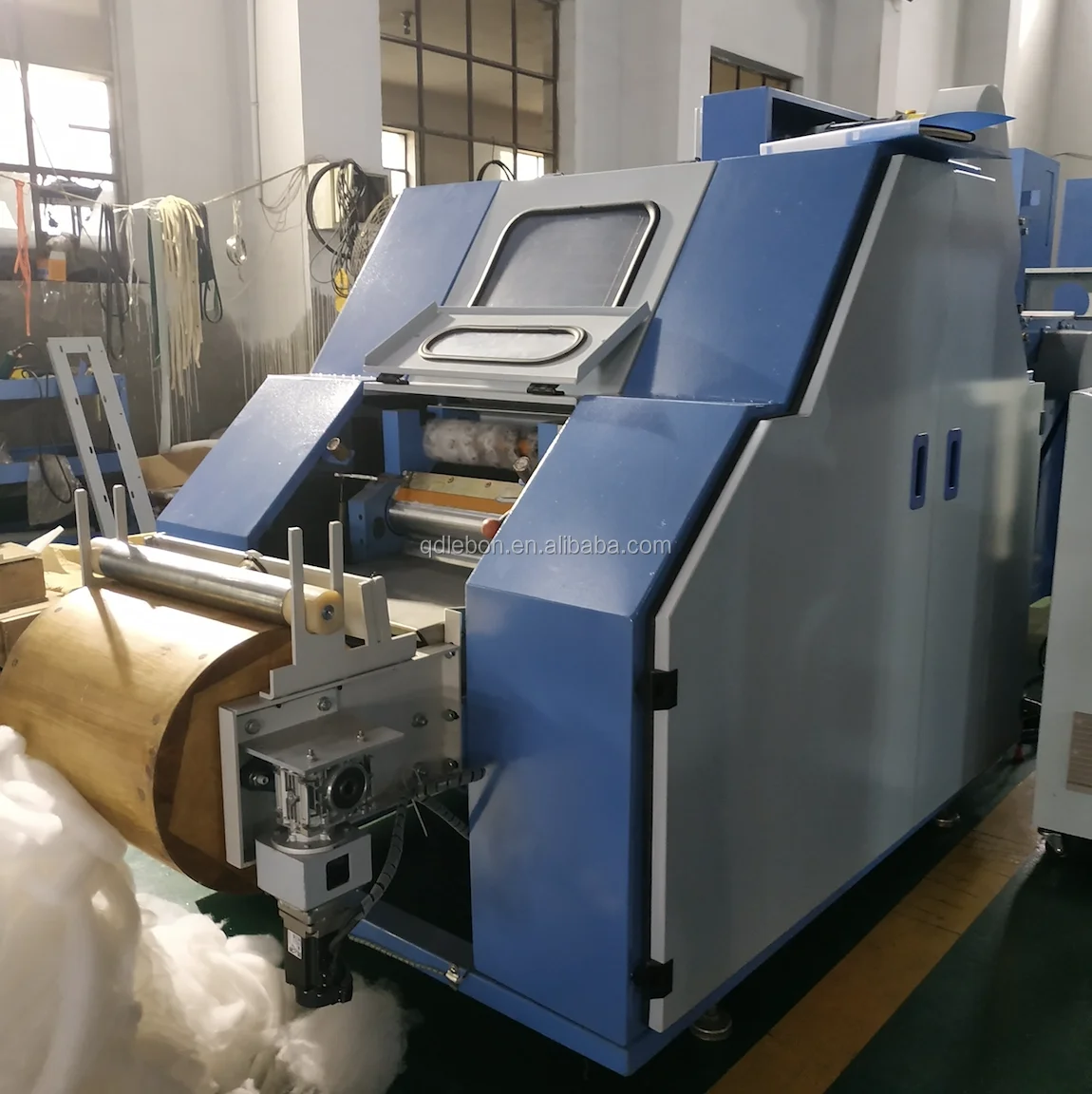

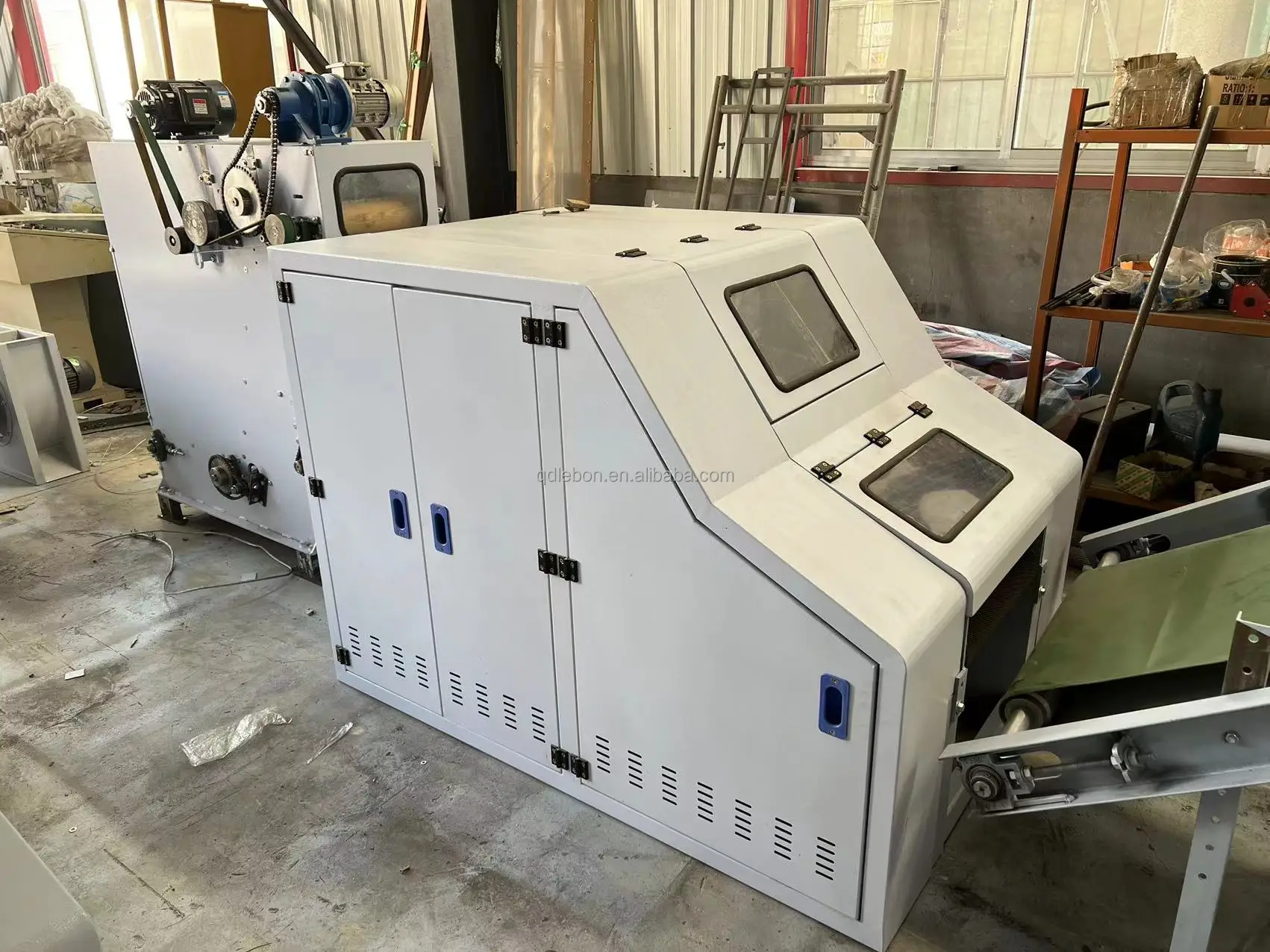

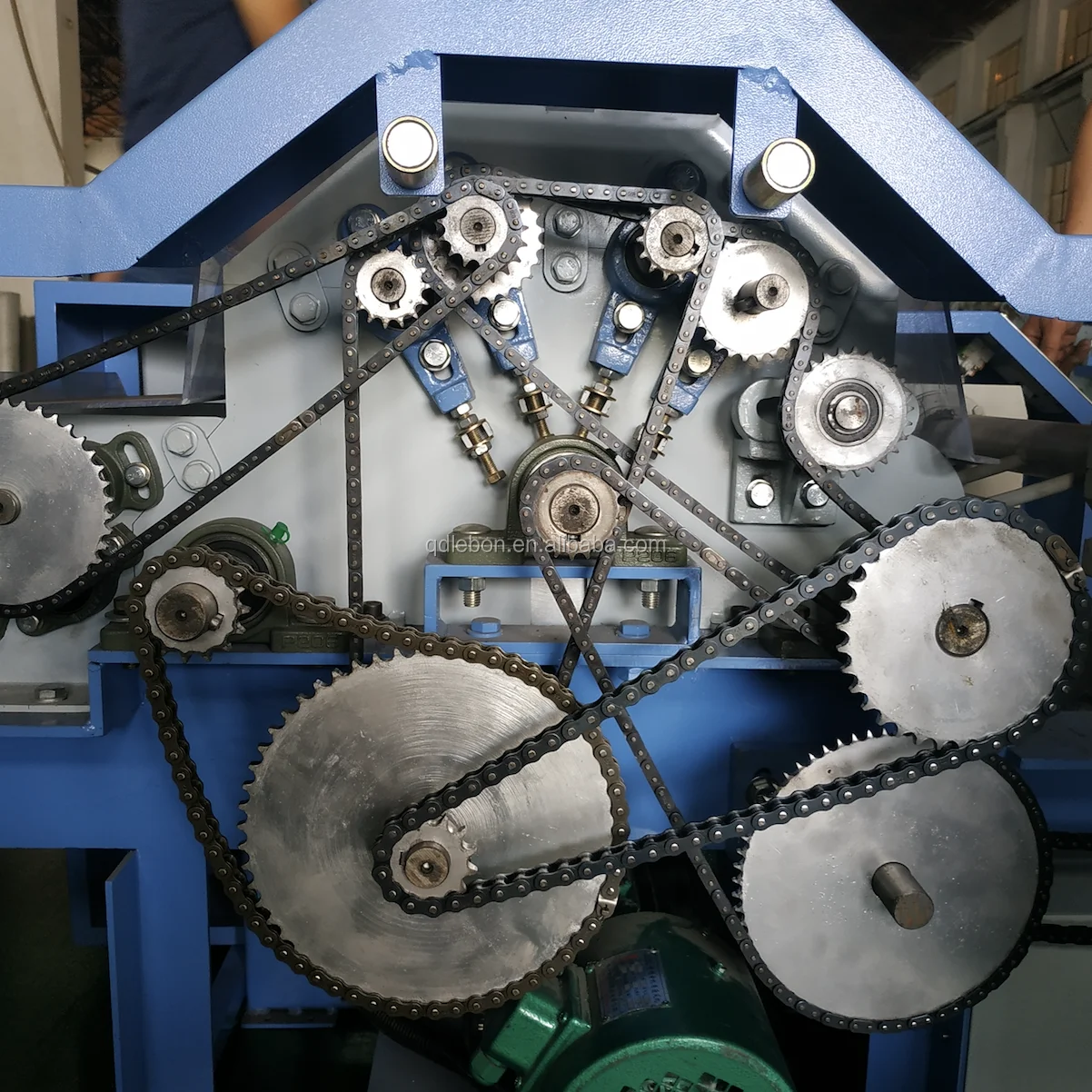

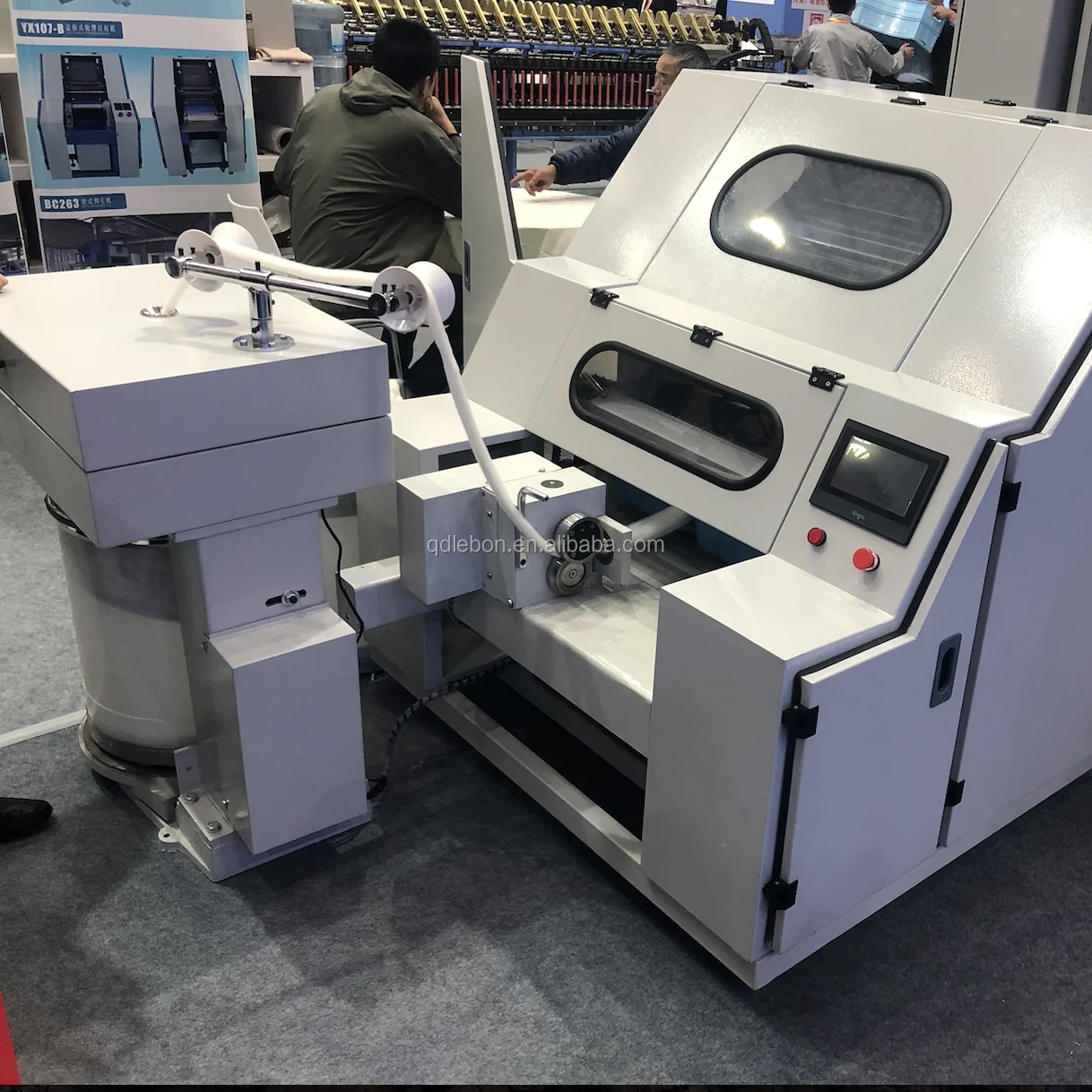

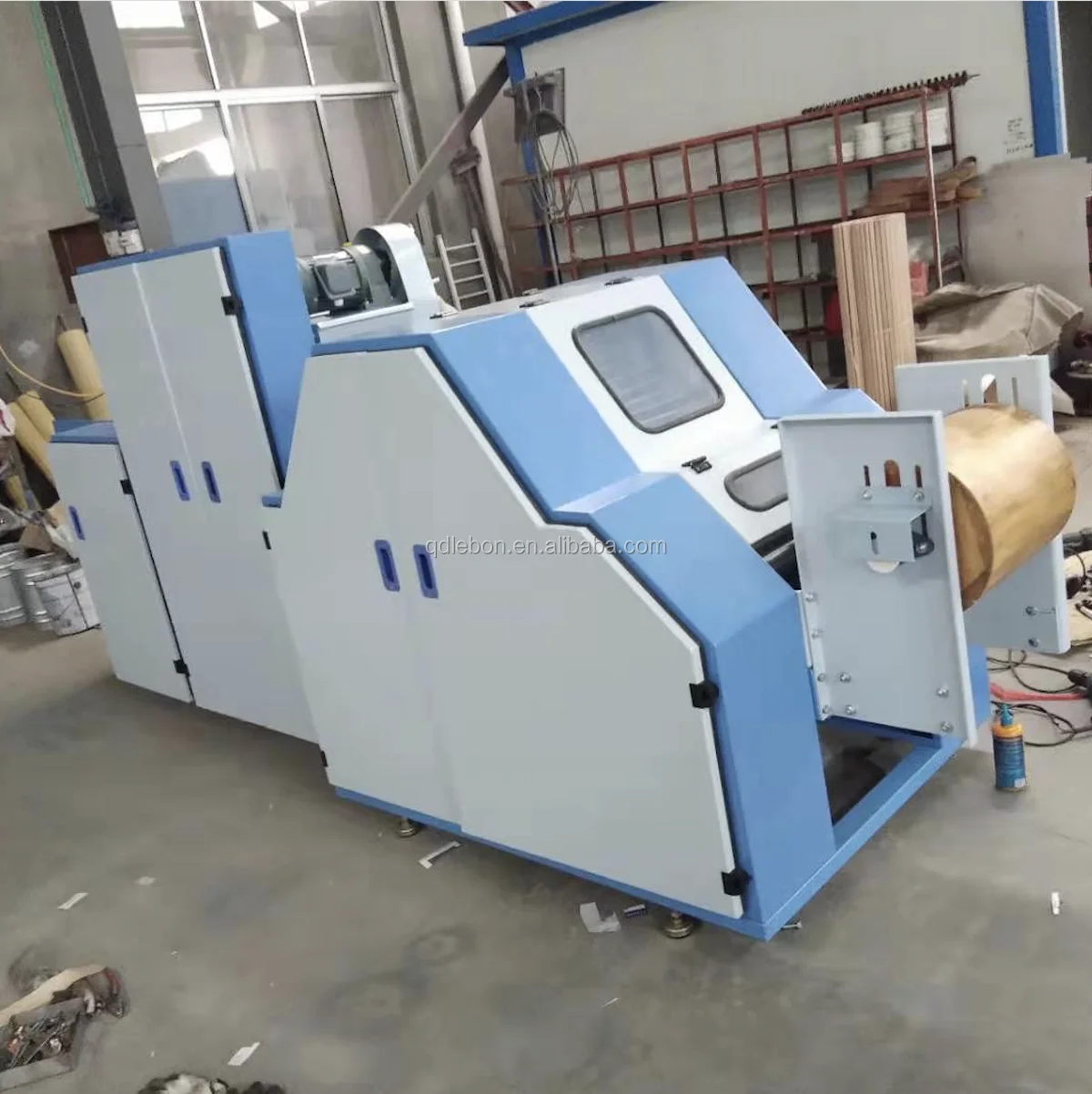

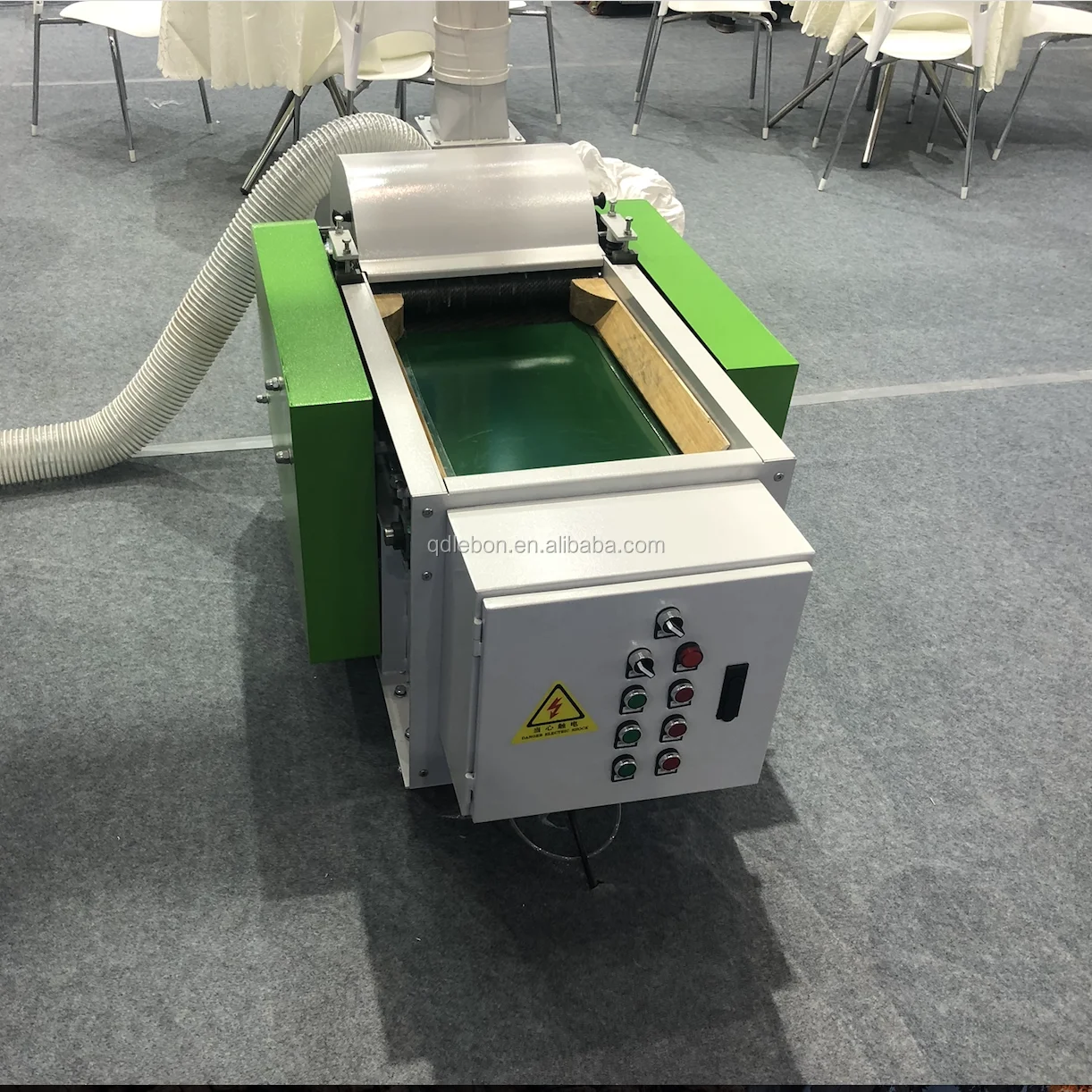

Product picture:
