Tewaycell Energy Storage Battery 51.2V 10Kwh 20Kwh 30Kwh 50Kwh Deep Cycle LifePO4 Battery 48V Lithium 100Ah 200Ah 10KWH Battery
- Category: >>>
- Supplier: Shenzhen Topway New Energy Co. Ltd.
Share on (1600822078241):
Product Overview
Description
Products Description
Model | 5kwh(100Ah) | 7.5kWh(150Ah) | 10kWh( 200Ah) | 15kWh( 300Ah) | |||
Nominal Voltage | 48V(15S)/51.2V(16S) | 51.2V(16S) | 51.2V(16S) | 51.2V(16S) | |||
Energy(Unit: wh) | 4800 / 5120 | 7200/ 7680 | 9600 / 10210 | 14400 / 15360 | |||
Cycle | 6000 | 6000 | 6000 | 6000 | |||
Internal Resistance | 100≤mΩ | 100≤mΩ | 100≤mΩ | 100≤mΩ | |||
Bulit in Inverter | No | 5KW inverter | 5KW inverter | 5KW inverter | |||

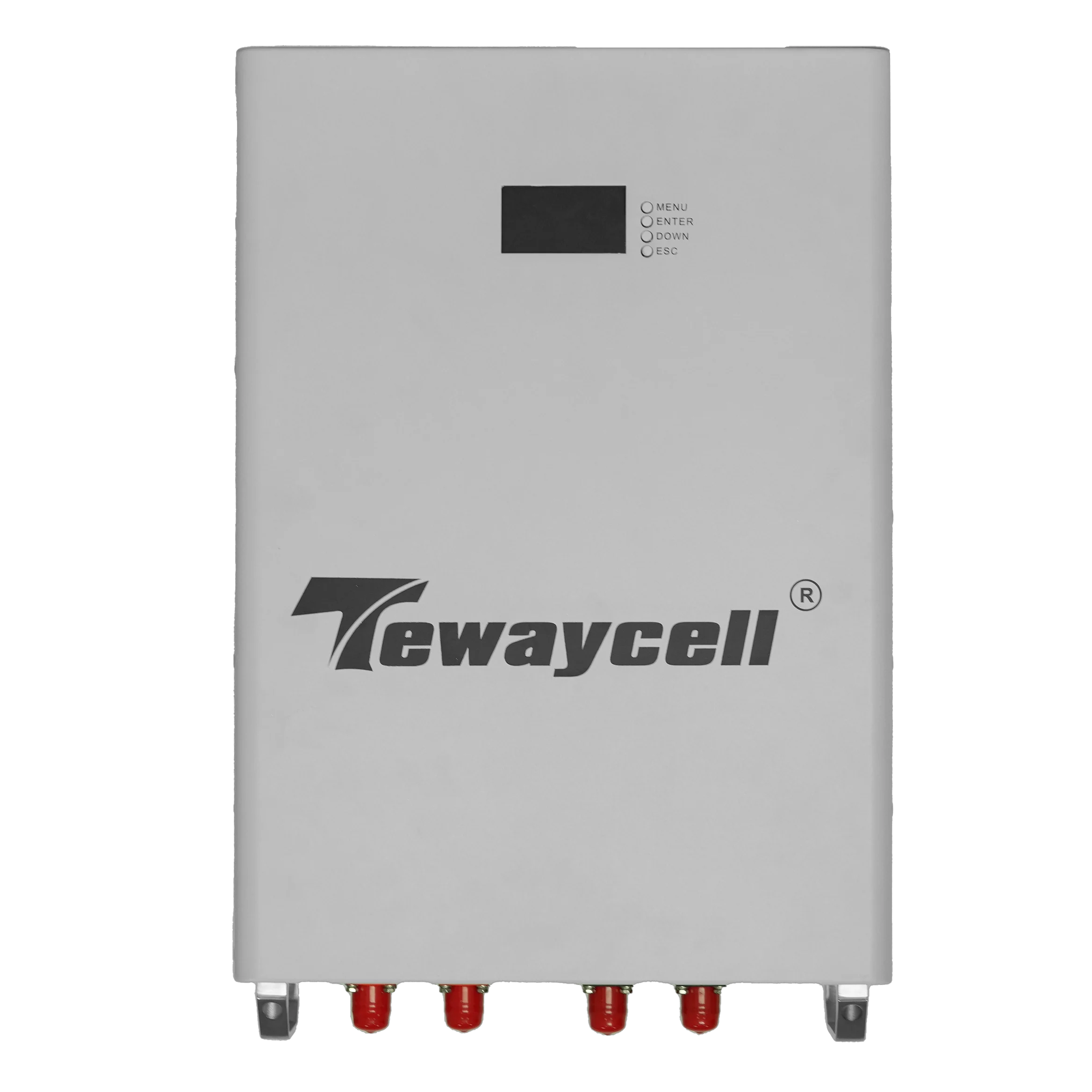

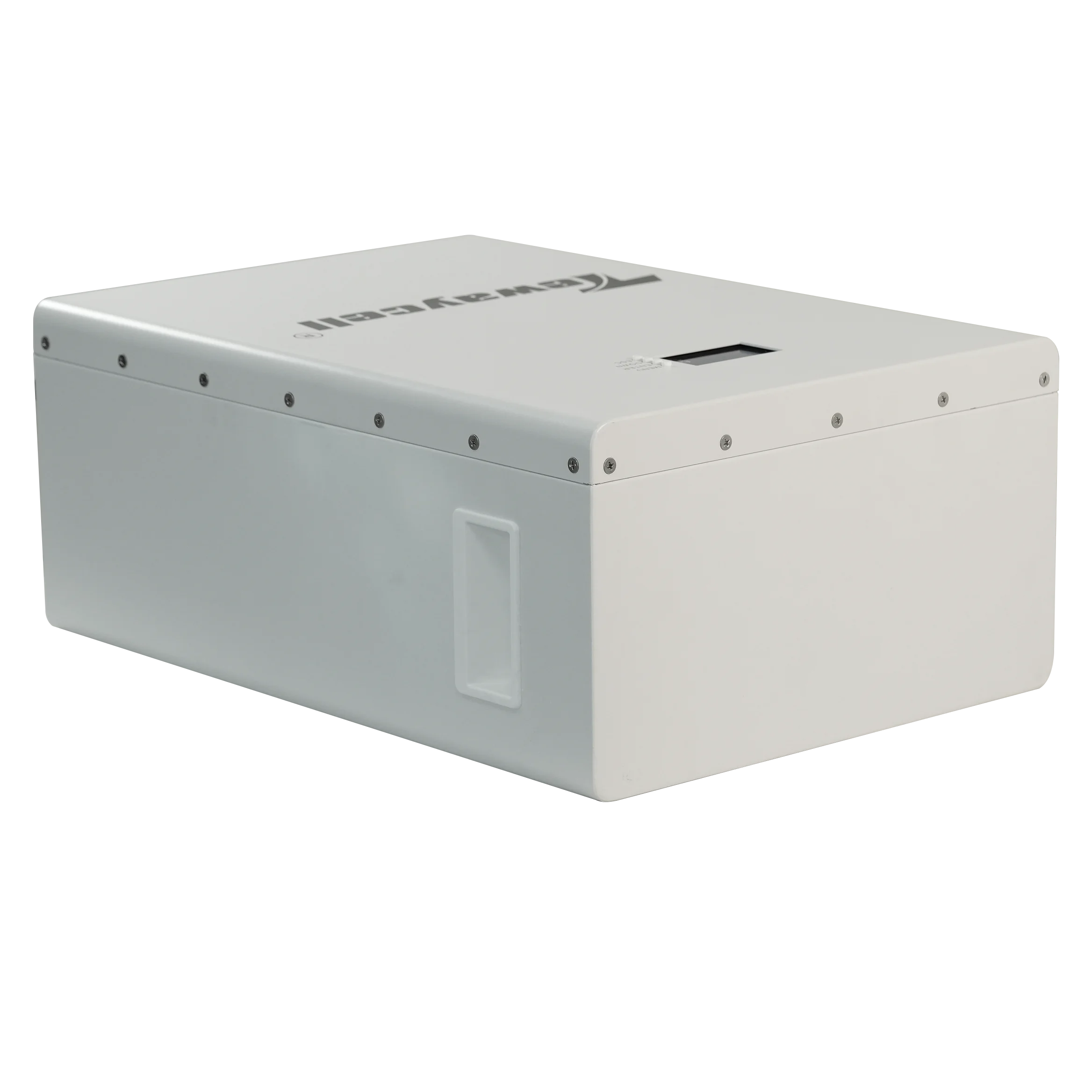

Modes | Wall-mounted | Wall-mounted | Wall-mounted/ Mobile ESS | Mobile ESS | |||
Battery Working | 40.5~42.0V | 40.5~42.0V | 40.5~42.0V | 40.5~42.0V | |||
Charging Mode(CC/CV) | At 0℃~45℃ temperature, charge to 57.6V at a constant current of 0.2C, and then change continuously with constant voltage of 57.6V until the current was not more than 0.02C. | ||||||
Charging Current | 20A | 20A | 20A | 20A | |||
Max.Charging Current | 100A | 100A | 100A | 100A | |||
Discharging Current | 20A | 20A | 20A | 20A | |||
Max. Continuous Current | 100A | 100A | 100A | 100A | |||
Max.Pulse Current | 150A(<30S） | 150A(<30S） | 150A(<30S） | 150A(<30S） | |||
Water Dust Resistance | IP22 | 43.2~44.8V | 43.2~44.8V | 43.2~44.8V | |||
Cell & Format | IFR N100,15S1P(48V) / IFR N100,16S1P(51.2V) | ||||||
Dimension(L*W*H) | 64.2*40*18.5cm | 81*52*30cm | 100.5*52*30cm | 100.5*52*30cm | |||
Weight | 48.4kg | 90.8Kg | 97Kg | 140kg | |||
Customer Review
Company Profile

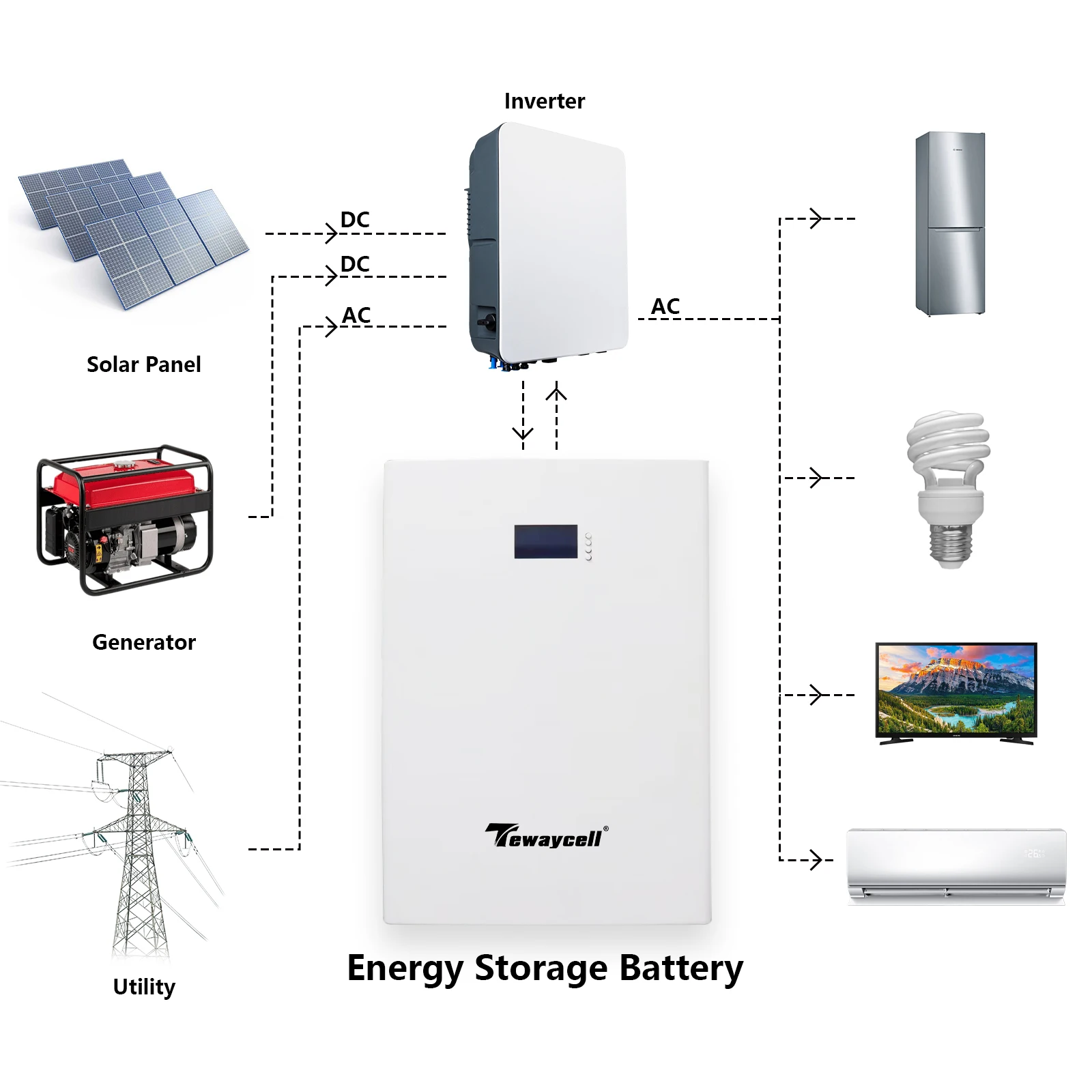

Support Inverter

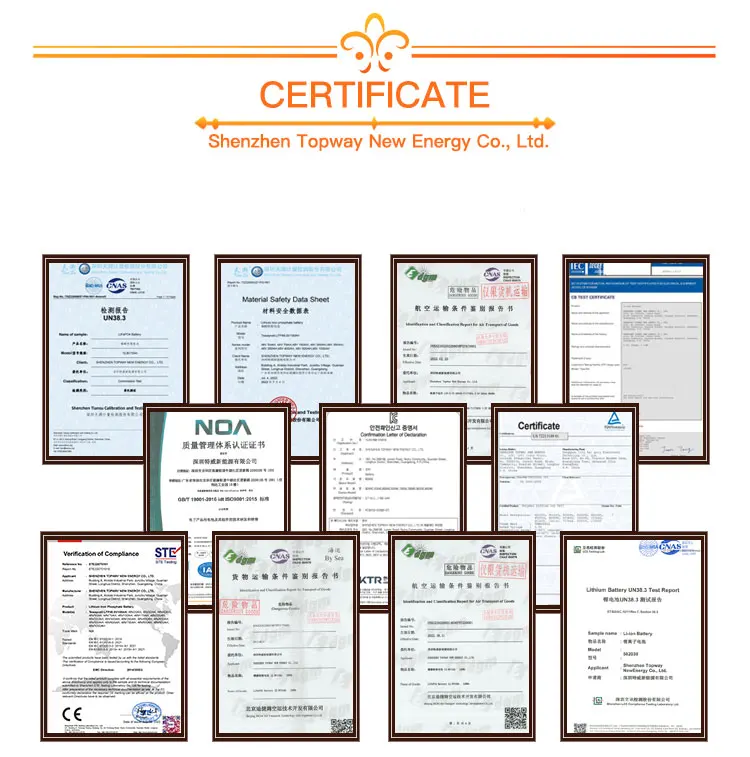

Certification

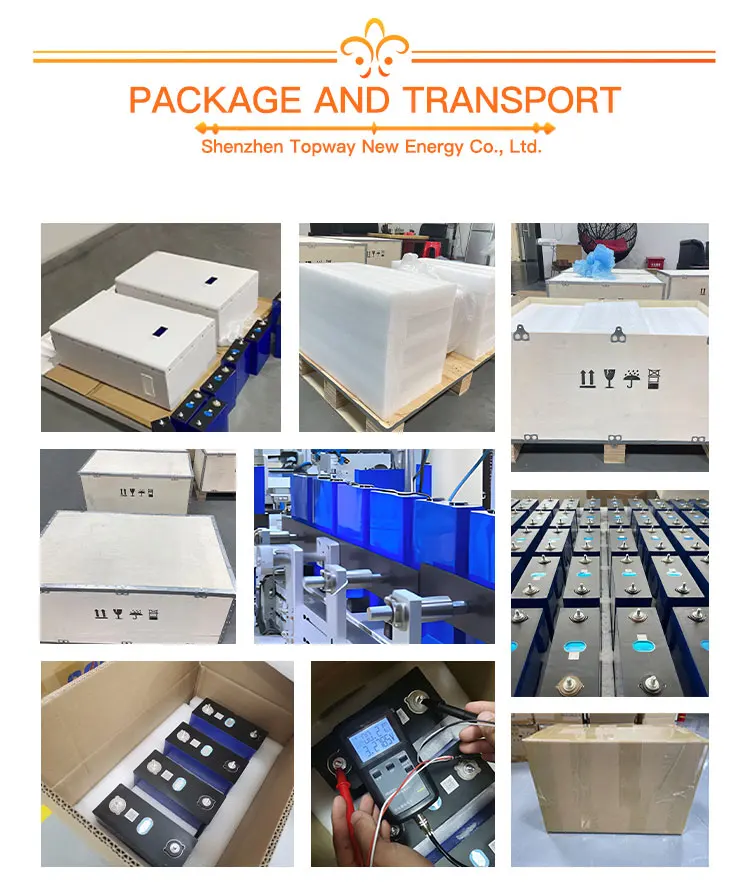

Packing & Shipping
ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+FEDEX Delivery(DDP,Tax free) | |
ETA:35-40 days after delivery | |||
ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea/train+UPS Delivery(DDP,Tax free) | |
ETA:40-55 days after delivery | |||
ETD:7-10 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+Delivery(DDP, Tax free or DAP) | |
ETA:40-55 days after delivery |
