Product Overview

Description

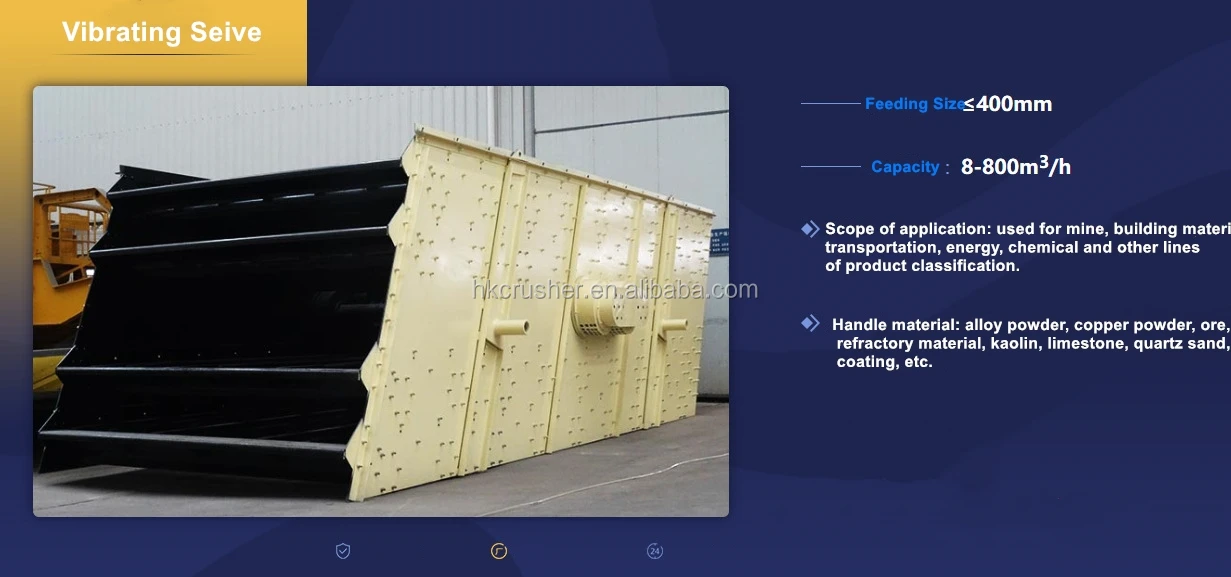

Factory price energy & mineral equipment Circular Vibrating Screen Machine for sand stone



Principal Feature:



The YK circular vibrating screen is adopted imported advanced technology from abroad to manufacture screen machine which cn be applied to screen various dry materials in coal, metallurgy, traffic, ore dressing, construction, power, chemicals industry ect.

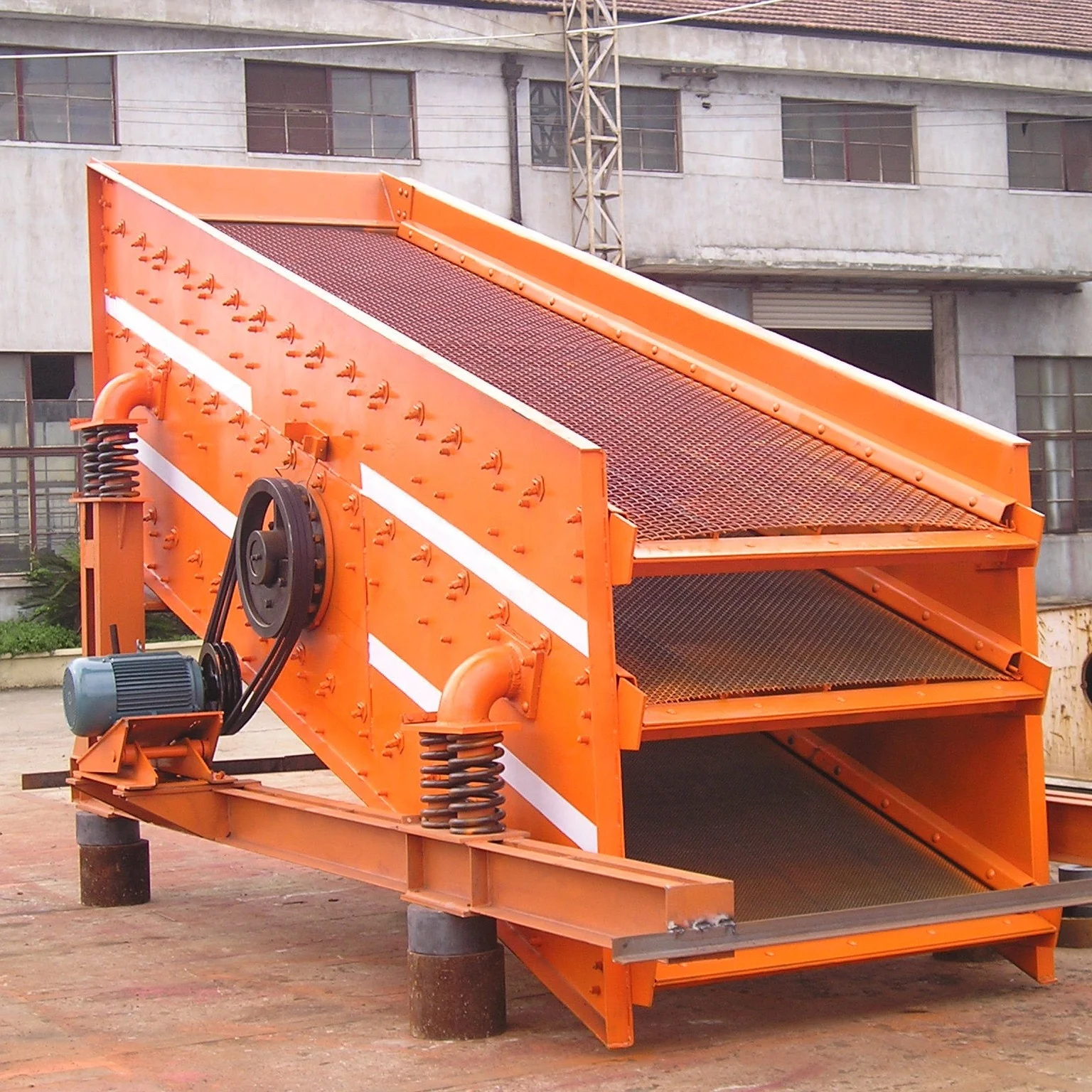

This vibrating screen , belong to customed circle center style of vibrating screen, uses eccentric sgafts type vibrator, bearing of ample clearance and oil lubrication to make noise lowest and service life longest. It's  components have characteristic of strong universal and convenient maintenance. Rotary motion of the vibrator is dragged by V-shape belt connected with belt wheel driven by the motor. The frame of screen box adopts looping rivet connections to make structure advanced, firm, durable.

2. Vibrating Screen Working Principle:

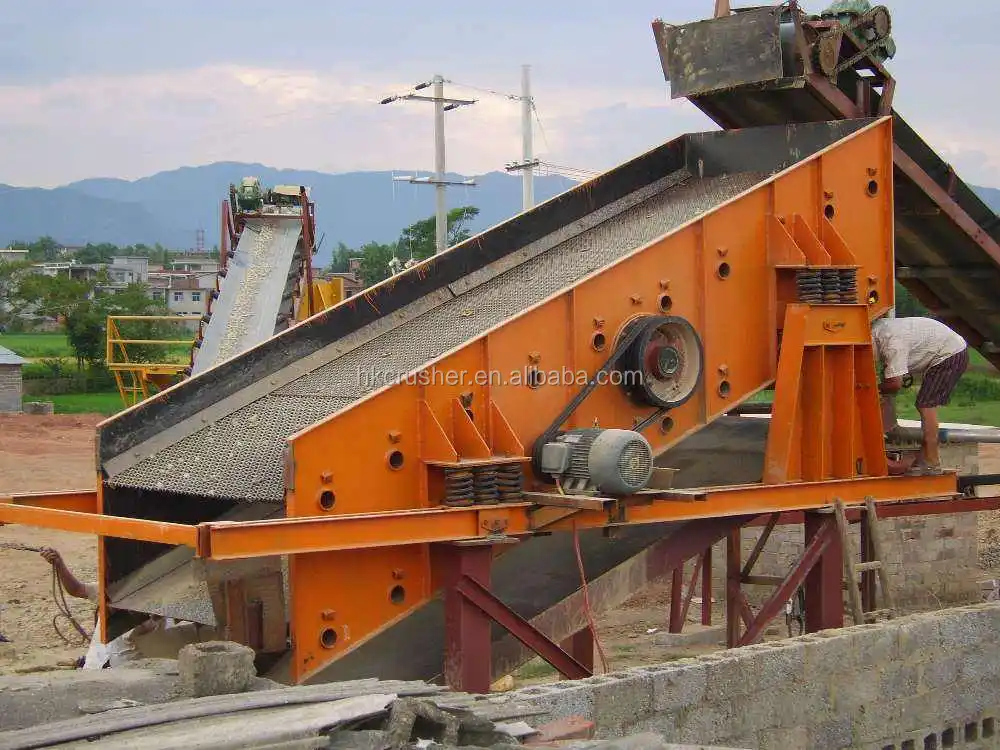

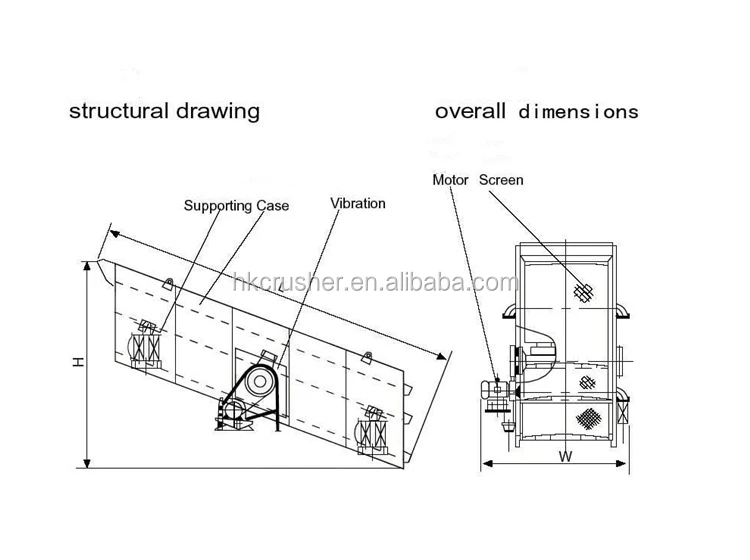

The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part, etc. The motor

 makes the exciter rotate speedily through the v-belt. The continuous forced circular motions of sieve box were

achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward

successively on the mesh. They were classified as thrown up, and the particles smaller than the mesh size were

sieved out during the falling process, so that the classification of material could be achieved.



3. Vibrating Screen Features:

1. Exciter of external eccentric block structure has the advantages of big exciting force, light weight, small load

 bearing, etc.
2. Novel structure, advanced technical parameters, high capacity, high screening efficiency, simple structure,

convenient sieve surface systems.
3.Adopting cross shaft transmission shaft or rubber universal section and flexible connection, so the operation is

very smooth.
4. Circle vibrating screen adapts the spring steel screen or punching screen panel, screen box shaking strong,

plugging holes is not ealisly blocked.





Technical Data:

Model	Layer	Dimension Size(mm)	Max.Feed Size(mm)	Capacity(t/h)	Vibrating Frequ Ency(r/min)	Power (kw)	Double Swing (mm)
2YK1235	3	1200*3500	400	60-180	870	5.5	5-9
2YK1545	2	1500*4500	400	120-275	870	15	5-9
3YK1545	3	1500*4500	400	120-275	870	15	5-9
3YK1548	4	1500*4800	400	120-275	870	15	5-9
4YK1548	2	1500*4800	400	200-275	870	15	5-9
3YK1848	3	1800*4800	400	200-330	870	18.5	5-9
4YK1848	4	1800*4800	400	250-330	870	18.5	5-9
3YK1860	2	1800*6000	400	250-586	870	22	5-9
4YK1860	3	1800*6000	400	300-586	870	22-30	5-9
3YK2060	4	2000*6000	400	300-720	730	37	5-9
4YK2060	2	2000*6000	400	400-720	730	30-37	5-9
3YK2460	3	2400*6000	400	400-810	770	37	5-9
4YK2460	1	2400*6000	400	450-810	770	37	5-9
