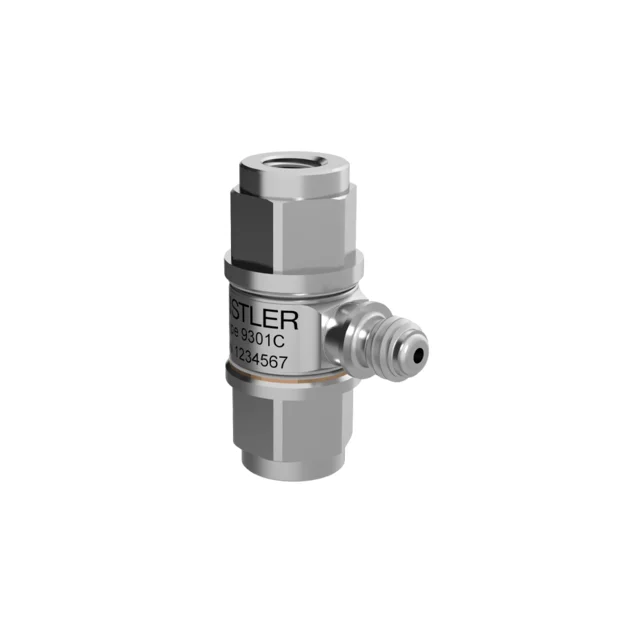

Kislter 9301C high quality sensor Piezoelectric load cells also known as force transducers or force links
- Category: >>>
- Supplier: Shanghai Thinkfon Trading Co. Ltd.
Share on (1600822193262):
Product Overview
Description
As a global leader in dynamic measurement technology for measuring pressure, force, torque and acceleration, we support our
customers in industry and science to improve their products and make their manufacturing processes more efficient. The
piezoelectric sensor is at the heart of every measurement system from Kistler and, based on piezoelectric technology, the most
important element of our measurement technology.
To offer you sensors, measurement systems and services that are exactly tailored to your needs, we fully focus upon the complex
current and future challenges in the areas of automobile development, industrial automation and in fields related to extreme
environments. We are a dedicated industry insider and by offering our measurement technology, make important contributions towards the further development of current megatrends, including electrified drive technology, autonomous driving, emission reduction and Industry 4.0. Built upon more than 60 years of deep application knowledge, our comprehensive product portfolio covers all applications and services in piezoelectric measurement technology.
customers in industry and science to improve their products and make their manufacturing processes more efficient. The
piezoelectric sensor is at the heart of every measurement system from Kistler and, based on piezoelectric technology, the most
important element of our measurement technology.
To offer you sensors, measurement systems and services that are exactly tailored to your needs, we fully focus upon the complex
current and future challenges in the areas of automobile development, industrial automation and in fields related to extreme
environments. We are a dedicated industry insider and by offering our measurement technology, make important contributions towards the further development of current megatrends, including electrified drive technology, autonomous driving, emission reduction and Industry 4.0. Built upon more than 60 years of deep application knowledge, our comprehensive product portfolio covers all applications and services in piezoelectric measurement technology.
Description
THINKFON enterprises strive to build an industrial goods mall that gathers more than 10000 European selected high-quality industrial brands and tens of thousands of popular products. THINKFON official website is www.thinkfon.com navigation bar "product center" goes directly to the mall homepage.
Field of application
Piezoelectric force sensors, respectively piezoelectric force transducers or load cells, are perfectly suited for the precise
measurement of compressive and tensile forces, both in highly dynamic applications and in quasi-static processes. In universities
and industry, for basic research or quality assurance: exact data is always essential in order to measure force characteristics
and make processes more cost-effective. Thanks to their rugged design, piezoelectric force sensors from Kistler keep precise track
of quasi-static and highly dynamic force processes, even when conditions are difficult. Our force sensors can also handle
simultaneous measurements of multiple orthogonal force components.
measurement of compressive and tensile forces, both in highly dynamic applications and in quasi-static processes. In universities
and industry, for basic research or quality assurance: exact data is always essential in order to measure force characteristics
and make processes more cost-effective. Thanks to their rugged design, piezoelectric force sensors from Kistler keep precise track
of quasi-static and highly dynamic force processes, even when conditions are difficult. Our force sensors can also handle
simultaneous measurements of multiple orthogonal force components.
Preloaded sensor Yes |
Maximum measuring range 3 kN |
Calibrated range 1 0 … 3 kN |
Calibrated range 3 0 … -3 kN |
Nominal force ±3 kN |
Temperature sensitivity, sensitivity change (-40°C … 120°C, Tref = 25°C) ±2.5 % |
Axial stiffness 245 kN/μm |
Shear stiffness 0.022 kN/μm |
Sensor capacitance 13.5±1 pF |
Insulation resistance ≥10^13 Ω |
Operating temperature range -40 … 120 °C |
Output signal type Charge (Piezoelectric, PE) |
Applications In- and end-of-line testing for production processes |
Q1. Are you a trading company or a manufacturer?
We are a trading company.
Q2. What is your minimum order quantity?
A: One set.
Q3. How long is your preparation time?
A: our product preparation time is about 7-15 days. If we have stock, we can deliver the goods immediately.
Q4.: Is there a warranty for the goods?
A: it is usually guaranteed for one year after delivery, except for manual damage.
Q5. How to process orders?
A: first of all, please let us know your request or application. In addition, we offer according to your requirements or our suggestions.
A: first of all, please let us know your request or application. In addition, we offer according to your requirements or our suggestions.
