double shaft coal mixer
US $7999-$8699
Diesel electric concrete mixing with pump sell concrete mixers pump
- Category: >>>
- Supplier: Taian Minle Machine Manufacture Co. Ltd.
Share on (1600822620632):
Product Overview
Description
Project | Unit | Reference value | ||||
Theoretical throughput | m3/h | 30 | ||||
Maximum conveying pressure | Mpa | 10 | ||||
Distribution valve form | S-tube swing valve | |||||
Maximum horizontal transmission distance | m | 300 | ||||
Maximum vertical transmission distance | m | 150 | ||||
Maximum aggregate size pumped | mm | 30 | ||||
Slump | mm | 100~200 | ||||
Inner diameter of conveying pipe | mm | 125 | ||||
Nner diameter of concrete cylinder * stroke | mm | 180*1000 | ||||
Pumping hydraulic system pressure | MPa | 30 | ||||
Hopper mixing hydraulic system pressure | MPa | 14 | ||||
Hydraulic tank volume | L | 280 | ||||
Machine weight | Kg | 5000 | ||||
Overall dimension length * width * height | mm | 5800*2150*2600 | ||||

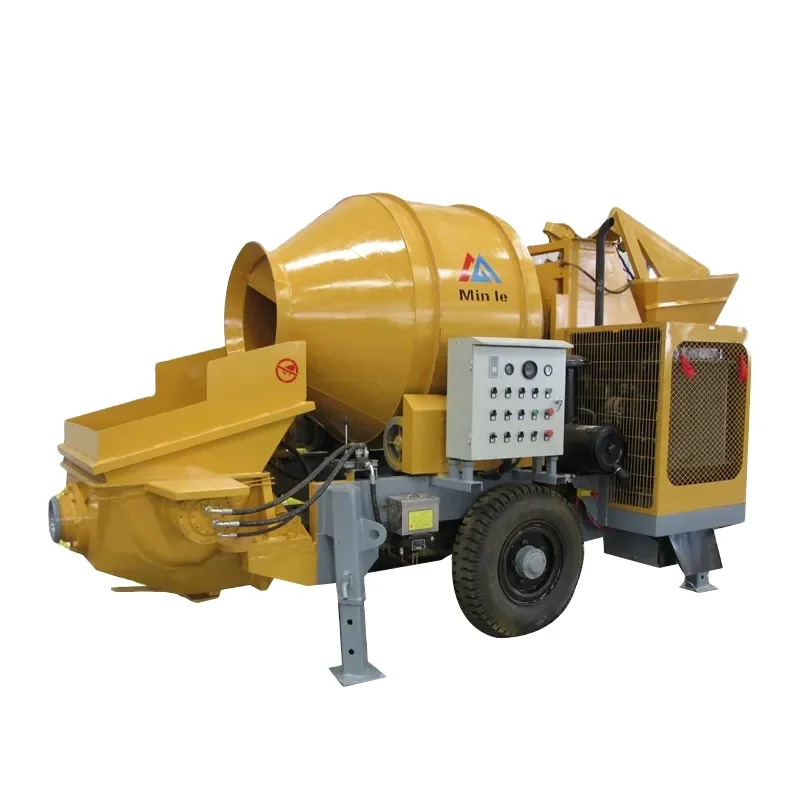

Trailer Mounted Electric/Diesel Motor Mobile Concrete Pump Construction Machinery Concrete mixing and conveying integrated pump
Concrete pump is commonly used in large building, bridge and tunnel construction. Mixing pump has a wide range of applications, mixing pump can be used for engineering construction concrete transport, transport of green soil, foundation pile grouting, silt transport.
The advantages of mixer pump:
1.The degree of automation is very high, set feeding, mixing, high pressure pumping as one, can save a lot of labor costs
2. Adopt advanced S valve reversing, can meet the concrete conveying
3. The glass plate and cutting ring are made of hard alloy material, which has a longer life
4. The outlet pressure is high, which can meet the needs of high-rise buildings and long-distance transportation
5. Hydraulic cooling using water cooling effect is good, easy to use
6. With reverse pump function, minimize pipeline blockage
7. Equipped with manual lubrication system to ensure the service life of transmission, electric control cabinet with wired remote control operation
8. The use efficiency can reach 4-6 times of the traditional fixed mixer and concrete pump
4. The outlet pressure is high, which can meet the needs of high-rise buildings and long-distance transportation
5. Hydraulic cooling using water cooling effect is good, easy to use
6. With reverse pump function, minimize pipeline blockage
7. Equipped with manual lubrication system to ensure the service life of transmission, electric control cabinet with wired remote control operation
8. The use efficiency can reach 4-6 times of the traditional fixed mixer and concrete pump
*Engine can be customized electric motor or diesel motor
1.What's the warranty time?
From the date of shipment, 1 year or 1500 working hours, whichever comes first.
2.What's your payment term?We accept T/T(30% down payment and balance before shipping) and L/C mostly, But if you prefer other payment terms please contact us for furtherinformation.
3. How long is your delivery time?Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4.Can we paint our label on your product?Of course! OEM and ODM are acceptable, please send us your logo or brand we'll paint for you..
From the date of shipment, 1 year or 1500 working hours, whichever comes first.
2.What's your payment term?We accept T/T(30% down payment and balance before shipping) and L/C mostly, But if you prefer other payment terms please contact us for furtherinformation.
3. How long is your delivery time?Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4.Can we paint our label on your product?Of course! OEM and ODM are acceptable, please send us your logo or brand we'll paint for you..
