load bank for sale AC220 /440 800kw dual voltage load bank test for generator testing
- Category: >>>
- Supplier: Hebei Kaixiang Electrical Technology Co. Ltd.
Share on (1600822664801):
Product Overview
Description

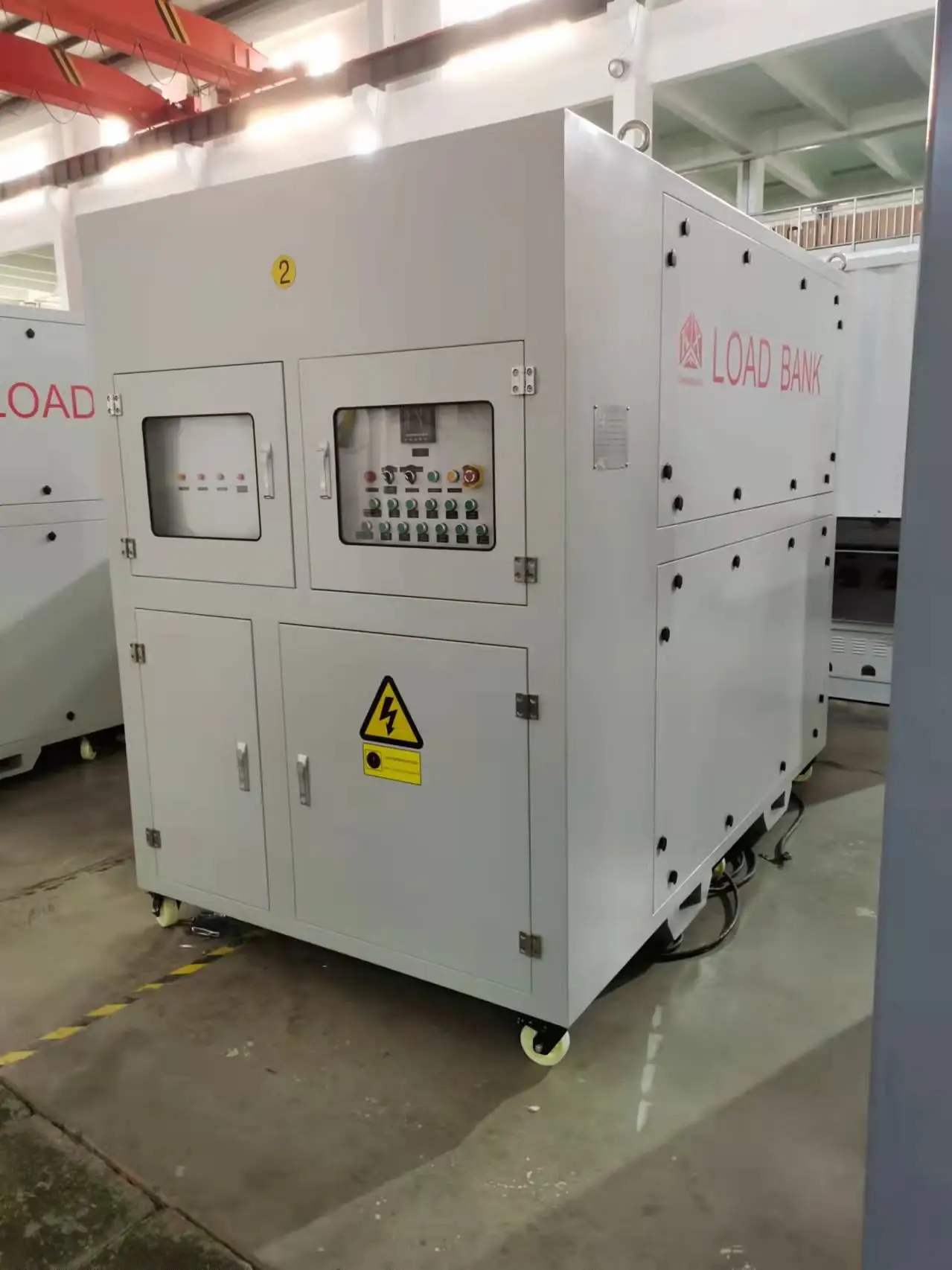

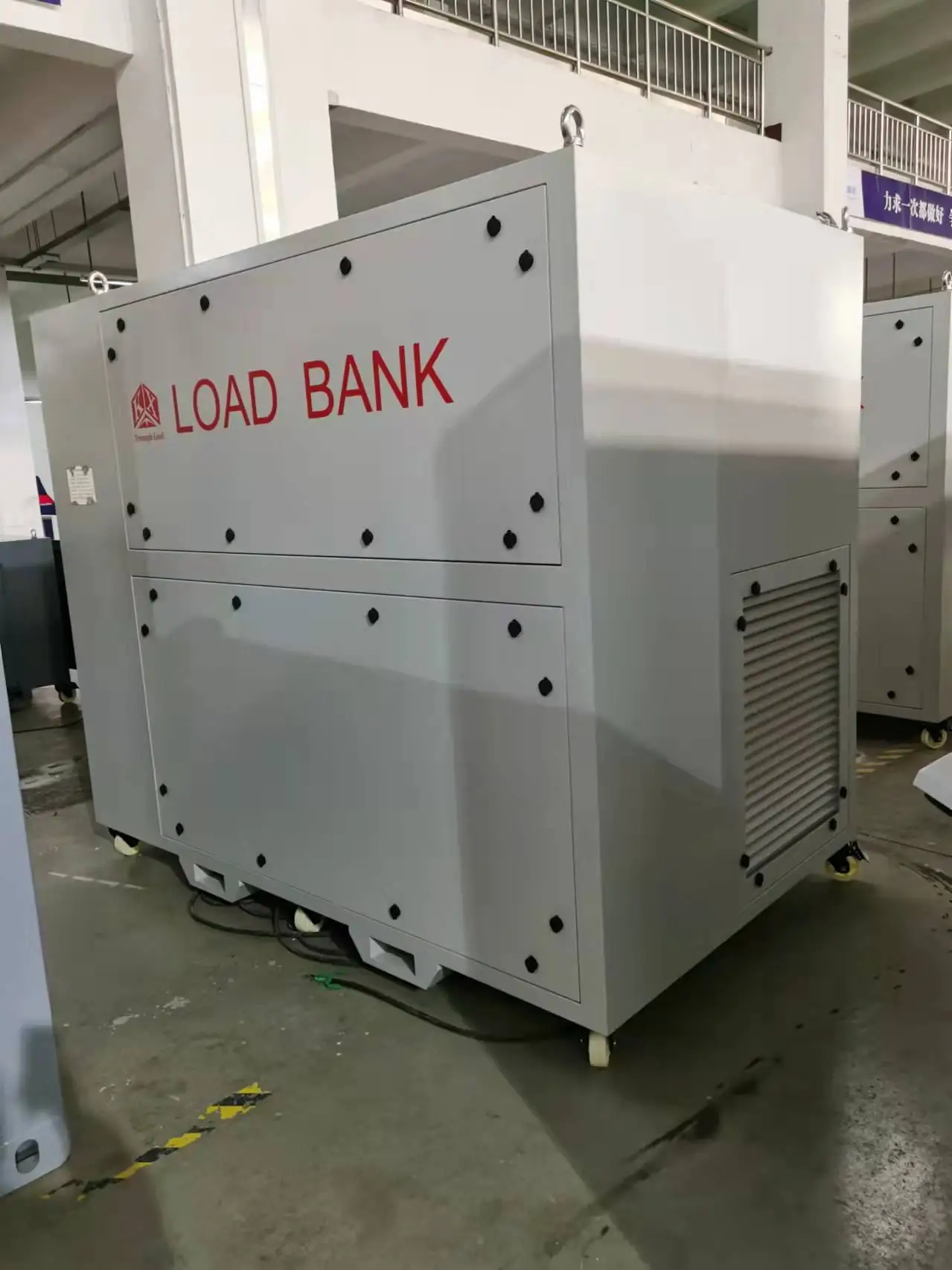

load bank for sale AC220 /440-800kw dual voltage load bank test for generator testing
Introduction
1.load bank for sale AC220 /440-800kw combines the dry type load module and measurement and control module, precisely test output power and load performance of kinds of generator set, and realize setting, fluctuation, instant load, instant unload, record wave analysis, and harmonic wave analysis, so to finish all the static parameters and dynamic parameters testing.
2.800kw dual voltage load bank can load power in rated range, measure generator steady-state 3 phase voltage, current, active power, reactive power, apparent power, power factor, frequency, and running time, and simulate the generator set real load working state.

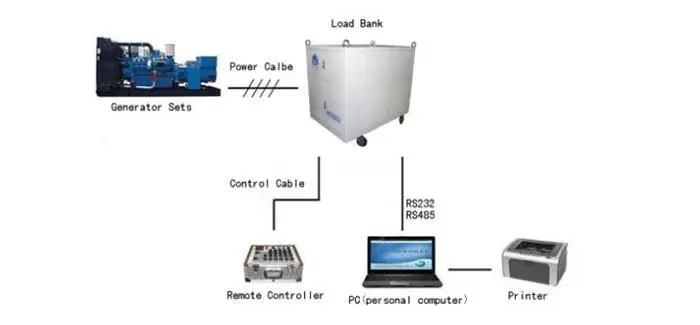

3. load bank for sale AC220 /440-800kw can work with PC software to realize intelligent operation, automatically finish the parameters testing, and create testing data table, curves and reports that can be printed, reduce a lot of manual operation.
Specification
AC220/440-800kW | |
220V AC 3 phase 3wire 60HZ 440V AC 3 phase 3wire 60HZ | |
Rated Load Power | 220V AC Resistive load:800kW, 440V AC Resistive load:800kW |
Installed Capacity | Resistive load: 800kW |
Load Step | Resistive load: 12 steps 1,2,2,5,10,10,20,50,100,200,200,200kW Select the input voltage by switching the knob. When the input voltage is lower than the rated voltage, the power of the load will change according to Ohm's law. |
PF(Power Factor) | 1 |
±5% | |
±3% | |
0.5 class | |
Fan & Control Power | External AC220V 3phase4wire /60Hz, |
Load power supply input——Copper bar Control power supply input——Connector-bar | |
F | |
Duty Cycle | |
Cooling Type | Force air cooling, horizontal air inlet and vertical air outlet |
Hoisting, there are lifting lug on top and a forklift hole with casters at the bottom | |
Grey(RAL7035)or as required | |
Operating Environment Parameter | |
Workplace | Indoor or outdoor |
-20℃~+50℃ | |
≤95% | |
≤2500 meter | |
86~106kPa | |
Brands of Main Components | |
Contactor | Schneider |
Fuse | Miro |
PLC | Siemens |
Data processing software | Kaixiang(self-developed) |
Alloy Resistance | |
