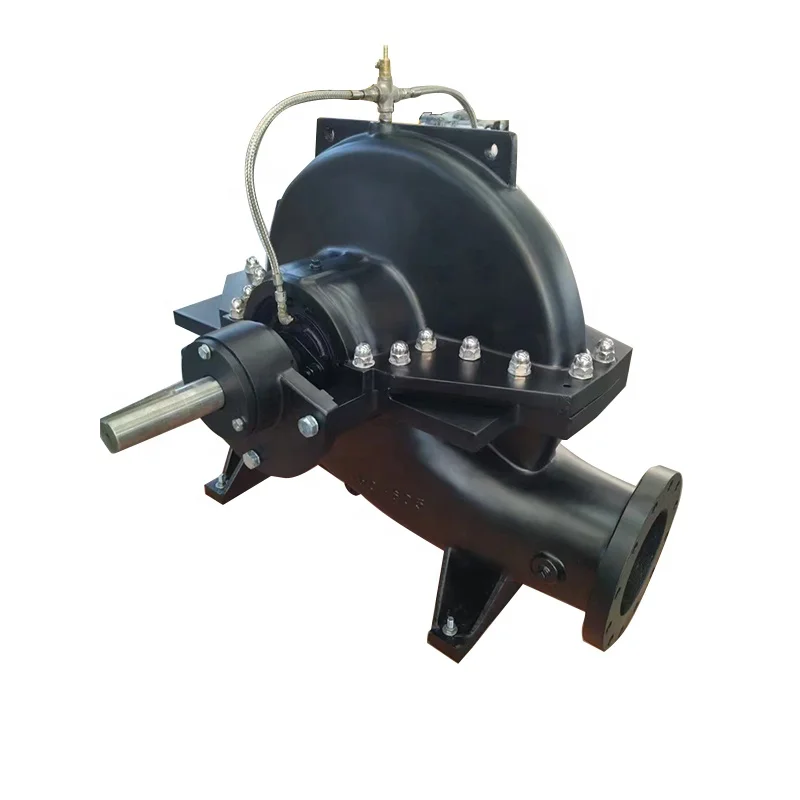

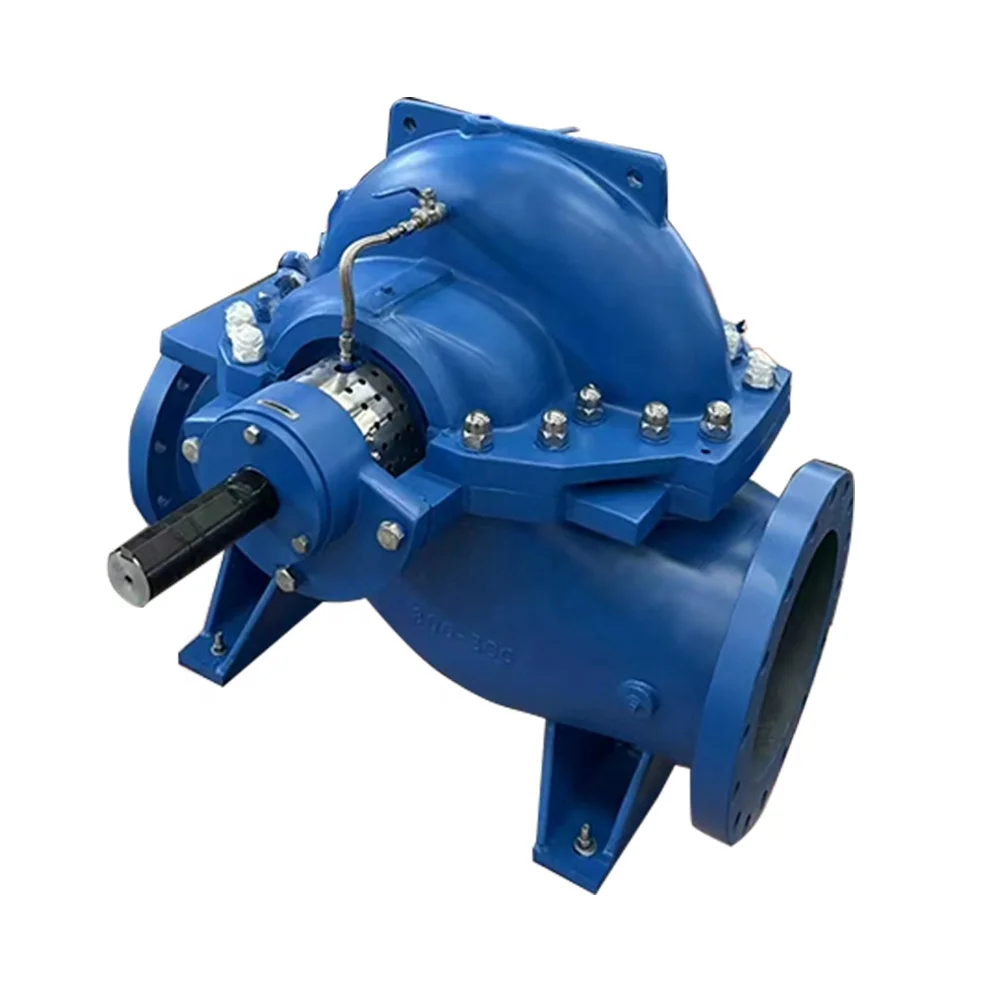

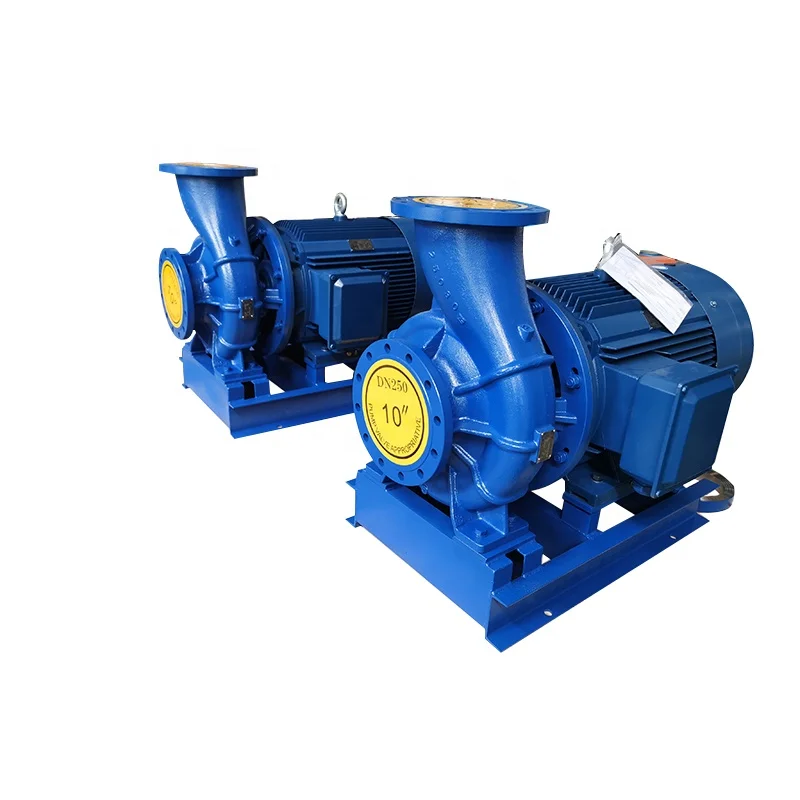

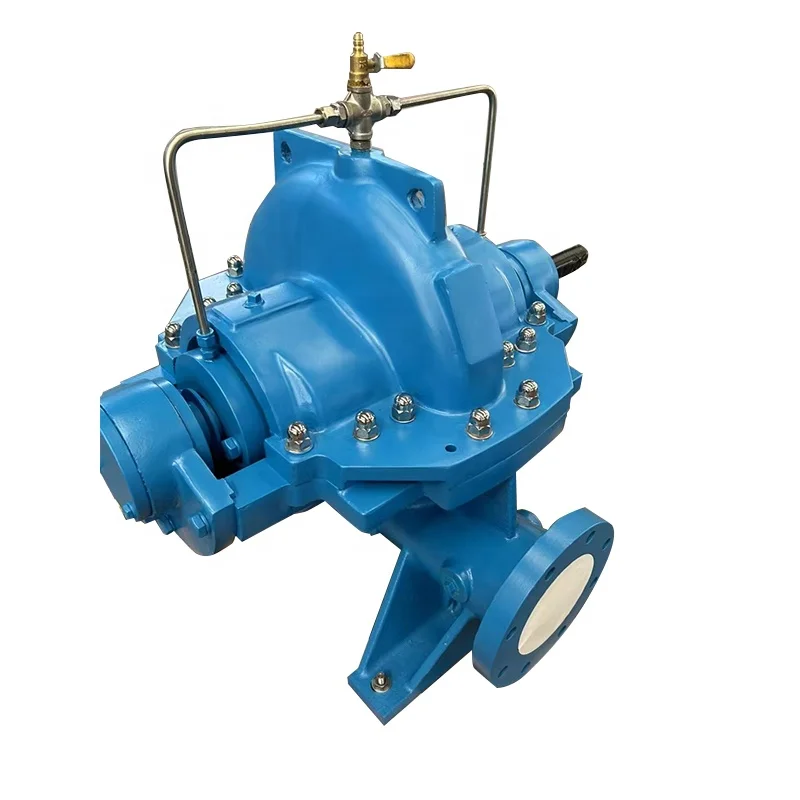

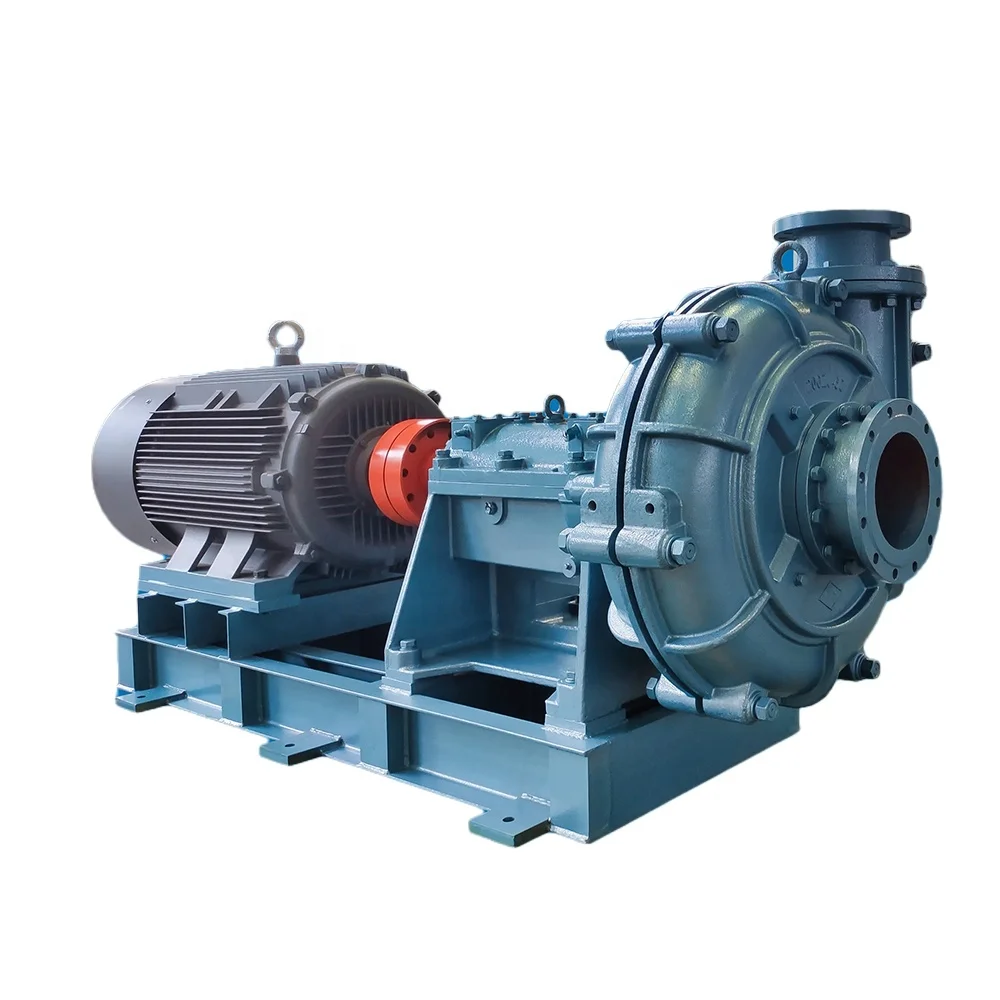

Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump
Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump
Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump
Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump
Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump
Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump
Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump

Centrifugal Sewage Impurity Sand Extraction Horizontal Slurry Pump

Share on (1600822674474):


Price:$727.00 - $865.00

Quantity:


Product Overview

Description



Product Description


OVERVIEW
The new wear-resistant corundum-lined slurry pump is an innovative product independently designed and developed by our company in order to meet the requirements of users and adapt to the working conditions of conveying strong corrosion and high wear media. The flow parts are all made of wear-resistant corundum material, which has the characteristics of wear resistance and corrosion resistance, high efficiency and energy saving, stable operation and convenient maintenance.

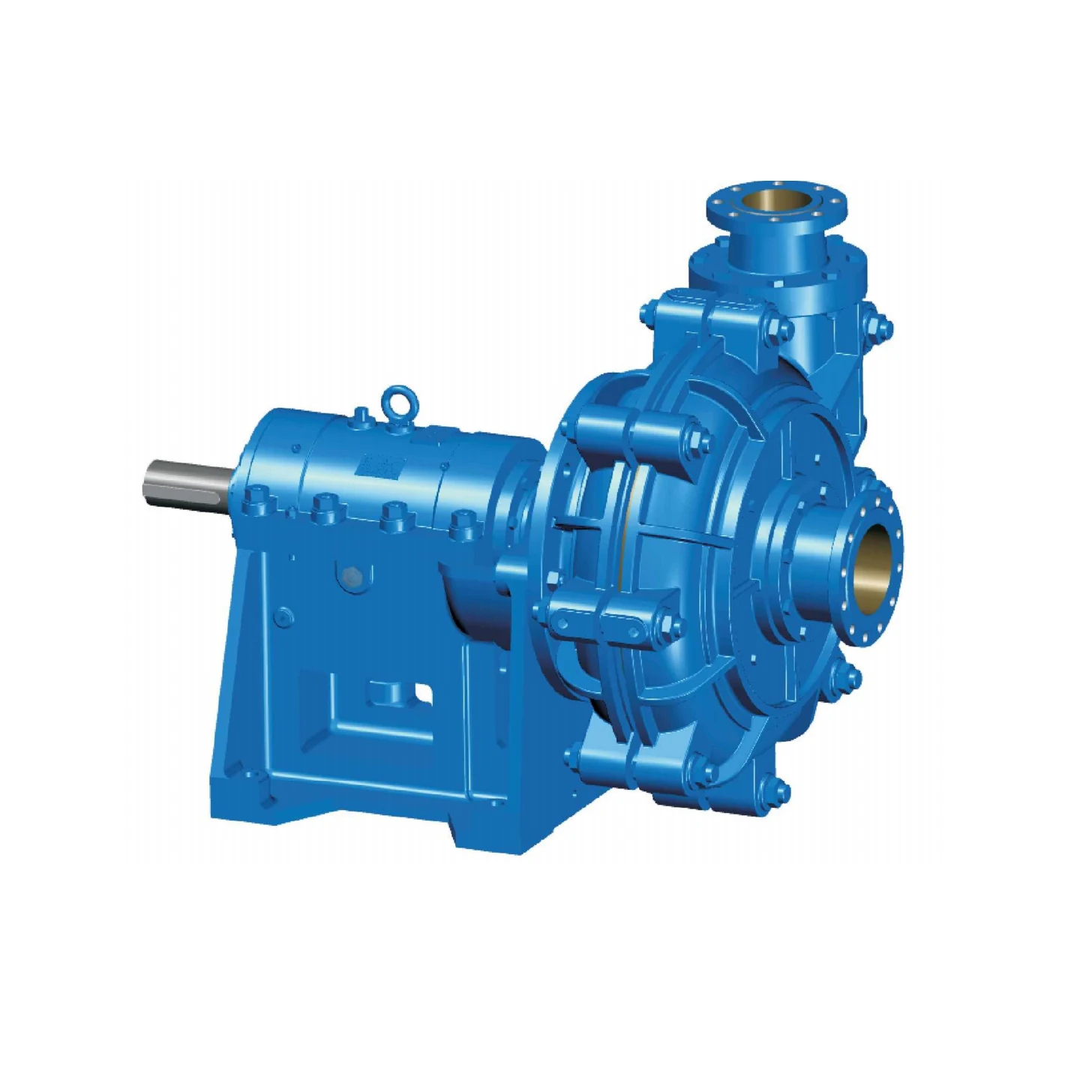

ZMJ HEAVY-DUTY SLURRY PUMP
ZMJ slurry pump is Wuxi Longterm Machinery Technologies Co., Ltd. developed energy-efficient, single-stage, single-suction centrifugal slurry pumps. Form of the structureis divided into horizontal (ZXJ series) and vertical (ZFJ series). Divided by horizontal pump outlet diameter 350mm, 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm, and other specifications. Vertical pump outlet diameter divided by 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm,and other specifications.

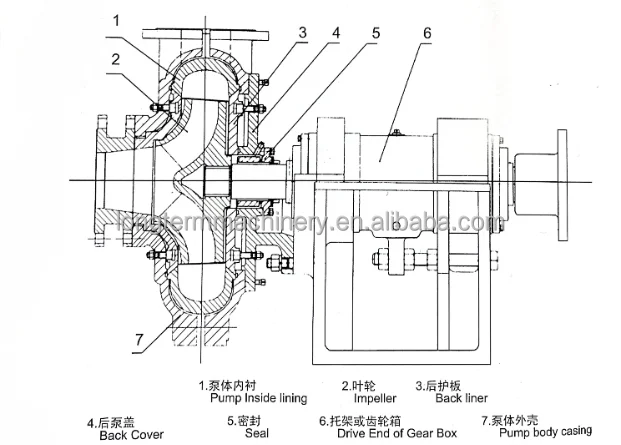

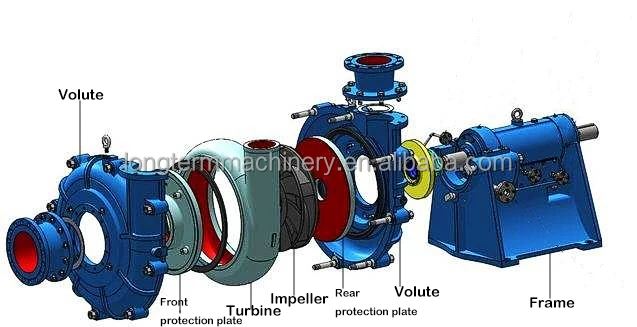

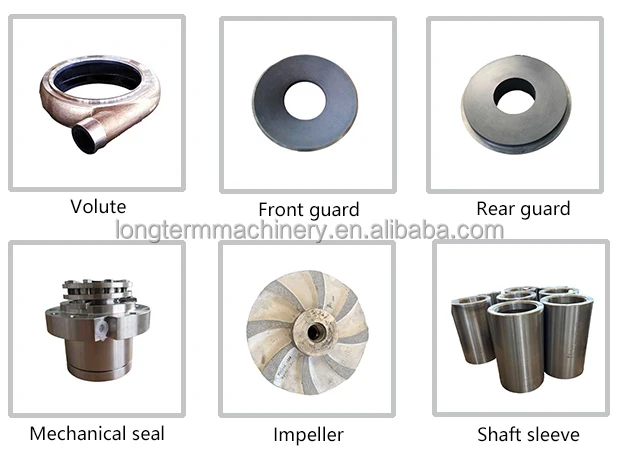

ZMJ SLURRY PUMP STRUCTURE




TYPE
MAX MOTOR(kw)
CLEAR WATER PERFORMANCE
PARTICLE MAX SIXE HANDLED OCCASIONALLY(mm)
WEIGHT
(kg)
CAPACITY(m³/h)
H(m)
SPEED(r/min)
MAX.EFF(%)
HPSHr(m)
250ZMJ-65
185
200-1211
11-33.1
730
68
/
30
4240
150ZMJ-60
185
180-630
7.2-54.7
730-980
73
/
26
3330
150ZMJ-50
55
121-350
12.3-24
590-730
75
/
20
1200
150ZMJ-35
37
99-364
3.0-17.9
490-980
69
/
15
800
100ZMJ-34
45
74-293
5.5-36.8
700-1480
65.1
/
10
630
80ZMJ-36
45
50-201
73.5-45.5
700-1480
58.2
/
10
65
65ZMJ-30
18.5
18-98
5.9-34.7
700-1470
53.7
/
8
440
50ZMJ-20
4
8-38
1.4-10.7
700-1440
38.6
/
10
24
40ZMJ-B25
4
4.9-22.9
4.0-21.5
700-1440
37.6
/
8
225

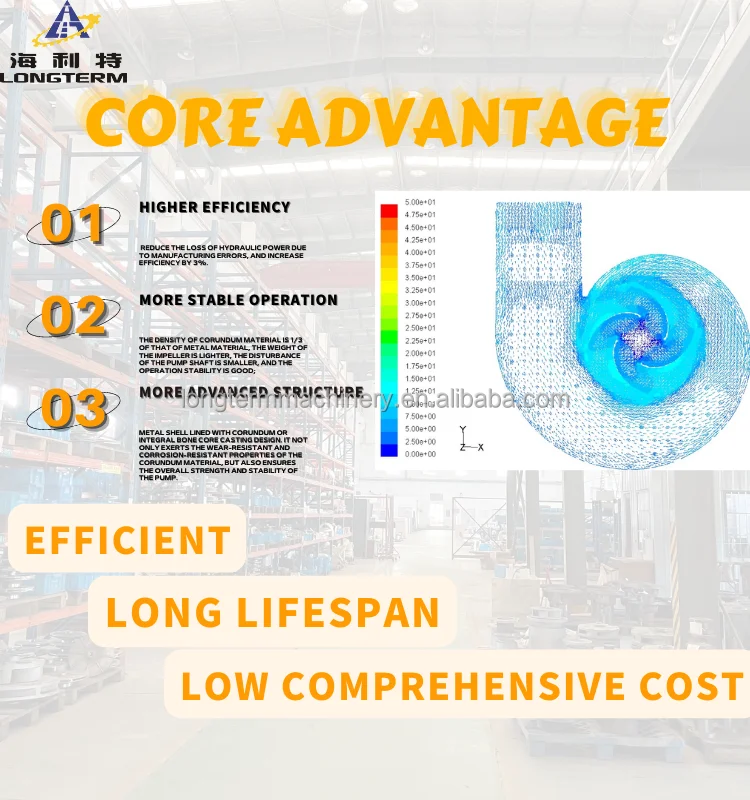

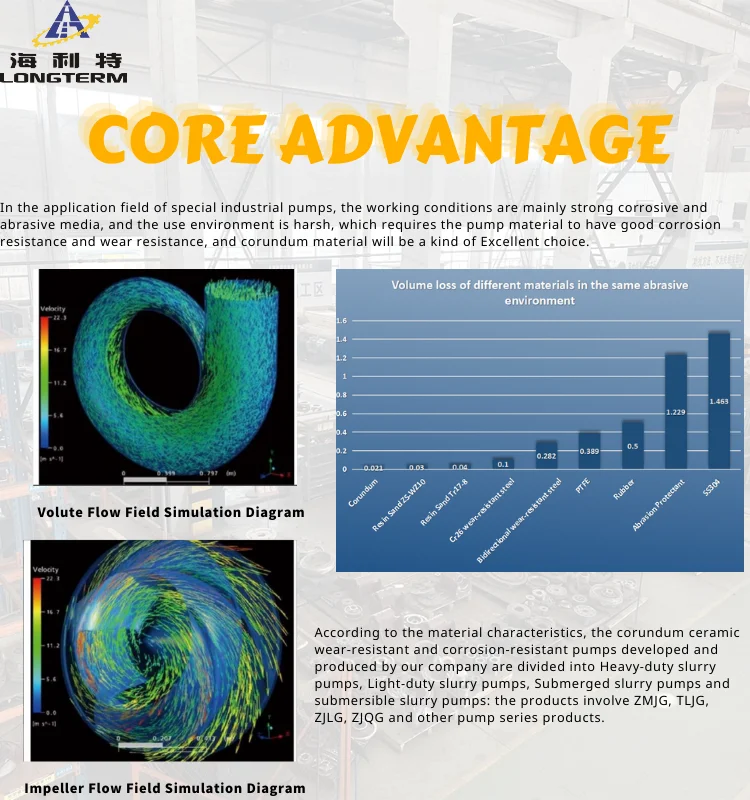

Our advantage

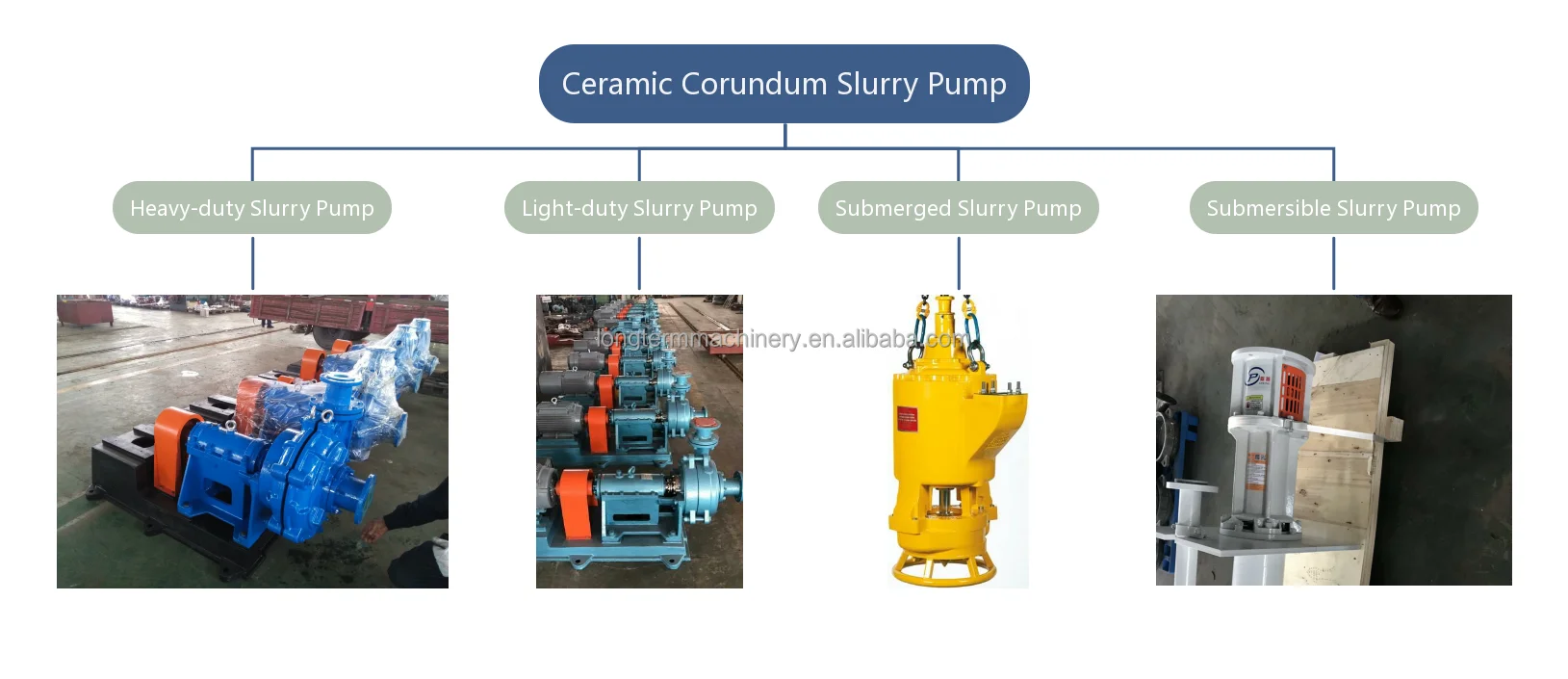

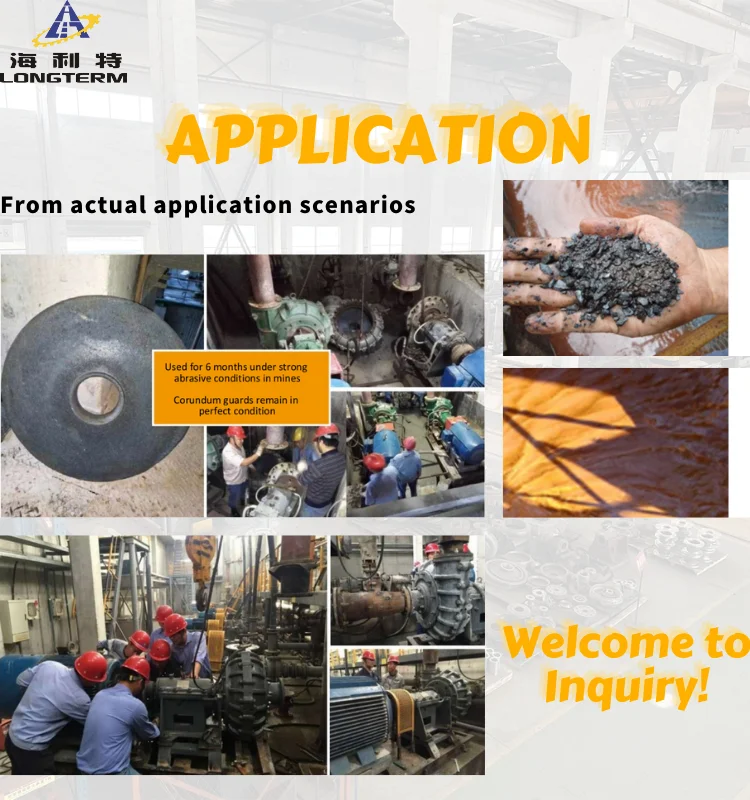

Application






Packing & Delivery

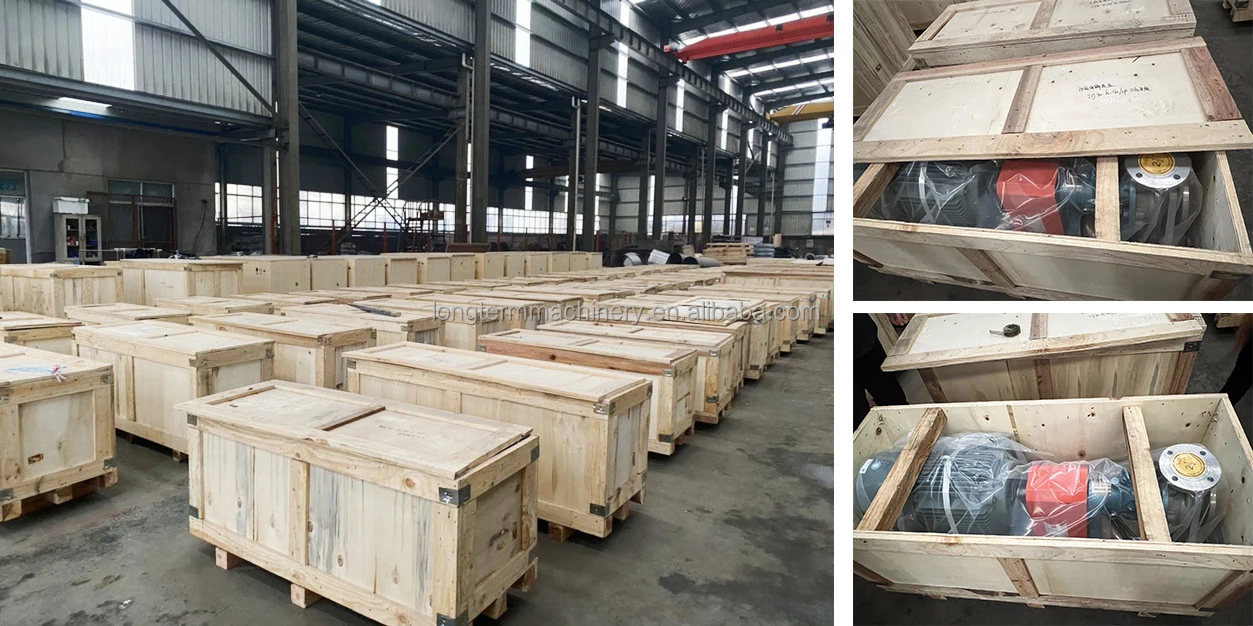

STANDARD SEAWORTHY PACKAGE


Company Profile




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2014,sell to North America(30.00%),South Asia(10.00%),South America(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Africa(9.00%),Oceania(8.00%),Western Europe(2.00%),Domestic Market(1.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
ICJ standard chemical pump, IZA chemical process pump, ICZ chemical process pump, ICPD multi-stage centrifugal Heart pump, 2BE1 vacuum pump, QS large submersible pump, ZMJ slurry pump, TLB desulfurization pump, ZXB self-priming pump, ICY submerged pump, OSJ split pump and ICF fluorine-lined pump.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian

In order to ensure the fastest feedback and correct quotation for you, we need to know the following information:
1. Inlet diameter
2. Outlet diameter
3. Working conditions
4. Head(m)
5. Particle size & content
6. pH
WELCOME TO INQUIRY!
