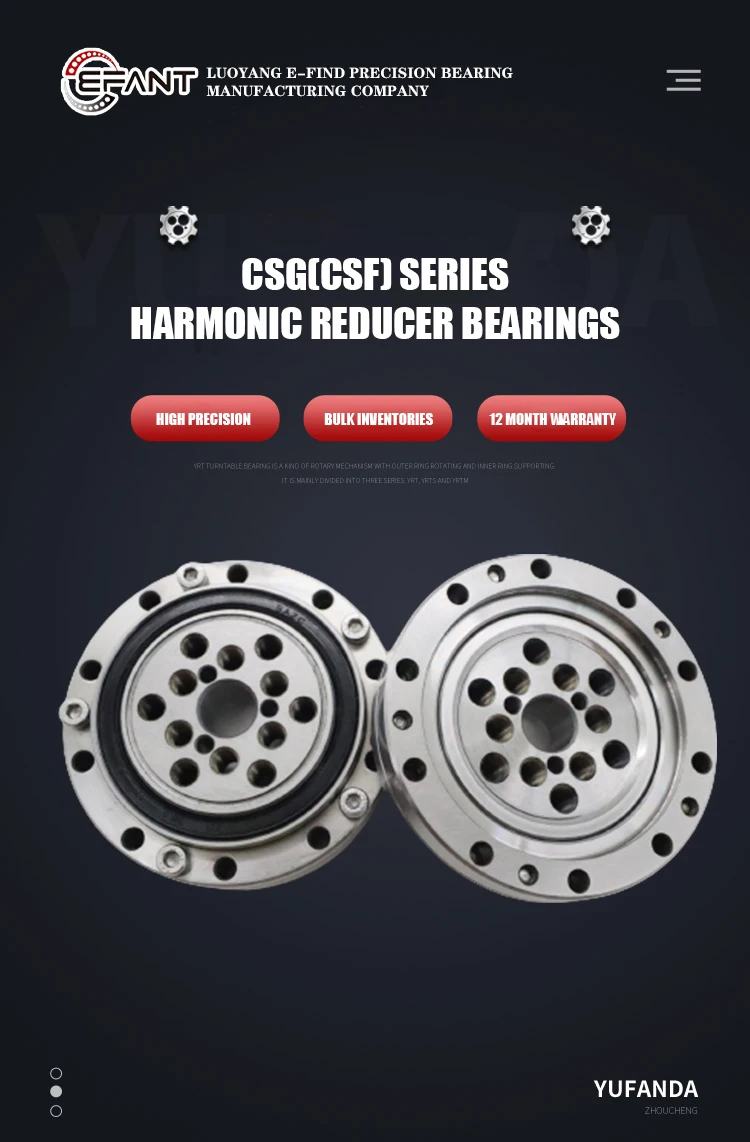

Factory CSF 14 CSF 17 CSF 20 CSF 25 CSF 32 CSF 40 CSF 50 CSF 65 harmonic wave bearings
- Category: >>>
- Supplier: Luoyang E-Find Precision Bearing Manufacturing Co. Ltd.
Share on (1600822716092):
Product Overview
Description
Products Description

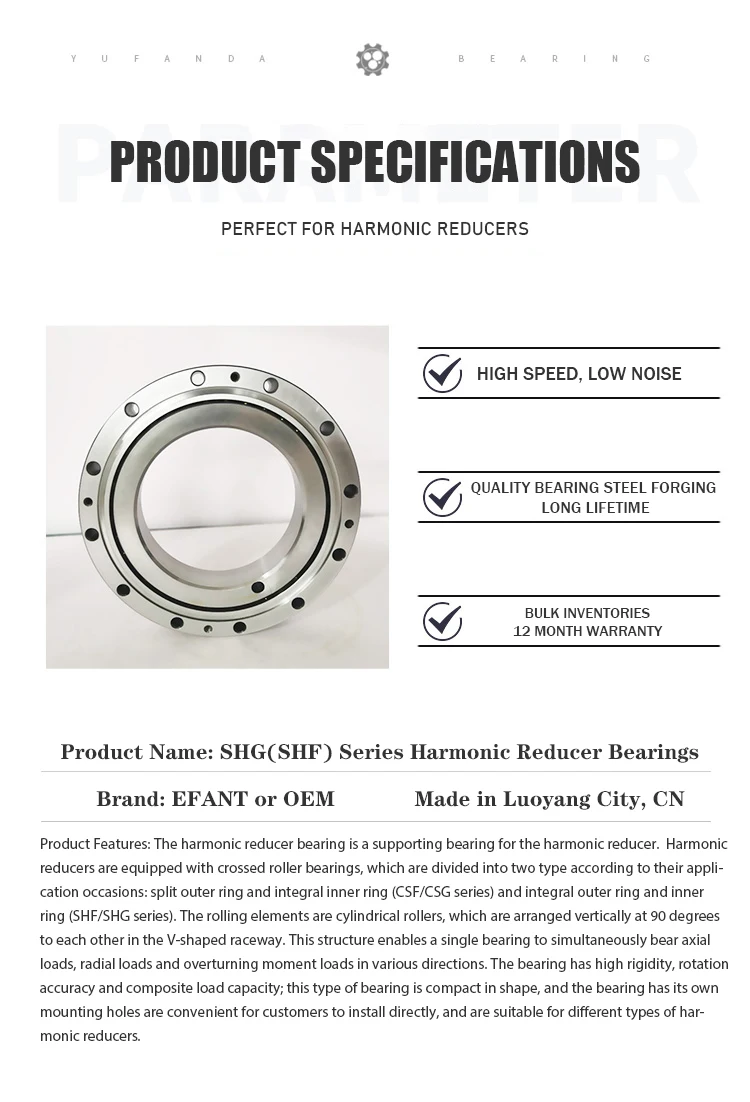

Product Features: The harmonic reducer bearing is a supporting bearing for the harmonic reducer.Harmonic reducers are equipped with crossed roller bearings, which are divided into two type according to their application occasions: split outer ring and integral inner ring(CSF/CSG series) and integral outer ring and inner ring (SHF/SHG series). The rolling elements are cylindrical rollers, which are arranged vertically at 90 degrees to each other in the V-shaped raceway.This structure enables a single bearing to simultaneously bear axial loads, radial loads and overturning moment loads in various directions.The bearing has high rigidity,rotation accuracy and composite load capacity; this type of bearing is compact in shape, and the bearing has its own mounting holes are convenient for customers to install directly, and are suitable for different types of harmonic reducers.
Product Paramenters
Harmonic transmission is a relatively special power transmission method, which has incomparable advantages over general transmission methods, such as large transmission ratio, high precision, large bearing capacity, high efficiency, small size, light weight and many other advantages. It is widely used in space Technology, electronics industry, military industry, robot, packaging machinery, printing machinery, medical equipment and other fields.

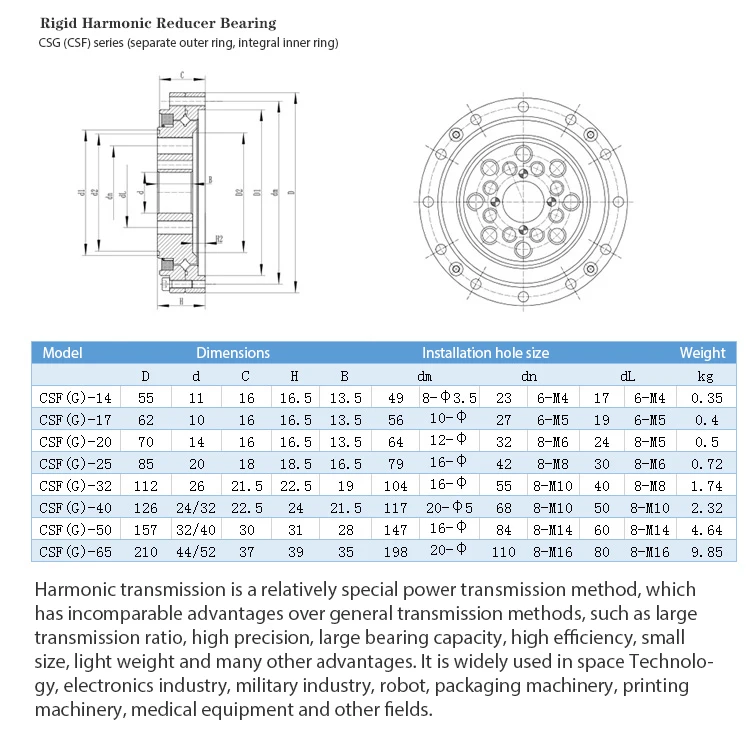

Model | CSG(CSF)-17 | ||
Dimensions(mm) | d (mm) | 10 | |
D (mm) | 62 | ||
H | 16.5 | ||
C | 16 | ||
B | 13.5 | ||
H2 | 4 | ||
D1 | 49 | ||
D2 | 34 | ||
d1 | 36 | ||
d2 | 33.8 | ||
Mass（kg） | 0.24 | ||
About us
Certificates
Our Advantages
Application

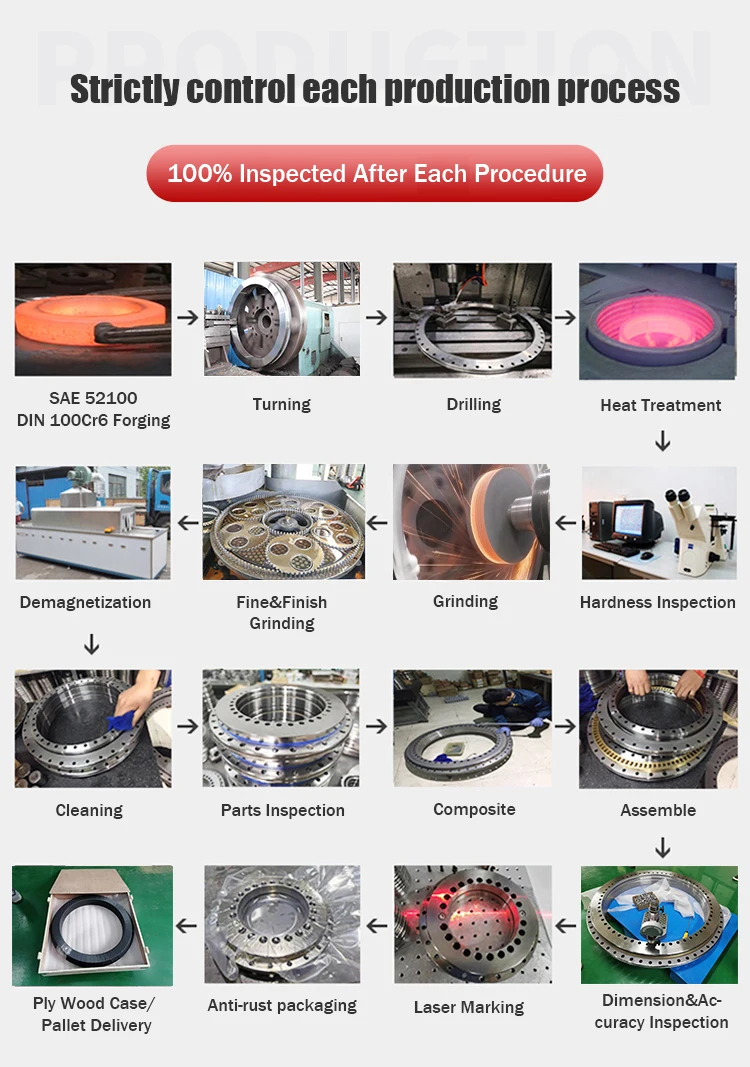

Product Process
