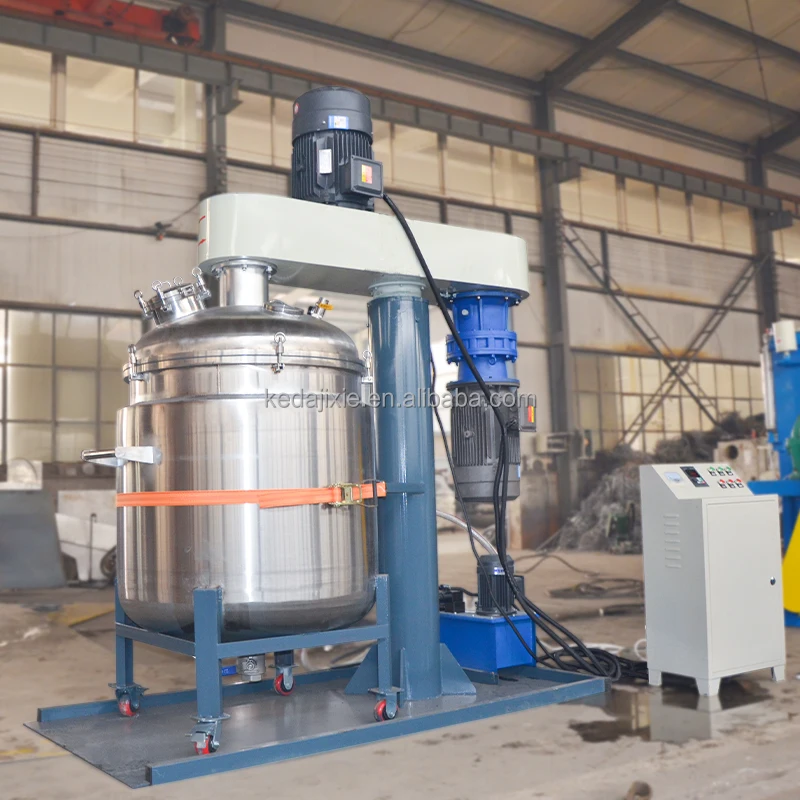

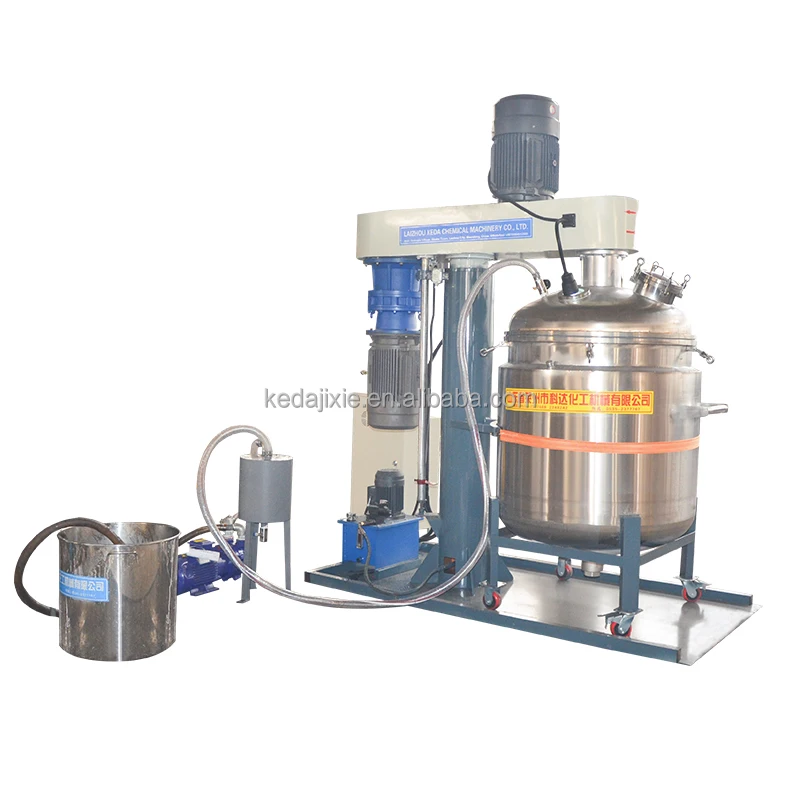

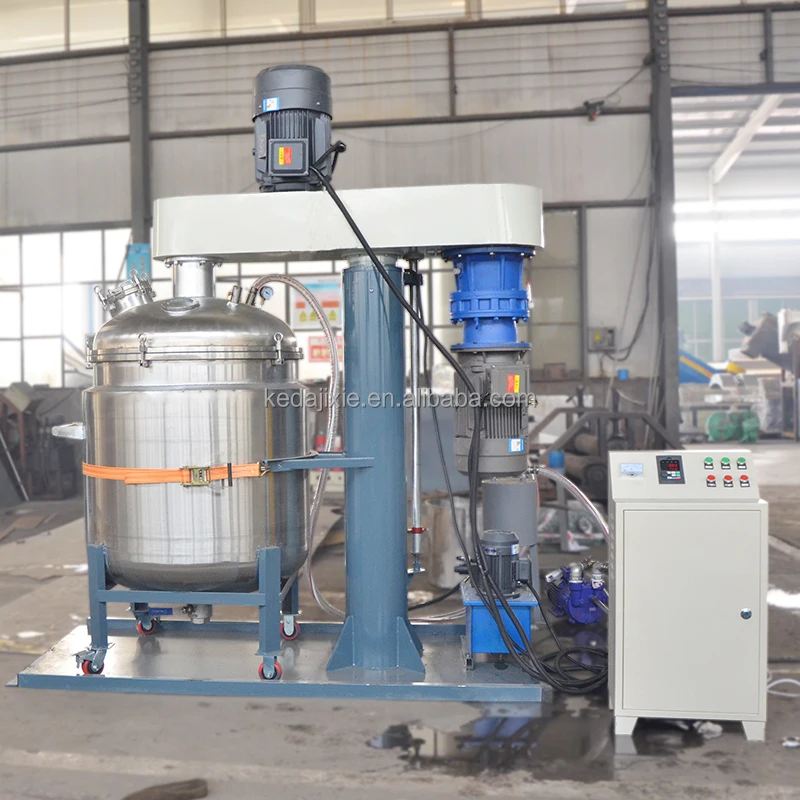

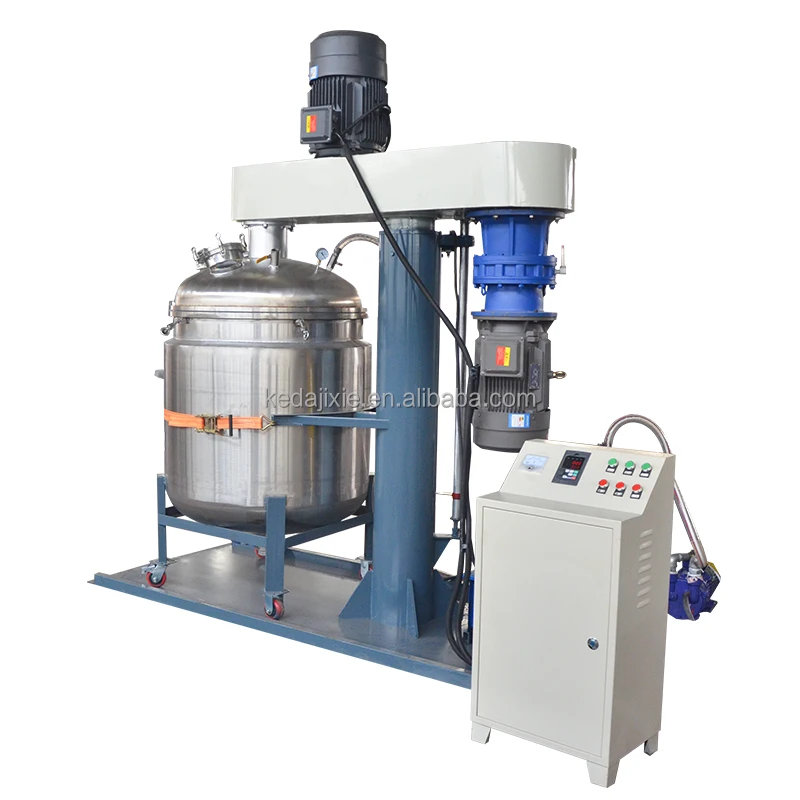

Paint Vacuum High Speed Disperser Mixer With Multi Tanks High viscosity liquid Mixing Machine
- Category: >>>
- Supplier: Laizhou Keda Chemical Machinery Co. Ltd.
Share on (1600822735907):
Product Overview
Description
Product Description
High-speed dispersing machine is suitable for pre-mixing, dispersing, dissolving or color matching of various liquids, etc.

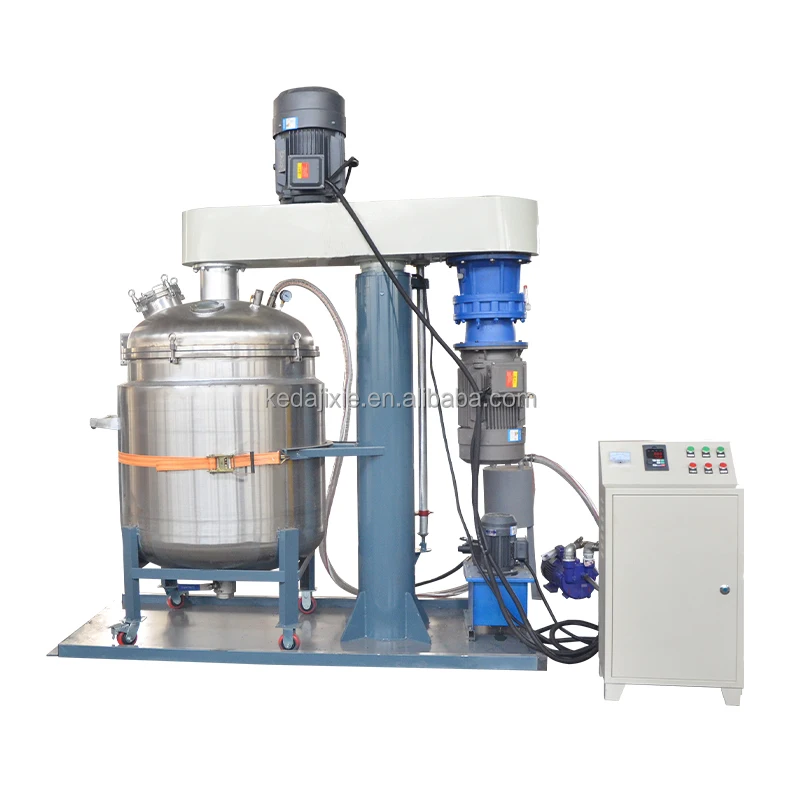

The machine consists of five parts: hydraulic system (hydraulic lifting type), main drive, mixing system, guiding mechanism and electric control box. The parts are compact and reasonable. The type of dispersing disc has flat disc sawtooth shape, three-finger paddle shape, disc shape, etc., and can be selected according to the process.
The machine consists of five parts: hydraulic system (hydraulic lifting type), main drive, mixing system, guiding mechanism and electric control box. The parts are compact and reasonable. The type of dispersing disc has flat disc sawtooth shape, three-finger paddle shape, disc shape, etc., and can be selected according to the process.
Introduction
The host adopts electromagnetic speed regulation or frequency conversion speed regulation, stable and strong operation, suitable for various viscosity; hydraulic and mechanical lifting forms, free lifting and rotation, adapting to various positions; general explosion-proof configuration, safe and reliable, simple operation and maintenance; continuous productivity Strong, the materials can be quickly dispersed and dissolved, the dispersion effect is good, the production efficiency is high, the operation is stable, and the installation is simple.
There are different functions and models for the viscosity and production volume of different materials.
Lifting method: mechanical lifting and hydraulic lifting. (Generally recommended hydraulic lifting, large speed adjustment space)
Speed: Universal tooth type 0-1600 RPM/min, adjustable. (Different mixing heads with different mixing speeds, can be customized)
Contact material: stainless steel 304/316

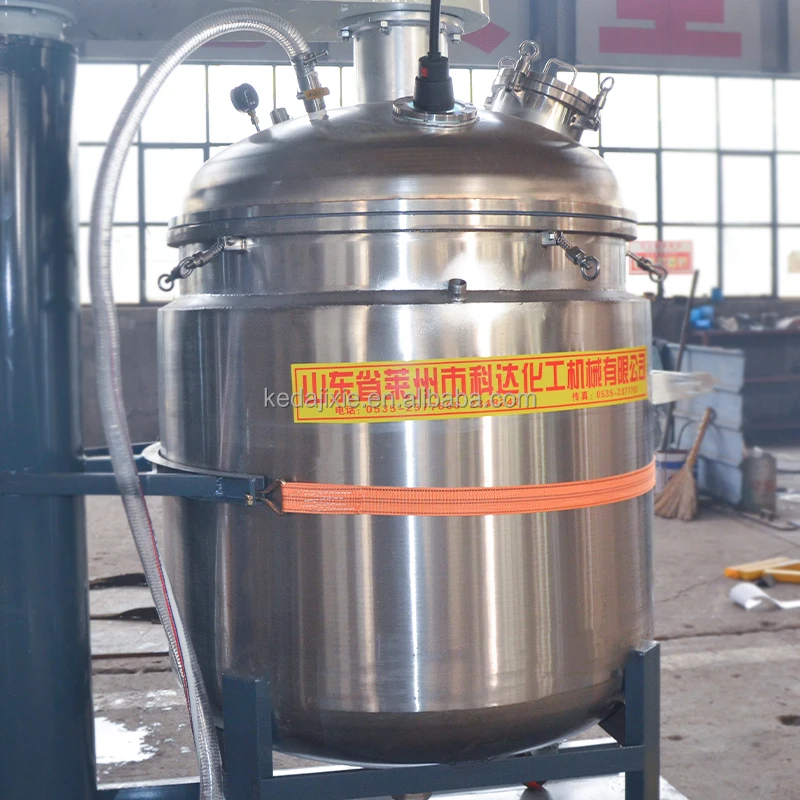

Matching mixing tank volume: 2L-5000L, can be customized (purchased separately)

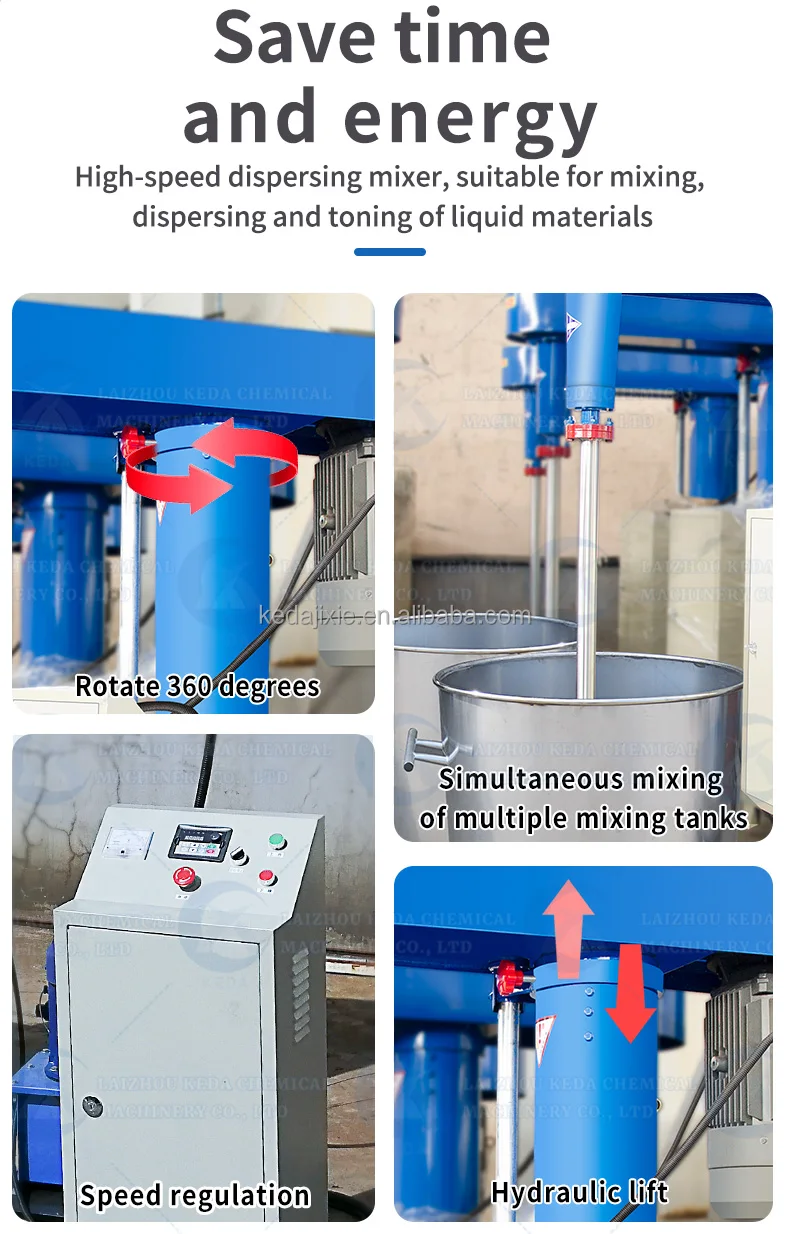

Freely lift and rotate the 360-degree rotating motor to work with multiple tanks at the same time.
The matching mixing tank needs to be purchased separately and can be customized.
It is widely used in coating, oil paint, ink, resin, paper making, adhesive, pigment, color paste, food, beverage etc. to mix, disperse and dissolve two or more kinds of liquids and solid powders.
Product Paramenters
Model（Power） | Speed/rpm （Alpha Inverter） | Disc head | Lifting distance/mm | Mixing ability |
400W | 0-8000 | 60 | 200 | 2L |
1.1KW | 0-8000 | 80 | 400 | 10L |
1.5KW | 0-3000 | 120 | 500 | 50L |
2.2KW | 0-3000 | 150 | 500 | 100L |
3KW | 0-1650 | 200 | 800 | 50-300L |
4KW | 0-1650 | 200 | 800 | 100-500L |
5.5KW | 0-1650 | 250 | 1100 | 200-1000L |
7.5KW | 0-1650 | 250 | 1100 | 200-1000L |
11KW | 0-1650 | 280 | 1150 | 500-1000L |
15KW | 0-1650 | 300 | 1150 | 500-1500L |
18.5KW | 0-1650 | 350 | 1150 | 500-1500L |
22KW | 0-1650 | 200-350 | 1200 | 500-1500L |
30KW | 0-1650 | 200-400 | 1300-1400 | 1000-2000L |
37KW | 0-1650 | 200-500 | 1400 | 1000-3000L |
45KW | 0-1650 | 200-500 | 1400 | 1500-3000L |
55KW | 0-1650 | 200-500 | 1400-1500 | 2000-5000L |
Related Products

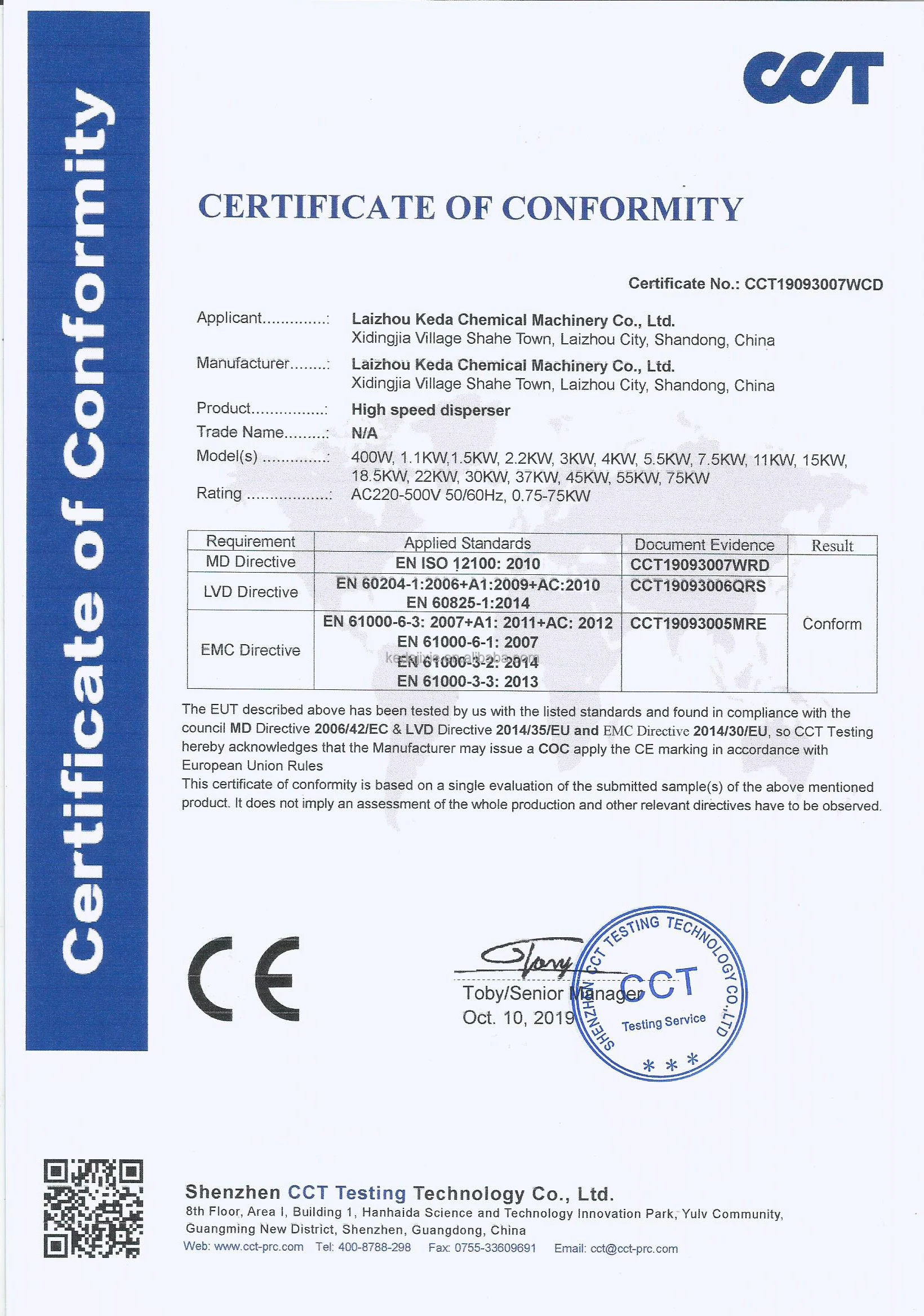

Certifications
