High quality Sealing Weighing Shear beam Force Compression Load Cell Sensor for Weighing Scales and device
- Category: Sensors >>>
- Supplier: Dongguan,Haibo,Electric,Measurement,Technology,Co.,Ltd.
Share on:
Product Overview
Description
HB-803

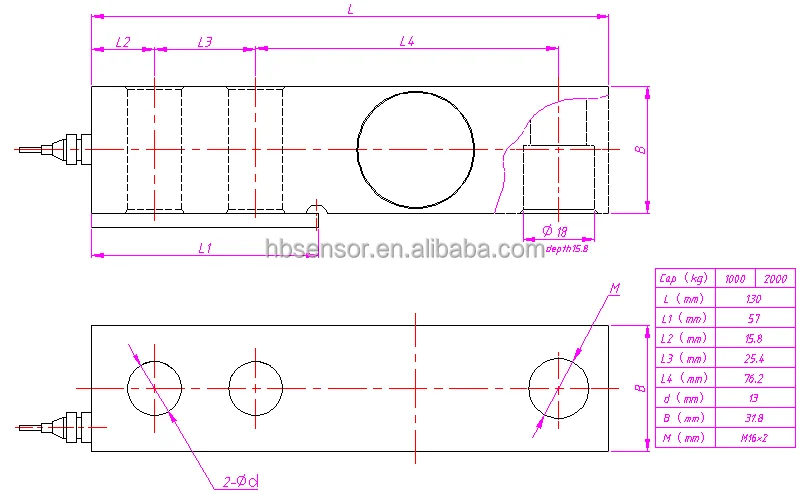

Shear beam load cell 0.5t 1t 2t 5t 10t
Alloy steel ,
Stainless steel ,
Hermetically sealed by laser ,
Nickel plated ,
Waterproof and anti-corrosion .
Apply for
Multiform environments ,
electronic paltfrom sales ,
hopper scales ,
Platform Scales,
other electronic weighing device .
Load Range | 0.5t 1t 2t 3t 5t 10t |
Precision | C3 |
Comprehensive error | ±0.02%FS |
Rated Output | 2.0±0.002mv/v |
Creep | ±0.016%FS/30MIN |
Zero Balance | ±1.0%FS |
Input Resistance | 350±5Ω |
Output Resistance | 350±5Ω |
Insulation Resistance | ≥5000MΩ（100VDC) |
Temp effect on span | ±0.011%FS/10℃ |
Temp effect on zero | ±0.019%FS/10℃ |
compensated temp range | -10-40℃ |
Use temp range | -20-+55℃ |
Exciation Voltage | 9-12VDC |
Safe overload | 120% |
Ultimate overload | 150% |
Defend Grade | IP68 |

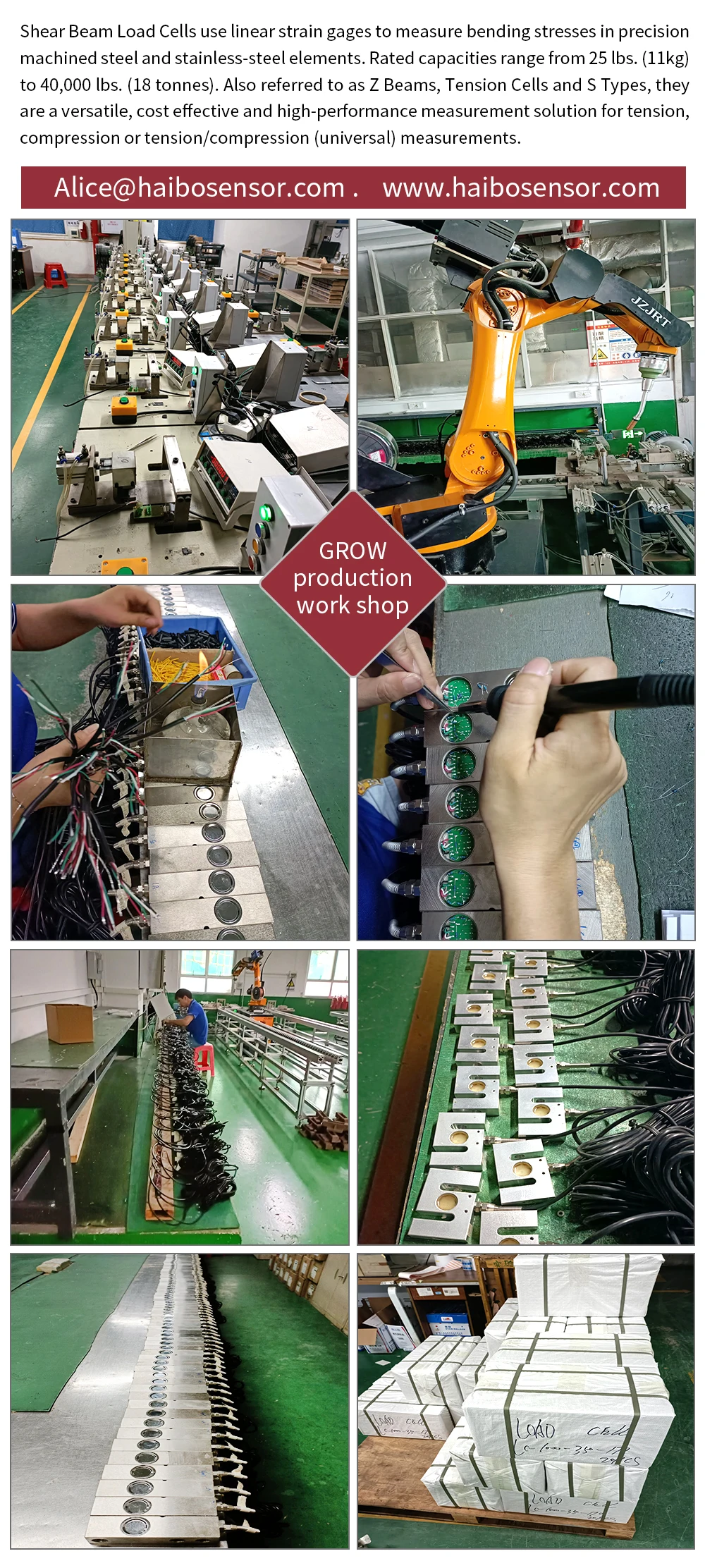

At Haibo are manufacture load cells to suit all capabilities. Our expertise has provided insight and load cell solutions for a range of customers and industries. Our engineering team's philosophy ensures we do everything humanly and technologically possible to match your requirements with quality, cost and delivery and with the highest attention to detail at all stages. Whether it is through the design stage, engineering stage, on through hundreds of tests run daily, we ensure that our products outshine all competitor products.
