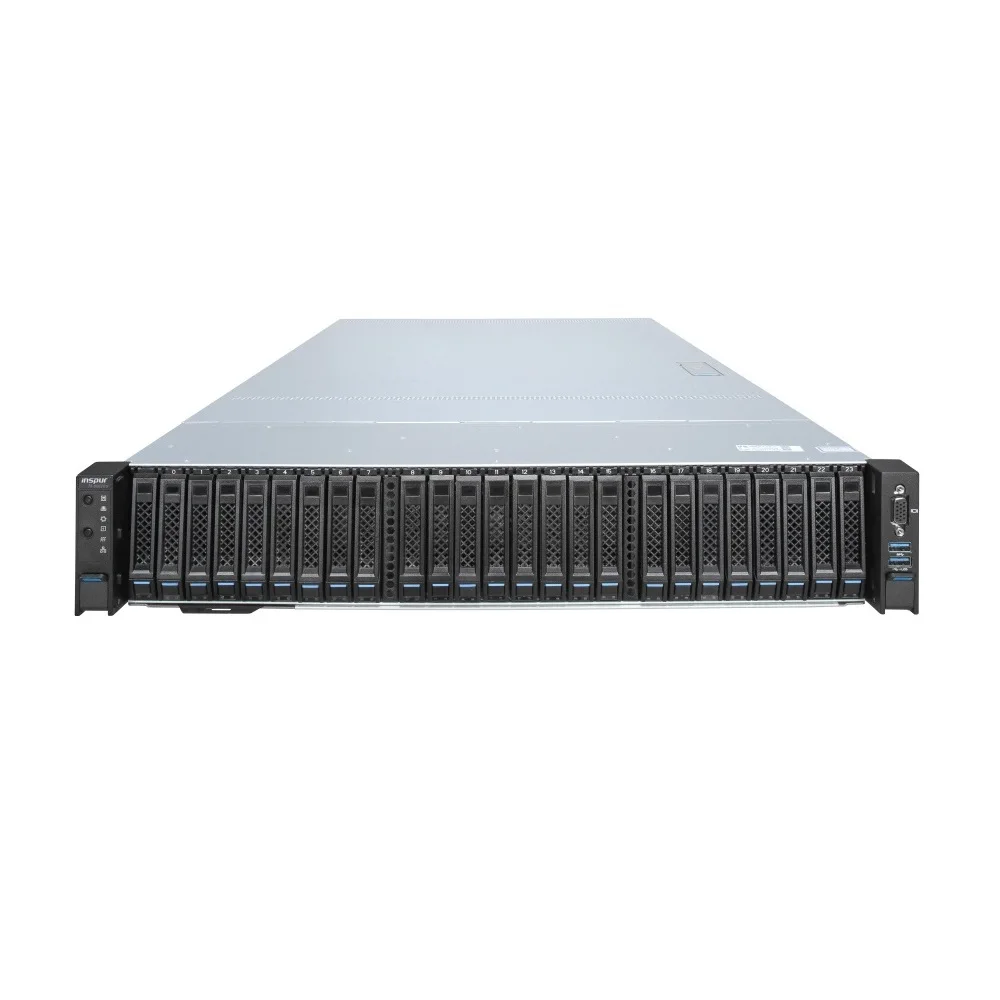

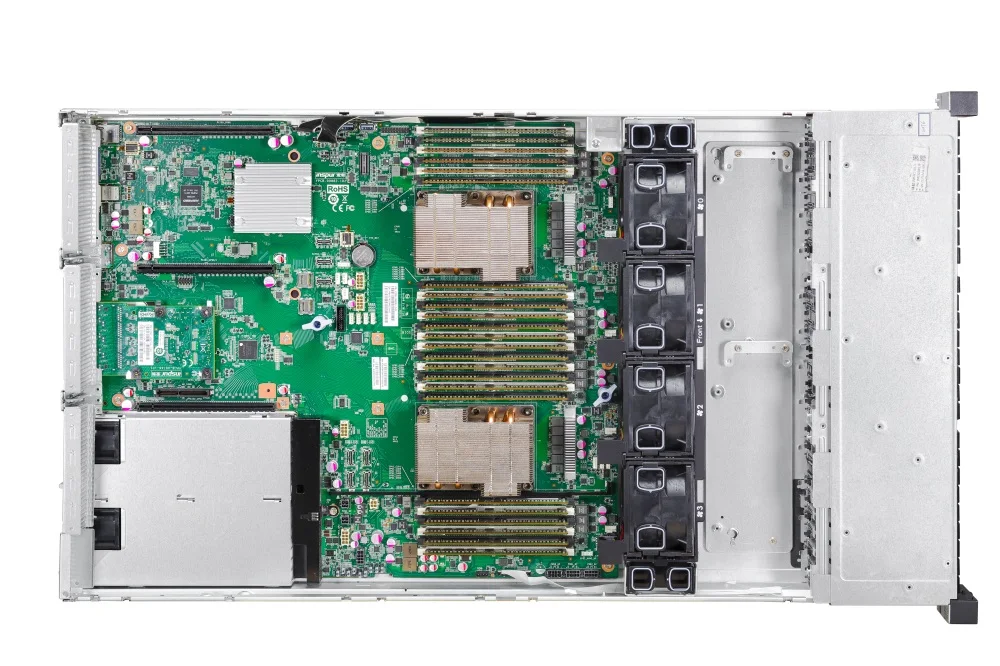

Inspur Server NF5280M5
The Inspur NF5280M5 is a high-end 2-socket rack server that features the 2nd generation Intel® Xeon® scalable processors and is designed for high-end IT applications such as cloud computing, big data, data mining, deep learning and so on. The server maintains high quality and reliability of Inspur servers and brings innovation and a breakthrough in compute performance, scalability, configurability, intelligent management, and so on. Hence, it is perfect for demanding customers in telecommunications, finance, large-scale enterprises, Internet industry, and so on.
Product Description | NF5280M5 | Key Features |
Internal Storage | 128GB | • 2 Intel® Xeon® scalable processors with a variety of TDPs up to 205 W • 2 UPI channels for 9.6 and 10.4 GT/s • Up to 24 DDR4DIMMs; RDIMMs, LRDIMMs and NVDIMMs supported; memory mirroring and hot spare supported • Up to 24 × 2.5-inch SAS/SATA/NVMe drive or 12 × 3.5-inch SAS/SATA drive at the front • Up to 10 × 2.5-inch SAS/SATA/NVMe drive or 4 × 2.5-inch SAS/SATA/NVMe + 3.5-inchSAS/SATA drive at the rear • Up to 4 × 3.5-inch internal SAS/SATA drive • Type-A and Type-C OCP NIC cards • 4 onboard OCulinkconnectors with NVMe drives directly connected to the CPU • Up to 14 onboard drives directly connected to PCH • Up to 10 standardPCIe expansion cards, including 8 full-height and 2 half-height half-length cards • Up to 4 GPUs • Motherboard integrated with anAST2500 BMC chip with KVM functionality as standard. • Hot-swap LCD module and remote monitoring on mobile devices via BMC. •Intel remote BMC debug • Modular design of drives, PCI expansion cards, PSUs and fans, enabling tool-free maintenance • Hot-swapand redundant CRPS power supplies of 80 Plus Platinum or higher level with PMBus and NM 4.0 functionality • Hot-swap fan/fan cagedesign; the fans are N+N redundant and of low noise |
Hard Disk | 960G SSD*2/8TB SATA (enterprise level)*3 | |
GPU Card | None | |
RAID Card | 2GB Cache | |
Network Card | 4*GE | |
Power Supply | 800W*2 | |
Guide Rail | Standard Configuration |
Item | Description |
Form Factor | 2U rack server |
Processor | 1 to 2 Intel® Xeon® 5200, 6200, 8200 series scalable processors Up to 28 cores (2.7 GHz) Max Turbo frequency at 3.6 GHz (8 cores) 3 UPI links (up to 11.2 GT/s) TDP up to 205 W |
Chipset | Intel C621/C622/C624 |
Memory | Up to 24 DIMMs Each processor supports 6 memory channels Each channel supports 2 memory slots Speed up to 2933 MT/s RDIMMs and AEP supported Memory protection: ECC, memory mirroring Memory rank sparing |
Storage | Front panel: 21 × 2.5-inch hot-swap SATA/SAS drive + 4 × hot-swap SATA/SAS/NVMe drive 12 × 3.5-inch hot-swap SATA/SAS/NVMe drive Rear storage: Up to 4 × 2.5-inch drive Internal storage: Up to 4 × 3.5-inch drive or 2 × M.2 SSD |
Storage Controller | RAID controller: 3008iMR, 3108MR, PM8060, Broadcom 9361-8i SAS controller: Inspur 3008IT/IR, Broadcom 9400-8i Intel onboard SATA controller can be configured to RAID 0/1/5/10 Intel onboard NVMe controller can be configured to RAID 0/1/5/10 |
Network | 1 optional OCP NIC 2.0 card module (1 Gb/s, 10 Gb/s, 25 Gb/s, 40 Gb/s and 100 Gb/s) |
I/O Expansion | Up to 8 standard PCIe cards and 1 OCP NIC 2.0 card Up to 4 double-width GPUs or 8 single-width GPU |
Port | 2 rear USB 3.0 ports + 1 front USB 3.0 port + 1 front USB 2.0port 1 rear VGA port |
Fan | 4 hot-swap 8056 fans of N+1 redundancy |
Power Supply | 1+1 redundant PSUs (output power at 550 W/800 W/1300 W/1600 W/2000 W and above) |
System Management | Integrated with 1 independent 1000 Mbps network port, dedicated for IPMI remote management |
Operating System | Microsoft Windows Server 2012/2016; Red Hat Enterprise Linux 7.4; SUSE Linux Enterprise Server 11/12; |
Chassis Dimensions | W × H × D = 435 × 87 × 779.8 mm (17.13 × 3.43 × 30.70 in.) |
Weight | Net weight: 26.5 kg (58.42 lbs) (2.5-inchdrives all loaded) |

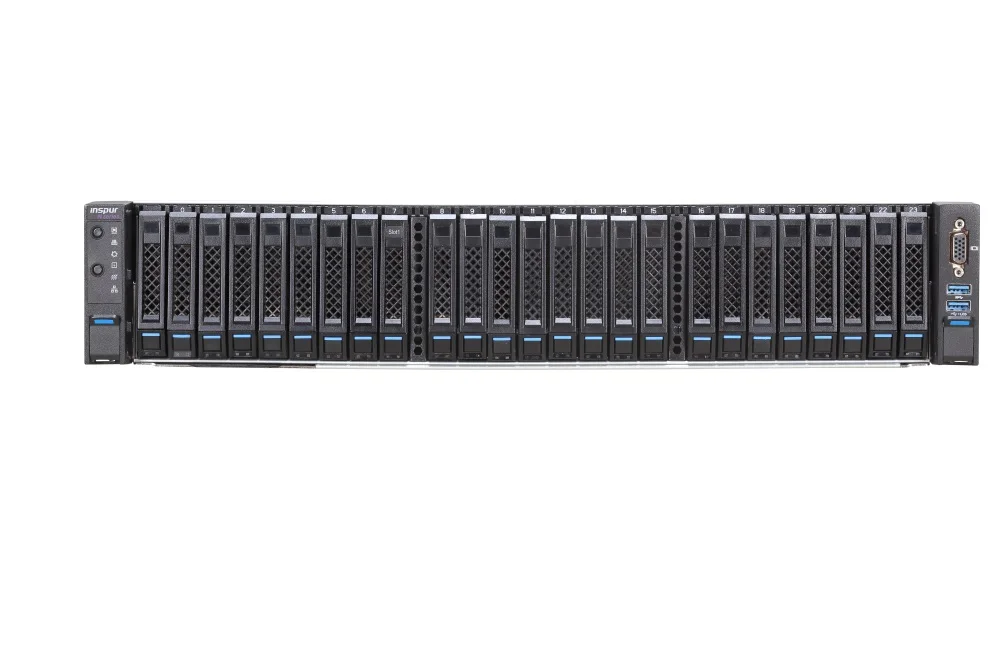

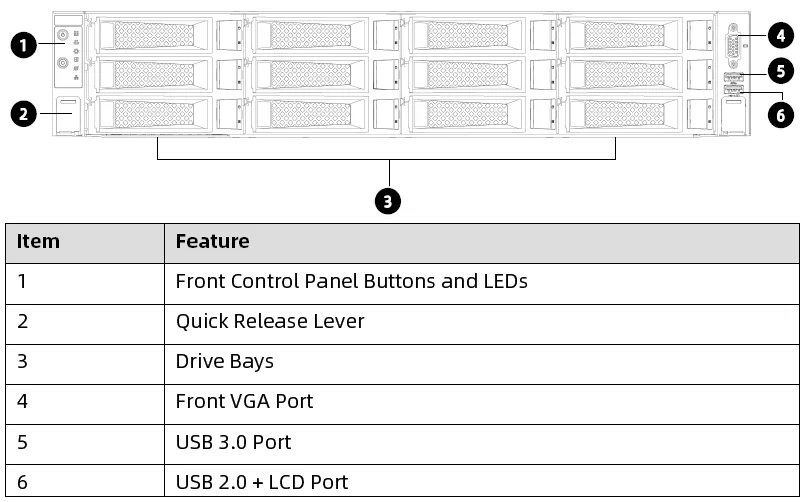

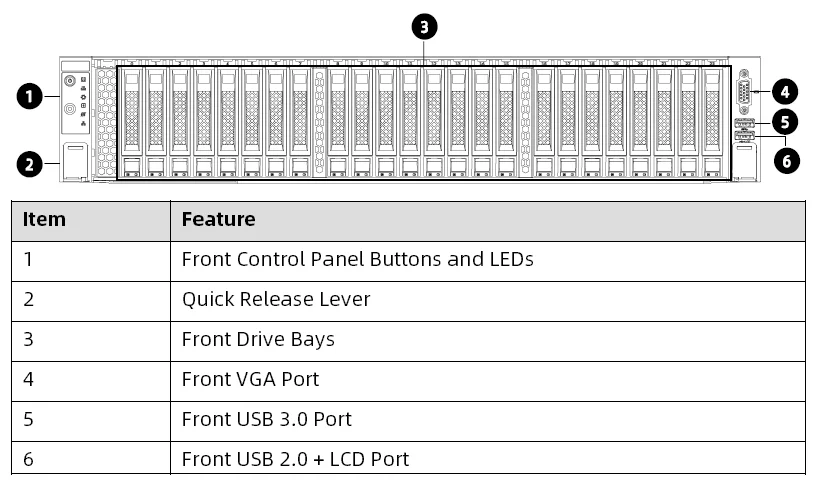

Front View | ||||||||
Drive Configuration | ||||||||

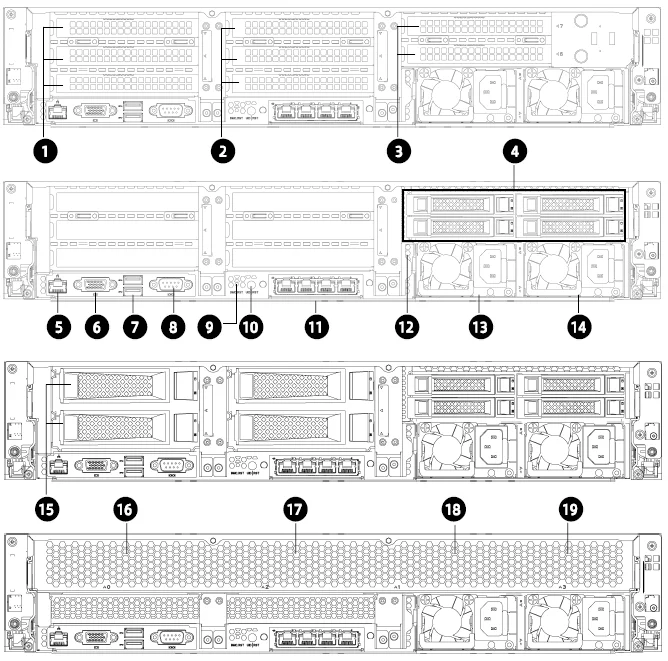

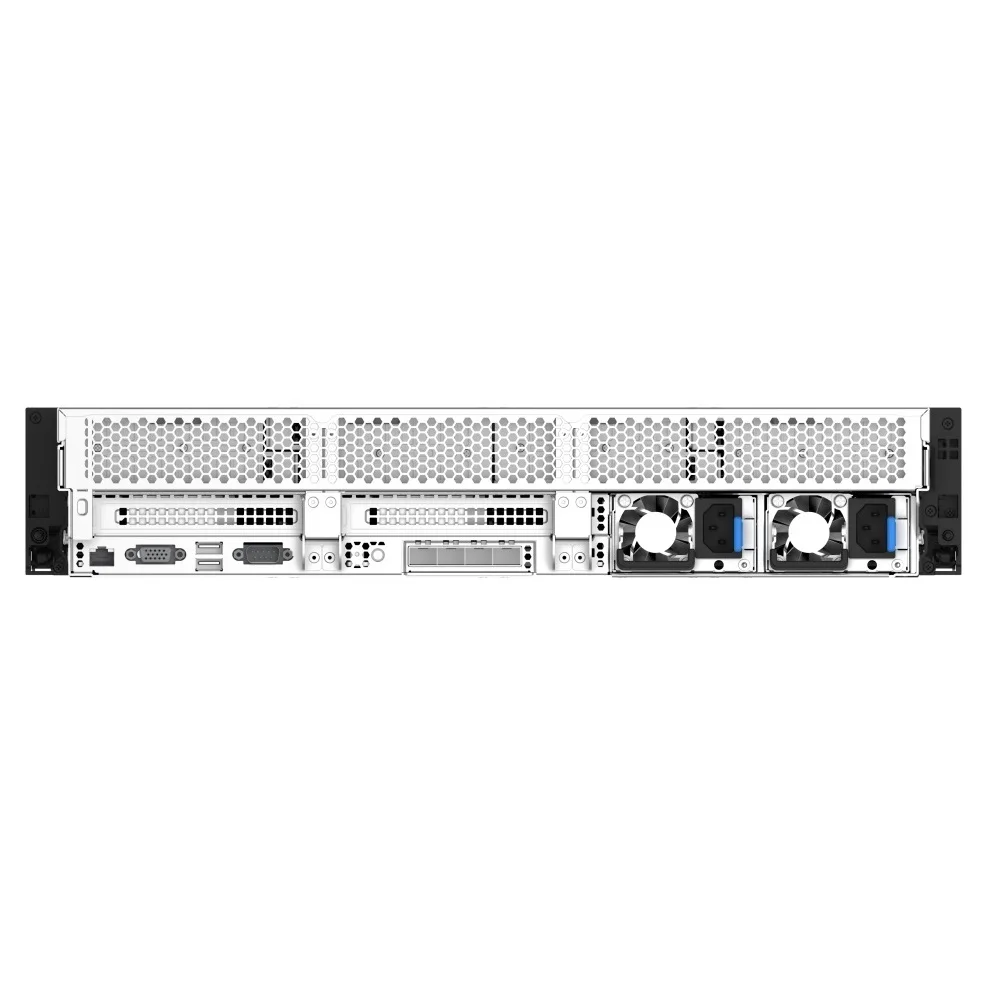

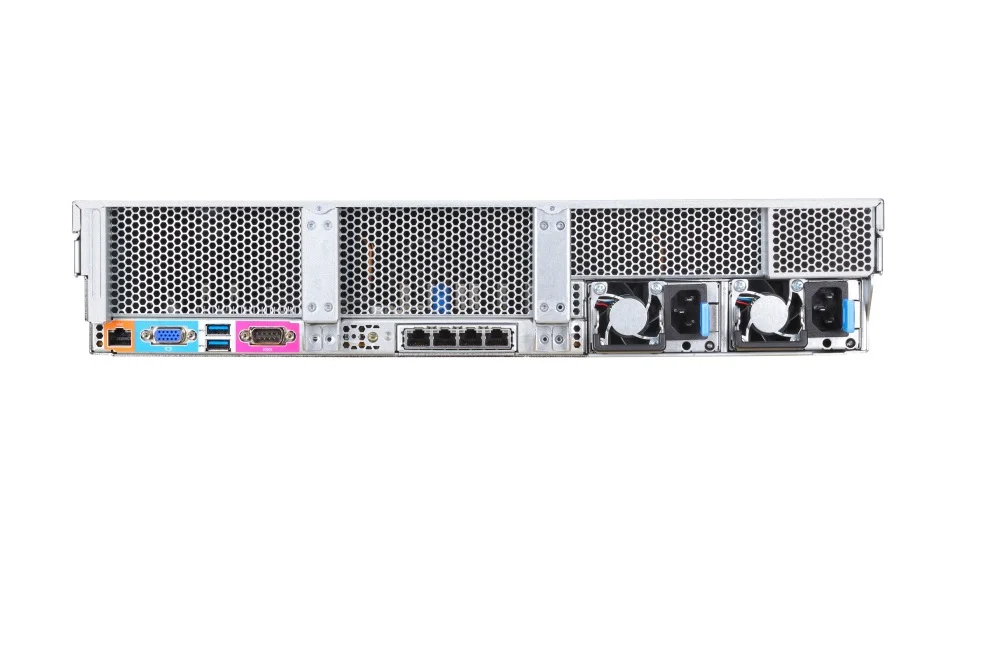

Rear View | ||||||||
Item | Feature | Item | Feature | Item | Feature |
1 | PCIe Slots (CPU0) | 8 | Serial Port | 15 | 3.5-inch Drive Modules |
2 | PCIe Slots (CPU0/1) | 9 | BMC_RST Button | 16 | GPU0 |
3 | PCIe Slots (CPU1) | 10 | UID/RST Button | 17 | GPU2 |
4 | 2.5-inch Drive Modules | 11 | OCP Expansion Card | 18 | GPU1 |
5 | MLAN Port | 12 | RJ45 Latch | 19 | GPU3 |
6 | VGA Port | 13 | PSU0 | ||
7 | USB 3.0 Port ﾗ 2 | 14 | PSU1 |

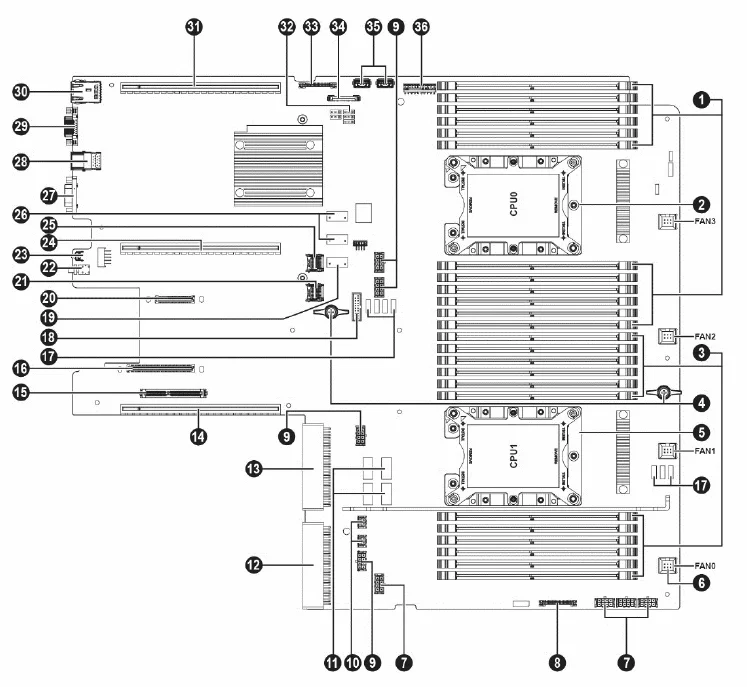

Motherboard View | ||||||||
Item | Feature | Item | Feature | Item | Feature |
1 | DIMM Slots (CPU0) | 13 | PSU0 Connector | 25 | BMC_TF_SLOT Slot |
2 | CPU0 | 14 | PCIE2_CPU1 Slot | 26 | SATA Connector ﾗ 2 |
3 | DIMM Slots (CPU1) | 15 | M.2_CONN Connector | 27 | Serial Port |
4 | Motherboard Handle ﾗ 2 | 16 | OCP_A Connector | 28 | USB 3.0 Port ﾗ 2 |
5 | CPU1 | 17 | I2C Connector ﾗ 4 | 29 | VGA Port |
6 | System Fan Connector ﾗ 4 | 18 | NCSI Connector | 30 | MLAN Port |
7 | Front Backplane Power Connector | 19 | sSATA Connector | 31 | PCIE0_CPU0 Slot |
8 | Front Control Panel Connector | 20 | OCP_C Connector | 32 | CLR_CMOS |
9 | GPU Power Connectorﾗ 4 | 21 | SYS_TF_SLOT Slot | 33 | Front Control Panel VGA Port +USB Port |
10 | Rear Backplane Power Connector ﾗ 2 | 22 | UID/RST Button | 34 | USB 3.0 Port ﾗ 2 |
11 | NVMe Connector ﾗ 4 | 23 | BMC_RST Button | 35 | TPM Connector |
12 | PSU1 Connector | 24 | PCIe1_CPU0/1 Slot |

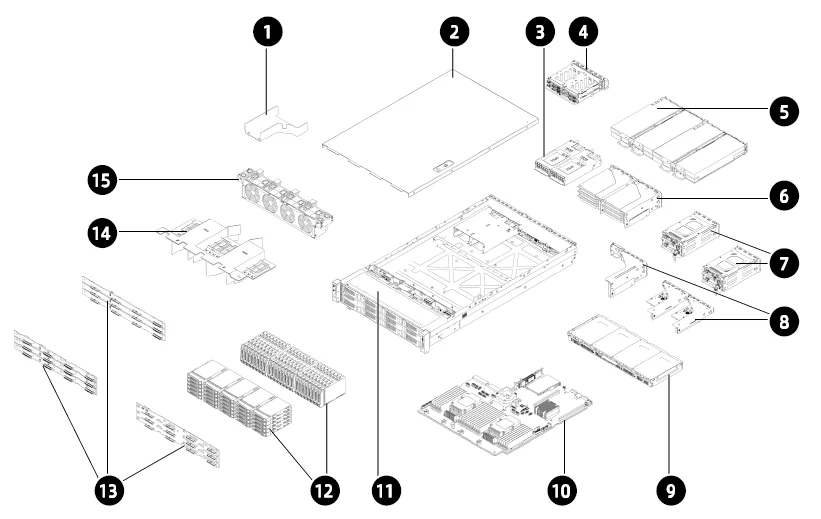

System Parts Breakdown | ||||||||
Item | Feature | Item | Feature | Item | Feature |
1 | Small Air Duct | 6 | Rear PCIe Riser-Card Assembly | 11 | Chassis |
2 | Access Panel | 7 | Rear Drive Modules | 12 | Front Drive Modules |
3 | PSUs | 8 | PCIe Riser-Card Assembly | 13 | Front Drive Backplanes |
4 | Rear Drive Modules | 9 | Internal Drive Modules | 14 | Air Duct |
5 | GPU Modules | 10 | Motherboard | 15 | Fan Module |
