MBBR с псевдоожиженным слоем, биологический наполнитель, экструдер, производственная линия
- Category: Plastic Extruders >>>
- Supplier: Zhangjiagang,Vina,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

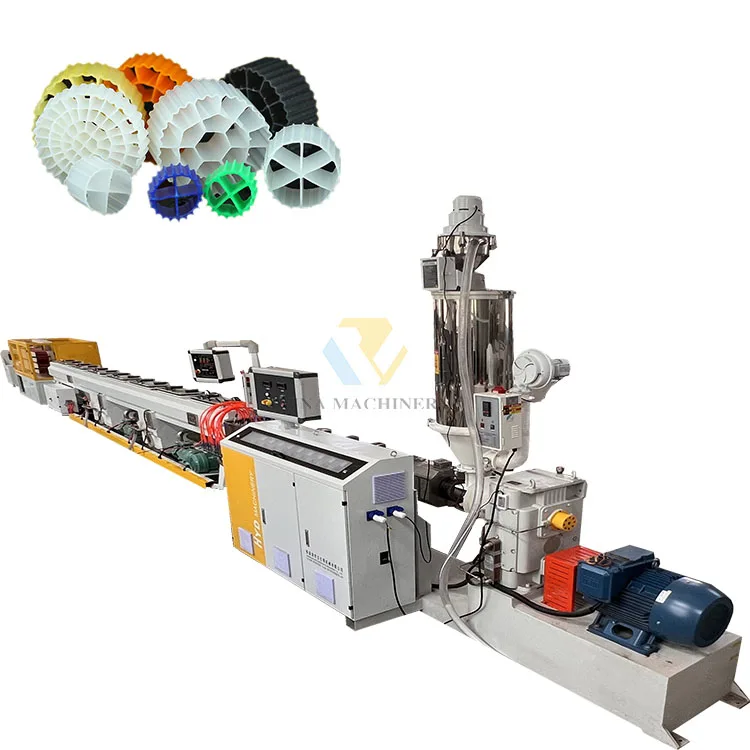

>> Use: This production line is specialized in producing plastic MBBR biological filter media/Fluidized bed packing . The main material is PE/PP/ABS/HDPE etc.
>>Process Flow: Automatic suction machine→heating dryer→cone / parallel Twin Screw Extruder/Single screw extruder → Mould →Stainless steel vacuum sizing calibrator tank→ Haul-off & Cutter → Final Product Inspecting & Packing
Details Images

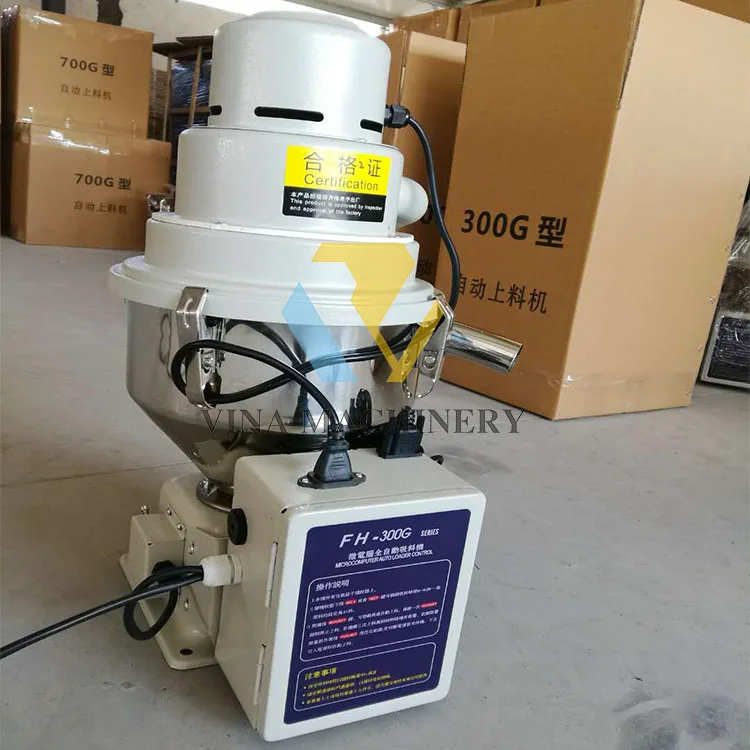

Automatic suction machine
The raw material is sucked into the dryer through the pipe for heating and drying
• Microcomputer control
• All-copper machine
• All-copper machine
• Missing material buzzes alarm
• Automatically stop when the material is full
• Save energy and electricity

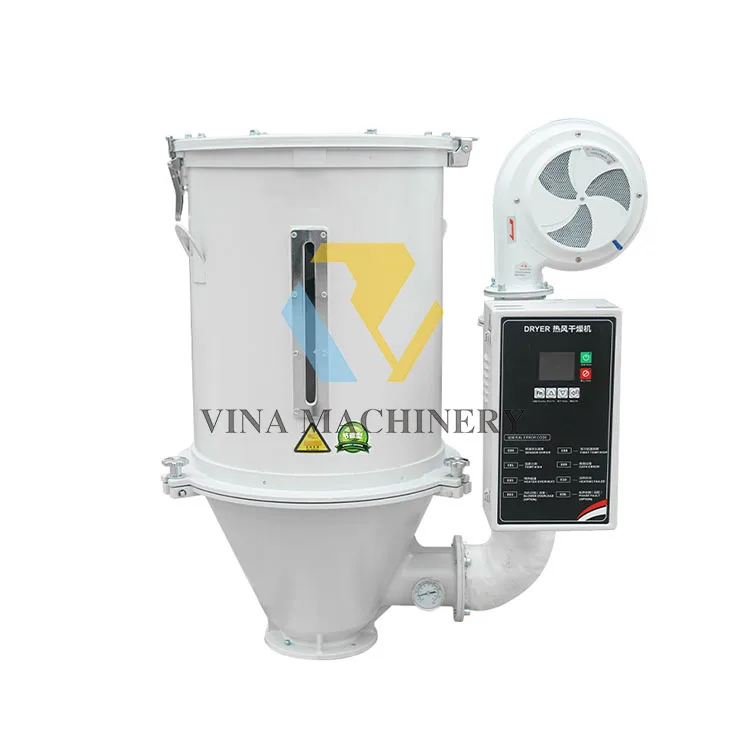

Heating dehumidification drying machine
The solid material is plasticized and fused into a uniform temperature melt and continuously extruded
• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.

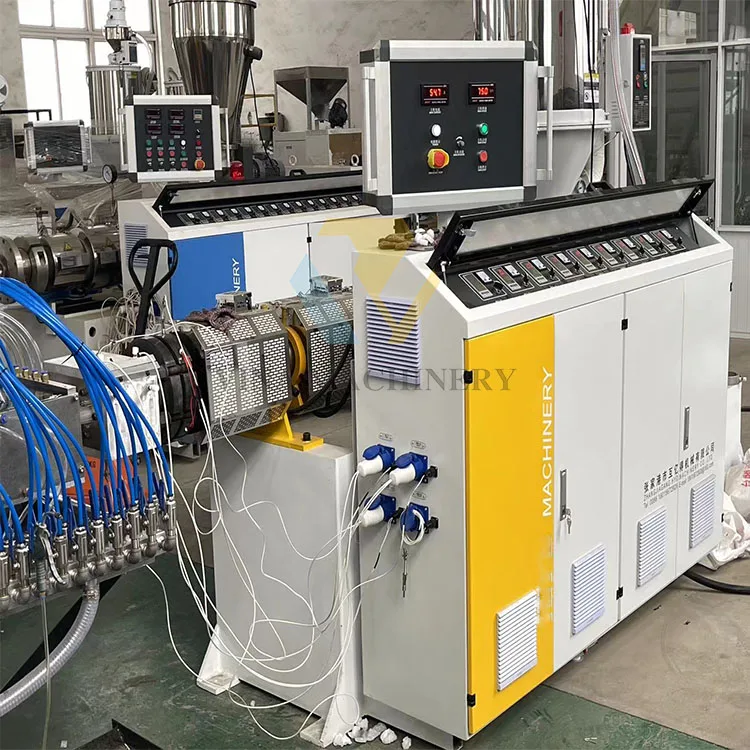

screw extruder
The solid material is plasticized and fused into a uniform temperature melt and continuously extruded
• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
stainless steel vacuum sizing calibrator tank
After exit from the die head, enter the cooling mold immediately. The mold is vacuized, so that the outer wall of the profile and the surface of the molding mold are tight, and the water is cooled by the molding sleeve. The adsorption force of the vacuum is required and uniform, so as to ensure the appearance and dimensional precision and apparent quality of the profile.
• Include full set of vacuum and water pump;
• Length from 4m-11.5m;
• Independent operation panel for easy operation.

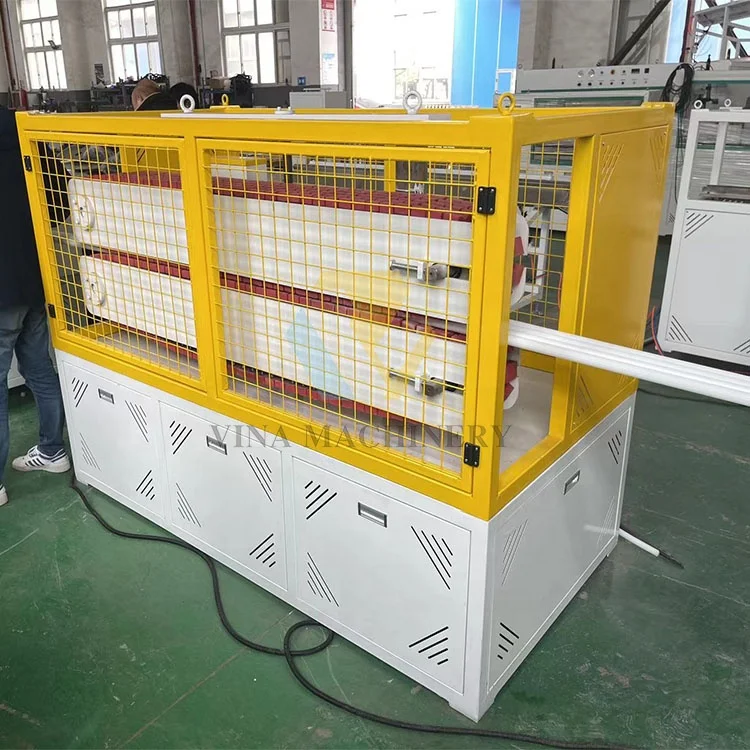

Caterpillar Haul off machine
After the extruder extrudes the raw material through the mold. The tractor clamps the profile from its outlet and then pulls it to a certain length, which reaches the predetermined extruded length
• Upper and lower caterpillar is driven separately and speed control by frequency inverter;
• Fast change type pads for easy operation;
• Install plate is adopts aluminum material;
• Fast change type pads for easy operation;
• Install plate is adopts aluminum material;

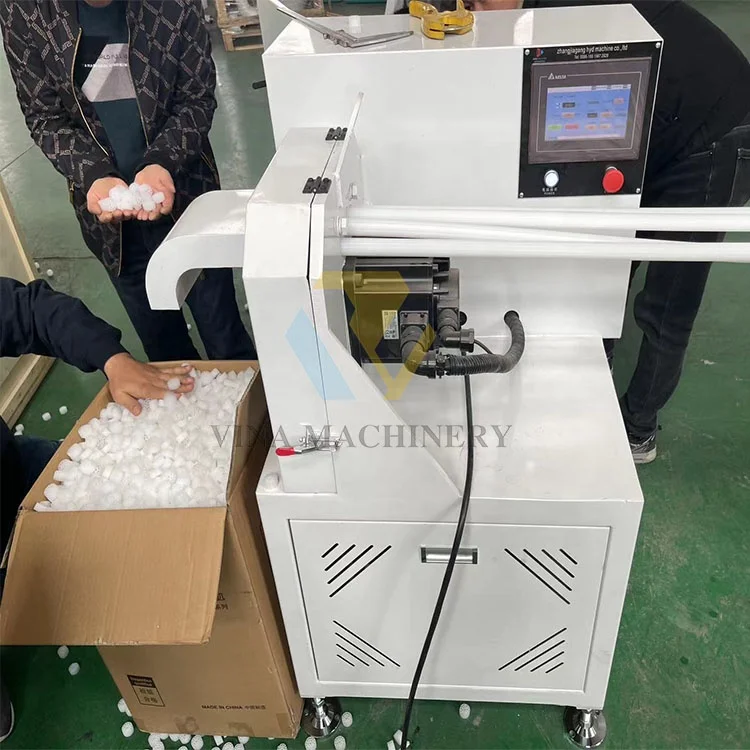

Cutting Machine
The continuous extrusion products are cut into a certain length by the cutting machine according to the requirements,
The cut products fall from the turning rack to the collection box below
• Cutting speed and cutting interval can be adjusted according to the desired product length in the plan
• Independent operation panel for easy operation

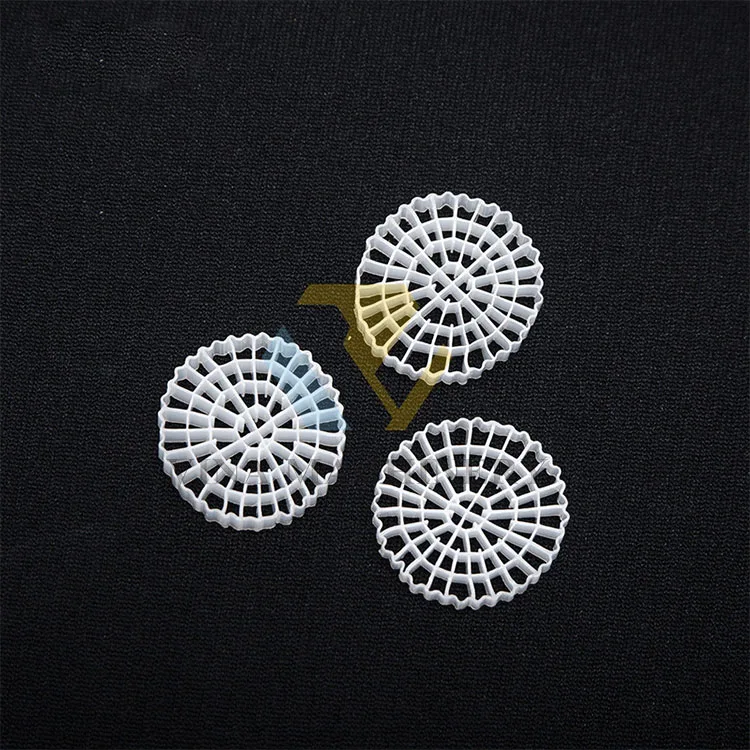

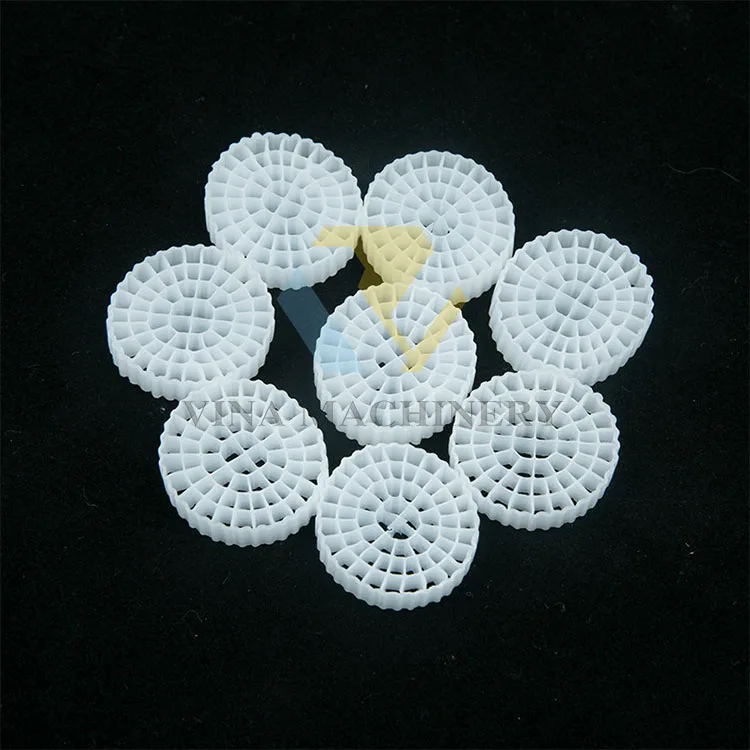

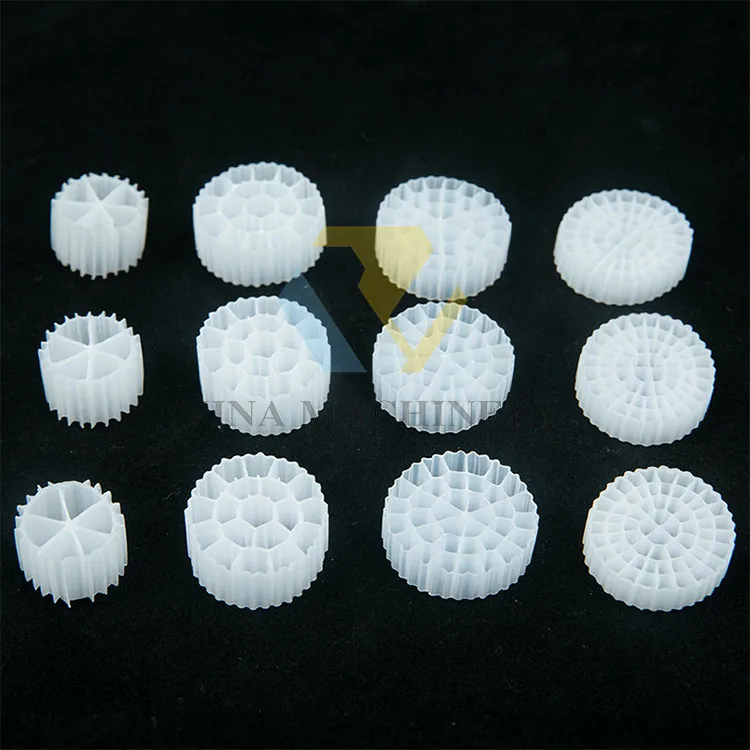

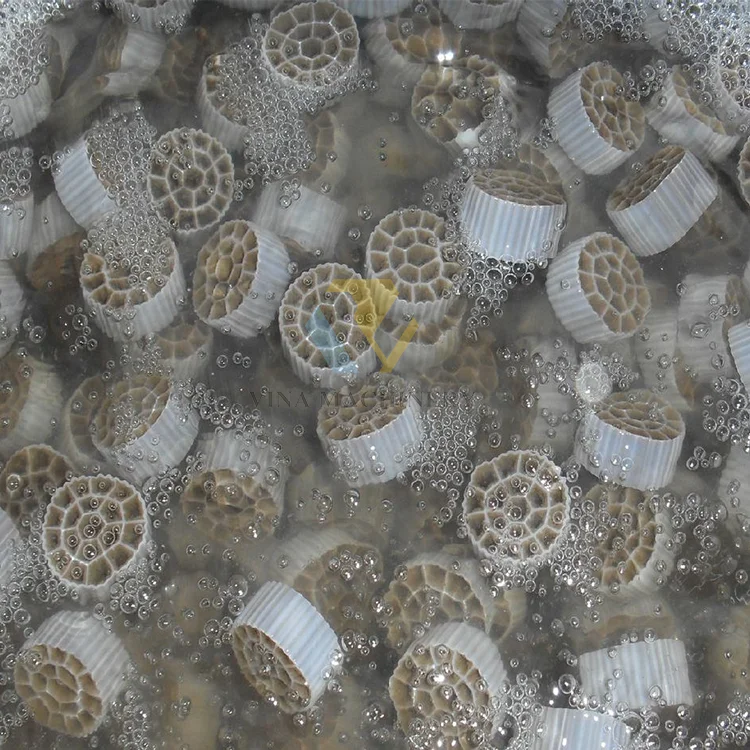

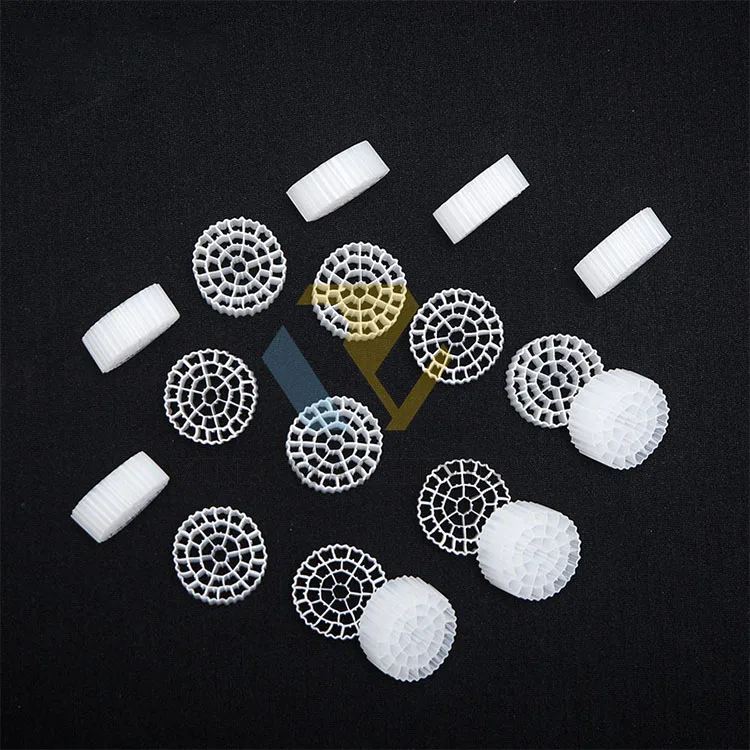

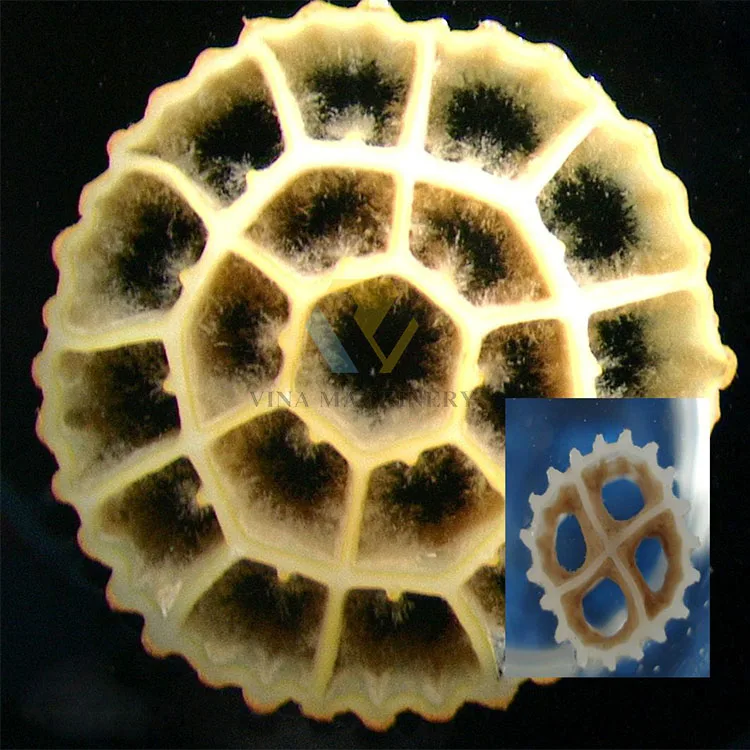

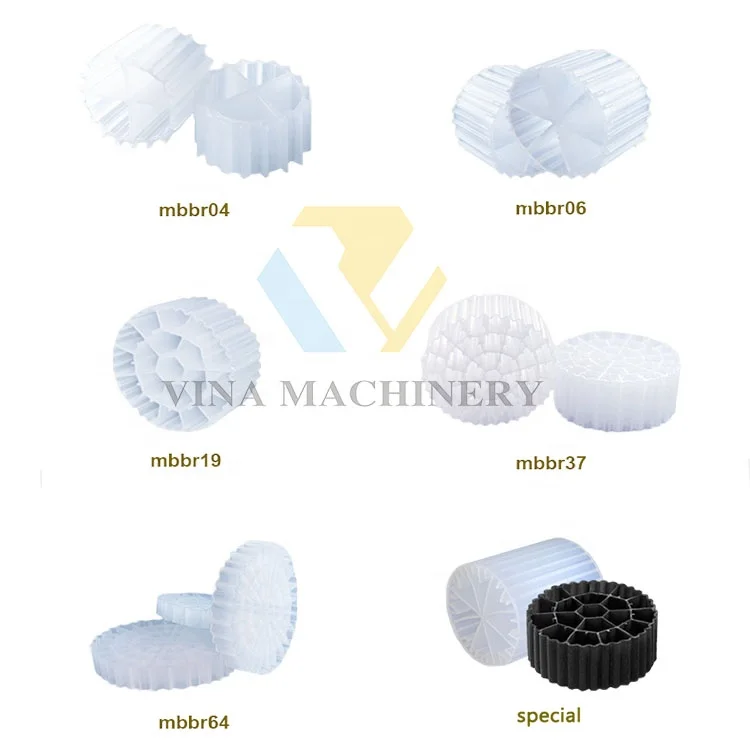

Final product reference
Product Paramenters
Extruder Type | SJ45 | SJ50 | SJ65 | SJ75 |
L/D | 10-33 | 10-33 | 10-33 | 10-33 |
Main Motor Power | 7.5-18.5Kw | 22-37kw | 37-55kw | 55-90kw |
Production capacity | 10-35kg/h | 20-80kg/h | 80 -150kg /h | 120-280kg/h |

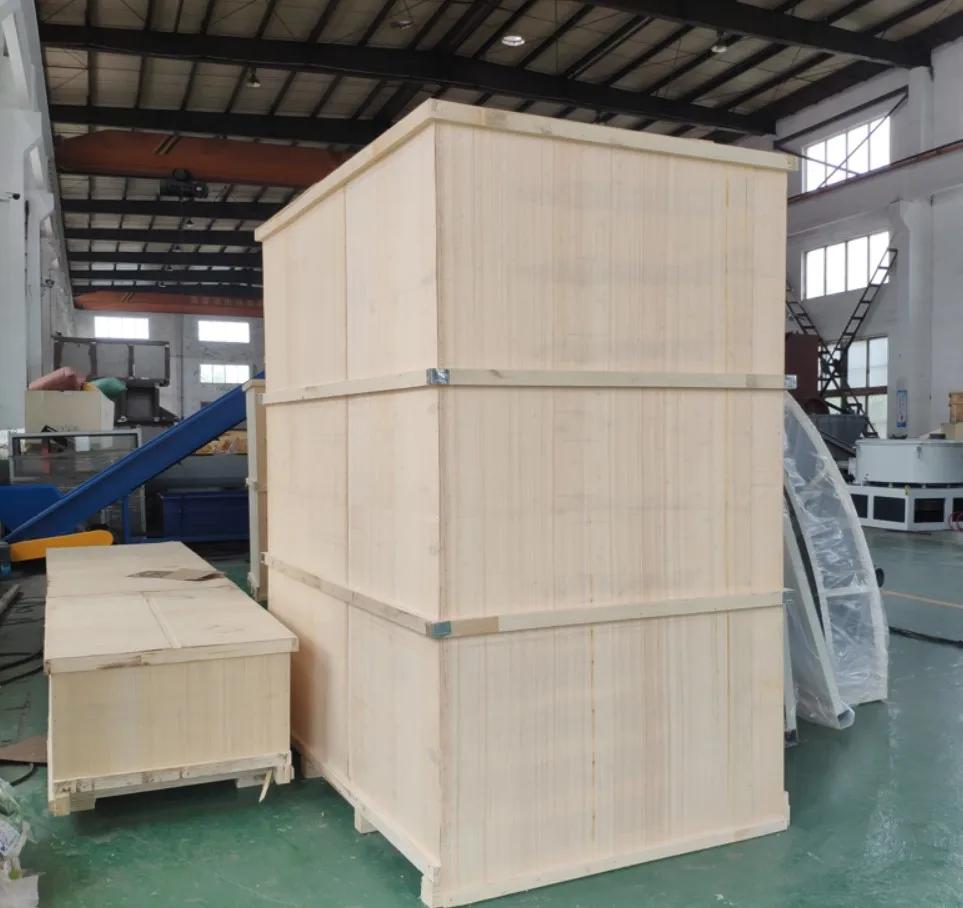

Product packaging
Packaging & Shipping:
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
6.We have free spare parts with the machine.
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
6.We have free spare parts with the machine.
FAQ
Contact us
If you consult, we do not have the first time to reply, please leave your contact information or add our contact information, we see the message, will be the first time to reply
Q:Are you machinery factory or trading company?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will becharged depends on the testing costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will
counts to deduction of machine purchase cost.
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems. (notice: return flight and $80 per day salary will be on customer）
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We willreply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems. (notice: return flight and $80 per day salary will be on customer）
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We willreply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc

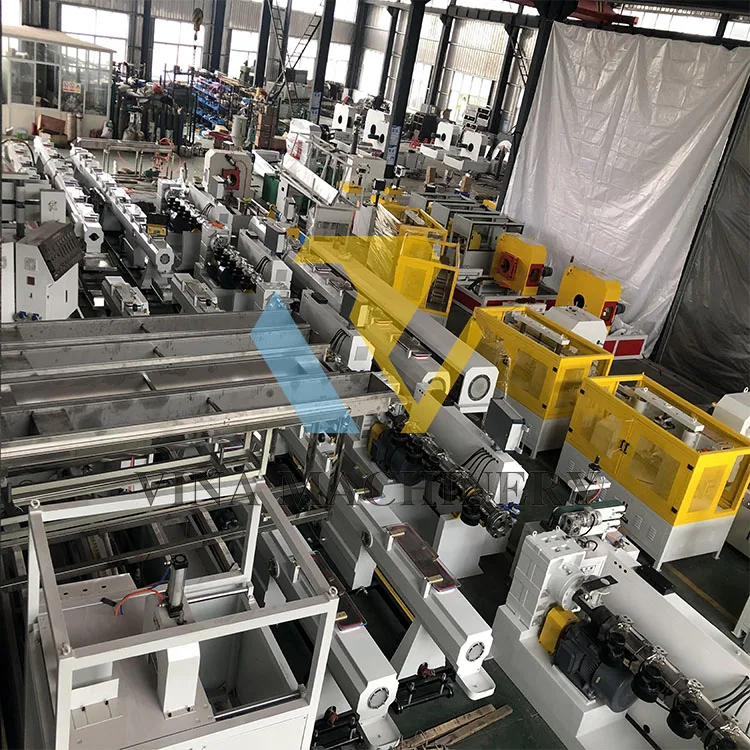

Company Profile
