Product Overview

Description



Products Description

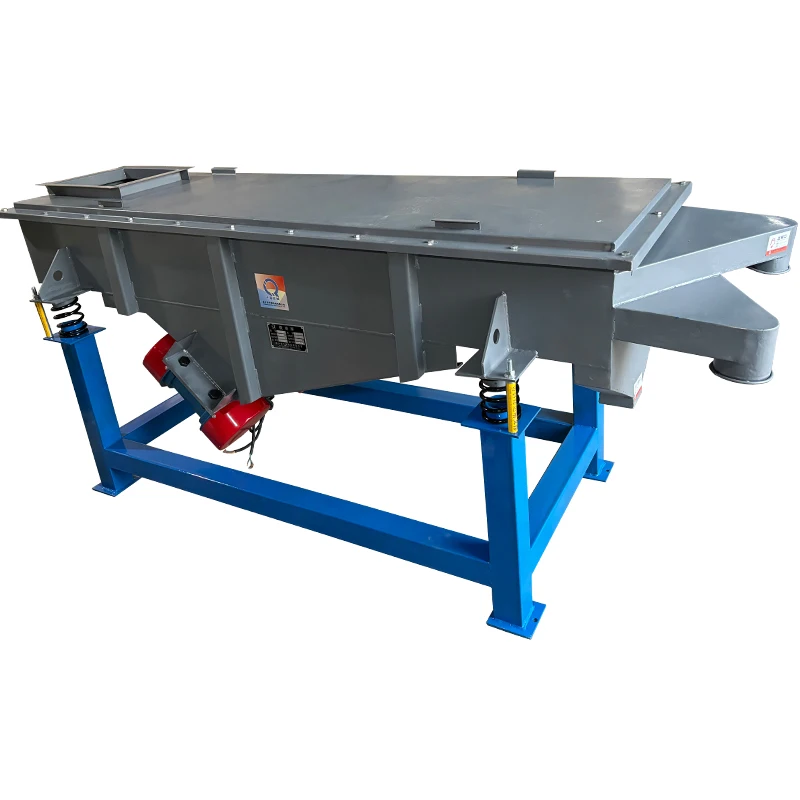

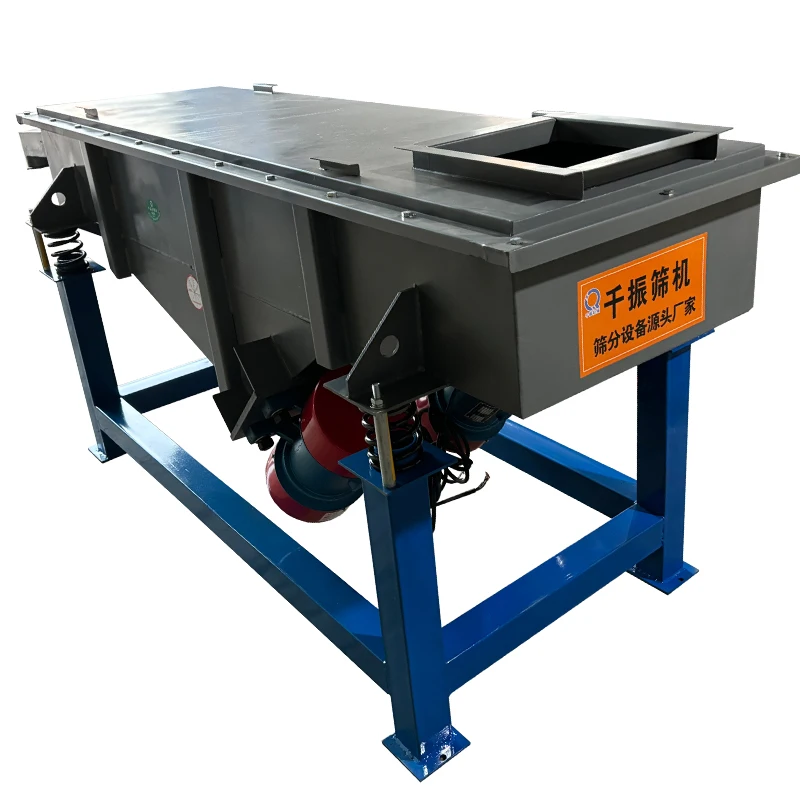

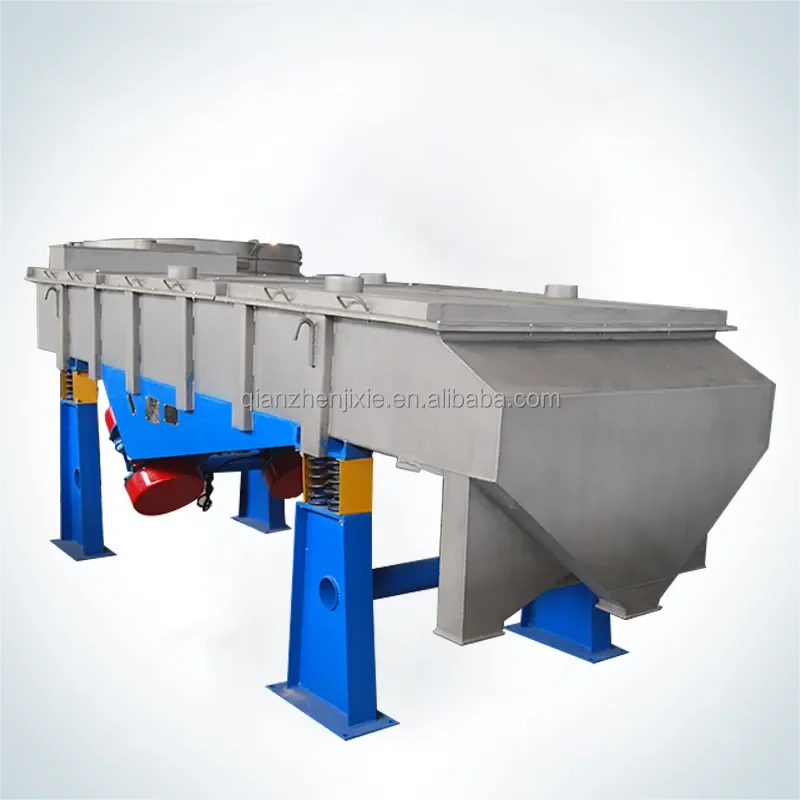

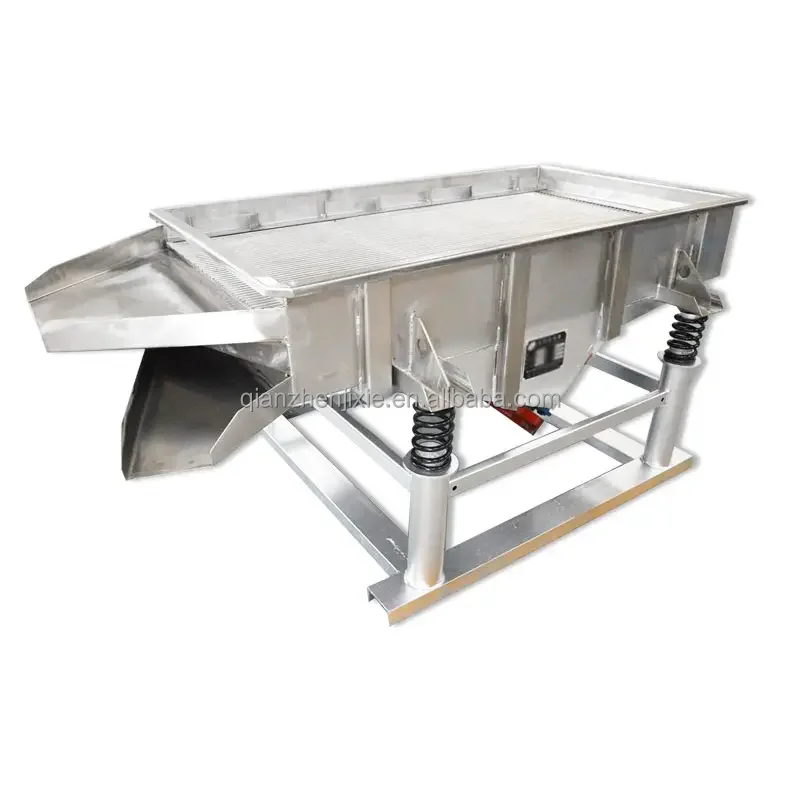

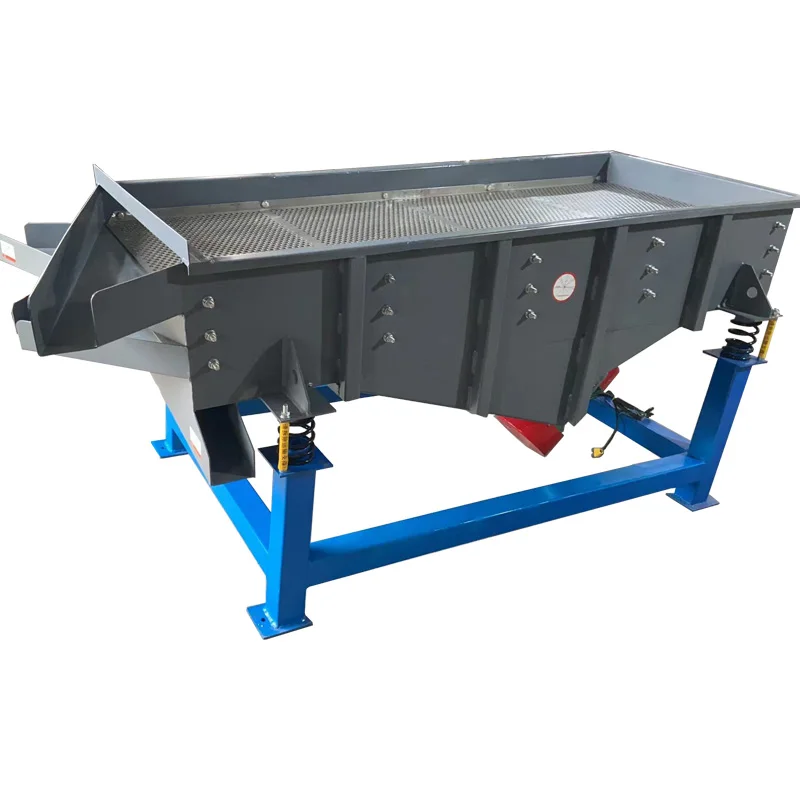

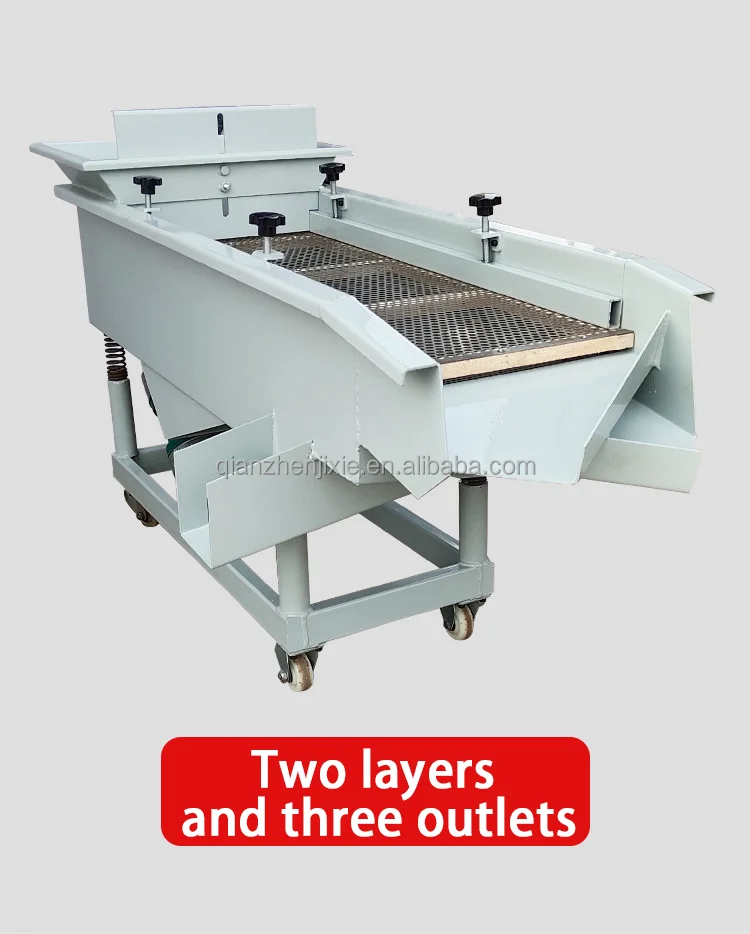

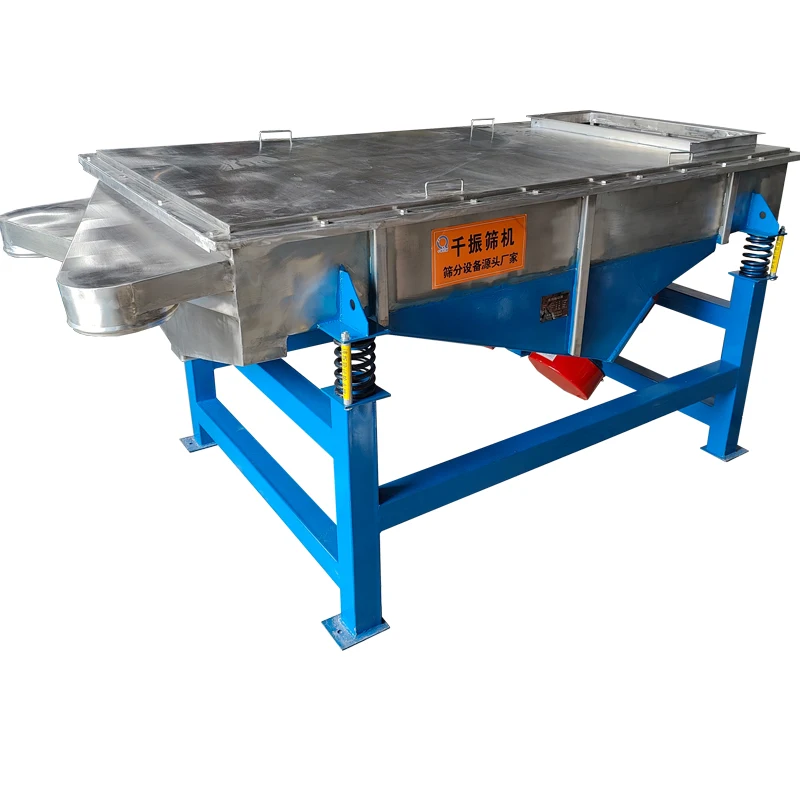

Linear vibrating screen

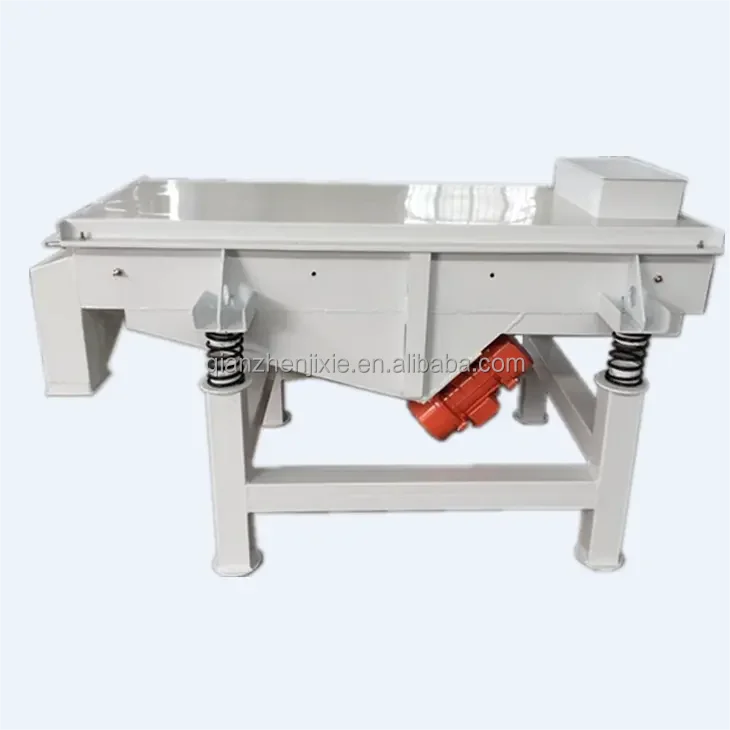

QZSF series linear vibrating screen uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials
enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.

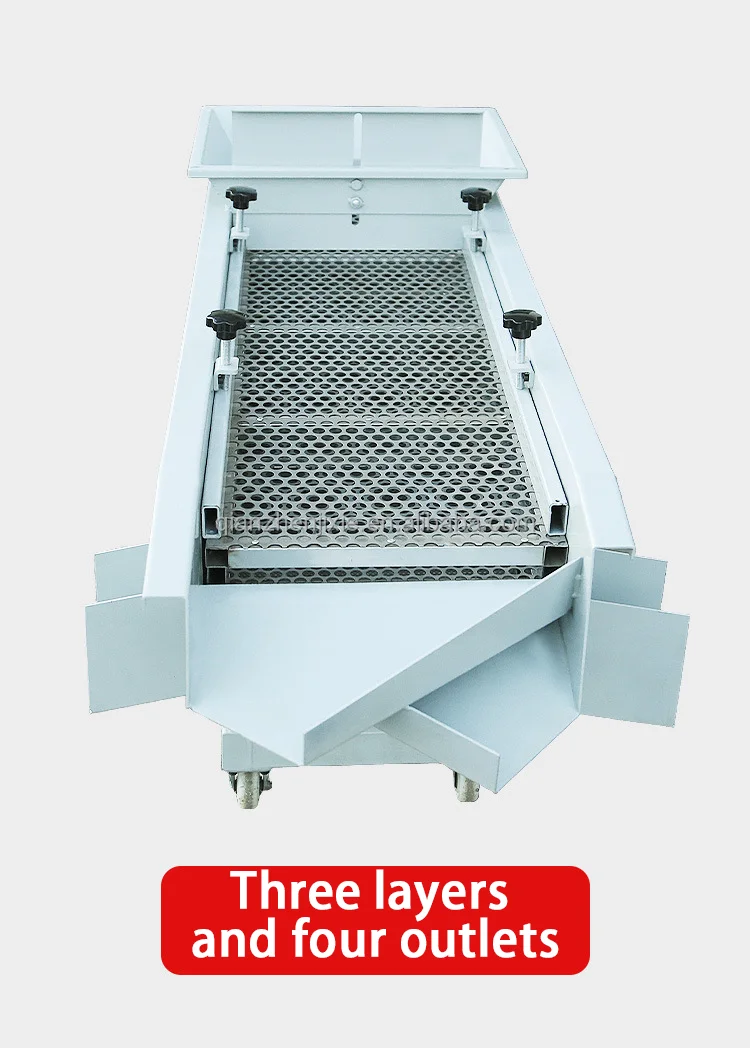

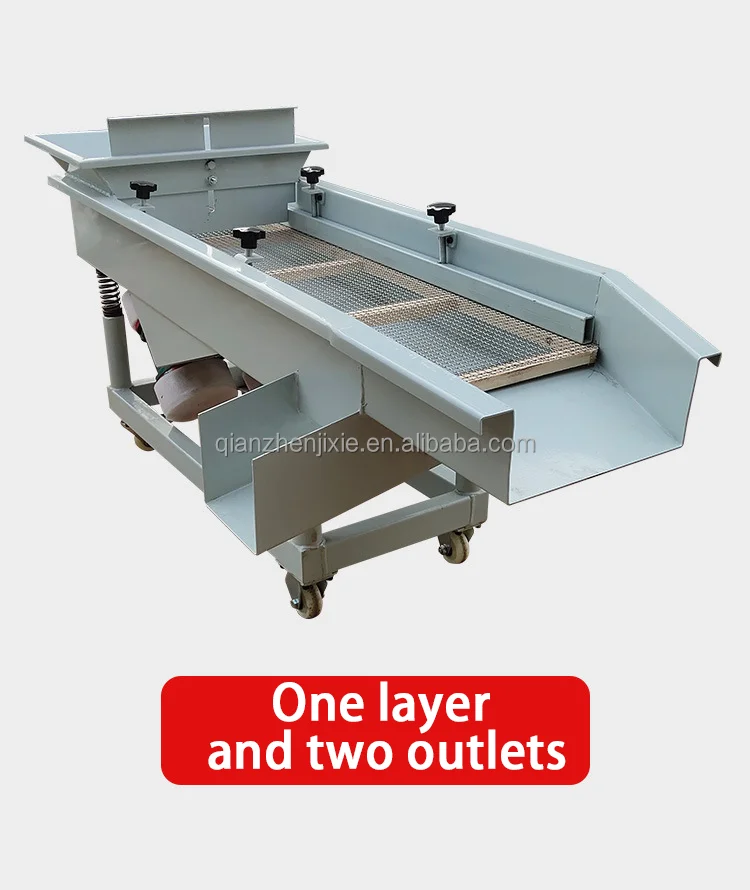

Details Images








Product Paramenters


Model
Size （mm）
Granularity (mm)
Inclined angle
Amplitude (mm)
Layers
Power (KW )
SZF--520
500*2000


0.074-10


0°-7°


4-10


1-6
2*(0.4-0.75)
SZF--525
500*2500
2*(0.4-0.75)
SZF--1020
1000*2000
2*(0.4-0.75)
SZF--1025
1000*2500
2*(0.4-1.1)
SZF--1030
1000*3000
2*(1.1-1.5)
SZF--1040
1000*4000
2*(1.1-1.5)
SZF--1235
1200*3500
2*(1.1-2.2)
SZF--1250
1200*5000
2*(1.1-2.2)
SZF--1535
1500*3500
2*(1.1-2.2)
SZF--1565
1500*6500
2*(2.2-3.7)
SZF--1845
1800**4500
0.074-15
2*(2.2-3.7)
SZF--2050
2000*5000
2*(2.2-3.7)
SZF--2260
2200*6000
2*(2.2-3.7)


Customized






Application Area






Company Profile








Product packaging








FAQ


Q: Are you a factory or trading company?
A: We are a manufacturer.

Q: Do you accept on-site inspection to check your pellet machine and your factory?
A: We strongly,firmly,warmly and sincerely expect your personal visit,and we hope to have a face-to-face negotiation with you and hope to do our host for you then.

Q: What payment terms do you prefer?
A: T/T,L/C,West Union,Cash,and so on.

Q: What about your delivery period?
A: 5 to 50 workdays upon getting advance or L/C,it depends on our production task arrangements,as saying goes:"first come,first served".

Q: How long is the warranty of the product?
A: 1 years.
