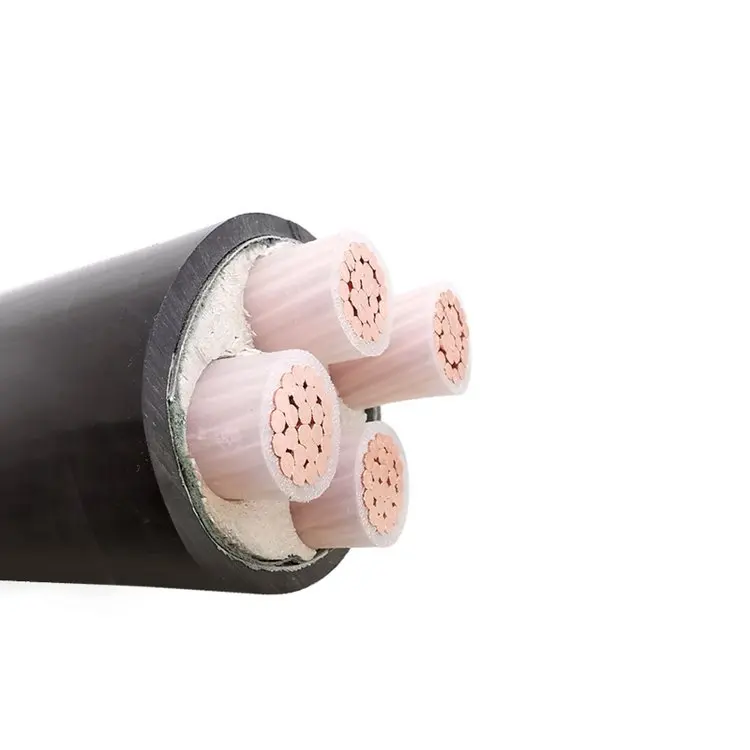

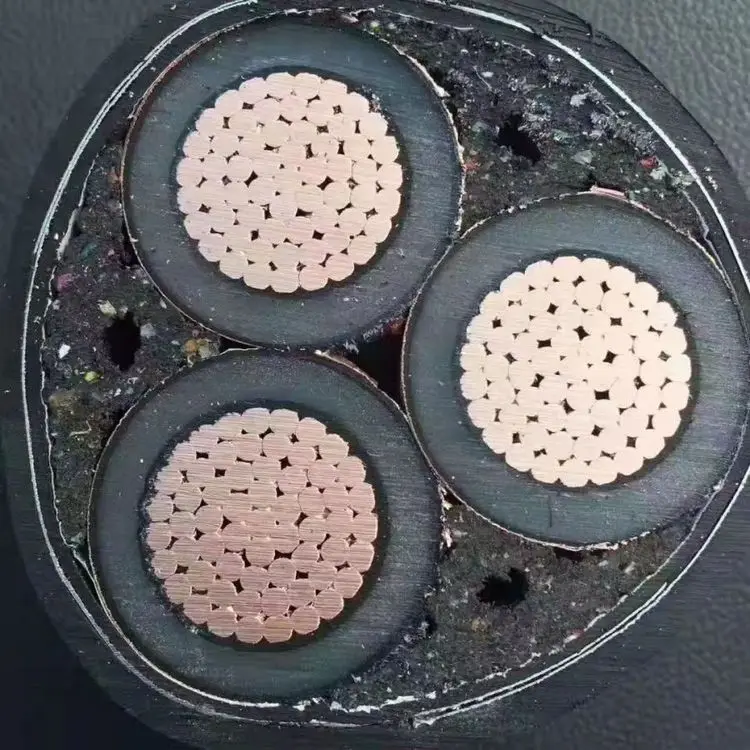

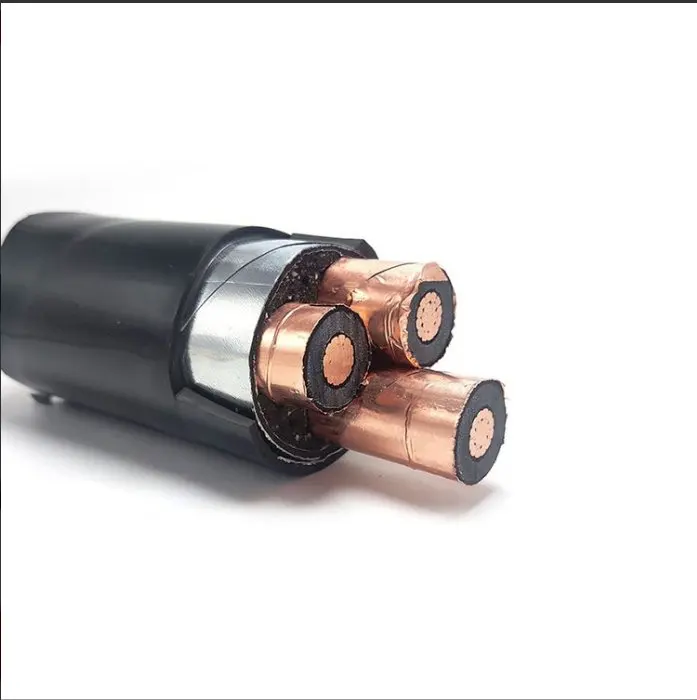

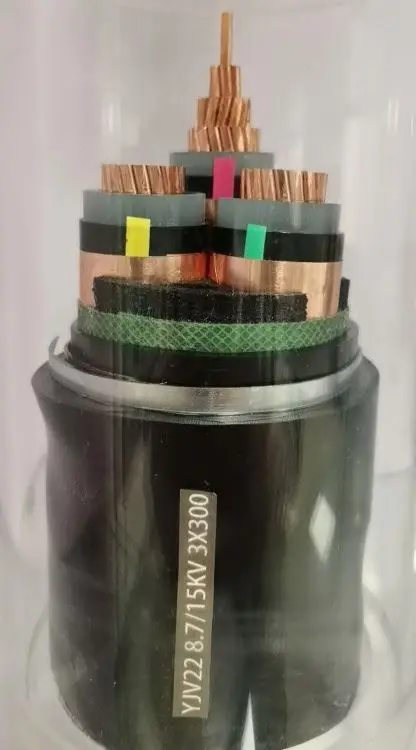

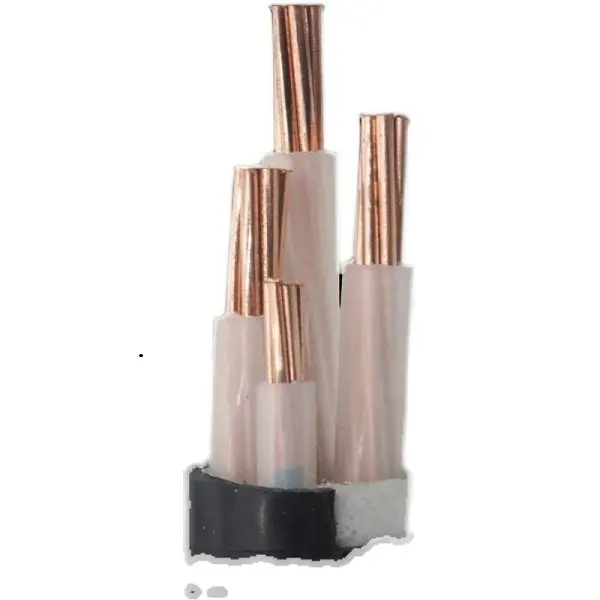

YJV / YJV22 /YJLV /YJLV22 /zr cable 0.6/1KV 3 2 cores CU/AL/XLPE/PVC/SWA cable
- Category: >>>
- Supplier: Shaanxi Jinshenghong Trading Co. Ltd.
Share on (1600822839488):
Product Overview
Description
Product Show
Specification
item | value |
Place of Origin | Shanghai, China |
Model Number | YJV |
Insulation Material | XLPE |
Type | LOW VOLTAGE |
Application | Industrial |
Conductor Material | Copper |
Jacket | PVC |
Product name | YJV power cable |
Rated voltage | 0.6/1KV |
Test voltage | 3500V |
Sheath Color | Black or upon requirement |
Armour | Galvanized Steel tape |
Core NO. | 1, 2, 3, 4, 5, 3+1, 4+1, 3+2 |
Application | underground |
Minimum intallation temperature | Minimum intallation temperature |
Minimum bending radius | 15 x cable OD |
Products Description
PVC insulated power cables not only have the advantages of electrification performance and good chemical stability, but also have simple construction and easy to use. It is suitable for transmission and distribution lines with AC rated voltage Uo/U within 0.6/1 kV. The main feature of low-smoke low-halogen fire-resistant power cables is that it is difficult to catch fire or flame expansion is limited to a certain area, which is suitable for power plants, subways, tunnels, high-rise buildings, large workshops, oil fields,coal mines and other places with dense cable wiring.
Flame retardant cables can operate normally for a period of time when burning, in addition to releasing electrical energy under normal circumstances. Used in nuclear power plants, subways, mixers, high-rise buildings and other places involving fire safety and their lifesaving. and other places related to fire safety and its lifesaving.

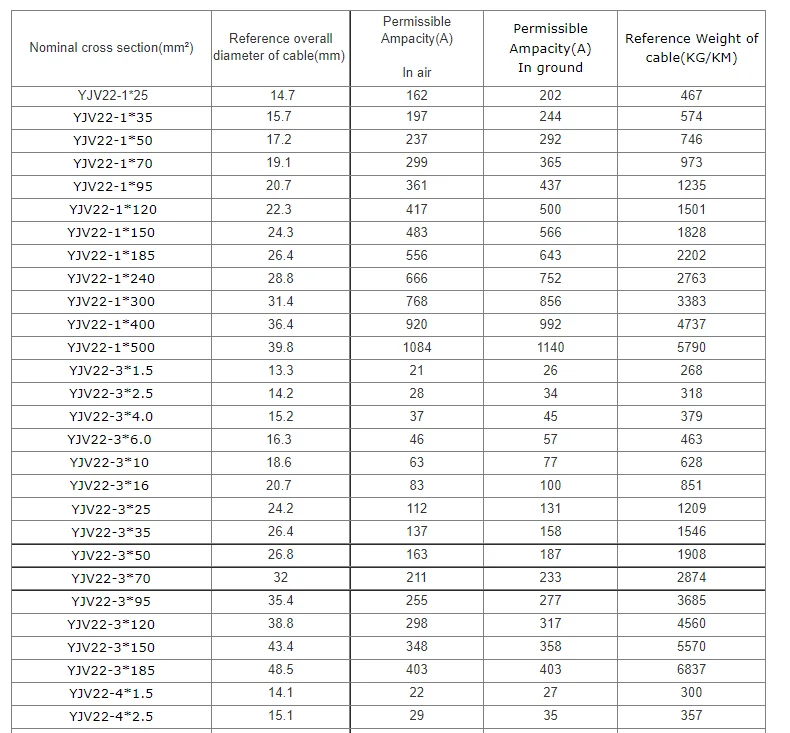

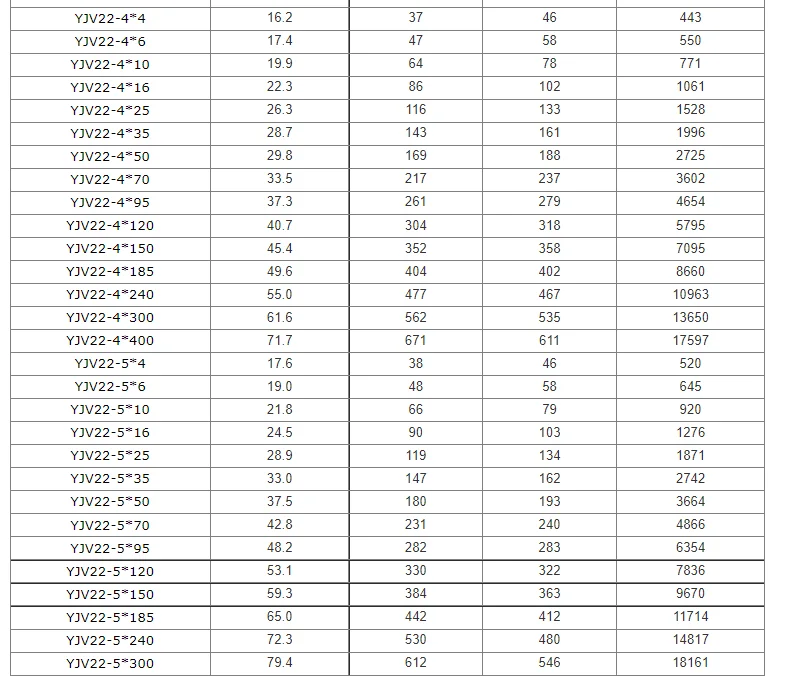

The calculation condition of the capacity ambient temperature is 25°C The working temperature of the conductor is 70°C When the cable is laid underground, the soil heat resistance coefficient is g=1.0°C
m/W, without considering the phenomenon of increasing soil heat resistance coefficient caused by moisture in the long-term operation of the cable.
When a multi-core cable is buried in the ground, the gap between the cable shaft and the surface is 1000 mm, and the cable axis clearance is 3 times the outer diameter
(1) The rated voltage Uo/U is 0.6/1 kV.
(2) The maximum working temperature of the cable conductor is 70°C.
The calculation condition of the capacity ambient temperature is 25°C The working temperature of the conductor is 70°C When the cable is laid underground, the soil heat resistance coefficient is g=1.0°C
m/W, without considering the phenomenon of increasing soil heat resistance coefficient caused by moisture in the long-term operation of the cable.
When a multi-core cable is buried in the ground, the gap between the cable shaft and the surface is 1000 mm, and the cable axis clearance is 3 times the outer diameter
(1) The rated voltage Uo/U is 0.6/1 kV.
(2) The maximum working temperature of the cable conductor is 70°C.
(3) When the cable short circuit time is less than 5 seconds,
the maximum conductor temperature is lower than 160°C.
(4) When installing the cable, the ambient temperature is not less than 0 °C, and its minimum bending radius is as follows:
single-core cable -20 (D+d), unit: multi-core cable
millimeter-15 (D+d)
unit: mm
the maximum conductor temperature is lower than 160°C.
(4) When installing the cable, the ambient temperature is not less than 0 °C, and its minimum bending radius is as follows:
single-core cable -20 (D+d), unit: multi-core cable
millimeter-15 (D+d)
unit: mm
Factory Show
Packing & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
