Product Overview
Description
JINAN DEREK LASER Co.,Ltd
Products Description

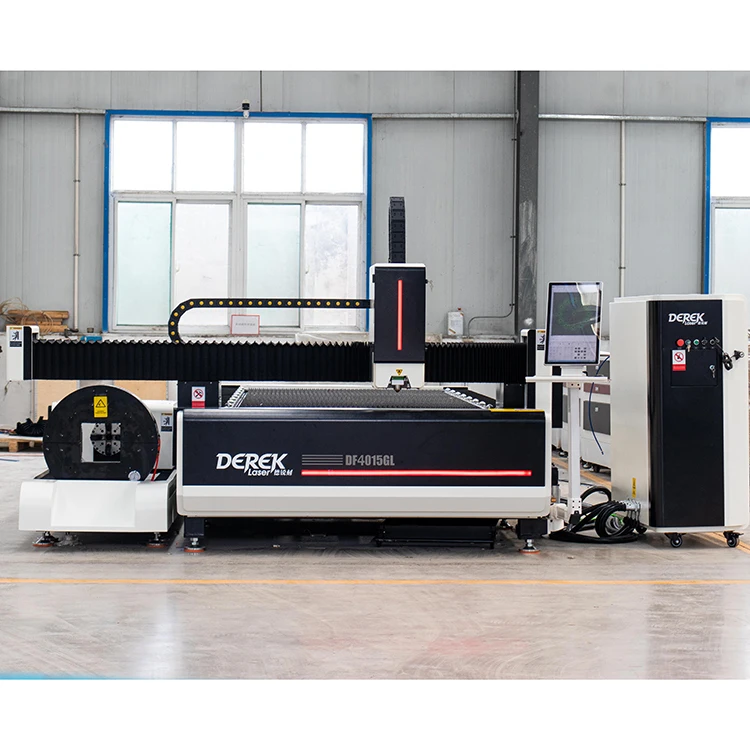

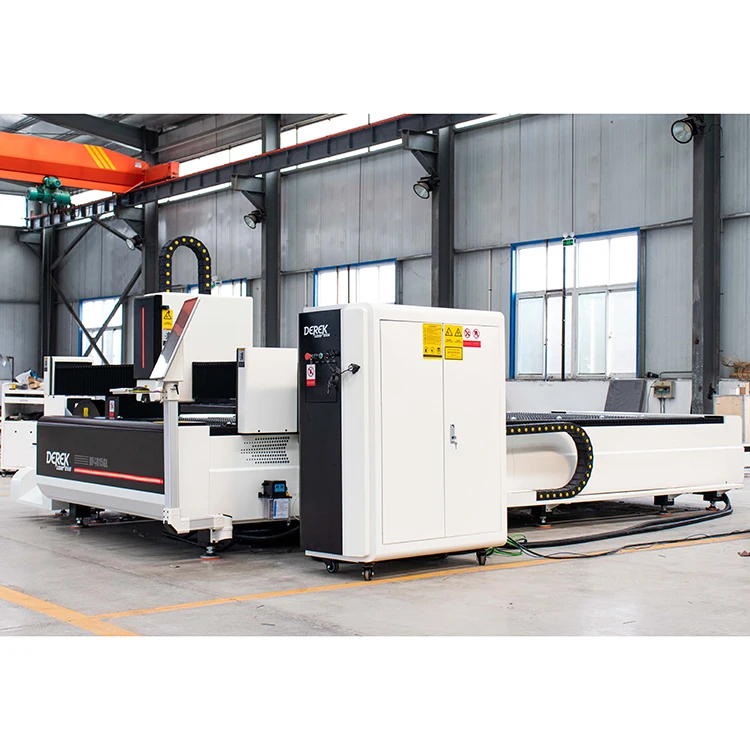

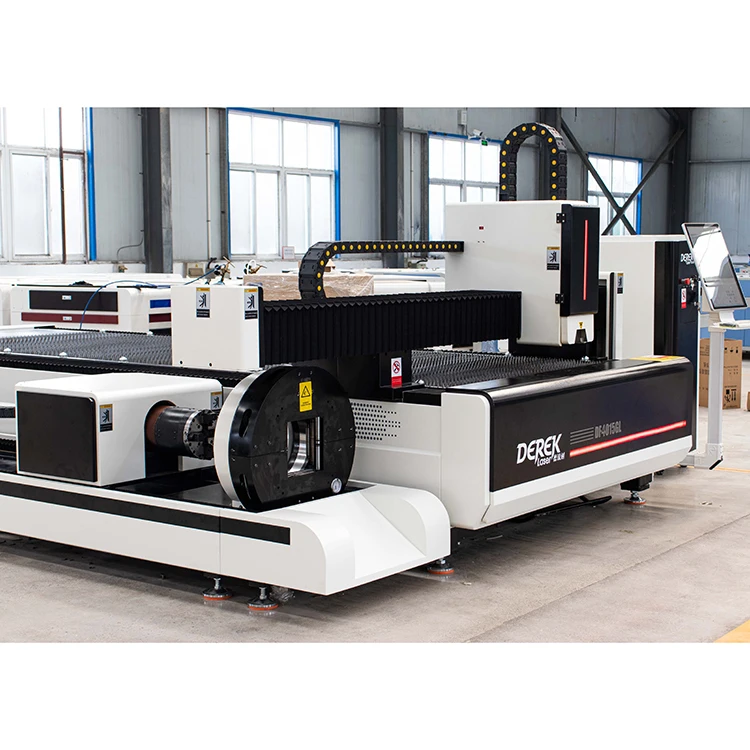

DEREK DF4015GL Fiber Laser Cutting Machine For Metal sheet and Tube
Technical Parameters for DF4015GL
Working Area | 4000x1500mm |
Type of Laser Cutter | Fiber |
Laser Source | Raycus/ IPG |
Rated Laser Power | 1kw/1.5kw/2kw/3kw/4kw/6kw/8kw |
Drive System on X Y Axes | Rake/ Gear |
Z Axes Drive System | Ball Screw - Hiwin |
Laser Head | Au3Tech/ Raytools Auto Focus Laser Head |
Positioning Accuracy | <0.03 mm |
Repetition Accuracy | <0.02 mm |
Min. Cutting Width | 0.1 mm |
Transmission | Dual Precise Gear and Rack Drive |
Emitter Cooling | Water with Protection System |
Laser Emitter Operation Time | Up to 100,000 Hours |

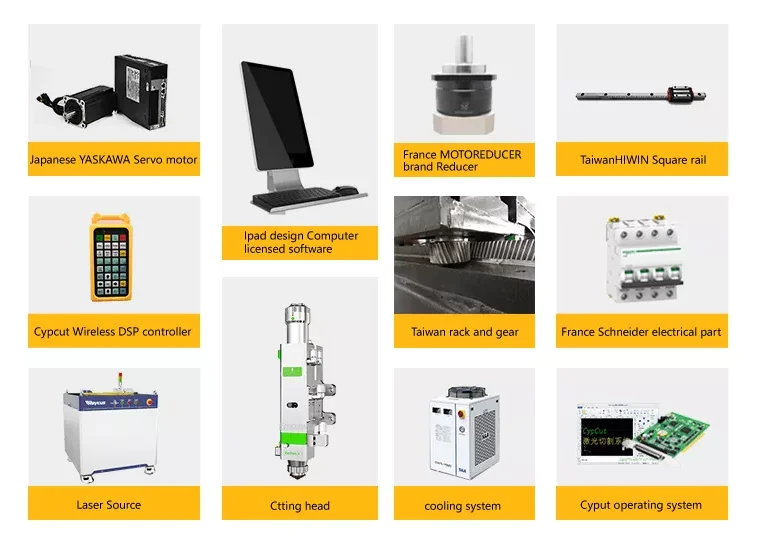

Control System | Au3tech Control System/Cypcut FSCUT 3000 system +DSP controller |
Guide Rail | Taiwan Hiwin/PMI |
Motor Type | Japanese Fuji Servo Motor |
Reducer | French Motoreducer |
Electronic | French Schneider |
Pneumatic parts | Japanese SMC |
Water Chiller | Dual-temperature S&A Water Chiller |
Power Supply | 380V ± 10%, 50Hz/60Hz/60A |

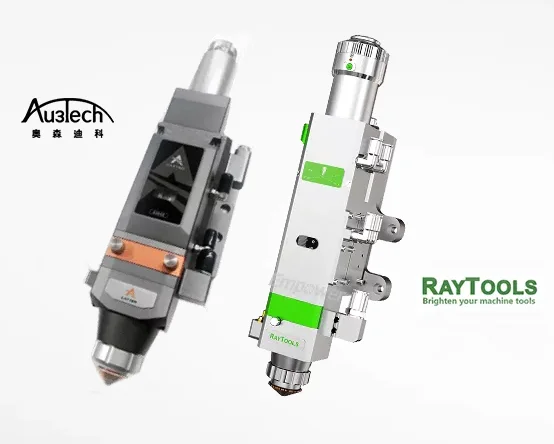

Famous Laser Cutting Head
* Manual or automatic operation
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
* Bigger adjustment rangeAdjustment range-10 mm ~ + 10 mm, accuracy 0.01 mm, suitable for 0 ~ 20 mm different types of plate.

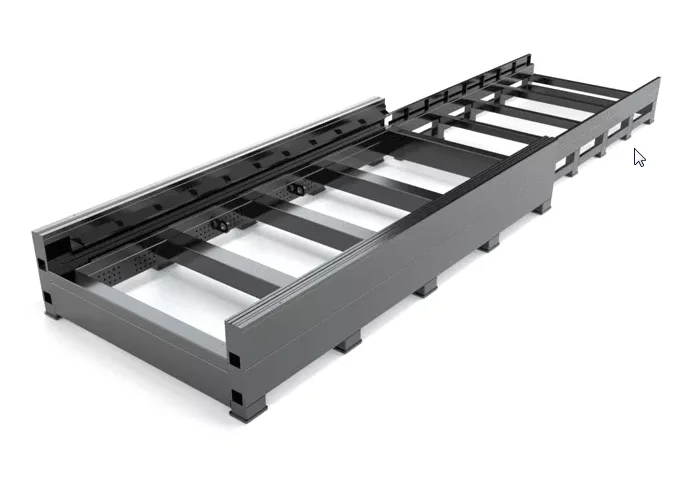

The Segmented Rectangular Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the
resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the
resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

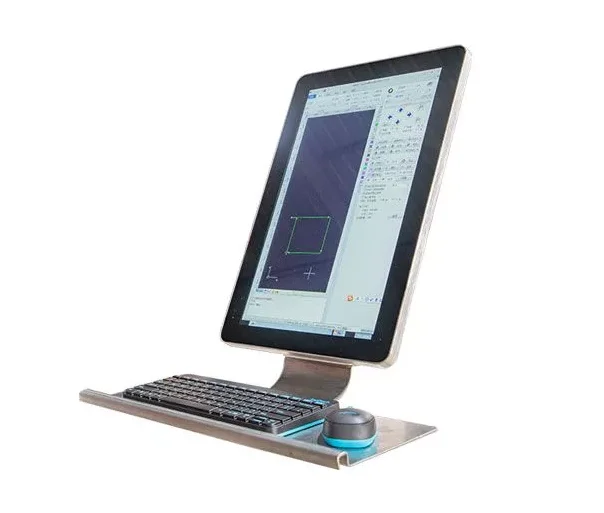

The IPAD is designed with a vertical display that is fast in response, high in contrast, wide in field of view, low in power consumption and high in resolution, unlike traditional horizontal displays. In addition, it features high brightness levels and low reflectivity as well as a rugged solid glass panel.
Operation area with 304 stainless steel design, prevent high-temperature cutting spark damage to the machine surface.

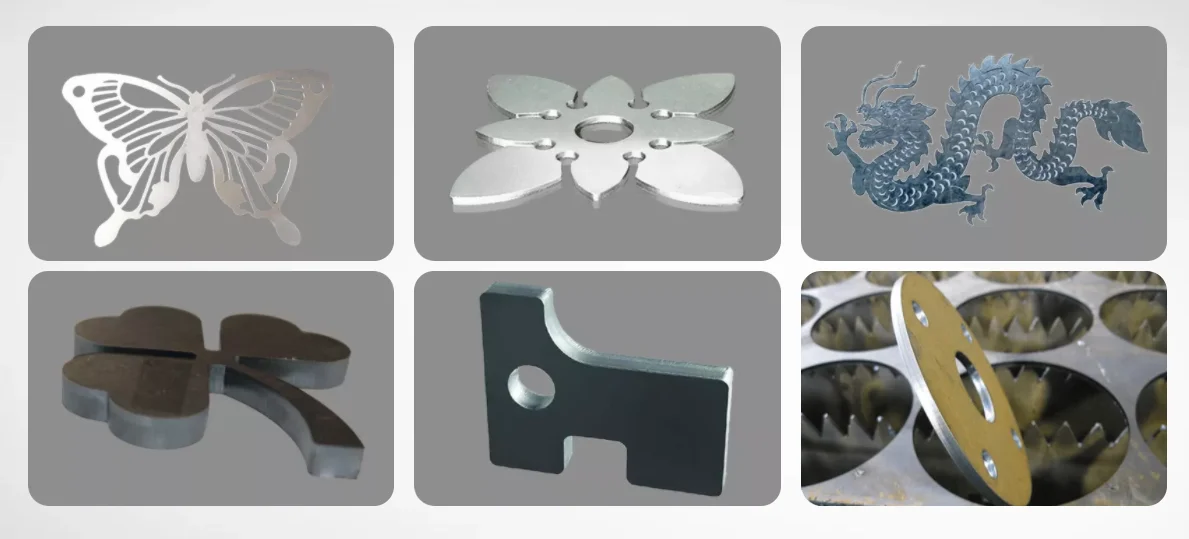

Samples

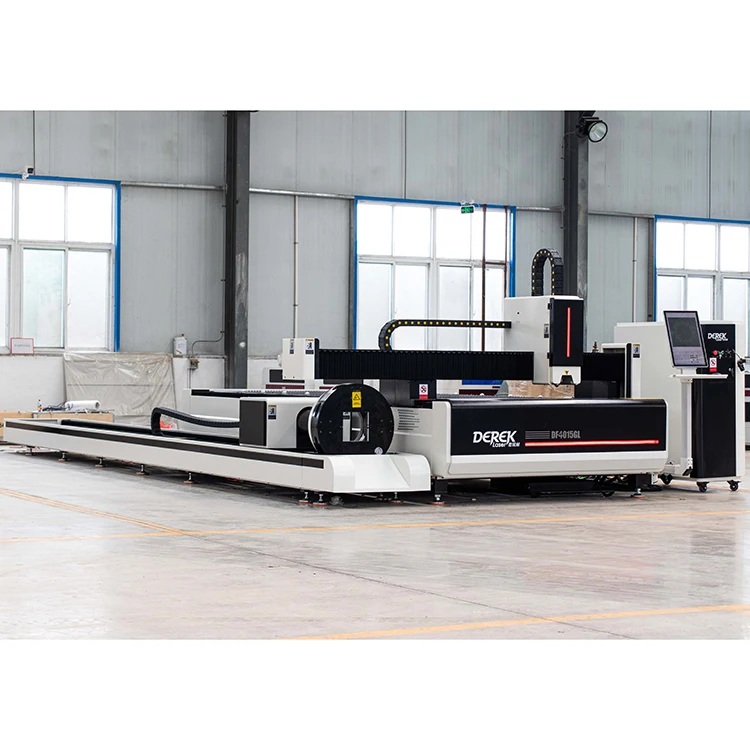

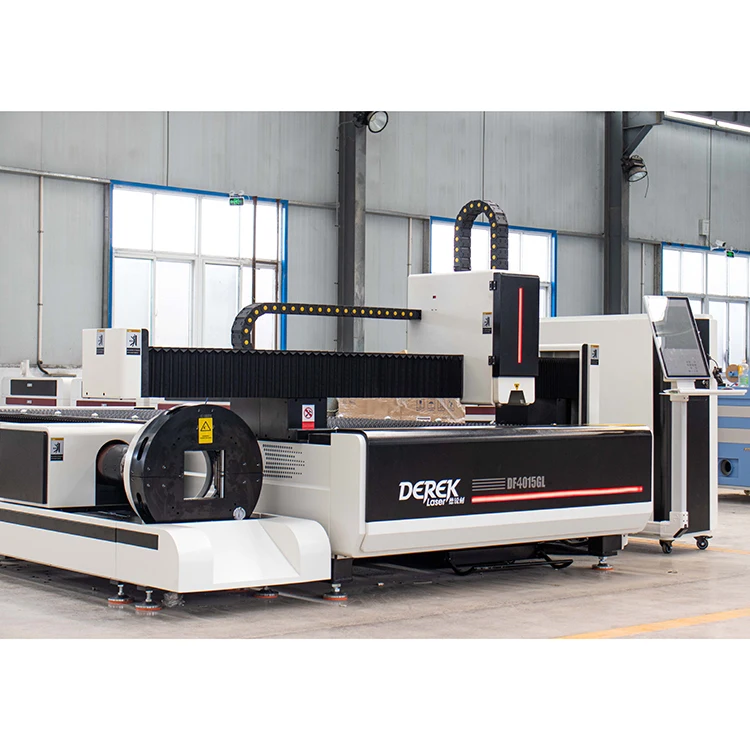

DF 4015GL DEREK fiber laser cutting machine as a classic model, widely used in many areas of our daily life, such as stainless steel kitchenware, storage cabinets and other cabinet processing, closely related to people’s daily life. For cutting all kinds of metal plate, pipe (with pipe cutting device) , mainly used for stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, all kinds of alloy plate, rare metal and other metal materials.
Exhibition
Product packaging
Certifications
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5: What's the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6: How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q8: How's the payment?
Telegraphic Transfer(T/T).Paypal, Western Union, Alibaba Trade Assurance.
Q9: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q10: How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
