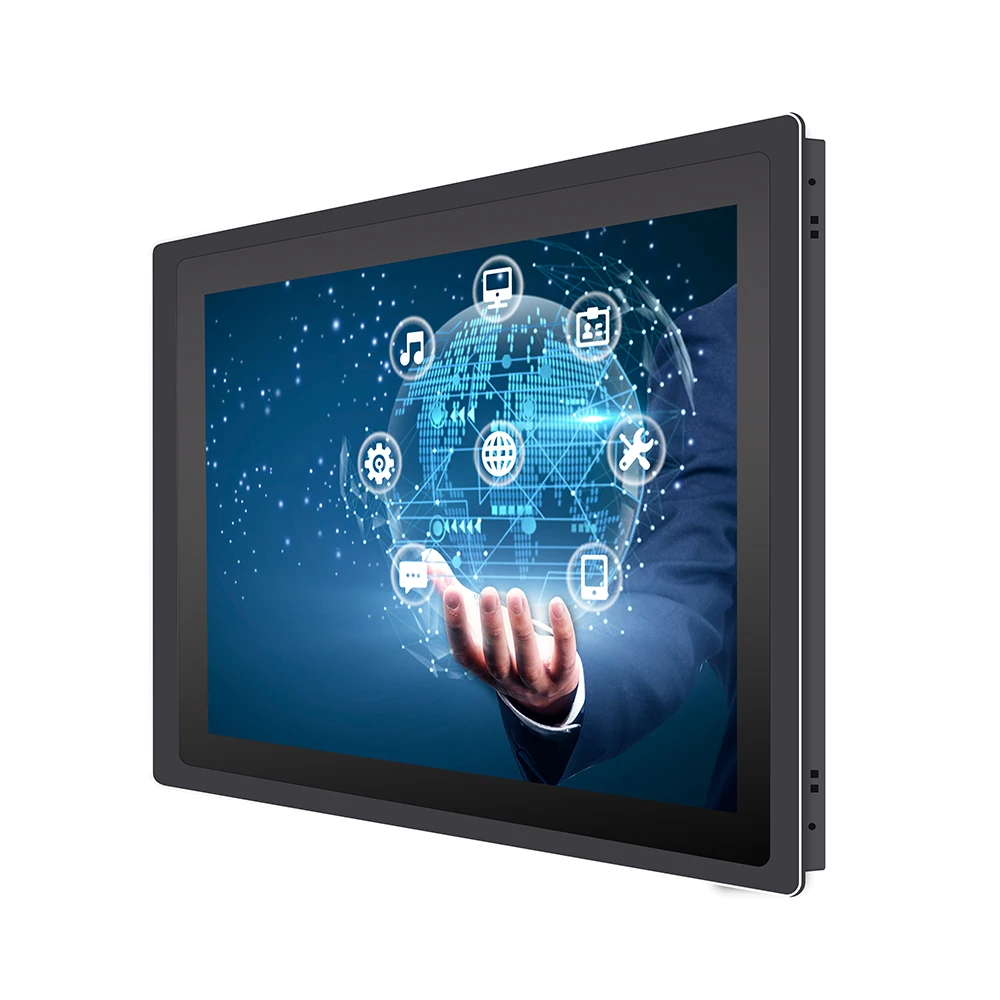

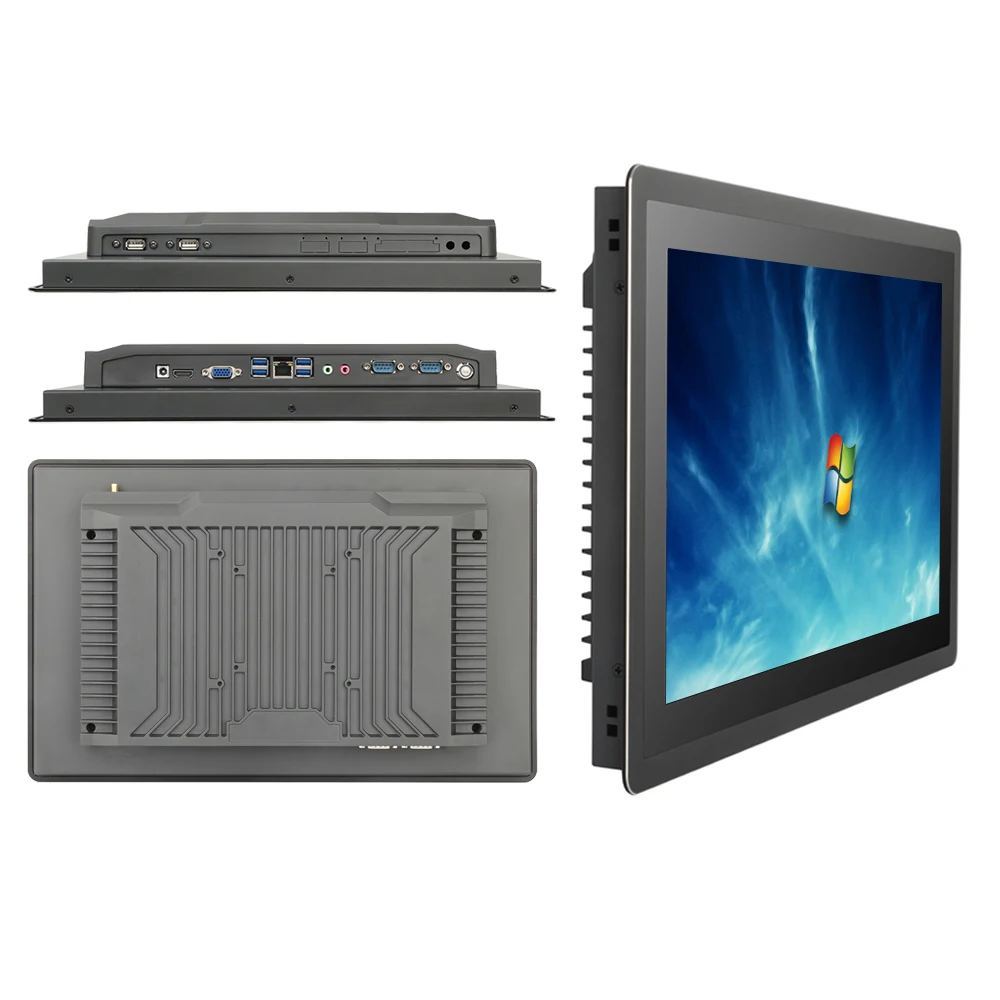

Embedded All In One PC Quad Core J1900 CPU I3 I5 I7 Processor Touch Screen Computer Industrial PC Panel
- Category: Industrial Computer & Accessories >>>
- Supplier: Guangzhou,Zhengfeng,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Inch | OPptimum Resolution | Ration | Inch | Optimum Resolution | Ration | ||
10.1" | 1280*800@60HZ | 16:10 | 10.4" | 1024*768@60HZ | 4:3 | ||
12.1" | 1024*768@60HZ | 4:3 | 13.3" | 1366×768@ 60 Hz | 16:9 | ||
15" | 1024*768@60HZ | 4:3 | 15.6" | 1920×1080@ 60 Hz | 16:9 | ||
17" | 1280*1024@ 60 Hz | 4:3 | 18.5" | 1366×768@ 60 Hz | 16:9 | ||
19" | 1280*1024@ 60 Hz | 4:3 | 21.5" | 1920×1080@ 60 Hz | 16:9 | ||
23.6" | 1920×1080@ 60 Hz | 16:9 | |||||
LCD panel | ||
Intel® Celeron J1900 2.0GHz quad cores( Core i3, Core i5 Core i7optional) Intel®Core i3-2370M 2.4GHz DDR3 4G Intel®CoreI3-2310M 2.1GHz DDR3 4G Intel®I3-2350M 2.3GHz DDR3 4G Intel®I5-4200U 1.6GHz DDR3 4G Intel®I7-4500U 1.8GHz DDR3 4G | ||
Memory | 2G/4G/8G/16G | |
Hard Drive Capacity | 64G/128G/256G/512G/1024G | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Wireless Network | WIFI optional | |

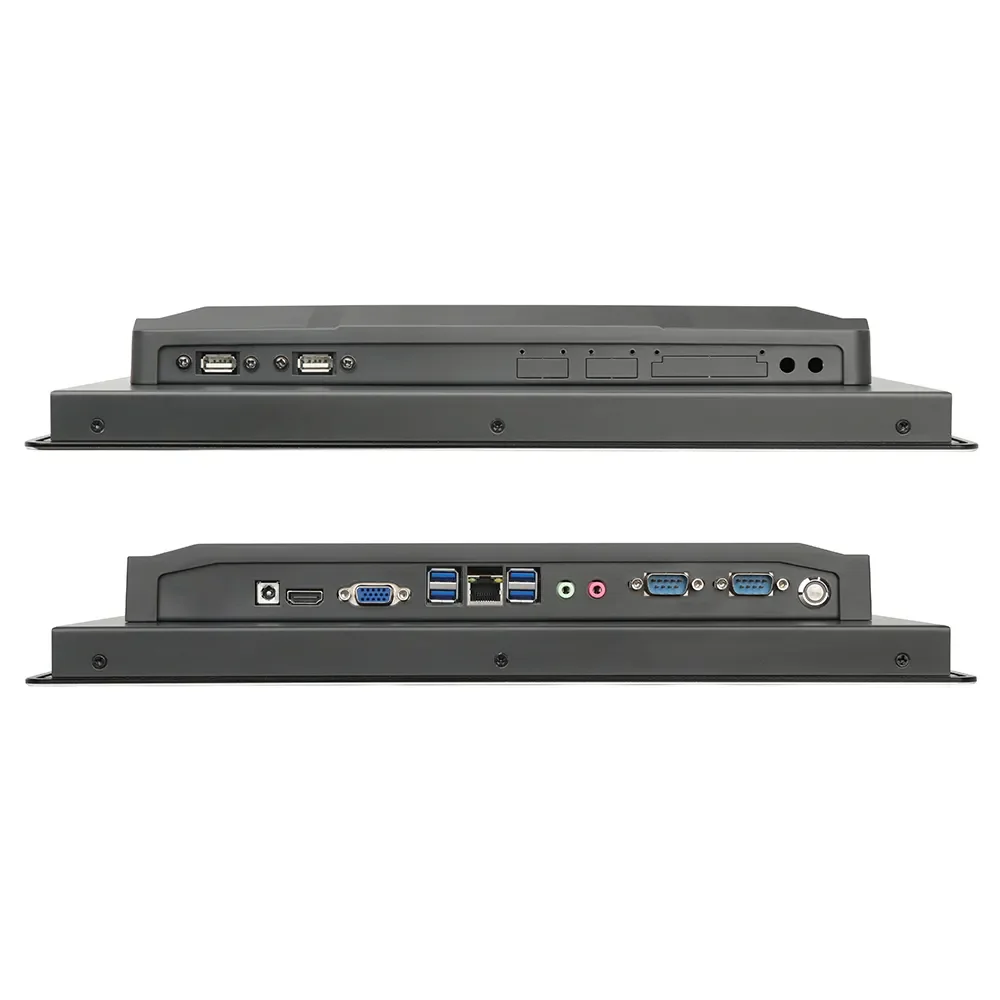

I/O Interface | 2×USB2.0,4xUSB3.0,1×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC | |
Opetation System | Preinstall test version Windows 7/8/10,Linux | |
Installation mode | Side mounting bracket / VESA 75mm & 100mm enclosure | |
CCC standard power cord, Chinese style, 1.5m, black VGA D-sub Serial port , public to public, 1.5m AC100-240V VGA+HDMI / DC12V / USB2.0/USB3.0 USB touch cable and etc.... | ||
certification | 3C CE FCC ROHS | |
Operating Environment | ||
Temperature range | operating: -10to 60°C, storage :-20 to 70°C | |
Relative humidity | Working: 20% - 80%; Storage: 10% - 90% | |
Operating altitude | ＜3000 m | |
LCD technical parameters | ||
Screen size | 18.5 inch or custom | |
Screen scale | 16:9 | |
Backlight type | LED | |
Pixel size | 0.3mm × 0.3mm | |
Optimal resolution | 1366×768@ 60 Hz | |
Response time | 13ms | |
Color type | 16.7 millio | |
Brightness LCD panel | 250 CD / m2(High brightness optional) | |
Contrast (standard value) | 1000:1 | |
Visual angle(CR > 10) | 85/85/85/85 | |
Power consumption | ≤ 47w | |
Touch screen technical parameters | ||
Touch screen type | Capacitive touch screen | |
Touch screen transmittance | 87% | |
Surface hardness | 6H | |
Cover lens | 1.1mm | |
Touch points | 10 | |
Touch response time | ≤10 ms | |
Touch method | Finger / capacitive pen | |
Single touch life | ≥50 millio | |
Touch linearity | ＜2% | |
Warranty | 1 year | |
Installation method | Side mounting bracket, VESA 75mm & 100mm | |
Single point operating system | Windows XP，Linux | |
Multipoint operating system | Windows7/8/10，Android | |
Customized service
Company Profile
Q: Does OEM and ODM service available for Industrial touch Panel PC?
A: Yes, both OEM and ODM service are available, we have engineer working in the R&D dept, which able to offer variety customizing option case by case for customers.
Q: Product application ?
A: Adaptable for various application environment,suitable for Smart city; Smart education; Smart payment;Smart machine; Smart transportation; Artificial intelligence etc.
Q: What size of Panel PC available?
A: Regular size will be: 7",10.1, 15'', 15.6'',17'', 18.5'',19'', 21.5'', 23.6'', 27'', 32'' some of the size are in wide screen.
Q: Does logo allowing to be printed on the frame? Do you have MOQ?
A: Yes, logo can be printed on the frame with charge extra moeny, it will be free of charge if quantity upto 100 pcs.
Q: Are you a trading company or factory?
A: We are a professional industrial monitor/panel/android touch screen PC manufacturer started from 2012.
Q: What is your production time?
A: Different quantity, different production time. It will use about 9-12 days if your order over 500pcs.
Q: Are the pictures real picture?
A: The pictures of all products we sell are 100% real shoot, If you want to be our sales agent, you can cooperate with our
company.
Q: What’s your Payment Terms?
A: TT or Paypal, Western Union. We are trade assurance supplier on Alibaba, you also can use trade assurance.
Q:How long is your Lead Time ?
A: Sample within 5 days.Bulk production is 5-15 days according to quantity
Q: Product application ?
A: Adaptable for various application environment,suitable for Smart city; Smart education; Smart payment;Smart machine; Smart transportation; Artificial intelligence etc.
Q: What size of Panel PC available?
A: Regular size will be: 7",10.1, 15'', 15.6'',17'', 18.5'',19'', 21.5'', 23.6'', 27'', 32'' some of the size are in wide screen.
Q: Does logo allowing to be printed on the frame? Do you have MOQ?
A: Yes, logo can be printed on the frame with charge extra moeny, it will be free of charge if quantity upto 100 pcs.
Q: Are you a trading company or factory?
A: We are a professional industrial monitor/panel/android touch screen PC manufacturer started from 2012.
Q: What is your production time?
A: Different quantity, different production time. It will use about 9-12 days if your order over 500pcs.
Q: Are the pictures real picture?
A: The pictures of all products we sell are 100% real shoot, If you want to be our sales agent, you can cooperate with our
company.
Q: What’s your Payment Terms?
A: TT or Paypal, Western Union. We are trade assurance supplier on Alibaba, you also can use trade assurance.
Q:How long is your Lead Time ?
A: Sample within 5 days.Bulk production is 5-15 days according to quantity
