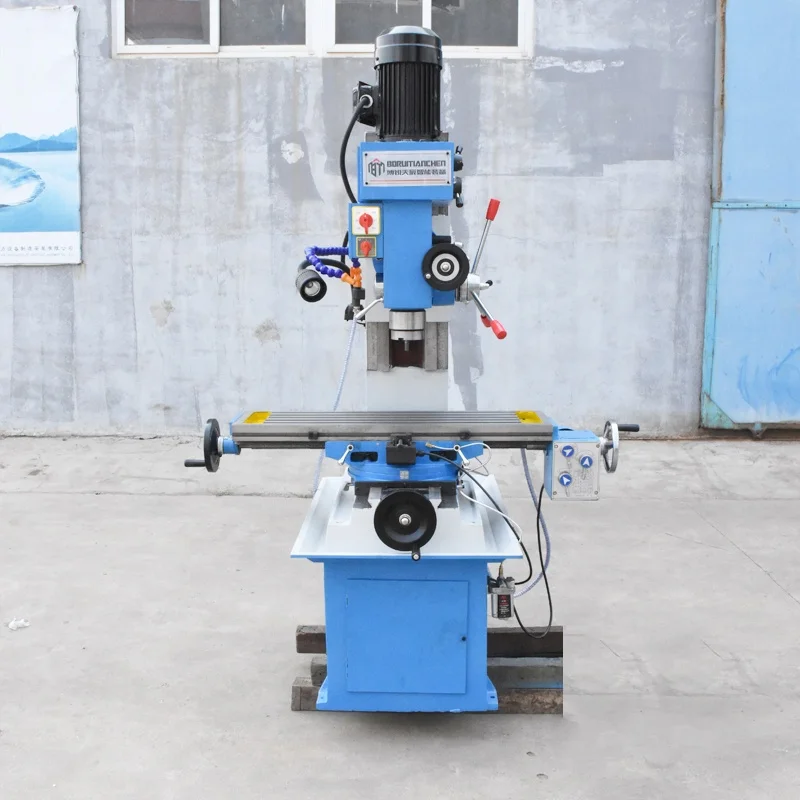

zx50c High Precision Mini Milling Machine Metal Vertical Drilling And Milling Machine Price
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600822938503):
Product Overview
Description
zx50c Mini Milling Machine Metal Vertical Drilling And Milling Machine Price
Products Description
The main performance characteristics:
1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive

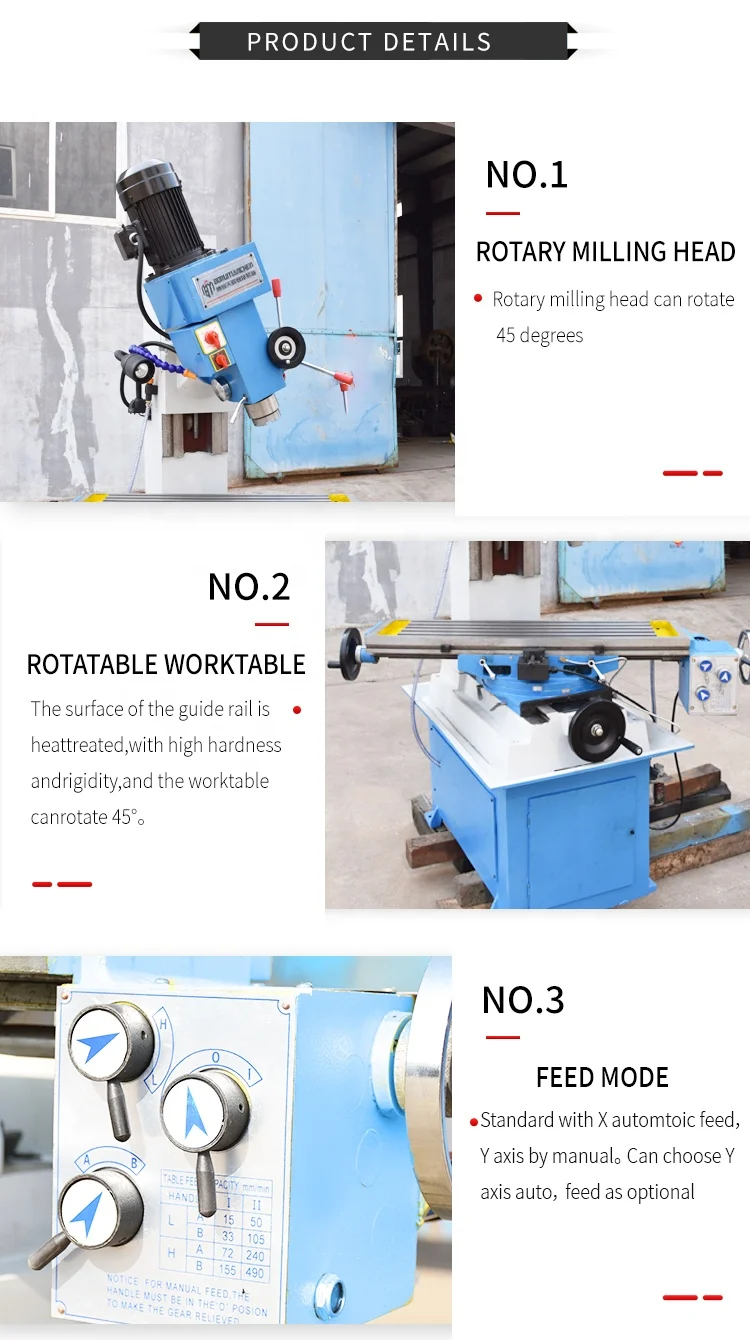

4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Product main technical parameters:
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Product main technical parameters:
Specifications | ZX50C |
Max.drilling dia.(mm) | 50 |
Max.end milling width(mm) | 100 |
Max.vertical milling dia.(mm) | 25 |
Max.taopping dia. | M16 |
Distance between spindle nose and table surface(mm) | 50-410 |
Spindle speed range (r.p.m) | 110-1760 |
Spindle travel(mm) | 120 |
Table size(mm) | 800×240 |
Table travel(mm) | 400×215 |
Overall dimensions(mm) | 1270×950×1800 |
Motor(kw) | 0.85/1.5 |
N.W/G.W(kg) | 500/600 |
Standard Equipment:
Collet chuck kits
Drill chuck
Reduction Sleeve
Draw bar
Work lamp
Coolant system
Operate tools.
Drill chuck
Reduction Sleeve
Draw bar
Work lamp
Coolant system
Operate tools.
Optional Equipment:

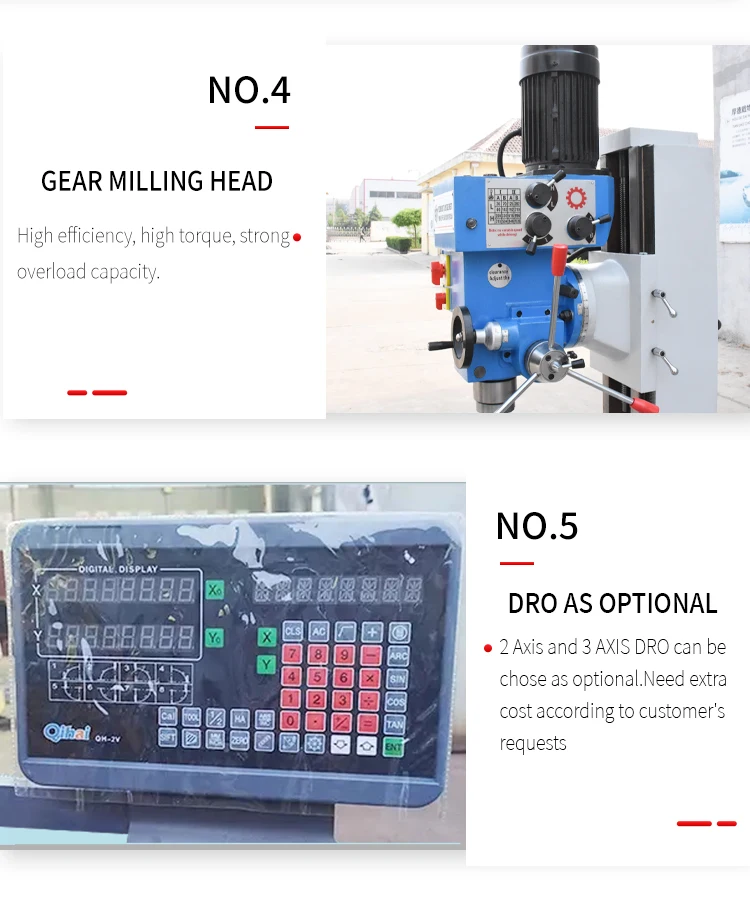

2 Axis DRO
Machine vice
X axis power feed
Work table swivel
Machine vice
X axis power feed
Work table swivel
Details Display
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
6. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
6. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
