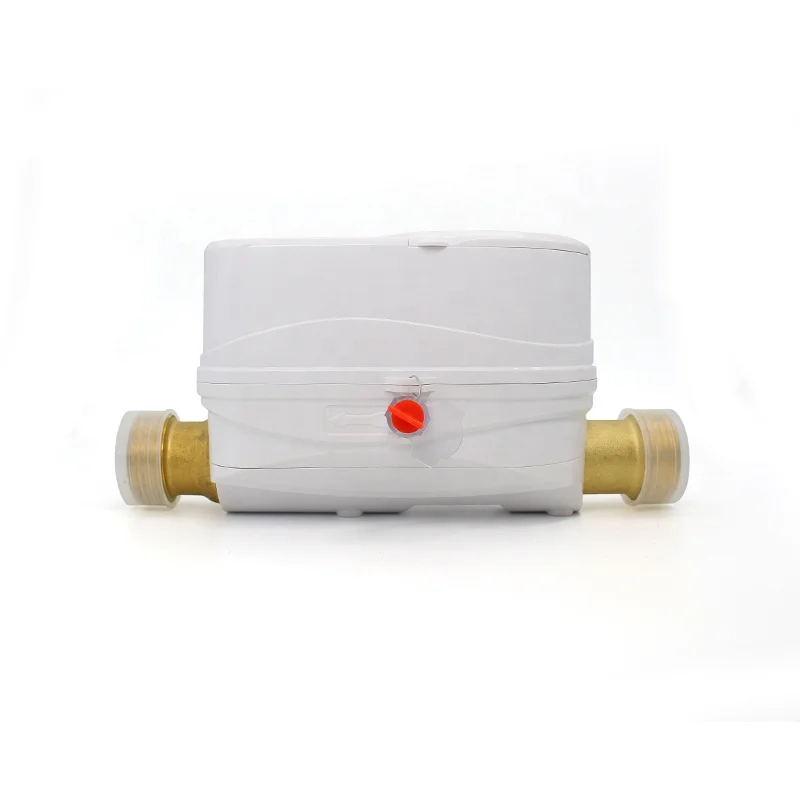

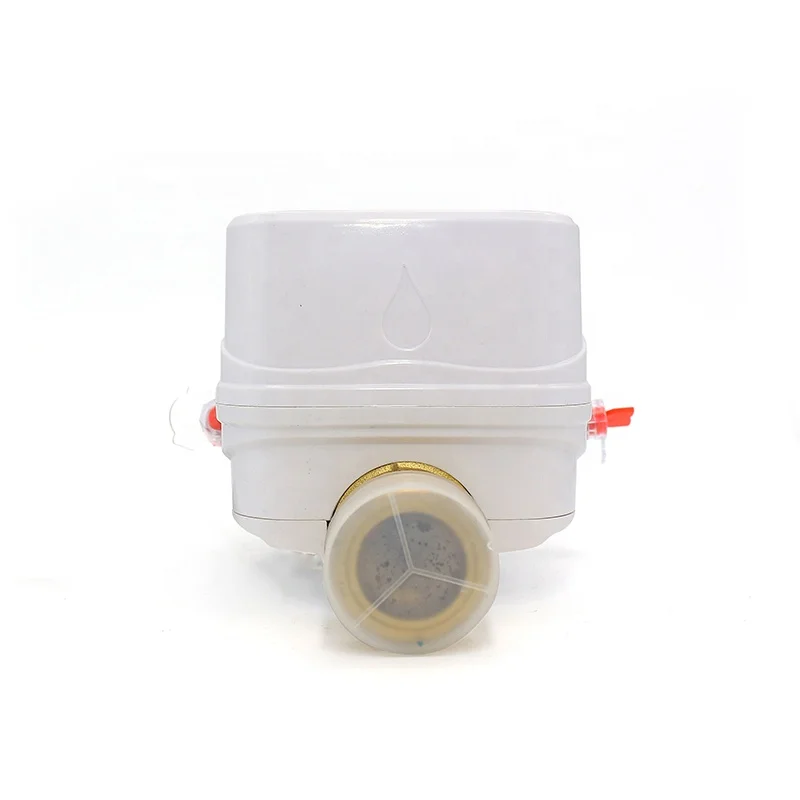

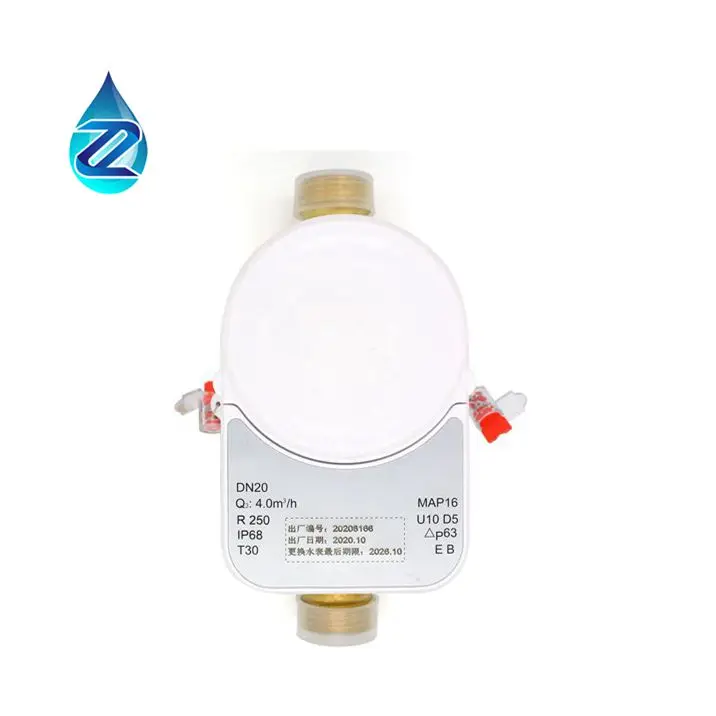

Smart ultrasonic cold water meters hot water water meter manufacturer in China
Ultrasonic water meter is a kind wireless/wired smart water meter based on ultrasonic technologywith high precision. The wireless communication can be NB-IoT, LoRa or LoRaWAN etc.. The wired meter supports RS485, M-Bus etc. communication. It is a perfect choice of residential using meter. It adopts micro power consumption technology. One battery can be used for more than 6 years and can achieve a minimum flflow of 0.001M ³. It has characteristics of small volume, good stability and strong anti-interference ability.
For ultrasonic water meter, we can design as your requirements, make it with valve or without valve.

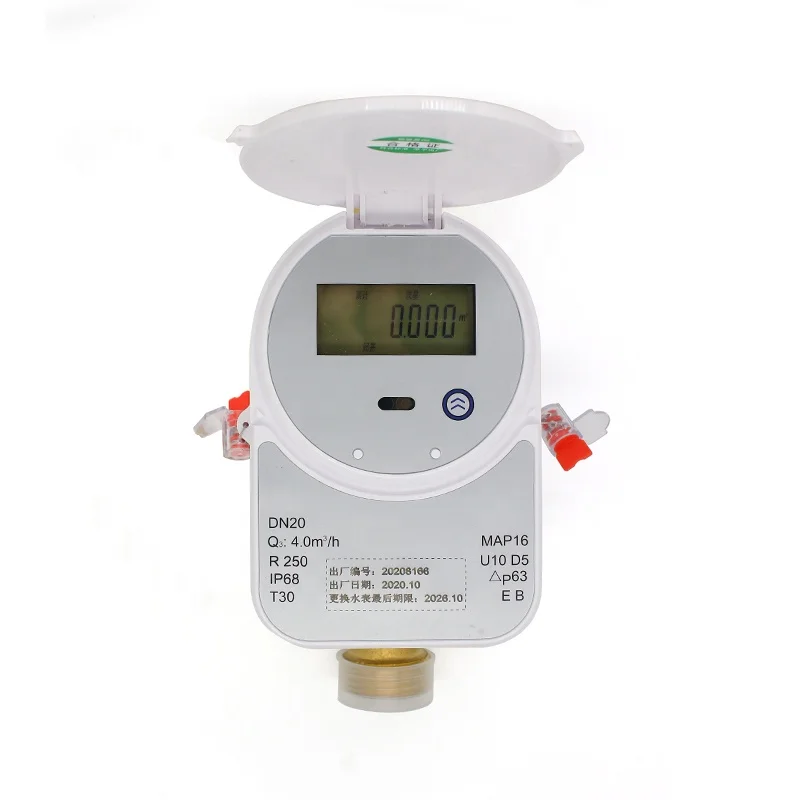

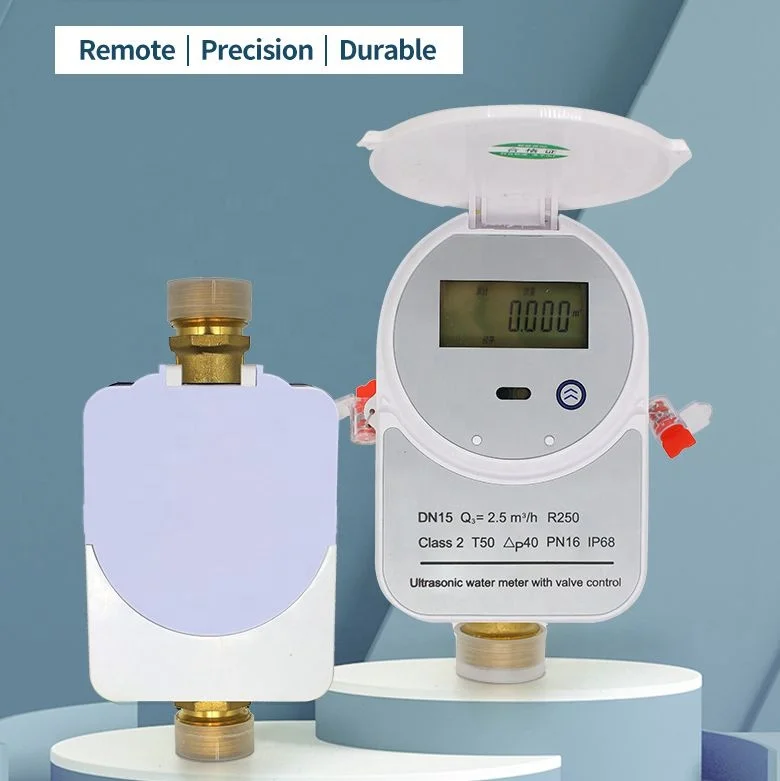

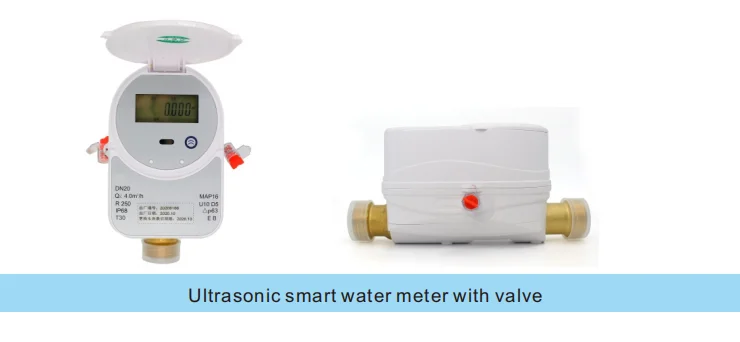

Ultrasonic water meter with valve control

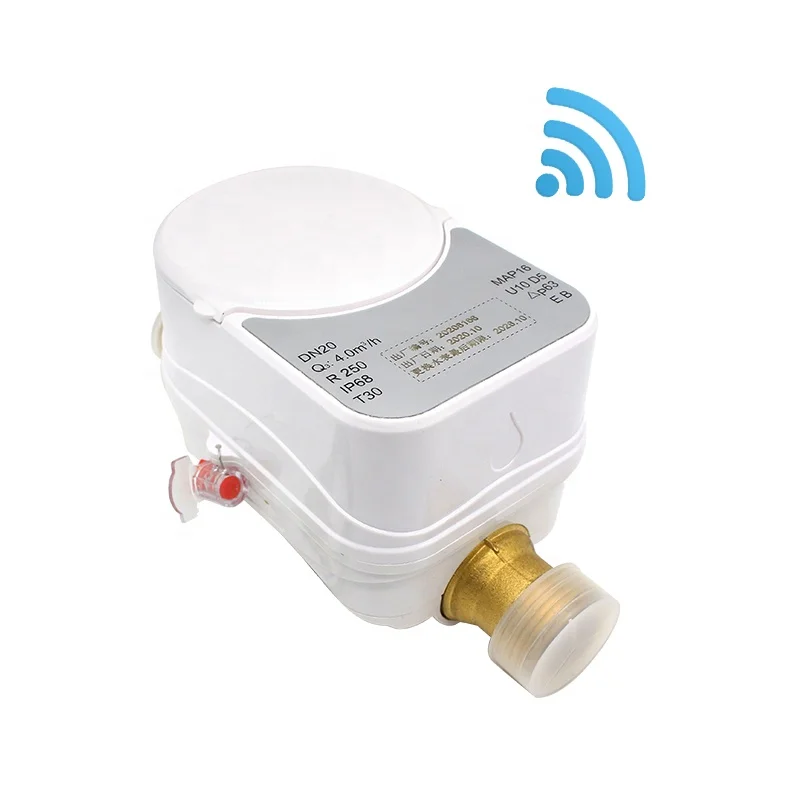

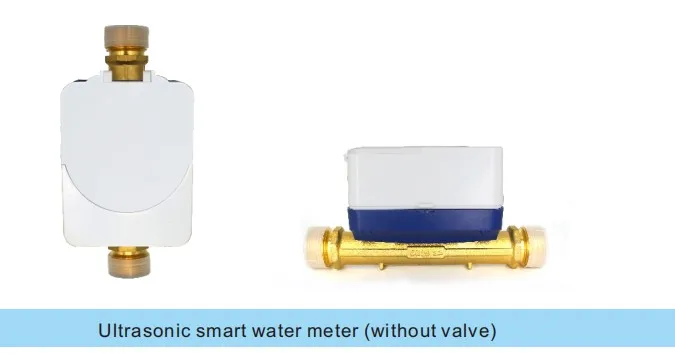

Ultrasonic water meter without valve control
Smart Solution
Smart ultrasonic cold water meters hot water water meter manufacturer in China

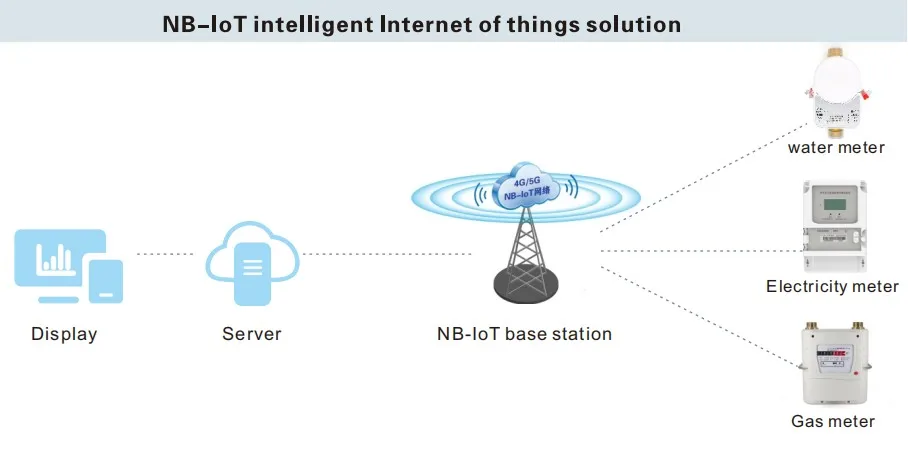

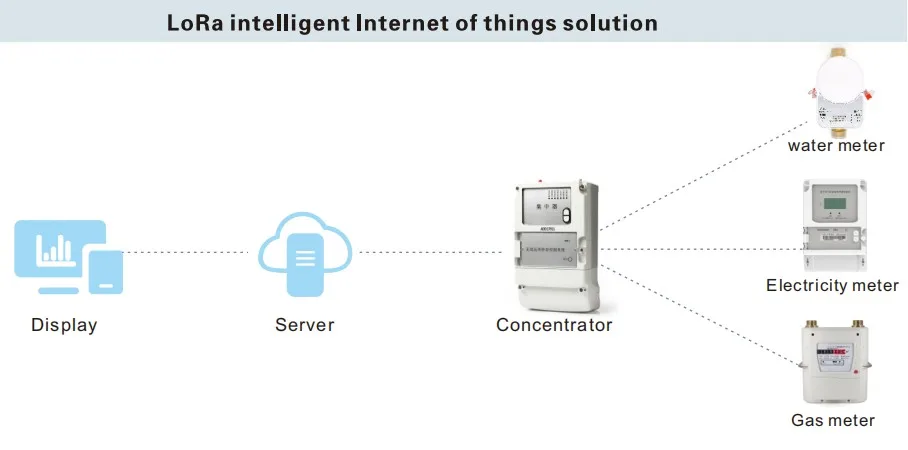

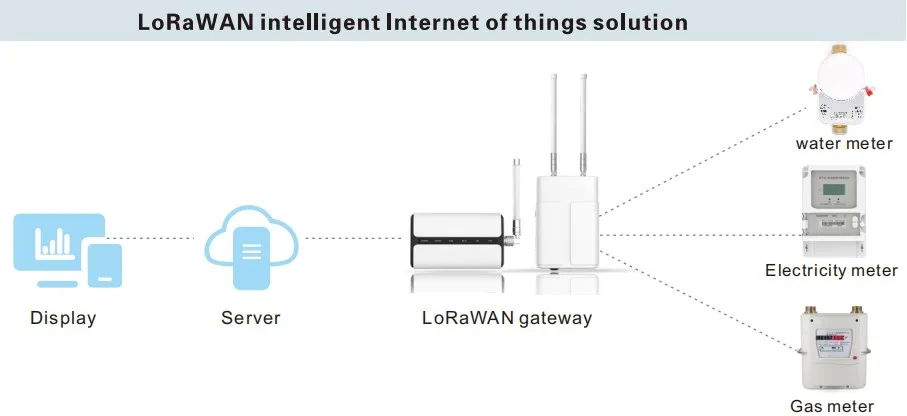

Ultrasonic water meter can be designed with LoRa/LoRaWAN/NB-IoT module reamote control system.
Product Functions
Smart ultrasonic cold water meters hot water water meter manufacturer in China
1. Accurate measurement;
2. Remote reading;
3. Remote control valve;
4. Prepaid / post payment;
2. Remote reading;
3. Remote control valve;
4. Prepaid / post payment;
5. Pre-warning system* Stepped water price;
6. Ultra long lifetime battery;
7. Data storage;
8. Flexible setting of upload frequency;
6. Ultra long lifetime battery;
7. Data storage;
8. Flexible setting of upload frequency;
9. AMR
Product Paramenters
Smart ultrasonic cold water meters hot water water meter manufacturer in China

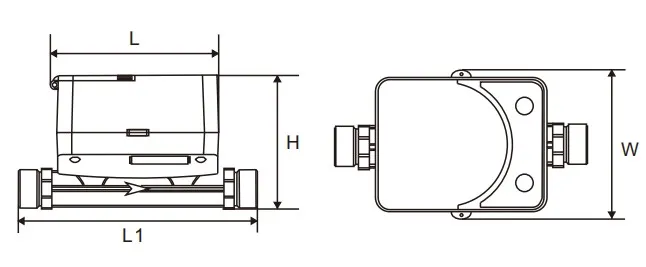

Size of ultrasonic water meter with valve (DN15-DN25)
Diameter | DN15 | DN20 | DN25 |
Thread | G¾B | G1B | G1¼B |
L(mm) | 137 | 137 | 137 |
L1(mm) | 165 | 195 | 225 |
H(mm) | 102 | 102 | 107 |
W(mm) | 101 | 101 | 101 |

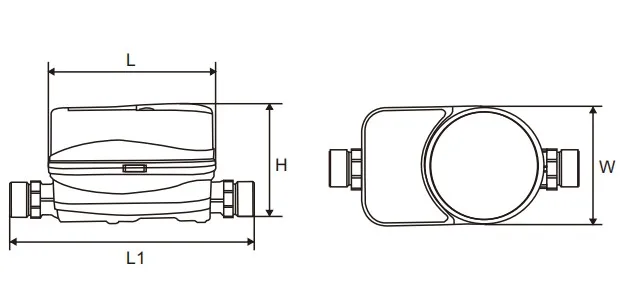

Size of ultrasonic water meter without valve (DN15-DN25)
Diameter | DN15 | DN20 | DN25 |
Thread | G¾B | G1B | G1¼B |
L(mm) | 116.5 | 116.5 | 116.5 |
L1(mm) | 165 | 195 | 225 |
H(mm) | 96.5 | 96.5 | 107 |
W(mm) | 97 | 97 | 97 |
Technical data of working status:
Caliber(DN) | 15mm | 20mm | 25mm | 32mm | 40mm | ||||
Common flflow (Q3) | 2.5m³/h | 4m³/h | 6.3m³/h | 10m³/h | 16m³/h | ||||
R value(Q3 / Q1) | 250 | ||||||||
Unit of measurement | 1m3 | ||||||||
Min. reading | 0.0001 m3 | ||||||||
Max. reading | 99999 m3 | ||||||||
Temperature class | T30 | ||||||||
Allowable water pressure | 1.6MPa | ||||||||
Pressure loss level | (DN15-DN20)△p40,(DN25-DN40)△p63 | ||||||||
Sensitivity level | U10/D5 | ||||||||
Environmental safety level | Class B | ||||||||
EMC | E1 | ||||||||
work environment | ℃～+55℃，≤100%RH | ||||||||
Key | Touch | ||||||||
monitor | LCD 8 digits + prompt | ||||||||
Working power supply | 3.6V | ||||||||
Communication mode | LoRa/LoRaWAN/NB-IoT/M-BUS | ||||||||
Degree of protection | IP68 | ||||||||
Product packaging
Smart ultrasonic cold water meters hot water water meter manufacturer in China
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

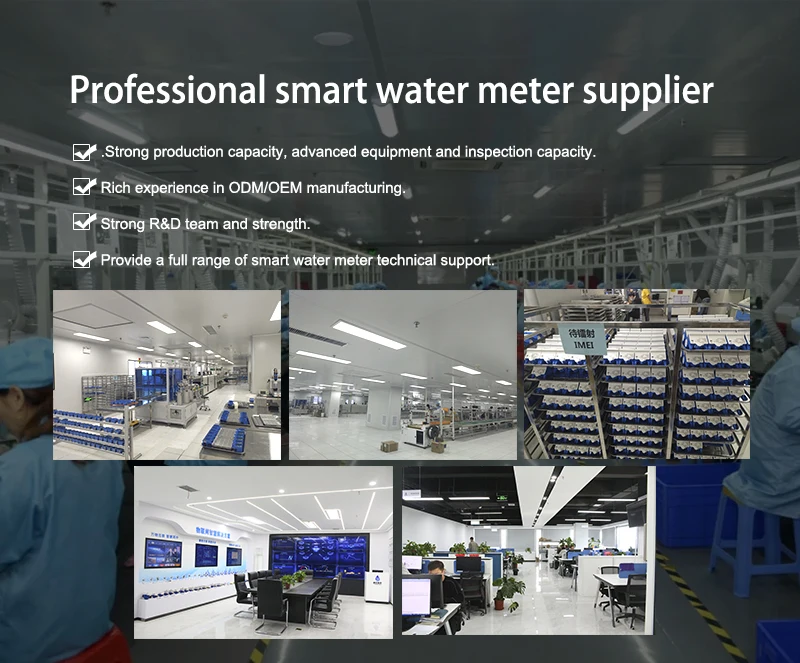

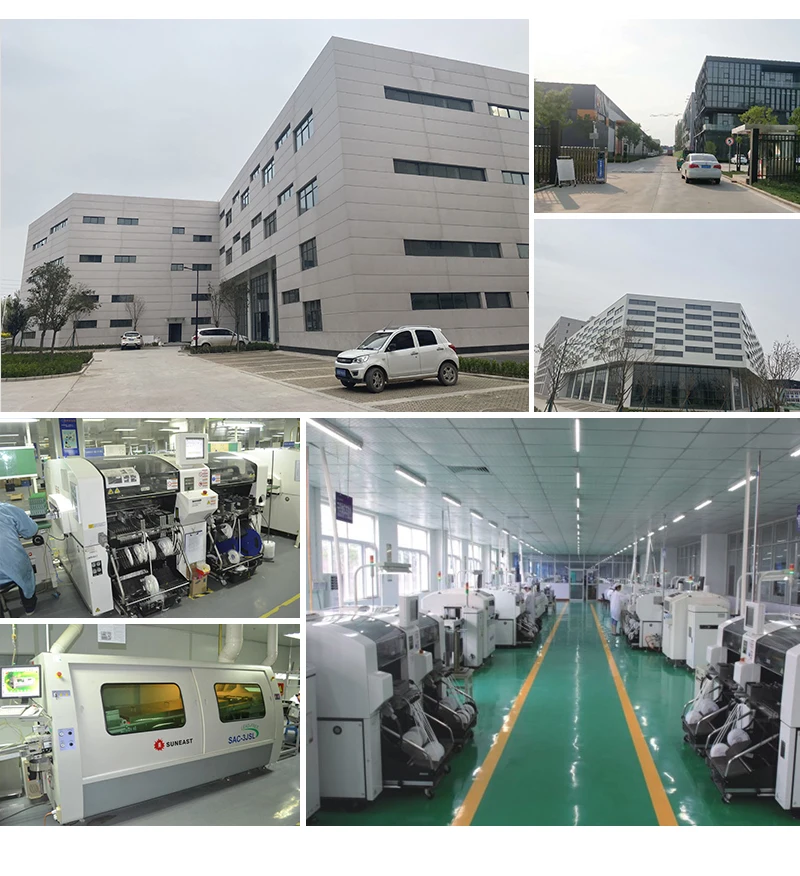

Company Profile
Henan Zhuozheng Electronics Technology Co., Ltd.
Zhuozheng Technology is committed to providing customers with comprehensive solutions for water, heat,
gas, agriculture, fire protection, and environment.
gas, agriculture, fire protection, and environment.
As a high-tech Internet of Things enterprise integrating R & D, production, marketing, and service. Zhuozheng has a core R & D team composed of several doctors and masters. It has established joint
laboratories with many well-known universities in the province, and has obtained nearly 100 national patents and software copyrights.
laboratories with many well-known universities in the province, and has obtained nearly 100 national patents and software copyrights.
Zhuozheng Technology always adheres to the corporate spirit of "integrity, pragmatism, profession, dedication", and takes"creating excellent quality and building a smart city" as its corporate mission. Promote the development of China's energymeasurement cause and contribute its own strength!.
1. Who are we?
We are based in Zhengzhou City, Henan province. Zhuozheng as been a professional manufacturer focusing on providing design, production, marketing and sercices for smart water, gas, heat, electricity meter solutions.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
wireless pulse water meter,wireless ultrasonic water meter,nb-iot module,lora module,lorawan module
4. Why should you buy from us not from other suppliers?
1.One -stop wireless remote reading water meter solution provider. 2.80+ invention patents and software copyrights. 3.Extensive customers from both China and abroad.
5. Are you manufacturer of trade company?
We are 100% manufacturer.
6. Where are your factory?
Our factory is conveniently located in Zhengzhou city,Henan province.It is just 1 hour from the Xinzheng international airport(IATA:CGO).
7. What are your advantages?
We provide a complete solution of intelligent wireless remote transmission China Supplier Wireless Smart Remote Reading Lora water Meter.And we can also design products according to your personalized demands.
8. How about your delivery time?
We have sufficient production capacity,so we can adjust delivery time according to customer needs.
9. Can we customize our own brand or logo?
Yes,OEM service is available.
We are based in Zhengzhou City, Henan province. Zhuozheng as been a professional manufacturer focusing on providing design, production, marketing and sercices for smart water, gas, heat, electricity meter solutions.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
wireless pulse water meter,wireless ultrasonic water meter,nb-iot module,lora module,lorawan module
4. Why should you buy from us not from other suppliers?
1.One -stop wireless remote reading water meter solution provider. 2.80+ invention patents and software copyrights. 3.Extensive customers from both China and abroad.
5. Are you manufacturer of trade company?
We are 100% manufacturer.
6. Where are your factory?
Our factory is conveniently located in Zhengzhou city,Henan province.It is just 1 hour from the Xinzheng international airport(IATA:CGO).
7. What are your advantages?
We provide a complete solution of intelligent wireless remote transmission China Supplier Wireless Smart Remote Reading Lora water Meter.And we can also design products according to your personalized demands.
8. How about your delivery time?
We have sufficient production capacity,so we can adjust delivery time according to customer needs.
9. Can we customize our own brand or logo?
Yes,OEM service is available.
For any questions, pls feel free to contact us!
