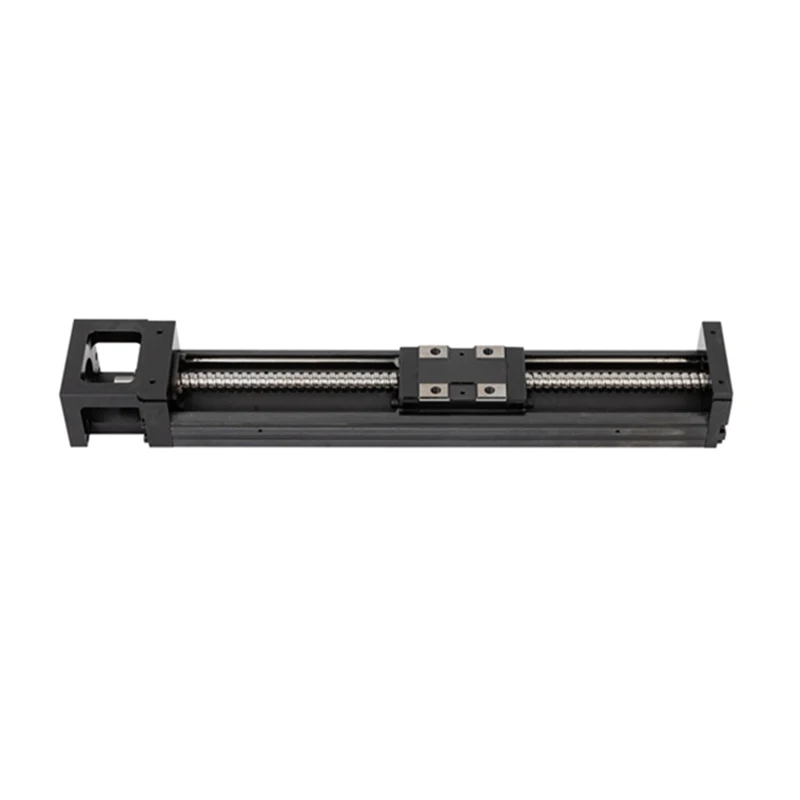

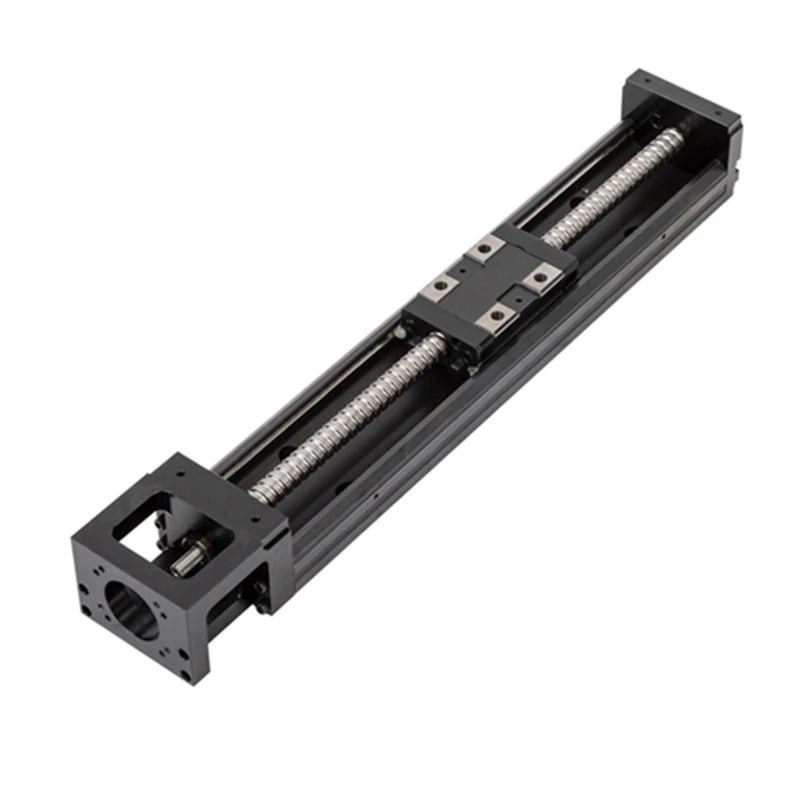

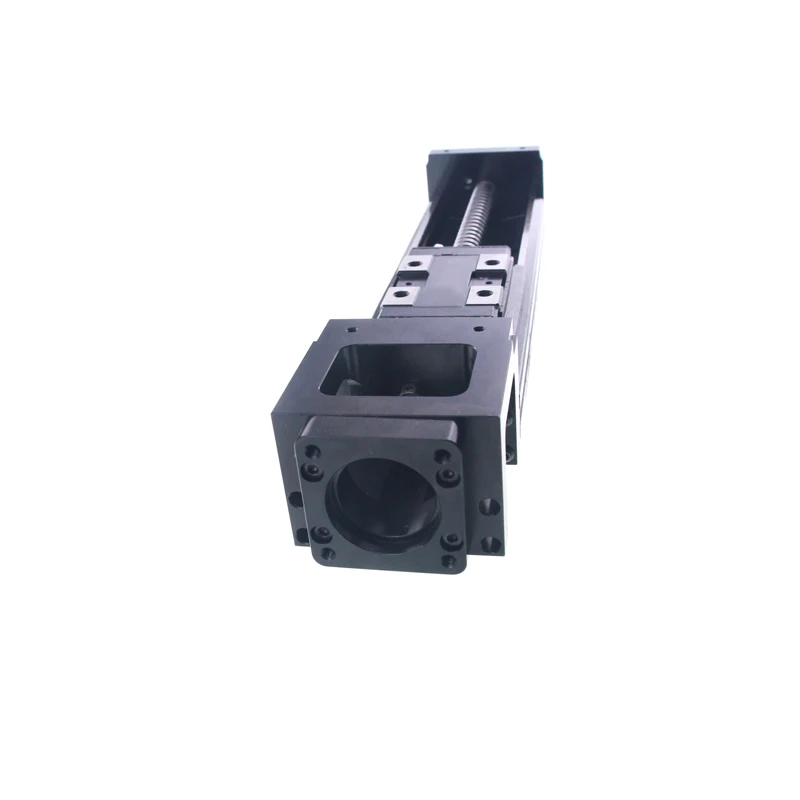

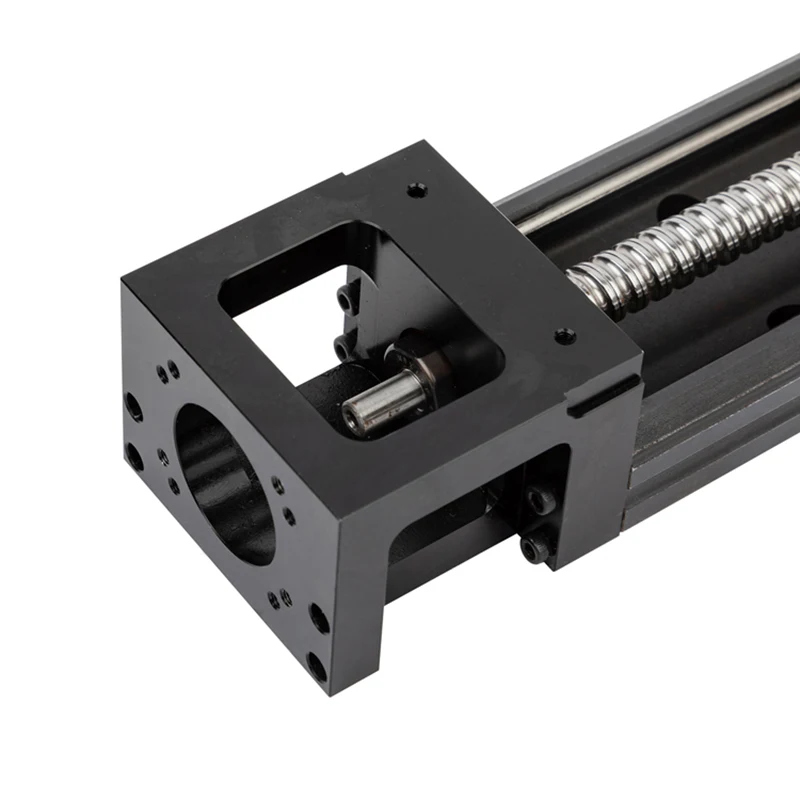

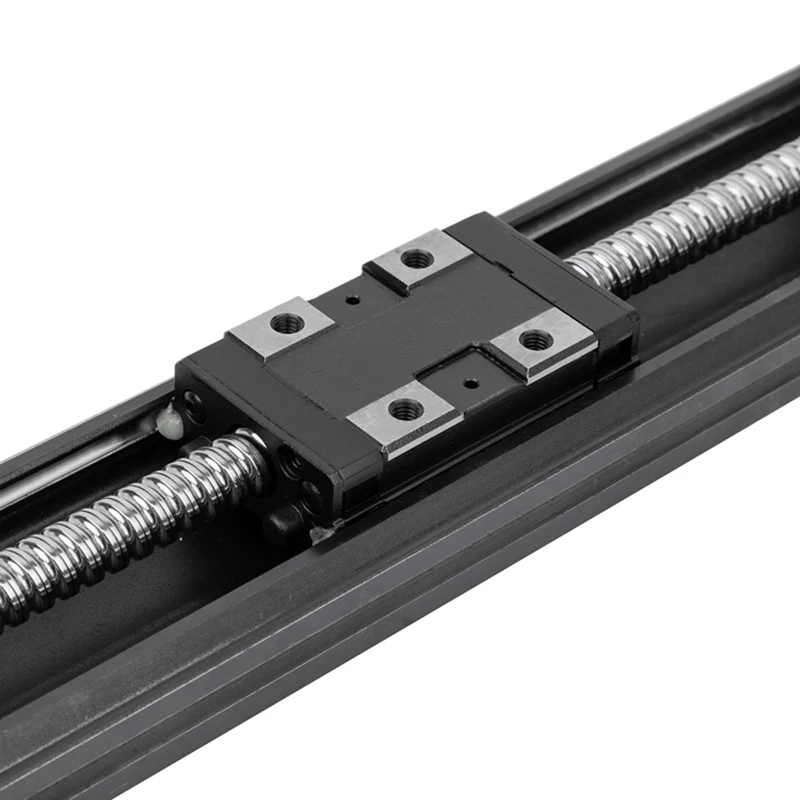

Linear Stage Actuator 400mm Manual Sliding Table Ballscrew Rail Slide Module
- Category: >>>
- Supplier: Lishui Yingte Bearing Co. Ltd.
Share on (1600822958342):
Product Overview
Description
1 | Model Number | C and P grade KK4001,KK5002,KK6005,KK6010,KK8610,KK8620,KK10020 | ||||
2 | Lead | 1MM,2MM,5MM, 10MM,20MM | ||||
3 | Rail Length | KK40:100MM,150MM,200MM KK50:150MM,200MM,250MM,300MM KK60:150MM,200MM,300MM,400MM,500MM,600MM KK86:340MM,440MM,540MM,640MM,740MM,940MM KK100:980MM,1080MM,1180MM,1280MM,1380MM | ||||
4 | Material | SCM420H,Rail:S55CM,Aluminum | ||||
5 | Surface and apperance | Normal and standard | ||||
6 | Repeatability | C grade: +-0.005 for size KK40/KK50/KK60/KK86, +-0.01 for size KK100 P grade:+-0.003 for size KK40/KK50/KK60/KK86, +-0.005 for size KK100 | ||||
7 | Documents service to guarantee | Testing document and certificate,2D/3D drawings | ||||
8 | Lead time | Within 10days base on stockiest size products,can be check base on quantity | ||||
9 | Mainly application filed | 3C electronics industry ,Lithium battery industry,Display panel industry,Production robot,Car manufacturing,Medical equipment | ||||

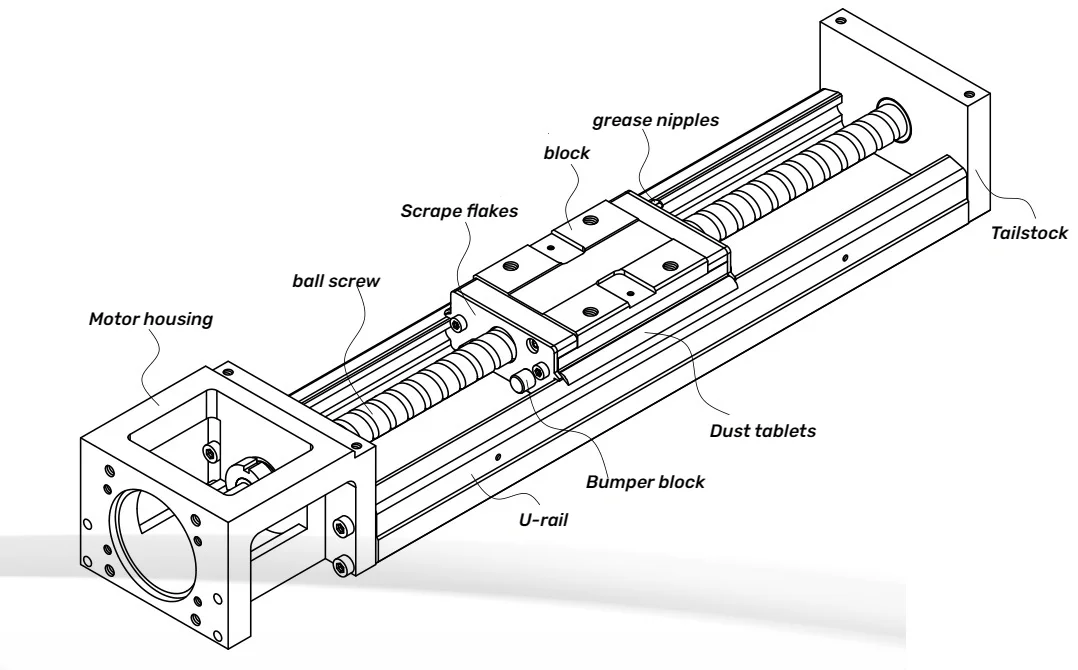

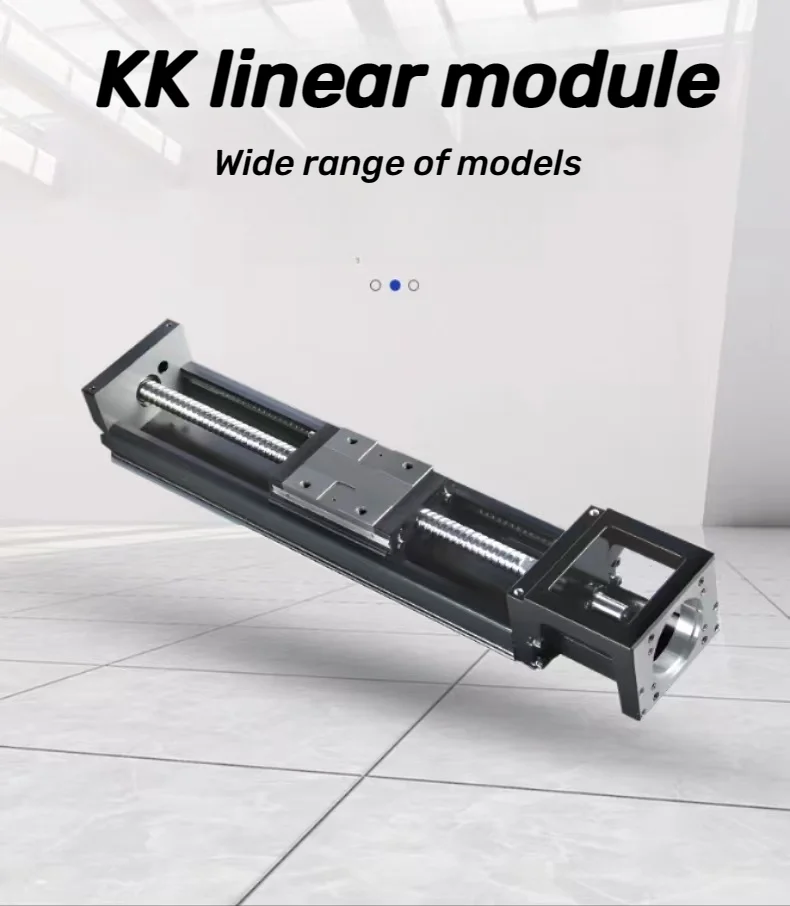

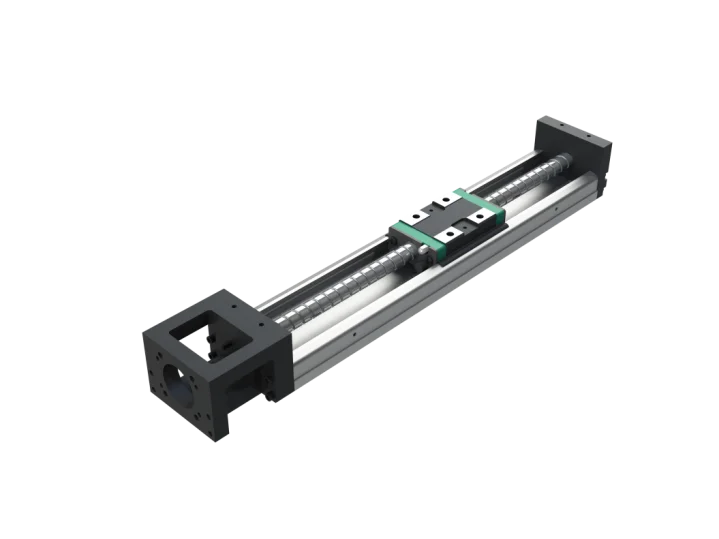

The structure of the module
KK module
1. U-rail
2. Ball screw
Through modular design, KK module integrates ball screw and linear guide, which can save the shortcomings of traditional brake
platforms such as guidance and drive element selection, installation verification, large size, and space occupation.
KK modules can provide fast selection, installation, compact size, high rigidity and other characteristics.
2. Ball screw
Through modular design, KK module integrates ball screw and linear guide, which can save the shortcomings of traditional brake
platforms such as guidance and drive element selection, installation verification, large size, and space occupation.
KK modules can provide fast selection, installation, compact size, high rigidity and other characteristics.

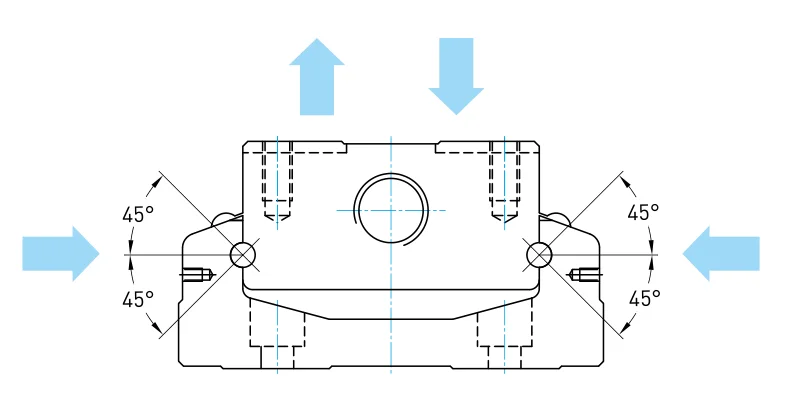

Equal load in four directions
The return system between the track and the slide, the ball and ball groove contact surface adopts a 2-row Gothic tooth design,
with the characteristics of 45° contact angle, which can make the KK module withstand the ability of 4 directions to withstand
equal loads.
with the characteristics of 45° contact angle, which can make the KK module withstand the ability of 4 directions to withstand
equal loads.

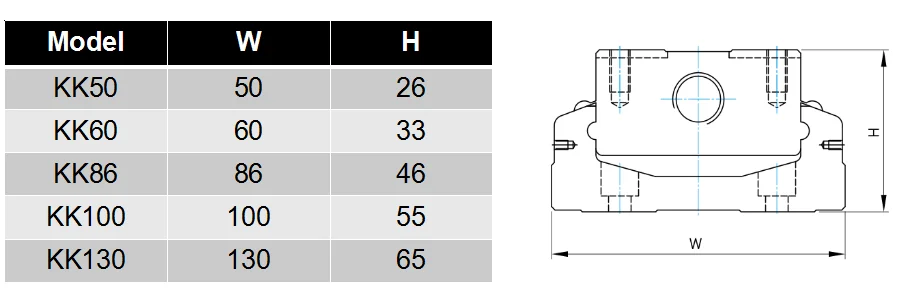

Diverse specifications

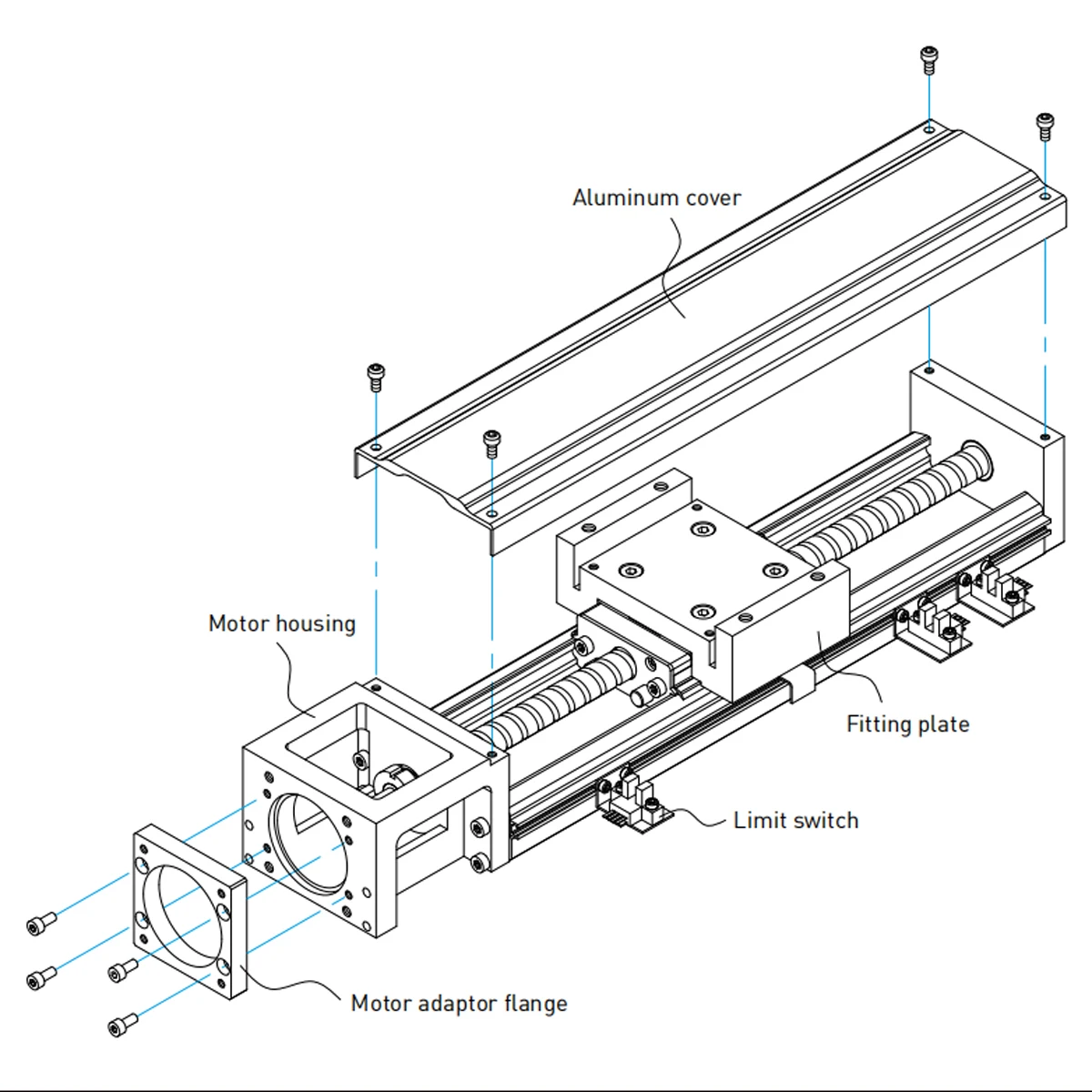

Shop Accessories:
1. Aluminum cover: It can prevent foreign matter and impurities from entering the KK module and affect the service life, accuracy, and smoothness.
2. Motor adapter board: can be used for the transfer of various motors and KK modules.
3. Limit switch: provide slider positioning, start origin and prevent the slider from exceeding the safety limit of the stroke.
2. Motor adapter board: can be used for the transfer of various motors and KK modules.
3. Limit switch: provide slider positioning, start origin and prevent the slider from exceeding the safety limit of the stroke.

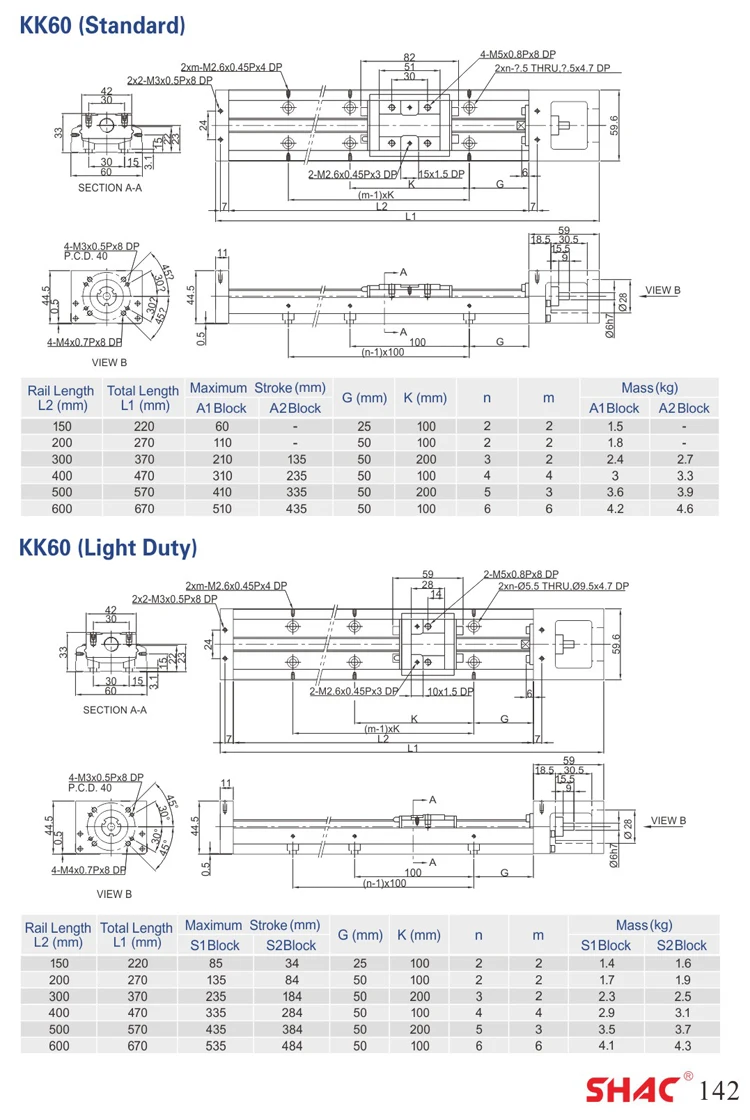

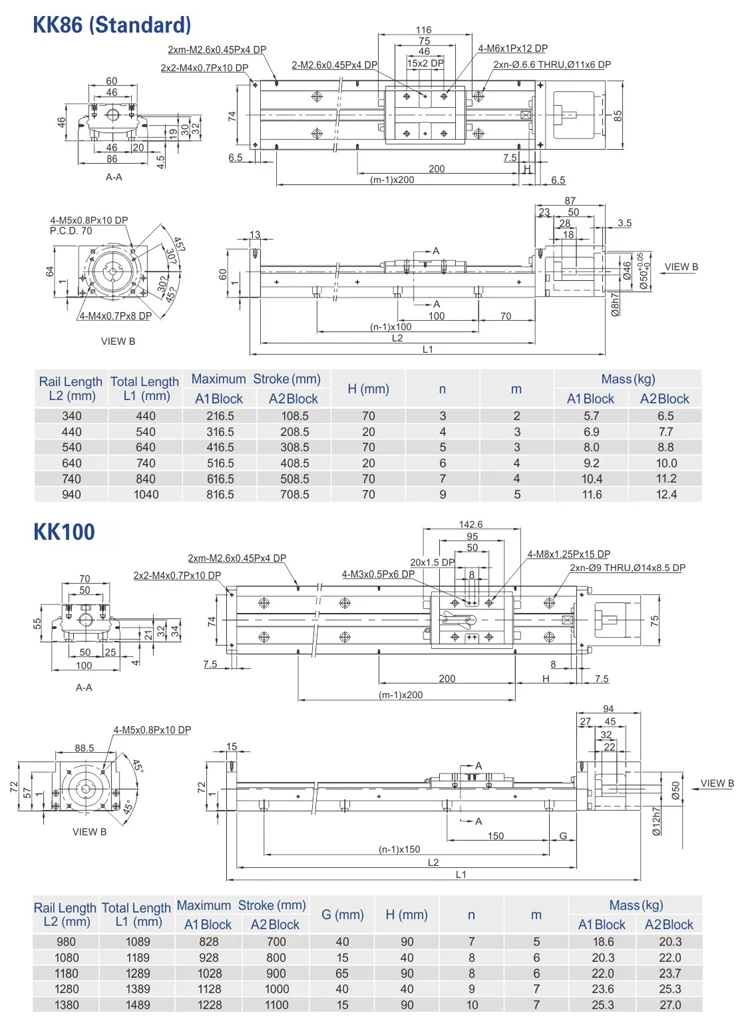

Product Paramenters

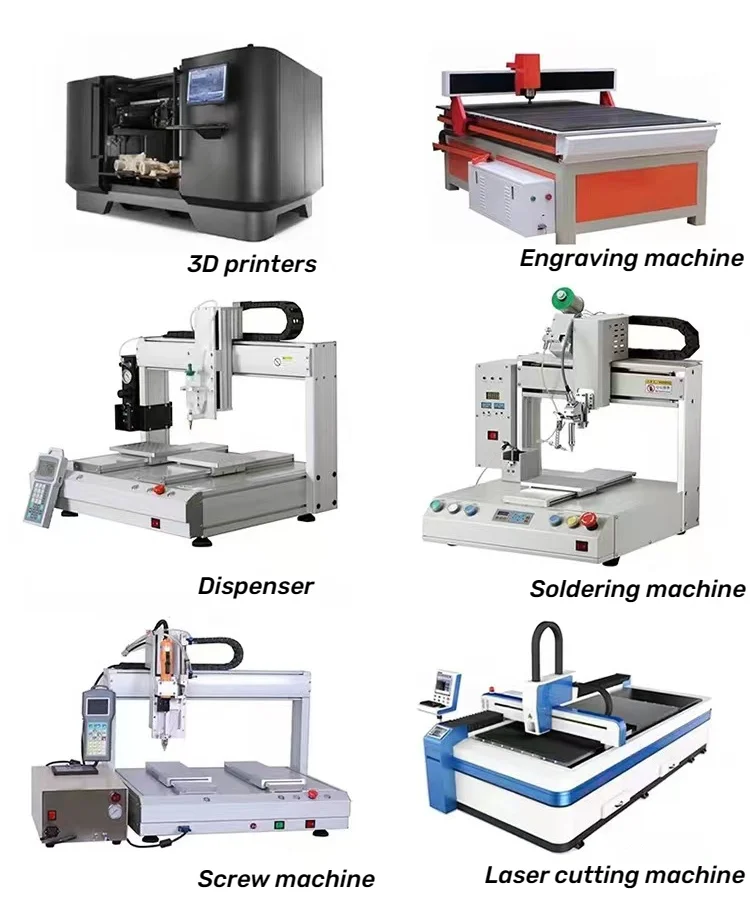

Application scenarios

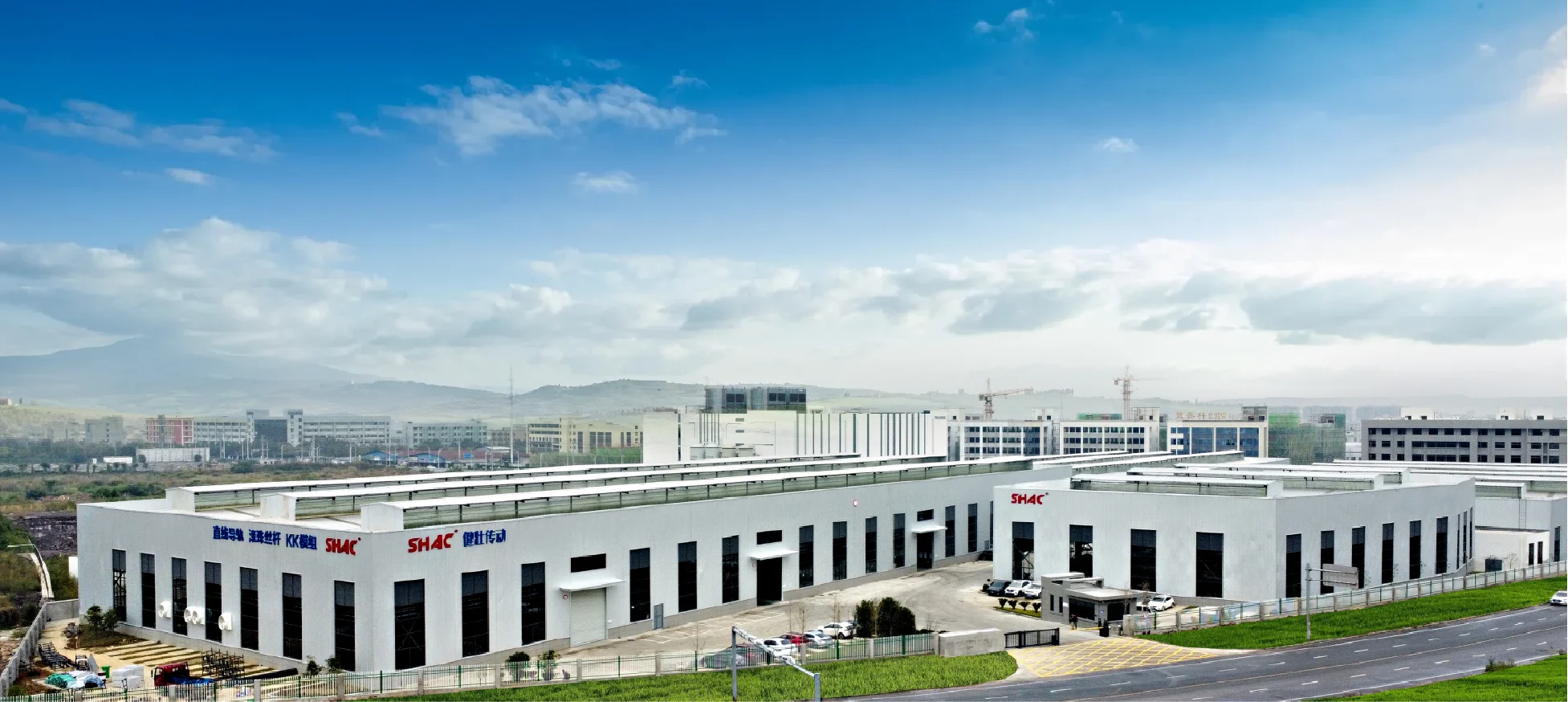

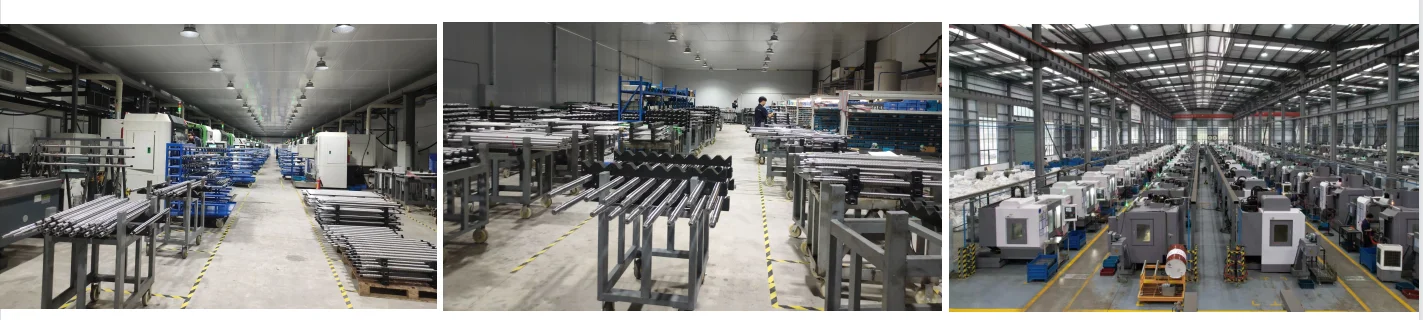

Company Profile
MORE THAN 16 YEARS OF R&D EXPERIENCE
Lishui Yingte Bearing Co.,Ltd.Established in 2006.We are specilliazed in developing,Mainly produce ball screw, linear guide, linear module, linear shaft, linear bearing, ball screw support, aluminum case unit, rod end bearings, couplins, cam follower bearing etc.
strict quality control,professional team,the operating principle of good faith,fully range of professional service.All of these aspects let Yingte win good reputation among the cuatomers,Also more and more customers come to support and trust us.This makes Yingte continue to grow and develop.
Certifications

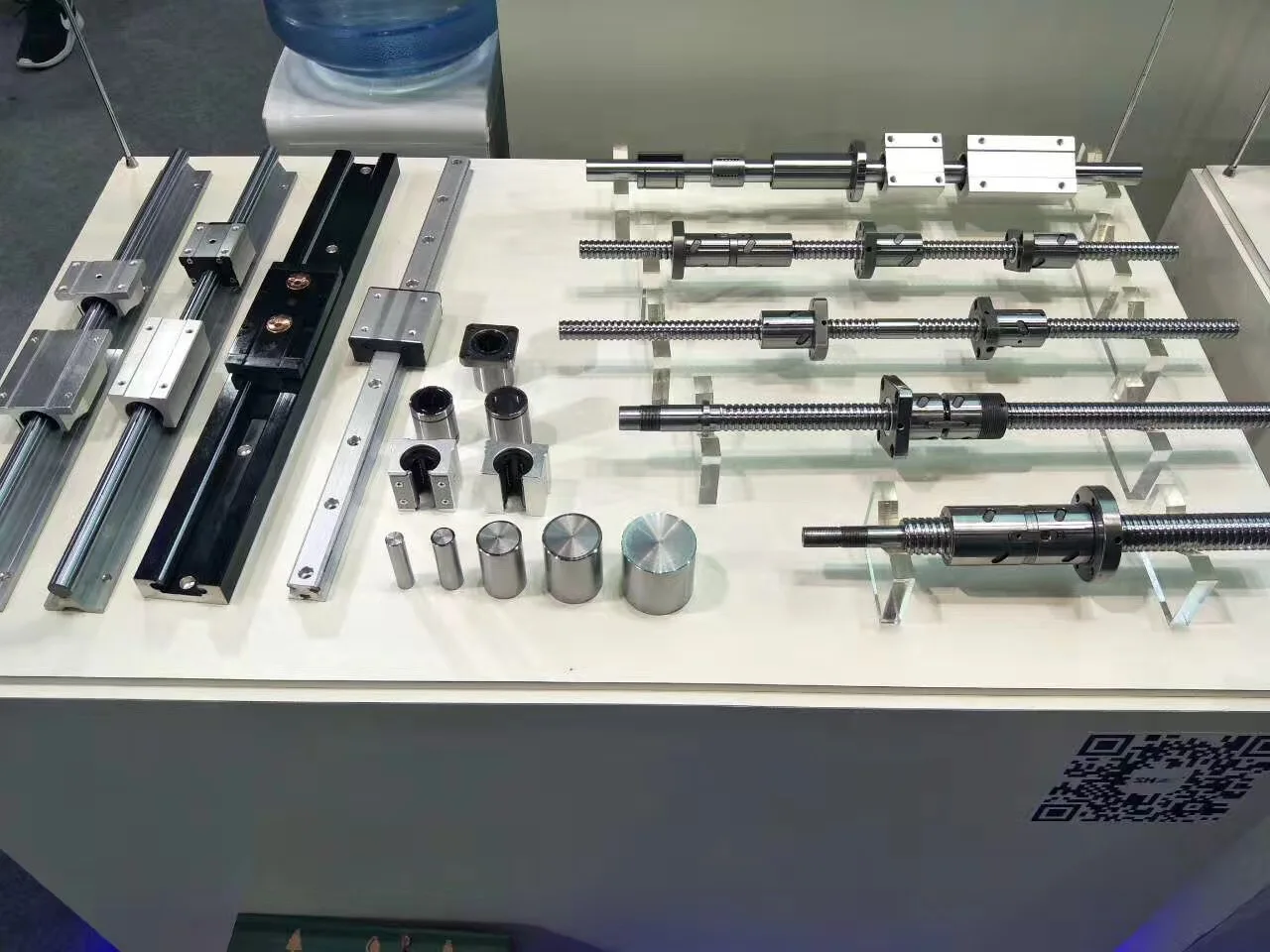

Exhibition
Our Advantages
FAQ
DO NOT worry about PRICE, we are manufacturer.
DO NOT worry about QUALITY, we have 16 years experience.
DO NOT worry about AFTER-SALES, we are 24 hours online.
Q1:Who we are?
We are the factory based in Zhejiang,China,start from 2007 sell to all over the.world.the factory area is around 45000 square
meters.we have 900 employees.
Q2: Do you have a catalogue?
Can you send me the catalogue to have a check of all your products?A: Yes , We have product catalogue.Please contact us on line or
send an Email to sending the catalogue.
Q3: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need.
Q4 : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we have many moulds for our customers already.About
customized packing,we can put your Logo or other info on the packing.There is no problem.
Q5: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-2pcs free samples for test or quality checking.But you have to pay for the
shipping cos.If you need many items, or need more qty for each item,we will charge for the samples.
Any requirements or question,Welcome to "Send" us an e-mail Now!
DO NOT worry about QUALITY, we have 16 years experience.
DO NOT worry about AFTER-SALES, we are 24 hours online.
Q1:Who we are?
We are the factory based in Zhejiang,China,start from 2007 sell to all over the.world.the factory area is around 45000 square
meters.we have 900 employees.
Q2: Do you have a catalogue?
Can you send me the catalogue to have a check of all your products?A: Yes , We have product catalogue.Please contact us on line or
send an Email to sending the catalogue.
Q3: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need.
Q4 : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we have many moulds for our customers already.About
customized packing,we can put your Logo or other info on the packing.There is no problem.
Q5: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-2pcs free samples for test or quality checking.But you have to pay for the
shipping cos.If you need many items, or need more qty for each item,we will charge for the samples.
Any requirements or question,Welcome to "Send" us an e-mail Now!
