Nitrogen Injection Nespresso pod filling machine Espresso coffee capsule packing machine
- Category: >>>
- Supplier: Suzhou Expak Imp&Exp Co. Ltd.
Share on (1600822971006):
Product Overview
Description
Product Overview

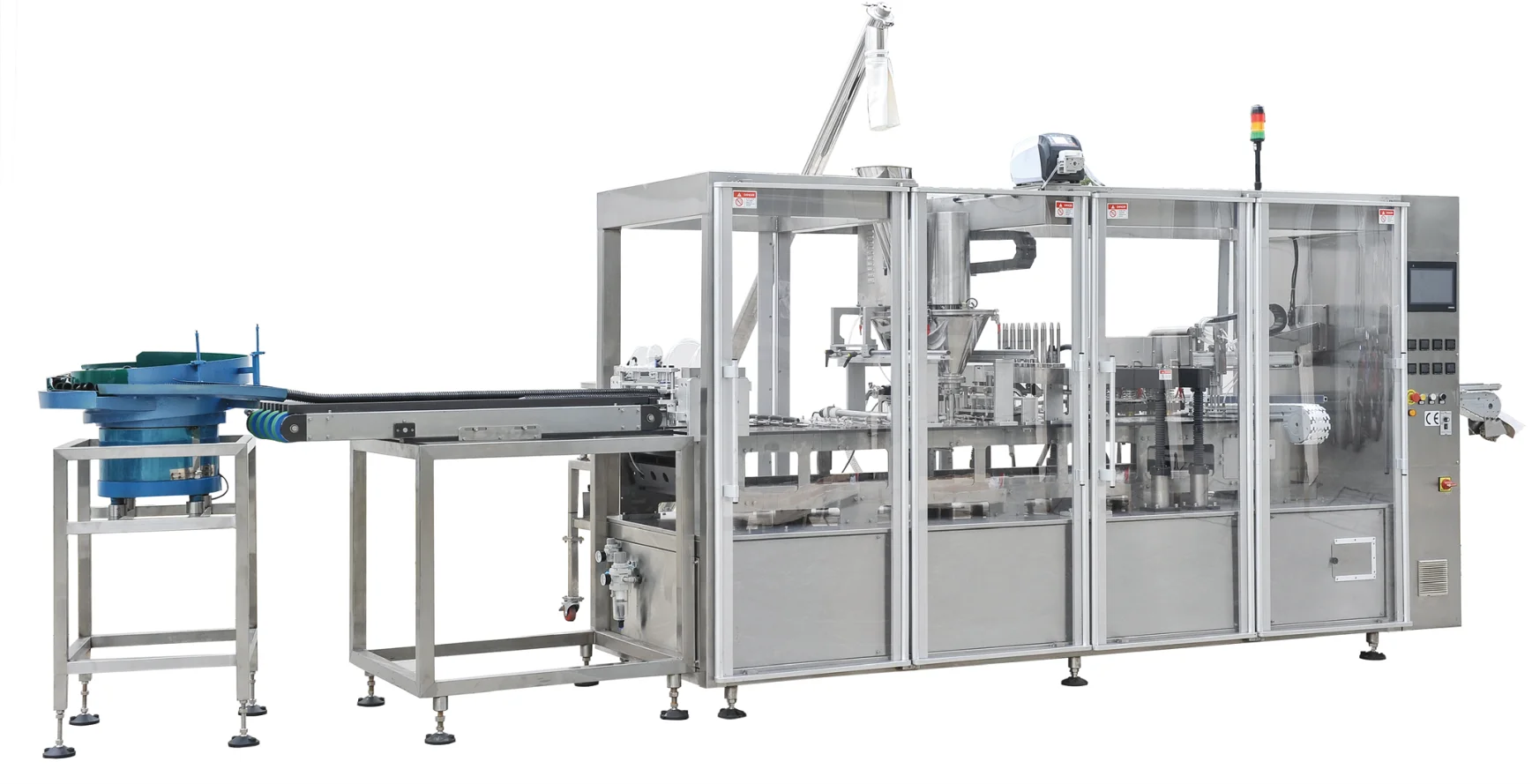

1.CP Dual track coffee capsule filling machine, the speed reaches 80-100 cups per minute. Working Prefectly connect to capsule box packing machine.
2.The framework is made of 304 stainless steel. Suitable for Nespresso, K-Cup, L my way. Also, you could customize own coffee capsule cups.
3.Can be filled with ground coffee powder, instant powder, tea, milk powder, liquid, and so on.
The accessories of the machine are mostly OMRON, Schneider, and so on.
2.The framework is made of 304 stainless steel. Suitable for Nespresso, K-Cup, L my way. Also, you could customize own coffee capsule cups.
3.Can be filled with ground coffee powder, instant powder, tea, milk powder, liquid, and so on.
The accessories of the machine are mostly OMRON, Schneider, and so on.
Standard function
Cup Feeding
1. Automatic load cup
2. Loading device can be changed to other sizes to satisfy your different coffee capsules
Nitrogen flushing working all stations
1. Automatically vacuum suck and convey coffee powder
2. Servo motor control auger filling precisely
3. nitrogen flush process from empty capsules to heat seal station
Capsule sealing station
1. Omron brand automatically heat seal, line seal, and flat seal
2. Sealing material is copper, heat evenly, sealing effect is better
1. Automatic load cup
2. Loading device can be changed to other sizes to satisfy your different coffee capsules
Nitrogen flushing working all stations
1. Automatically vacuum suck and convey coffee powder
2. Servo motor control auger filling precisely
3. nitrogen flush process from empty capsules to heat seal station
Capsule sealing station
1. Omron brand automatically heat seal, line seal, and flat seal
2. Sealing material is copper, heat evenly, sealing effect is better
Model | CP5004(Roll Film) | ||||||
Suitable sealing | precut lid（K cup） suggested, roll film(Nespresso) suggested | ||||||
Capacity | 100 cups per min | ||||||
Filling weight range | 0-20g (set by customer) | ||||||
Accuracy | ±0.2g | ||||||
Voltage | 220V/380V 50/60hz need confirm by customer | ||||||
Dimension(Vertical load) (LxWxH) | 2300(L)X1260()X2300(H) | ||||||
Dimension(Horizontal load) (LxWxH) | 4000X1260X2300(mm) | ||||||
Packed Weight | 1000KG | ||||||
Details Images
Buffer
Connect the filling machine, play the role of buffering the finished product, and send the heat-sealed capsule to the packing machine at the same time.
Kcup storage
Kcup storage has 54 tubes, each tube can store 50 at least kcups. when the sensor test if cup would be running out on the machine, storage could get a signal and drop row of cups

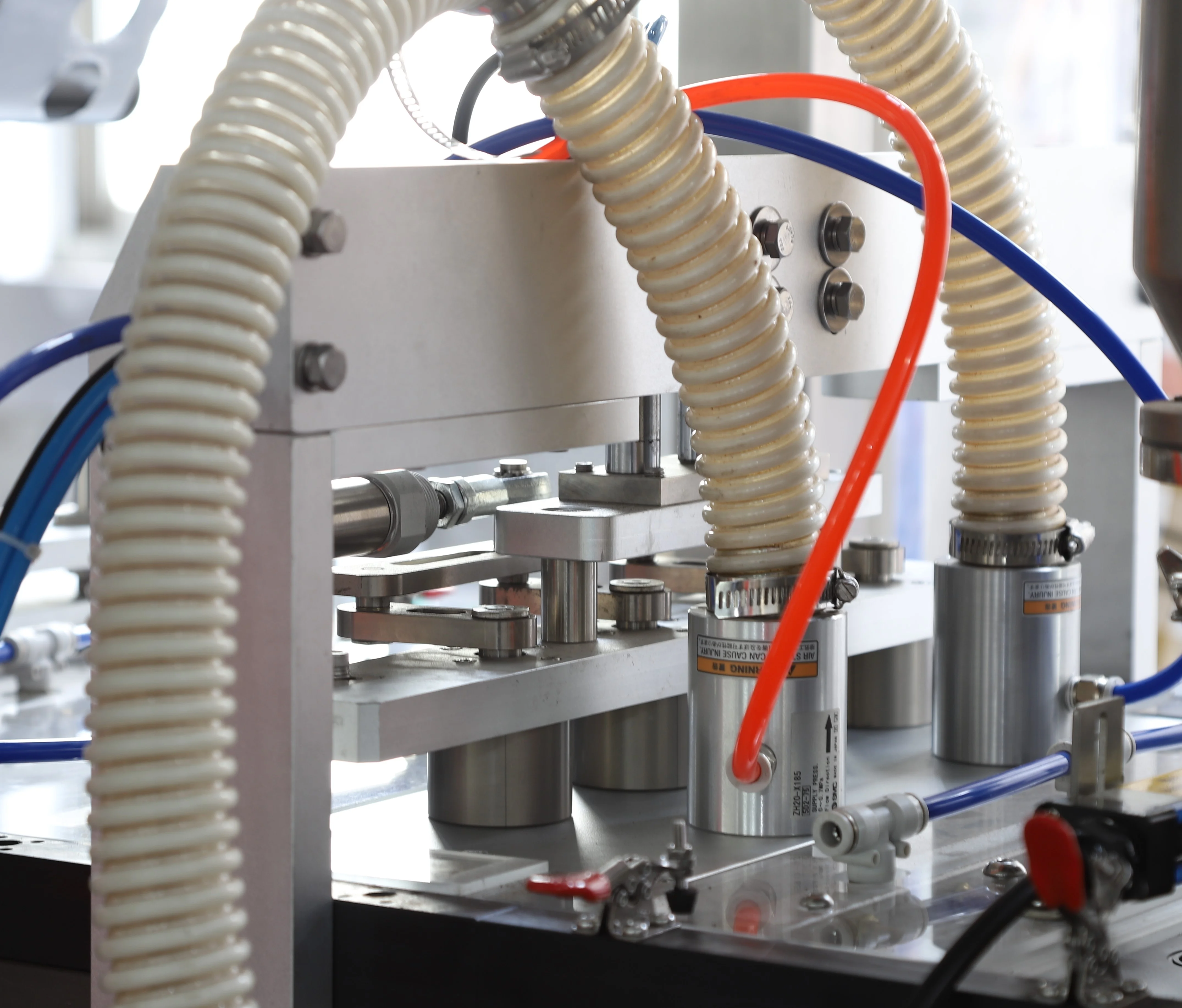

Nitrogen flush and auger filling station
Nitrogen flush can keep coffee fresh and servo motor drives auger filling accuracy.
Clean system
A clean system after filling, it can clean coffee around the cup edge, indirectly keep tightness with heatsealing.

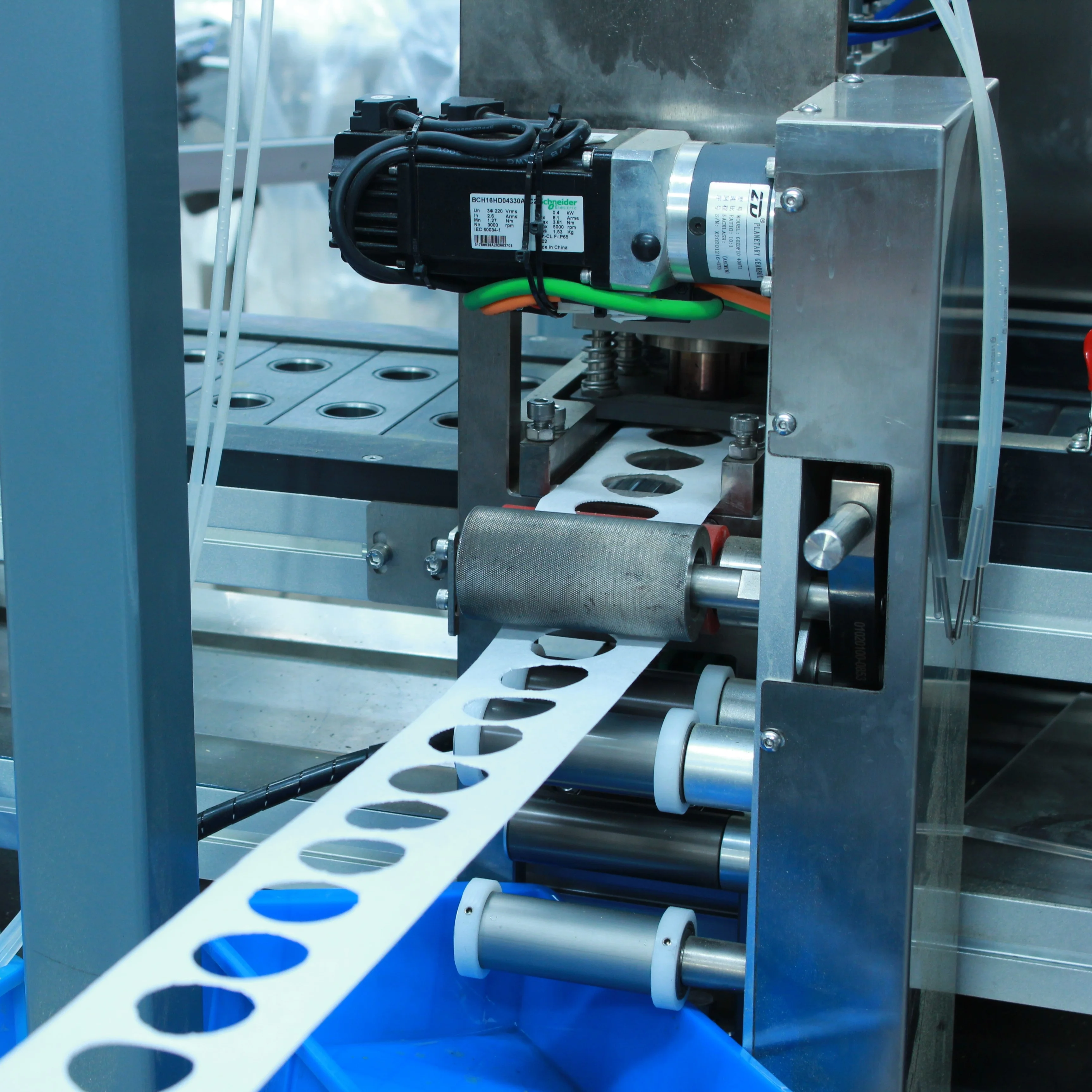

Suck lid
Building lid storage, the sucker works and put it onto kcup.

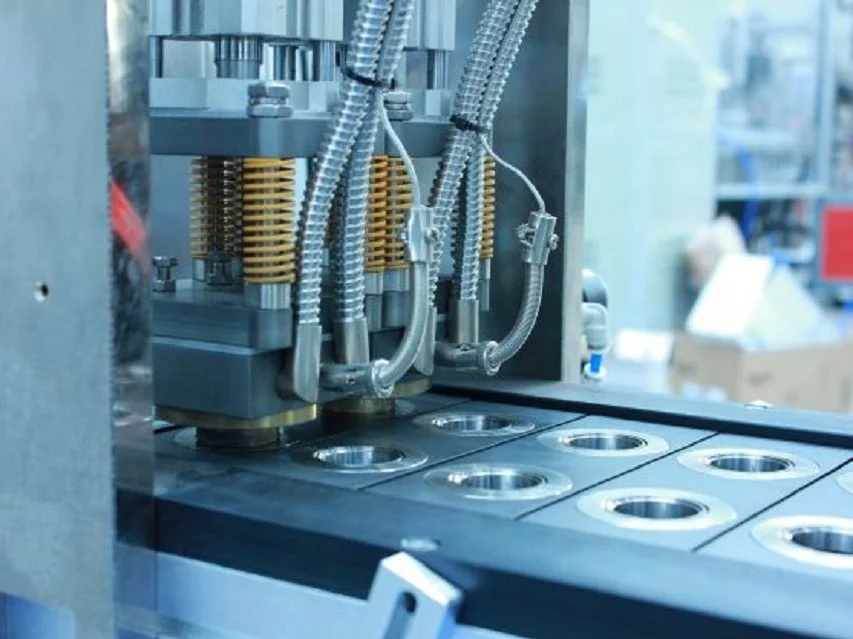

Double heatsealings and take finished out
Twice heatsealings make sure tightness for kcup. Manipulator suck packaged cup on conveyor belt.
Feedback
The complete production line can be customized
Company Profile
About us
EXPAK Packaging was founded in 2010, located in Suzhou, one-hour drive to Shanghai airport. Our workshop is 12000 square meters of
area, we are one of China's machinery manufactory unit that design our machine from zero to fit singe serve production. Upon our
R&D, manufacturing team continues effort, we have been leading the industry 3-5 years in advance. Featured products as: single
serve coffee capsule filling and sealing machine, capsule box packaging system. Sales of packaging material for empty capsule cup,
filters, sealing lids etc.
We have reached over 90% of China domestic market and have supplied our machinery all over the world and set up local
after-service in Euro and USA.Since 2016, new branch company-Podmate launched to produce coffee capsules and other food products
for China market and have passed China SC food safe certification.
area, we are one of China's machinery manufactory unit that design our machine from zero to fit singe serve production. Upon our
R&D, manufacturing team continues effort, we have been leading the industry 3-5 years in advance. Featured products as: single
serve coffee capsule filling and sealing machine, capsule box packaging system. Sales of packaging material for empty capsule cup,
filters, sealing lids etc.
We have reached over 90% of China domestic market and have supplied our machinery all over the world and set up local
after-service in Euro and USA.Since 2016, new branch company-Podmate launched to produce coffee capsules and other food products
for China market and have passed China SC food safe certification.
Title goes here.
Warehouse
Office
Meeting room
Main machines we manufacture
Keurig coffee Kcup filling and sealing machine/Nespresso compatible capsule filling sealing machines/Dolce Gusto compatible capsules filling production line/LB Espresso illy capsule filling sealing machine/Coffee pod automatic filling packing machine/Customize filling machine for dry nuts; herbal tea; green tea etc.Instant product filling as: hot chocolate, cocoa milk,
milk tea powders.Box Packing machine.
milk tea powders.Box Packing machine.
Packaging materials we supply:
Keurig kcup empty cups of PP and PS / Kcup inside filters snap into each kcup / Ready Kcup that filter welded inside / Die cut
foil lids of Keurig 2.0 compatible / Roll film printed Keurig 2.0 compatible / Coffee bean or ground coffee bags
foil lids of Keurig 2.0 compatible / Roll film printed Keurig 2.0 compatible / Coffee bean or ground coffee bags
