UV Edge Roller Putty filling Painting Machine
- Category: >>>
- Supplier: Foshan Yowing Machinery Co. Ltd.
Share on (1600823009486):
Product Overview
Description
Product Description
Wood edge coating painting /end coating painting /curing vacuum coating system for cabinet, wardrobes, furniture,shutters, louvers,drawers,etc.
1. This machine is available to coat the edges three times with UV application.
2. This machine adopts three times coating, together with the UV dryer, to have the painting and drying and sanding simultaneously.
3. That can effectively raise the efficiency,save waiting time, combine sanding, coating, and drying at one time in one machine.
4. Good helper for doors, cabinets, furniture, drawers.
2. This machine adopts three times coating, together with the UV dryer, to have the painting and drying and sanding simultaneously.
3. That can effectively raise the efficiency,save waiting time, combine sanding, coating, and drying at one time in one machine.
4. Good helper for doors, cabinets, furniture, drawers.
Specification
Model | MMP-S1P1W1C1-T1G2 | MMP-S1P1W1C1-T2G2 | MMP-S1W2C1-T1G2 | MMP-S1W2C1-T2G2 | |||
Usage | transparent putty+ white color , 1 machine for all passes | ||||||
Working width | ≧60mm | ≧60mm | |||||
Maximum Working thickness | 60mm | 60mm | |||||
Working length | ≧35mm | ≧35mm | |||||
Dust cleaning motor C | 0.37kw*1 | 0.37kw*1 | |||||
Disc sand P | 0.75kw*1 | 0.75kw*1 | |||||
Sanding spindle motor W | 1.5kw*1 | 1.5kw*1 | 1.5kw*2 | 1.5kw*2 | |||
Triangle sand motor S | 2.2kw*1 | 2.2kw*1 | 2.2kw*1 | 2.2kw*1 | |||
Painting motor T | 3kw*1 | 3kw*2 | 3kw*1 | 3kw*2 | |||
Curing lamps G | Mercury lamps 3KW-460L+ Gallium lamps 6KW-460L | 3KW*3 | |||||
Feeding speed | 0-24m/min | 0-24m/min | 0-24m/min | 0-24m/min | |||
Paint thickness/time | 15-80g/ m2 | 15-80g/ m2 | |||||
Machine length | 4500mm | 4750mm | 5200mm | 5350mm | |||
Machine Details
Putty Roller + Press roller ：R1Y1
Putty roller mostly for plywood drawer panel and straight edges!

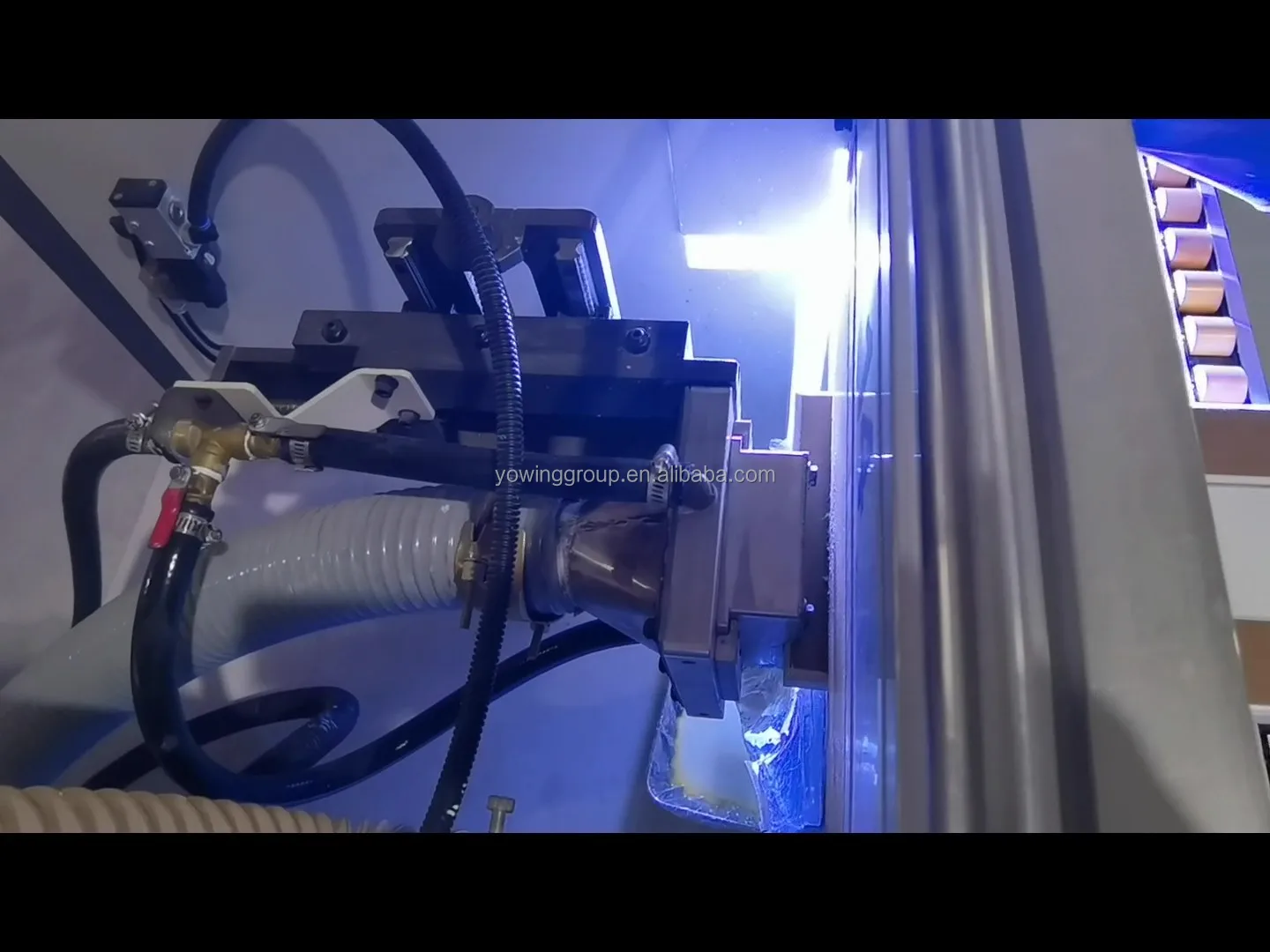

Painting Head：T1
Painting head mostly for edge with R, with shapes.
Painting Head ：T1 working
Make a shape as per the edges!

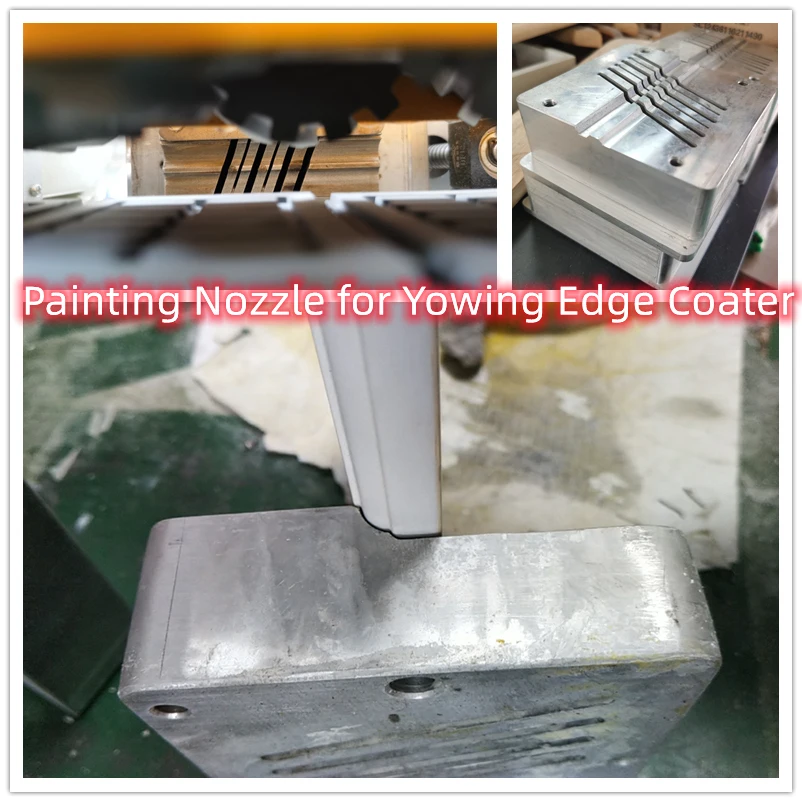

Customized Painting Mold
Need cad design of edges to make mold!
Triangle Sand: S
Triangle sand is mostly for straight edge precise sanding!
Multiple function sand :W
W usually be fixed with sponge wheel, profile sand,brush sand.
Number 13: Cleaning C
It is with a row of air jet to collect with dust collector to remove dust.
Disc sand P：Corner sanding
P1 for top corner sanding, P2 for bottom corner sanding!
Half curing :G1
①Gallium lamp：mostly for colors,like white, black,etc and fully dry.
②Mercury lamp：Mostly for transparent and half dry.
②Mercury lamp：Mostly for transparent and half dry.
Fully curing :G2
①Mercury Lamp:3KW-460L
②Gallium lamp：6KW-460L
②Gallium lamp：6KW-460L
Paint Tank： Single tank
It with 1 tank only, so if for different color, need wash!
Painting tank: 2 tank
1 tank for transparent,1 for white color.
Air flow for painting system
1. A procedure without waste and over spray that ensures reduced unit costs.
Energy saving UV inverter
When the edge come, it on, when the edge pass, it off.
Application of Scope
Usages:
1.Sanding and coating together for door, cabinets edges,shutters
2.For more colors: transparent, white, coffee,etc.
3.From base coating to top coating at one time.

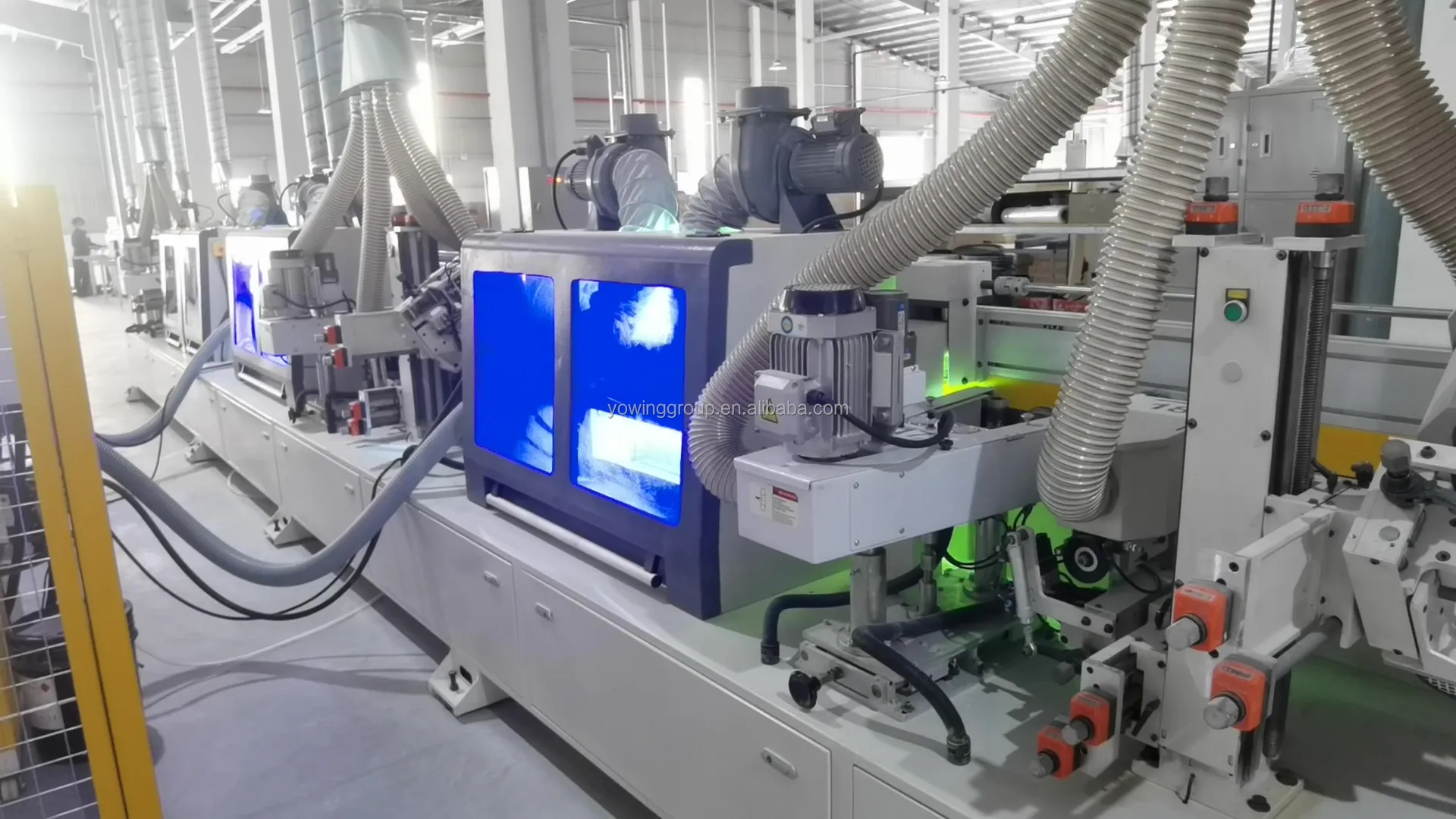

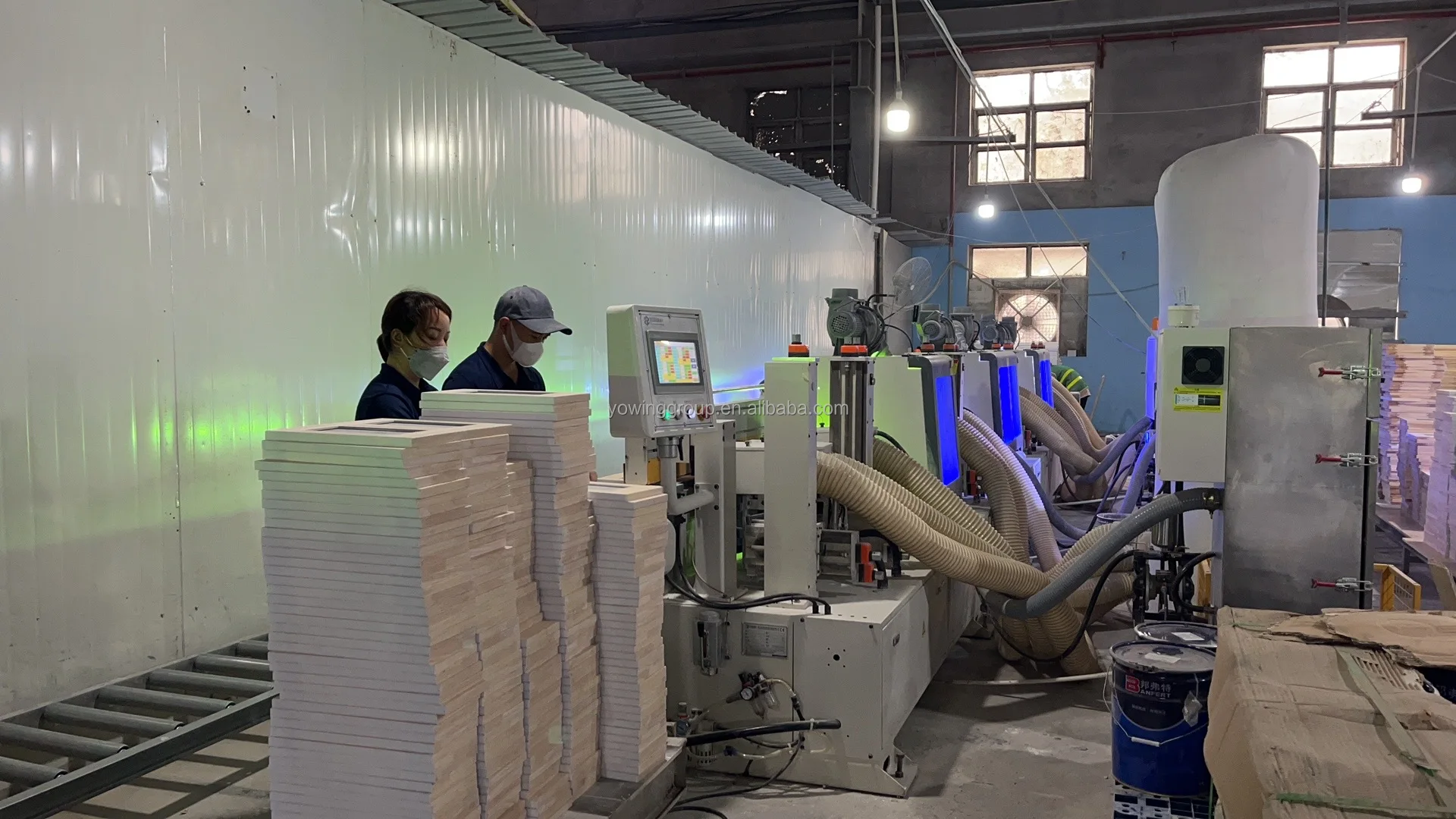

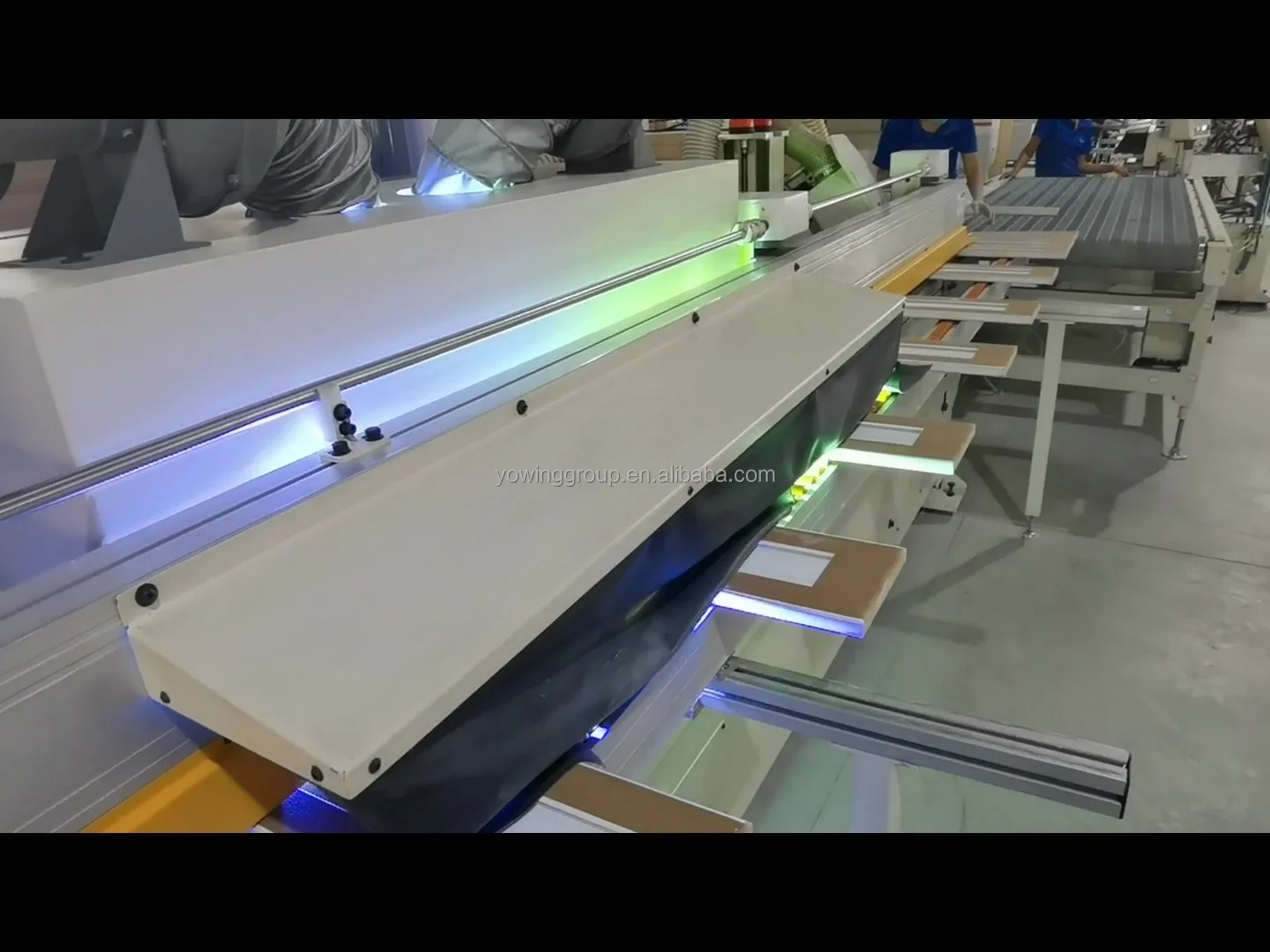

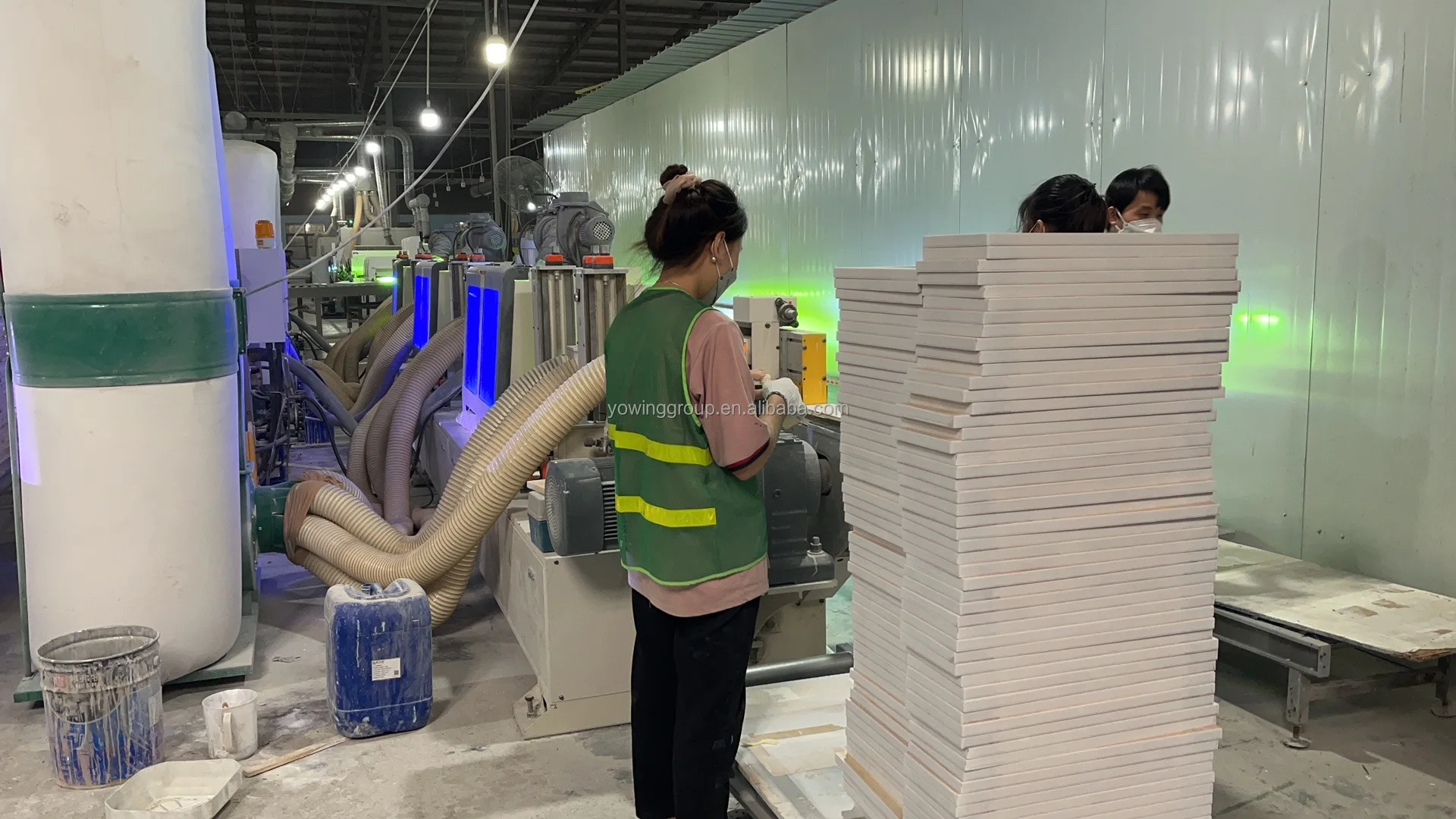

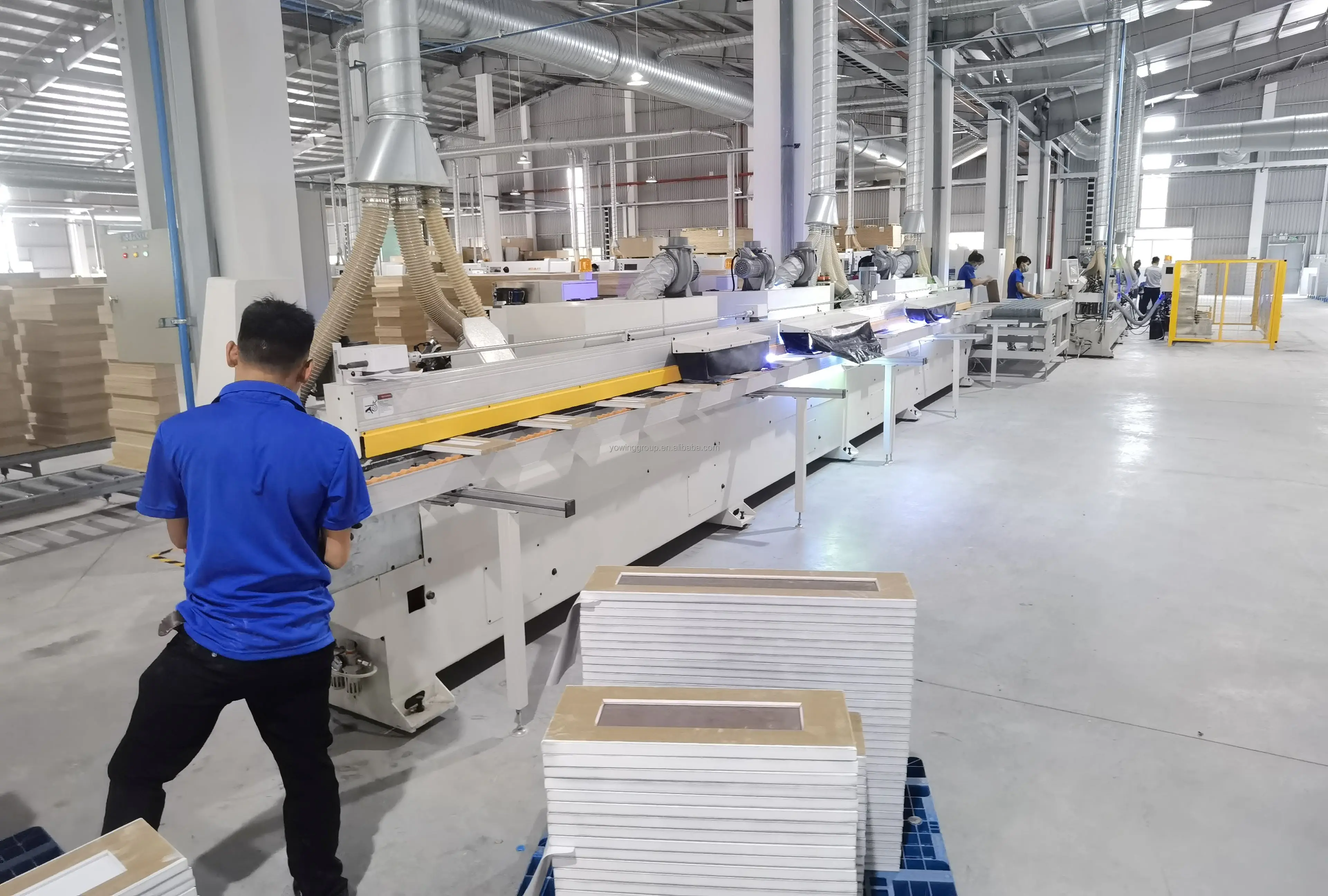

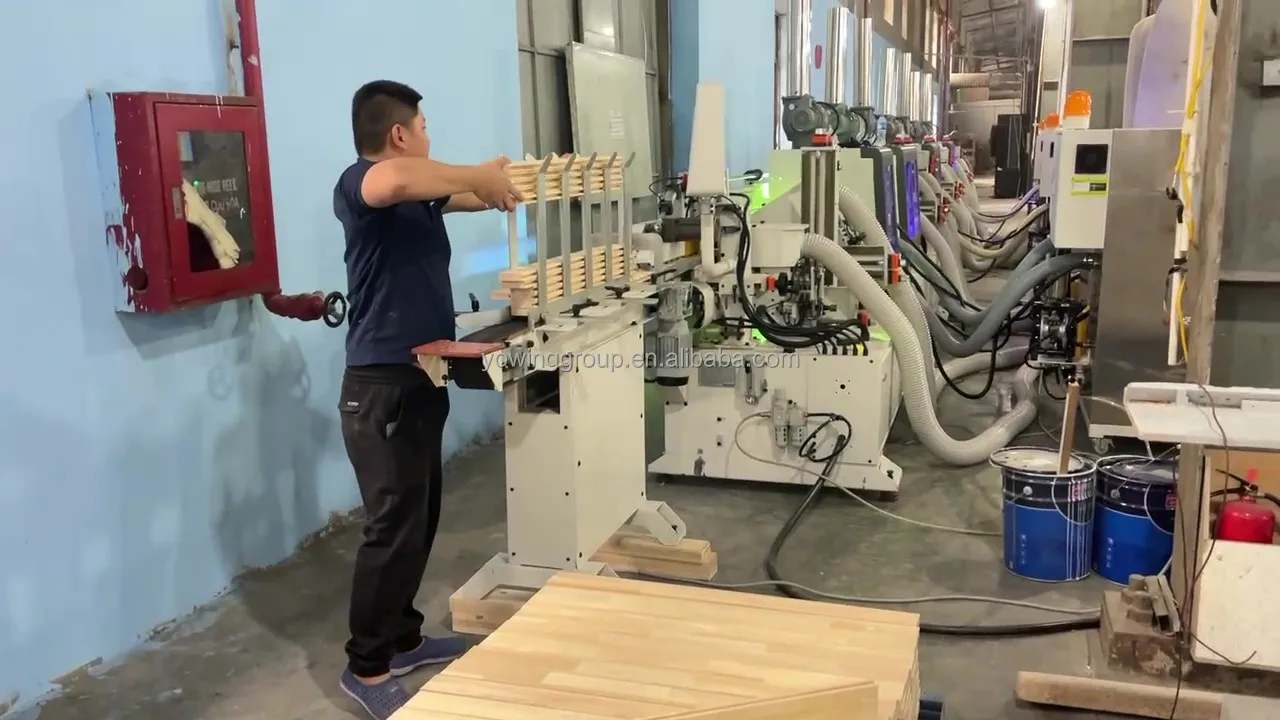

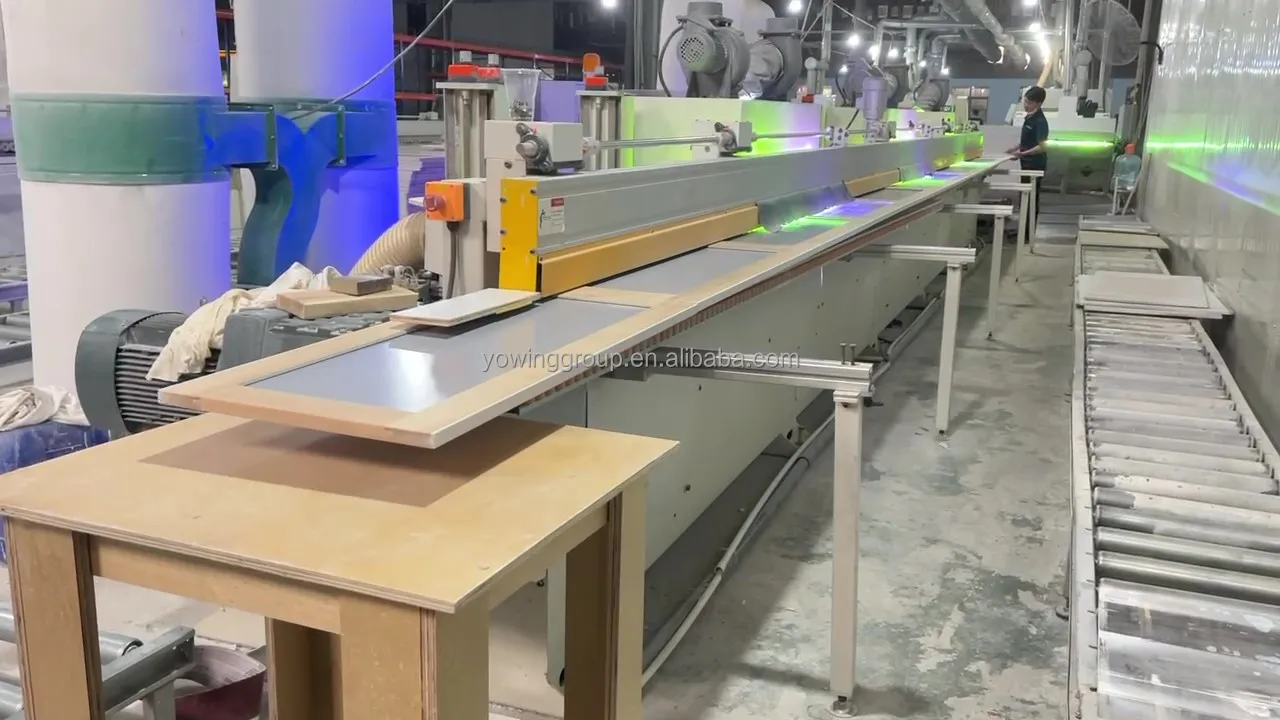

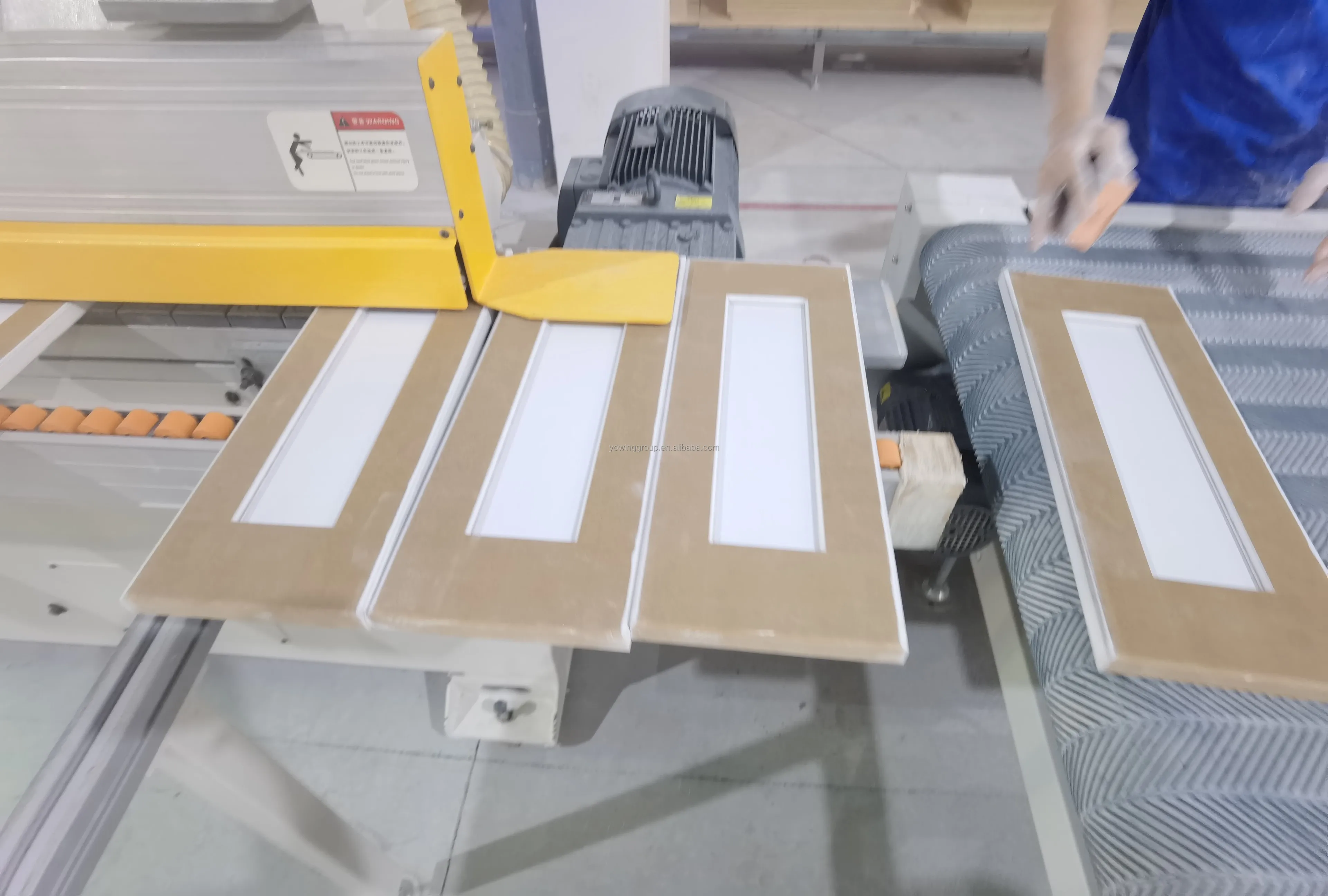

Use site Photos
More Combination for Option
MMZ-S1W1C1-T1G2
Triangle sand----Sponge wheel sand---Painting---Drying---Drying--feeding out

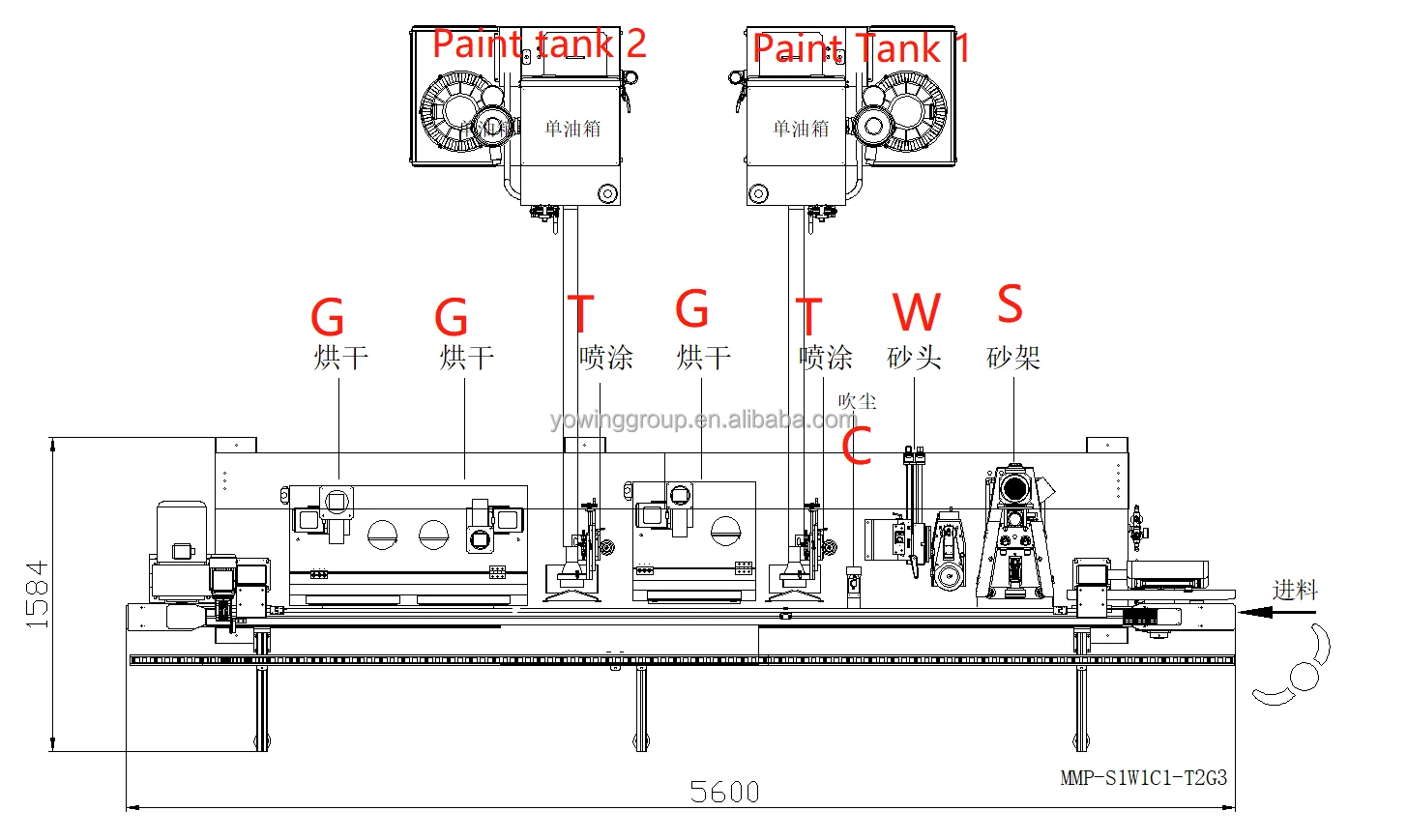

MMP-S1W1C1-T2G3
Triangle sand----Sponge wheel sand---Painting---Drying---Painting---Drying---Drying--feeding out

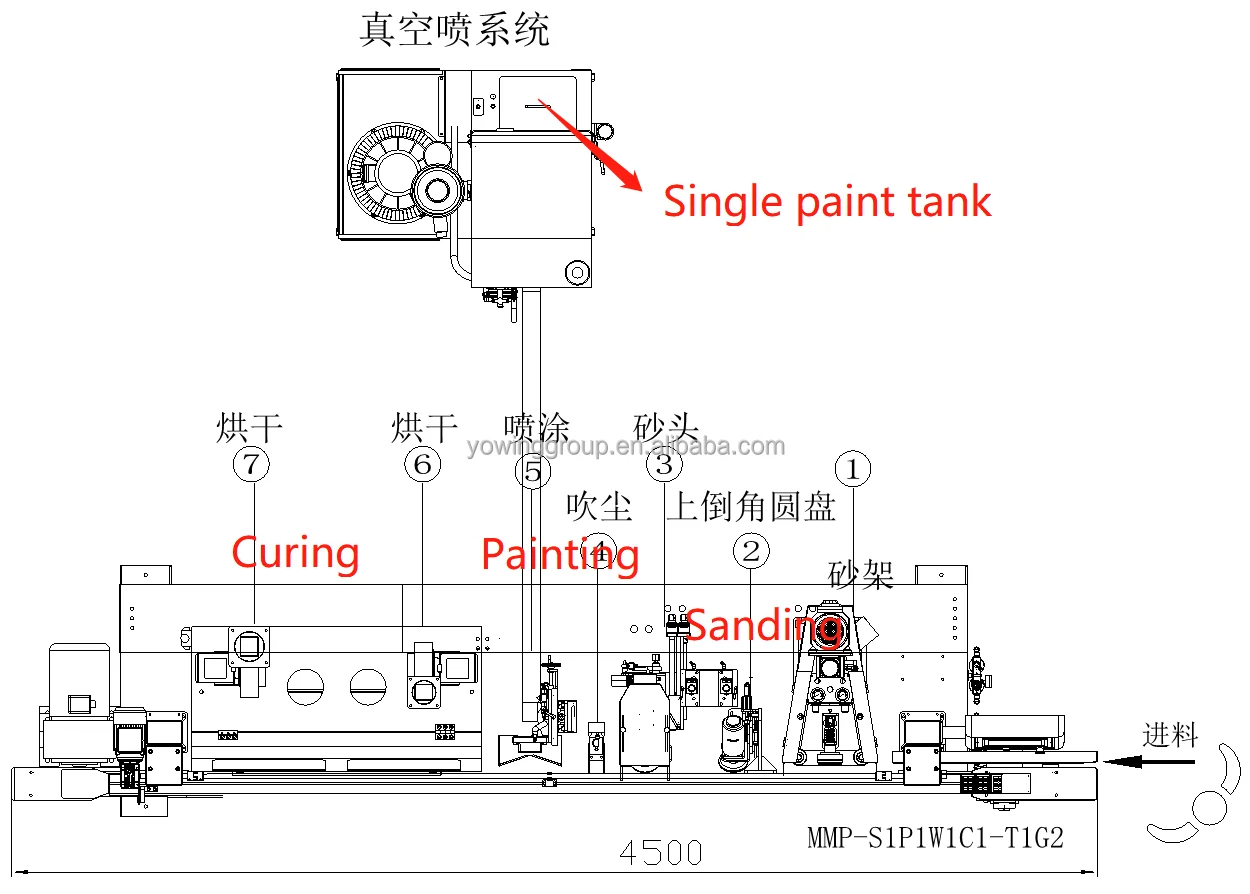

MMP-S1P1W1C1-T1G2
Triangle sand----Disc sand---Sponge wheel sand---Painting---Drying---Painting---Drying---Drying--feeding out

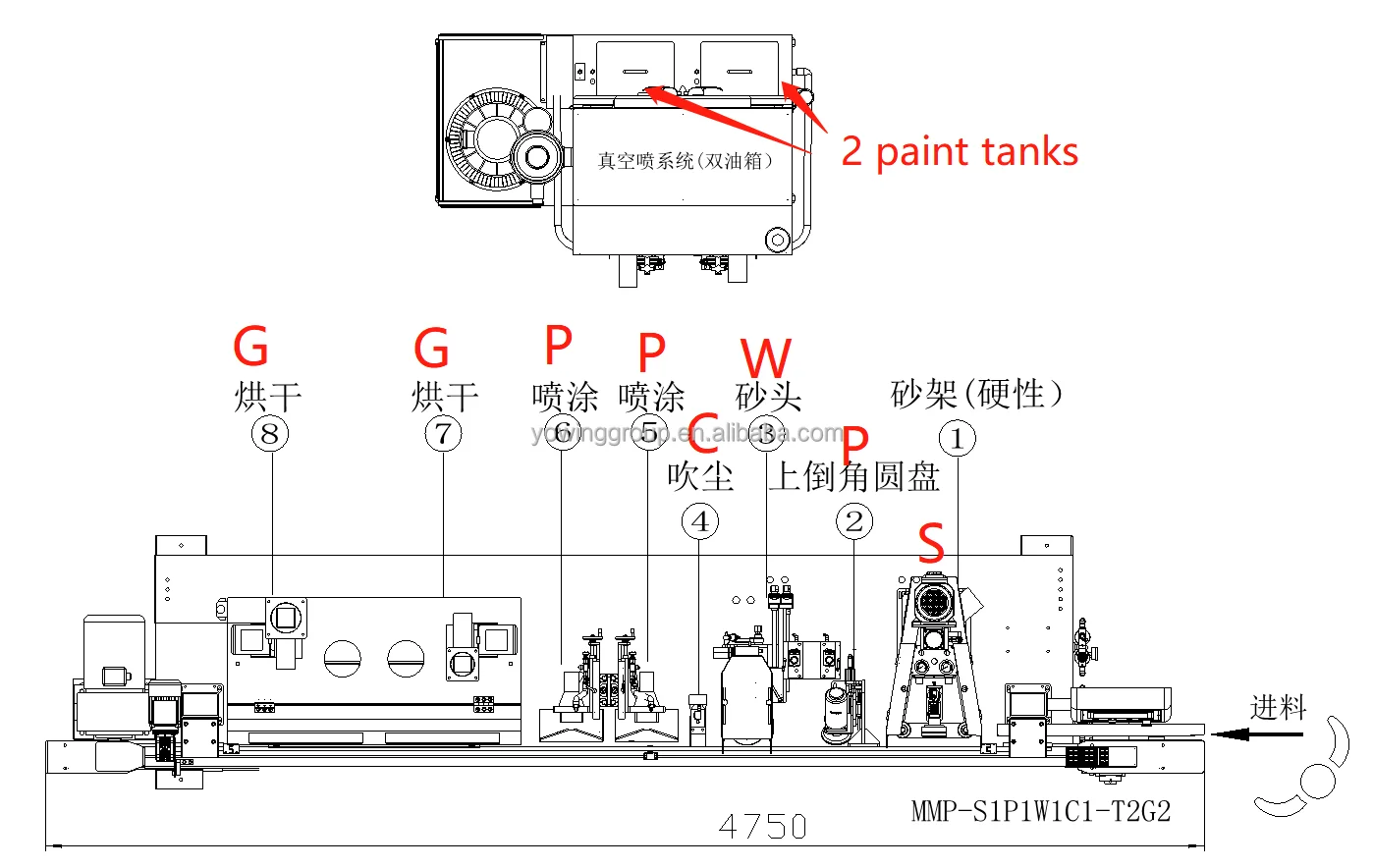

MMP-S1P1W1C1-T2G2（with 2 painting head+ 2 painting tanks) suitable for 2 colors
Triangle sand----Disc sand---Sponge wheel sand---Painting---Curing---Curing--feeding out

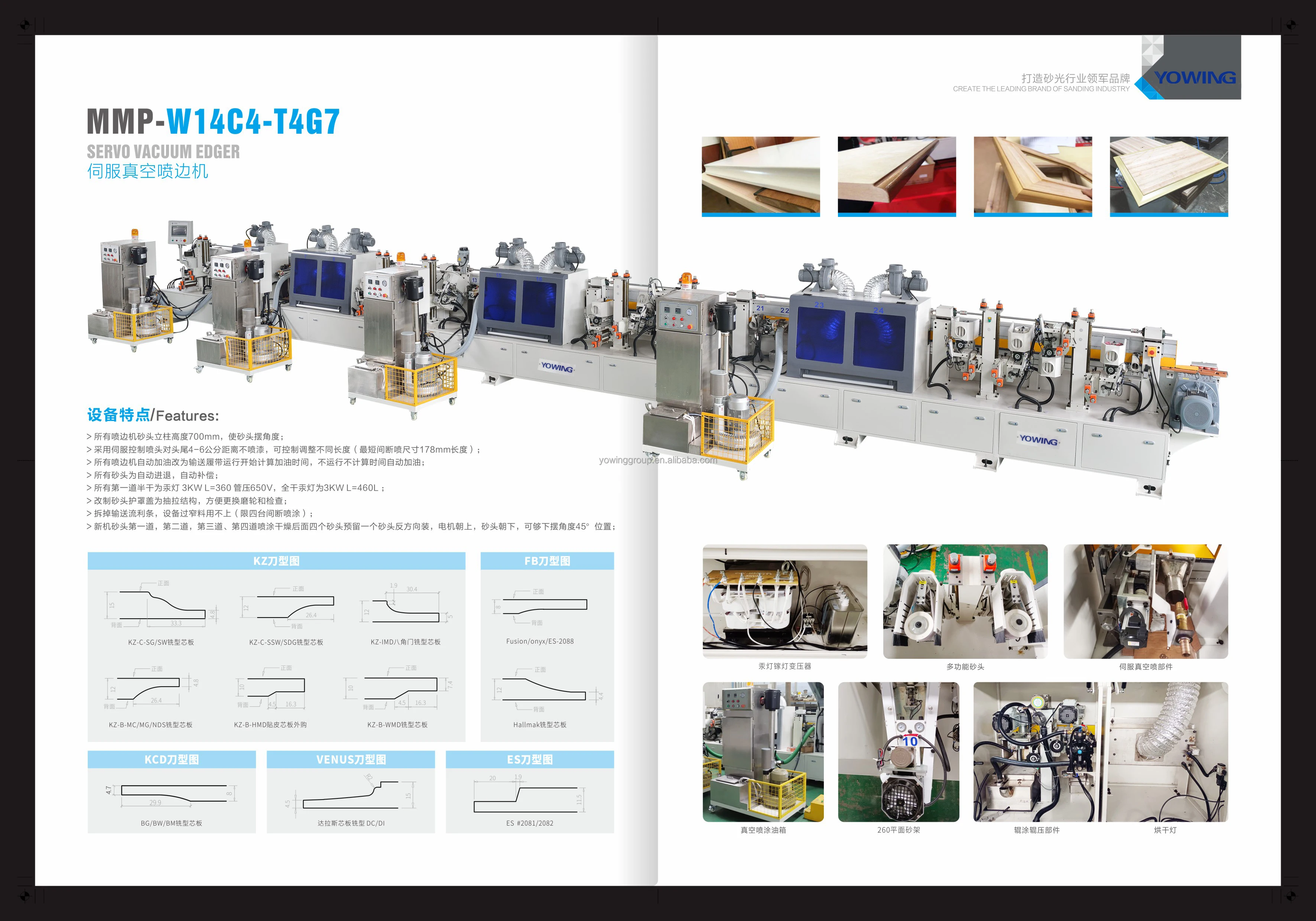

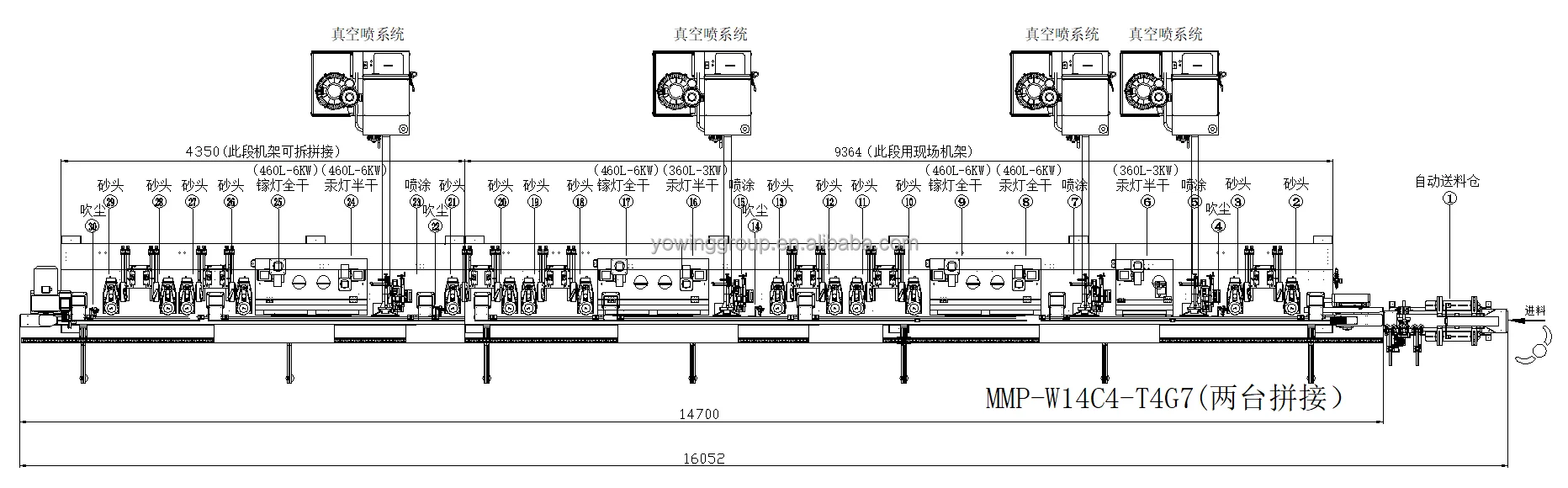

MMP-W14C4-T4G7
One machine finish whole process of base coat!
