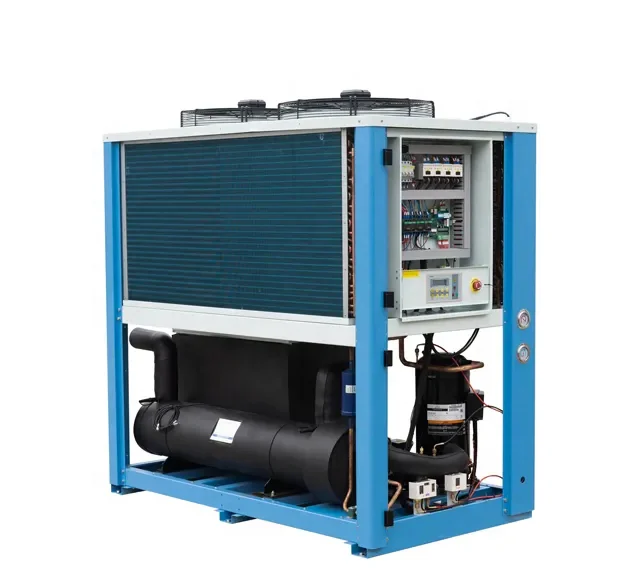

In Stock 5 HP Top Quality Air Cooled Water Industrial Chiller With Cheap Price
- Category: >>>
- Supplier: Greengines Industrial (shenzhen) Co. Ltd.
Share on (1600823036735):
Product Overview
Description
Overview
Applicable Industries: Manufacturing Plant, Food . & Beverage Factory, Retail, . . Food Shop, Printing Shops, . . Construction works , Energy . & Mining
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Condition: Screw compressor chiller
Place of Origin: Jiangsu, China
Voltage: 380V/3P/50HZ
Weight: 300 KG
Key Selling Points: Easy to Operate
After-sales Service Provided: Engineers available to . . . service machinery . overseas
voltage: 3P/220v--380v/50hz-60hz
cooling: Air cooled
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Condition: Screw compressor chiller
Place of Origin: Jiangsu, China
Voltage: 380V/3P/50HZ
Weight: 300 KG
Key Selling Points: Easy to Operate
After-sales Service Provided: Engineers available to . . . service machinery . overseas
voltage: 3P/220v--380v/50hz-60hz
cooling: Air cooled
Showroom Location: Egypt, Viet Nam, Kenya
Machinery Test Report: Provided
Core Components: Compressor, condenser, . . evaporator
Type: Water-cooled
Brand Name: JIATE
Machinery Test Report: Provided
Core Components: Compressor, condenser, . . evaporator
Type: Water-cooled
Brand Name: JIATE
Dimension(L*W*H):
Warranty: 1 Year, 12 months
Product name: Circulating Water Chiller
Warranty: 1 Year, 12 months
Product name: Circulating Water Chiller
Compressor brand: Bitzer,Hanbell
type: Screw type
electriacl prats: Schneider brand
Supply Ability
Packaging & delivery
Packaging Details: Cartons packed then with wooden pallet
Port: Shenzhen
Quantity(sets) | 30 | >30 |
Lead time (days) | 25 | To be negotiated |

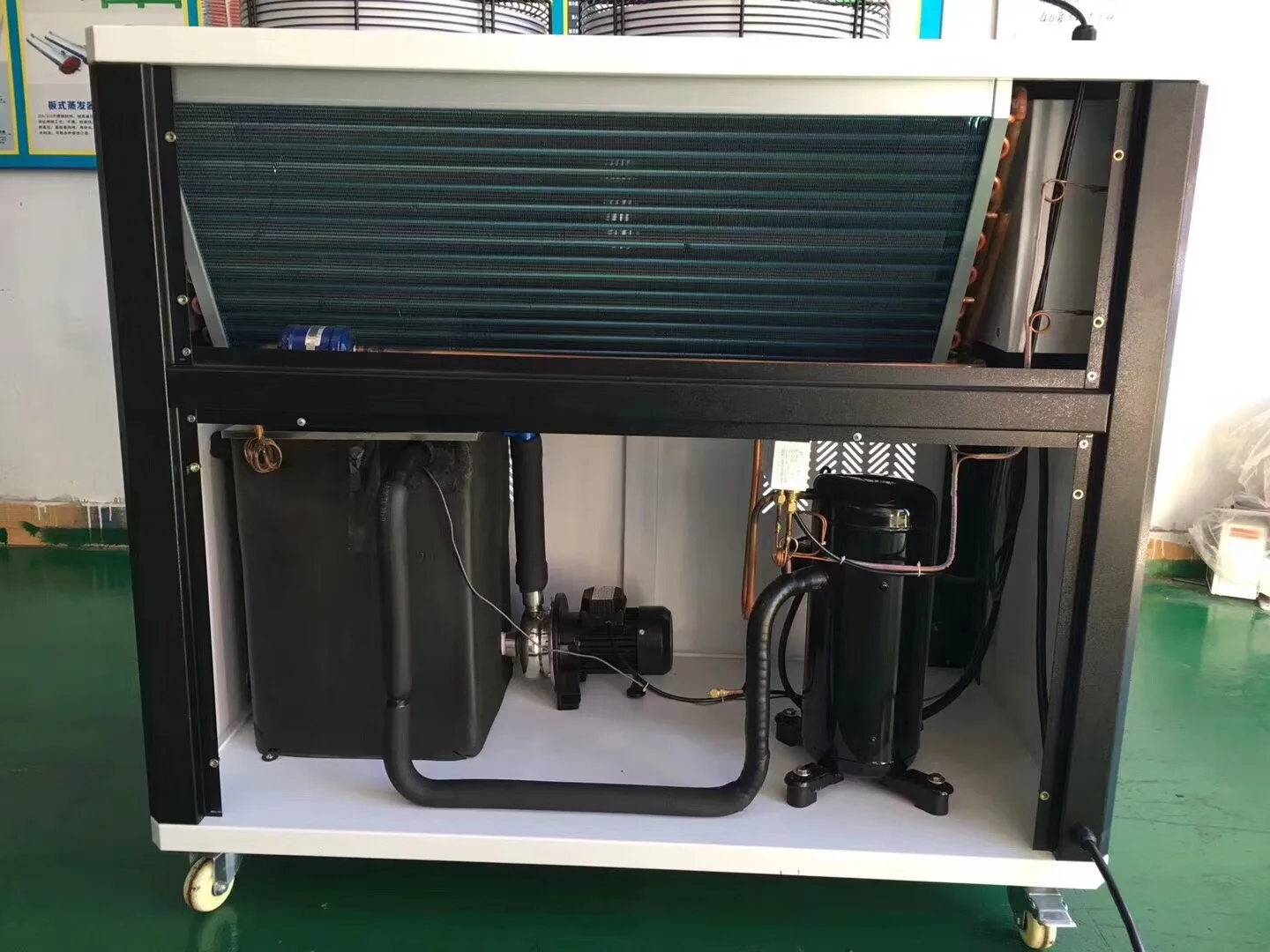

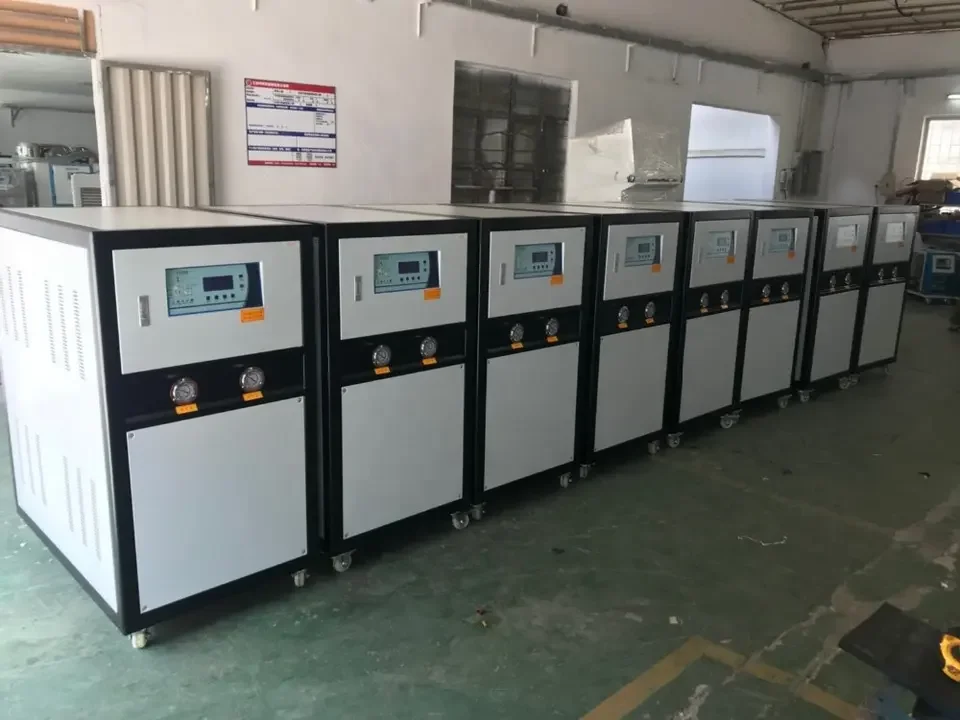

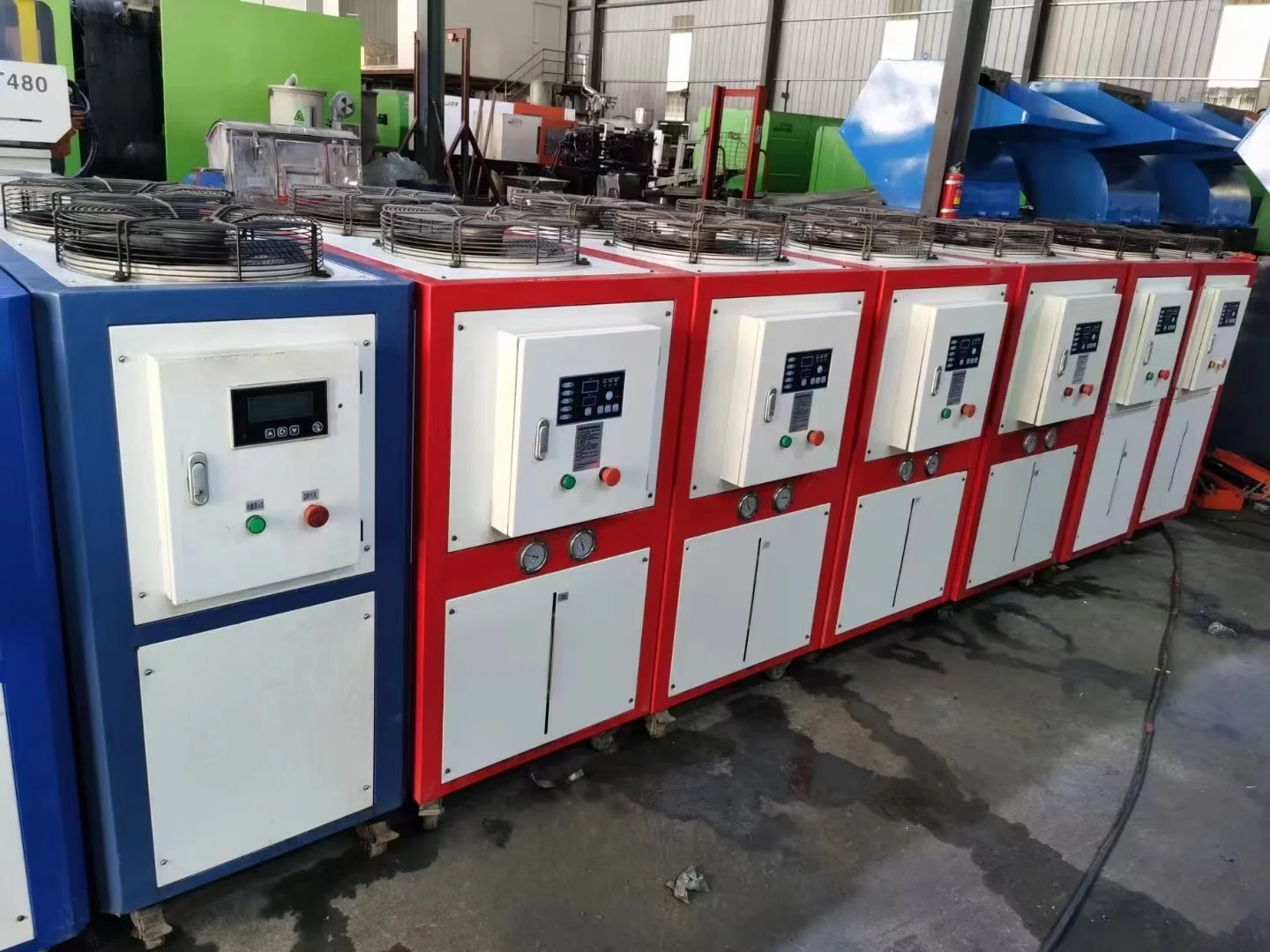

Details Images
Product Advantage

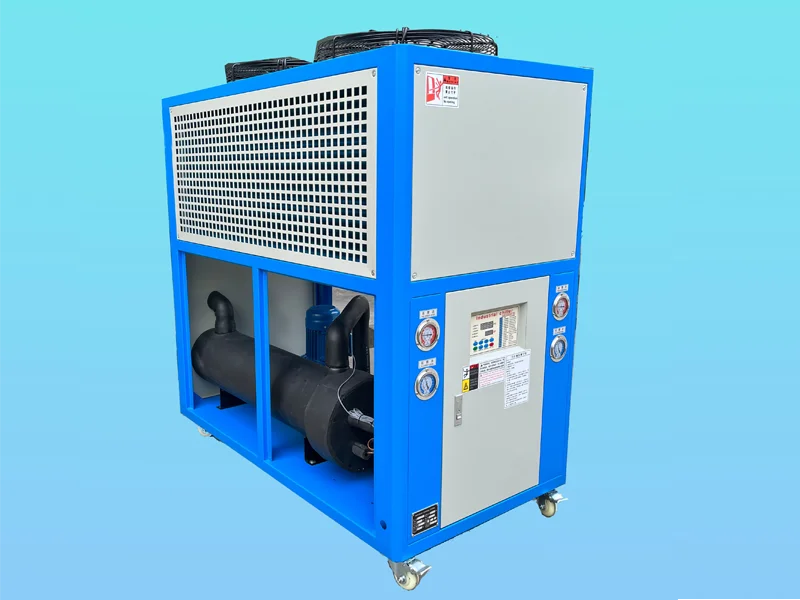

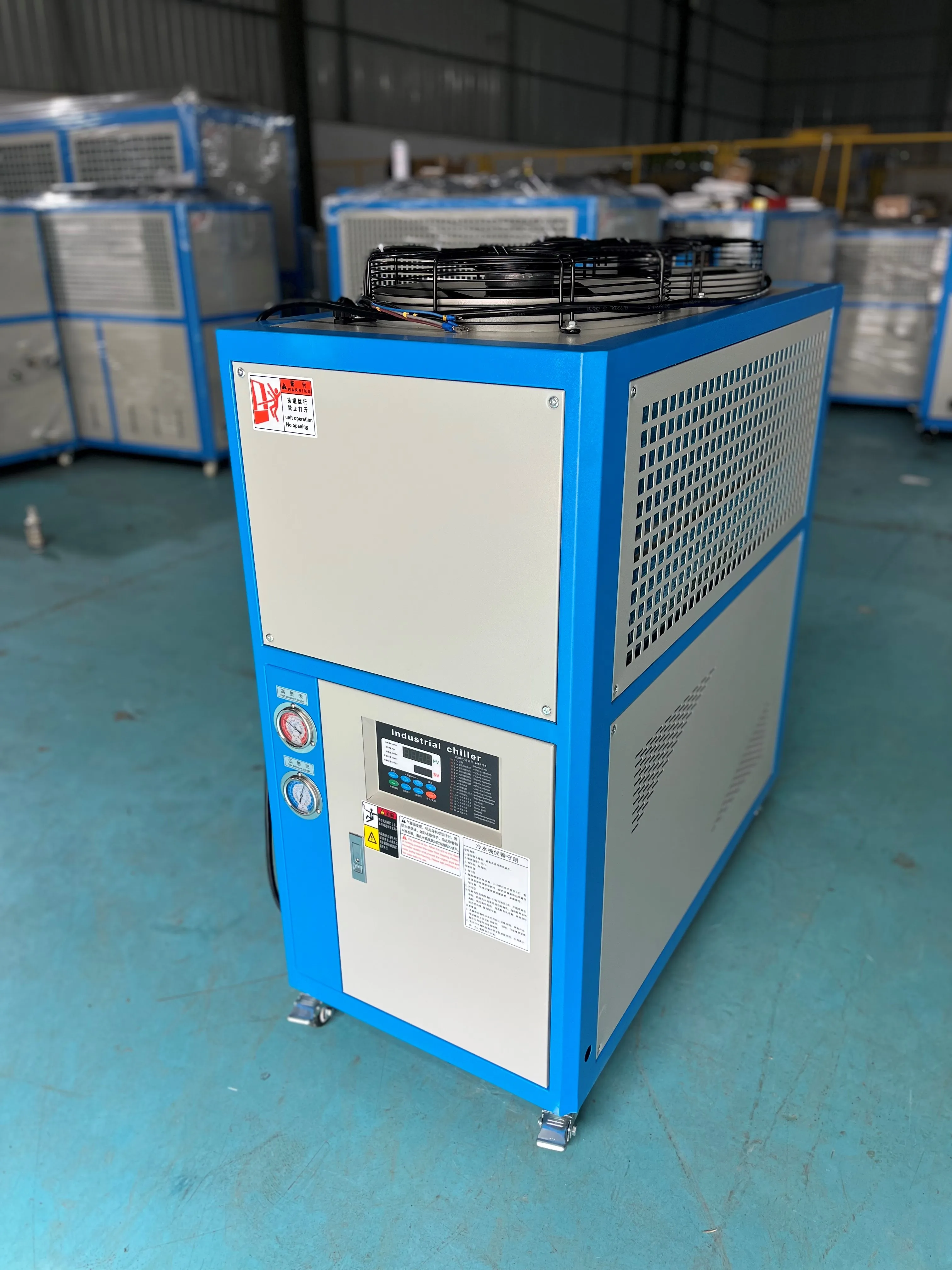

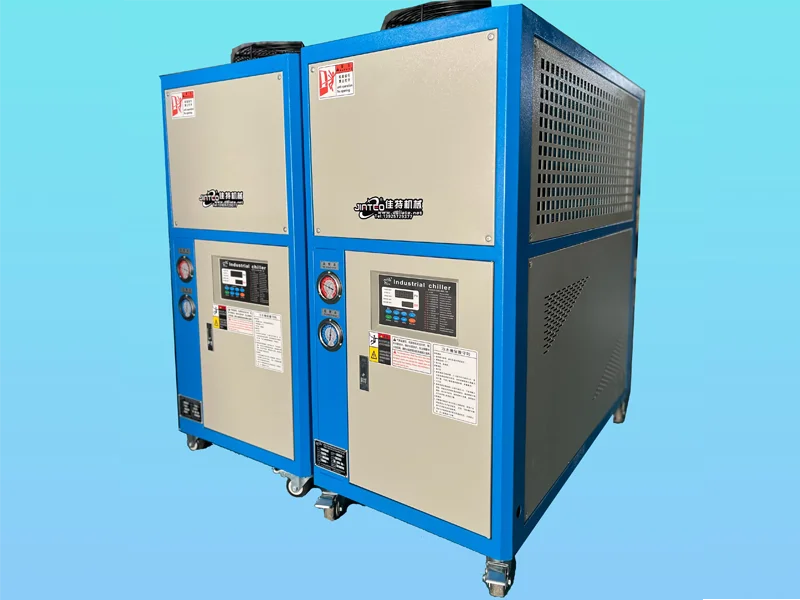

Industrial chiller
Suitable for various industries
Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.

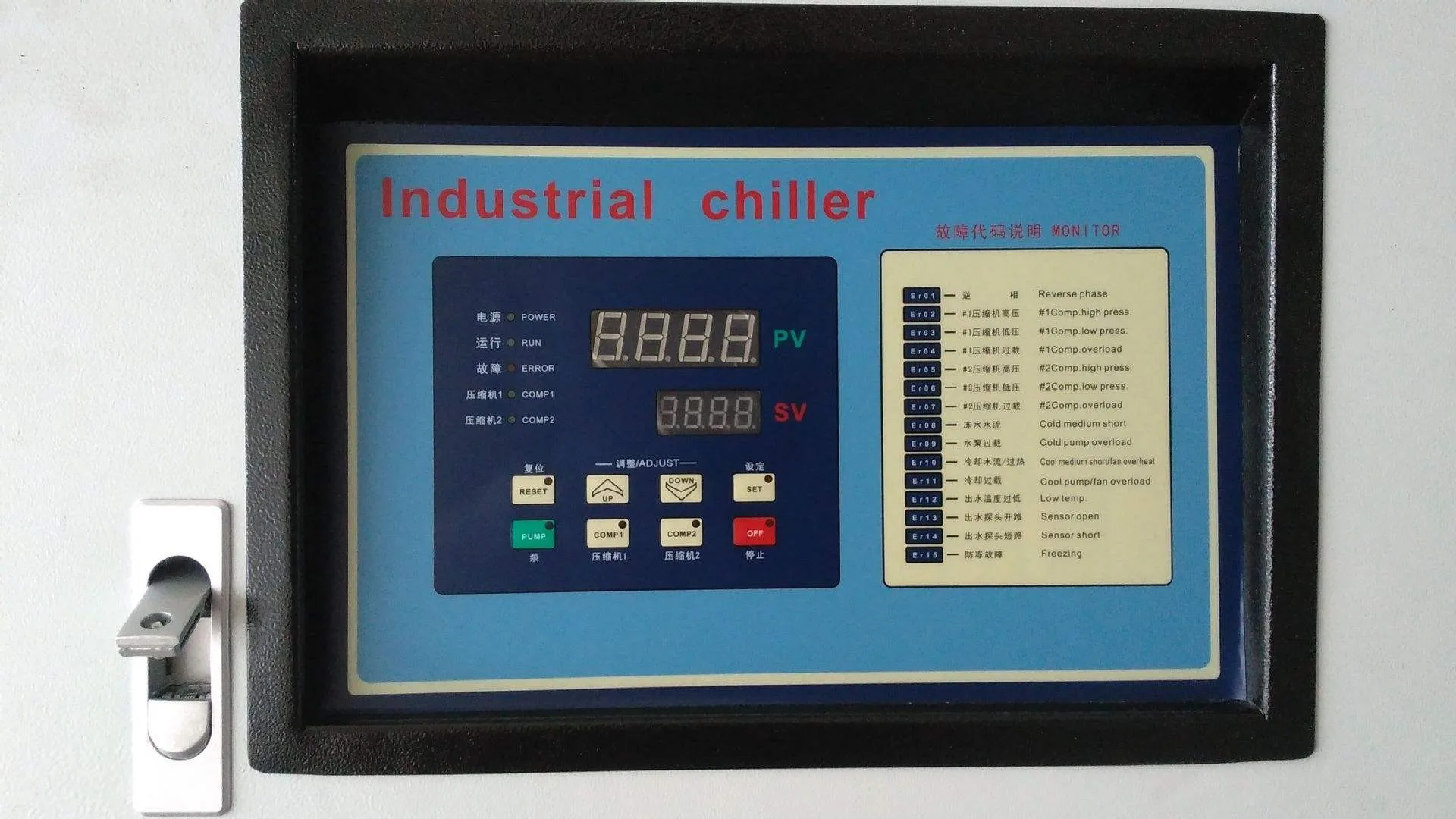

01 Microcomputer LCD Controller
▪ Easy to operate with accuracy of controlling water temperature within 3℃ to 50℃.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
03 Shell&Tube Evaporators
efficiency and maximizing system
performance.

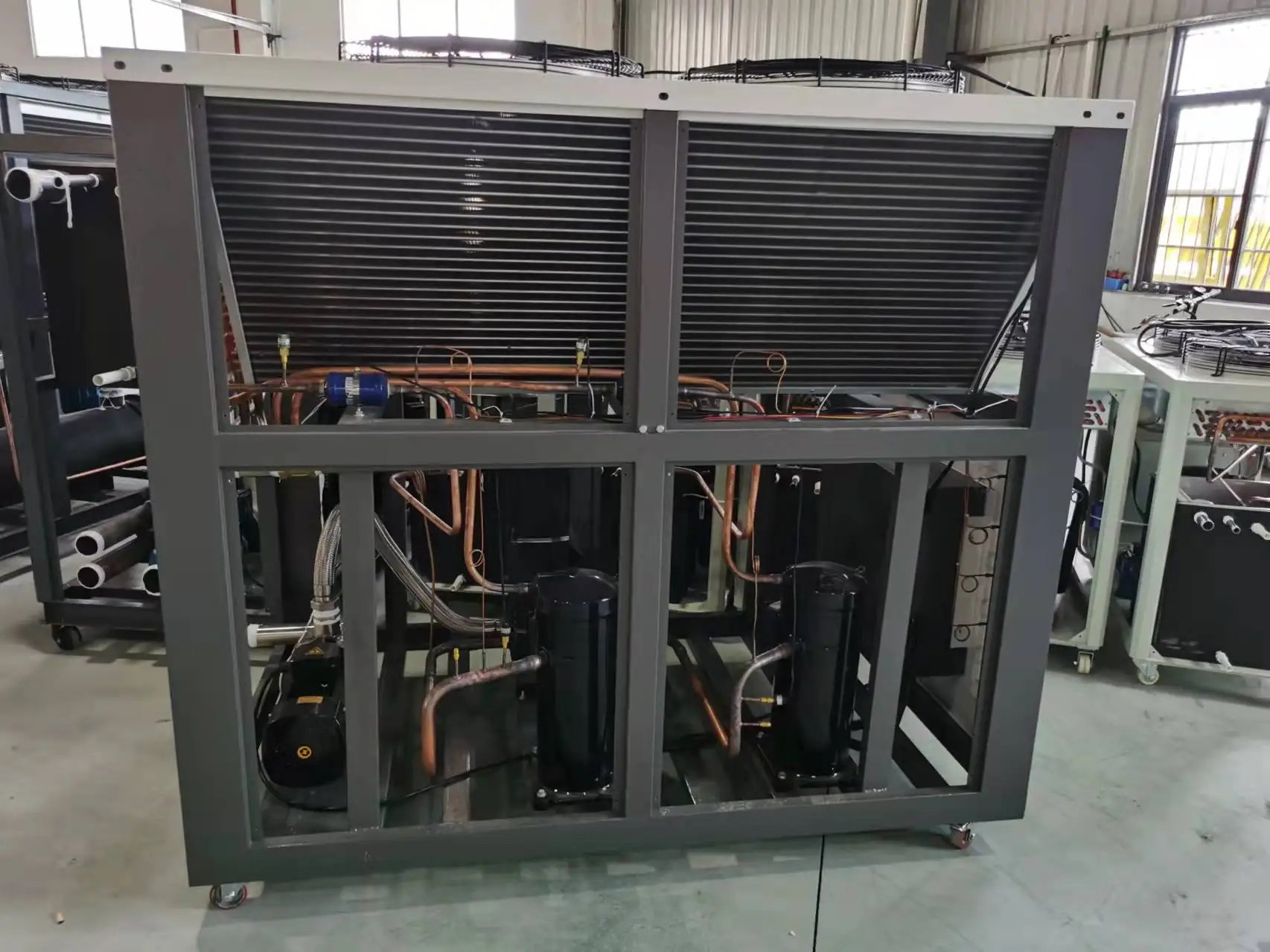

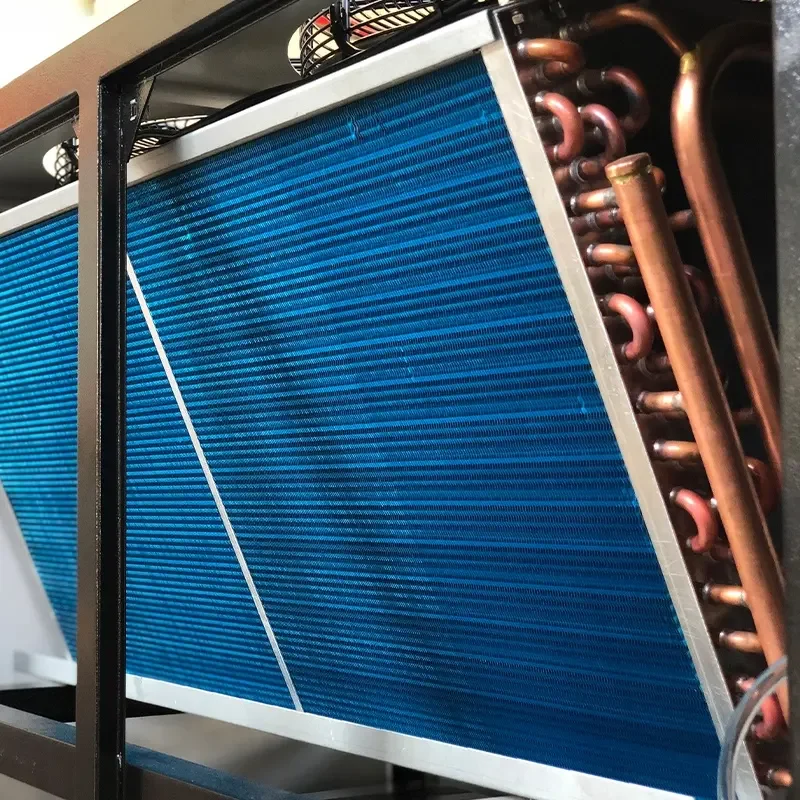

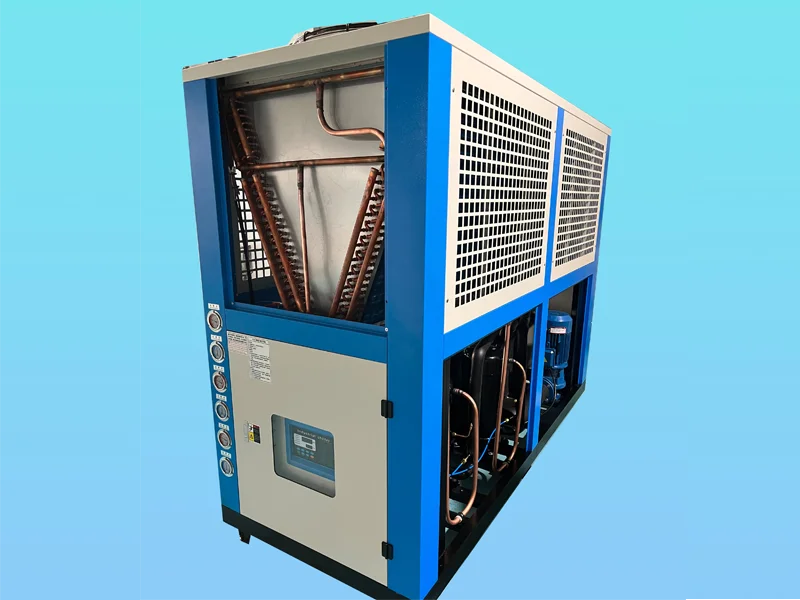

04 V Type Finned condensers
With high efficient fin type condenser and silent refrigeration fan, no need to equip cooling water, easy to install.
05 Water Pump
Advanced stainless steel Oakland water pump, with large working range, low noise, reliable performance and no leakage and
maintenance-free.

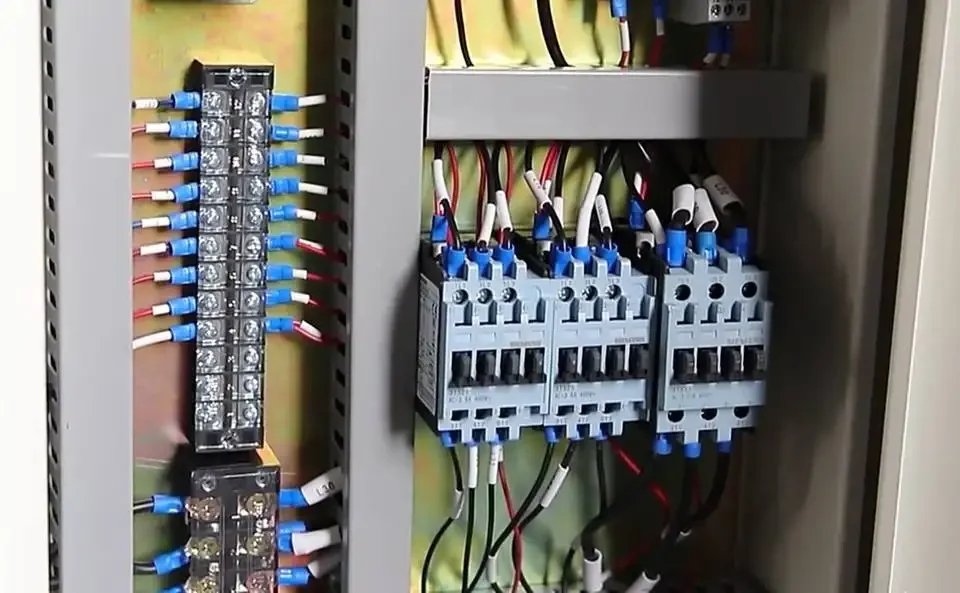

06 Protection System
Current overload protection, high and low pressure protection system and electronic time delay, and an abnormal visual display
system.
system.
Specifications
Contents | Accessories specifications | |||
Cold rating system | Model number | JT-5AC | ||
Kcal/h | 12470 | |||
Kw | 14.5 | |||
Input power | kw | 4.5 | ||
Power supply | 3PH/380V/50HZ | |||
Temperature control range (° C) | A d j u s t a b l e f r o m 5 t o 4 0 d e g r e e s | |||
Temperature control accuracy (° C) | ±1 degree | |||
Refrigerant flow control | Capillary | |||
Refrigeration mode/refrigeration loop | Single cooling/single loop | |||
Refrigerant | R22 | |||
Compressor | Type | F u l l y e n c l o s e d s c r o l l t y p e | ||
Motor power KW | 3.75 KW | |||
Using Brands | Japanese Panasonic compressor | |||
Condenser ( | Type | High efficiency finned heat exchanger | ||
Cooling air capacity m³/h | 10000 | |||
Fan power /W | 432 | |||
Evaporator | Type | Coil evaporator | ||
Chilled water flow rate (m3/h) | 3 | |||
Chilled water pipe diameter | DN25 | |||
Water tank | Capacity (L) | 60 | ||
Material | Disposable molding PP | |||
Freezing circulating pump | Lift (m) | 20 | ||
Motor power (kw) | 0.37 | |||
Flow rate (L/min) | 50 | |||

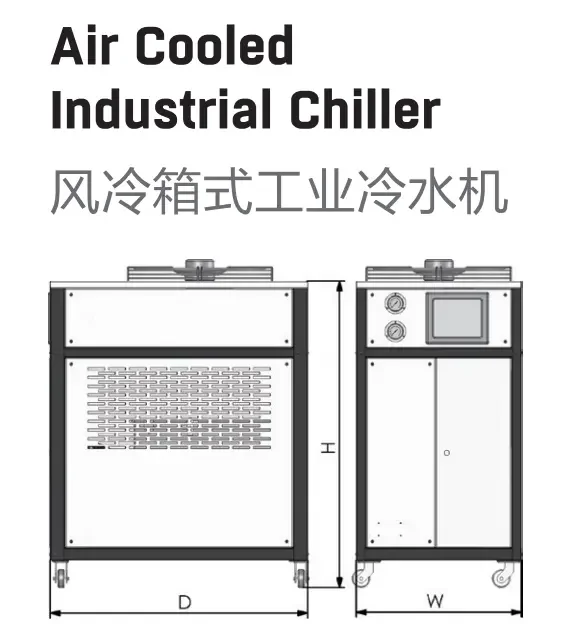

Exterior size L× W× H(mm) | 1150 * 570 * 1110 | |||
Unit weight (Kg) | 180 | |||
Other major parts | ||||
Compressor | Panasonic Compressor from Japan | |||
Pressure controller | Trace cold | |||
Oil-type pressure gauge (high pressure) | Opter | |||
Oil-type pressure gauge (low pressure) | Opter | |||
Filter dryer | E m e r s o n E K 0 8 4 | |||
Machine ice water circulation nozzle | Stainless steel tube | |||
Control panel | Micro computer version temperature control | |||
Appliances | Schneider | |||
Blower | Mar ¢ 400 x 2 PCS | |||
throttling | Capillary | |||
Water pump | 3 7 0 W , Aoyuan , Taiwan | |||
Cistern | Water tank refill for automatic water refill | |||

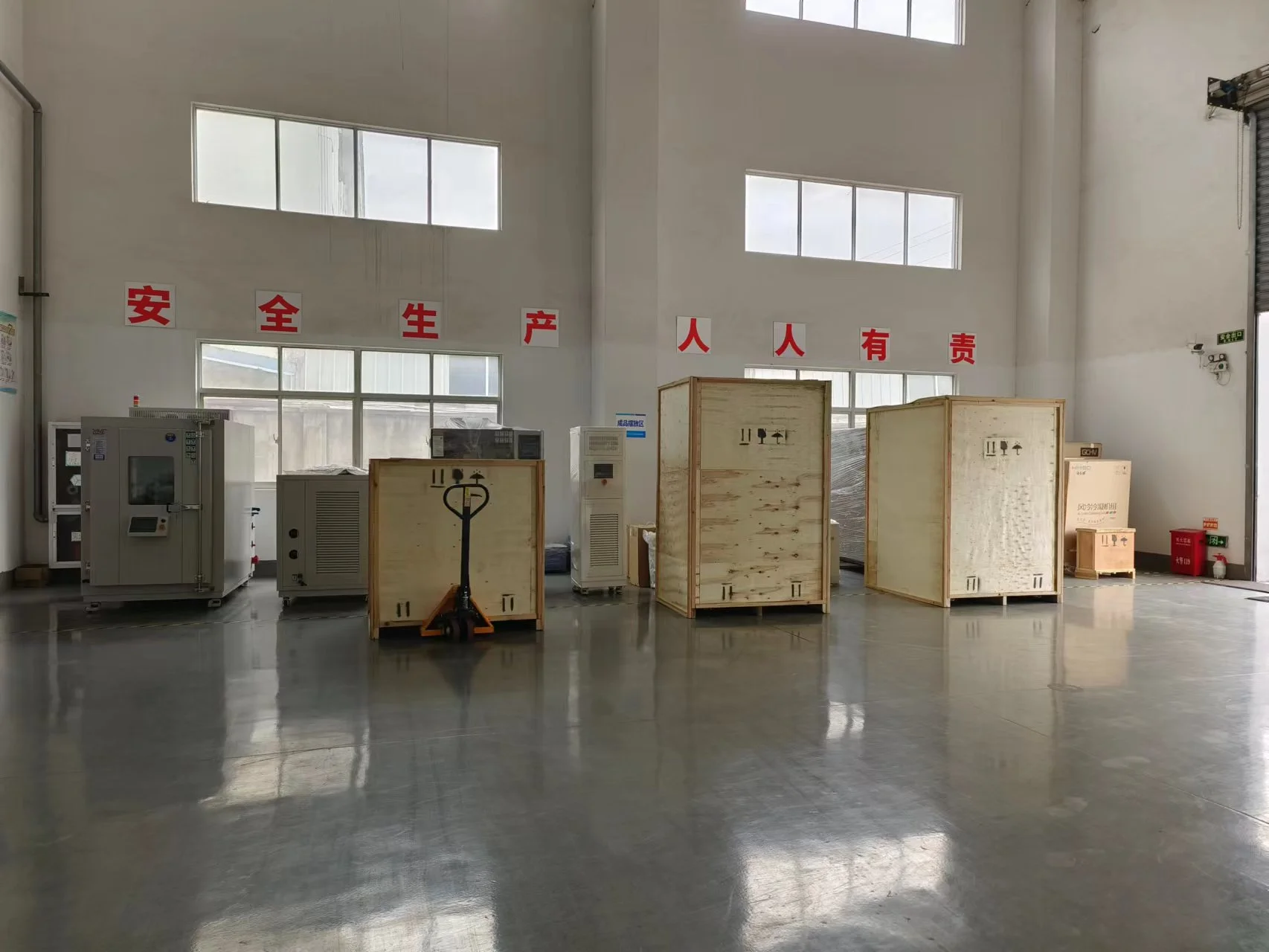

Product Packing
Packing Detail:
2.Cartons packed then with wooden pallet.
3.As per customized specifications.
Recommend Products
Why Choose Us
More than 20 years of industry experience
Our company has more than 20 years of industry experience, and many experienced engineers can find industrial chiller suitable for your needs in a short time.

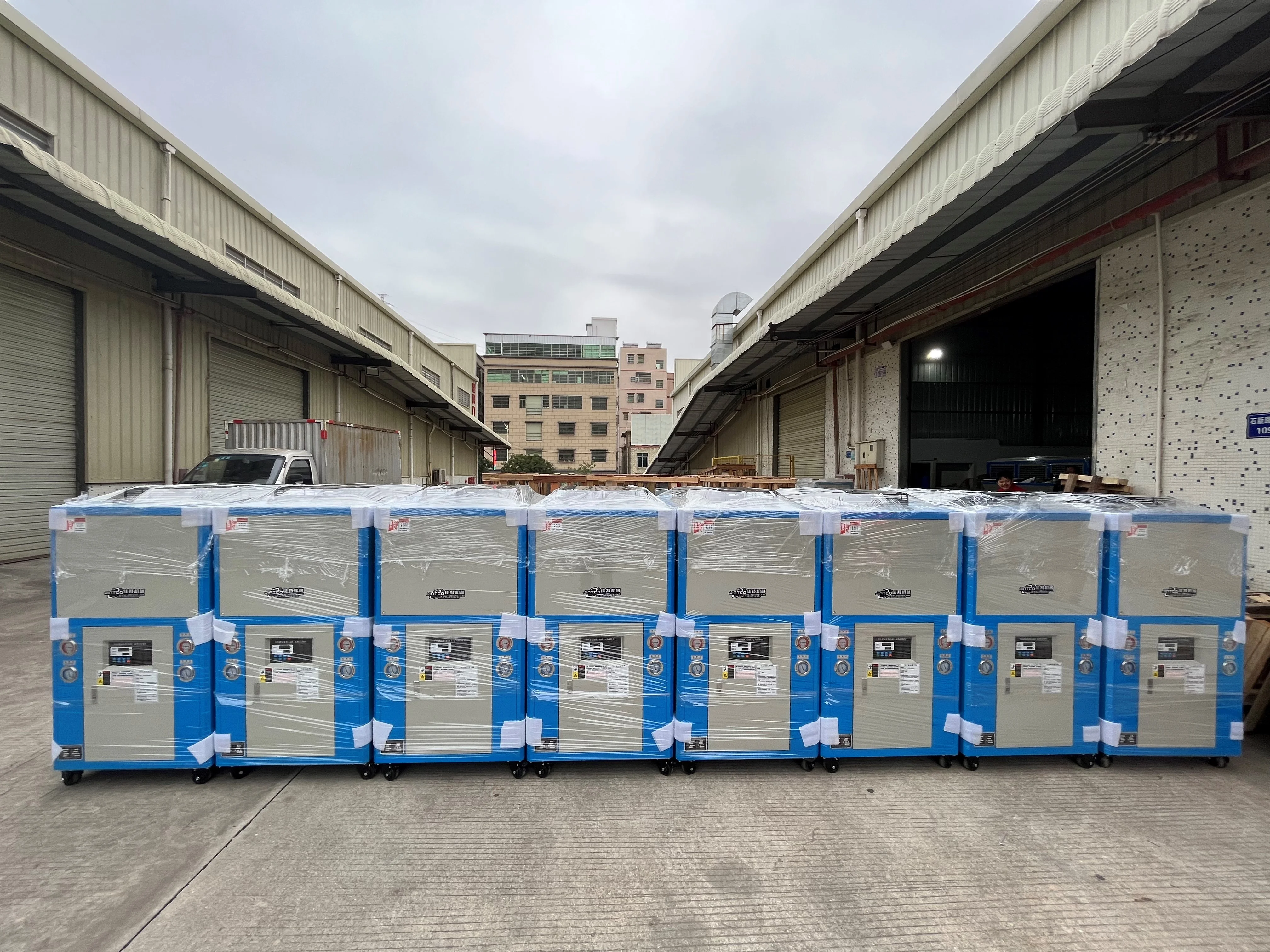

Large inventory
We have industrial chiller of various tonnage and their supporting products. We have built and cooperated with more than 10 warehouses. The number of industrial chillers in the warehouse is large, and we can find the chillers that meet your needs.
Highly professional
We mainly operate injection molding machines ,industrial chillers ,blow machine and so on. We have worked hard for many years to find machines with low price and good quality. We believe that we can succeed only if we are professional.
Custom service
FAQ
FAQ
1. Q: What are your Price Terms and depart port?
A : Trade term: FOB, CFR, or CIF, etc. Shipping port: Shenzhen normally.
2. Q: Why should i choose your company and your products?
A: We have been in this field for more than 20 years,and our quality is good.Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn,BYD,etc.
3. Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Q:What is the order process?
A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after sale service.
5.Q: I want make a plastic product, but I don't know how to choose a suitable machine model, what should I do?
A: Please feel free to tell us about the product detail information, such as size weight, how many output you prefer per hour. We will help make good proposal with nice price for you.
2. Q: Why should i choose your company and your products?
A: We have been in this field for more than 20 years,and our quality is good.Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn,BYD,etc.
3. Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Q:What is the order process?
A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after sale service.
5.Q: I want make a plastic product, but I don't know how to choose a suitable machine model, what should I do?
A: Please feel free to tell us about the product detail information, such as size weight, how many output you prefer per hour. We will help make good proposal with nice price for you.
