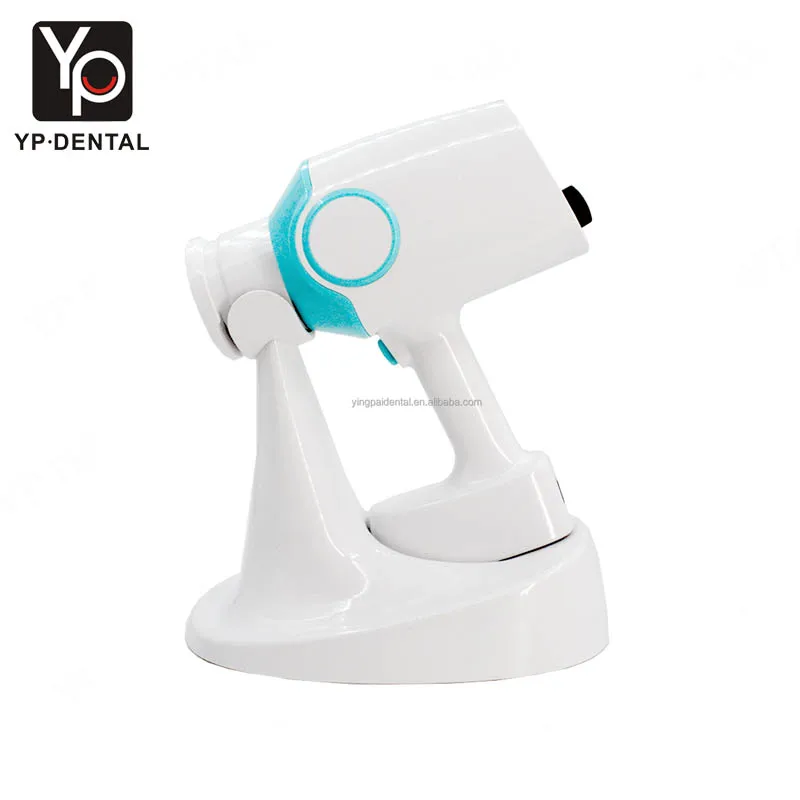

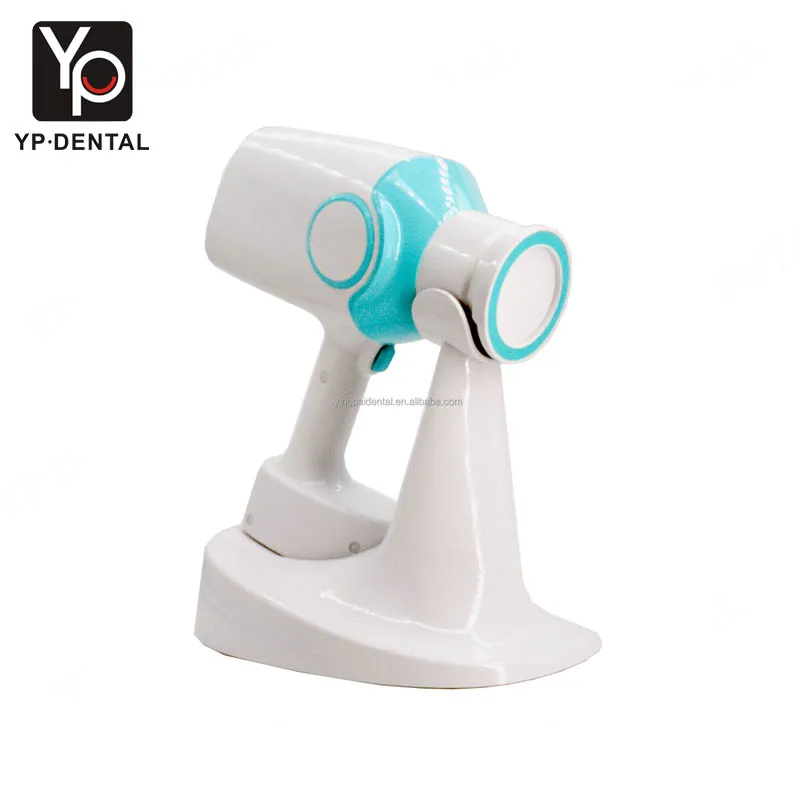

Z-RAY H (2.0) Portable Dental X-ray Machine


Product Description

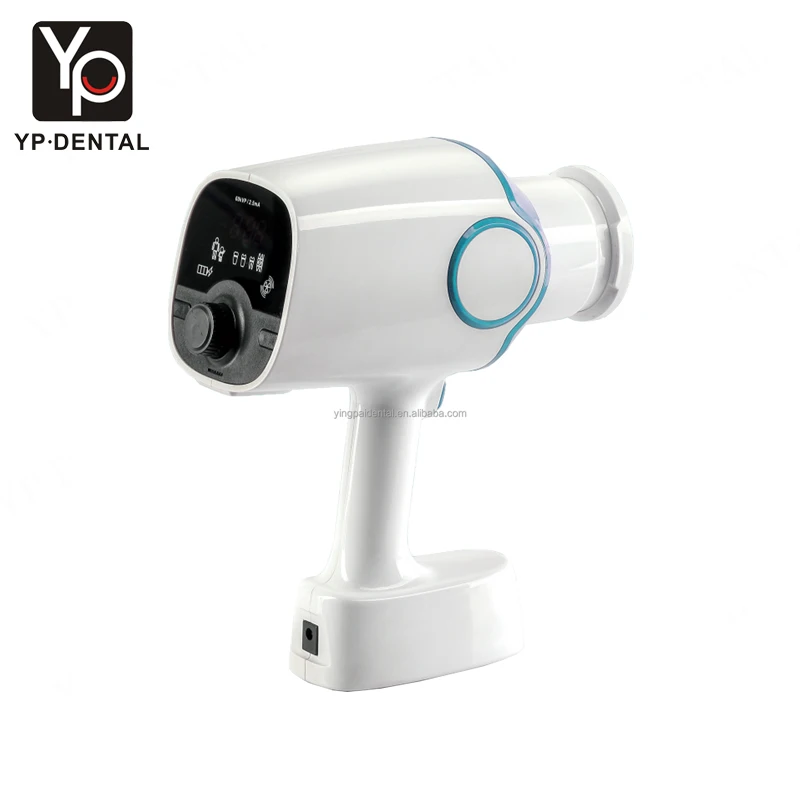

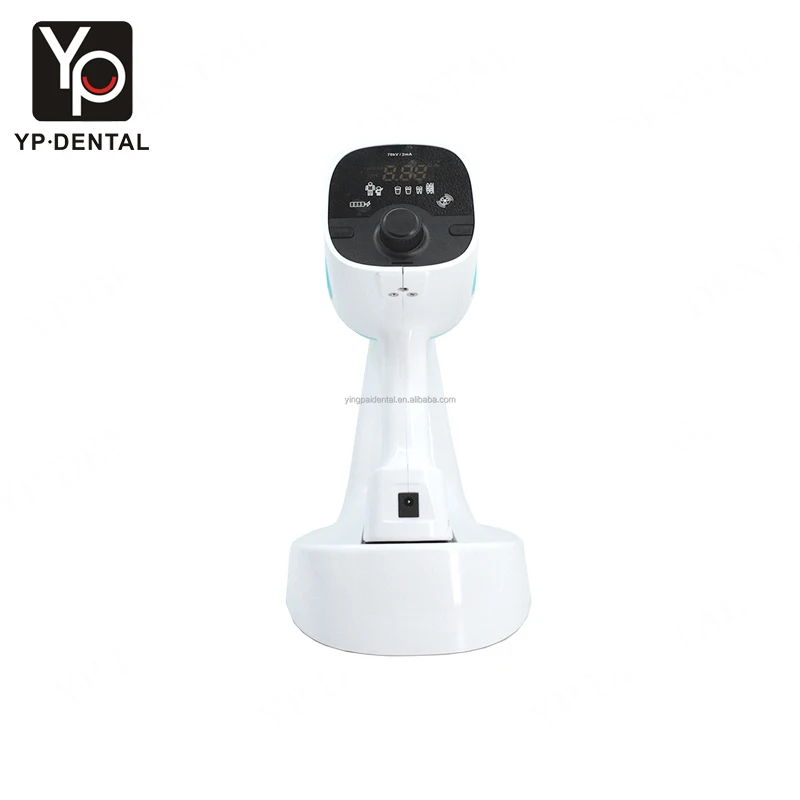

Z-RAY H (2.0) Portable Dental X-ray Machine

RAYL is a portable X-ray machine. Operation voltage is DC24V. This equipment is an X-ray generating equipment powered by a rechargeable lithium battery that mainly used for dental examination (teeth and mandible). It consists of high pressure generator, X-ray tube and control system. The control system includes equipment controller, power controller, user interface, beam limiting device, backscatter shielding and optional remote exposure switch. This equipment is used to irradiate the intraoral X-rays and imaging for diagnostic use.

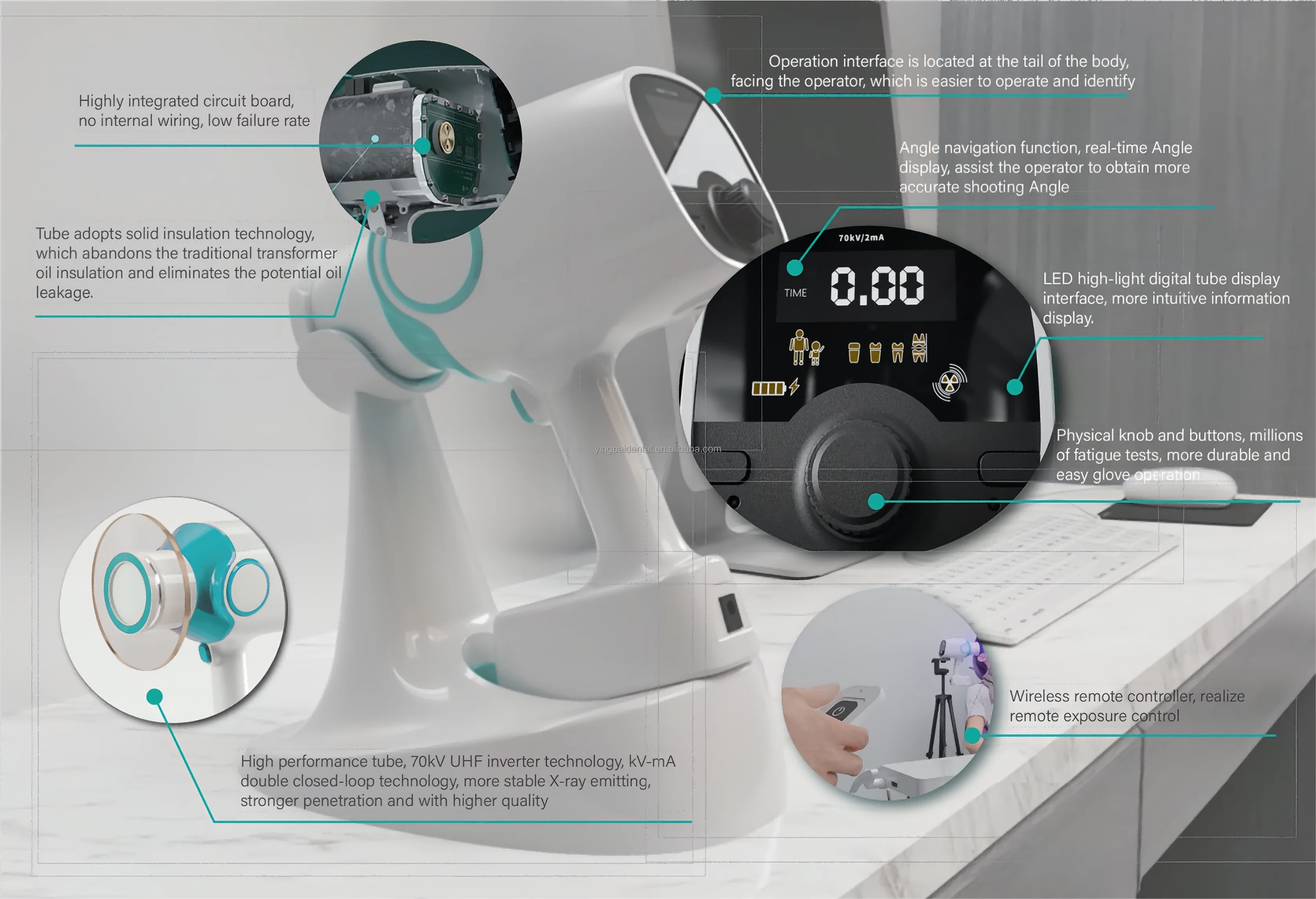

Feature:
1️⃣.UHF:Ultra-high frequency can achieve low moiré rate and clearer imaging
2️⃣.Tube Voltage/Tube Current:70KV 2mA enhanced radiation can bring more stable imaging and shorter exposure time.
3️⃣.Handheld gun style:With base, easy to hold, beautiful appearance.
4️⃣.Highly integrated:Highly integrated circuit board, no internal wiring, low failure rate
5️⃣.Solid insulation:Compared with liquid insulation safety, no leakage,
6️⃣Intelligent control:LED display interface, more intuitive, millions of buttons fatigue test
7️⃣Intelligent digitization:There are different angle parameters for different tooth positions, angle navigation, real-time angle display, assisting in obtaining the best angle and reducing the difficulty of operation.Adult/child mode switch, tooth position switch, panel display
8️⃣Can be externally connected to the bracket
9️⃣Battery capacity 905mAH:Large capacity, less charging times

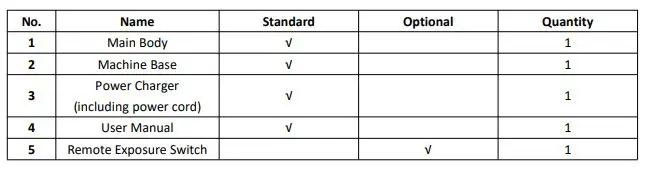

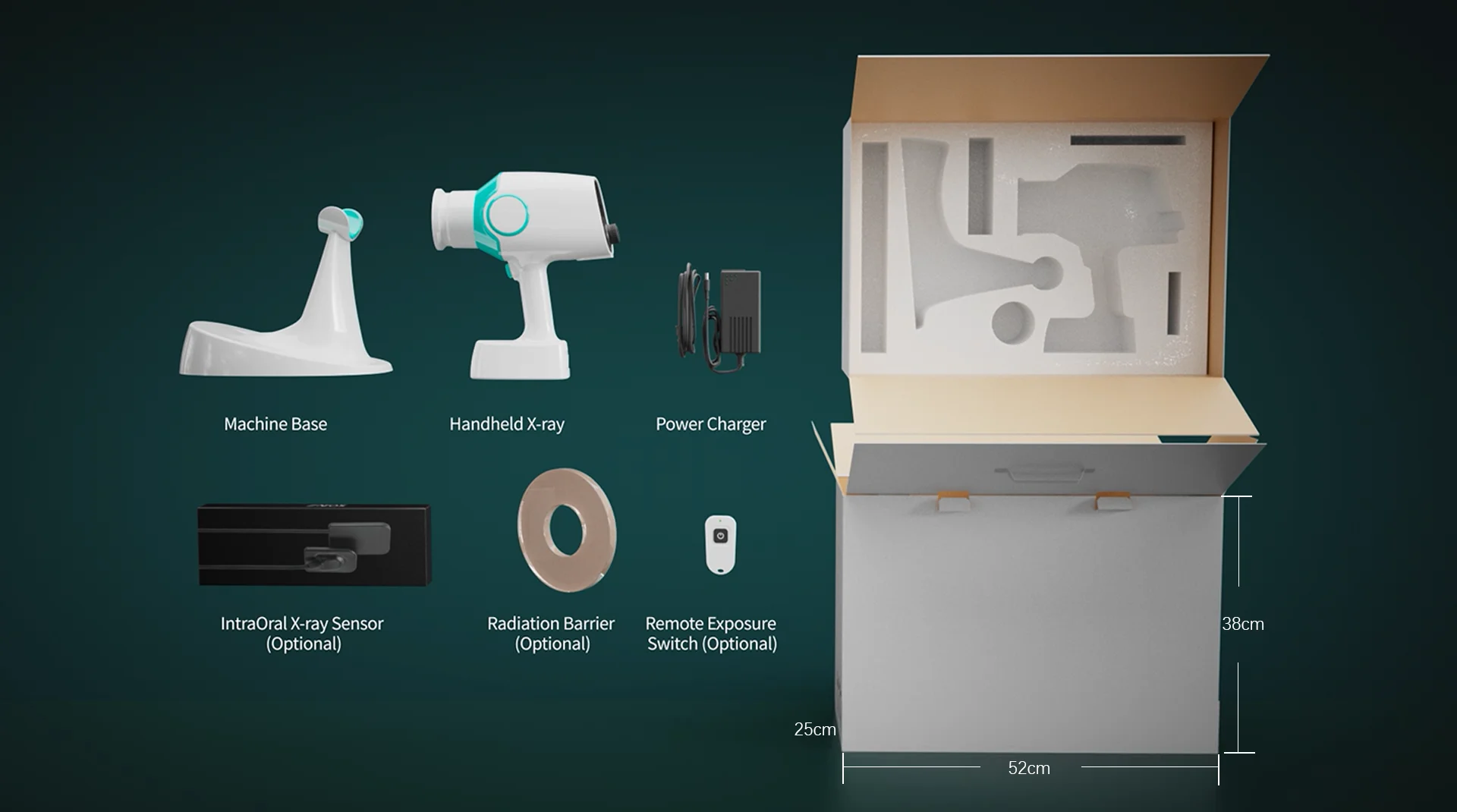

Package Included

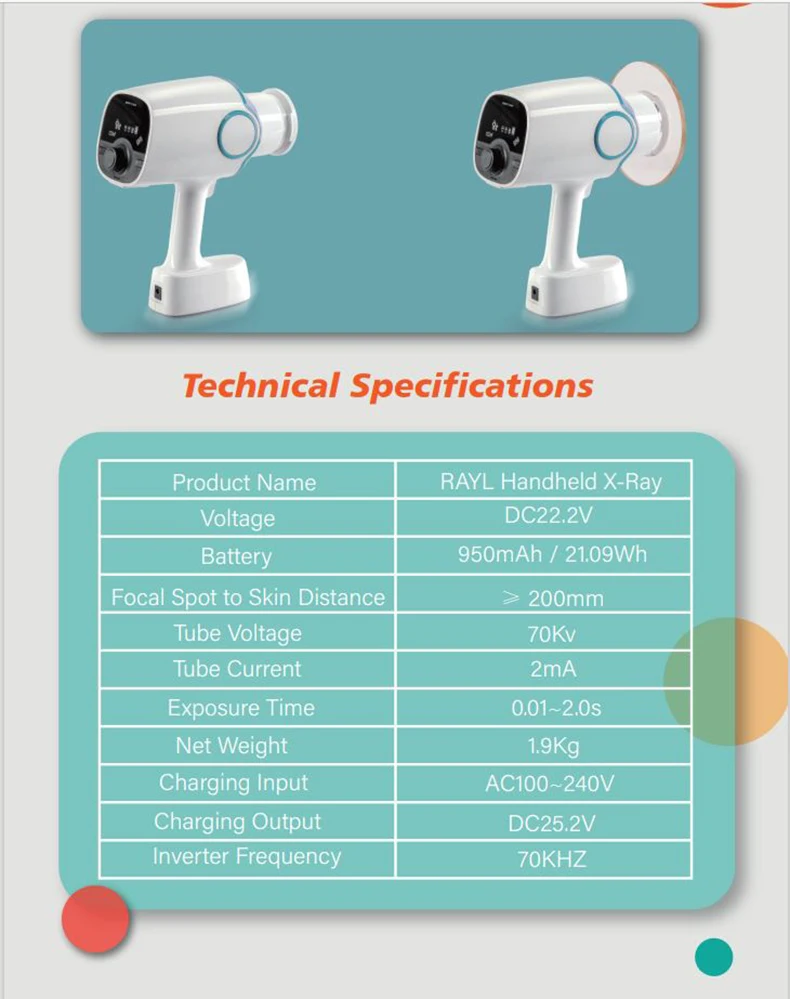

Specification



Power Adapter

Power Input
100-240AC 50HZ 1.6A
Furnace size
Power Output
25.2VDC 1.7A





           High Pressure Generator
Output Power
120W
Power
Tube Voltage
70KV
Maximum heating rate
Tube current:
2.0mA
Working frequency:Maximum vacuum
Working frequency:
70KHZ
Focus-skin Distance:Vacuum level
Focus-skin Distance:
110mm or 200mm
Exposure Time:
0.01-2.0S








                       X-ray Tub
Maximum Working Voltage
70KV
Current
Maximum Working Current
24mA (CP)/12mA (half wave self-rectifying circuit)
Maximum Filament CuPower
Maximum Filament Current
2.9A
Filament Voltage (under maximum filament current 2.9A)
2.4-3.0V
Nominal Focal Spot Value
0.4mm
Target Surface Angle
12°
Inherent Filtration
≥0.75mmA

                       Battery
Battery Capacity
950mAh/21.09Wh
Battery Voltage：
22.2V

            Machine Parameters
Working Mode
Intermittent loadin
Package Size
490*280*410mm
Net Weight:
1.6KG


Packing & Delivery




carton




Company Profile






Anyang Yingpai Dental Material Co.,ltd. ever been named Linzhou Chengjiao Dental Material Co.,ltd, which set up in 1998. It is located in Shangguan Town, Hua County, Anyang city, Henan province, China.

In accordance with the thousand of rusic folkway of central plains. Honest, specialization and high-grade ae our operation object. We specialize in the production and development of the synthetic resin teeth with the precise and keep-high quality, good reputation, best service. We have make a long time business relations with the customers from the Europe market, Asia market, USA market, Africa market and latin America market.

The manufacturing and R&D of the production.

Through choosing the international advanced production principle and technology, we can make each kind synthetic resin teeth. W have 28kinds regular anterior teeth and posterior teeth, of course, we can make the special teeth for you as your order.

Through choosing the international advanced CAD/CAM and vacuum-filling manufacturing process, we make our product to reachthe internation advanced level on the shape, wear-resistance and the shade. Our products are famous for the vivid shape, compact tissue, perfect articulation, strong chew and the clear pronunciation.
