Factory Wholesale 15 HP High Cost effective Air Cooled Water Industrial Chiller For Sale
- Category: >>>
- Supplier: Greengines Industrial (shenzhen) Co. Ltd.
Share on (1600823194166):
Product Overview
Description
Overview
Applicable Industries: Manufacturing Plant, Food . & Beverage Factory, Retail, . . Food Shop, Printing Shops, . . Construction works , Energy . & Mining
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Condition: Screw compressor chiller
Place of Origin: Jiangsu, China
Voltage: 380V/3P/50HZ
Weight: 300 KG
Key Selling Points: Easy to Operate
After-sales Service Provided: Engineers available to . . . service machinery . overseas
voltage: 3P/220v--380v/50hz-60hz
cooling: Air cooled
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Condition: Screw compressor chiller
Place of Origin: Jiangsu, China
Voltage: 380V/3P/50HZ
Weight: 300 KG
Key Selling Points: Easy to Operate
After-sales Service Provided: Engineers available to . . . service machinery . overseas
voltage: 3P/220v--380v/50hz-60hz
cooling: Air cooled
Showroom Location: Egypt, Viet Nam, Kenya
Machinery Test Report: Provided
Core Components: Compressor, condenser, . . evaporator
Type: Water-cooled
Brand Name: JIATE
Machinery Test Report: Provided
Core Components: Compressor, condenser, . . evaporator
Type: Water-cooled
Brand Name: JIATE
Dimension(L*W*H):
Warranty: 1 Year, 12 months
Product name: Circulating Water Chiller
Warranty: 1 Year, 12 months
Product name: Circulating Water Chiller
Compressor brand: Bitzer,Hanbell
type: Screw type
electriacl prats: Schneider brand
Supply Ability
Packaging & delivery
Packaging Details: Cartons packed then with wooden pallet
Port: Shenzhen
Quantity(sets) | 30 | >30 |
Lead time (days) | 25 | To be negotiated |
Details Images
Product Advantage

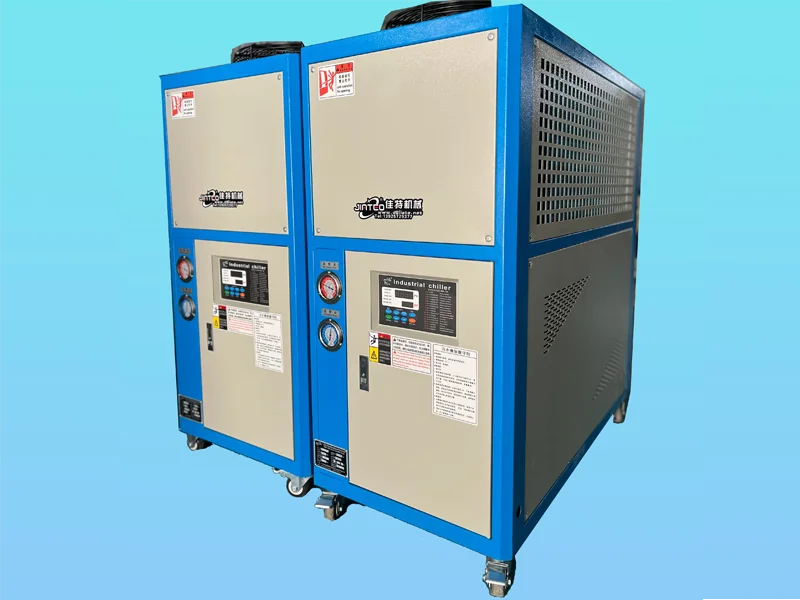

Industrial chiller
Suitable for various industries
Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.
01 Microcomputer LCD Controller
▪ Easy to operate with accuracy of controlling water temperature within 3℃ to 50℃.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
03 Shell&Tube Evaporators
efficiency and maximizing system
performance.

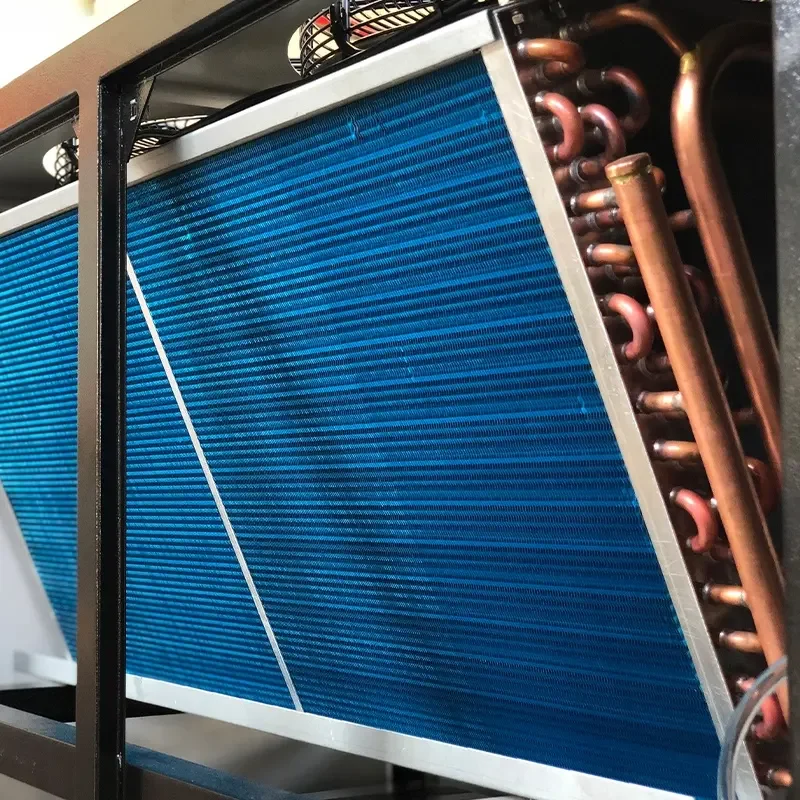

04 V Type Finned condensers
With high efficient fin type condenser and silent refrigeration fan, no need to equip cooling water, easy to install.
05 Water Pump
Advanced stainless steel Oakland water pump, with large working range, low noise, reliable performance and no leakage and
maintenance-free.
06 Protection System
Current overload protection, high and low pressure protection system and electronic time delay, and an abnormal visual display
system.
system.
Specifications
Contents | Accessories specifications | |||
Cold rating system | Model number | JT-15AC | ||
Kcal/h | 37410 | |||
Kw | 43.5 | |||
Input power | kw | 13.8 | ||
Power supply | 3PH/380V/50HZ | |||
Temperature control range (° C) | Adjustable from 5 to 40 degrees | |||
Temperature control accuracy (° C) | ±1 degree | |||
Refrigerant flow control | Capillary | |||
Refrigeration mode/refrigeration loop | Single cooling /3 loop | |||
Refrigerant | R22 | |||
Compressor | Type | Fully enclosed scroll type | ||
Motor power KW | 11KW | |||
Using Brands | Panasonic compressor | |||
Condenser ( | Type | High efficiency finned heat exchanger | ||
Cooling air capacity m³/h | 33000 | |||
Fan power /W | 1.35 | |||
Evaporator | Type | Coil evaporator | ||
Chilled water flow rate (m3/h) | 11 | |||
Chilled water pipe diameter | DN50 | |||
Water tank | Capacity (L) | 260 | ||
Material | 304# Stainless Steel | |||
Freezing circulating pump | Lift (m) | 20 | ||
Motor power (kw) | 1.5 | |||
Flow rate (L/min) | 180 | |||
Exterior size L× W× H(mm) | 1750 x 750 x 1450(not including casters and fans) | |||
Unit weight (Kg) | 580 | |||
Other major parts | ||||
Compressor | Panasonic Compressor from Japan | |||
Pressure controller | Trace cold | |||
Oil-type pressure gauge (high pressure) | Opter | |||
Oil-type pressure gauge (low pressure) | Opter | |||
Filter dryer | Emerson E K 084 USA | |||
Machine ice water circulation nozzle | Stainless steel tube | |||
Control panel | Micro computer version Temperature control | |||
Appliances | Schneider | |||
Blower | Mal ￠ 5 0 0 * 3 | |||
throttling | Capillary | |||
Water pump | 1.5 KW , Aoyuan , Taiwan | |||
Cistern | Water tank refill for automatic refill | |||
Product Packing
Packing Detail:
2.Cartons packed then with wooden pallet.
3.As per customized specifications.
