BMS Lifepo4 Li ion Battery active balancer 3s 4s 5s 6s 8s 10s 12s 16s with BT functionmart battery BMS 2S 24S active balancer
- Category: >>>
- Supplier: Shenzhen Eel Battery Co. Ltd.
Share on (1600823196372):
Product Overview
Description
Product Parameters
Item | General Parameters | ||||||
Model | EEL 4A 24S active equalization balancer | ||||||
Monomer voltage operating range | 1.0~4.5V | ||||||
voltage balance accuracy | ±1mV | ||||||
Balance current | 1~4A | ||||||
Supported String | 8~24S | ||||||
Suitable battery type | LFP/NCM/LTO | ||||||
Material | Plastic & Metal | ||||||

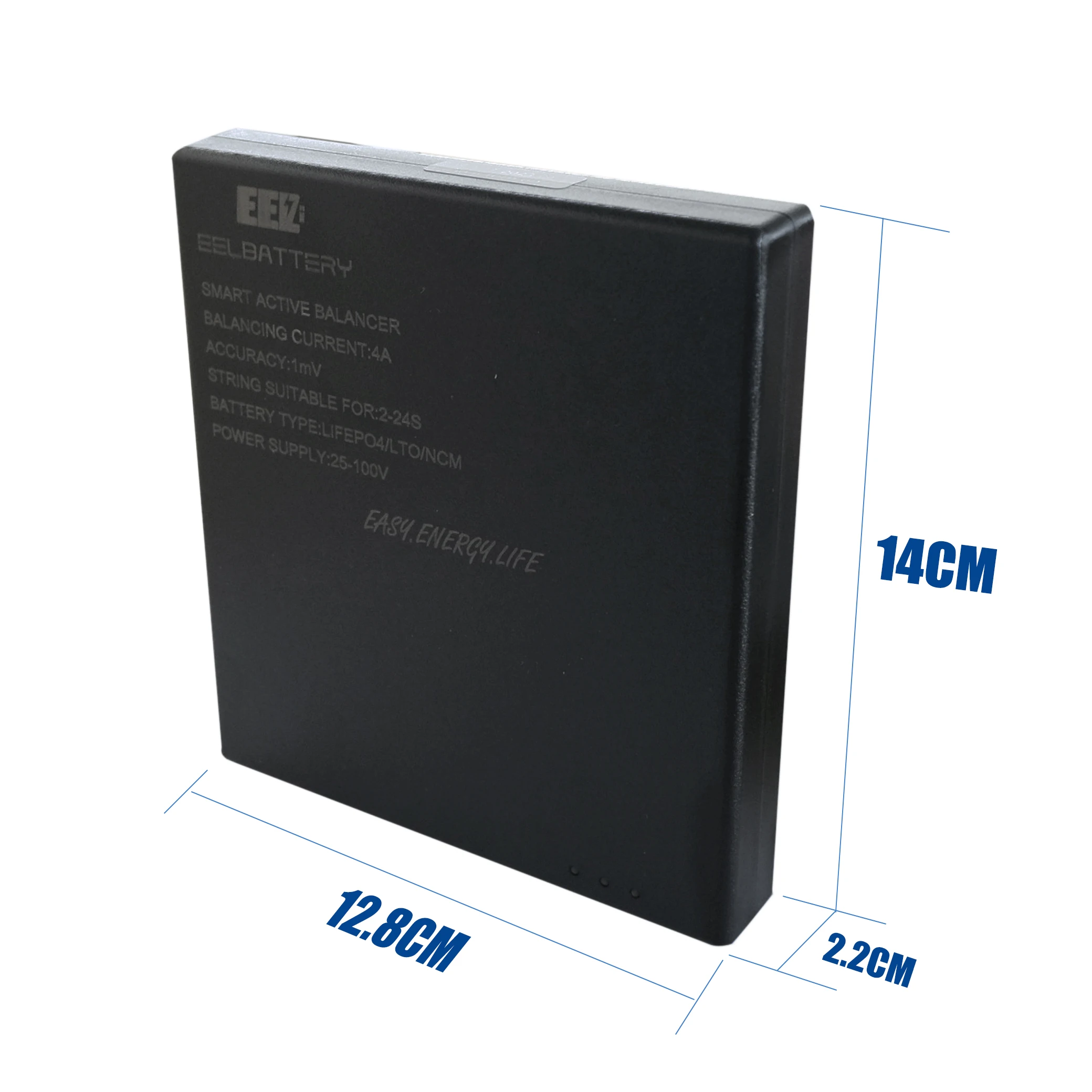

Dimension | 140*128*22mm | ||||||
Static working current | Balance OFF:10mA Balance ON:25mA | ||||||
Working Temperature | -20~55℃ | ||||||
Power Supply | It is recommended the min total voltage of: Battery pack:＞30V Lithium ion battery:≥10S LiFePO4 battery:≥12S LTO battery:≥20S | ||||||
Application | LTO, lithium-ion, LifePO4 battery packs | ||||||
IOS system please search "GeeWEBMS" in App store.
Android App download address pls contact us to get.
It supports the cascade mode please check the wiring above. If you need to use equalizer on your car, please operate according to the wiring diagram. We have taken the wiring diagram example of 24s cascading 36s, which theoretically supports infinite cascading.
Super capacitor active equalization principle
The basic principle of the active equalization technology is to use the ultra-pole capacitor as a temporary energy storage medium,charge the battery with the highest voltage to the ultra-pole capacitor, and then release the energy from the ultra-pole capacitor to the battery with the lowest voltage. equal. The constant current DC-DC technology ensures that the current is constant regardless of whether the battery is charged or discharged. The advantages of this equalization solution are as follows:
1. Each time the energy is transferred, the highest compensation is taken to the lowest, which avoids invalid charge and discharge cycles and has almost no impact on battery life.
2. Cross-flow DC-DC technology ensures a constant equalization current, and will not affect the equalization ability due to the small voltage difference between the batteries.
3. It takes only two energy transfer processes to complete the equalization of the battery from high to low, and the equalization efficiency is not affected by the distance between the batteries, which greatly improves the equalization efficiency. The average efficiency is 0.95 squared to approximately 0.9
Android App download address pls contact us to get.
It supports the cascade mode please check the wiring above. If you need to use equalizer on your car, please operate according to the wiring diagram. We have taken the wiring diagram example of 24s cascading 36s, which theoretically supports infinite cascading.
Super capacitor active equalization principle
The basic principle of the active equalization technology is to use the ultra-pole capacitor as a temporary energy storage medium,charge the battery with the highest voltage to the ultra-pole capacitor, and then release the energy from the ultra-pole capacitor to the battery with the lowest voltage. equal. The constant current DC-DC technology ensures that the current is constant regardless of whether the battery is charged or discharged. The advantages of this equalization solution are as follows:
1. Each time the energy is transferred, the highest compensation is taken to the lowest, which avoids invalid charge and discharge cycles and has almost no impact on battery life.
2. Cross-flow DC-DC technology ensures a constant equalization current, and will not affect the equalization ability due to the small voltage difference between the batteries.
3. It takes only two energy transfer processes to complete the equalization of the battery from high to low, and the equalization efficiency is not affected by the distance between the batteries, which greatly improves the equalization efficiency. The average efficiency is 0.95 squared to approximately 0.9
Application
Customers Feedback

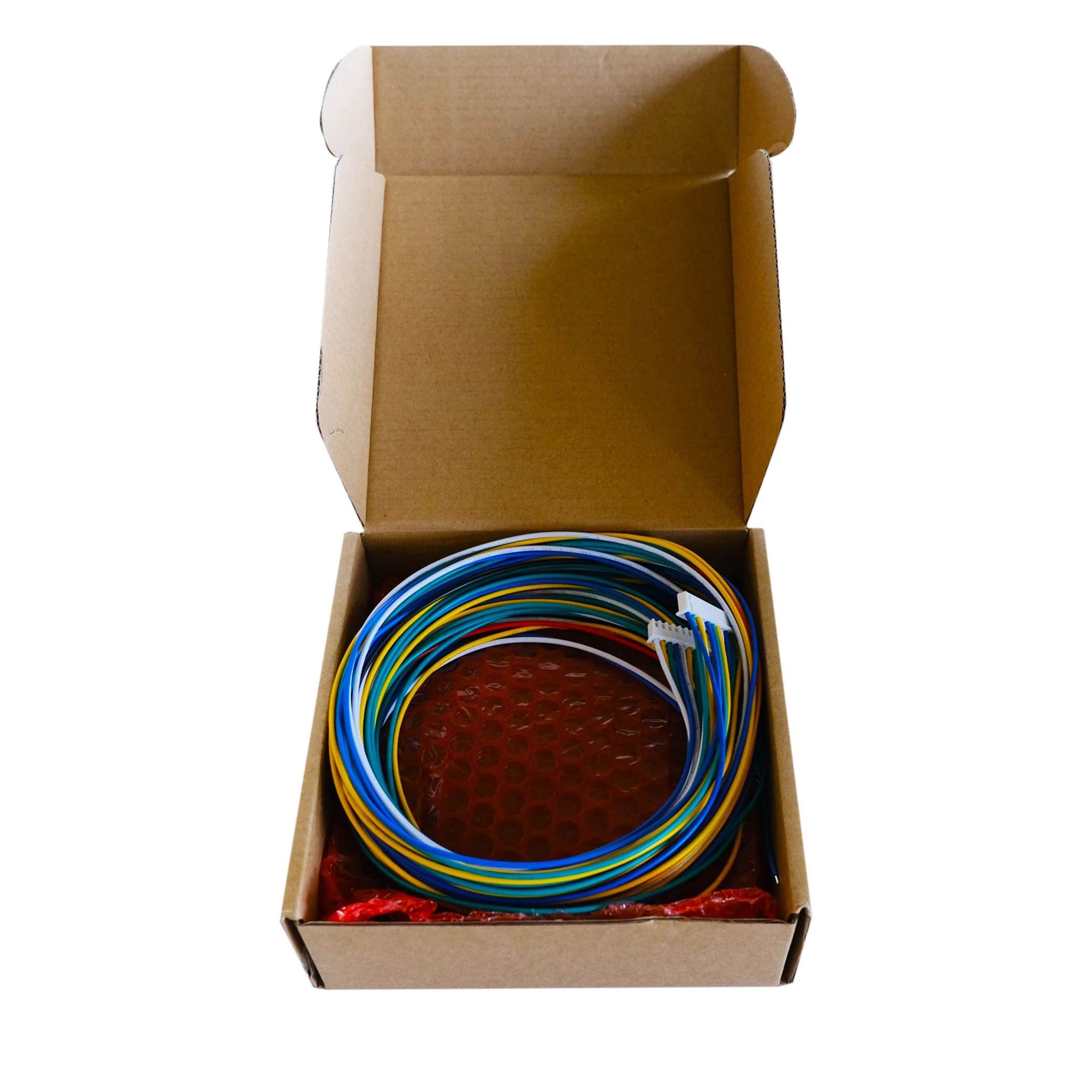

Packing and Shipping
Company Profile
Shenzhen EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS, UN38.3, CE, UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical device. Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!
FAQ
Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
Q: What is the shipping time limit for battery kit?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 7-12 days (EU), 10-20 days (USA).
