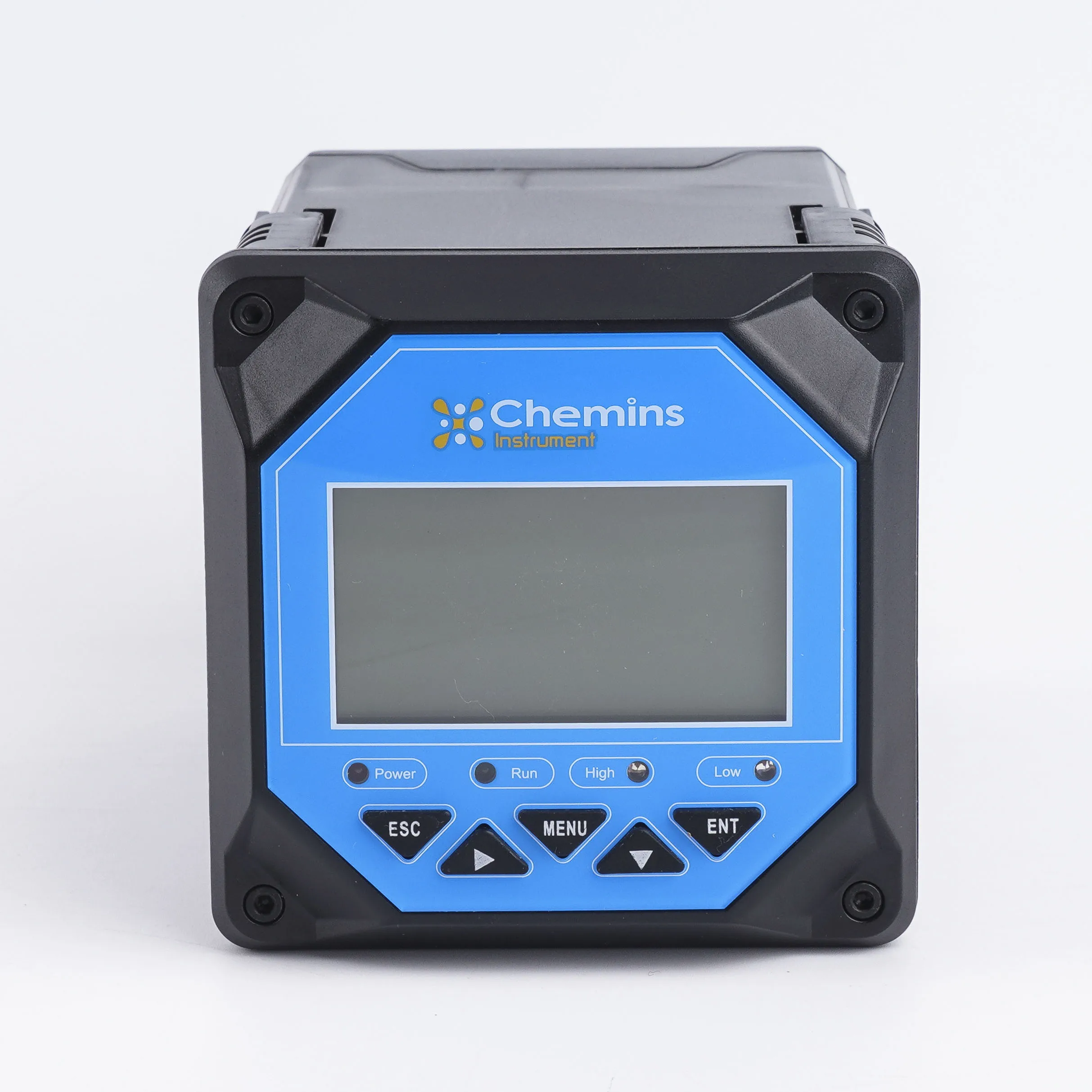

Online TSS/ MLSS Turbidity Meter /controller / transmitter water quality Turbidity testing equipment
- Category: >>>
- Supplier: Yantai Chemins Instrument Co. Ltd.
Share on (1600823244015):
Product Overview
Description
Product Description

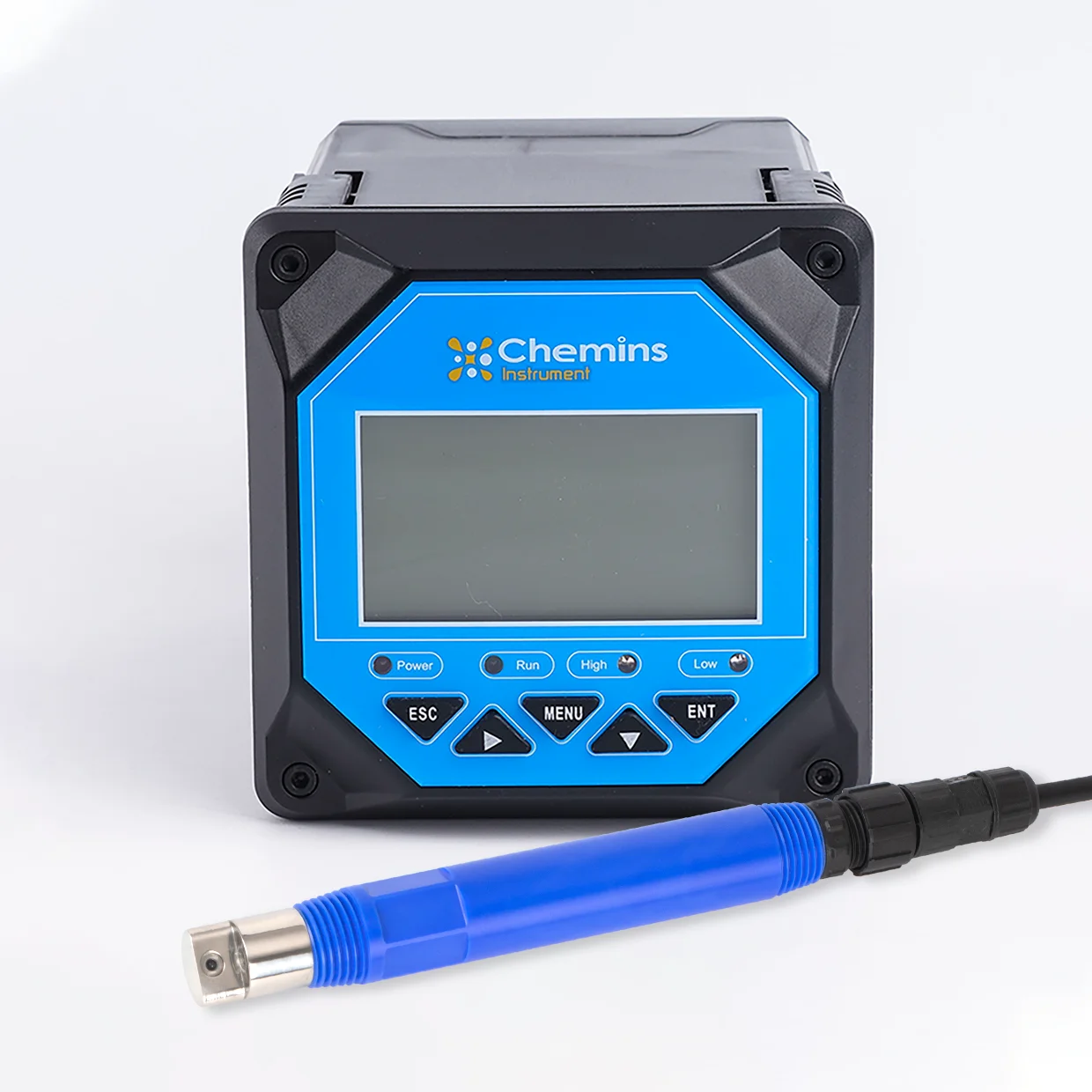

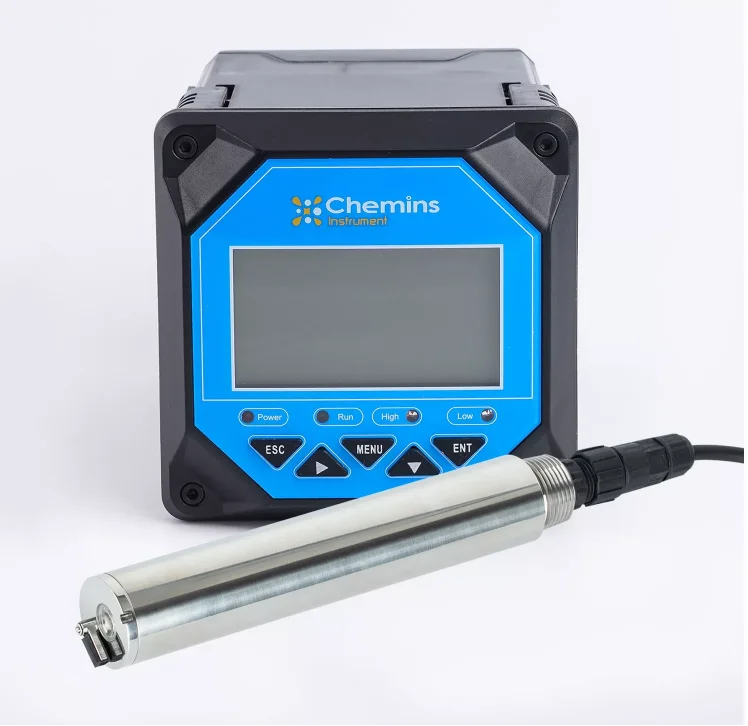

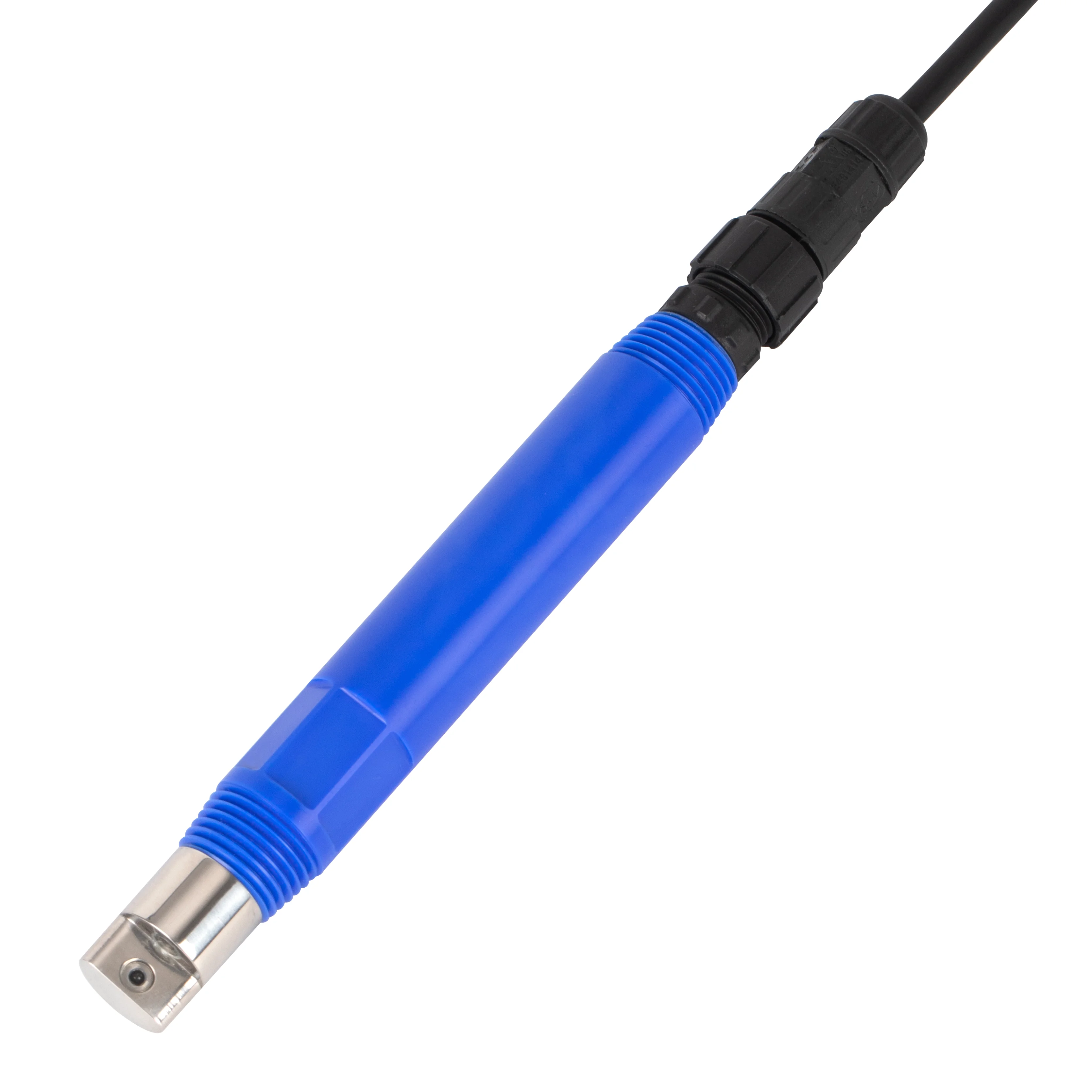

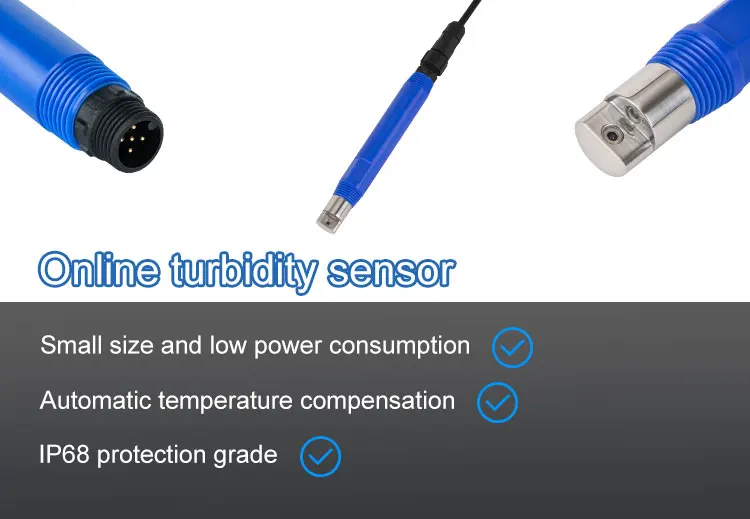

Online turbidity sensor.
iZS-306 integral line turbidity sensor design uses the principle of scattered light produced by turbidity measurement. When the one beam is incident on water samples, water samples since the light scattering turbidity substance, by measuring the scattered light intensity of the incident light in the vertical direction, and alignment of the internal calibration value, thereby calculating the turbid water sample degree, the final processed output linearized value.
1、90 ° angle scattered light principle, built-in temperature sensor
2、Supports RS-485, Modbus / RTUprotocol
3、Fiber structure, external light anti-interference ability
4、Infrared LED light source, high stability
5、IP68 protection class.The water depth is within 20 meters
6、Convenient, fast, stable, easy to maintain
Company Profile
Specification
Model | iZS-306 |
Measuring principle | Light scattering method |
Measuring range | 0～100NTUor 0～1000NTU |
Resolution | 0.01NTU,0.1℃ |
Accuracy | ±3% or ≦±3NTU, is subject to the larger, ±0.5℃ |
Calibration methods | Two-point calibration |
Temperature compensation | Automatic temperature compensation (Pt1000) |
output method | RS-485 (Modbus / RTU) |
Working conditions | 0 ~ 50 ℃, <0.2MPa |
Storage temperature | -5 ~ 65 ℃ |
Mounting | Immersion installation |
Power | 0.1W@12V |
Power supply | 12~24VDC |
Protection class | IP68 |
