Factory geotextile 300g Composite polyester Geogrid 100kn for retaining wall
- Category: Earthwork Products >>>
- Supplier: Feicheng,Boyuan,Geosynthetics,Co.,Ltd
Share on:
Product Overview
Description
Product Description
Product Name | PET Geogrid |
Color | Black |
Size | 3.95*50,3.95*100 |
Specifications | 15kn,20kn,80kn-30kn,100kn-30kn |
Material | Polyester Fiber |
Service | 24 Hours Online Service |
Quality | high-quality |
Instruction

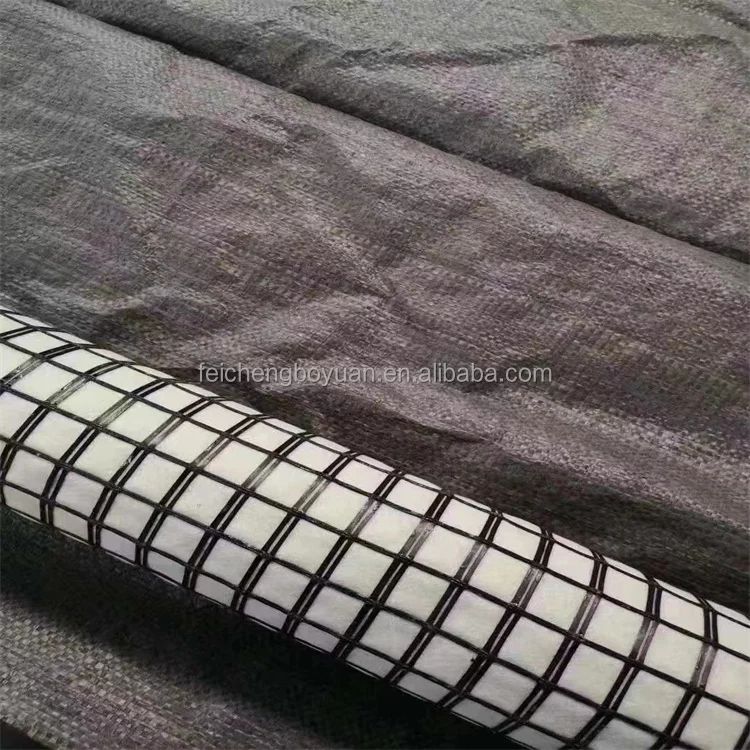

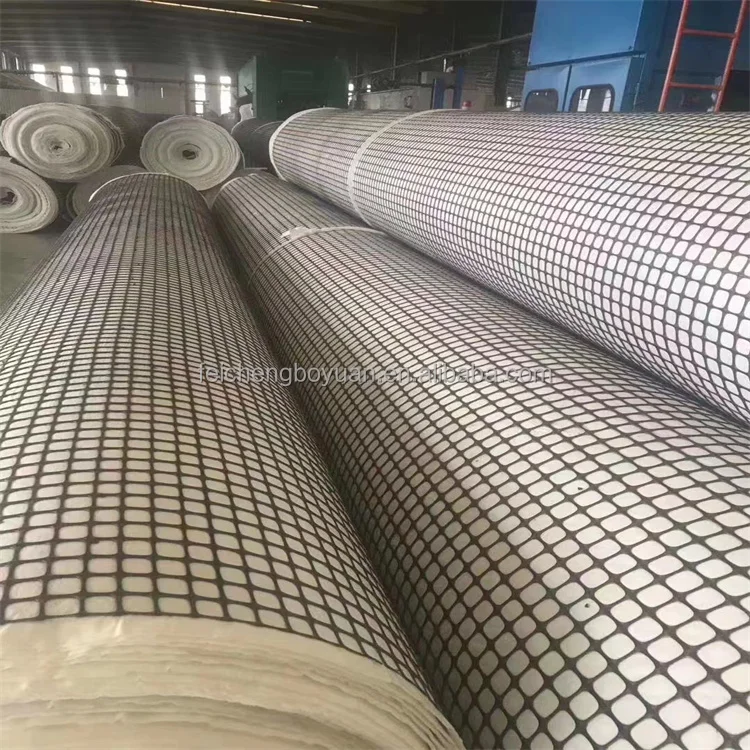

The warp-knitted Polyester geogrid is a new type of high-quality geosynthetics material for strengthening subgrade. high-strength polyester fiber or polypropylene fiber is selected as raw material and the warp-knitted directional structure is adopted, the WARP and weft yarns in a fabric are bound together with high-strength filaments at the point of intersection without bending each other, forming a strong bond and giving full play to its mechanical properties.
Product features
product width: 1-6m
warp-knitted Polyester Grid has high tensile strength, low elongation, corrosion resistance, aging resistance, and the base
material has a strong bite force, light weight, drainage, and other characteristics. The soft sub grades of various high grade
roads and railways are strengthened with various kinds of subsoil materials; the reinforcement, isolation and reinforcement of
embankments and river courses in the hydraulic engineering are used to strengthen the soft subsoil foundation, enhance its
protection capacity, and improve its bearing capacity and stability; Used for reinforcing embankment slope, retaining wall
reinforcement, enhance the overall strength.
warp-knitted polyester geogrid Installation
The geogrid should be laid on the coarse stone of the asphalt layer of the construction road surface. The original road surface
should be levelled first, and then constructed after finishing, dressing and cleaning, ordinary grid needs special steel nails to
be fixed grid lap joint, the joint is more than 5 cm, longitudinal more than 10 cm paving asphalt treated geogrid as little as
possible asphalt sticky layer oil, using self-adhesive geogrid construction, after moderately rolled by rubber roller, the asphalt
mixture can be spread and compacted without special steel nails.
product width: 1-6m
warp-knitted Polyester Grid has high tensile strength, low elongation, corrosion resistance, aging resistance, and the base
material has a strong bite force, light weight, drainage, and other characteristics. The soft sub grades of various high grade
roads and railways are strengthened with various kinds of subsoil materials; the reinforcement, isolation and reinforcement of
embankments and river courses in the hydraulic engineering are used to strengthen the soft subsoil foundation, enhance its
protection capacity, and improve its bearing capacity and stability; Used for reinforcing embankment slope, retaining wall
reinforcement, enhance the overall strength.
warp-knitted polyester geogrid Installation
The geogrid should be laid on the coarse stone of the asphalt layer of the construction road surface. The original road surface
should be levelled first, and then constructed after finishing, dressing and cleaning, ordinary grid needs special steel nails to
be fixed grid lap joint, the joint is more than 5 cm, longitudinal more than 10 cm paving asphalt treated geogrid as little as
possible asphalt sticky layer oil, using self-adhesive geogrid construction, after moderately rolled by rubber roller, the asphalt
mixture can be spread and compacted without special steel nails.
Main products
Company Profile
Certifications
Packing&Shipping
FAQ
1.What is your packaging?
Strips packaging or Pallet Packaging
Strips packaging or Pallet Packaging
2.How long is the lead time?
10-15 days after receiving the deposit payment.
10-15 days after receiving the deposit payment.
3.What is your producing capacity?
100000m2 per week.
100000m2 per week.
4.What is the payment?
TT 30% as the deposite and the balance before shipment or L/C.
TT 30% as the deposite and the balance before shipment or L/C.
